Approx. 5 hours continuous use; auto power off after 30 minutes idle.

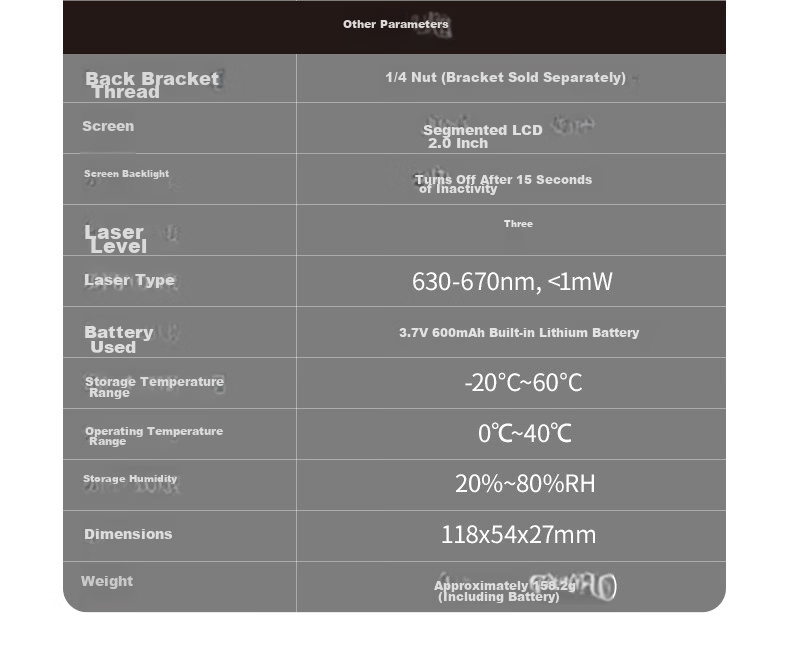

Operating Temperature
0°C to 40°C.
Storage Temperature
-20°C to 60°C.
Humidity
20% to 80% RH.

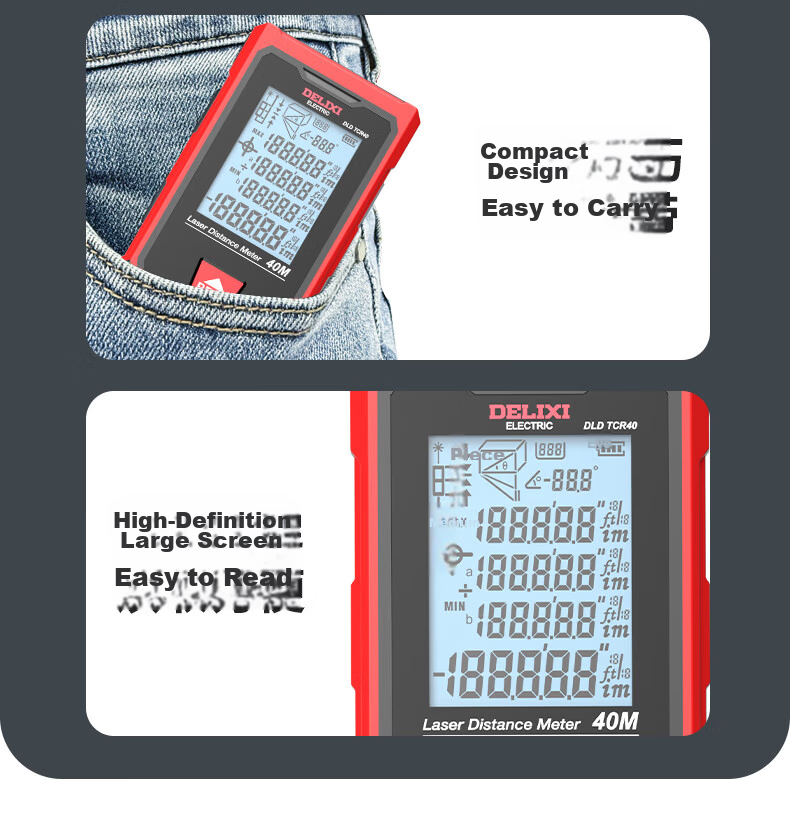

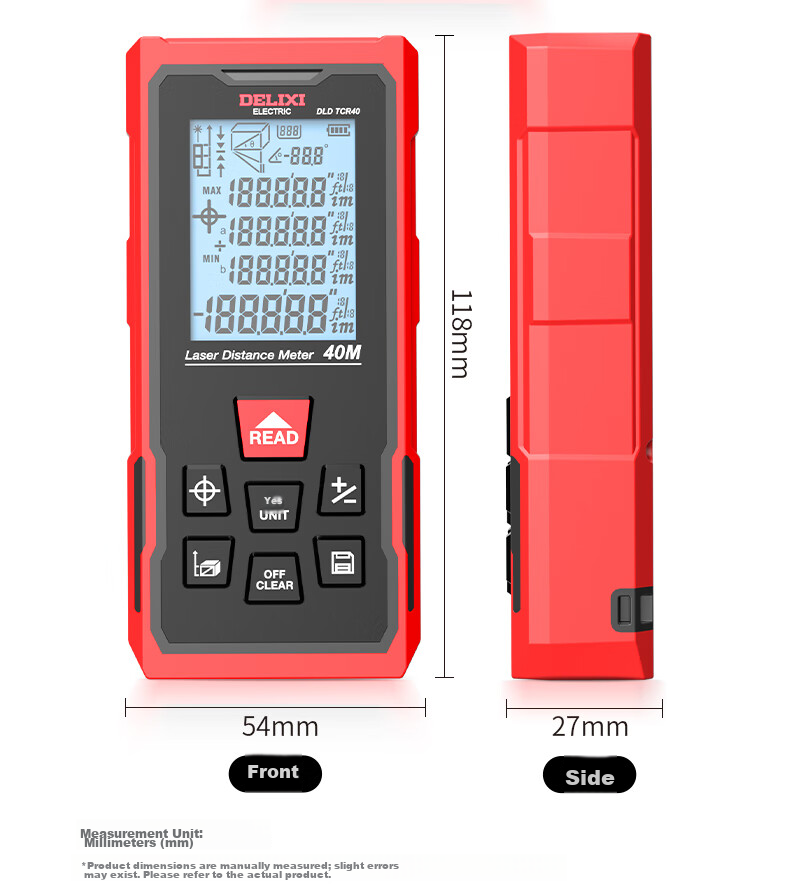

Dimensions
118 mm x 54 mm x 27 mm.
Weight
Approx. 158.2 g (including battery).

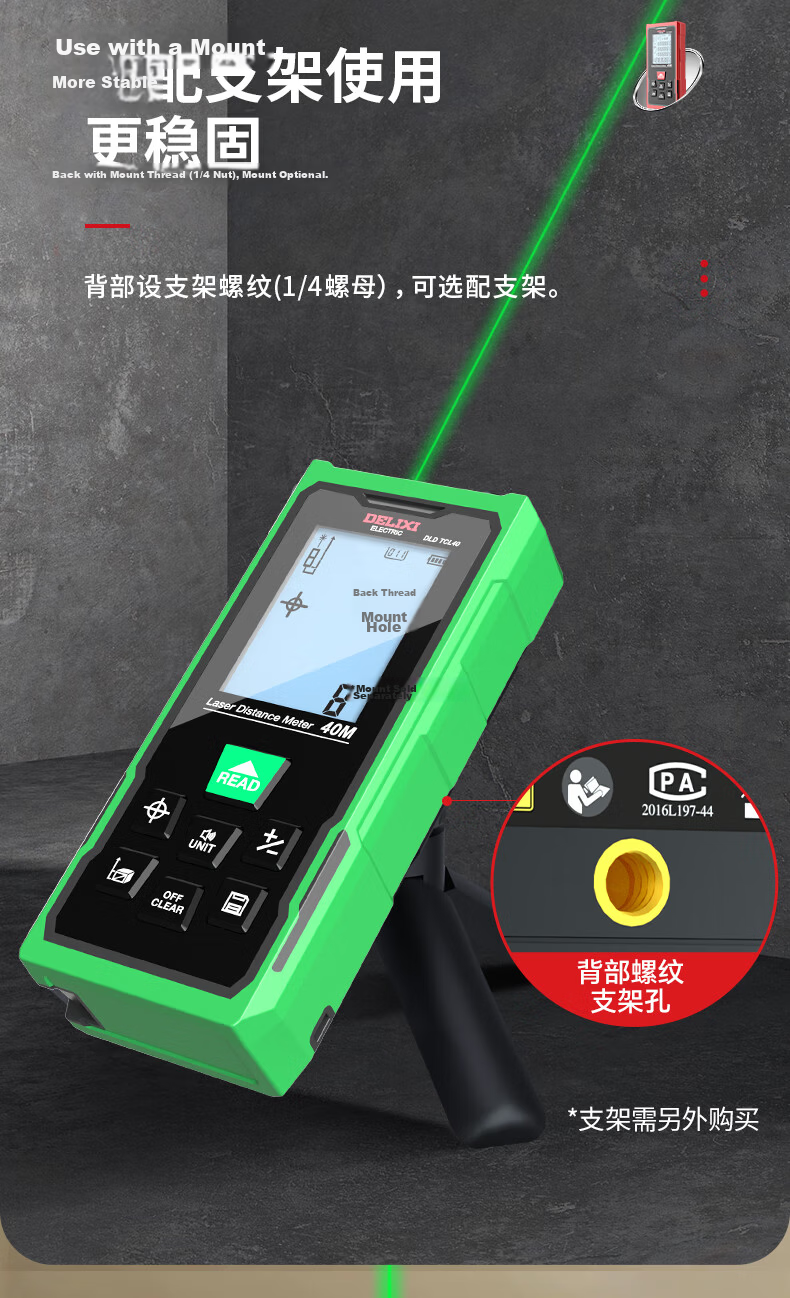

Back Mount
1/4" threaded hole for optional tripod mounting (tripod sold separately).
User Interface

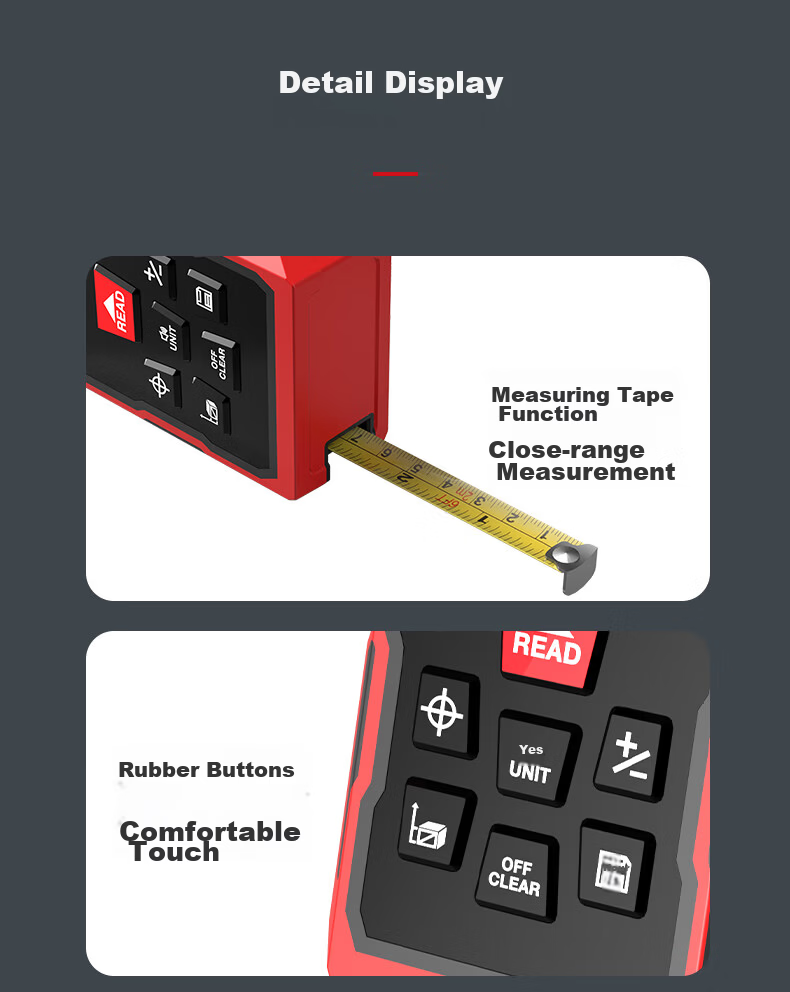

Rubber tactile buttons for comfortable operation; functions include unit switching, clear, power on/off.
Measurement Range
Laser distance up to 40 m (models available up to 100 m).

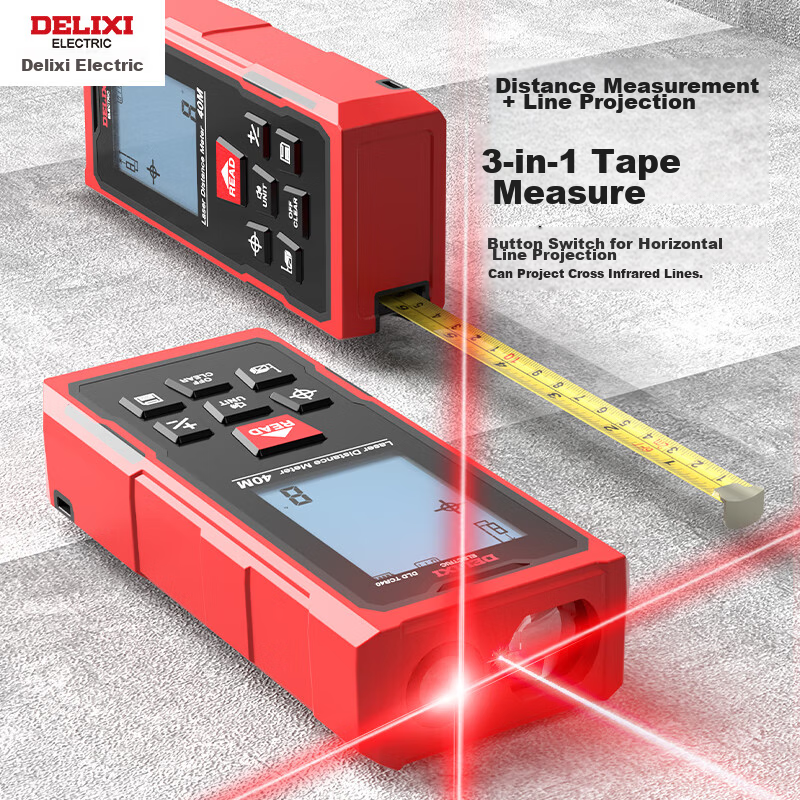

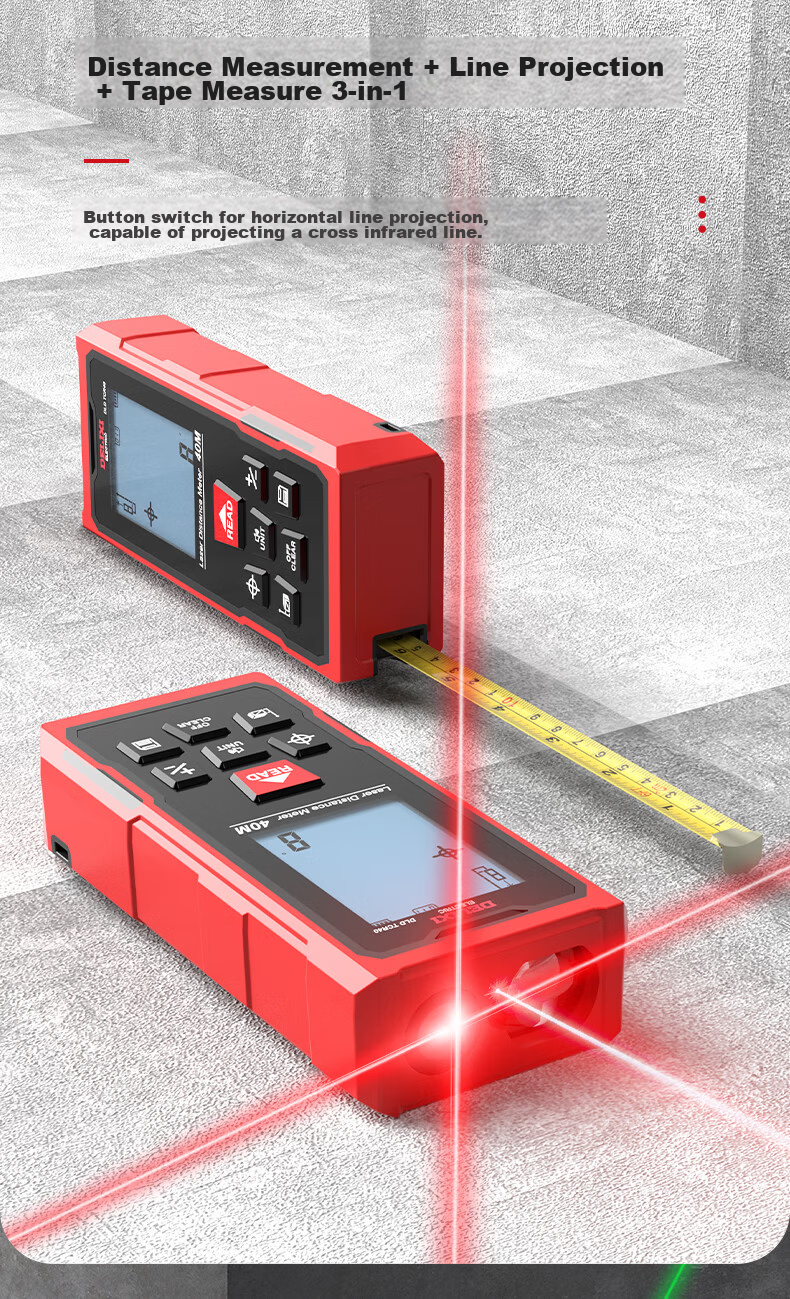

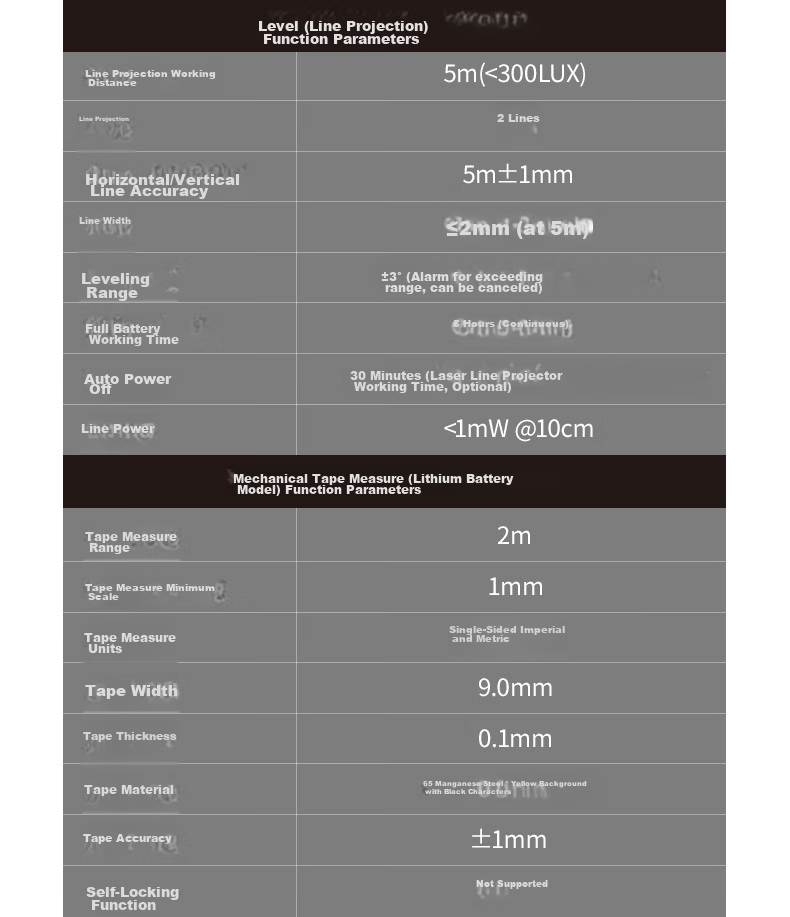

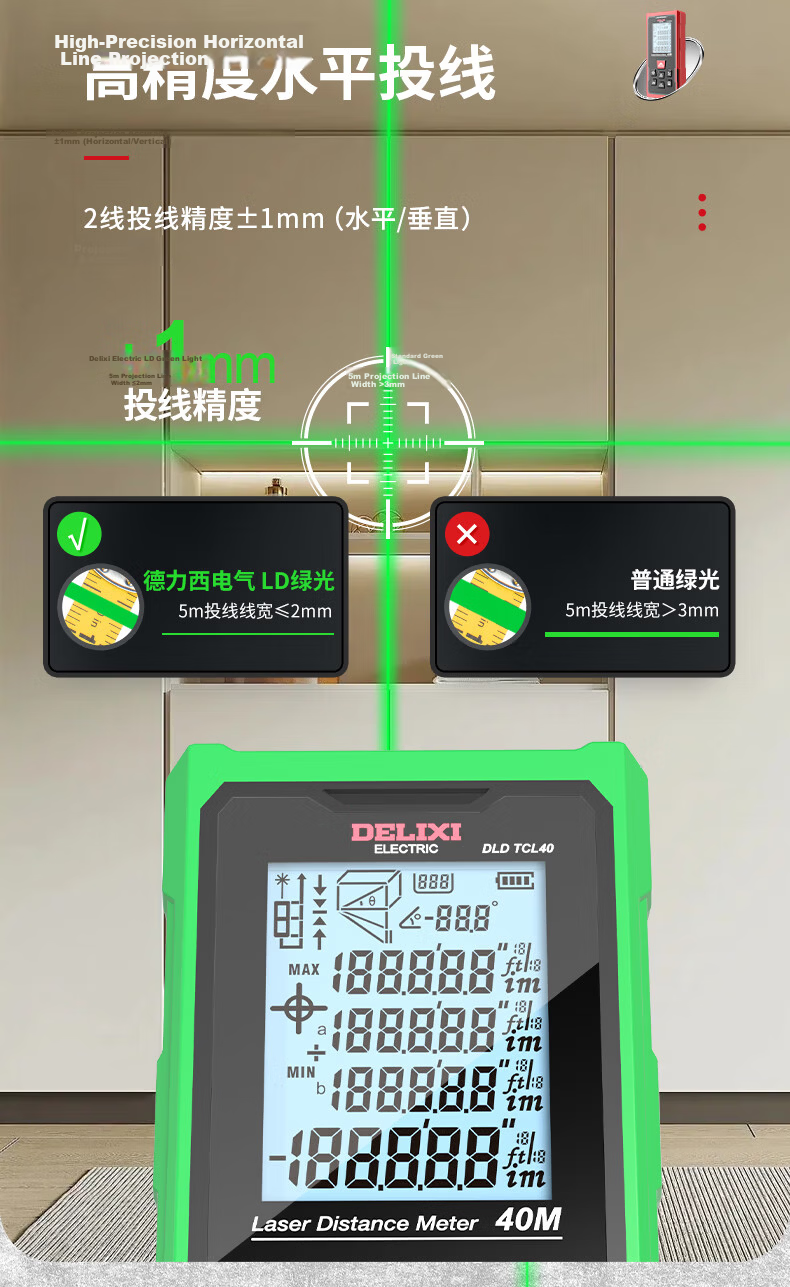

Line Projection Distance
Up to 5 m with line width ≤2 mm at 5 m (green laser models).
Alarm Functions

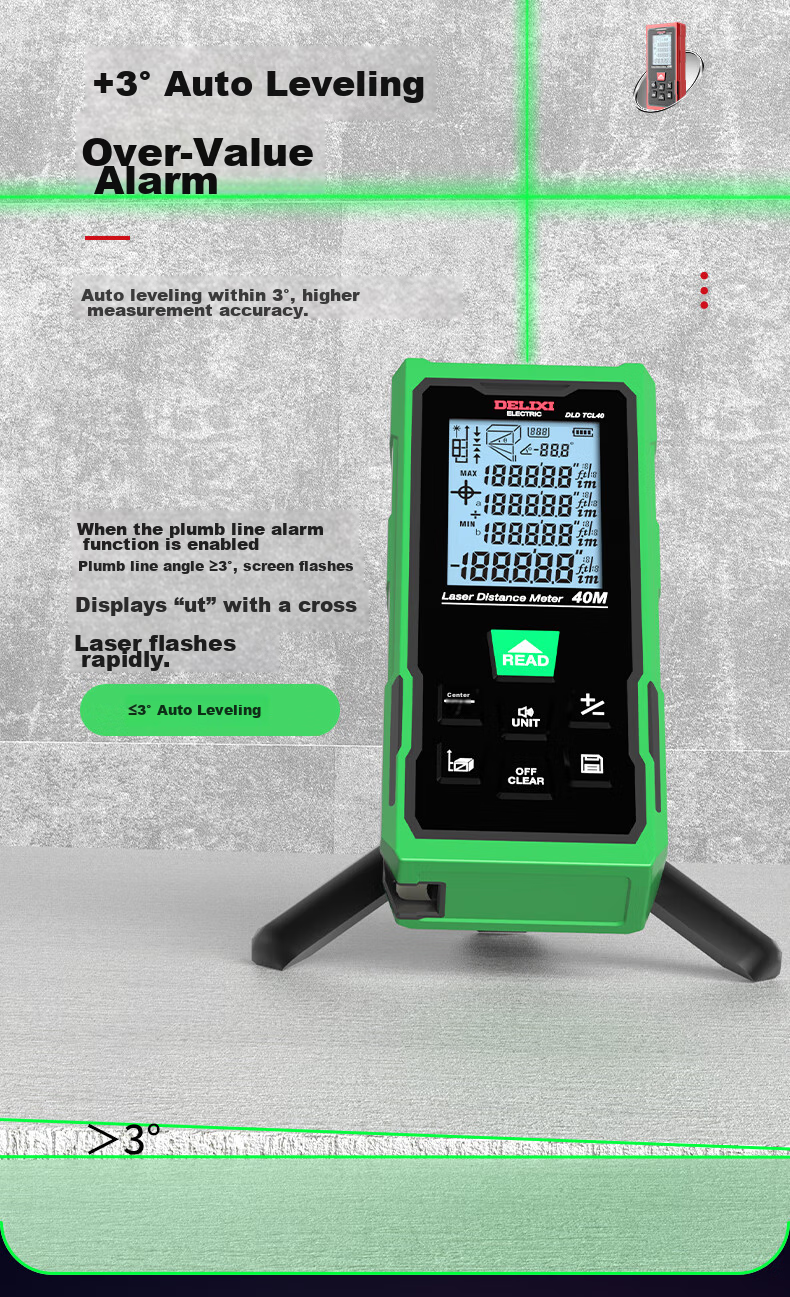

Angle alarm for line projection exceeding ±3°, laser flashing warning.

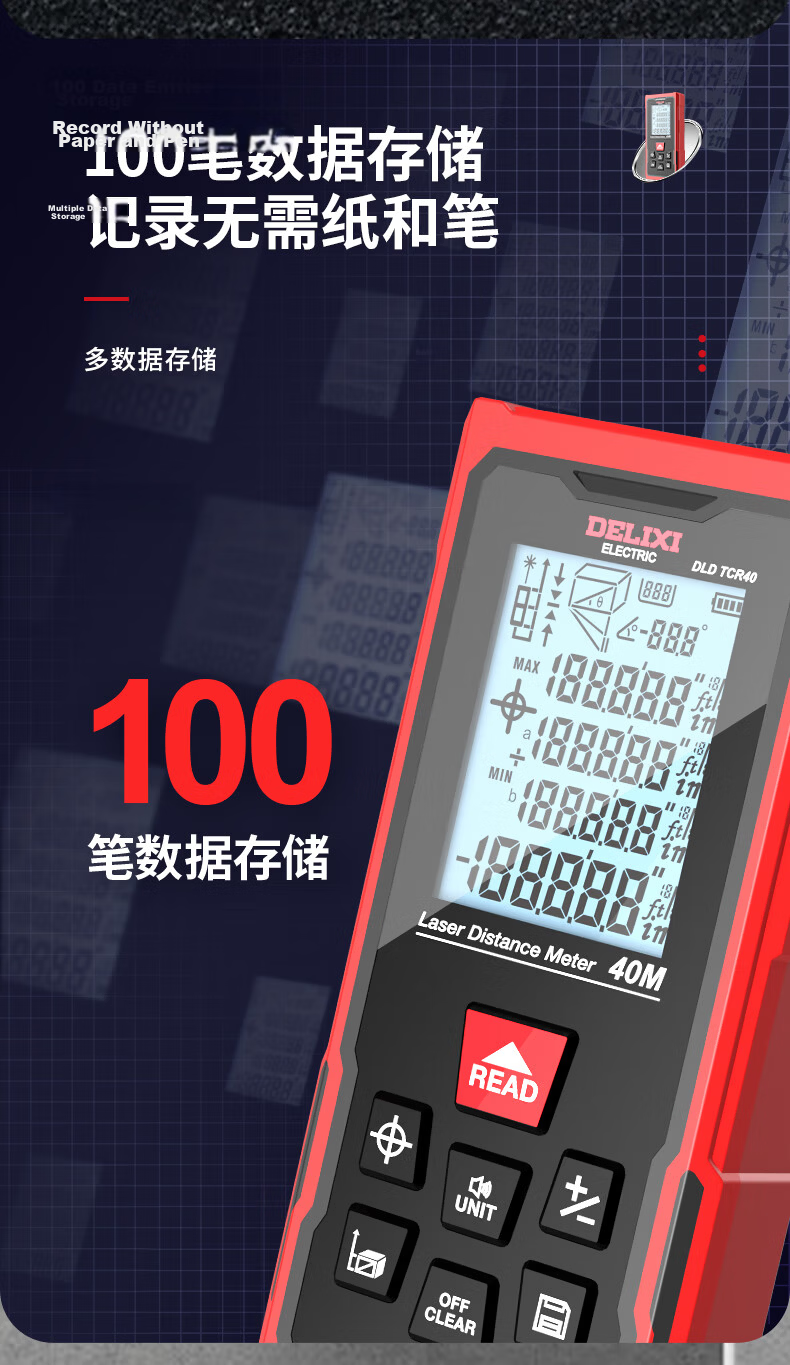

Data Storage Capacity
100 measurement records.
Additional Features

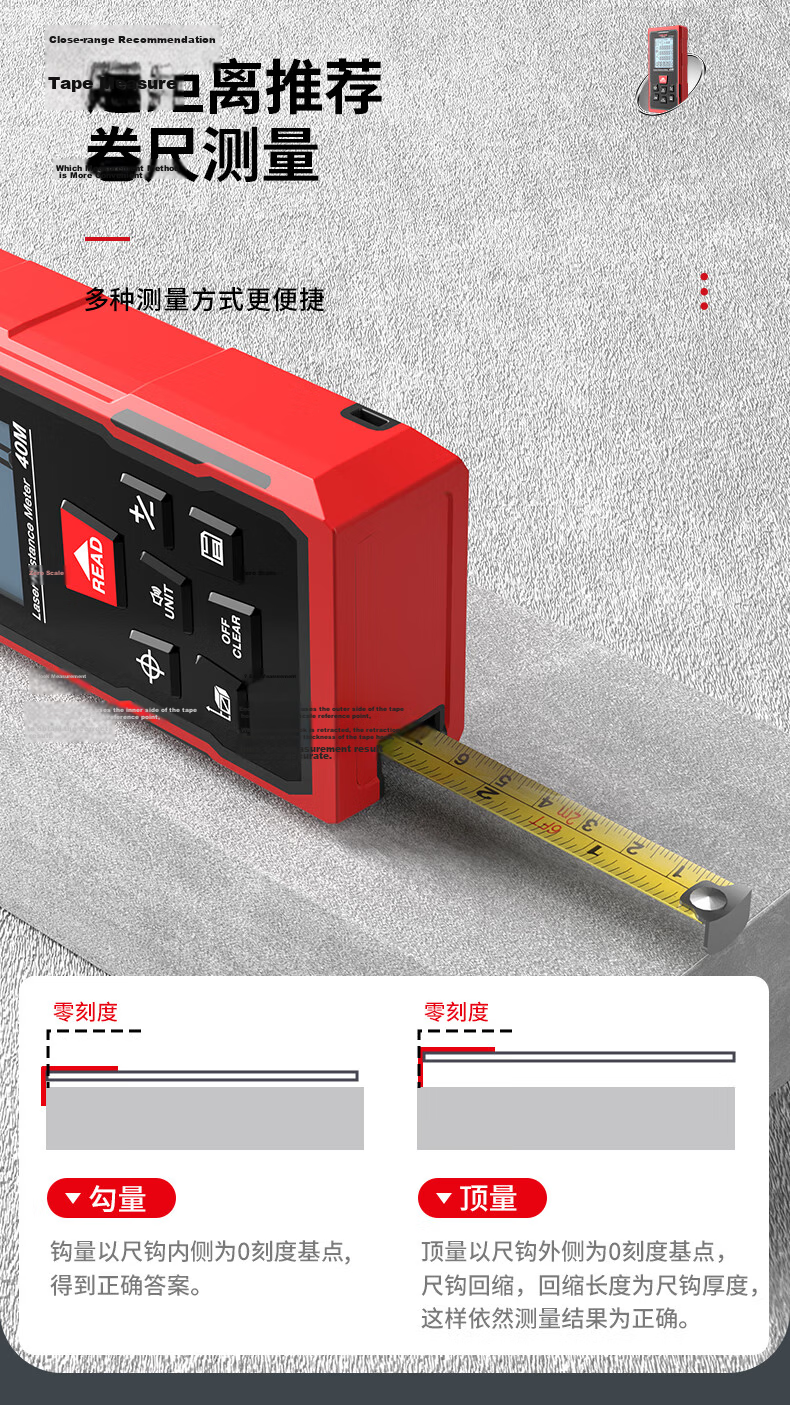

Zero scale adjustment for tape measure (hook inside/outside zero point)
Tape hook retraction compensation

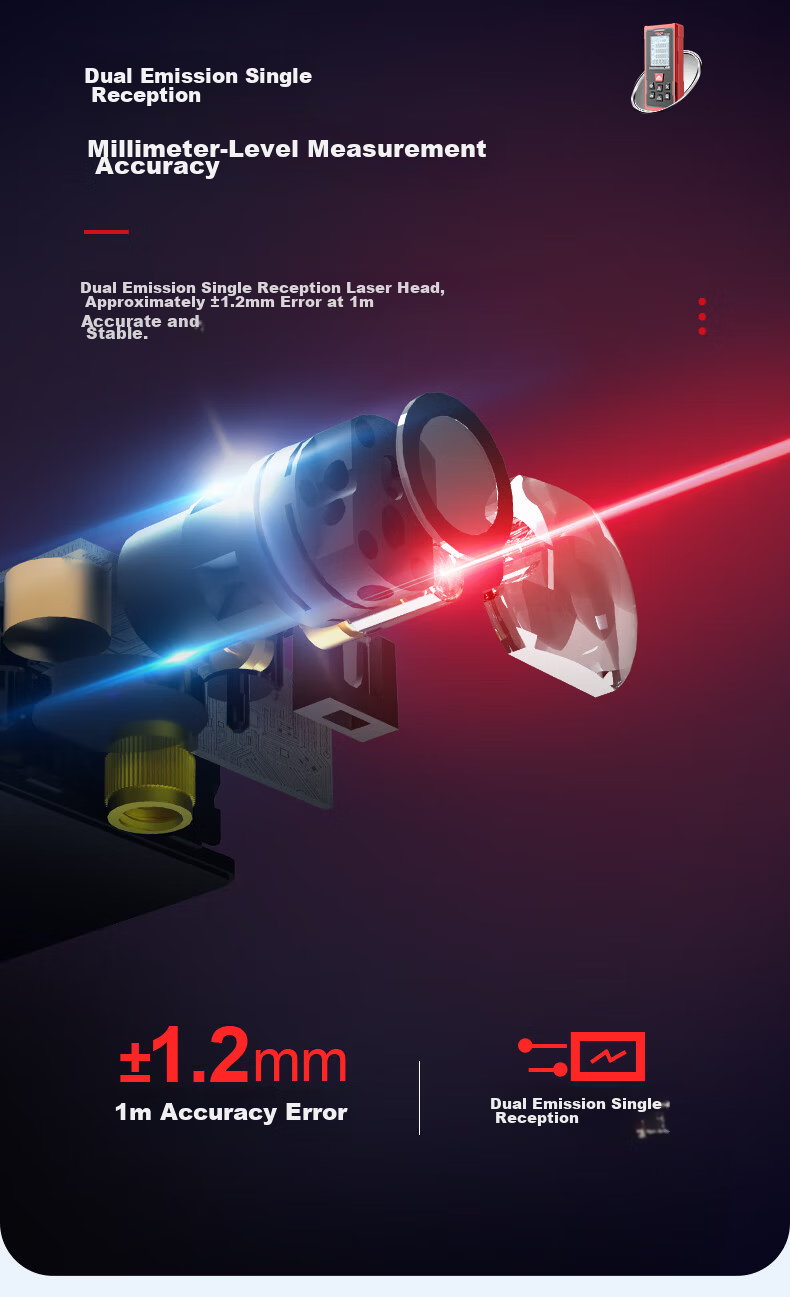

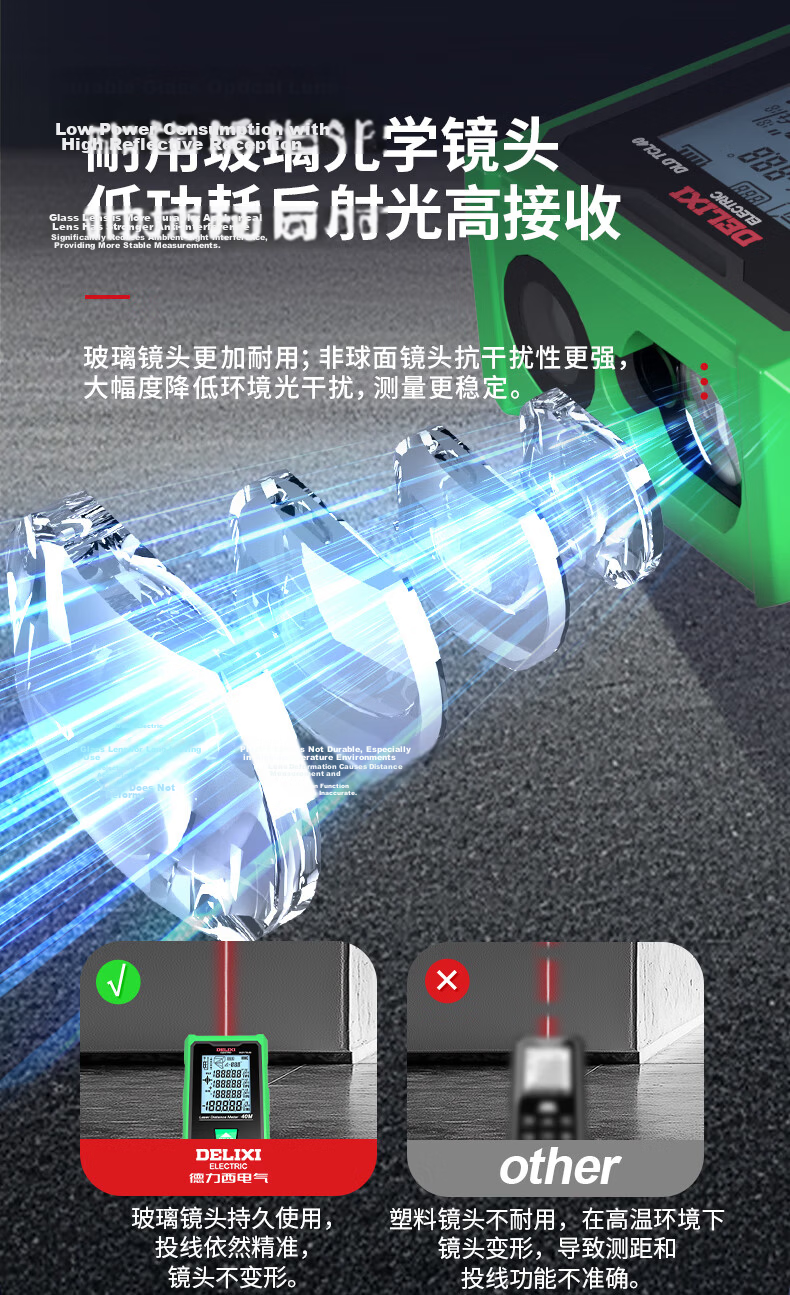

Low power consumption reflective laser reception.

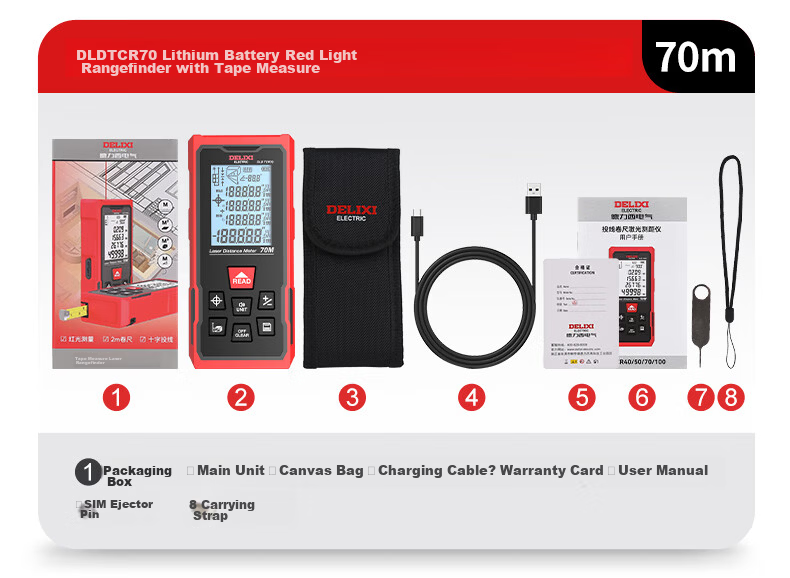

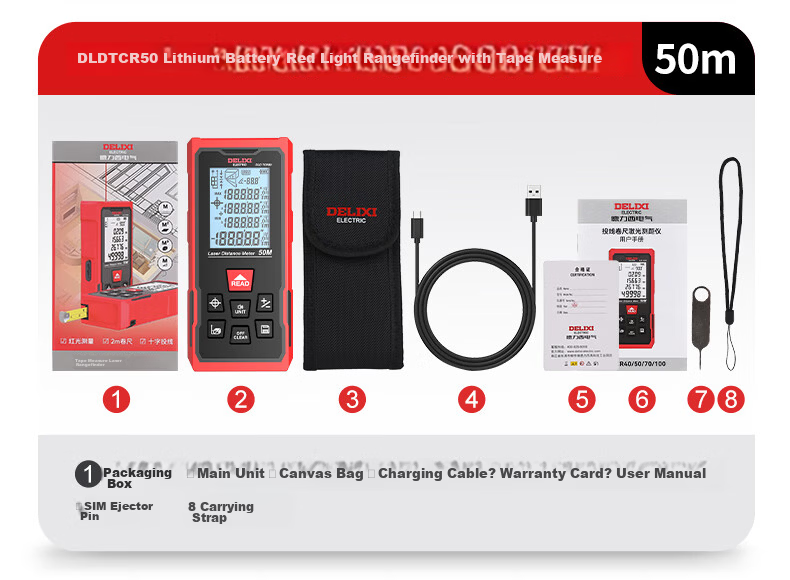

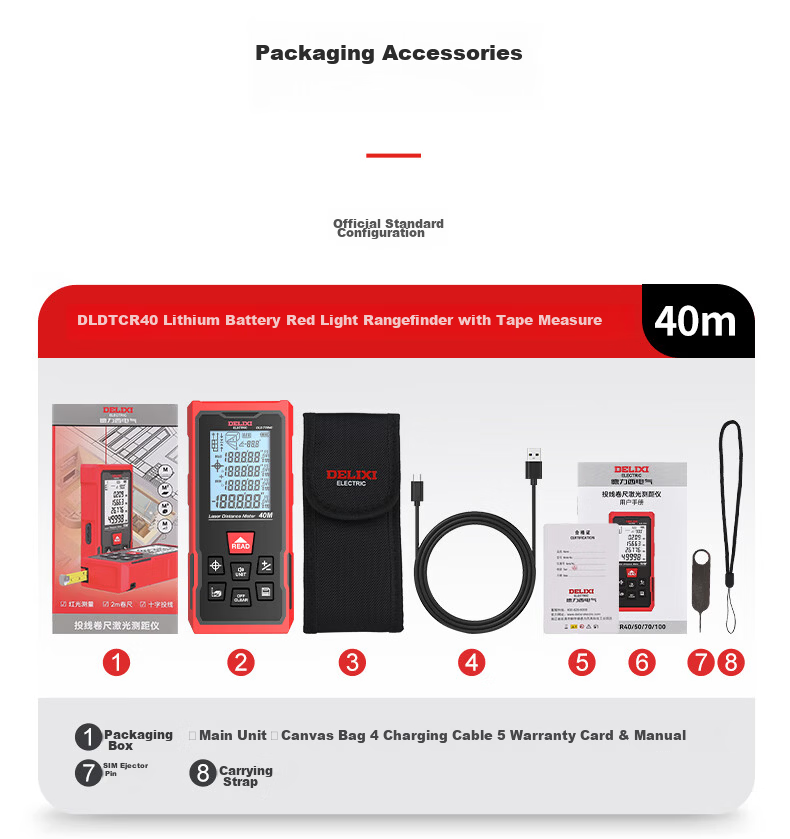

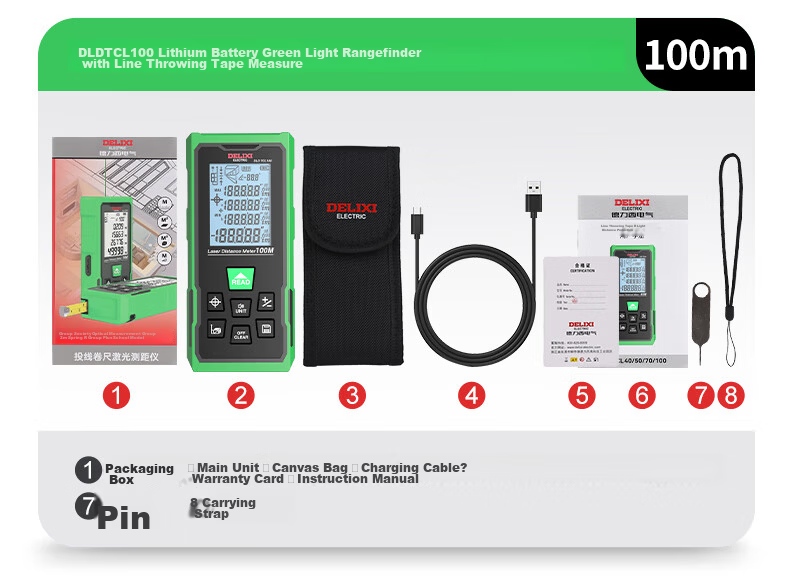

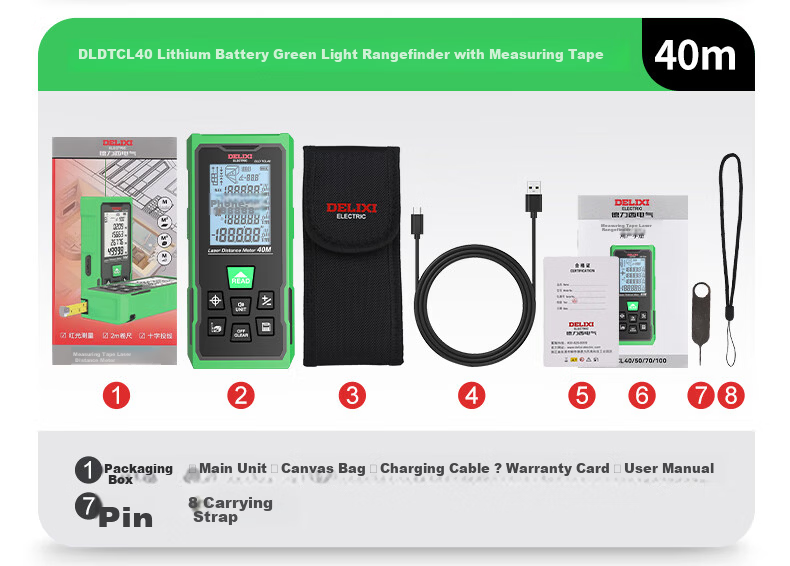

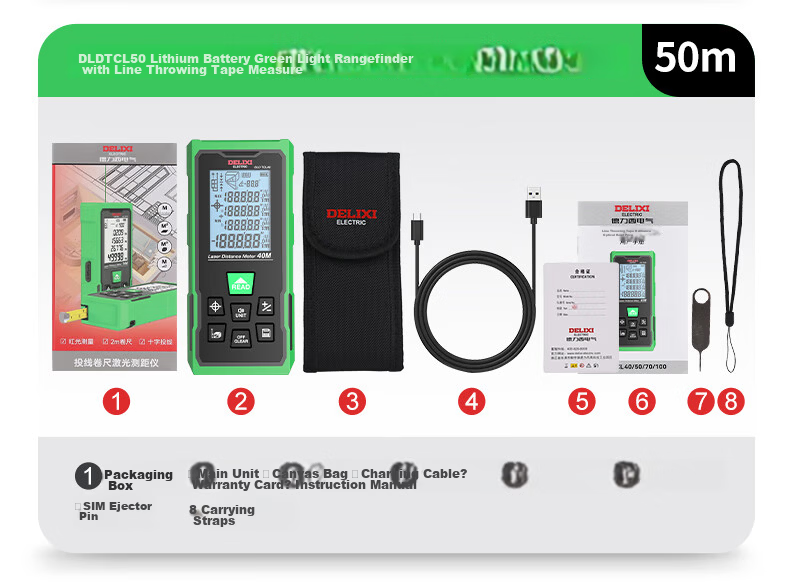

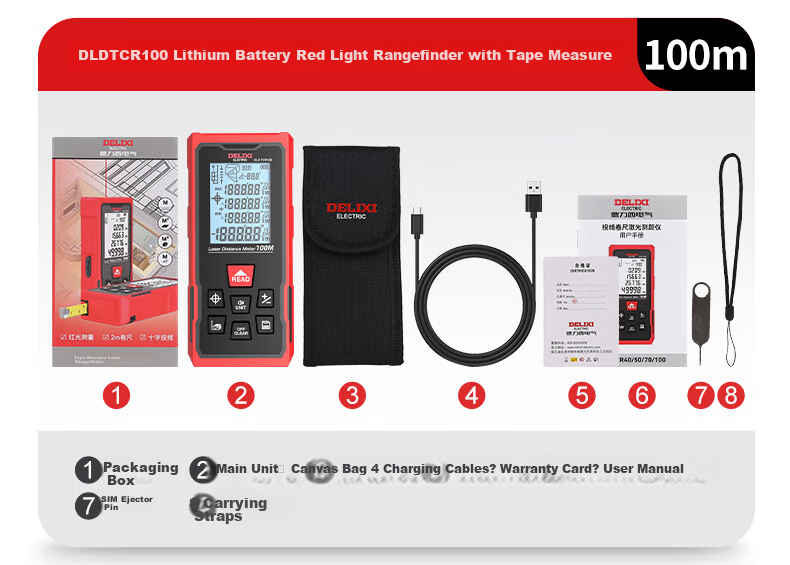

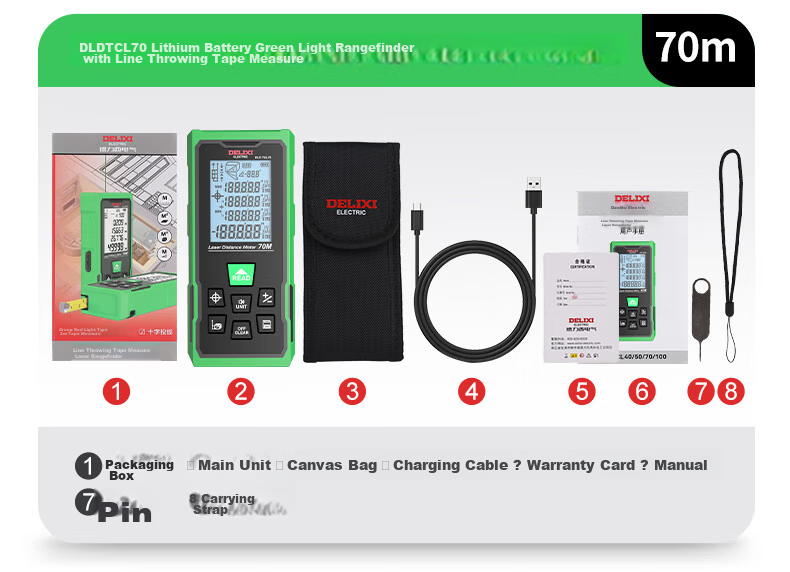

Main unit (Laser Distance Meter with line projection and tape measure)
Canvas carrying bag
Charging cable
Warranty card
User manual
SIM card pin
Hand strap
Additional details
DLDTCR40

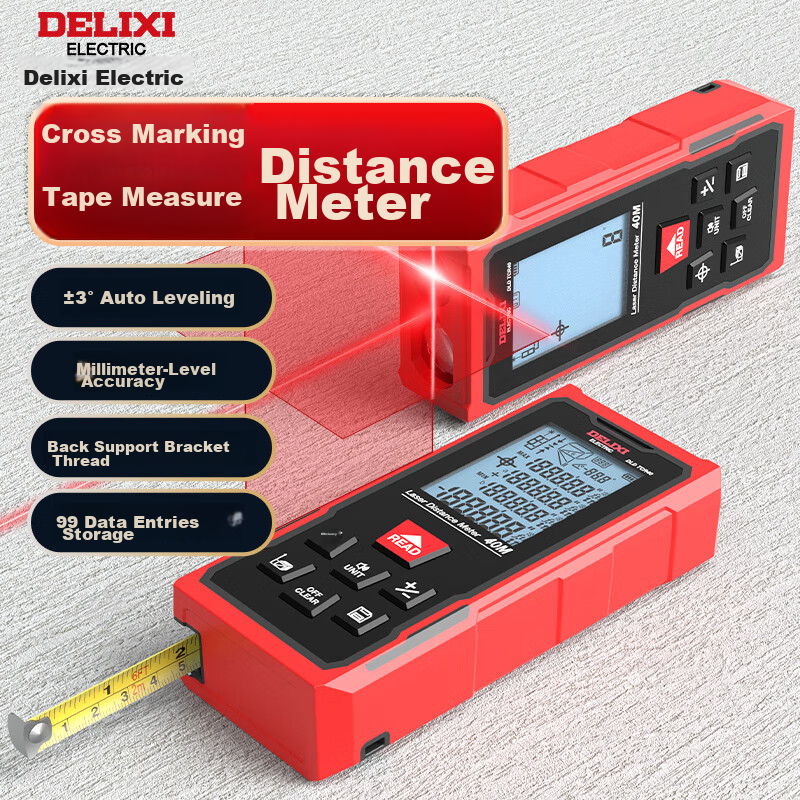

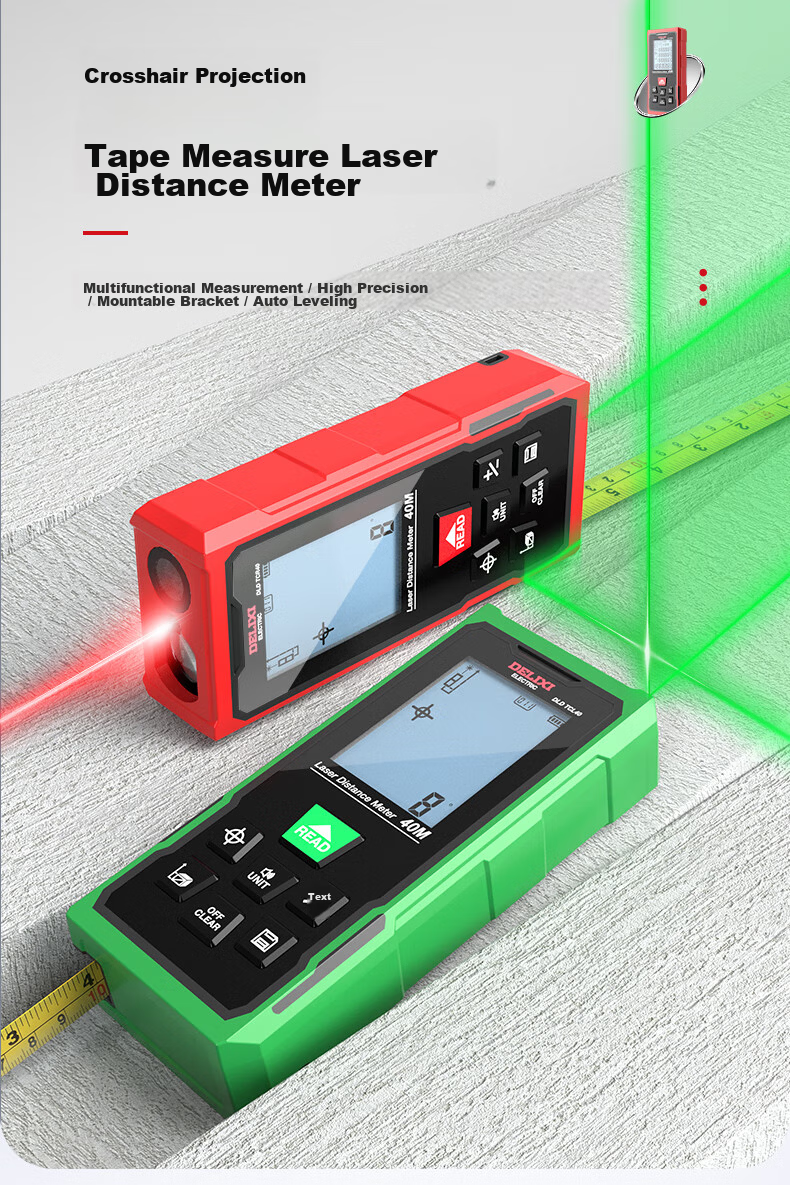

40 m red laser distance meter with line projection and tape measure.

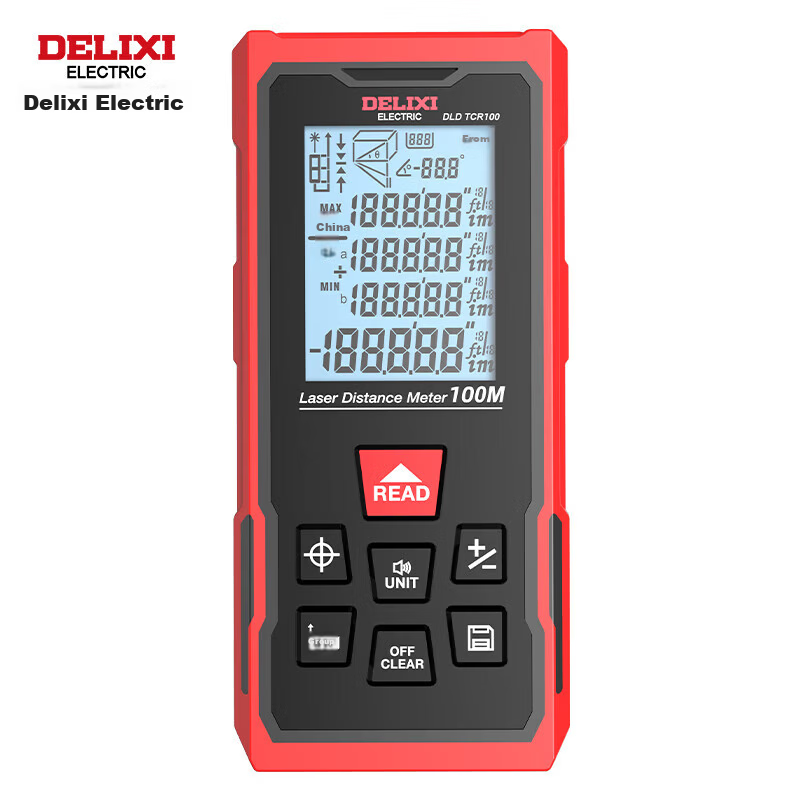

DLDTCR50, DLDTCR70, DLDTCR100
Extended range red laser models.
DLDTCL40, DLDTCL50, DLDTCL70, DLDTCL100
Green laser models with similar features and extended ranges.

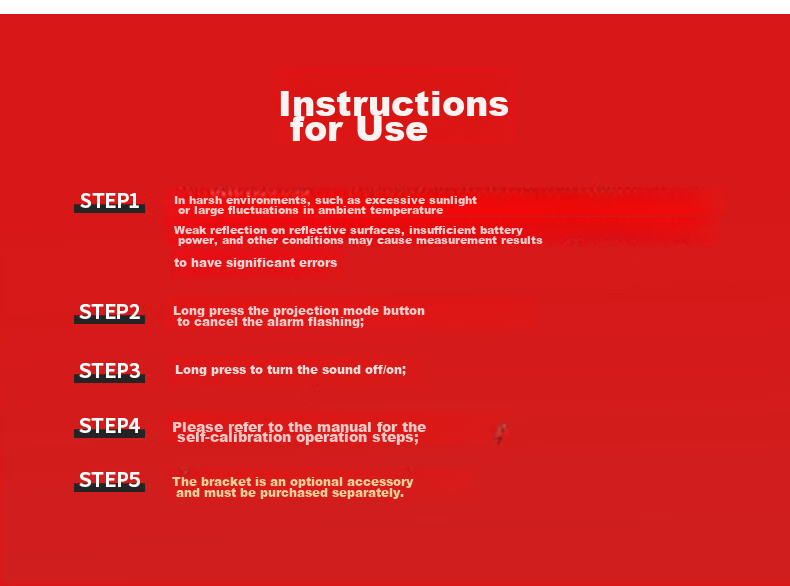

Measurement accuracy may be affected by strong sunlight, temperature fluctuations, weak reflective surfaces, or low battery.
Long press line projection button to cancel alarm flashing.
Long press sound button to toggle sound on/off.
Calibration instructions available in user manual.
Tripod is optional and sold separately.
DELIXI ELECTRIC is a trusted brand formed by a joint venture between China's top 500 DELIXI Group and global top 500 Schneider Electric, combining strengths to deliver reliable, high-precision electrical and measurement products.
