Shendawei Laser Rangefinder 3000m HD Display Outdoor Engineering High-Precision Infrared Laser Measurement SW-3000B

CN¥4,899.00

SKU: 100175268557

Status:In Stock (2)

ID: 100167149445

Weight: 1160.00 g

Dims:183x161x118 mm

Specifications

How it works: telescopestyle
Category: Telescope rangefinder
Measuring range: More than 120m

Variants / Sale Attributes

Model: Survey upgraded version / flip screen design / 3000m

Package Contents

Telescope main unit *1 Instruction manual *1 Packaging (subject to the actual product) *1

Product Description

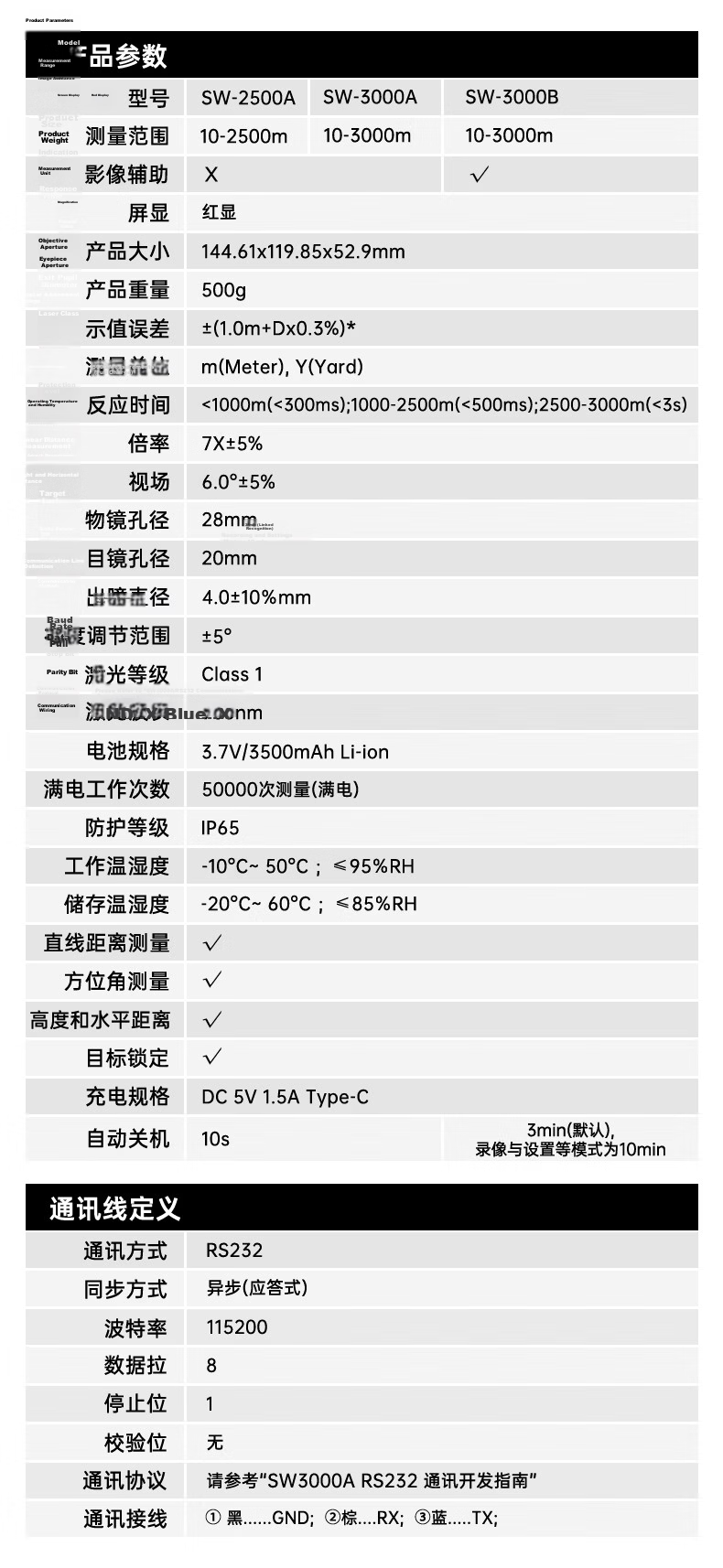

Product Specifications

Overview

Brand: Shendawai ()

Patented laser technology jointly developed with Harbin Institute of Technology (Shenzhen)

Over 30 domestic and international patents (e.g., Patent No. ZL201680001371.9)

15 years of professional R&D and manufacturing experience

High-precision, high-frequency pulse laser technology

Recognized as a specialized high-tech enterprise

Exported globally with certifications in Europe, America, and other countries

Data sourced from Shendawai Market Sales and R&D departments

SW-2500A (Flagship)

SW-3000A (Flagship)

SW-3000B (Image Upgrade Version)

Additional details

SW-2500A: 10–2500 meters
SW-3000A & SW-3000B

Similar Products

In Stock

deliRangefinder

Deli Handheld Laser Distance Meter High-Precision Electronic Ruler Infrared Room Measuring Device 120m Range Millimeter Accuracy

Professional rangefinder 120m

CN¥169.00

View

Out of Stock

CEMRangefinder

CEM LDM-50E Laser Distance Meter, Handheld High-Precision Electronic Ruler, Infrared Room Measuring Device with Dual Physical Level, 50 Meters

50-Meter Omnidirectional Level 99 Flagship Model - For You

CN¥58.60

View

In Stock

deliRangefinder

Deli Wheel Measuring Device, Large Wheels, Hand-Pushed Mechanical Measuring Wheel, Foldable Roller Measuring Device, Circumference 100cm

Mechanical Watch Display 100CM Circumference - Foldable

CN¥199.00

View

±(1.0m + D×0.3%) measurement error

Additional details

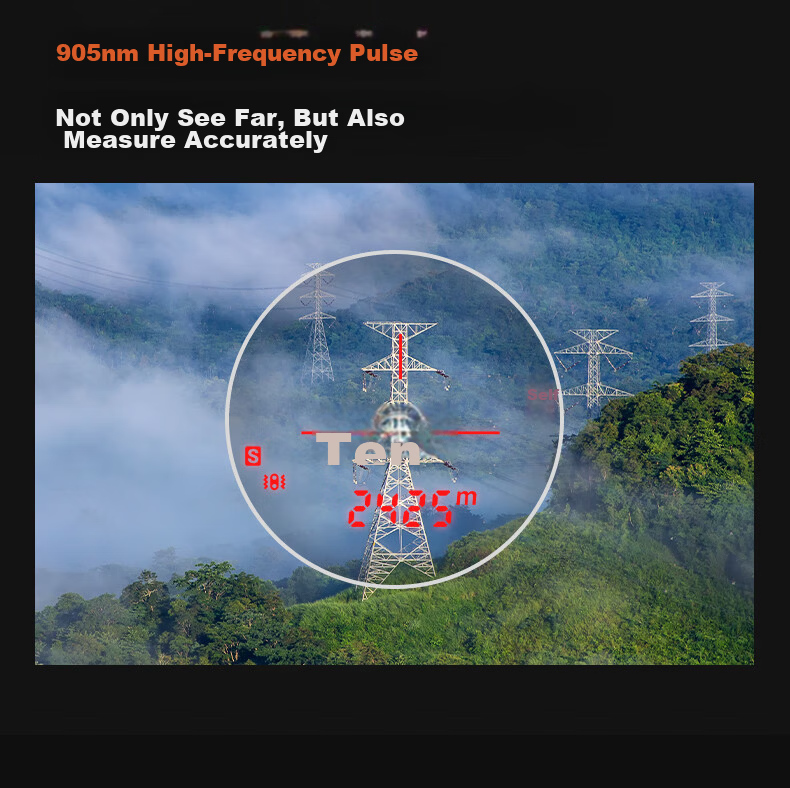

Laser wavelength: 905 nm, Class 1 laser

OLED self-illuminated red display for all-weather visibility

SW-3000B features 4x zoom image-assisted aiming with 5MP camera, photo and video modes (exclusive to SW-B series)

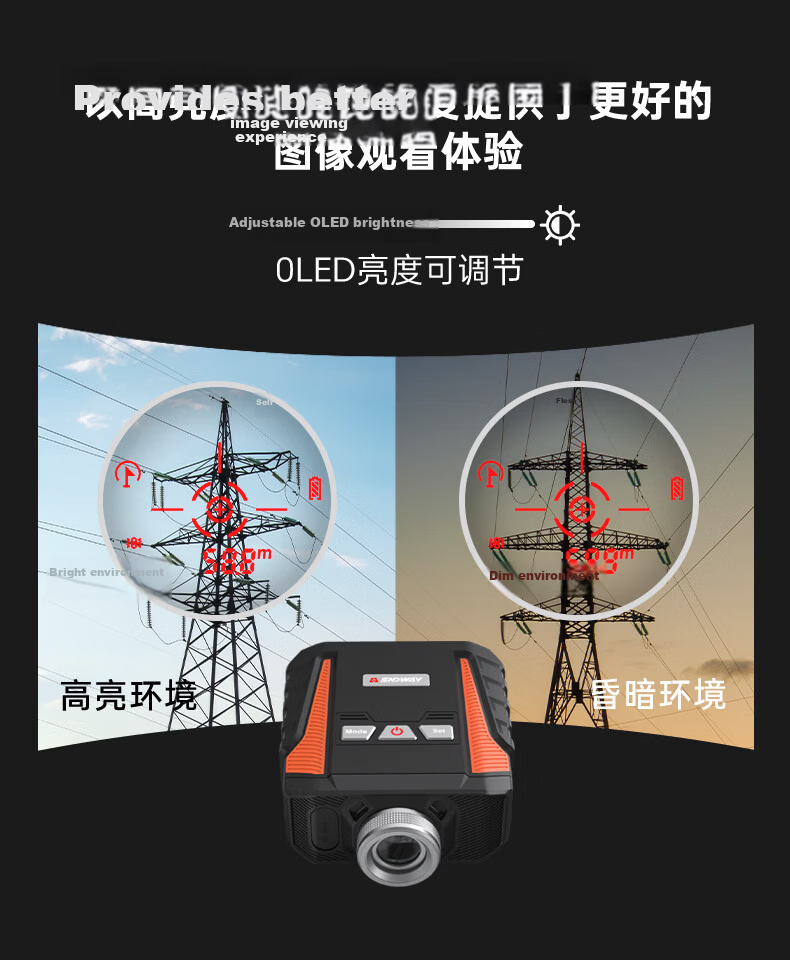

High-brightness, high-contrast OLED screen with adjustable brightness

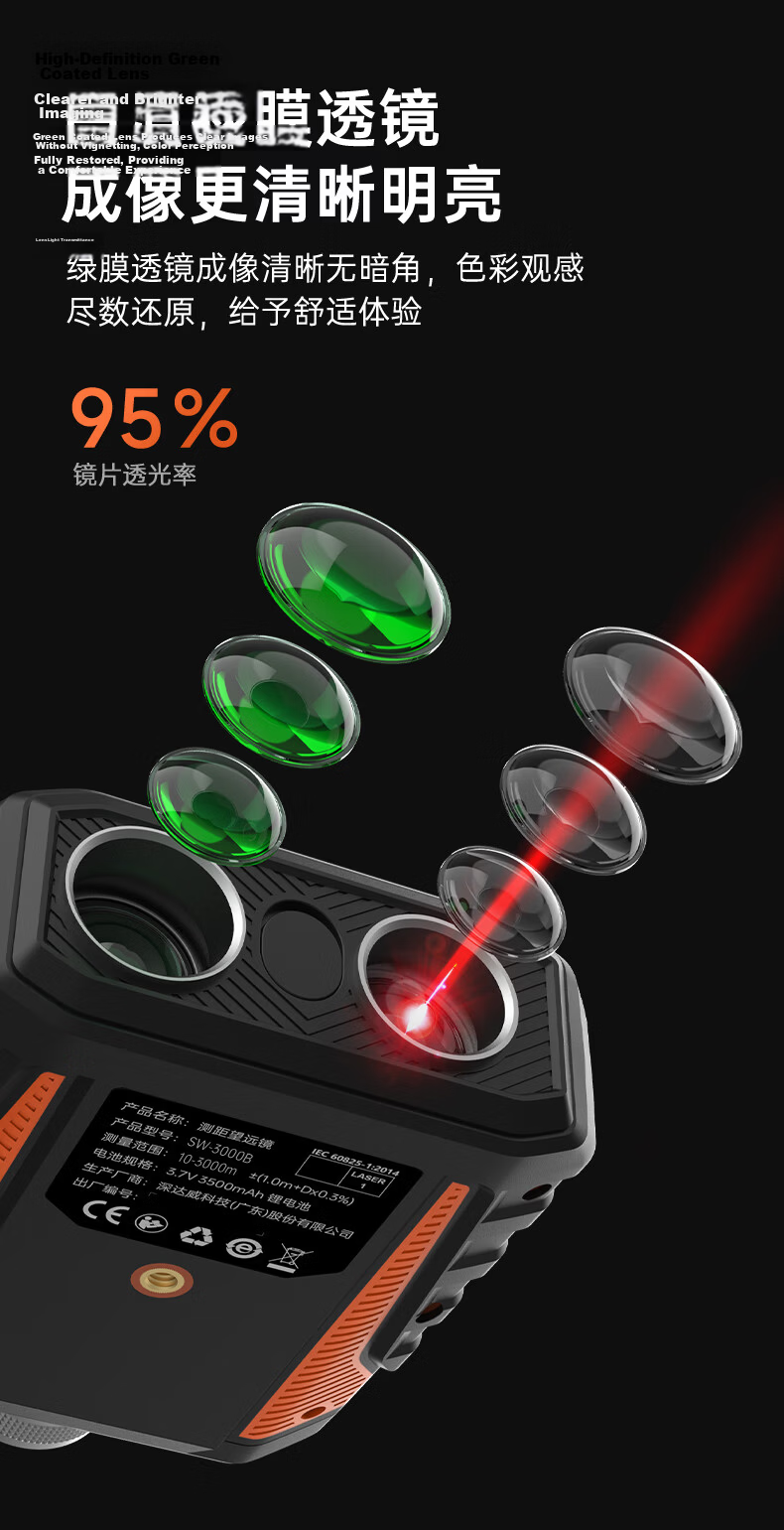

Green coated lens with 95% light transmittance for clear and bright imaging

7.0x magnification with ±5° diopter adjustment

28mm objective lens diameter, 20mm eyepiece diameter, 4.0±10%mm exit pupil diameter

Straight line distance measurement

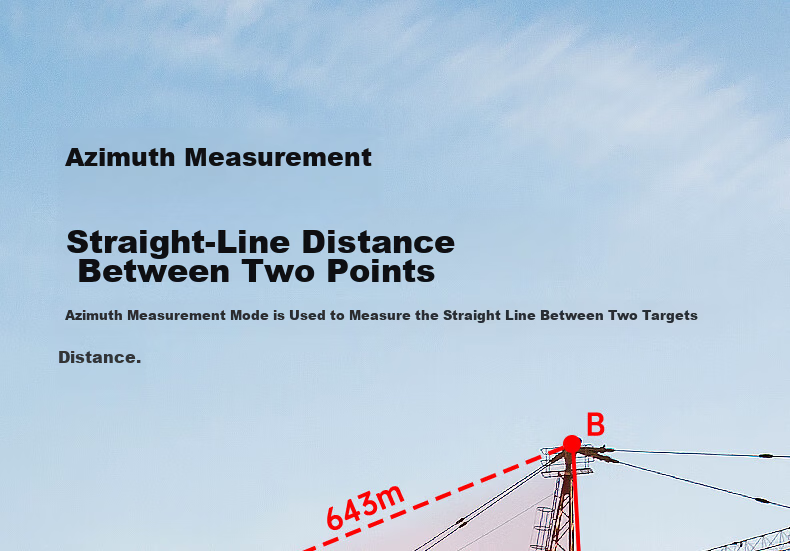

Azimuth angle measurement (distance between two targets)

Height and horizontal distance measurement

Target lock function for precise measurement of slender or difficult targets

Additional details

Response time: <300ms for <1000 m; <500ms for 1000-2500 m; <3s for 2500-3000 m
Maximum measurement distance: up to 3000 m

High-frequency pulse laser with enhanced dual transmission and reception for longer range and higher accuracy

IP65 rated dustproof and waterproof (6-level dust, 5-level water resistance)

Additional details

Operating temperature: -10°C to 50°C; Storage temperature: -20°C to 60°C
Operating humidity: ≤95% RH; Storage humidity: ≤85% RH

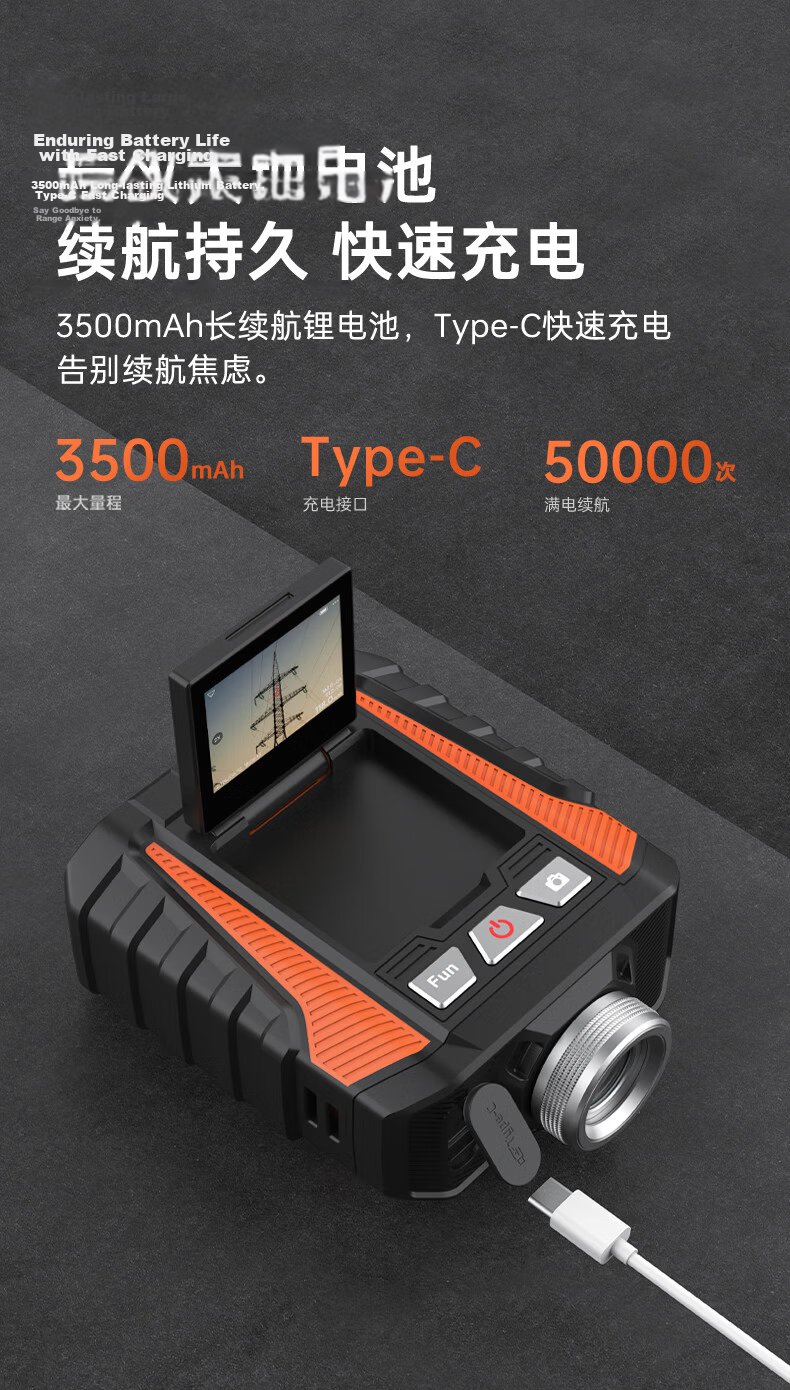

Rechargeable 3.7V / 3500mAh Li-ion battery

Type-C fast charging interface (DC 5V 1.5A)

Up to 5000 measurements per full charge

Long battery life with quick recharge capability

RS232 communication interface with asynchronous (response) mode

Additional details

Baud rate: 115200

Communication protocol detailed in "SW3000A RS232 Communication Development Guide"

Additional details

Size: 144.61 x 119.85 x 52.9 mm
Weight: 500 g

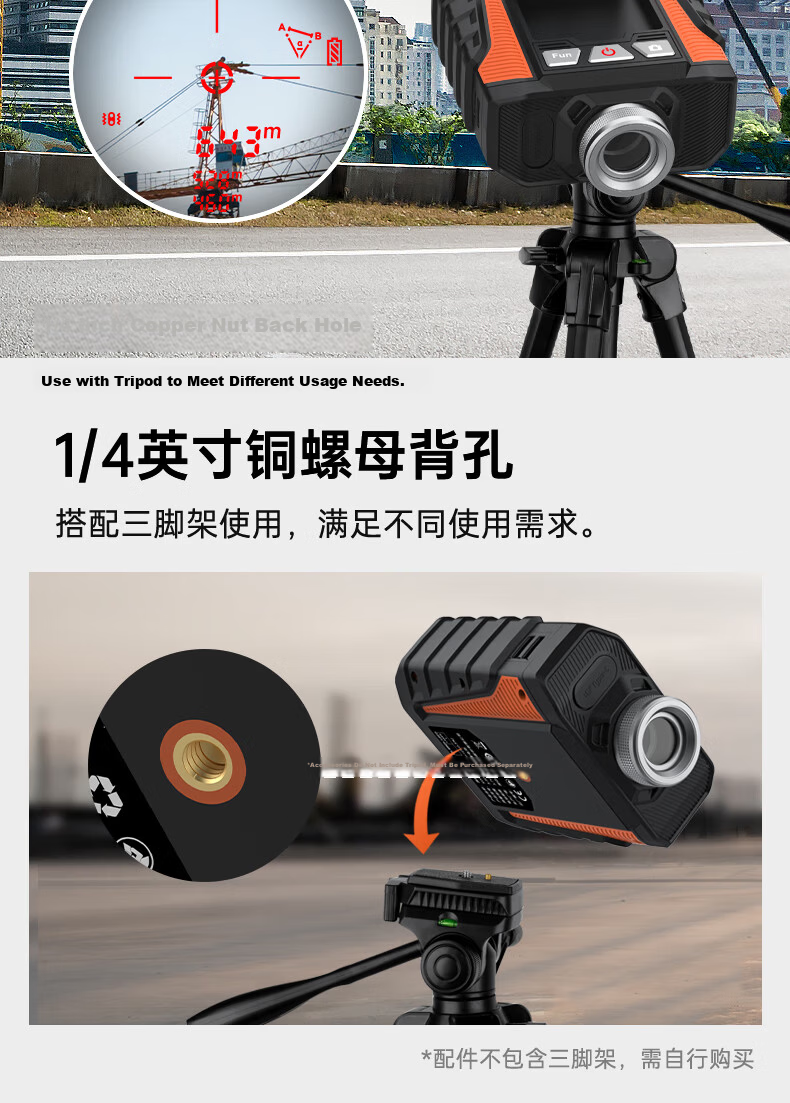

1/4 inch copper threaded hole for tripod mounting (tripod not included)

Multiple measurement modes to meet diverse needs

Target lock and azimuth angle modes facilitate complex measurements

Image upgrade version supports photo and video recording for documentation

OLED display ensures clear data visibility from dawn to dusk regardless of ambient light

Enhanced green lens coating reduces dark corners and restores true color for comfortable viewing

7.0x magnification with rotary focus adjustment for precise targeting

Strap included for convenient carrying

Protective cloth bag

Communication cable (USB Type-C)

Certificate of quality

Shendawai laser distance meters combine patented high-frequency pulse laser technology with advanced imaging and measurement functions, delivering precise, long-range measurements up to 3000 meters. Designed for outdoor and engineering applications, these devices offer robust IP65 protection, long battery life, and versatile measurement modes, supported by strong R&D and global certifications.
