NVIDIA Jetson AGX Orin Developer Kit Server-Grade Official Original AGX Orin 945-13730-0050-000
Variants / Sale Attributes Color: AGX Orin YLB SUPER 32G Kit
Package Contents Official Jetson AGX Orin 64GB (J284) *1
Product Description Overview
Brand NVIDIA
Partner Levels Registered, Preferred, Elite (Elite is the highest level)
Official Elite Certified Partner NVIDIA official certification, verifiable on https://www.nvidia.cn/
Partner Types Solution Provider, Embedded Compute
Partner Benefits Access to product, sales, and marketing tools; training; revenue incentives; technical support 1. Jetson AGX Orin Developer YLB Kit (32GB)
Similar Products
AI Performance
200 TOPS
GPU 1792-core NVIDIA Ampere architecture with 56 Tensor Cores
CPU 8-core Arm Cortex-A78AE v8.2 64-bit
Deep Learning Accelerators 2x NVDLA v2
Video Accelerator 1x PVA v2
Memory 32GB 256-bit LPDDR5

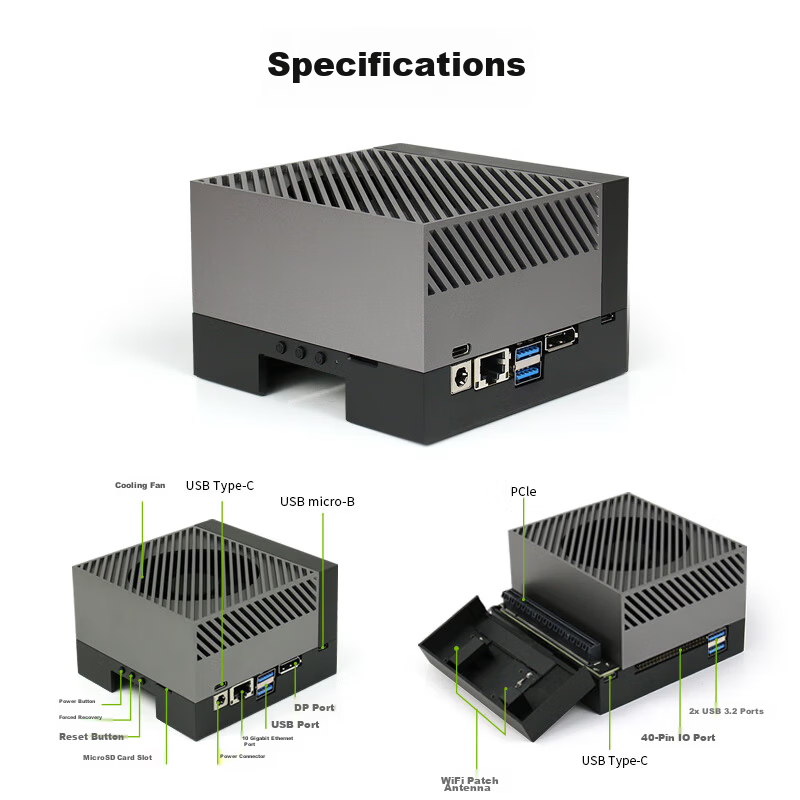

Memory Bandwidth 204.8 GB/s Video Encoding 1x 4K60 (H.265) 3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265) 1x 8K30 (H.265) Video Decoding: 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265) Camera Support: Up to 6 cameras (16 virtual channels) Camera Interface: 16 lanes MIPI CSI-2 D-PHY 2.1, C-PHY 2.0 (up to 40 Gbps / 164 Gbps) PCIe: x16 slot supporting x8 PCIe Gen4, M.2 Gen4 M-Key slot, M.2 Gen4 M-Key E slot with x1 PCIe USB Ports: 2x USB Type-C (USB 3.2), 4x USB Type-A (USB 3.2), 1x USB Micro-B (USB 2.0) Display: 1x DisplayPort 1.4a (+ MST) Network: RJ45 port up to 10 GbE Other Interfaces: 40-pin header (I2C/GPIO/SPI/CAN/I2S/UART/DMIC), 12-pin automation header, 10-pin audio panel header, 10-pin JTAG header, 4-pin fan header, 2-pin RTC battery backup connector Power: DC power jack, power modes from 15W to 40W Dimensions: 110 mm x 110 mm x 71.65 mm 2. Jetson AGX Orin Developer YLB Kit (64GB)
Additional details
AI Performance 275 TOPS
GPU 2048-core NVIDIA Ampere architecture with 64 Tensor Cores
GPU Frequency 1.3 GHz
CPU 12-core Arm Cortex-A78AE v8.2 64-bit
Cache 3MB L2 + 6MB L3
Deep Learning Accelerators 2x NVDLA v2
Video Accelerator 1x PVA v2
Memory 64GB 256-bit LPDDR5
Memory Bandwidth 204.8 GB/s
Storage 64GB eMMC 5.1 Video Encoding 2x 4K60 (H.265) 4x 4K30 (H.265) 8x 1080p60 (H.265) 16x 1080p30 (H.265) 1x 8K30 (H.265) Video Decoding: 3x 4K60 (H.265) 7x 4K30 (H.265) 11x 1080p60 (H.265) 22x 1080p30 (H.265) Camera Support: Up to 6 cameras (16 virtual channels) Camera Interface: 16 lanes MIPI CSI-2 D-PHY 2.1, C-PHY 2.0 (up to 40 Gbps / 164 Gbps) PCIe: x16 slot supporting x8 PCIe Gen4, M.2 Gen4 M-Key slot, M.2 Gen4 M-Key E slot with x1 PCIe USB Ports: 2x USB Type-C (USB 3.2), 4x USB Type-A (USB 3.2), 1x USB Micro-B (USB 2.0) Display: 1x DisplayPort 1.4a (+ MST) Network: RJ45 port up to 10 GbE Other Interfaces: 40-pin header (I2C/GPIO/SPI/CAN/I2S/UART/DMIC), 12-pin automation header, 10-pin audio panel header, 10-pin JTAG header, 4-pin fan header, 2-pin RTC battery backup connector Power: DC power jack, power modes from 15W to 60W Dimensions: 110 mm x 110 mm x 71.65 mm 3. Jetson AGX Orin YLB SUPER 32GB
Additional details
AI Performance 241 TOPS (20.5% performance increase over Jetson AGX Orin YLB 32GB)
GPU Frequency 1.3 GHz Other specifications similar to Jetson AGX Orin YLB 32GB with enhanced performance The Jetson AGX Orin Developer YLB Kit is compatible with the official NVIDIA Jetson AGX Orin Developer Kit in terms of form factor and dimensions.
Power modes configurable between 15W and 60W depending on model.
Supports multiple video encoding and decoding streams for high-resolution video processing.
Designed for AI applications including smart cities, intelligent cameras, robotics, and healthcare.
Available in various package options including standard kits with power cables (EU, UK, US), Type-C data cables, and optional SSD storage (1TB or 2TB, brand unspecified).
Accessories include HDMI to DisplayPort cables, power adapters, and documentation.
All specifications are subject to change and should be verified on the official NVIDIA website or through authorized partners.
