SATA Illuminance Meter Split-Type Photometer Digital High-Precision Lumen Tester Brightness Meter Photometer D05016

世达•Illuminance meter

SATA Illuminance Meter Split-Type Photometer Digital High-Precision Lumen Tester Brightness Meter Photometer D05016

CN¥119.00

SKU: 100183055228

Status:In Stock (4)

ID: 100183055228

Weight: 260.00 g

Dims:216x148x72 mm

Specifications

Suitable Scenarios: Indoor
Category: digital luxmeter

Variants / Sale Attributes

Model: Integrated Illuminance Meter D05015 Standard Configuration

Package Contents

SATA Lux Meter *1

Product Description

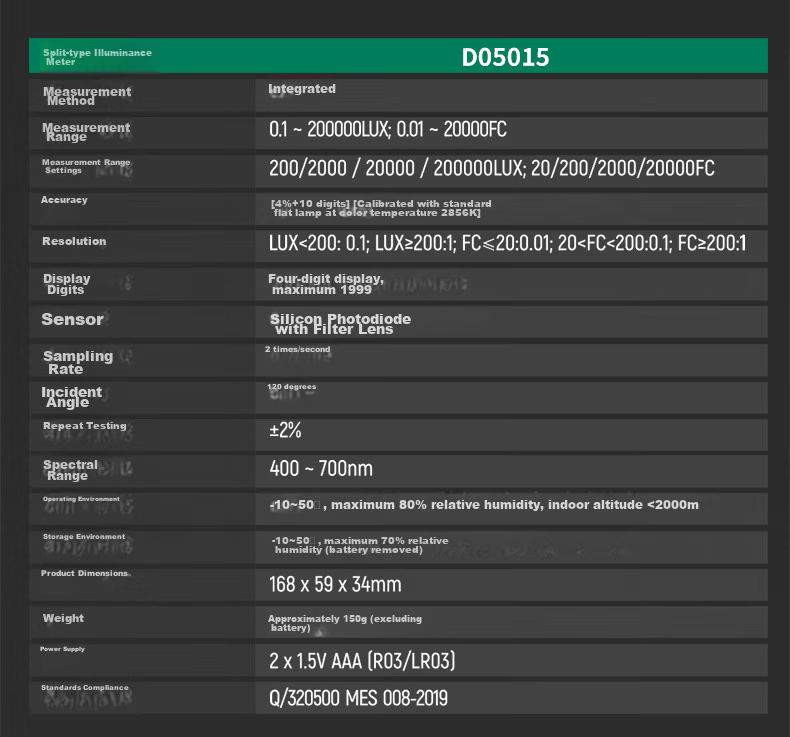

Product Specifications

Overview

Brand: (SATA)
Model: D05016 / D05015

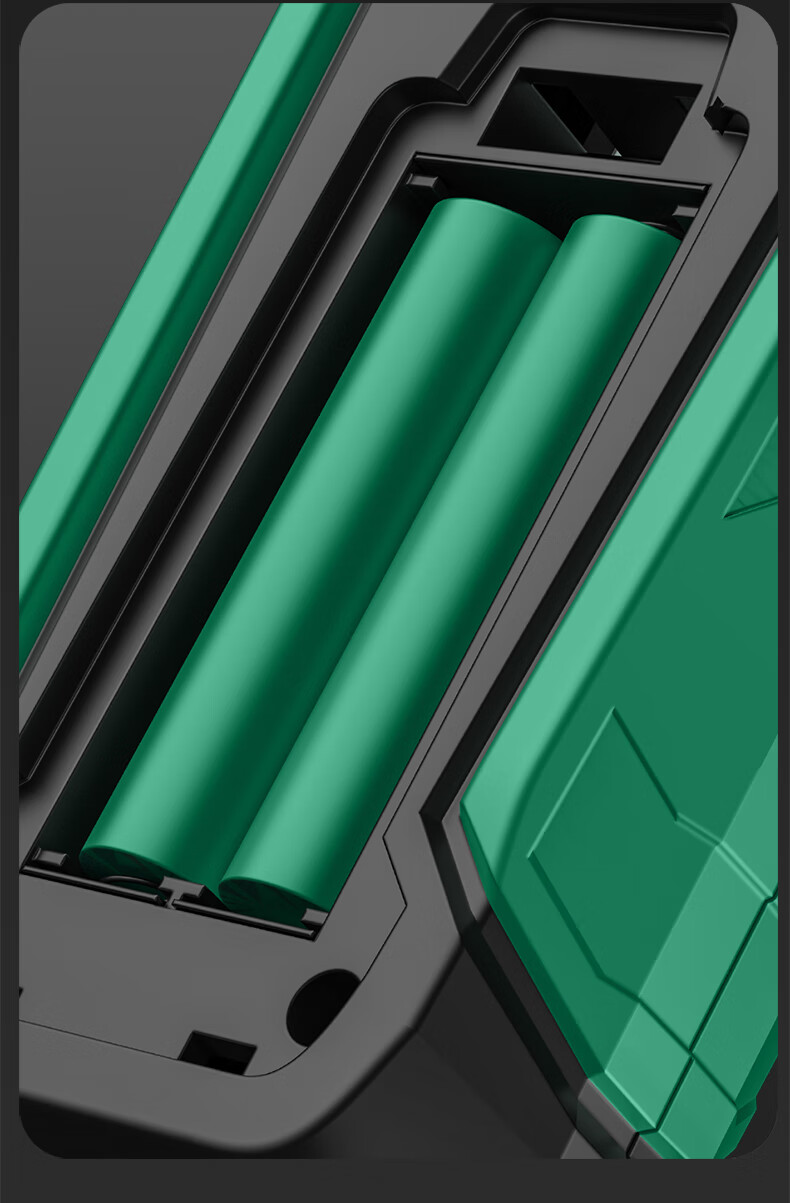

Power Supply: 2 × 1.5V AAA batteries (R03/LR03)
Illuminance: 0.1 to 200,000 Lux
Foot-candle (FC): 0.01 to 20,000 FC
Lux < 200: 0.1 Lux
Lux ≥ 200: 1 Lux
FC ≤ 20: 0.01 FC

Similar Products

In Stock

Illuminance meter

Teans Digital Lux Meter High Precision Light Meter Illuminance Tester Photometer

[200,000 LUX+ Integrated Measurement] TA630A

CN¥59.00

View

In Stock

Illuminance meter

Teansi Illuminance Meter, Photometric Instrument, High-Precision Luminous Flux Tester, Brightness Meter, Photometric Measuring Instrument TA631B

[300,000 LUX + Alarm + Temperature And Humidity] TA631B

CN¥79.00

View

20 < FC < 200

0.1 FC

Measurement Accuracy

±4% + 10 digits (calibrated with 2856K standard flat lamp)

Sensor

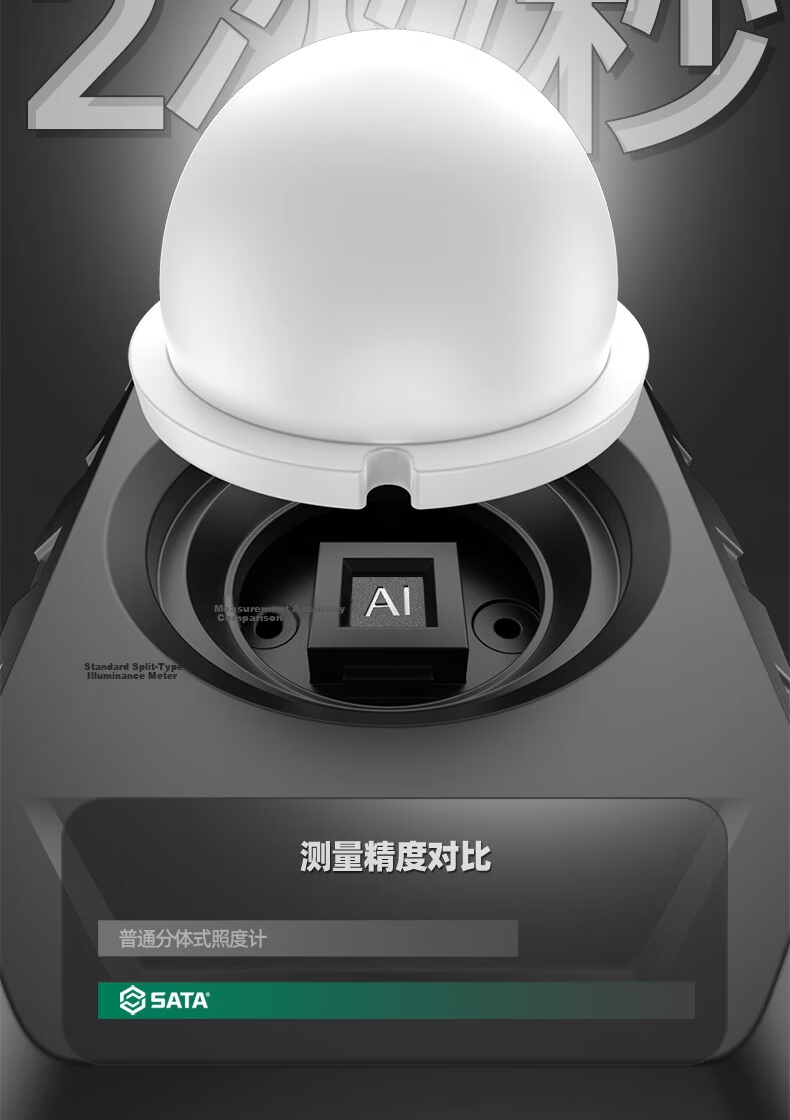

Silicon photodiode with optical filter

Spectral Range

400–700 nm

Sampling Rate

2 times per second

Incident Angle

120°

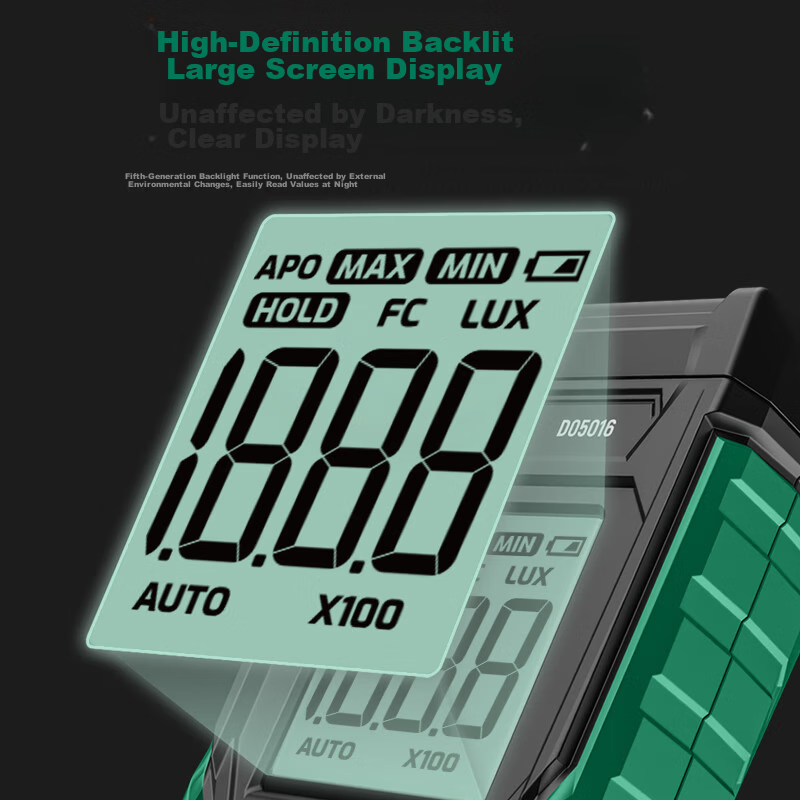

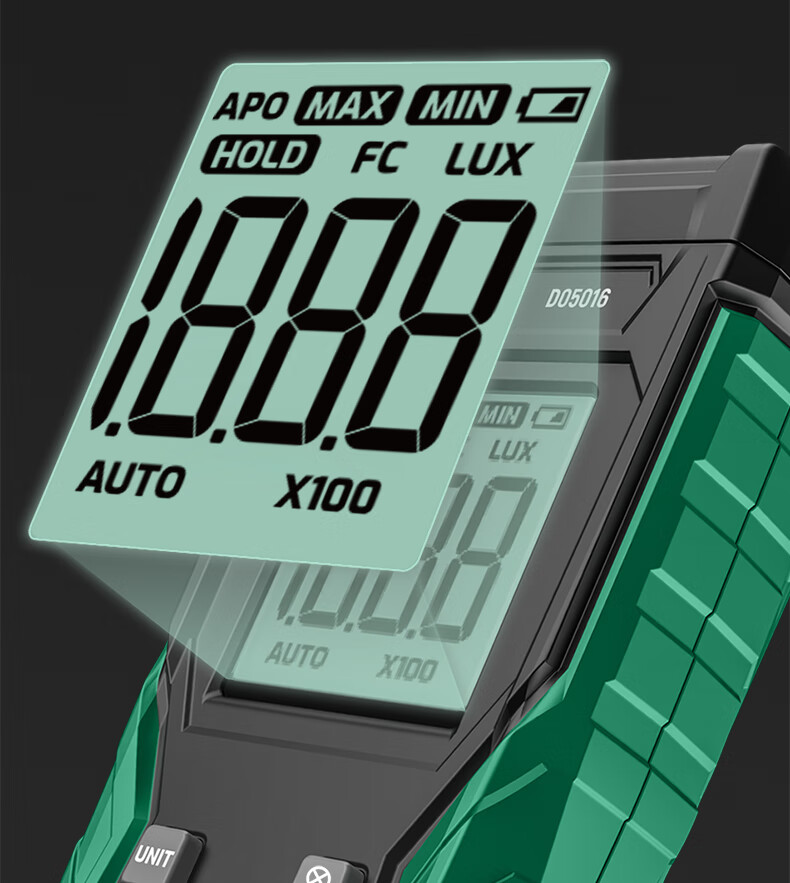

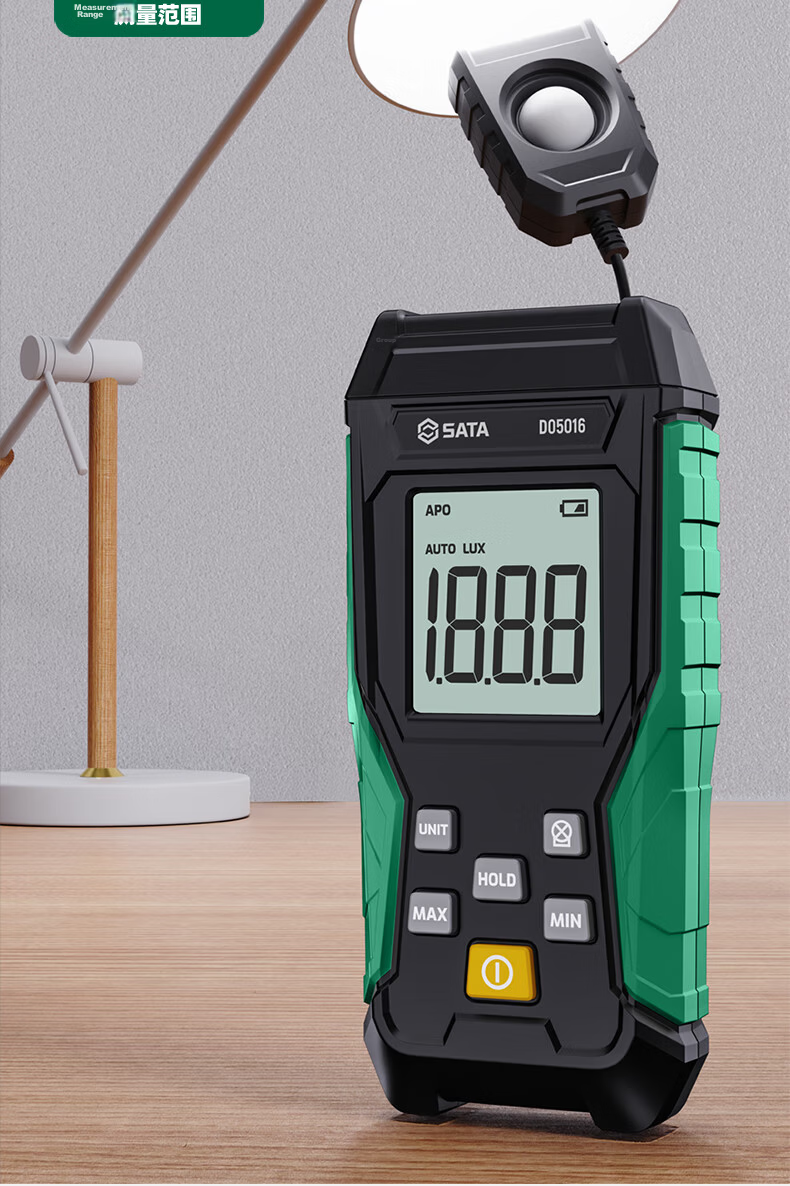

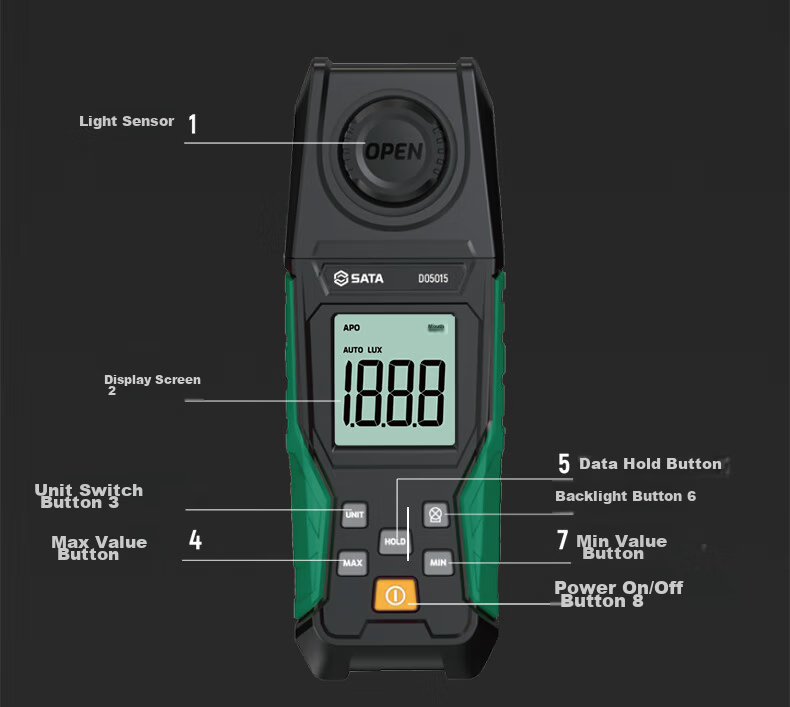

Four-digit LCD display, max reading 1999

Backlight (5th generation) for clear reading in dark environments

Additional details

Units: Lux and Foot-candle (FC), switchable (1 FC = 10.76 Lux)

Max/Min value recall

Auto range selection

Low battery indicator

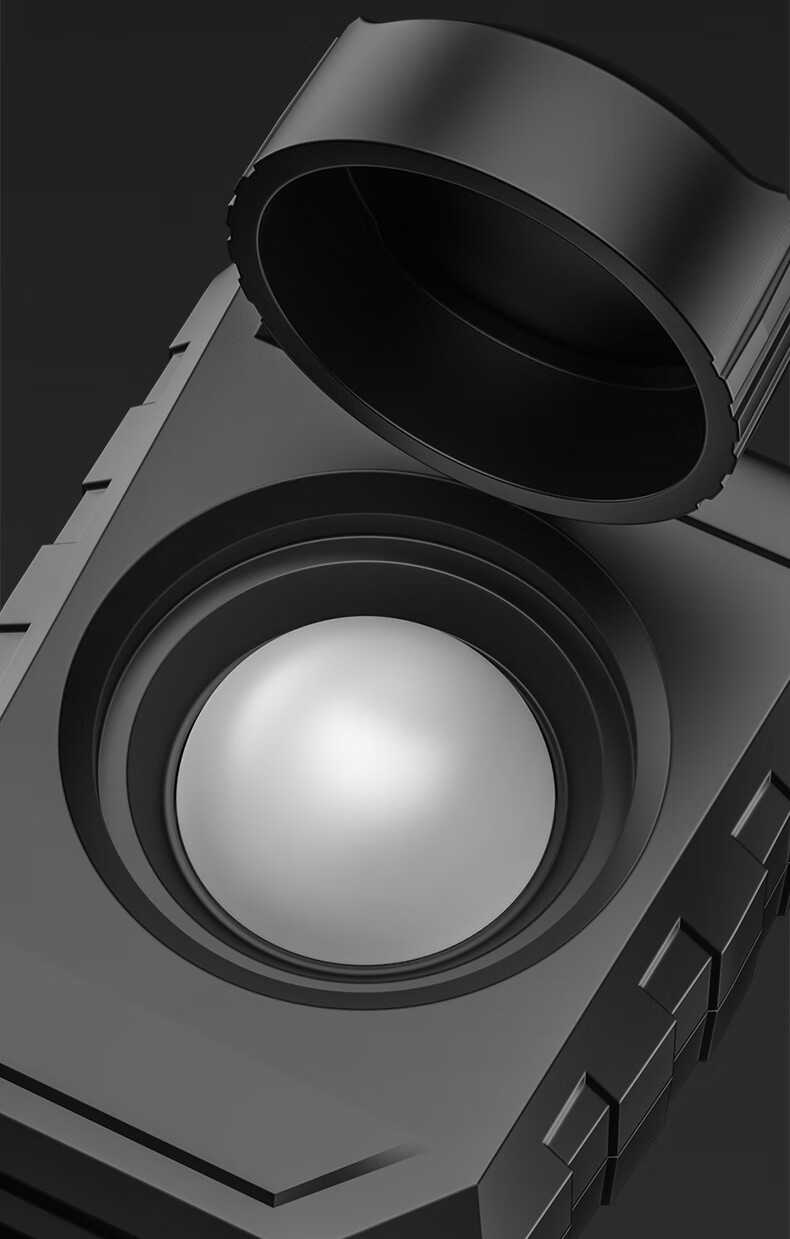

Dustproof protective cover for sensor

Soft anti-slip rubber grip for comfortable handling

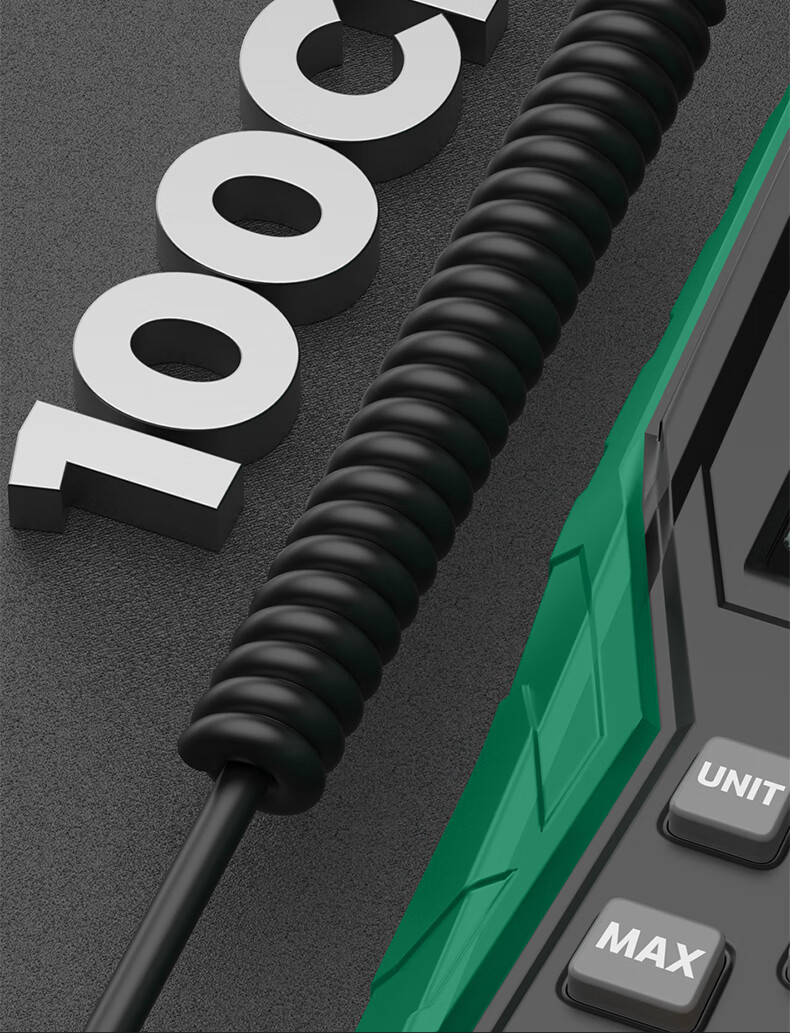

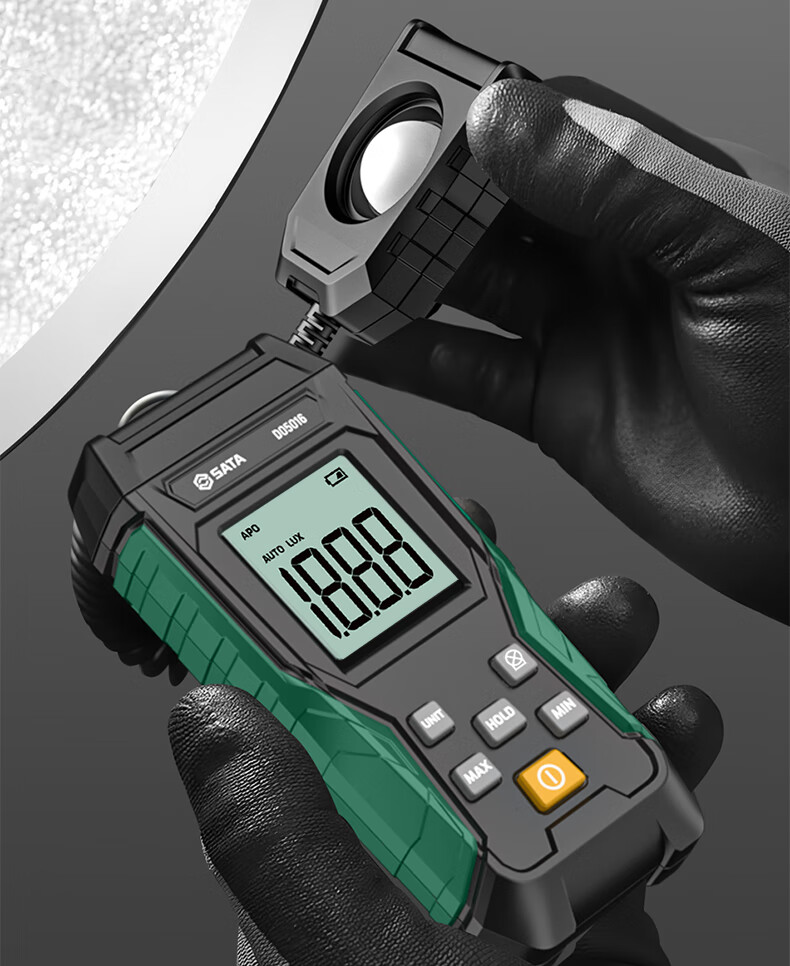

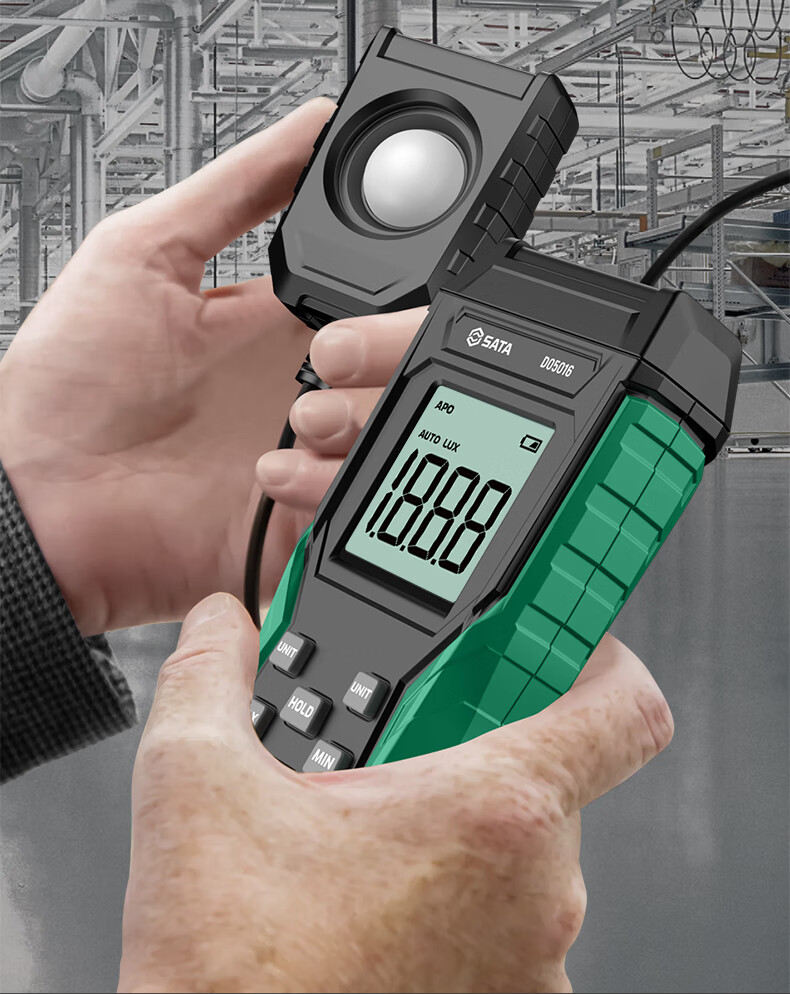

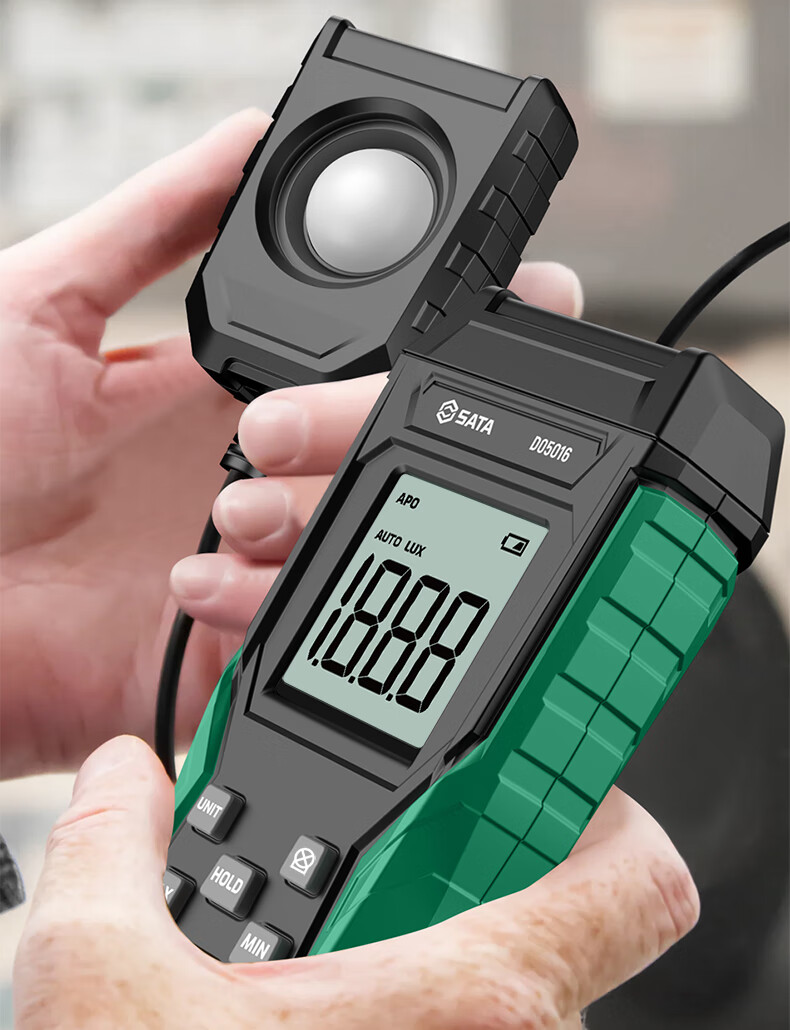

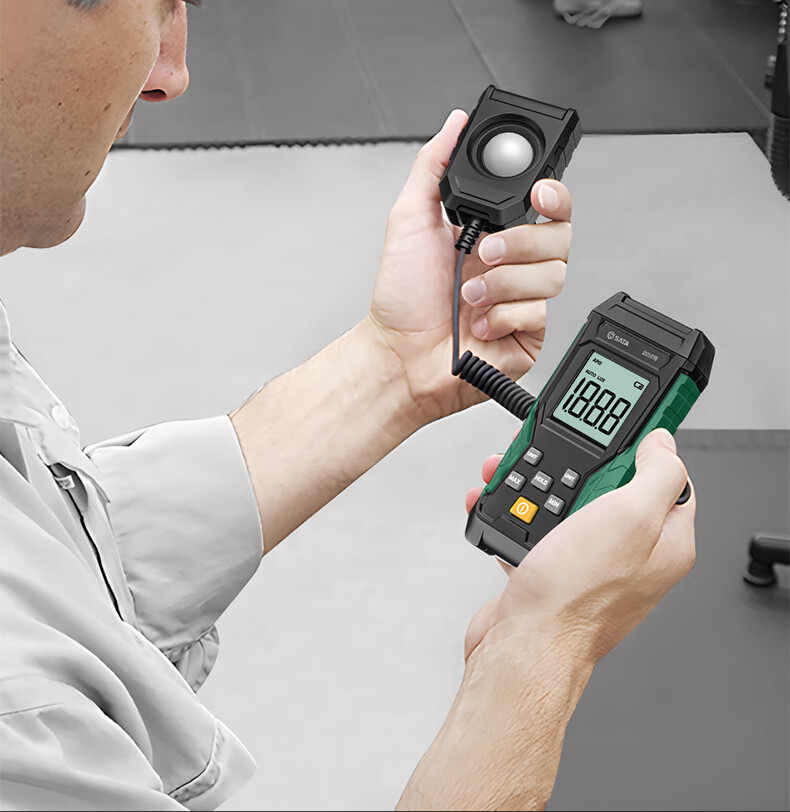

Extended 1-meter cable for remote measurements (D05016)

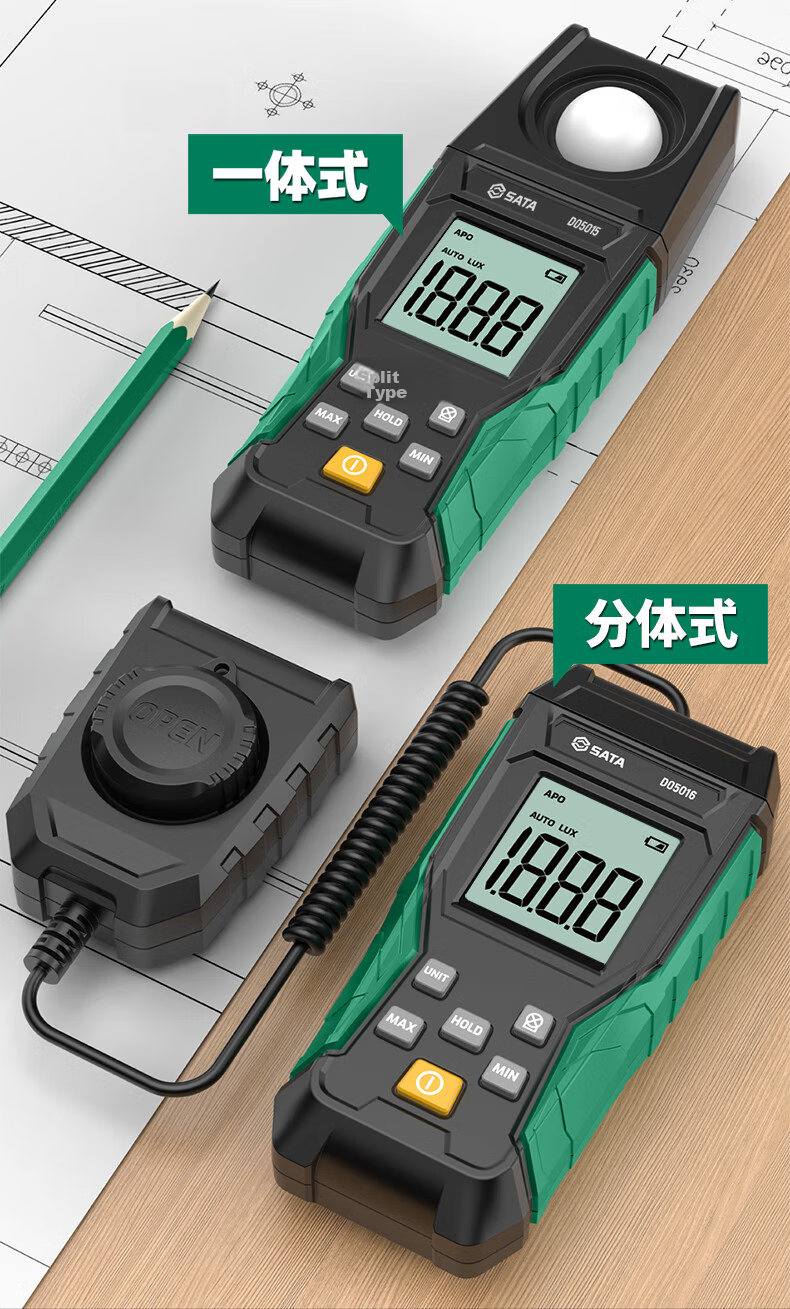

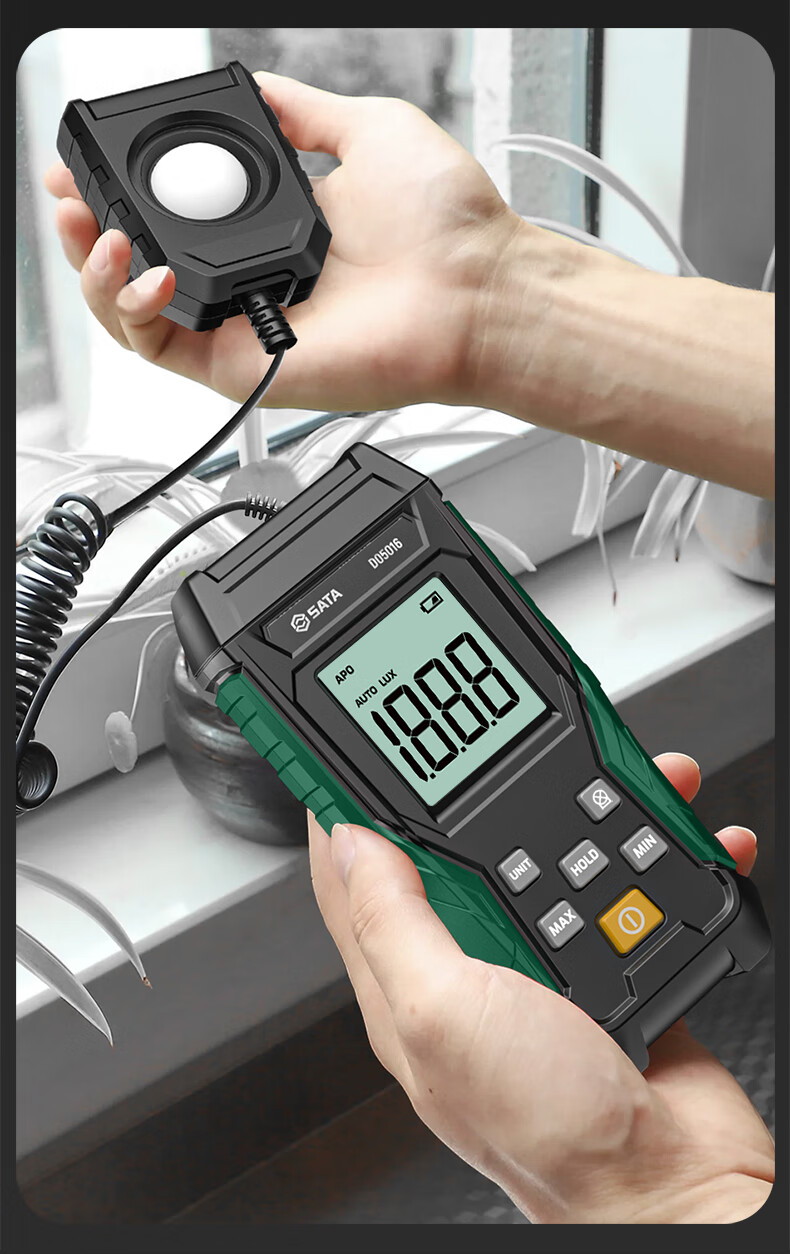

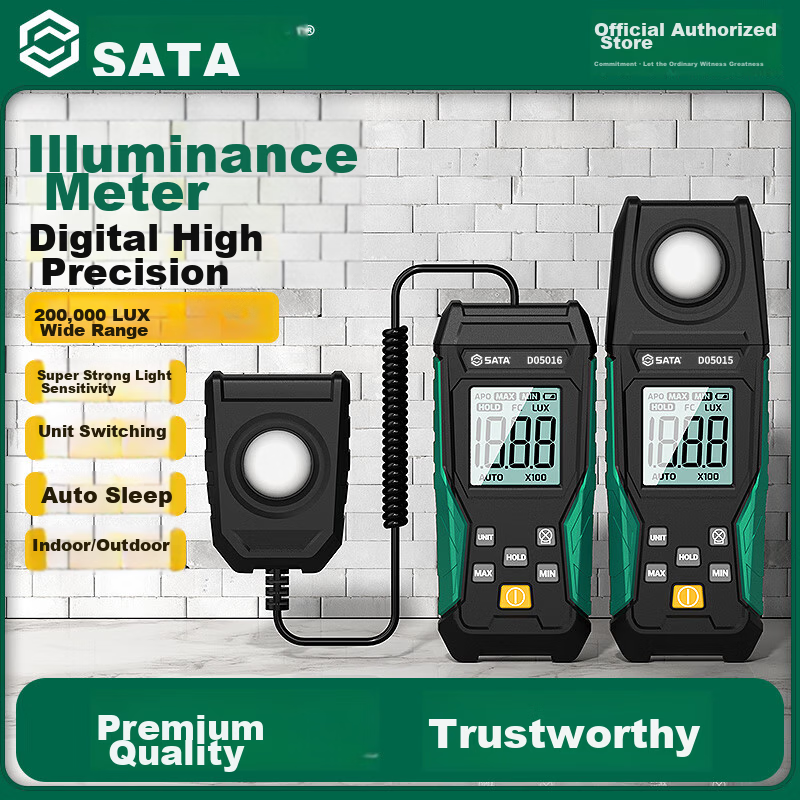

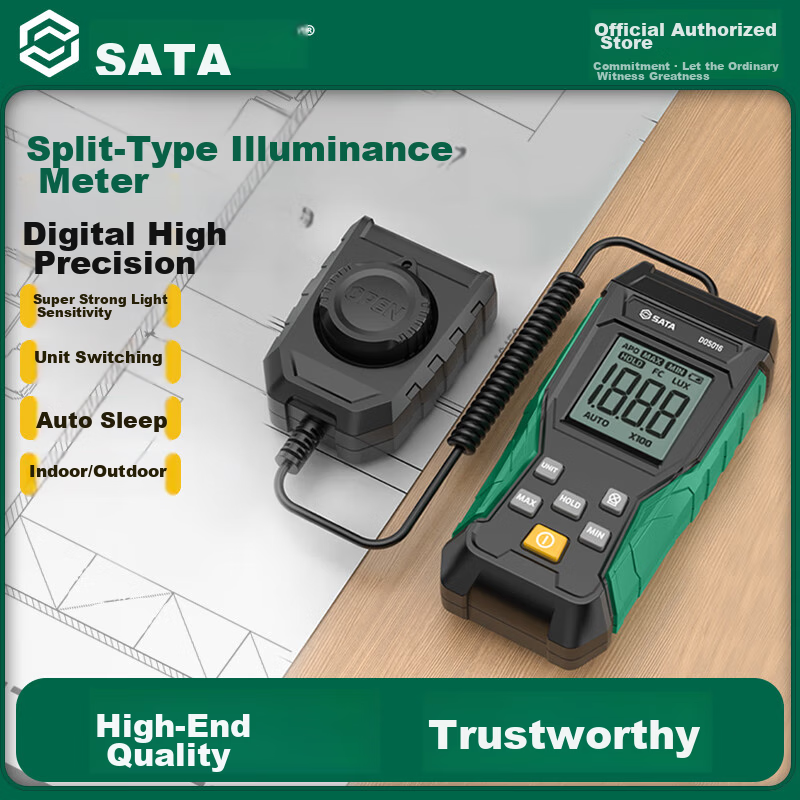

Available in integrated (one-piece) and split-type models to meet different user needs

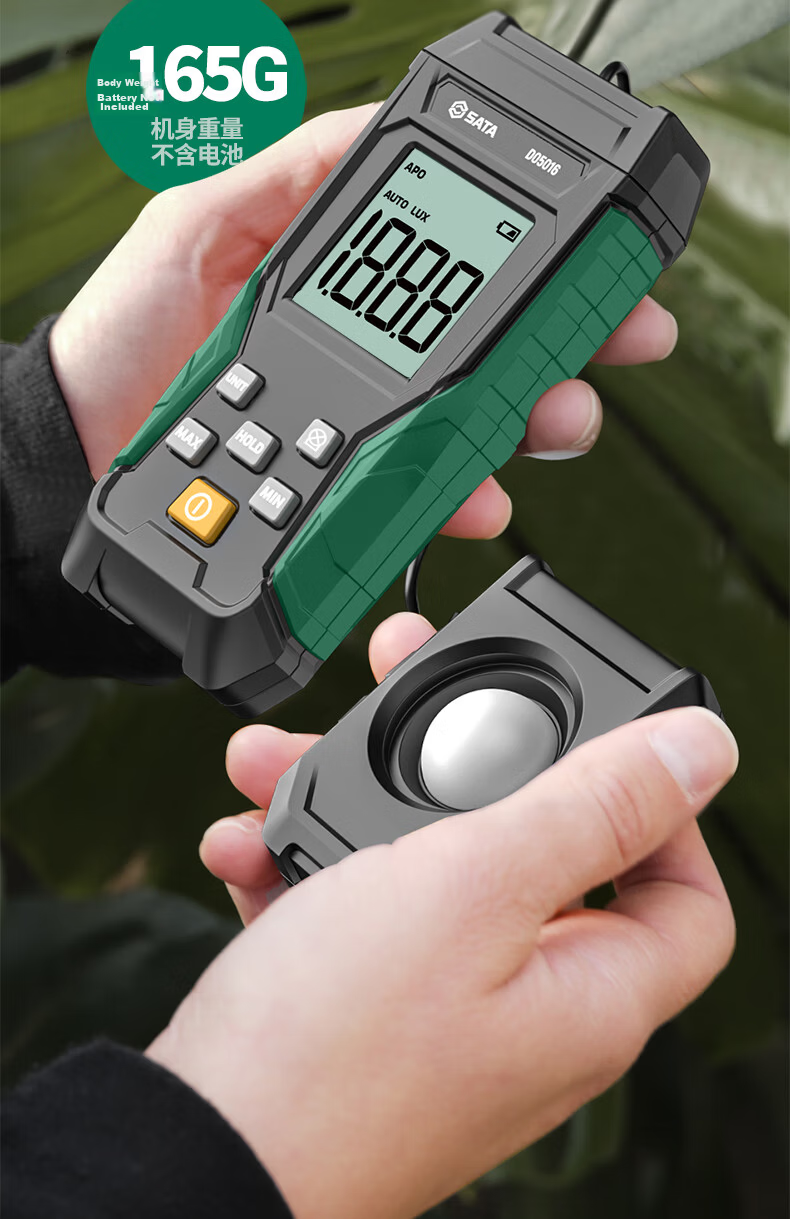

Compact and lightweight (approx. 165g without batteries for D05016; approx. 150g for D05015)

Dimensions

Size	Unfolded dimensions
D05016	130 x 59 x 29 mm
D05015	168 x 59 x 34 mm

Additional details

Temperature: -10°C to 50°C
Relative Humidity: up to 80% (indoor, altitude < 2000 m)
Temperature: -10°C to 50°C
Relative Humidity: up to 70% (battery removed)

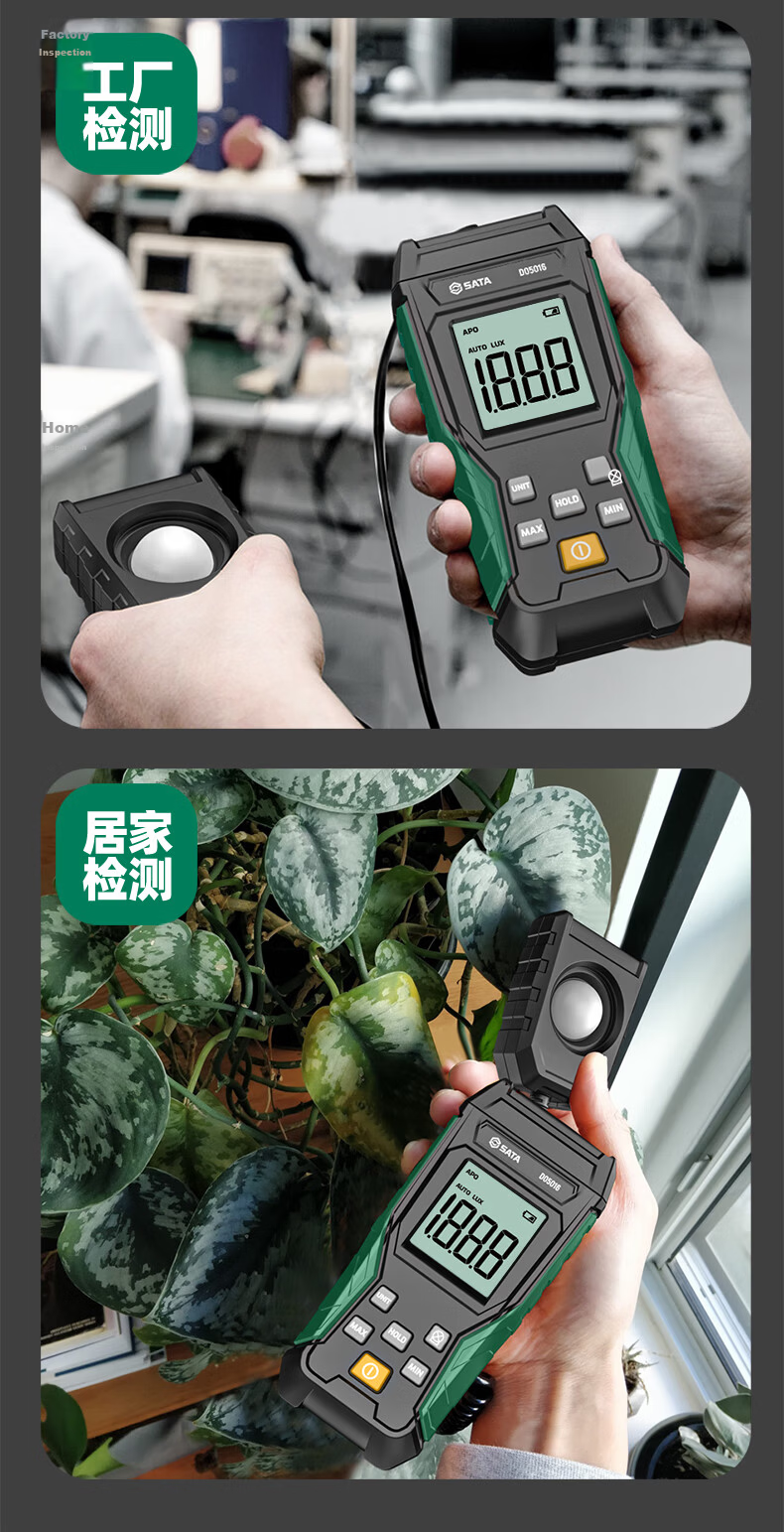

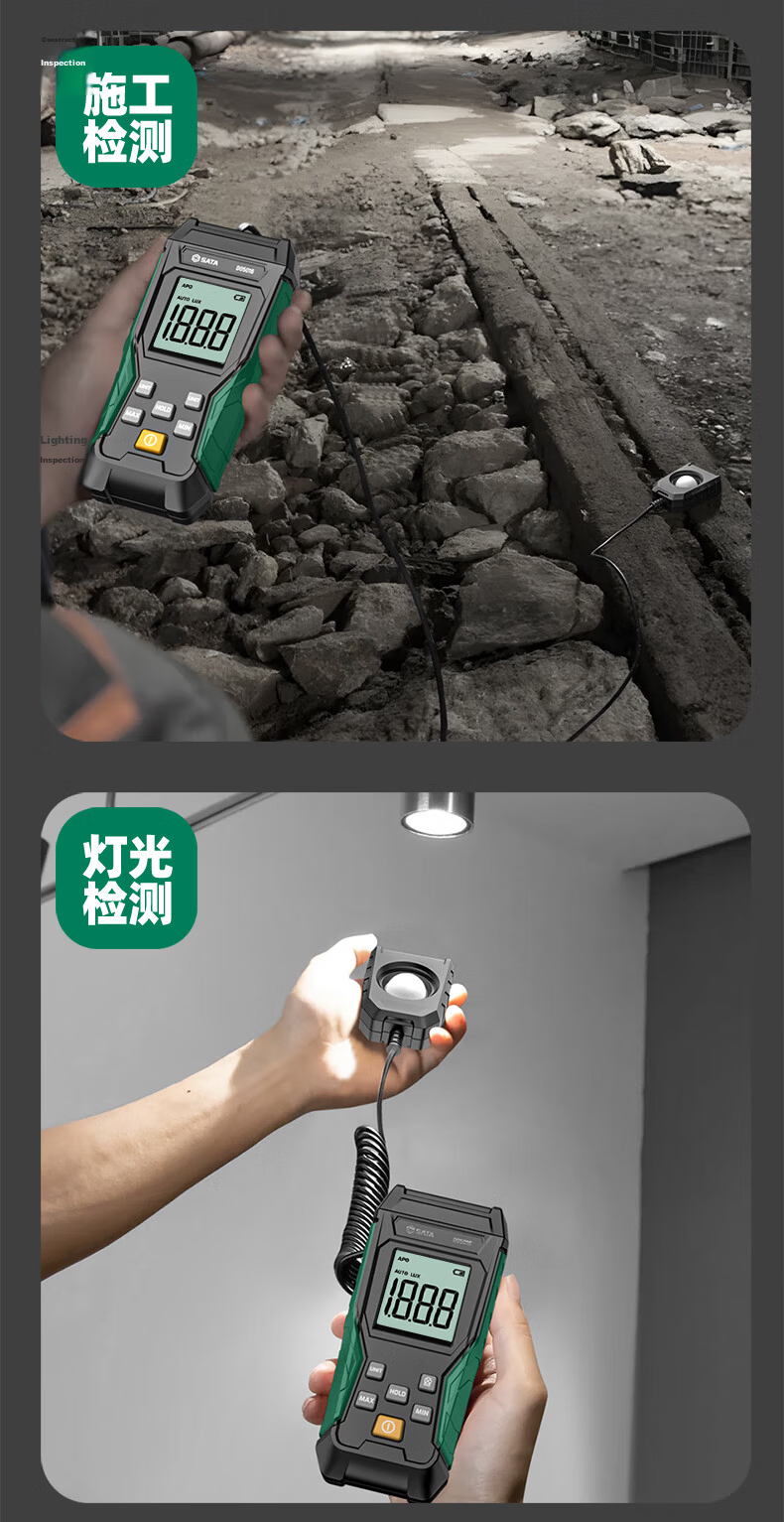

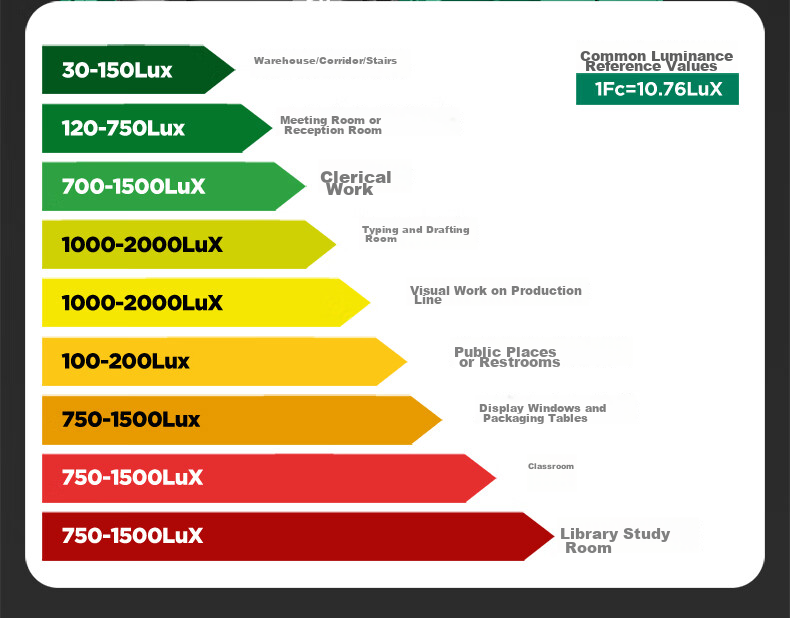

Suitable for diverse lighting measurement scenarios including hotels, libraries, classrooms, live streaming rooms, garden lighting, offices, supermarkets, stages, workshops, automotive lighting, warehouses, factories, hospitals, airports, and more

Ideal for quick, high-sensitivity, and precise illuminance testing in various environments

Additional details

Standards Compliance: Q/320500MES008-2019

In Stock

LAOAIlluminance meter

LAOA LA818004 Digital Noise Meter Decibel Tester Sound Level Meter Noise Detector

digital luxmeter

CN¥100.00

View

In Stock

deliIlluminance meter

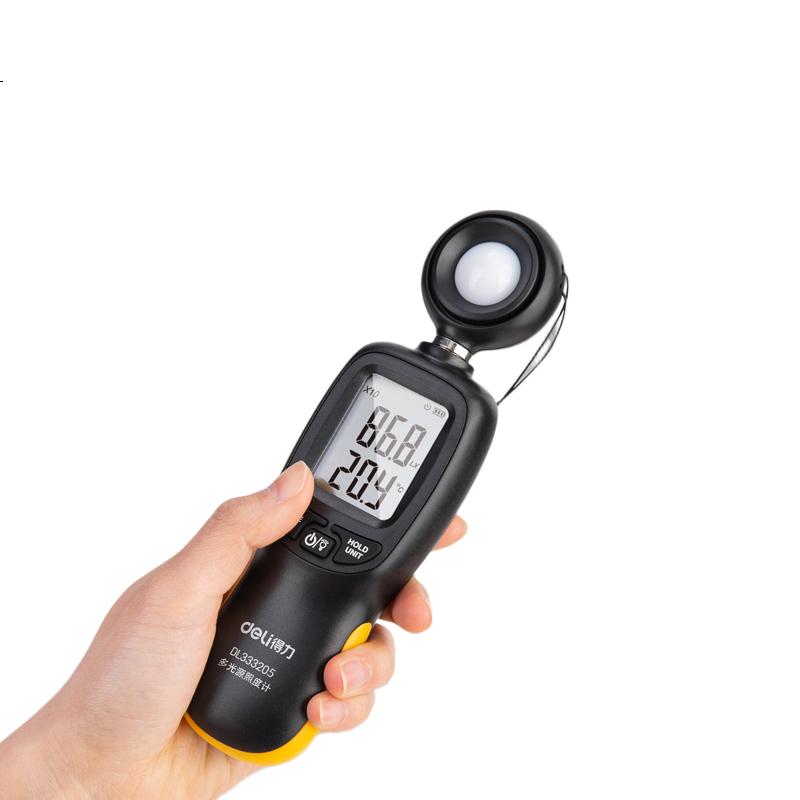

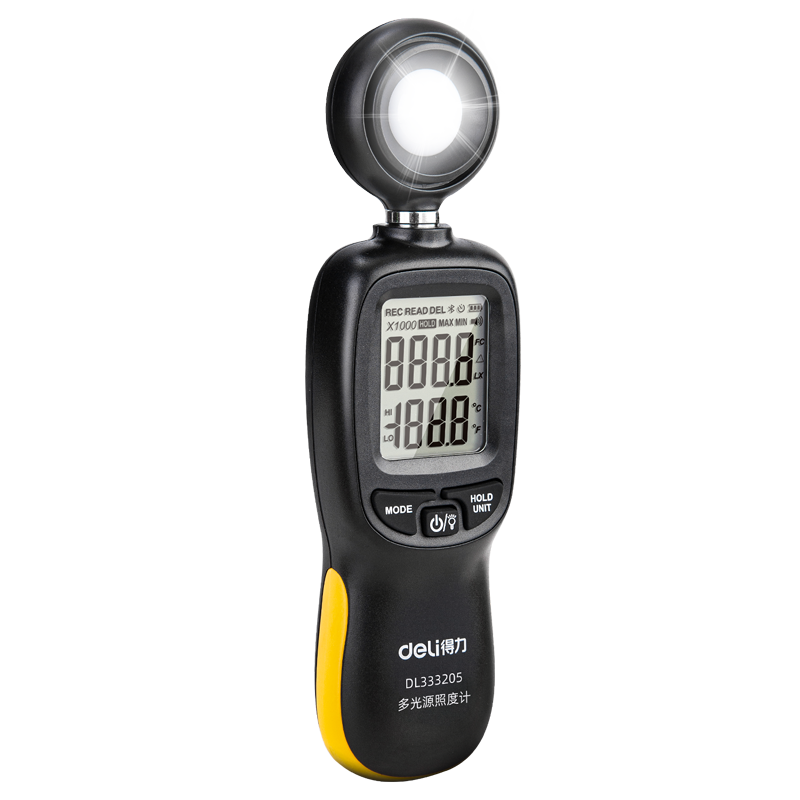

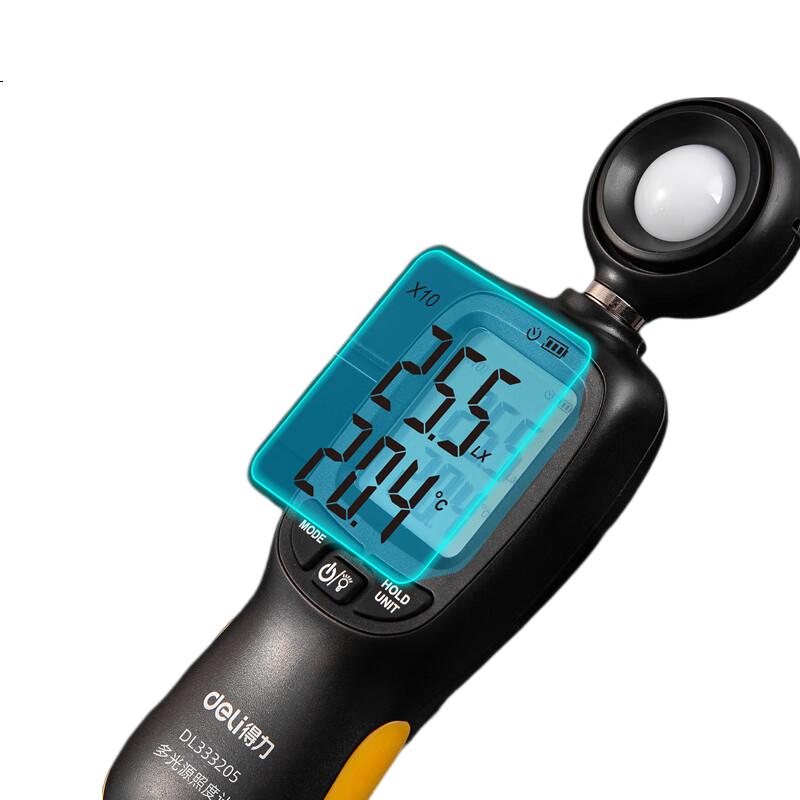

Deli Multi-Source Illuminance Meter High-Precision Lumen Tester Brightness Meter Light Meter High Accuracy
