Back to CatalogGENUIN Louver Exhaust Fan Low Noise All-Plastic Powerful Toilet Ventilation Fan with Mesh Cover 12 Inch/APB30B2-1
Variants / Sale Attributes
Color: 12inch mesh cover with net
Package Contents
Exhaust fan *1 Instruction manual *1
Product Description
Product Specifications
Overview
- Brand
- GENUIN
- Product Name
- Ventilator (Louver-type Exhaust Fan)
- Copper Core Motor
- Durable and powerful with sealed design to prevent dust and foreign objects, extending motor life.
- Six-Blade Design
- Provides strong airflow with large air volume and high torque.
- Low Noise Operation
- Quiet running suitable for work and sleep environments.
- Strong Ventilation
- Efficiently removes odors and moisture.
Similar Products
Out of Stock
Out of Stock
In Stock
Dual UseSuitable for wall and window installation. Certified3C certification ensuring quality and safety. Full Plastic BodyLightweight, corrosion-resistant, high-temperature flame retardant. Protective Features
- Automatic louver opening/closing
- Wind/rain/insect protection
- Privacy protection
- And encrypted protective mesh to prevent foreign objects from entering the motor.
Additional details
- Easy Installation and Maintenance
- Removable parts for easy cleaning.
- Safety
- Equipped with safety protective mesh to prevent accidental contact and foreign object intrusion.
- Power Cord
- Factory equipped with Approx. 30 cm long power cord without plug, made of high-quality copper core wire with flame-retardant PP outer layer.
1. Quiet Operation – Minimal noise disturbance.
2. Strong Ventilation – Effective odor removal.
3. Moisture Exhaust – Reduces humidity efficiently.

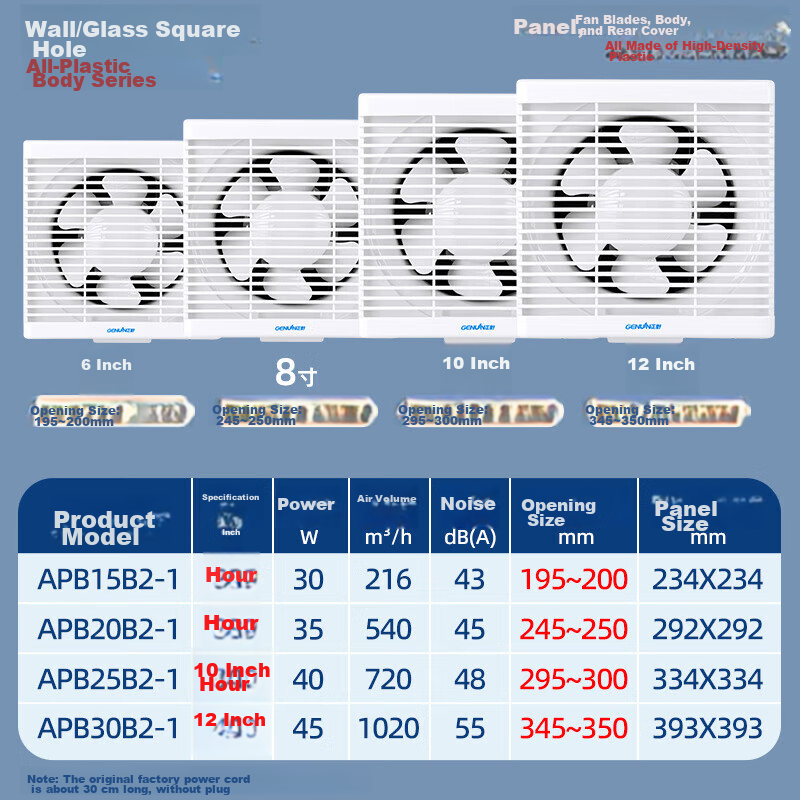

| Size (inch) | Model | Power (W) | Air Volume (m³/h) | Noise (dB(A)) | Opening Size (mm) | Panel Size (mm) |
|-------------|--------------|-----------|-------------------|---------------|-------------------|-----------------|
| 6 | APB15A2-1 | 30 | 216 | 43 | 195~200 | 234 x 234 |
| 8 | APB20A2-1 | 35 | 540 | 45 | 245~250 | 292 x 292 |
| 10 | APB25A2-1 | 40 | 720 | 48 | 295~300 | 334 x 334 |

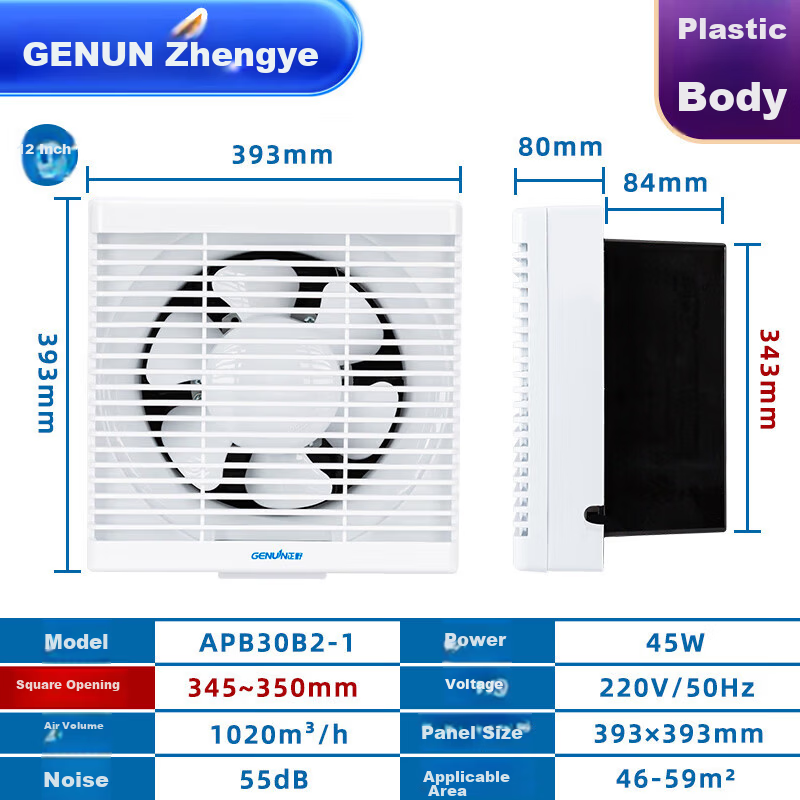

| 12 | APB30A2-1 | 45 | 1020 | 55 | 345~350 | 393 x 393 |
| Size (inch) | Model | Power (W) | Air Volume (m³/h) | Noise (dB(A)) | Opening Size (mm) | Panel Size (mm) |
|-------------|--------------|-----------|-------------------|---------------|-------------------|-----------------|
| 6 | APB15B2-1 | 30 | 216 | 43 | 195~200 | 234 x 234 |
| 8 | APB20B2-1 | 35 | 540 | 45 | 245~250 | 292 x 292 |
| 10 | APB25B2-1 | 40 | 720 | 48 | 295~300 | 334 x 334 |
| 12 | APB30B2-1 | 45 | 1020 | 55 | 345~350 | 393 x 393 |
Installation includes outdoor hood, motor, body, power cord, panel (luxury type), mounting screws, front cover, louver blade assembly.
The ventilator is suitable for bathroom dehumidification and odor removal.
Features splash-proof and waterproof technology with engineering-grade flame retardant materials.

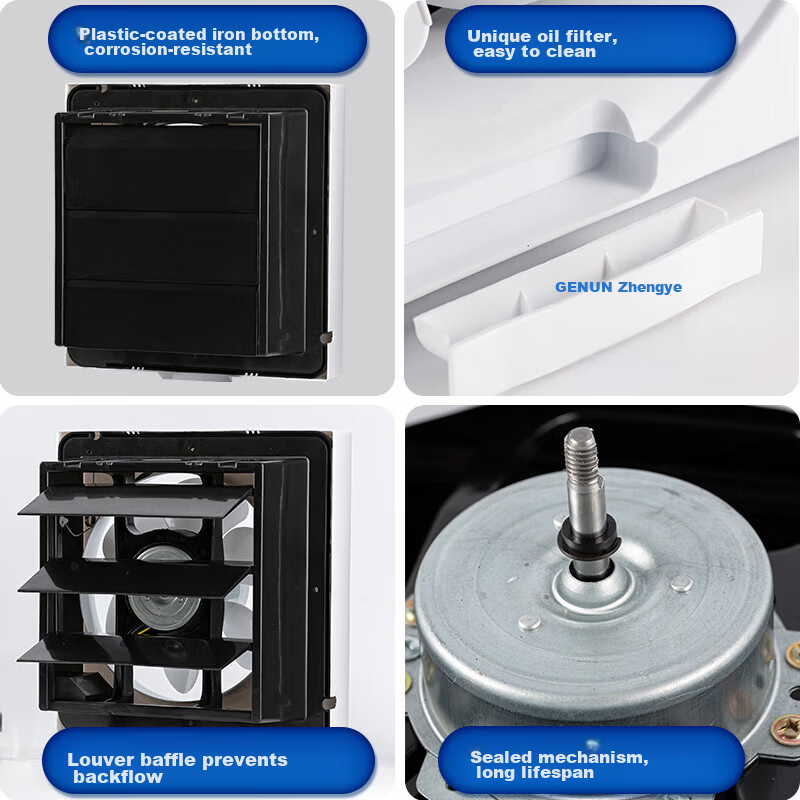

Louvers automatically close when power is off and open when powered on.
Protective rear panel prevents wind, rain, insects, and dirty air intrusion.
The full plastic body includes panel, blades, frame, and rear baffle made of high-density plastic for durability.
The motor uses thick copper wire for high load capacity and stability.
The product is designed for easy disassembly and cleaning.
The factory provides a power cord approximately 30 cm in length without a plug.
