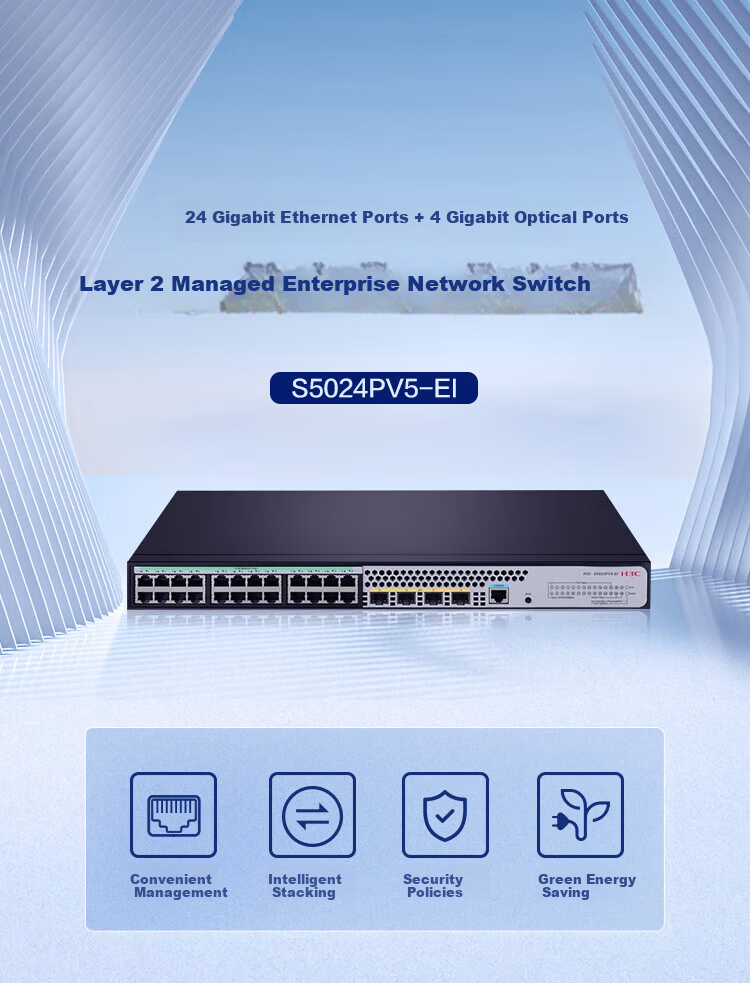

Back to CatalogH3C S50005V5-EI Series 24-Port Gigabit Switch with 1m Ethernet Cable, 24-Port PoE + 4 Optical Ports Layer 2 Managed Switch, Enterprise Network Splitter, Rack-Mountable
Specifications
- Network Management Type
- Network management
- Cloud-managed switch
- Cloud management not supported
- Power over Ethernet (PoE)
- Non-POE power supply
- Cooling method
- Natural heat dissipation
- Suitable Scenarios
- Access switch
- Port Type
- Electrical and optical ports
- Number of Ports
- 24 ports
- Set
- Single product
Variants / Sale Attributes
Color: 24port Gigabit Ethernet + 4 optical ports | WEB management
Package Contents
Shipped in original factory packaging
Product Description
Product Specifications
Overview
- Brand
- H3C
- Model

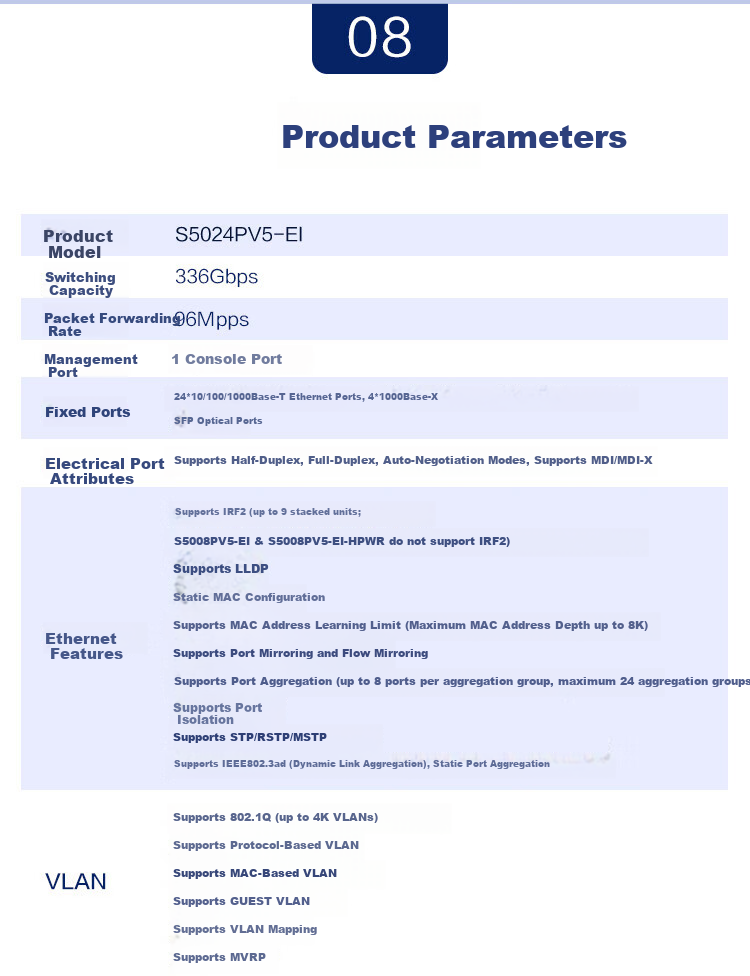

- S5024PV5-EI
- Ports
- 24 x 10/100/1000Base-T Ethernet ports, 4 x 1000Base-X SFP fixed optical ports
- Console Port
- 1 x Console (RJ-45), RS-232 serial port with DB-9 female connector
- Port Attributes
- Supports half-duplex, full-duplex, auto-negotiation, MDI/MDI-X
- Stack Technology
- Supports IRF2 (up to 9 devices stacked; note S5008PV5-EI and S5008PV5-EI-HPWR do not support IRF2)
Similar Products
In Stock
In Stock

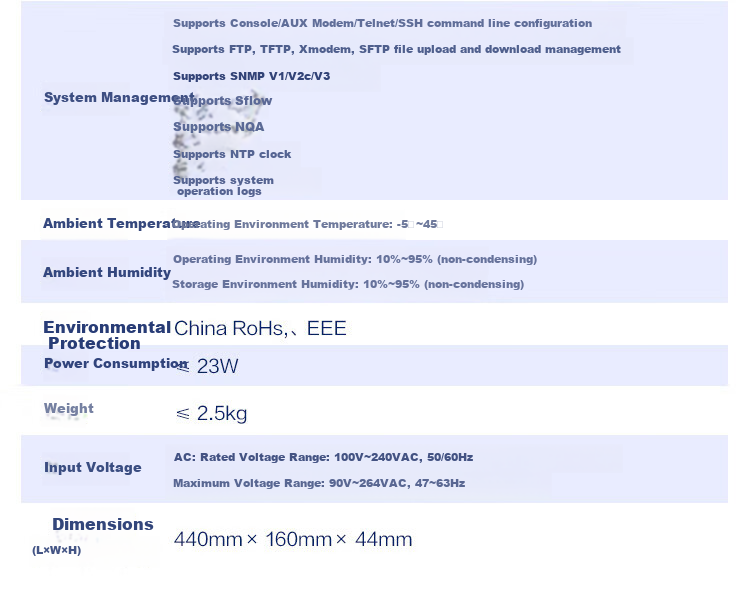

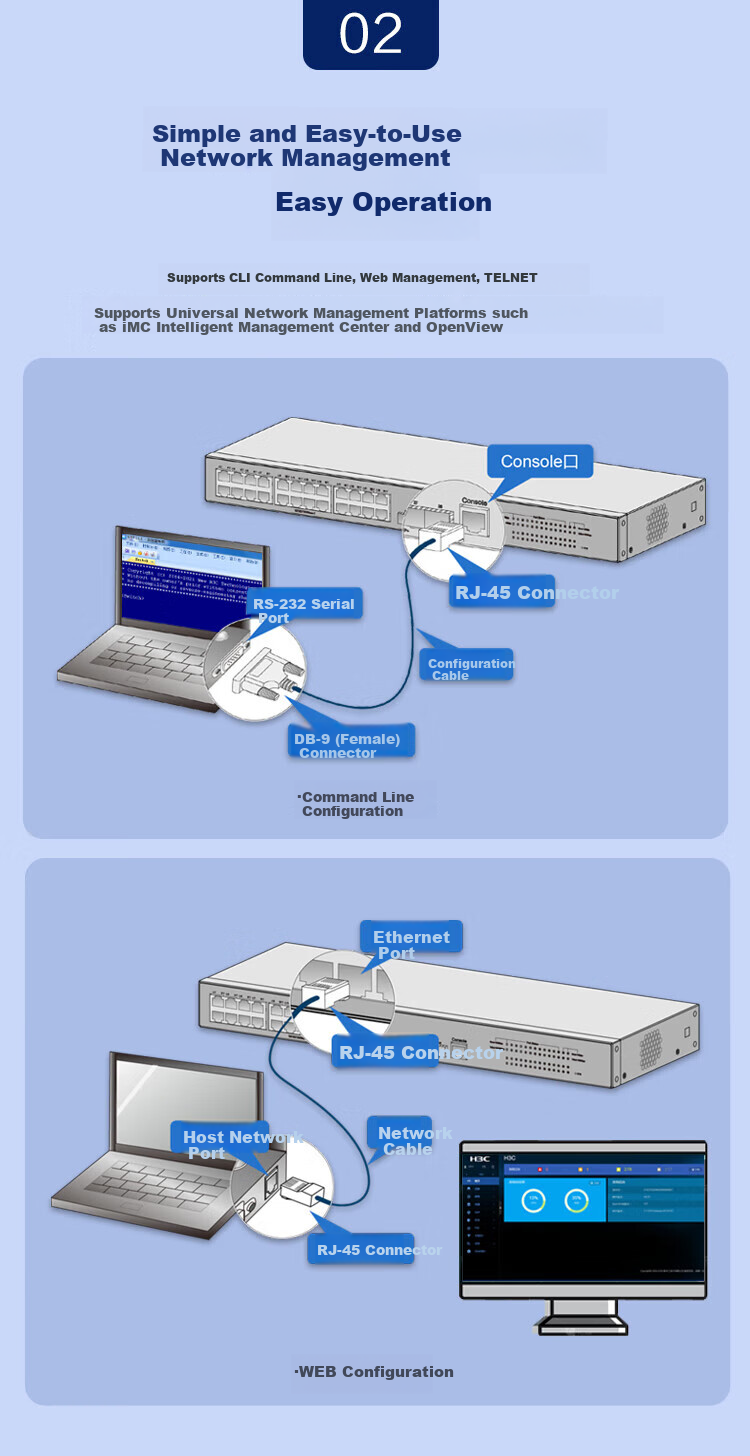

Downlink Port RateGigabit MAC Address TableSupports up to 8K MAC addressesSwitching Capacity336 Gbps Packet Forwarding Rate96 Mpps Dimensions (L x W x H)440 mm x 160 mm x 44 mm Input VoltageAC 100V~240VAC, 50/60Hz (rated); 90V~264VAC, 47~63Hz (max) Management InterfacesCLI, Web GUI, TELNET, Console (RJ-45), supports configuration via Ethernet port Compatible with iMC Intelligent Management Center, OpenView, and other common network management platforms
Supports SSH, FTP, TFTP, Xmodem, SFTP for file transfer and management
Supports SNMP v1/v2c/v3, including secure SNMPv3
Supports user privilege management and password protection
Supports system logs, NTP clock synchronization, Sflow, and NQA

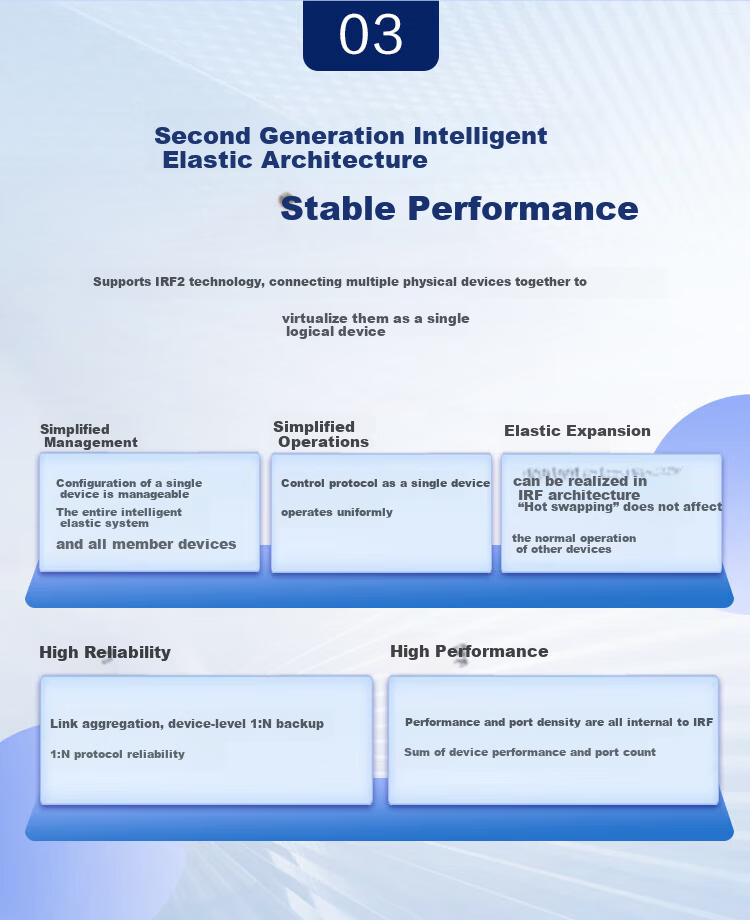

Second-generation Intelligent Resilient Framework (IRF2) for device virtualization and simplified management
Hot-swappable stack members without service interruption
Additional details
- High reliability and performance with device-level 1
- N backup and link aggregation
Supports LLDP and static MAC configuration

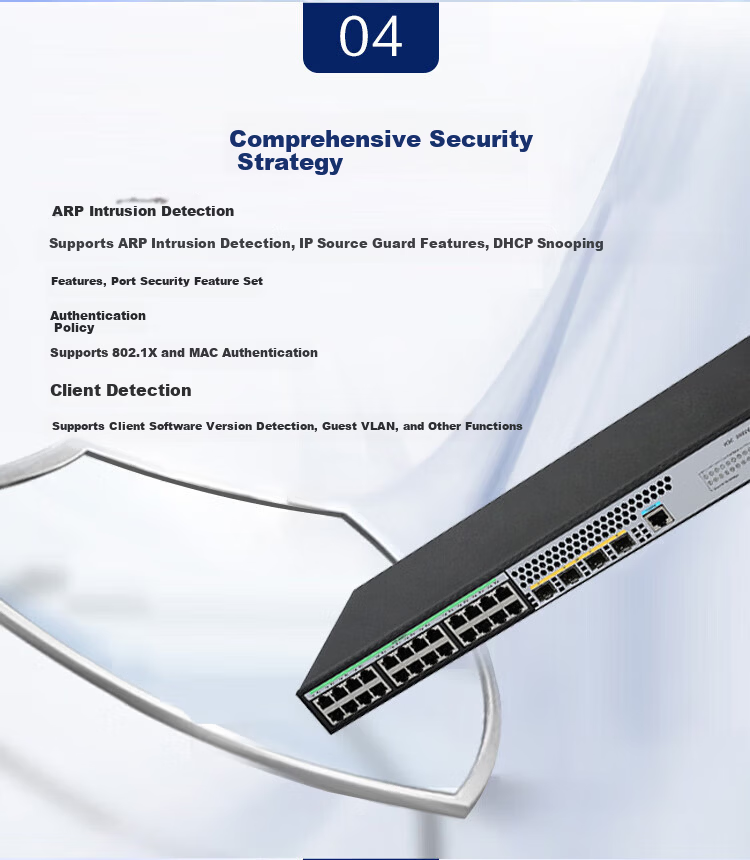

ARP intrusion detection, IP Source Guard, DHCP Snooping
Port security and 802.1X authentication, MAC authentication
Client detection including software version detection and Guest VLAN support
Supports MAC address limiting and IP+MAC+PORT binding
Supports Radius, AAA authentication
Supports broadcast storm suppression and protection against ARP, unknown multicast, unknown unicast, TTL=1, and protocol attacks
Port mirroring and flow mirroring
Additional details
- Port aggregation
- up to 8 ports per group, maximum 24 groups
Additional details
- Spanning Tree Protocols
- STP, RSTP, MSTP
IEEE 802.3ad dynamic link aggregation and static link aggregation
Additional details
- VLAN
- Supports 802.1Q VLANs (up to 4K), protocol-based VLAN, MAC-based VLAN, Guest VLAN, VLAN mapping, MVRP

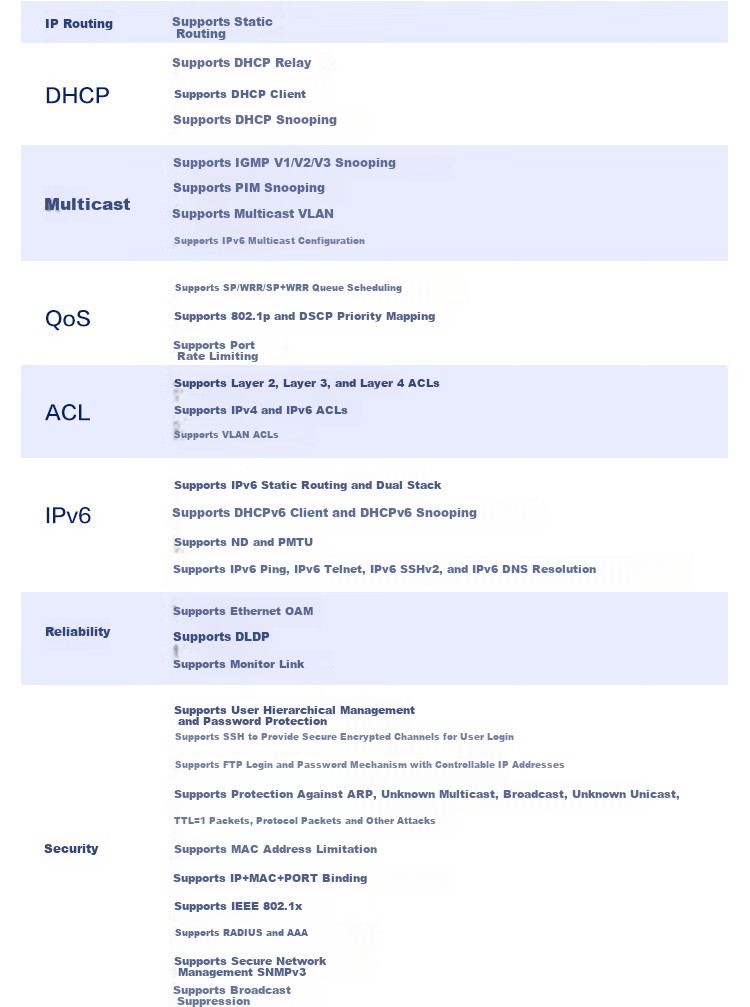

DHCP Relay, DHCP Client, DHCP Snooping
IGMP v1/v2/v3 Snooping, PIM Snooping
Additional details
- IPv6 support
- Dual stack, IPv6 static routing, DHCPv6 Client, DHCPv6 Snooping, Neighbor Discovery (ND), Path MTU Discovery (PMTU), IPv6 Ping, IPv6 Telnet, IPv6 SSHv2, IPv6 DNS resolution
Supports 802.1p priority, DSCP priority mapping
Additional details
- Queue scheduling
- SP, WRR, SP+WRR
Supports DLDP, MonitorLink
Supports user-level management and password protection
Additional details
- Operating Temperature
- -5°C to 45°C
- Operating Humidity
- 10% to 95% non-condensing
- Storage Humidity
- 10% to 95% non-condensing
- Compliance
- China RoHS, EEE
Green energy-saving design
