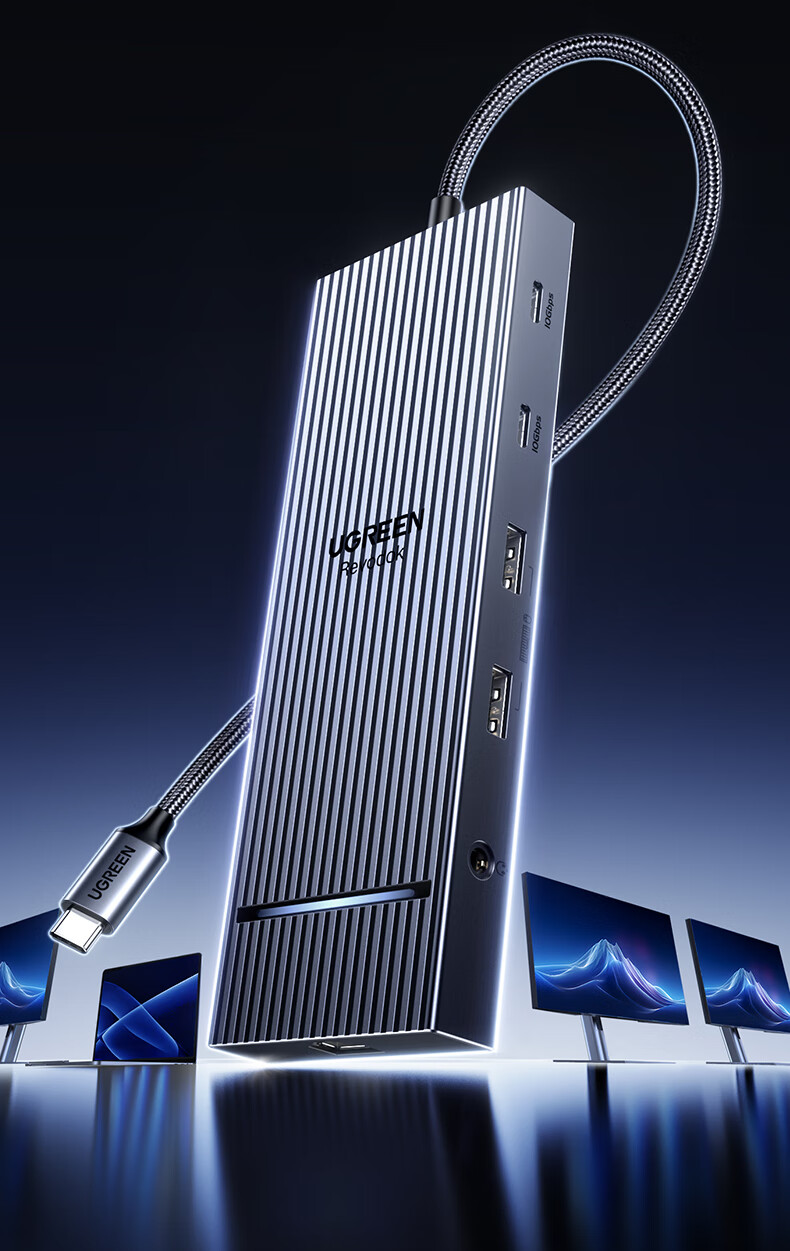

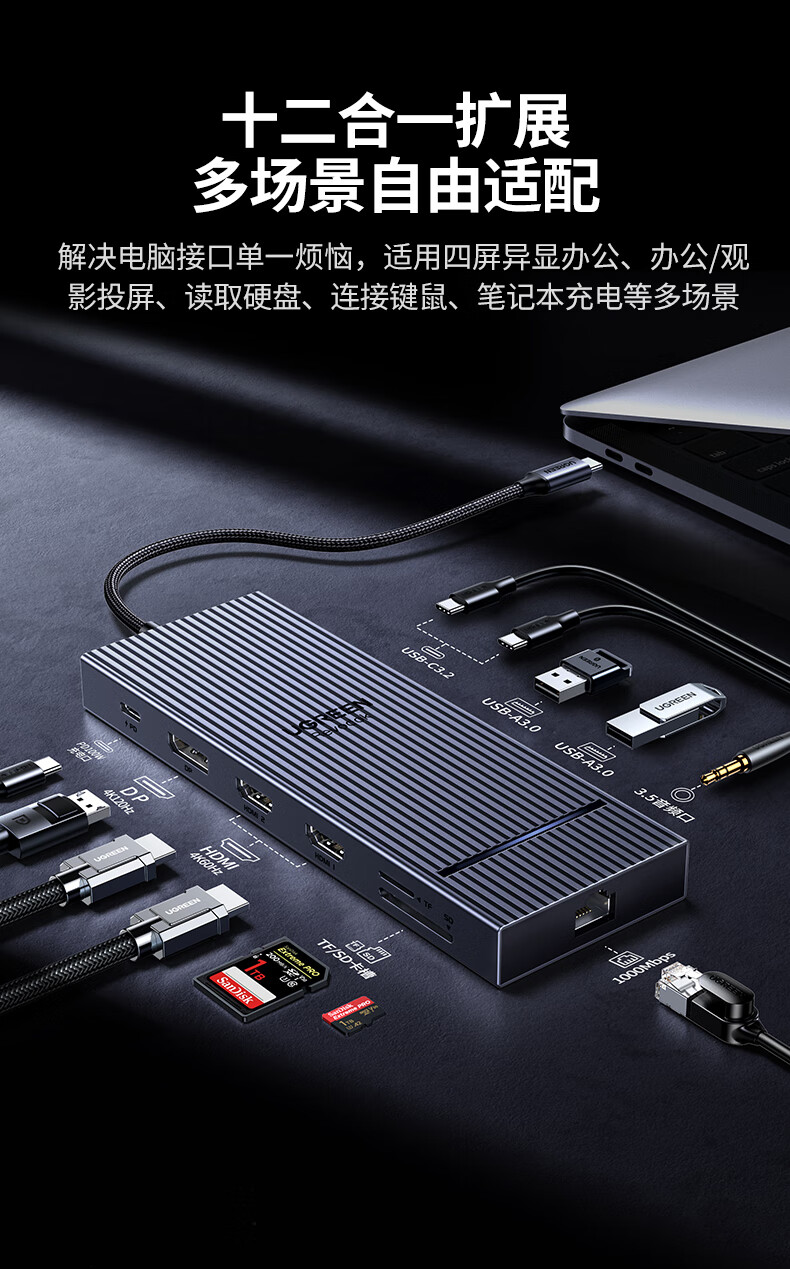

Type-C Twelve-in-One Smart Docking Station Deep Gray x 1
Product Description
Product Specifications
Overview
Brand
UGREEN
Product Name
Type-C Smart Docking Station
Model Number
55767

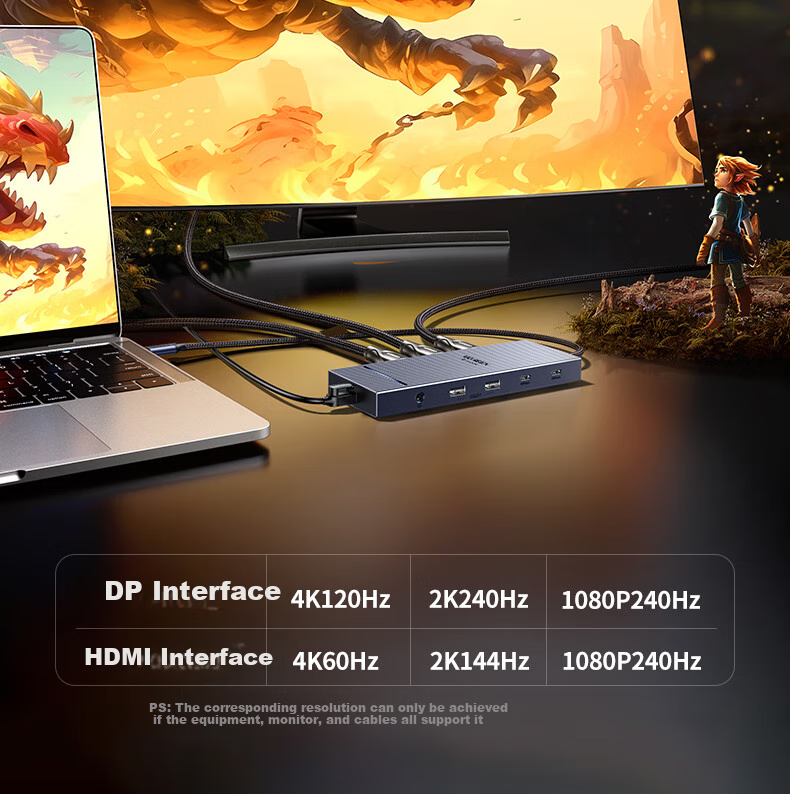

DP Resolution
Up to 4K@120Hz, 2K@240Hz
HDMI1/HDMI2 Resolution
Up to 4K@60Hz, 2K@144Hz

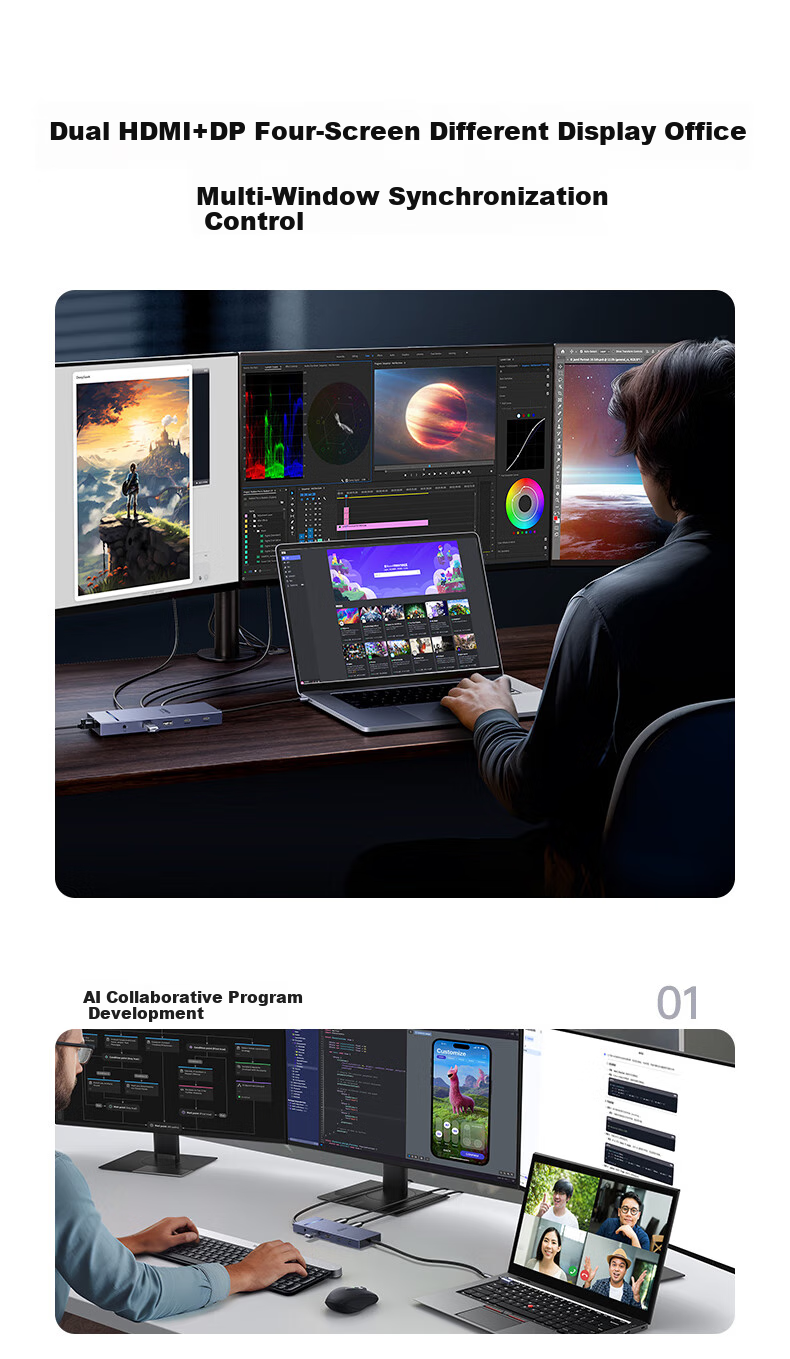

Supports up to four independent displays via Dual HDMI + DP ports (Windows supports MST for four-screen extended display; macOS supports up to three external 4K@60Hz displays, mirroring on macOS for multiple screens)
Compatible with multi-window synchronous control for design, video editing, programming, AI collaboration, financial analysis, and multi-screen live streaming
MacOS multi-screen extension only supports mirrored display; Windows supports extended multi-screen mode

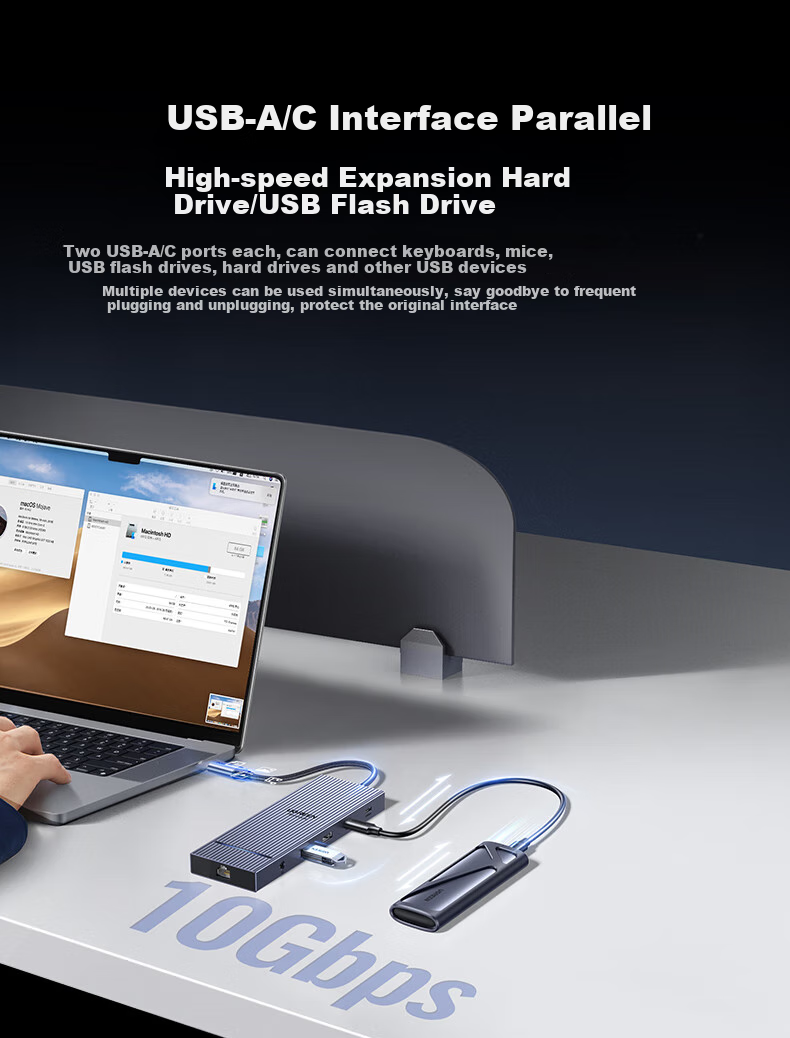

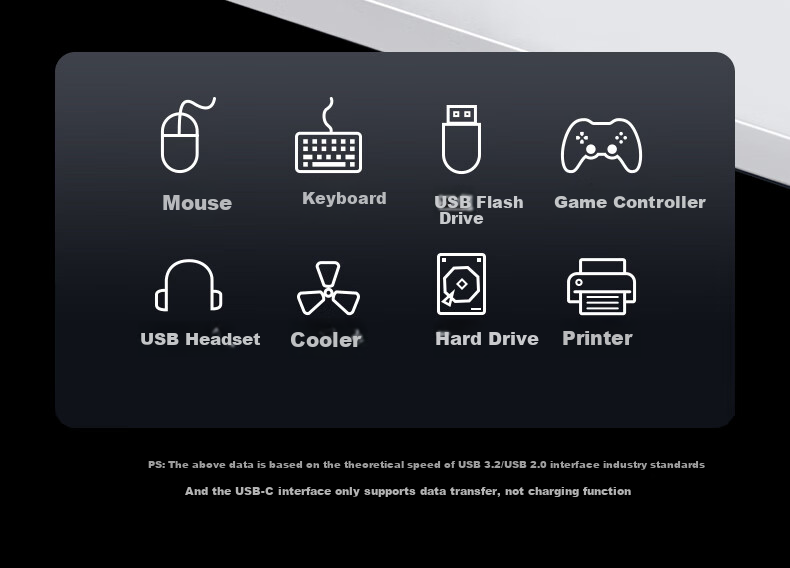

2 x USB-C 3.2 ports (total bandwidth 10Gbps)
2 x USB-A 2.0 ports
USB-C ports support data transfer only (no charging)
Additional details
Transfer speed

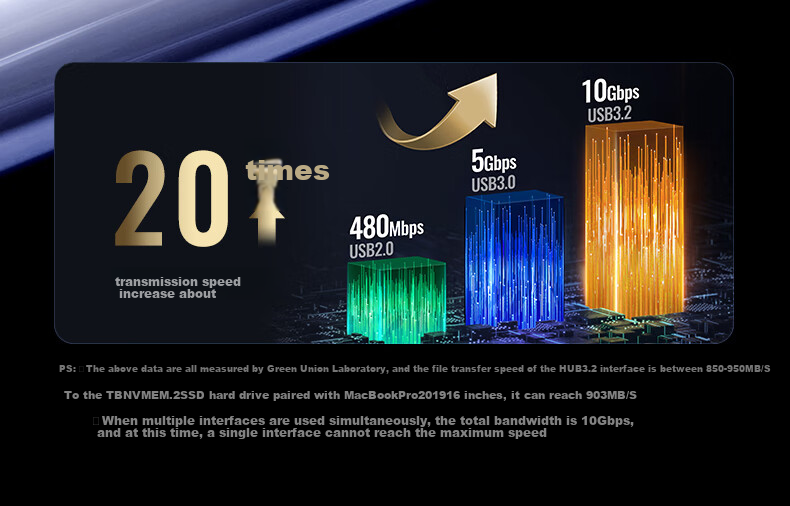

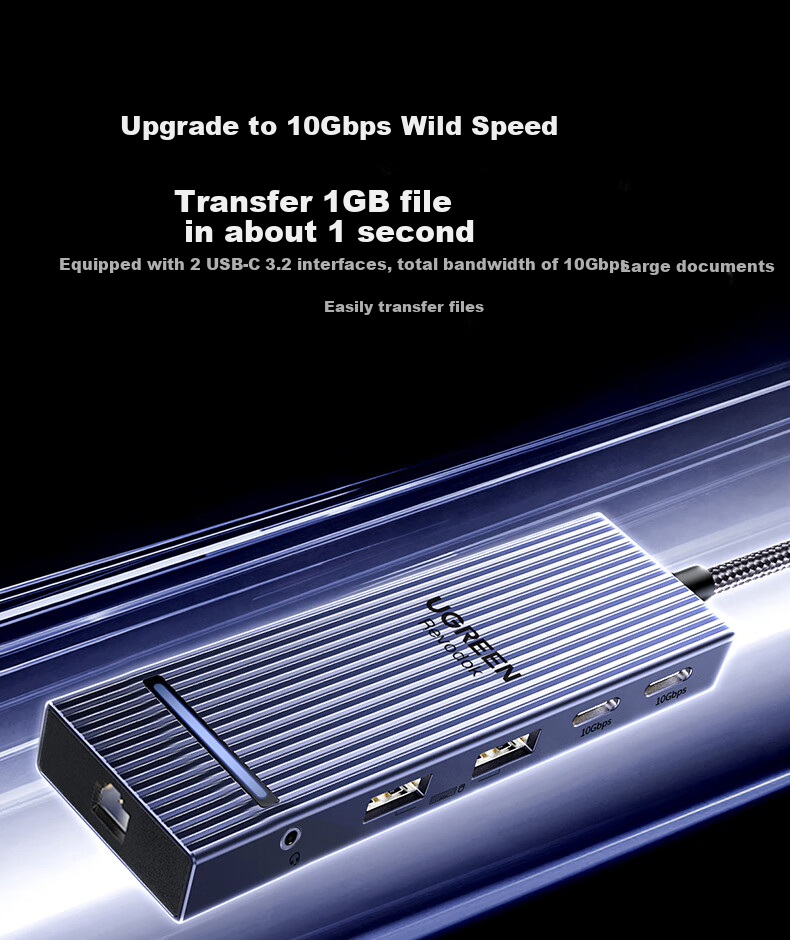

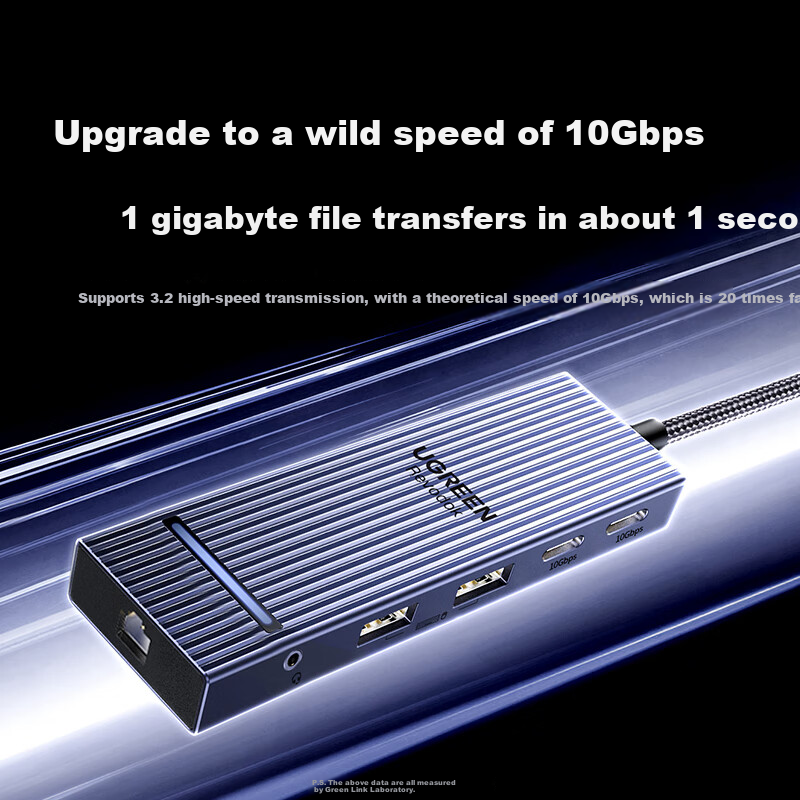

Up to 10Gbps; 1GB file transfers in Approx. 1 second (tested with NVMe SSD and MacBook Pro)

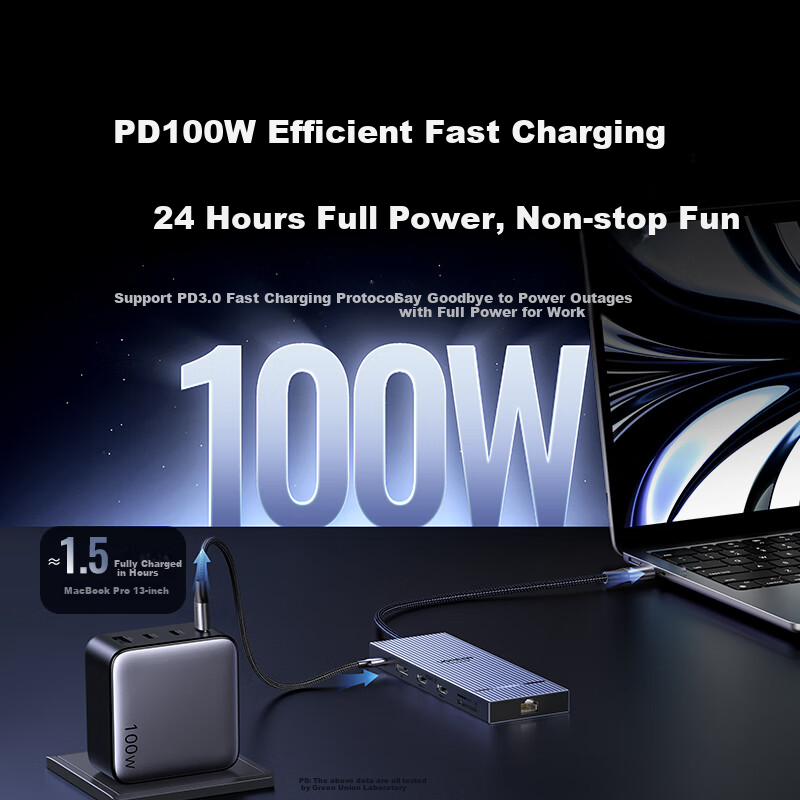

PD 3.0 protocol support, max 100W fast charging
Supports simultaneous charging and usage
Additional details
Charging efficiency
Approx. 1.5 hours to fully charge MacBook Pro 13-inch
Dynamic power allocation based on charger wattage (5W to 15W power deduction by dock)

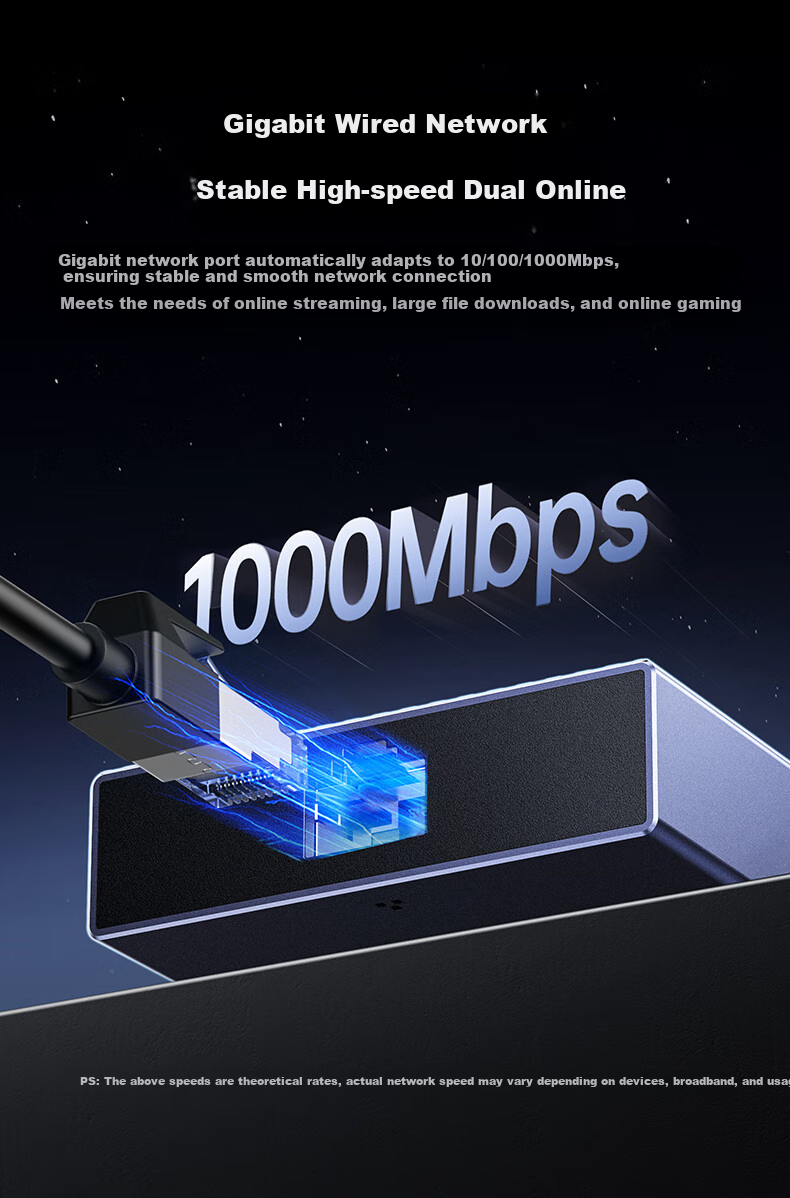

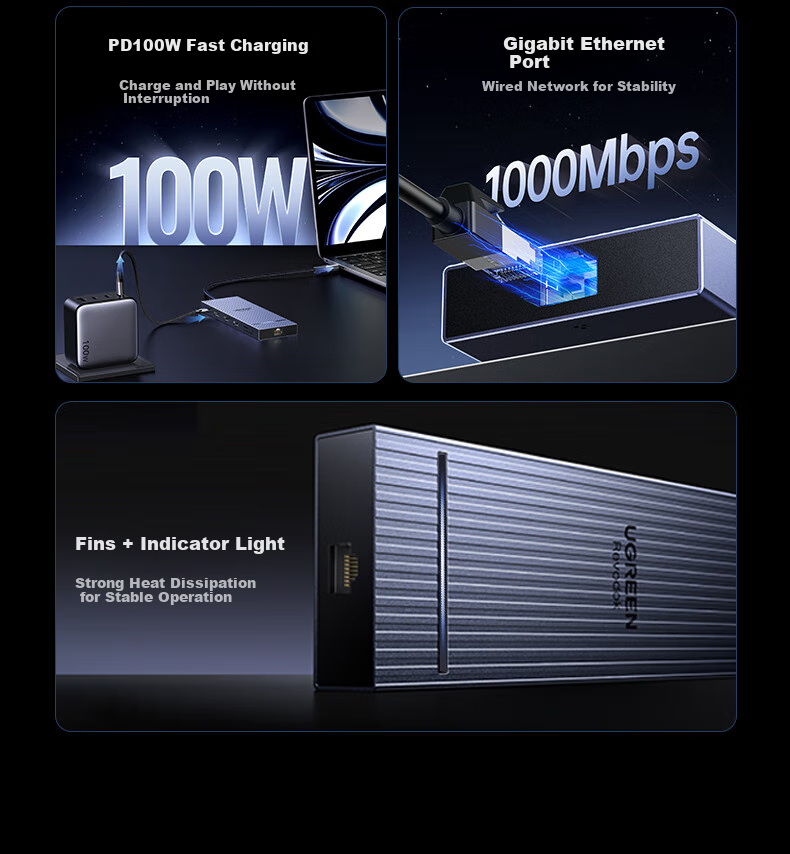

Gigabit Ethernet port supporting 10/100/1000Mbps auto-adaptation
Stable and fast wired network connection for streaming, gaming, and large file downloads

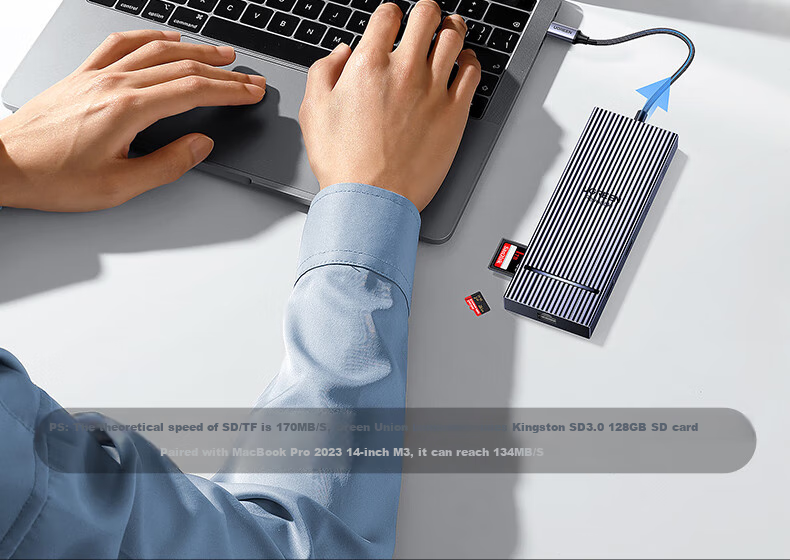

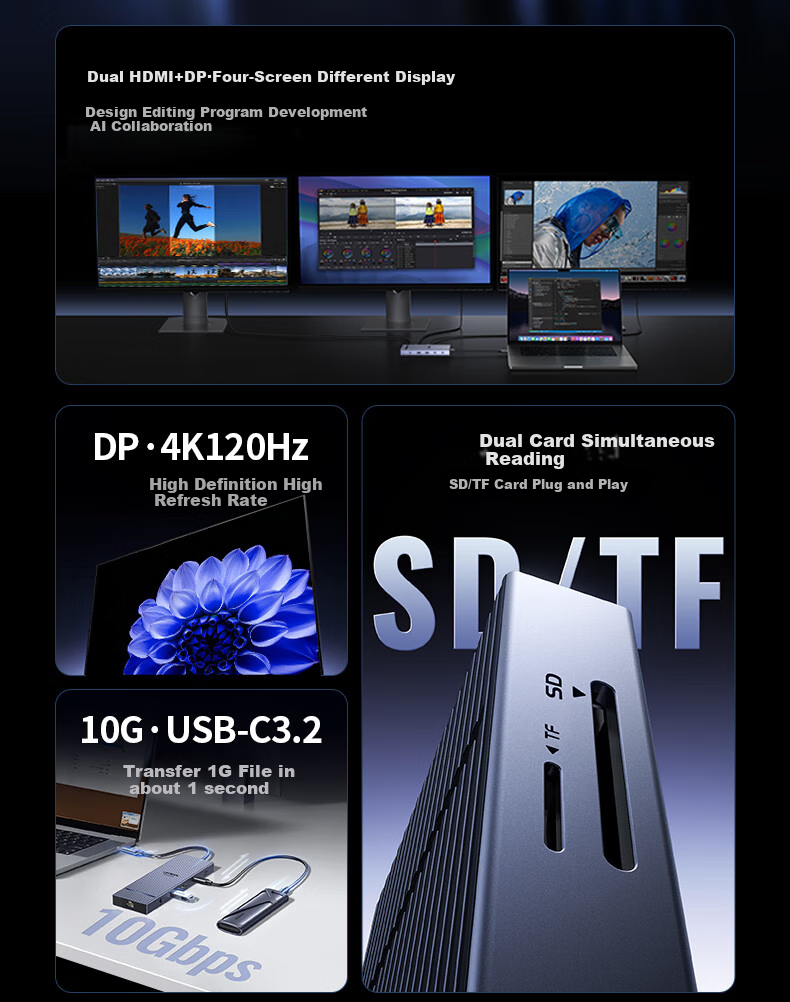

Dual SD/TF card slots supporting SD 3.0 protocol
Theoretical transfer speed up to 170MB/s (tested up to 134MB/s with Kingston SD card and MacBook Pro M3)
3.5mm audio jack supporting stereo sound output
Compatible with headphones, microphones, and speakers for immersive audio experience

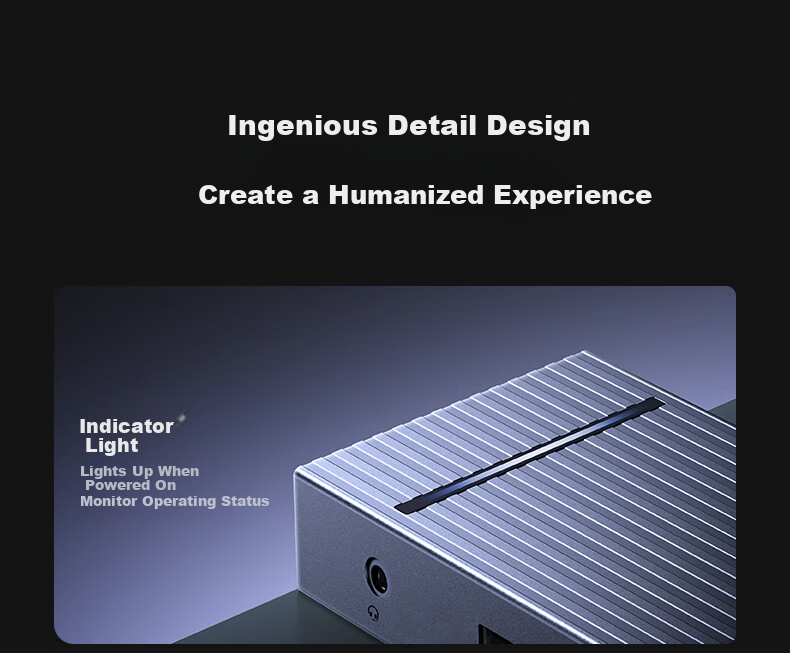

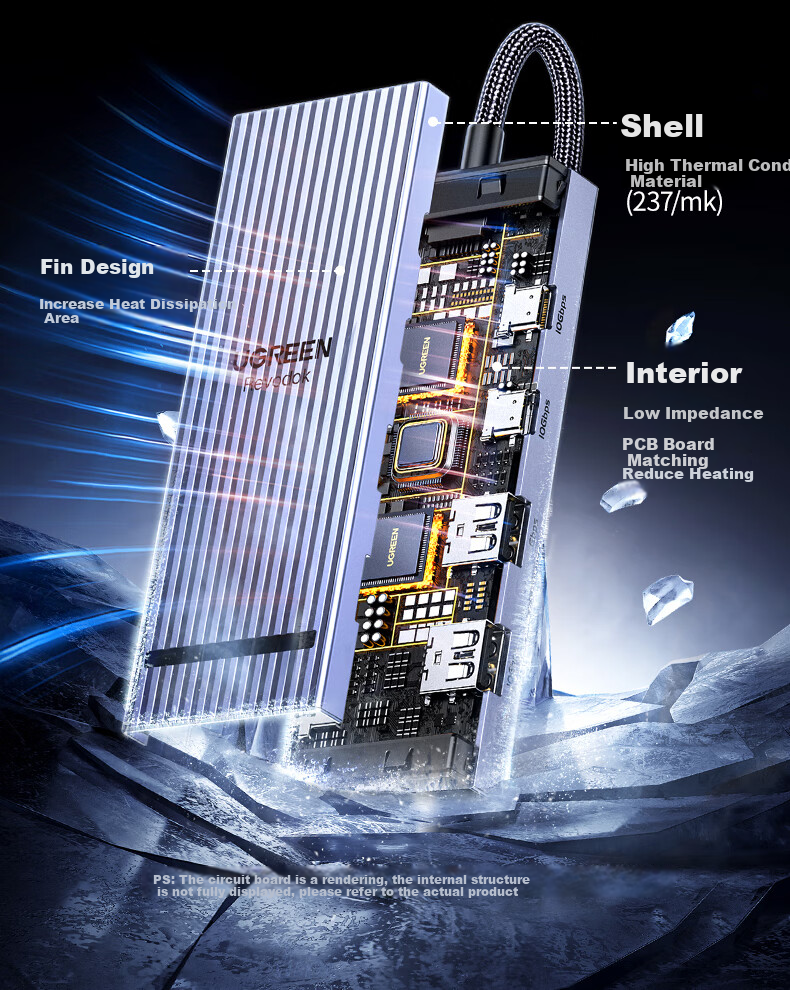

Aviation-grade aluminum alloy shell with finned design for enhanced heat dissipation

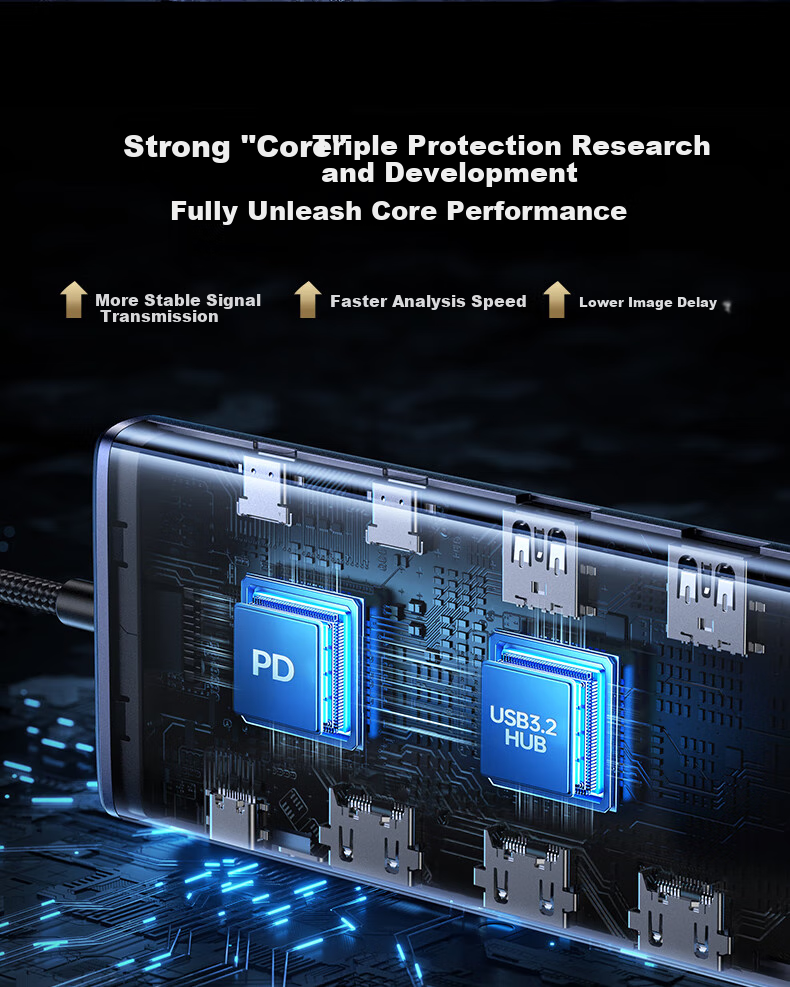

Internal low-resistance PCB design for stable and safe operation under full load
Triple shielding cables with tinned copper core, aluminum foil, and braided mesh for low latency and stable signal transmission
Requires host device with full-function Type-C port for full feature support

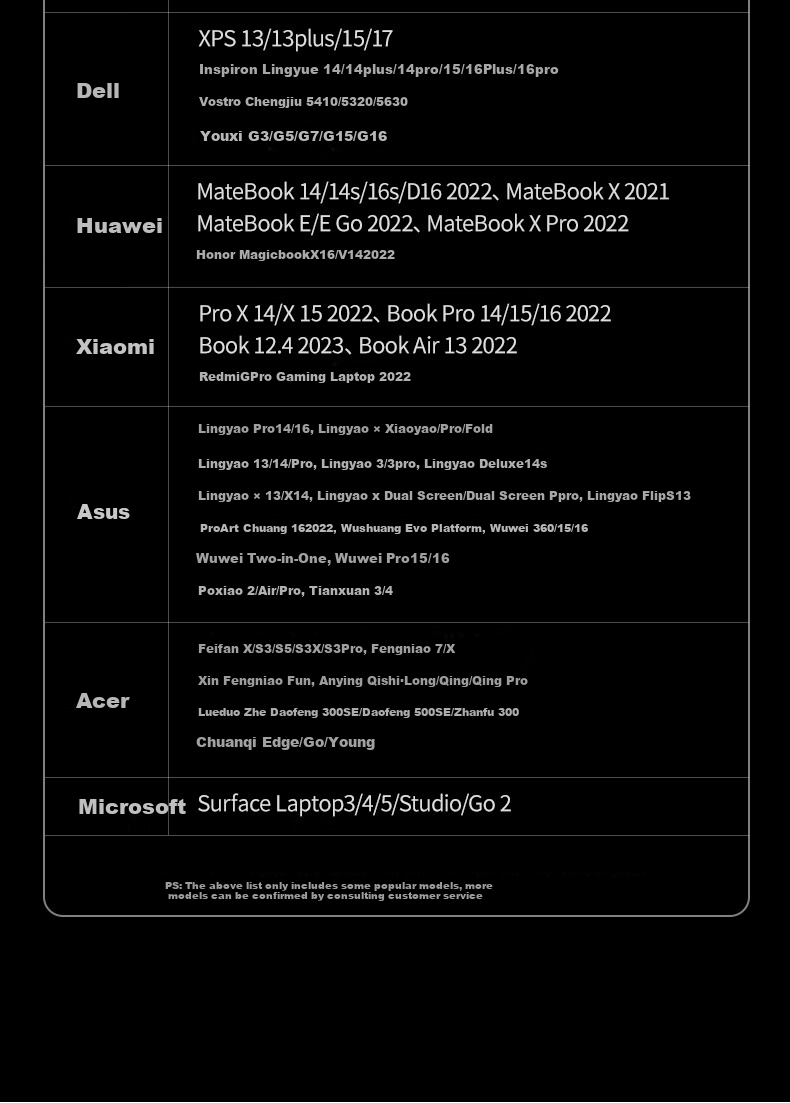

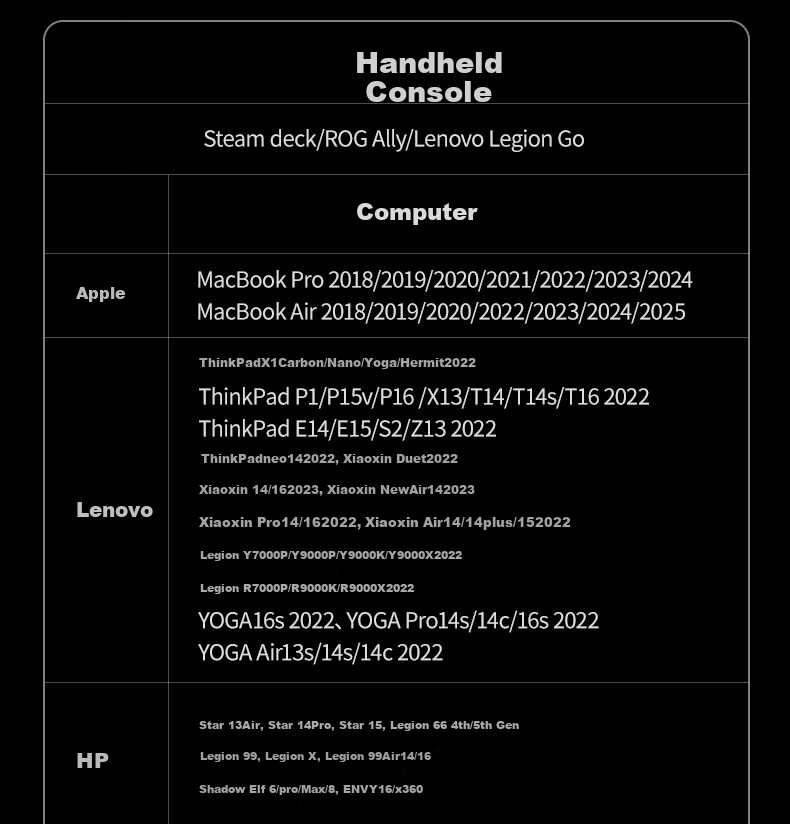

Compatible with a wide range of devices including but not limited to
Laptops: MacBook Pro (2018-2024), MacBook Air (2018-2025), ThinkPad series, Lenovo Legion, HP Omen and Envy, Dell XPS and Inspiron, Huawei MateBook, Xiaomi Book series, ASUS ProArt and gaming laptops, Acer Predator series, Microsoft Surface series
Handheld consoles: Steam Deck, ROG Ally, Lenovo Legion Go
Actual supported resolutions and refresh rates depend on host device, display, and cable capabilities
Additional details
Length
161.9 mm
Width
57.6 mm
Height
16.1 mm
Cable length
Approx. 40 cm
1 year
Stylish color box packaging
Additional details

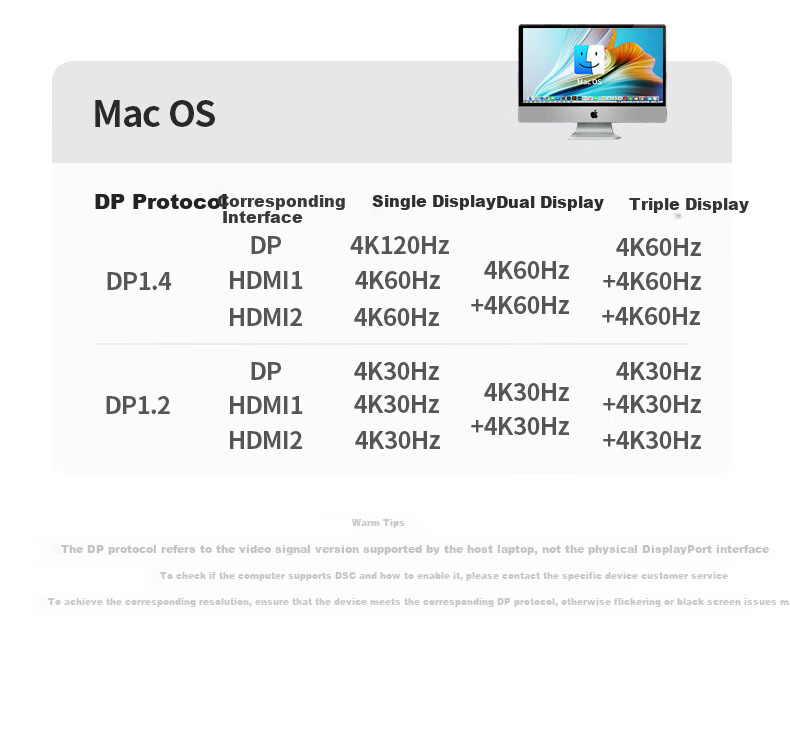

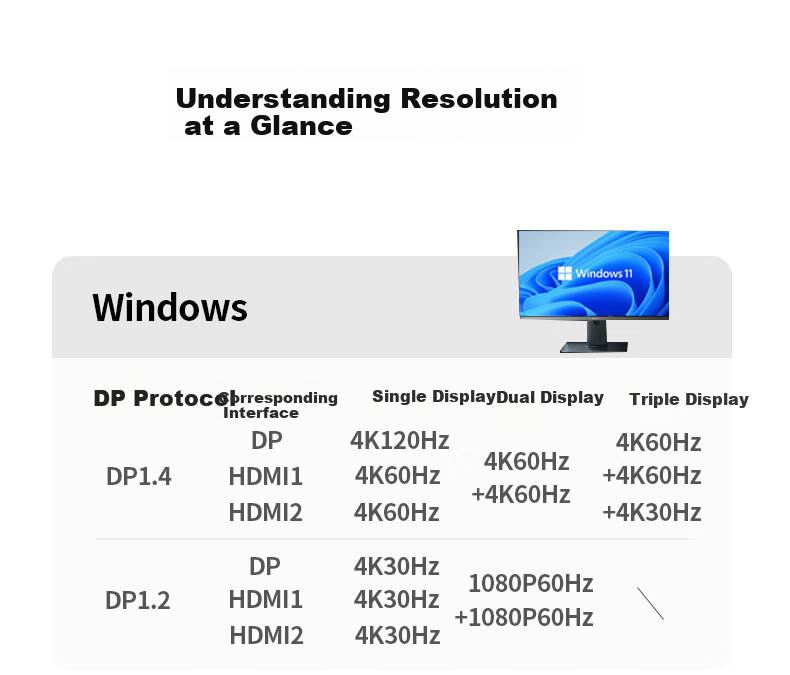

DP protocol versions supported
DP1.4 (with DSC), DP1.2

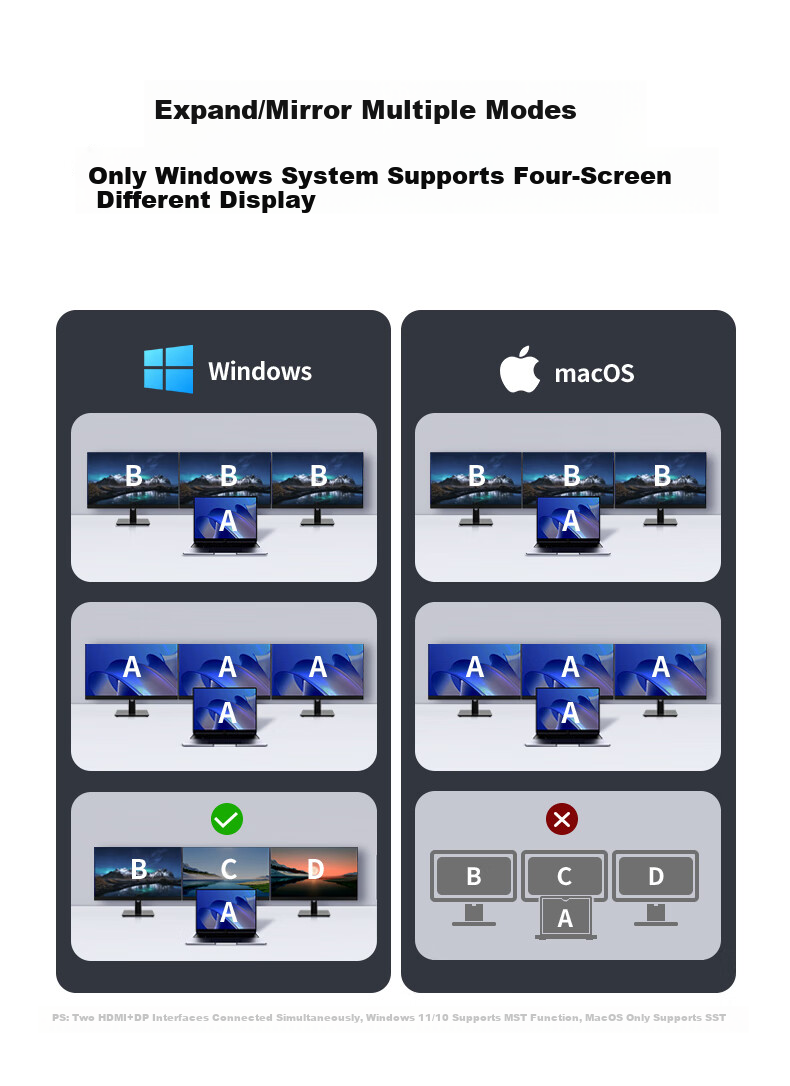

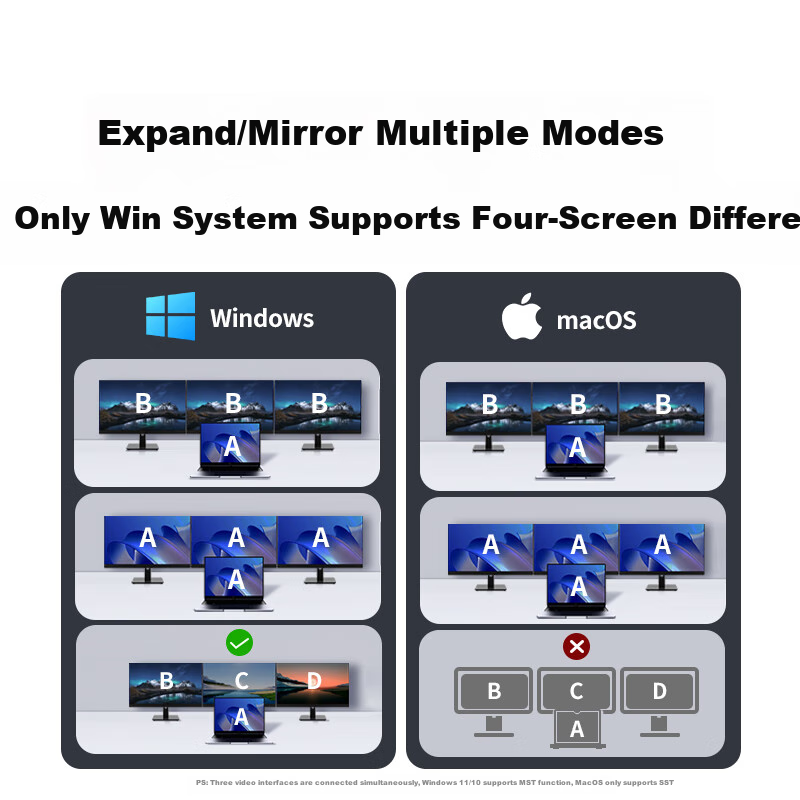

Supports multiple display modes
extended, mirrored, and duplicated (varies by OS)
MacOS supports up to three external 4K@60Hz displays; Windows supports MST for four-screen extended display
USB-C ports do not support charging function, only data transfer
Network speed and transfer rates are theoretical and may vary depending on environment and device compatibility
For best performance, use compatible cables and devices supporting required protocols and resolutions
