BOSCH Electric Hammer, Impact Drill, Water And Electrical Safety Installation, Tile Removal, Lithium Battery Brushless Two Batteries One Charger Set GBH18V-22X

BOSCH•Electric hammer

BOSCH Electric Hammer, Impact Drill, Water And Electrical Safety Installation, Tile Removal, Lithium Battery Brushless Two Batteries One Charger Set GBH18V-22X

CN¥1,574.10

SKU: 100188496838

Status:In Stock (14)

ID: 100188496838

Weight: 6260.00 g

Dims:474x368x132 mm

Specifications

Whether with carbon brush: Without carbon brush
Chuck Type: Universal chuck
Rated voltage: 18V
Battery capacity: 4Ah
Power Mode: Lithium battery

Package Contents

1 bare tool, 2 4.0Ah batteries, 1 charger

Product Description

Overview

Brand: BOSCH
Model: GBH18V-22 X
Type: 18V Professional Lithium-Ion Cordless Dust Extraction Hammer

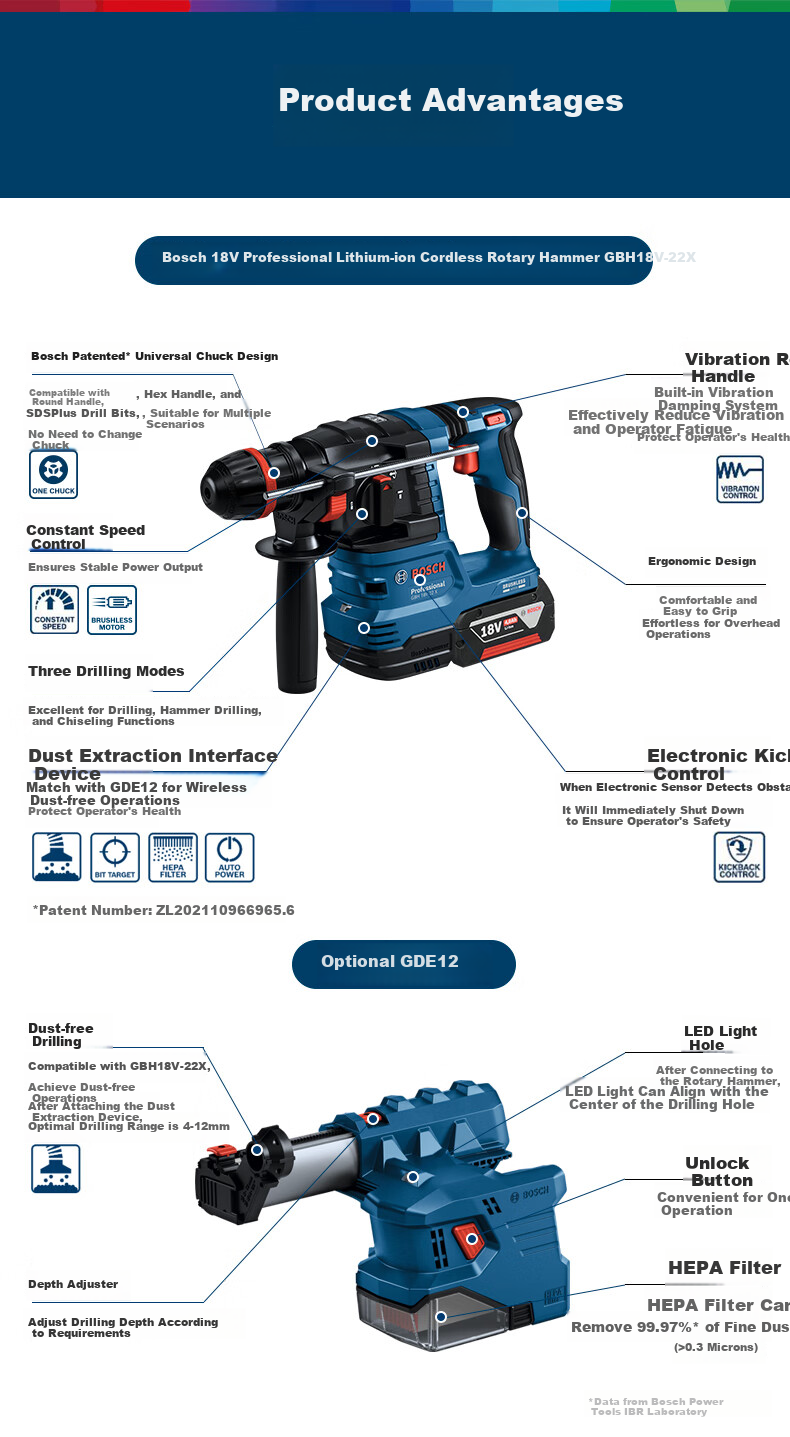

Features

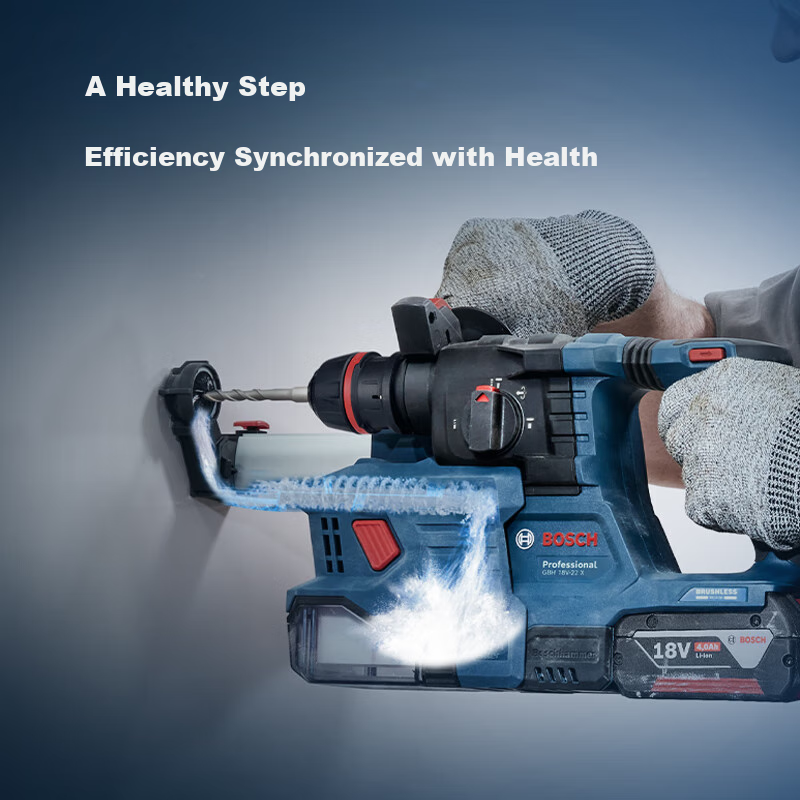

Dust extraction system for clean and safe working environment

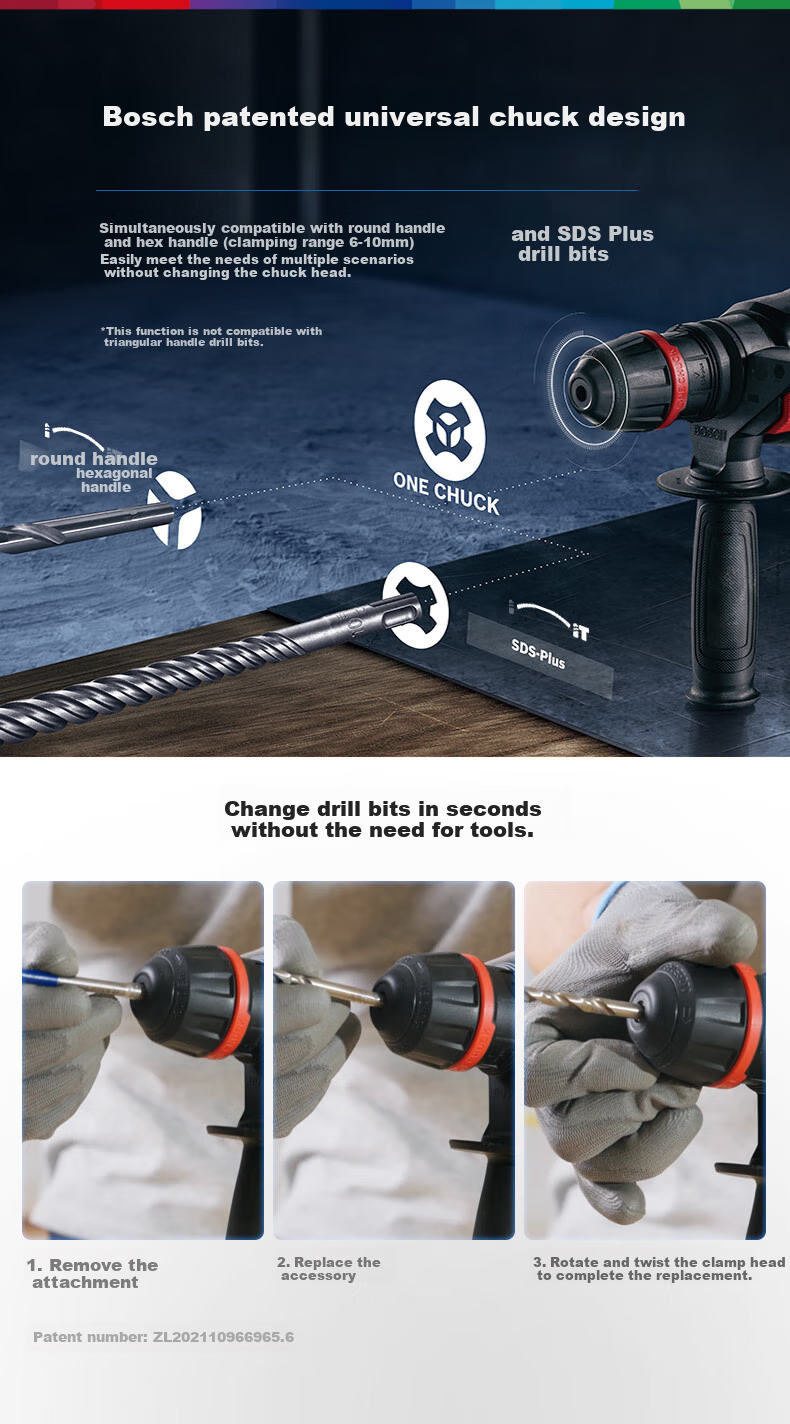

Patented universal chuck design for compatibility with round, hex, and SDS-Plus drill bits

Similar Products

Out of Stock

Shida SATA Brushless Lithium-Ion Rotary Hammer Drill, Electric Pick, Impact Drill, High-Power Concrete Wireless Industrial Grade D05729 Standard

SATAElectric hammer

Shida SATA Brushless Lithium-Ion Rotary Hammer Drill, Electric Pick, Impact Drill, High-Power Concrete Wireless Industrial Grade D05729 Standard

D05729 Standard Model [4.0AH Single Battery]

CN¥699.00

In Stock

BOSCH Electric Hammer, Drill, Pick, Flat Drill, Chisel, Impact Reversing Four-Hole Electric Hammer Tool Box, 830W Plug-In GBH2-26

BOSCHElectric hammer

BOSCH Electric Hammer, Drill, Pick, Flat Drill, Chisel, Impact Reversing Four-Hole Electric Hammer Tool Box, 830W Plug-In GBH2-26

GBH 2-26 DRE

CN¥1,196.10

Brushless motor for stable power output and efficient drilling even at low battery levels

Electronic kickback control and mechanical clutch for user safety

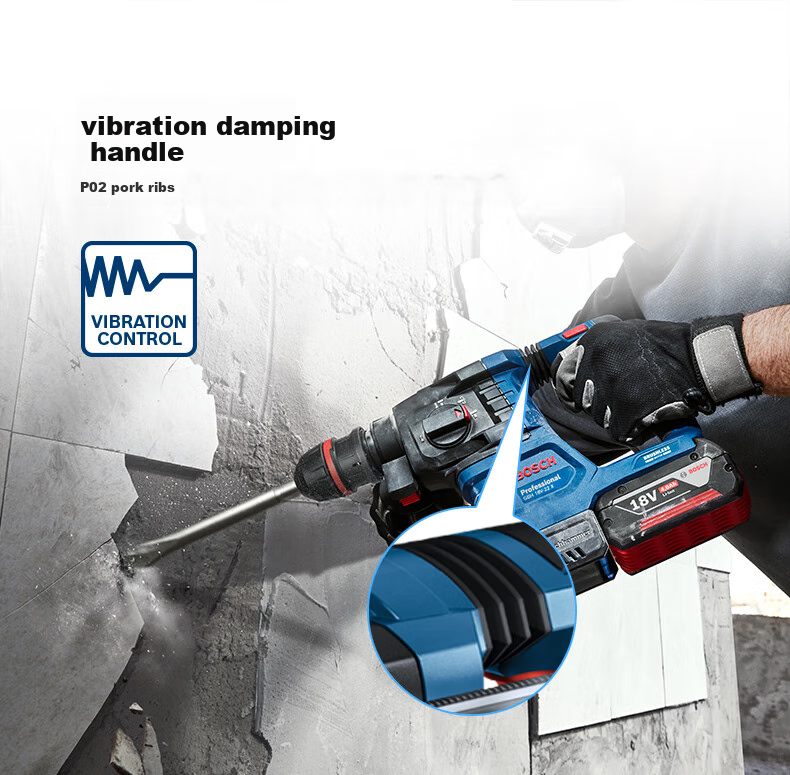

Vibration control handle for reduced fatigue during operation

LED light for improved visibility

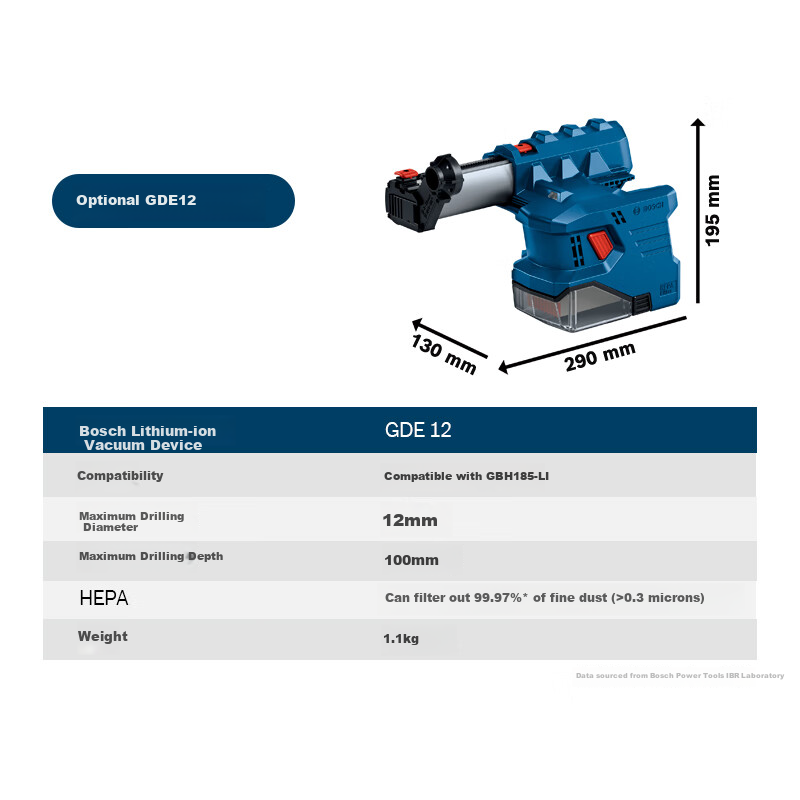

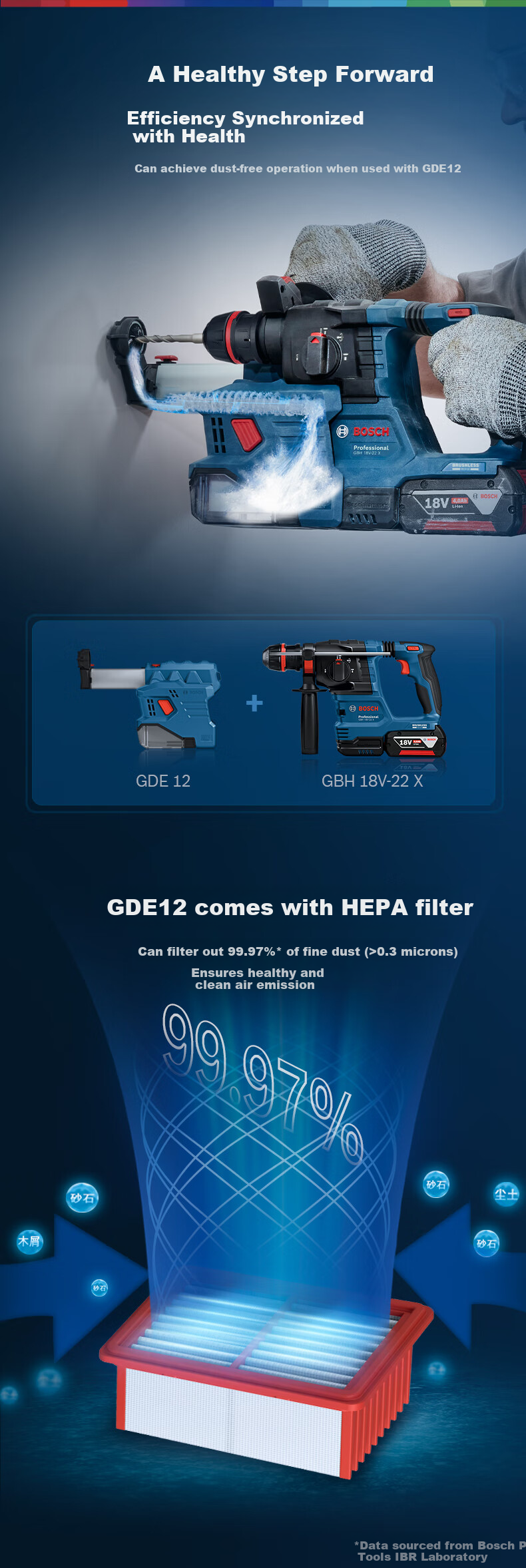

Dust Extraction System (GDE12)

HEPA filter to remove 99.97% of fine dust particles (>0.3 microns)
Compatible with GBH18V-22 X for dust-free drilling

Safety Features

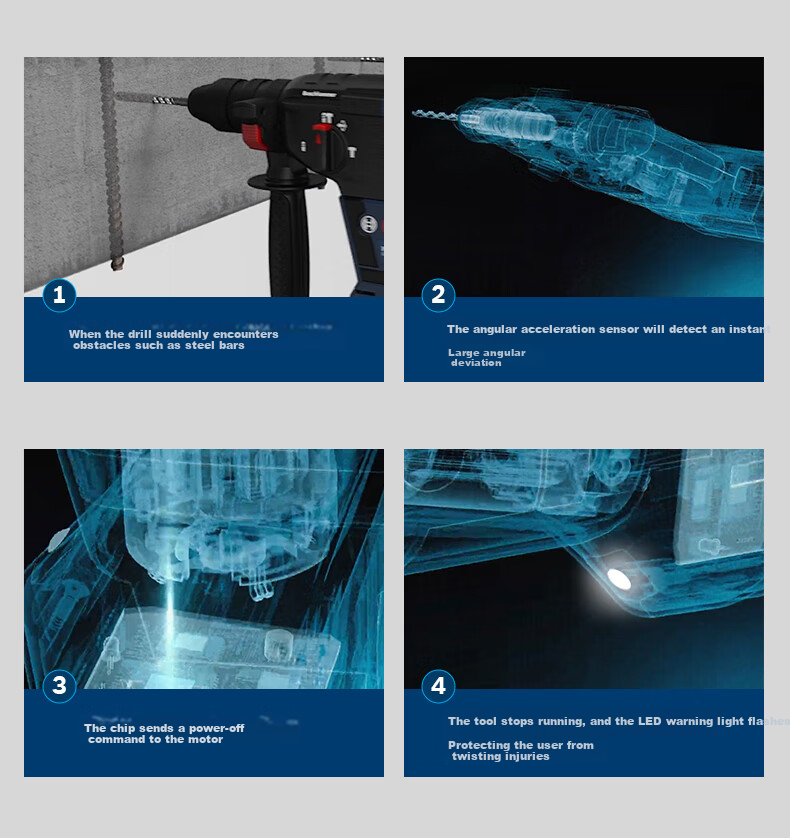

Angle acceleration sensor to detect obstacles and prevent injuries
LED warning light for added safety

Additional Accessories

One Chuck for quick and tool-free drill bit changes
Optional GDE12 for dust extraction and depth adjustment

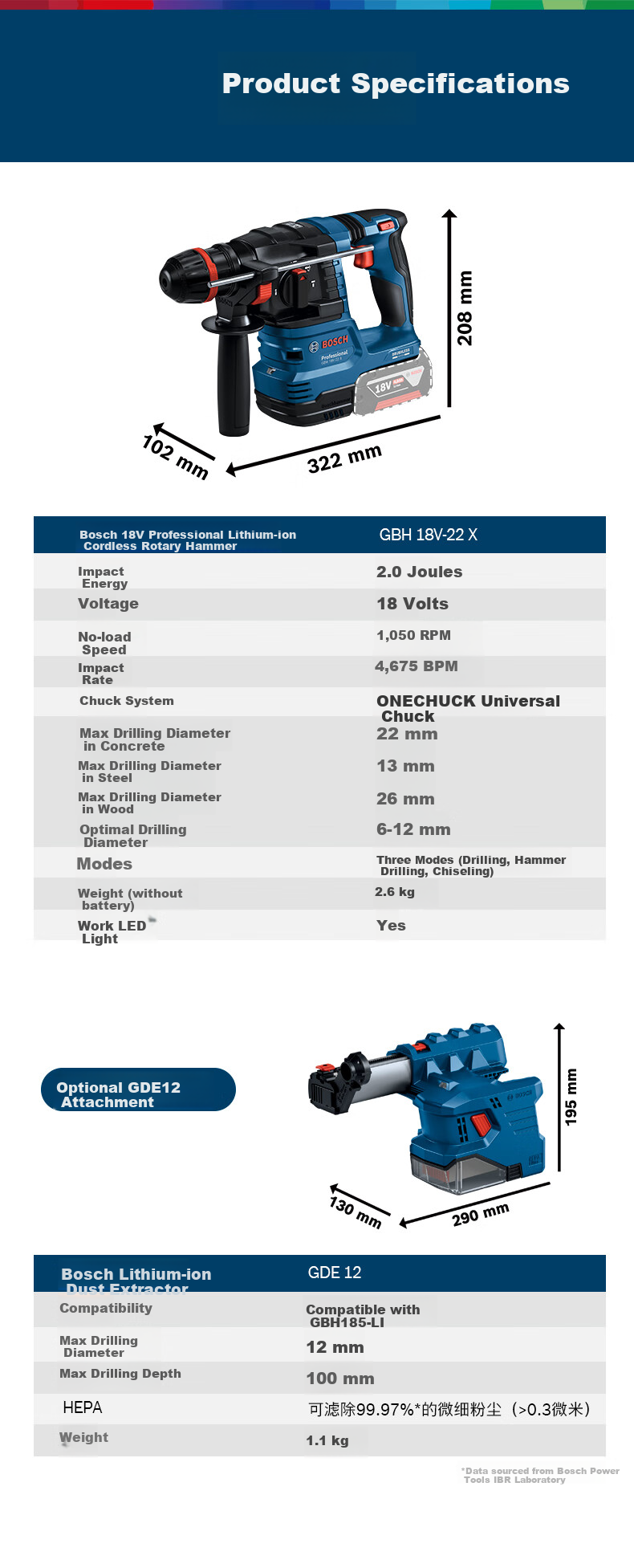

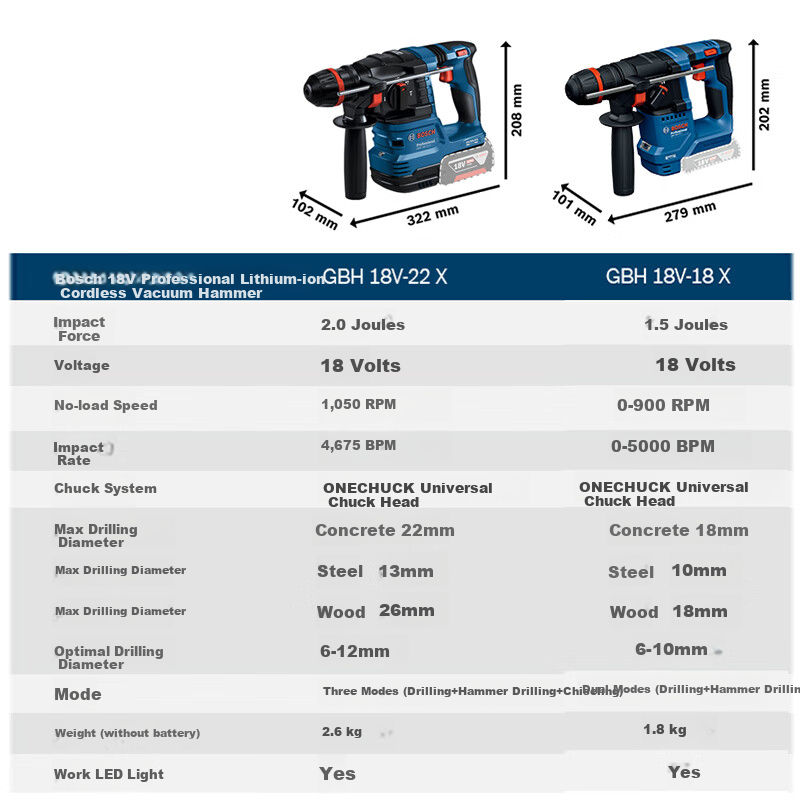

Specifications

Item	Detail
Hammering Force	2.0 joules
Voltage	18V
No-load Speed	1,050 RPM
Impact Rate	4,675 BPM
Max. Drilling Diameter	Concrete 22 mm, Steel 13 mm, Wood 26 mm
Weight (without battery)	2.6 kg

Dimensions

Size	Unfolded dimensions
Length	208 mm
Height	102 mm
Width	322 mm

Compatibility

Compatible with GDE12 dust extraction unit

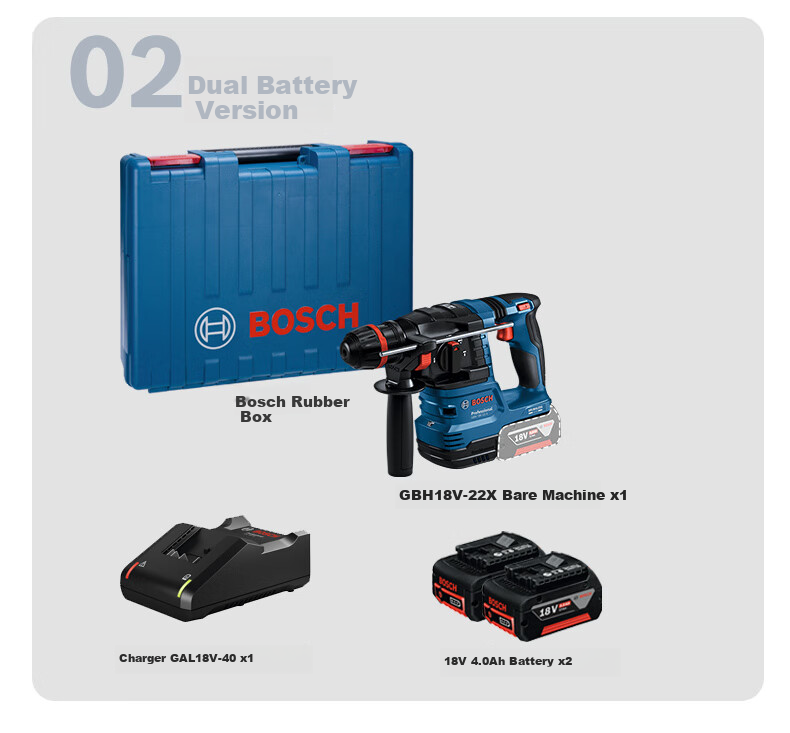

Package Contents

GBH18V-22X Hammer Drill x1
GAL18V-40 Charger x1
18V 4.0Ah Battery x2

The above information is based on data provided by BOSCH and is subject to manual measurement errors. Actual product specifications may vary.
