Huawei Kunling S1730S-S24P4S-A3 Gigabit POE Switch 24-Port Gigabit Ethernet + 4-Port Gigabit Fiber Enterprise-Level Layer 2 Managed Network Hub for Home and Office

HUAWEI•Switch

Huawei Kunling S1730S-S24P4S-A3 Gigabit POE Switch 24-Port Gigabit Ethernet + 4-Port Gigabit Fiber Enterprise-Level Layer 2 Managed Network Hub for Home and Office

CN¥2,210.00

SKU: 100189029321

Status:In Stock (2)

ID: 100189029321

Weight: 3680.00 g

Dims:552x360x92 mm

Specifications

Power over Ethernet (PoE): POE power supply
Network Management Type: Network management
Downlink Port Rate: Gigabit
Number of Ports: 28
Port Type: Electrical and optical ports
Cooling method: Fan cooling
Uplink port rate: Gigabit

Variants / Sale Attributes

Color: Twolayer network management | 24port Gigabit Ethernet + 4port Gigabit fiber optic

Package Contents

switch*1

Product Description

Product Specifications

Overview

Brand: HUAWEI

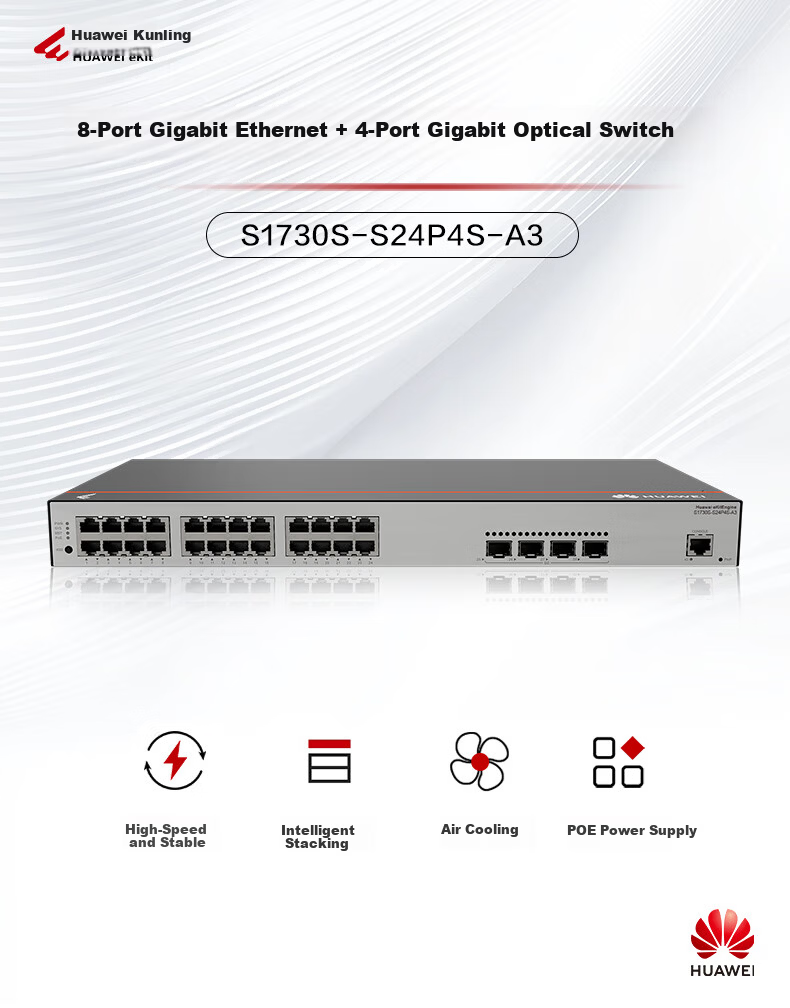

Model: S1730S-S24P4S-A3
Product Type: 8-port Gigabit Ethernet + 4-port Gigabit Optical Switch
Switching Capacity: 502 Gbps / 5.02 Tbps
Packet Forwarding Rate: 76 Mpps
MAC Address Table Size: 16K entries

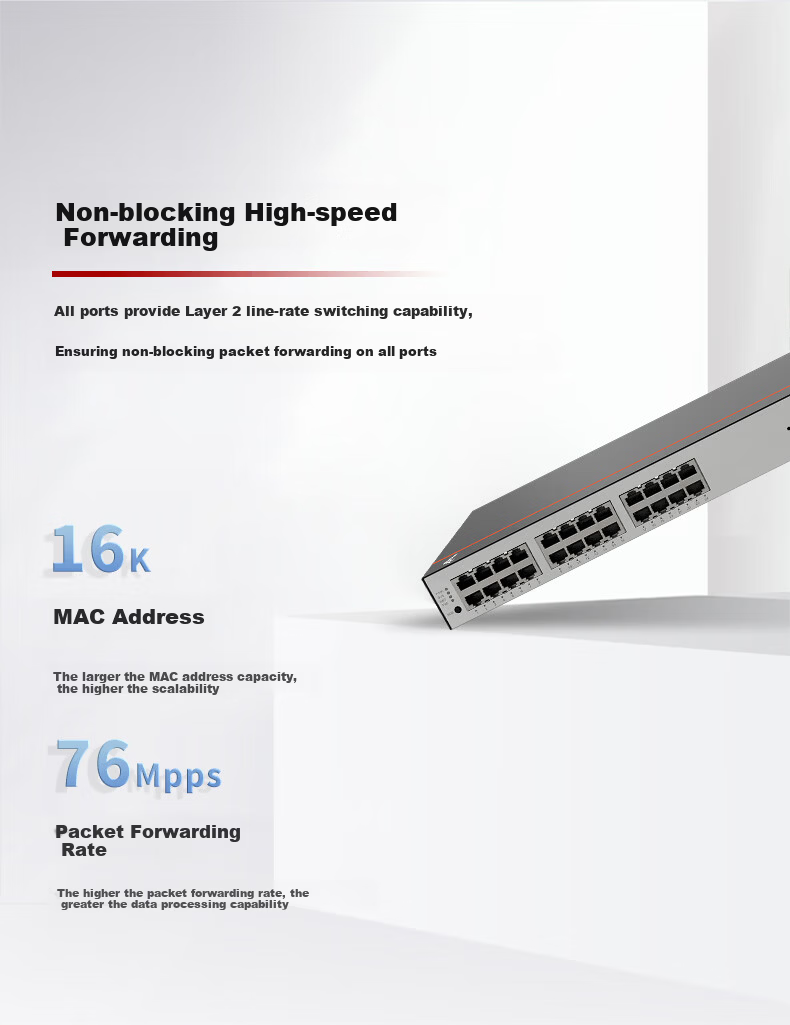

Non-blocking high-speed forwarding with all ports supporting Layer 2 line-rate switching

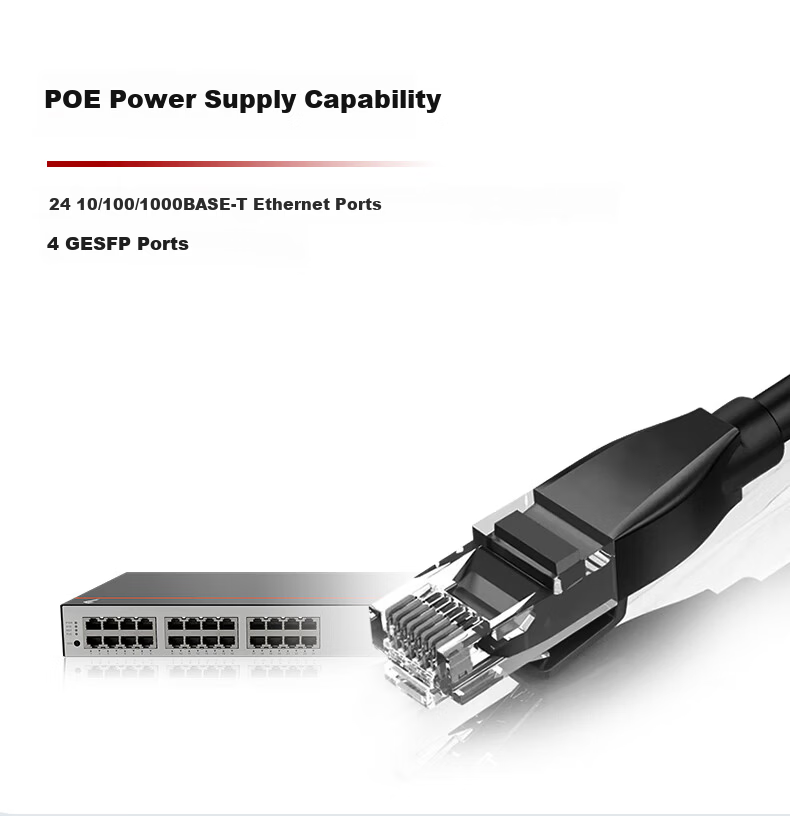

24 x 10/100/1000BASE-T Ethernet ports (PoE+ supported)

4 x Gigabit SFP ports

Built-in AC power supply

Similar Products

In Stock

Ruijie 8-Port Gigabit PoE Switch RG-ES110GD V2, 110W POE Power, Unmanaged Access, Metal Shell, Enterprise Office Monitoring Project Switch

Switch

Ruijie 8-Port Gigabit PoE Switch RG-ES110GD V2, 110W POE Power, Unmanaged Access, Metal Shell, Enterprise Office Monitoring Project Switch

ES110GD-P V2|8-Port Gigabit|POE 110W

CN¥580.50

In Stock

Sanze 8-Port PoE Switch 10-Port Gigabit Ethernet Splitter Dual Uplink Industrial Monitoring Power Supply Network Hub Enterprise Switch POE-HJQ10

SAMZHESwitch

Sanze 8-Port PoE Switch 10-Port Gigabit Ethernet Splitter Dual Uplink Industrial Monitoring Power Supply Network Hub Enterprise Switch POE-HJQ10

[8Port PoE] 10Port Gigabit, Total Power 120W

CN¥179.00

Additional details

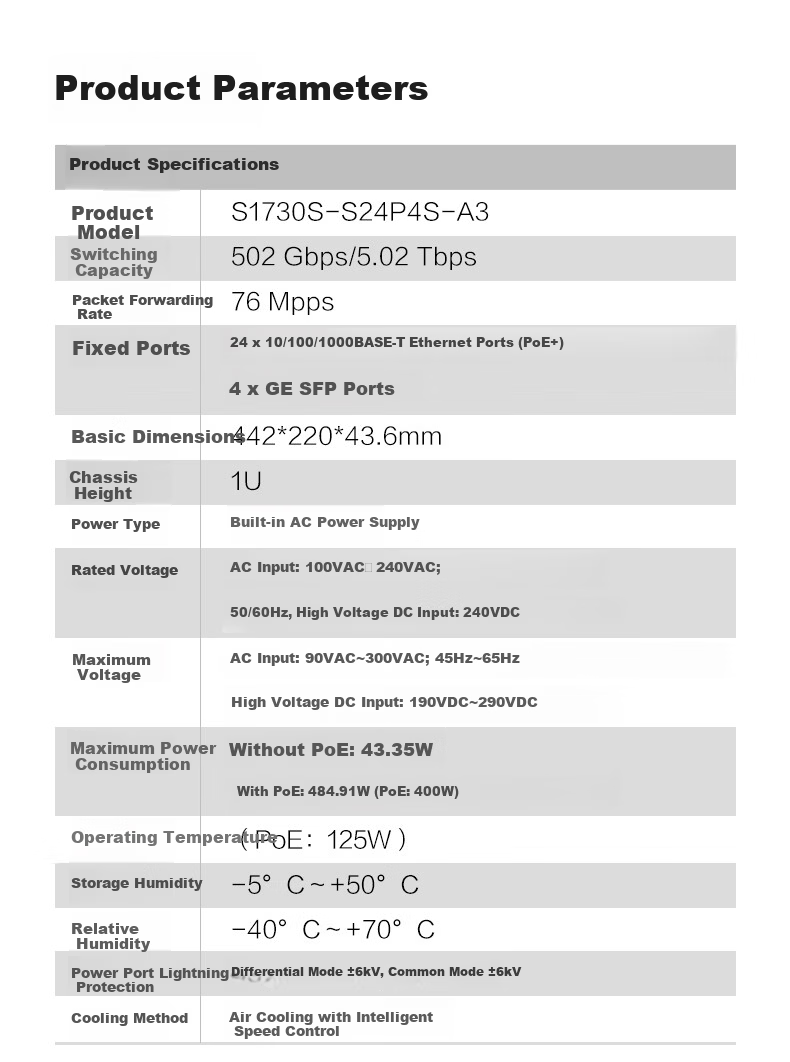

Rated Voltage: AC input 100VAC–240VAC, 50/60Hz; High voltage DC input 240VDC
Maximum Voltage: AC input 90VAC–300VAC, 45Hz–65Hz; High voltage DC input 190VDC–290VDC
Maximum Power Consumption: Without PoE: 43.35W; With PoE: 484.91W (PoE budget: 400W)
PoE Power: 125W per port (typical)

Fan cooling with intelligent speed control

Additional details

Size: 442 mm x 220 mm x 43.6 mm
Chassis Height: 1U
Operating Temperature: -5°C to +50°C
Storage Temperature: -40°C to +70°C
Relative Humidity: Supports high humidity environments
Power Port Surge Protection: Differential mode ±6kV, Common mode ±6kV

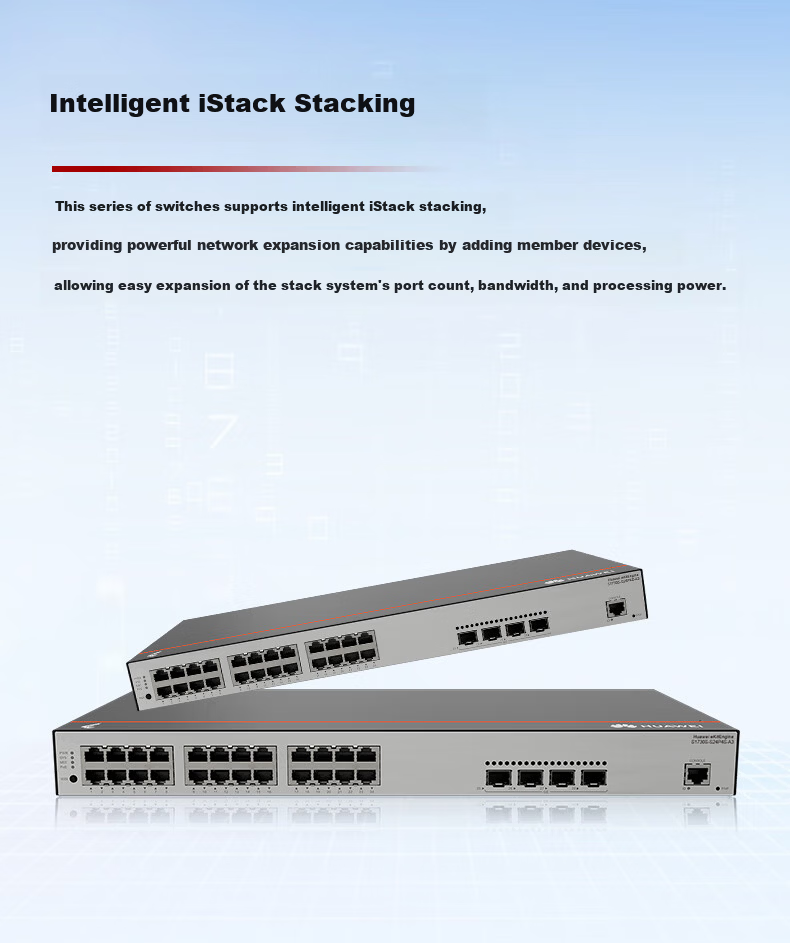

Supports intelligent iStack stacking technology for network expansion by increasing member devices to extend port count, bandwidth, and processing capacity

Additional details

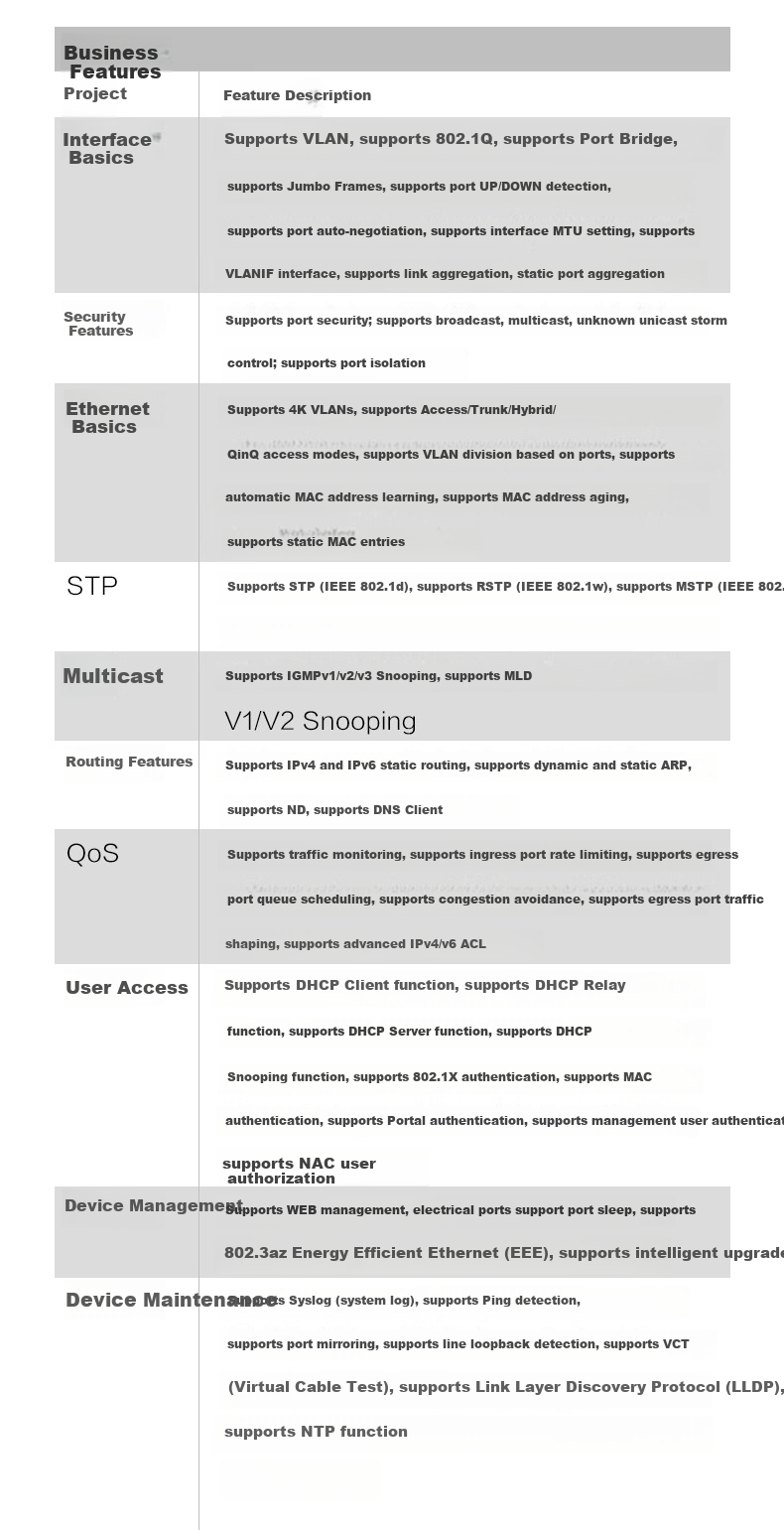

VLAN Support: VLAN, 802.1Q, PortBridge, VLANIF interfaces

Jumbo Frame Support

Port Status Detection (UP/DOWN)

Port Auto-negotiation and MTU configuration

Additional details

Link Aggregation: Static port aggregation supported
Security: Port security, broadcast/multicast/unknown unicast storm control, port isolation

Ethernet Features

4K VLANs
Access/Trunk/Hybrid/QinQ modes
MAC address auto-learning and aging
Static MAC entries

Additional details

Spanning Tree Protocols: STP (IEEE 802.1d), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s)
Multicast: IGMP v1/v2/v3 Snooping, MLD v1/v2 Snooping
Routing: IPv4 and IPv6 static routing, dynamic and static ARP, Neighbor Discovery (ND), DNS Client
QoS: Traffic policing, ingress port rate limiting, port queue scheduling, congestion avoidance, egress port traffic shaping, advanced IPv4/IPv6 ACLs

DHCP Client, DHCP Relay, DHCP Server, DHCP Snooping

Additional details

Authentication: 802.1X, MAC authentication, Portal authentication, management user authentication, NAC user authorization

Web-based management interface

Port sleep mode support

Energy Efficient Ethernet (EEE) 802.3az support

Intelligent upgrade capability

Syslog support

Ping diagnostics

Port mirroring

Loopback detection

Virtual Cable Test (VCT)

Link Layer Discovery Protocol (LLDP)

Network Time Protocol (NTP) support

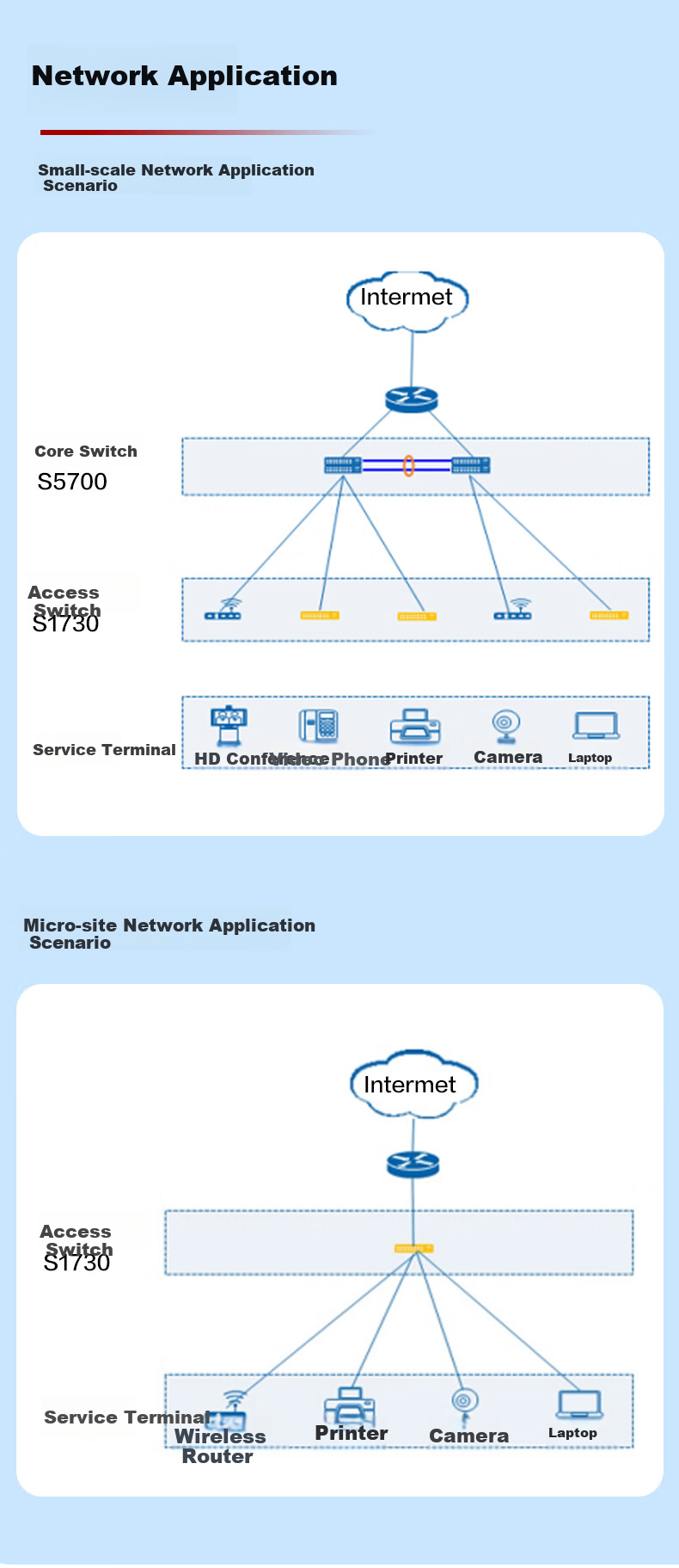

Small network environments

Internet core switching

Access switching with S5700 and S1730 series

Business terminals including HD conferencing, video phones, printers, cameras, laptops

Micro-site network applications with wireless routers and other devices
