Wanglu Tong OTDR Engineering Multi-Function Fiber Optic Fault Locator Comprehensive Tester Cable Fault Breakpoint Optical Time Domain Reflectometer MT-6510 (1310/1550) 28|26dB

•Network Analyzer

Wanglu Tong OTDR Engineering Multi-Function Fiber Optic Fault Locator Comprehensive Tester Cable Fault Breakpoint Optical Time Domain Reflectometer MT-6510 (1310/1550) 28|26dB

CN¥2,682.00

SKU: 100193376908

Status:In Stock (1)

ID: 100193376908

Weight: 2020.00 g

Dims:328x290x100 mm

Specifications

Network Testing: Cable Tester

Variants / Sale Attributes

Model: MT-6510（1310/1550）28|26dB

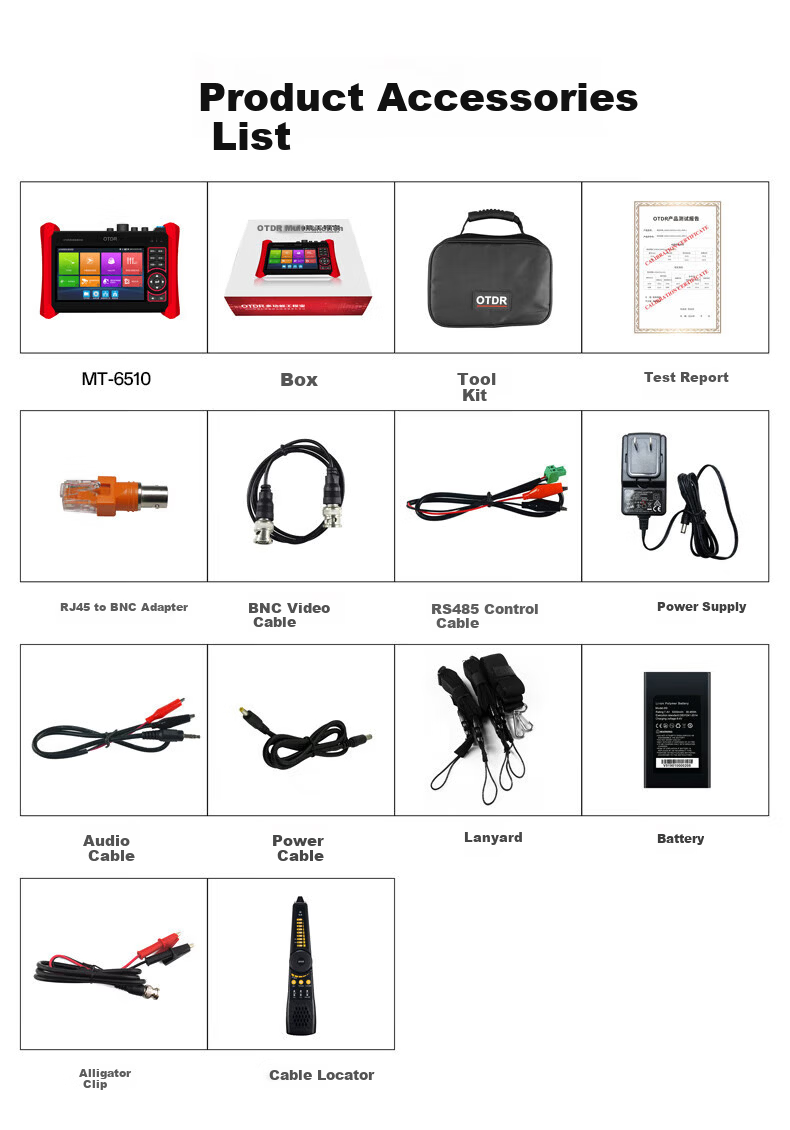

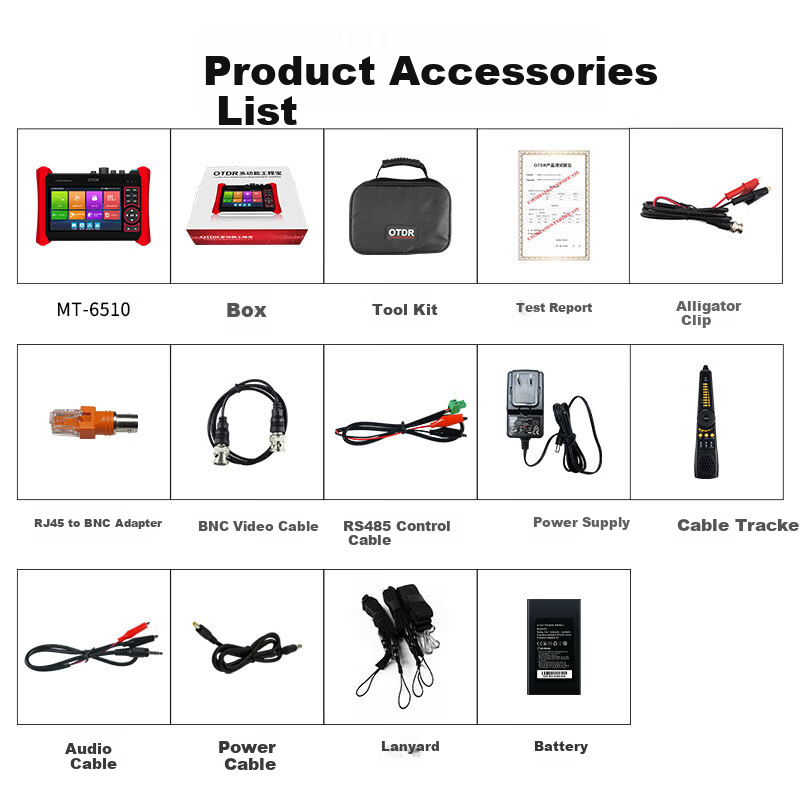

Package Contents

Toolkit, test report, RJ45 to BNC adapter, BNC video cable, RS485 control cable, charger, audio cable, power cable, lanyard, alligator clip cable, cable tracer

Product Description

Overview

1. Brand: Wanglu Tong

2. Display

Item	Detail
Size	5.4-inch IPS full-view capacitive touchscreen
Resolution	1920 x 1152 pixels
High brightness and advanced pixel arrangement for superior image quality	—

3. OTDR Features

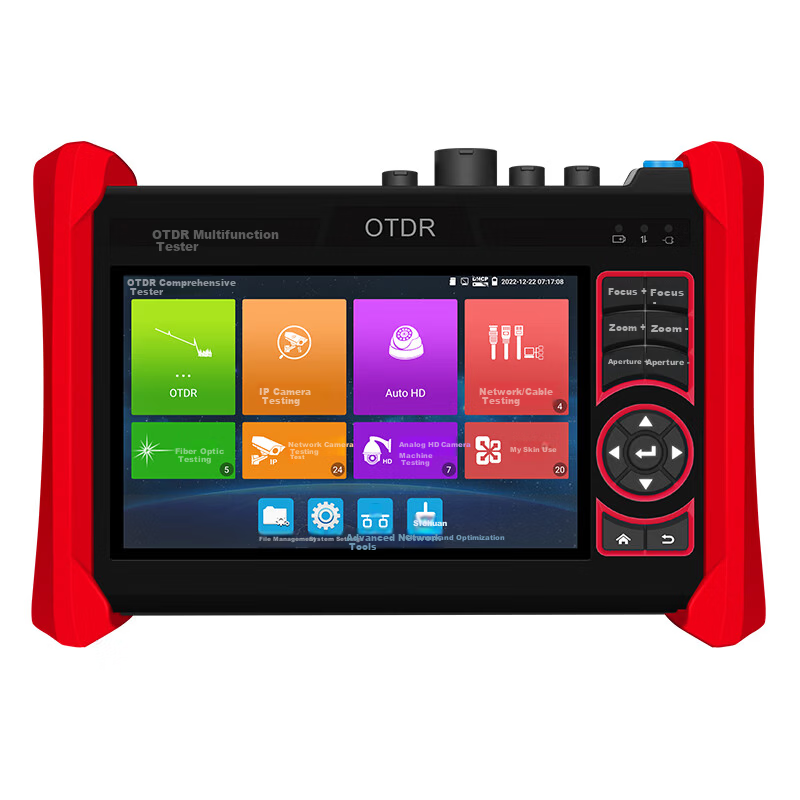

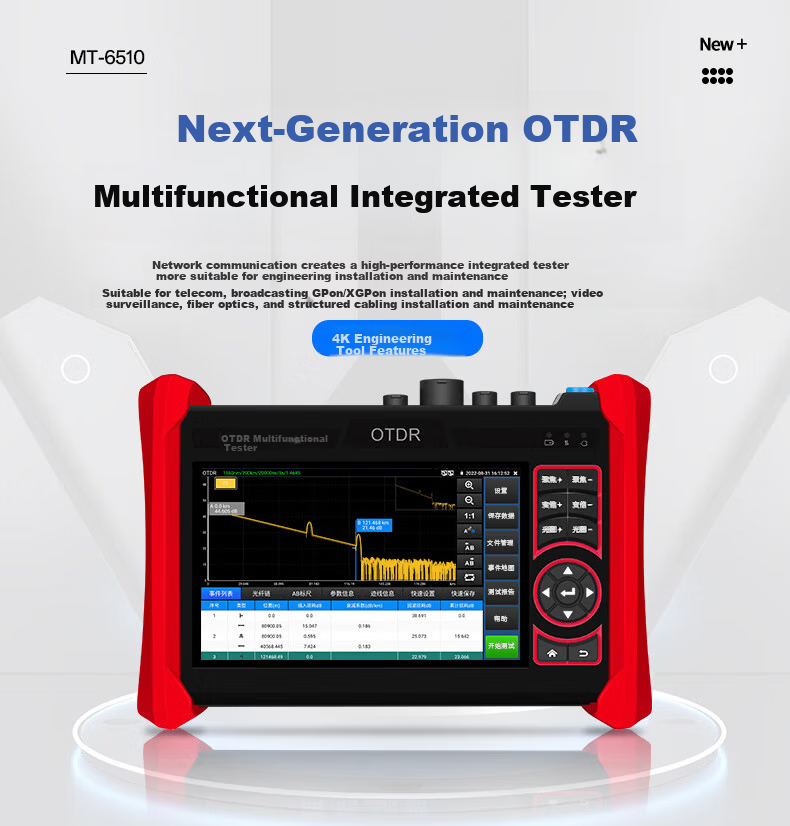

Multi-functional OTDR tester model MT-6510

Similar Products

In Stock

Network Analyzer

Wanglutong OTDR Engineer Pro 4K Fiber Breakpoint Detection Comprehensive Tester Multifunctional Optical Time Domain Reflectometer with Optical Testing Cable Detection MT-6510(1610) 28dB

MT6510 (1610) 28dB with optical measurement capability

CN¥2,772.00

View

In Stock

SAMZHENetwork Analyzer

SAMZHE Network Cable Tester, Optical Power Meter, Red Light Integrated Machine, Fiber Optic Tester, Port Flashing Crystal Head Crimping, Anti-Interference, 100V Voltage Resistance, Rechargeable Model SZ-D668

Fiber Optic Testing | Optical Power Meter + 10mW Red Light

CN¥607.05

View

In Stock

SAMZHENetwork Analyzer

SAMZHE Network Cable Tester, Multifunctional Telephone And Network Cable Tester, POE Switch 100V Voltage-Resistant Cable Finder, Anti-Interference Port Flasher NCV Voltage Detector SZ-D368

Industry Top | Synchronous End Flashing with 100V Voltage Resistance

CN¥229.00

View

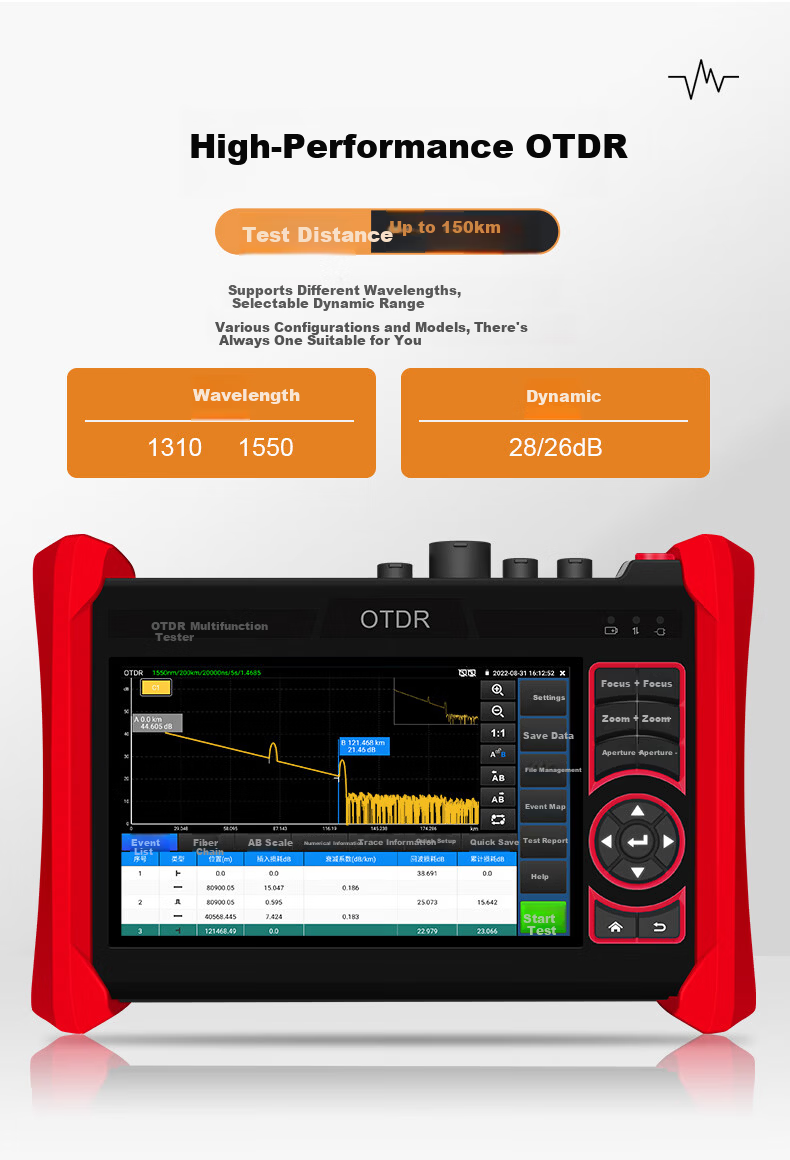

Testing distance up to 150 km

Dual wavelength simultaneous measurement: 1310 nm and 1550 nm

Dynamic range: 28/26 dB (varies by configuration)

Supports multiple pulse widths and test durations

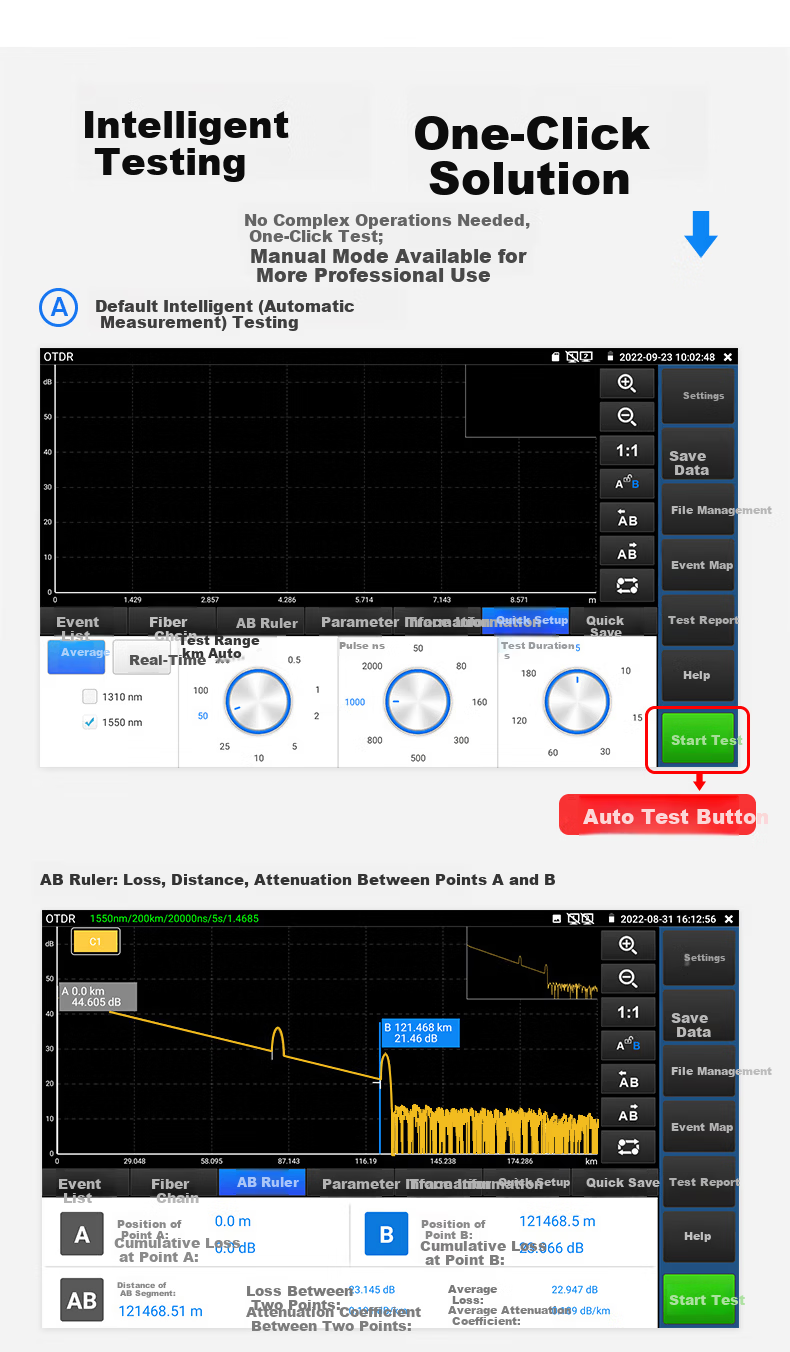

Intelligent one-key testing with manual mode option

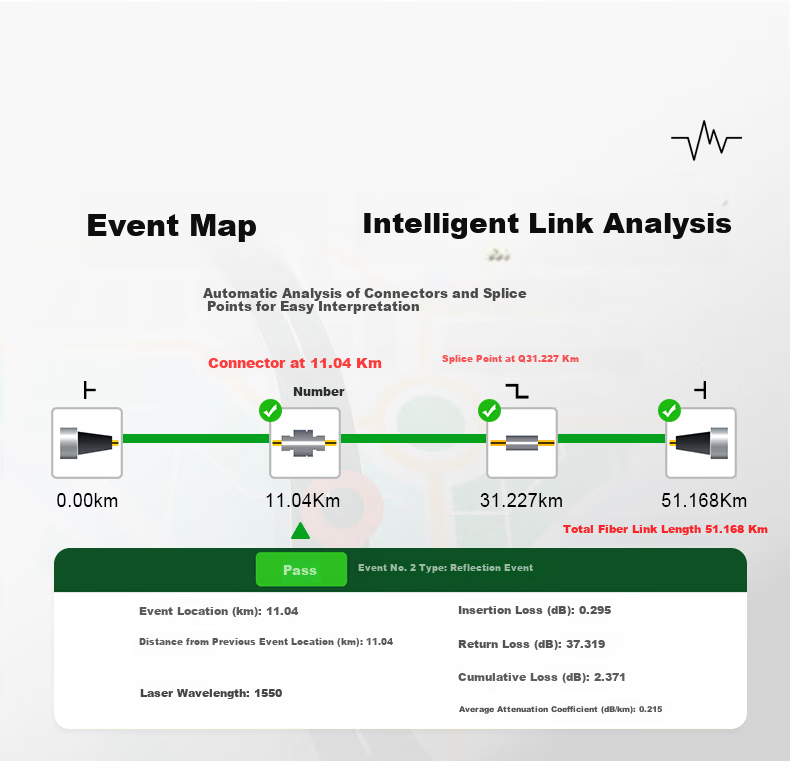

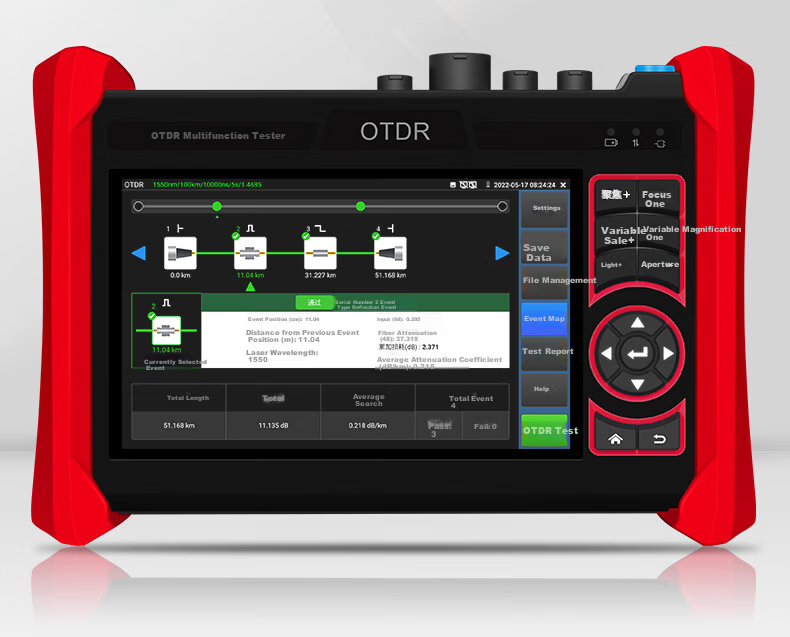

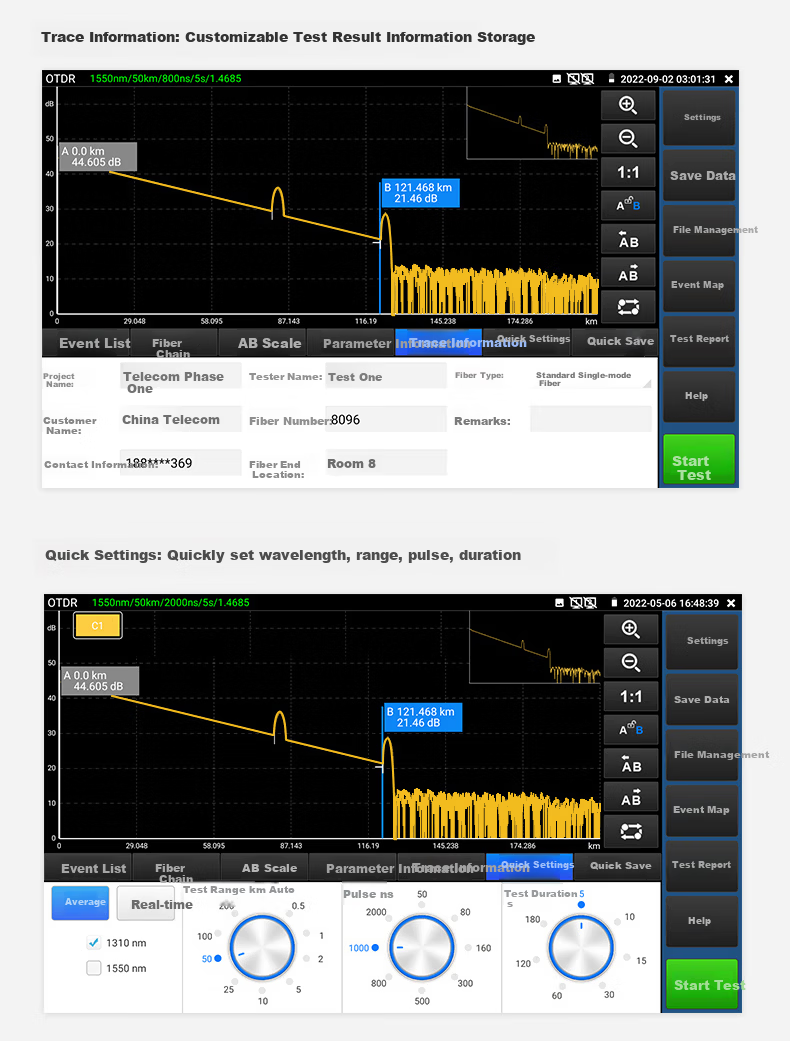

Event map, event list, fiber chain, AB ruler, parameter and trace information

Automatic link analysis for connectors and splices

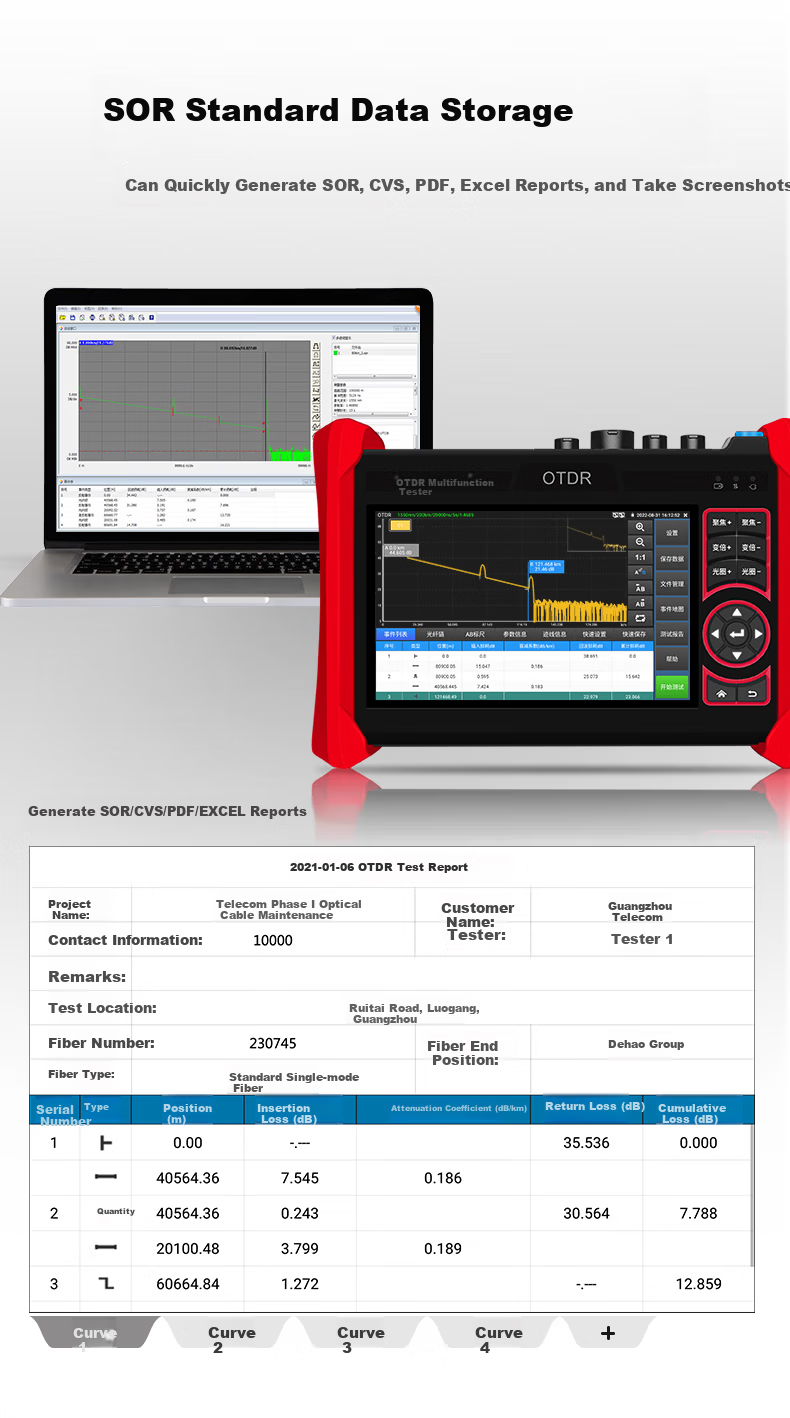

Supports SOR, CSV, PDF, and Excel report generation

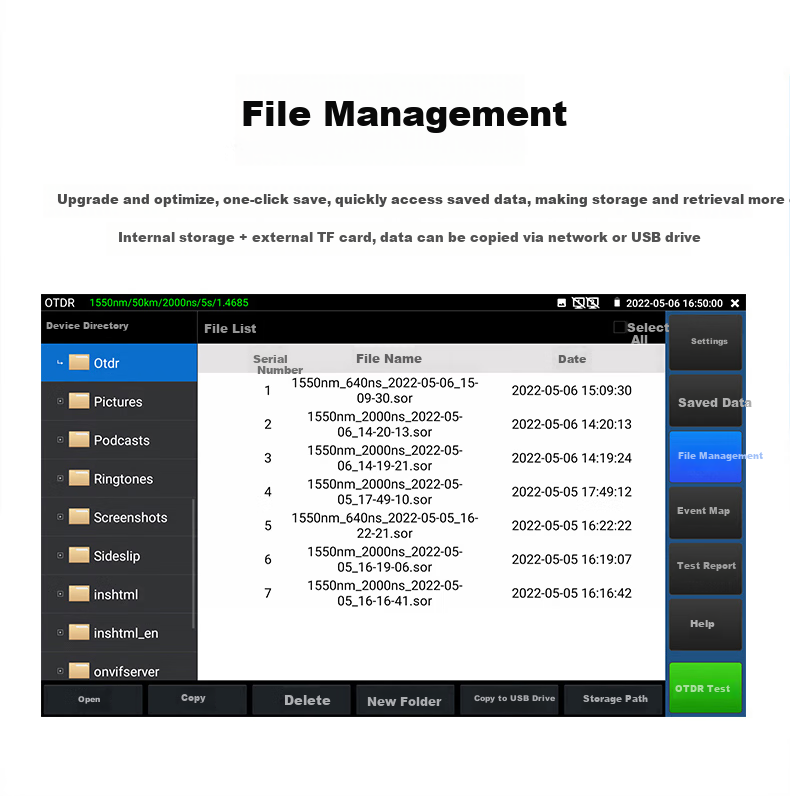

Data storage: internal memory plus external TF card support (up to 128GB)

Supports data backup and transfer via network or USB drive

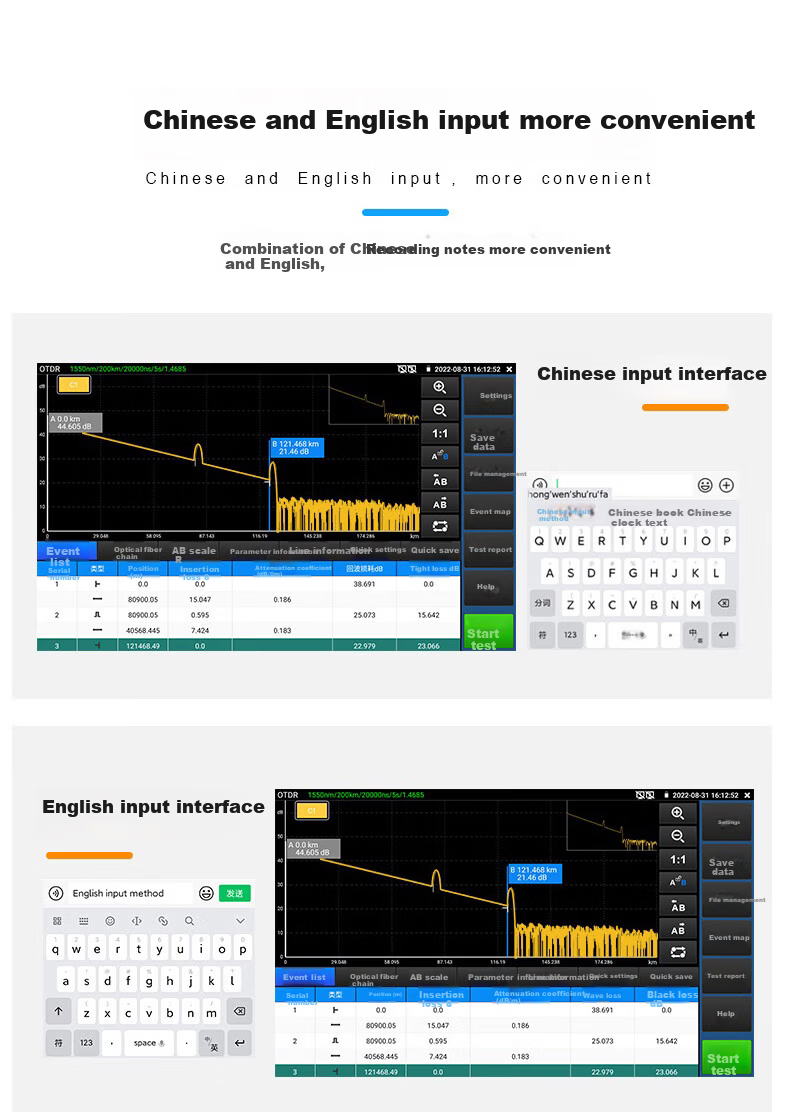

Chinese and English input interface for notes and remarks

4. Network Testing

10/100/1000 Mbps adaptive RJ45 Ethernet port
Built-in 2.4 GHz WiFi with max speed 150 Mbps

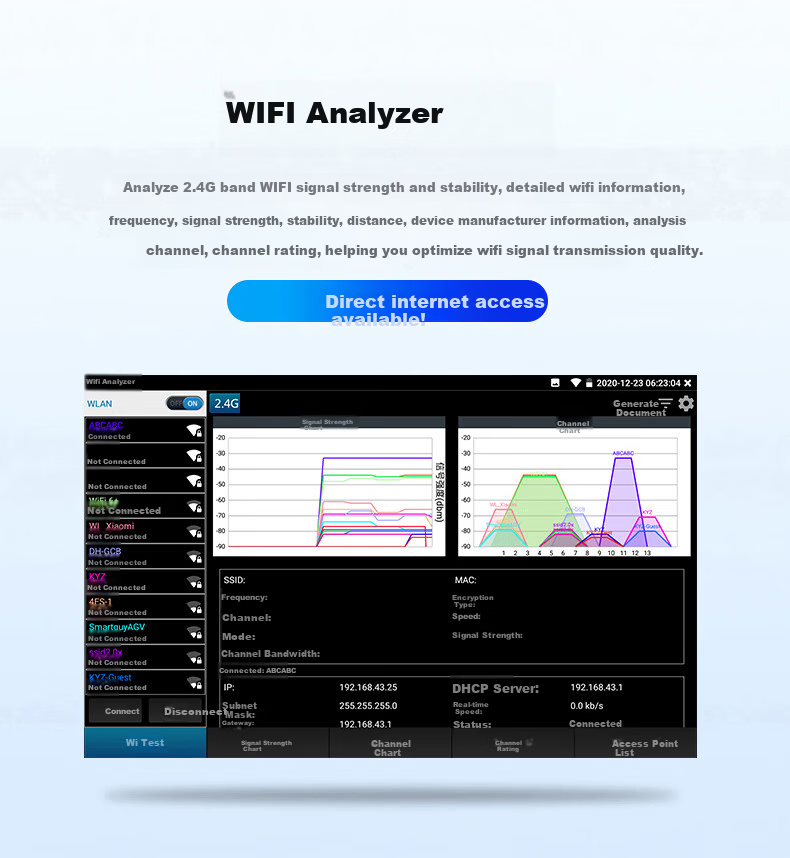

WiFi analyzer for 2.4 GHz band: signal strength, stability, channel usage, and rating
IP scanning, subnet scanning, and link tools

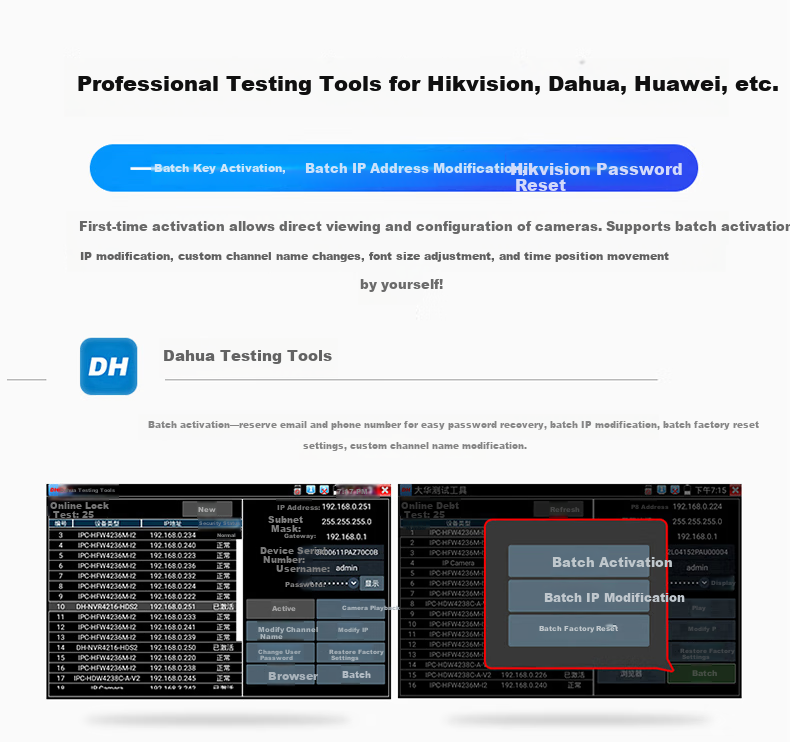

Supports batch IP address modification and device activation

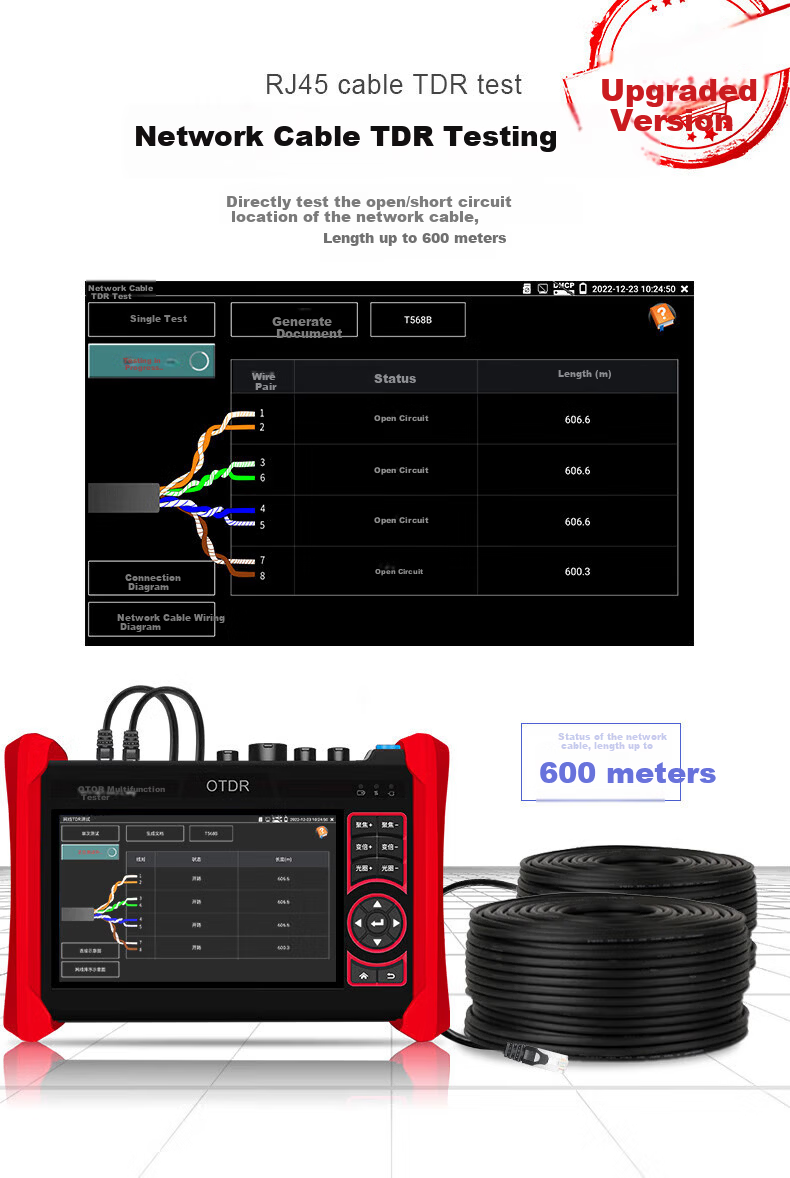

Network cable TDR testing up to 600 meters for open/short faults

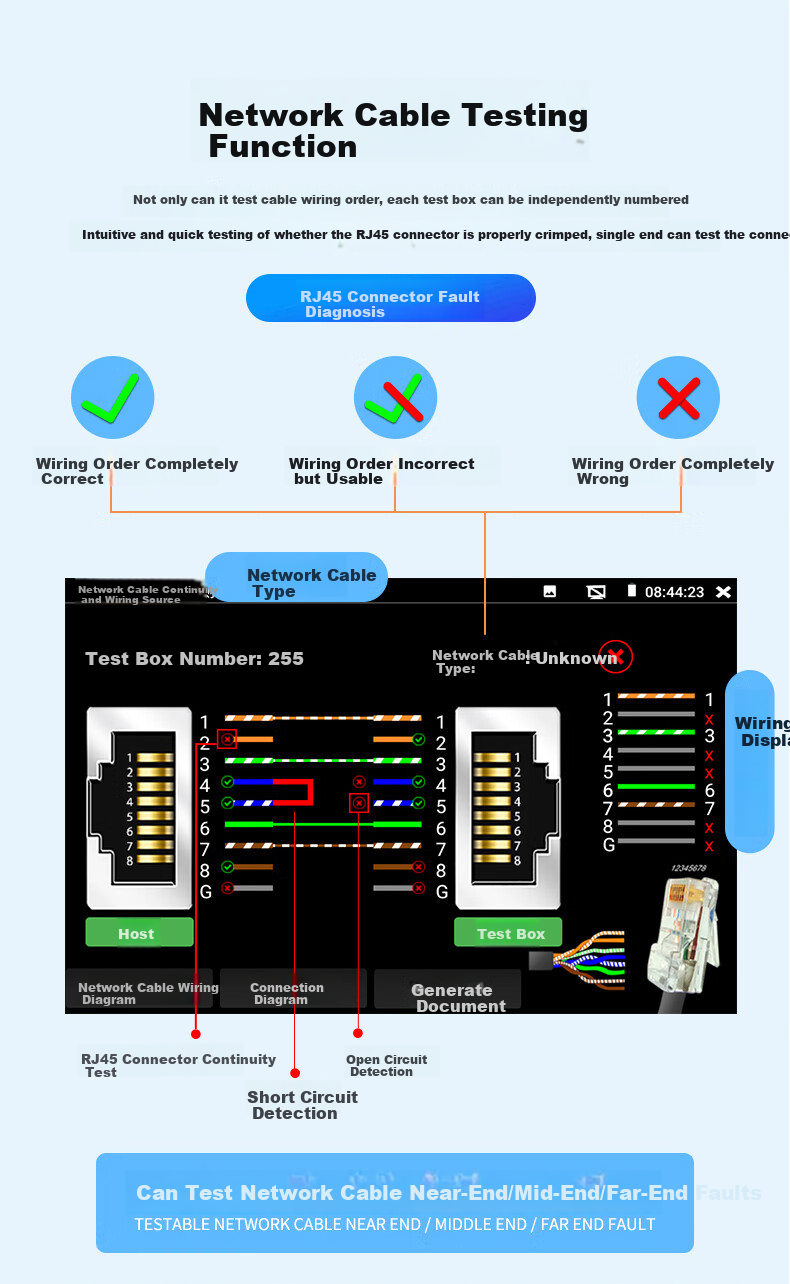

Cable sorting and crystal head status detection

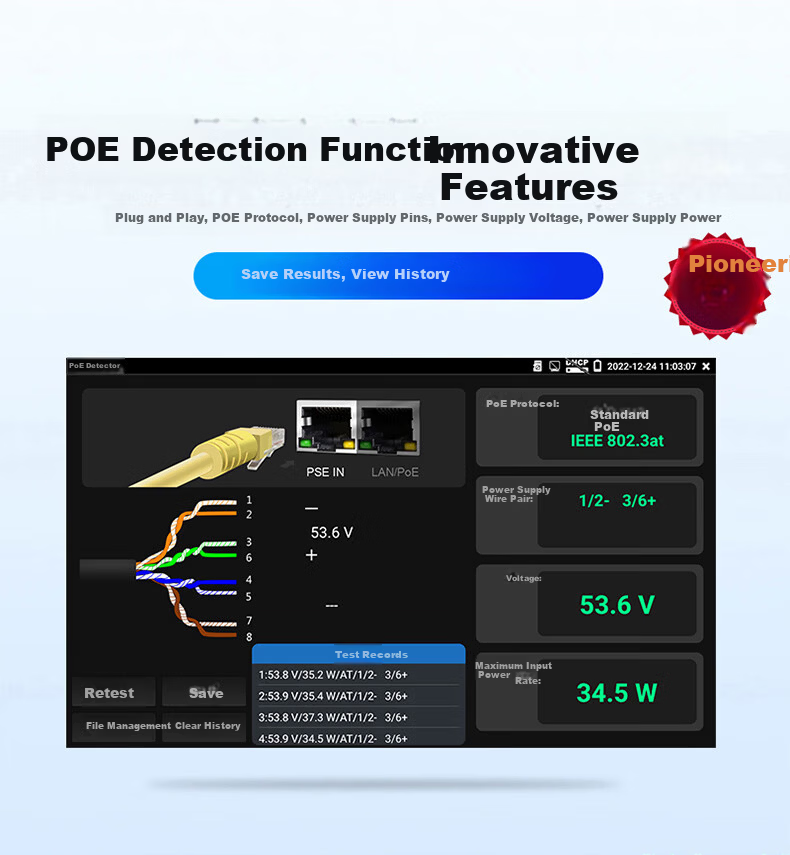

PoE detection: supports IEEE 802.3af/at, displays protocol, voltage, power, and pin assignment
Real-time power supply monitoring for PoE and DC power inputs (12V, 24V, 5V)
Supports DHCP, PPPOE dial-up, address conflict detection

5. Video and Audio Testing

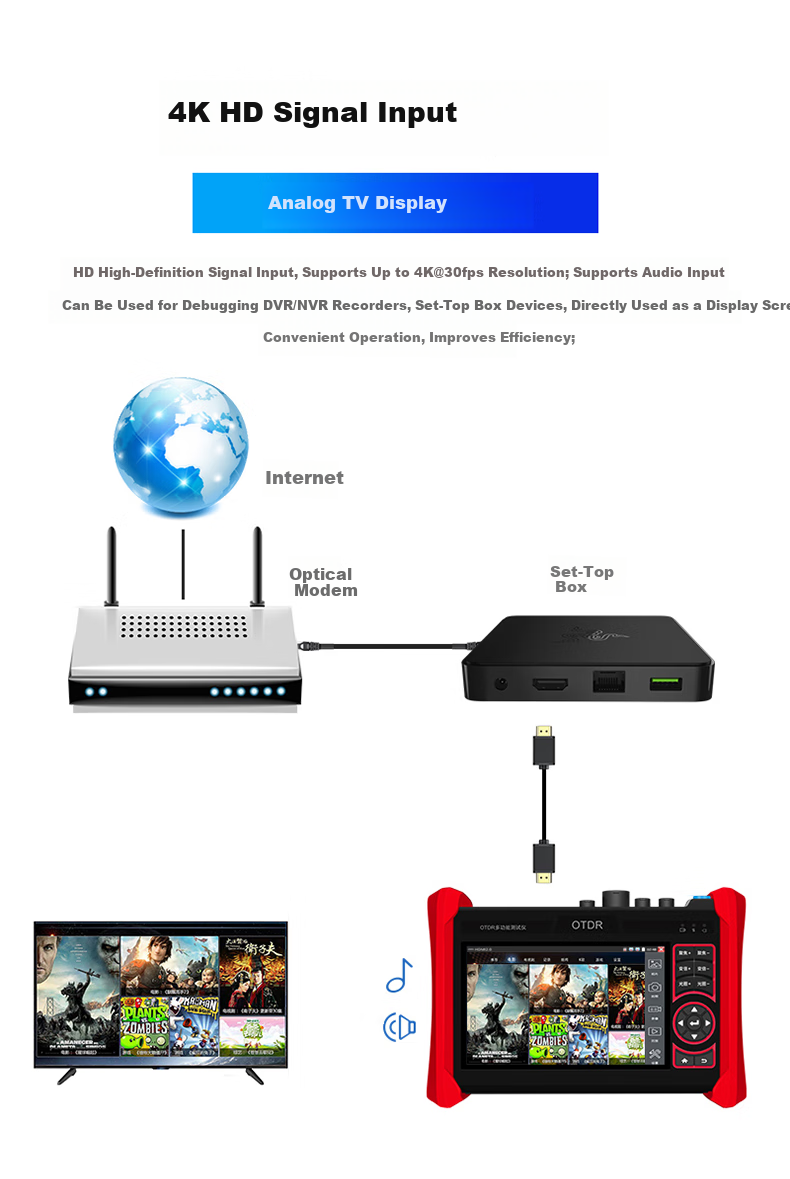

Supports 4K HDMI input up to 3840x2160@30fps

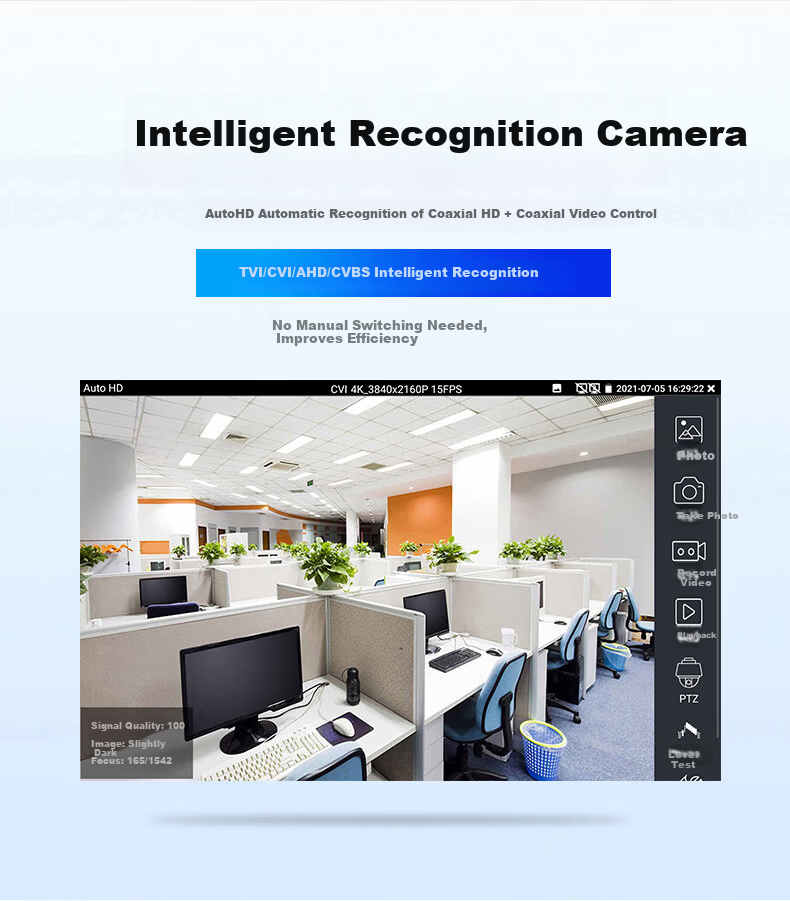

Supports HD analog/coaxial inputs: TVI, CVI, AHD, CVBS with auto HD recognition
Audio input and output for sound testing and recording
Supports RS485 bus control with over 30 PTZ protocols including Pelco-D/P, Samsung, Panasonic

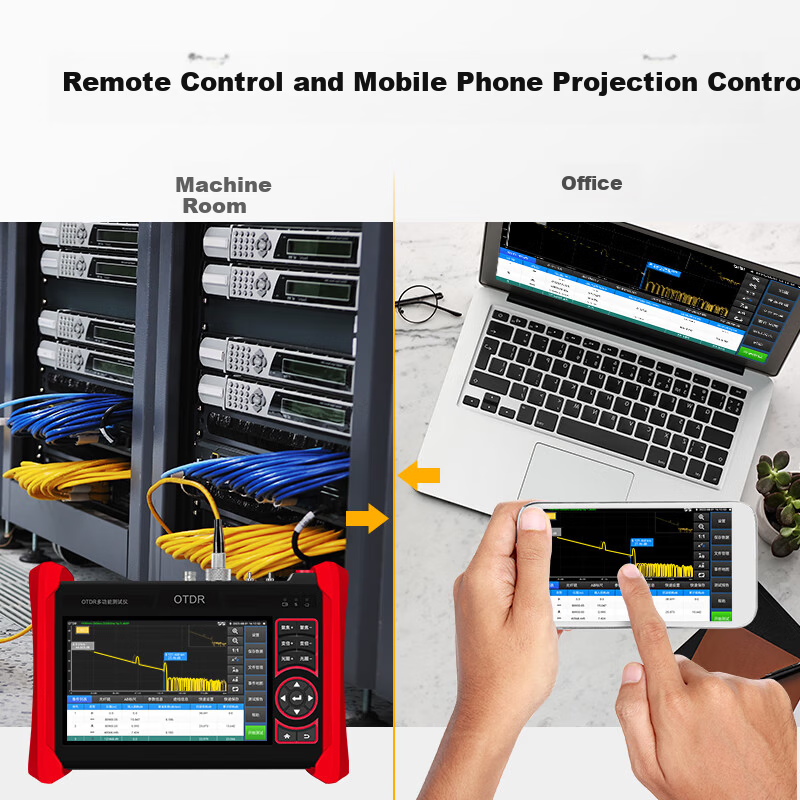

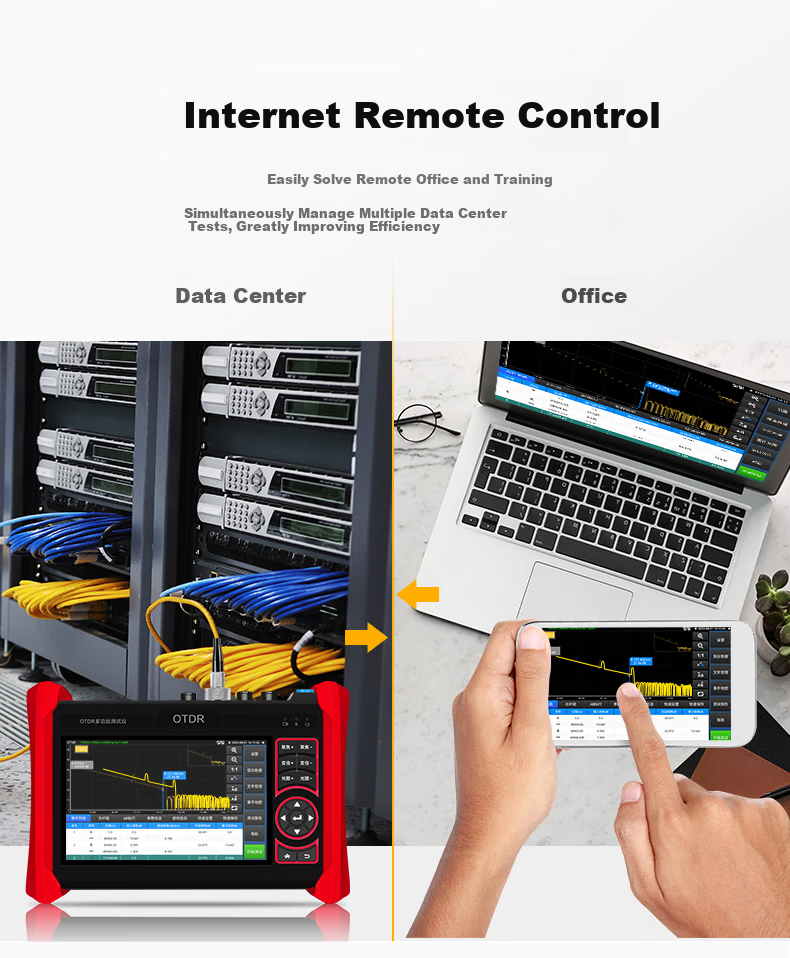

Supports video live streaming and remote control via internet

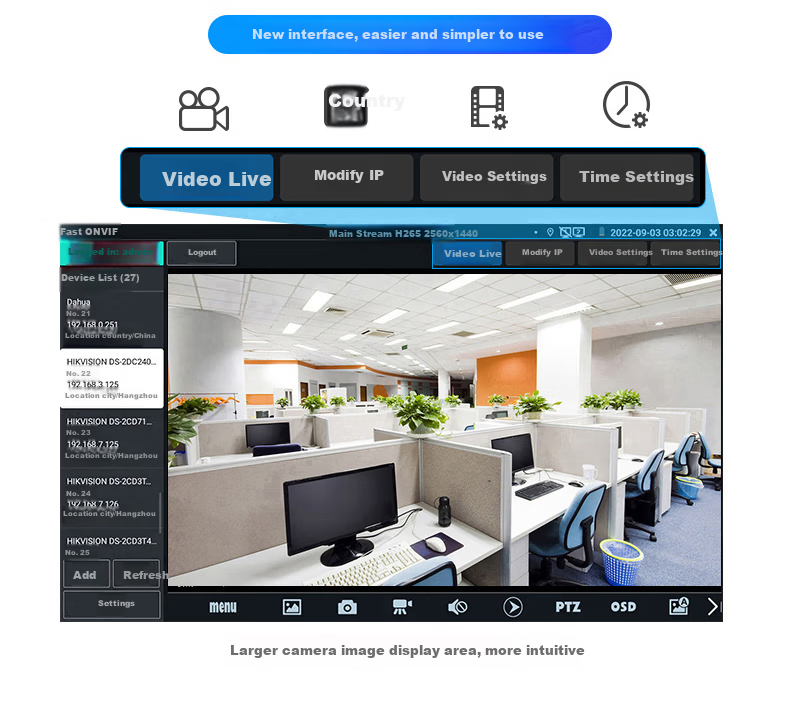

Supports ONVIF protocol and batch camera activation/reset

6. Power Supply

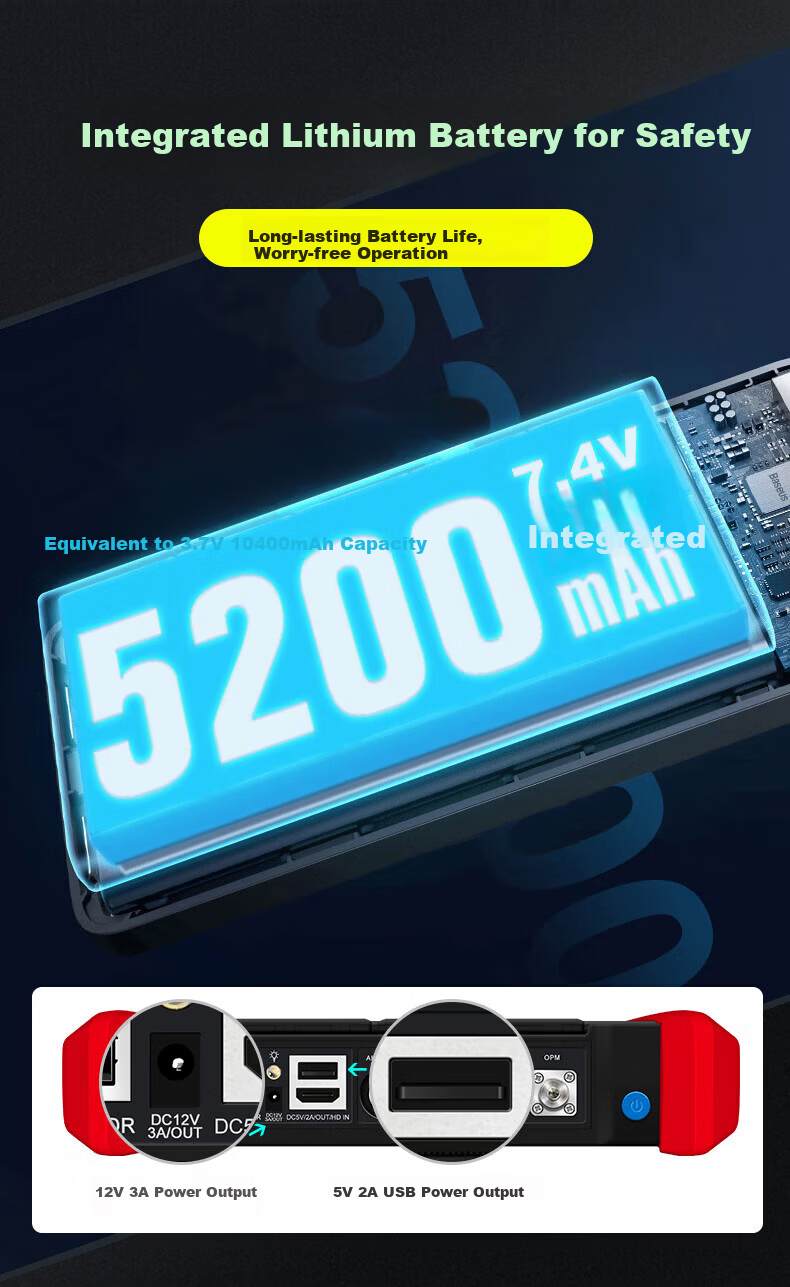

Built-in integrated lithium battery: 7.4V, 5200 mAh (equivalent to 3.7V 10400 mAh)
DC12V/3A output for temporary camera power supply
USB 5V/2A output
PoE output: 48V, max 30W power

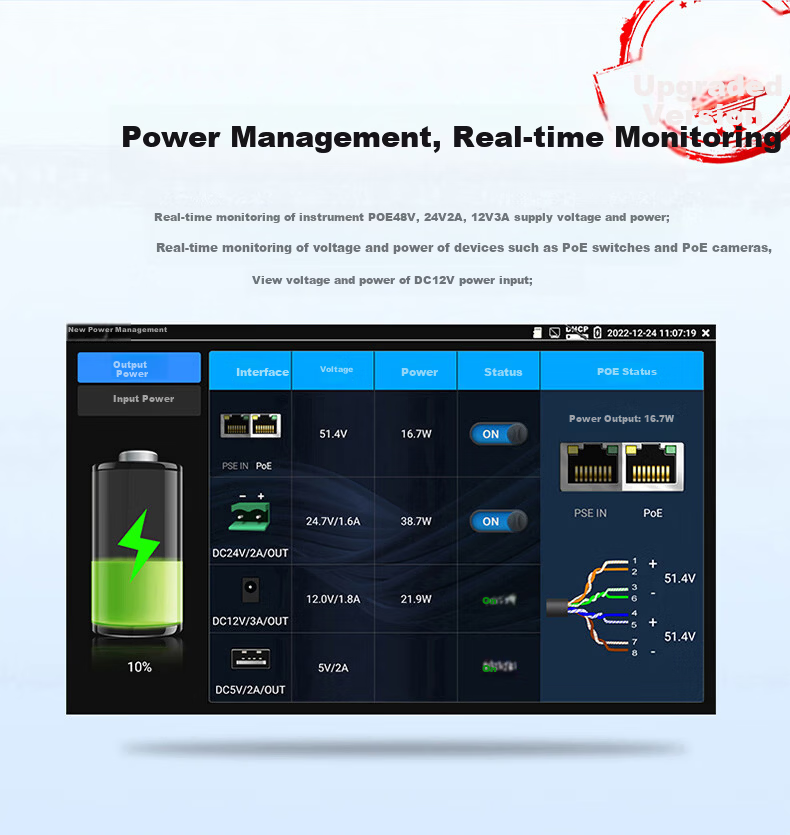

Power management with real-time voltage and power monitoring

7. Additional Features

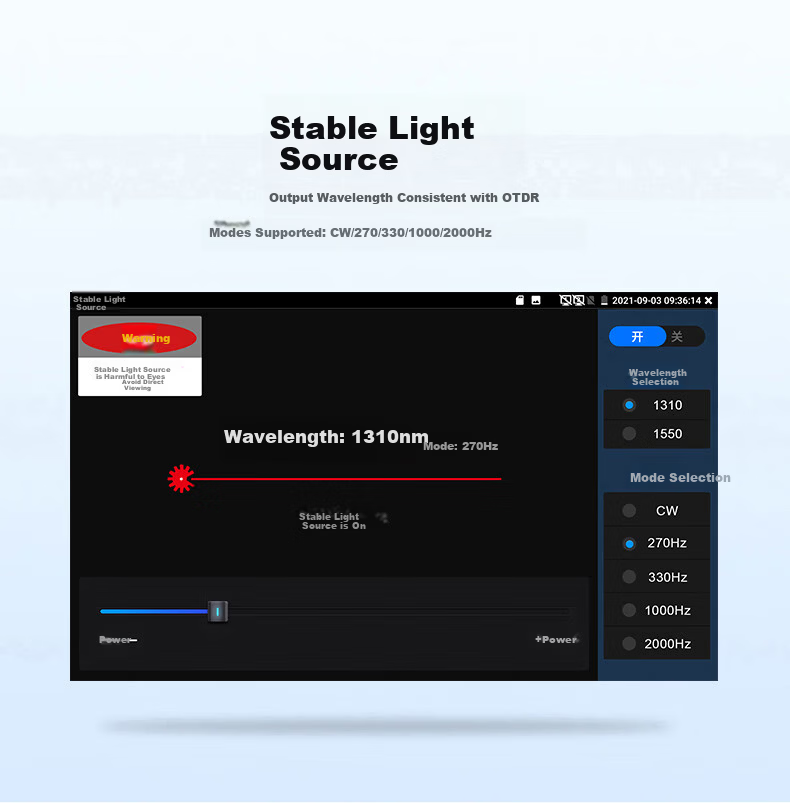

Stable light source with selectable wavelengths (1310/1550 nm) and modulation modes (CW, 270/330/1000/2000 Hz)

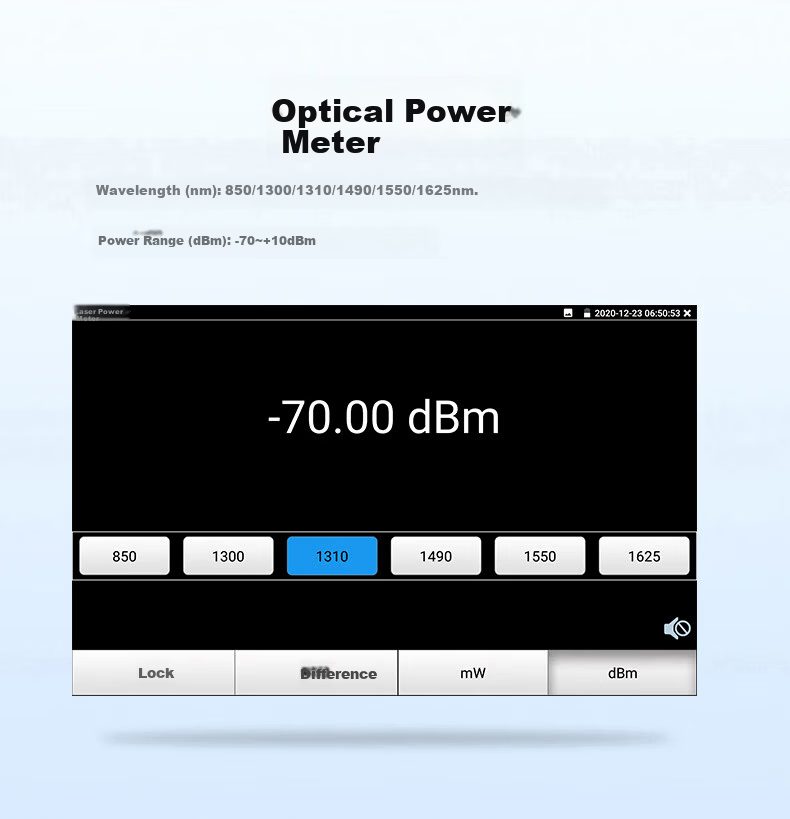

Optical power meter covering wavelengths 850/1300/1310/1490/1550/1625 nm, power range -70 to +10 dBm

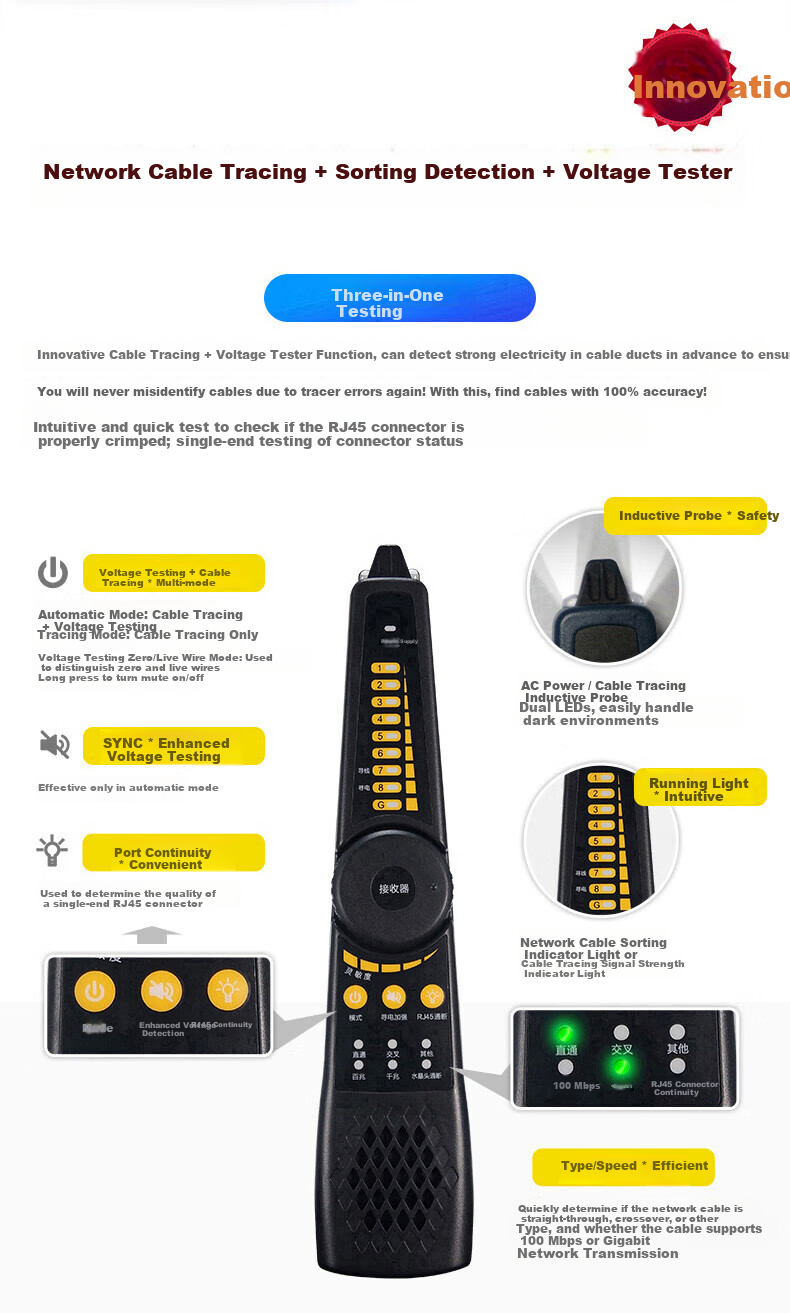

Cable tracer with integrated electric tester for safe line tracing and power detection
Supports Chinese and English input for easier note-taking

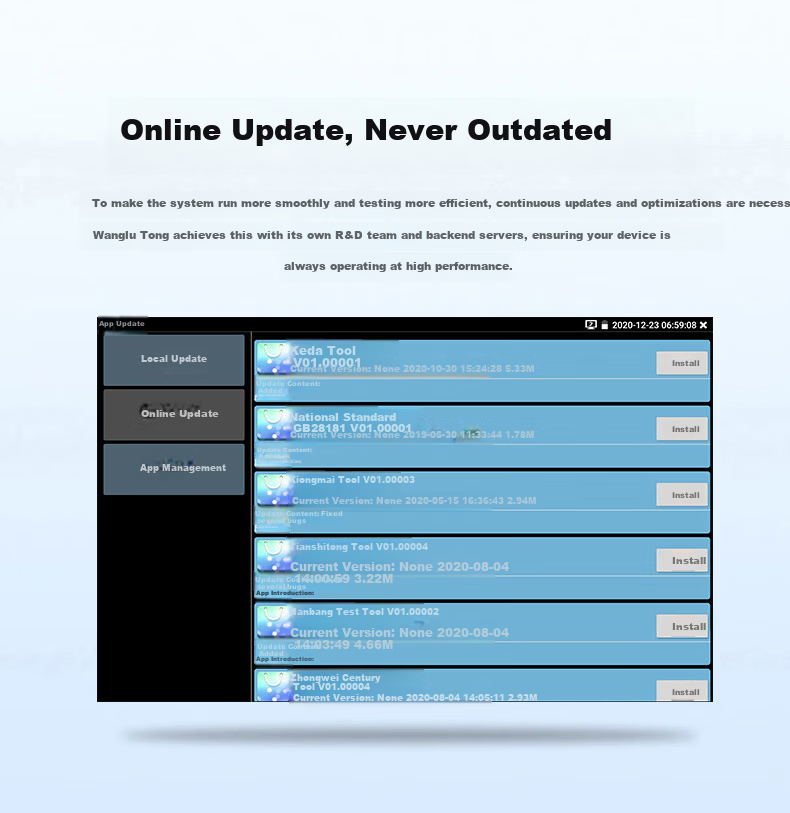

Online firmware and application updates for continuous optimization
Accessories included: OTDR tester, carrying case, tool kit, RJ45 to BNC adapter, BNC video cable, RS485 control cable, power cables, audio cables, battery, alligator clips, tracer

8. User Interface and Operation

New generation Android 10 system with quad-core CPU and LPDDR4 memory for fast response and low power consumption
e-MMC internal storage for secure data retention
Supports external TF card expansion up to 128GB
Intuitive UI with quick settings, one-key test, and easy report generation
Supports screenshot capture and file management
Supports Chinese and English language input and display

9. Dimensions and Weight

Size	Unfolded dimensions
Not specified in the provided data	—

10. Application

Suitable for telecom, broadcasting GPON/XGPON installation and maintenance
Video surveillance, fiber optic, and structured cabling installation and maintenance
Network troubleshooting and optimization
Compatible with major brands such as Hikvision, Dahua, Huawei, Uniview, TP-Link, and others

This comprehensive multi-functional tester integrates OTDR, network analysis, video and audio testing, power supply monitoring, and cable diagnostics into a single portable device designed for professional engineering installation and maintenance tasks.
