Yahboom MSPM0G3507 Core Development Board Microcontroller TI Cup Electronic Design Competition Car Robot
CN¥39.90
SKU: 100195987747
Status:In Stock (11)
ID: 100195987747
Weight: 75.00 g
Dims:205x140x40 mm
Specifications
Industry application
Other
Package Contents
Development board *1
Product Description
Product Specifications
Overview
Brand
yahboom
Product Name
MSPM0G3507 Development Board

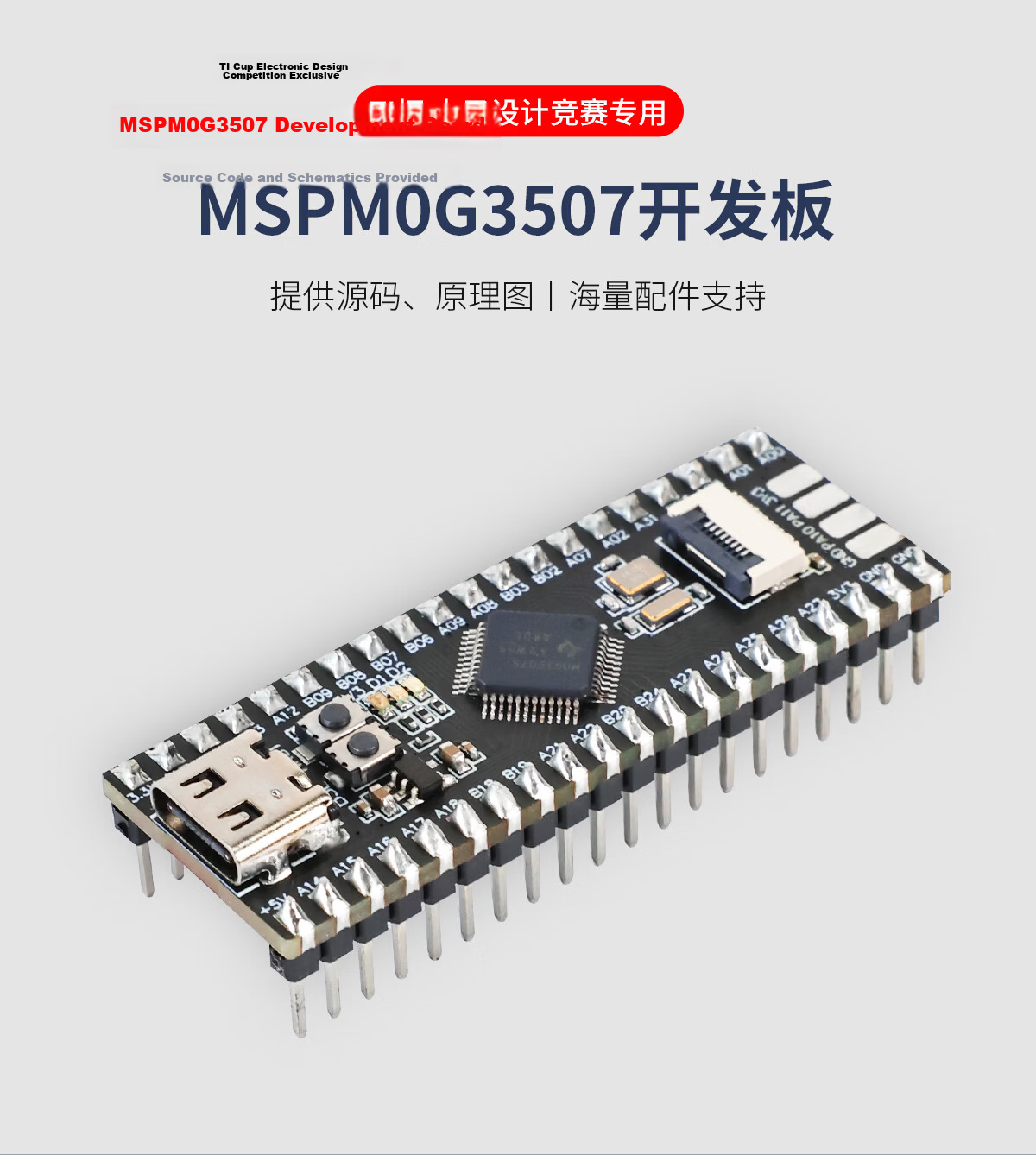

The MSPM0G3507 development board is designed specifically for the TI Cup Electronic Design Competition. It is based on the Texas Instruments MSPM0G3507 microcontroller, a low-power, high-performance MCU featuring 128KB internal flash memory and 32KB SRAM. The board supports Type-C programming and USB serial communication, includes 4MB external flash, and offers rich onboard resources with reserved SWD debugging interface and TFT LCD display support. It is compatible with a wide range of accessories and provides comprehensive online technical support for engineers.

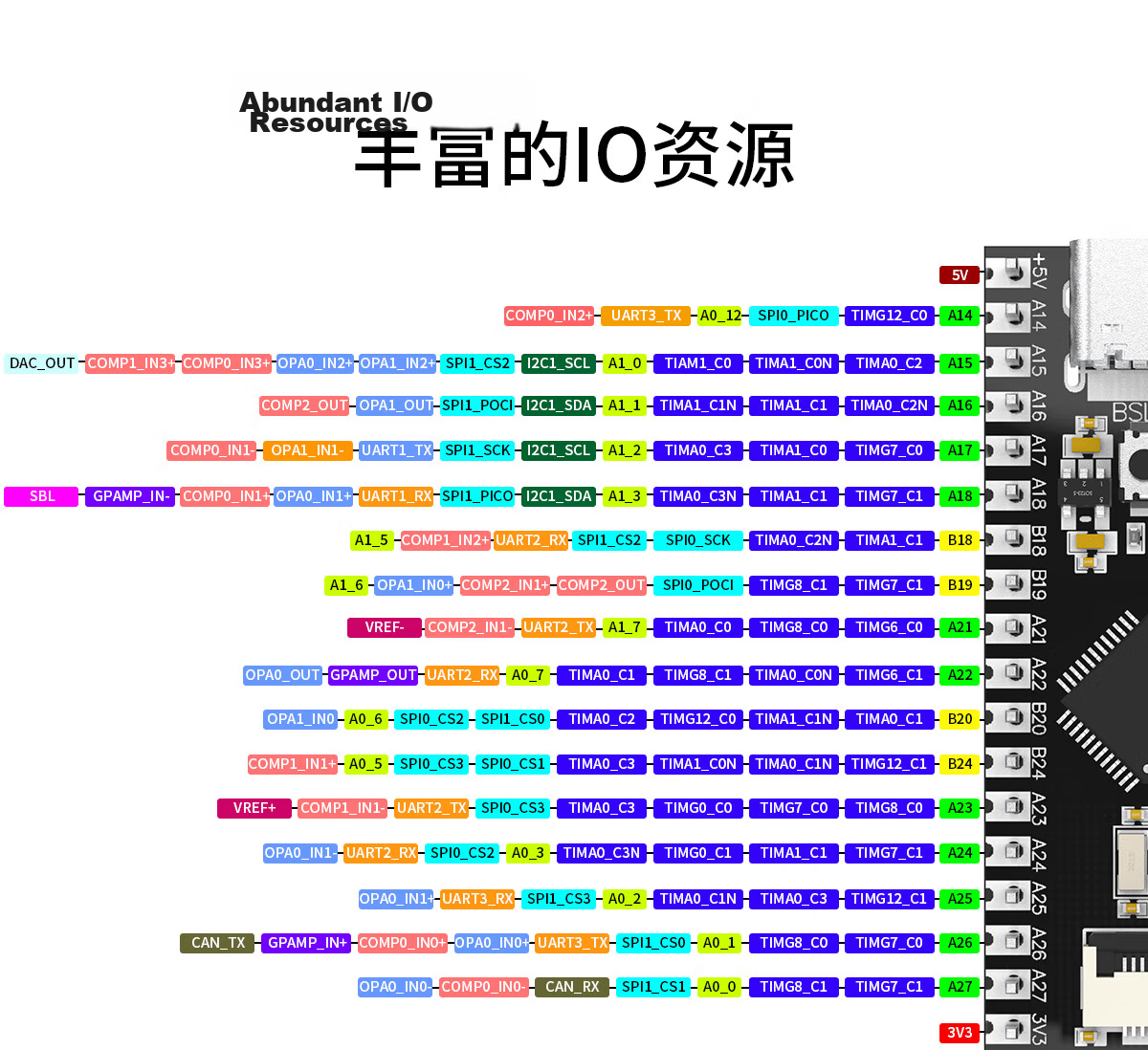

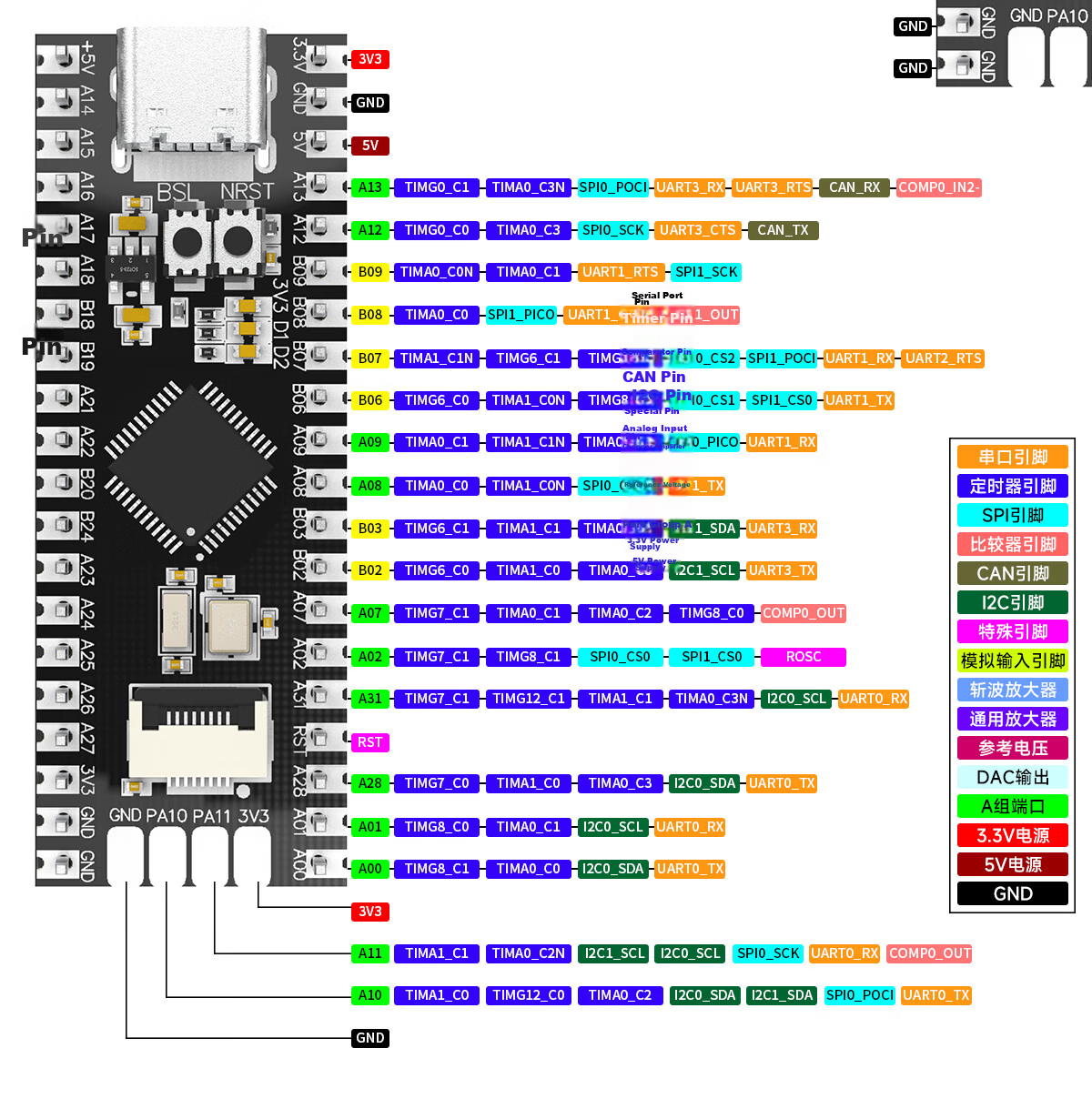

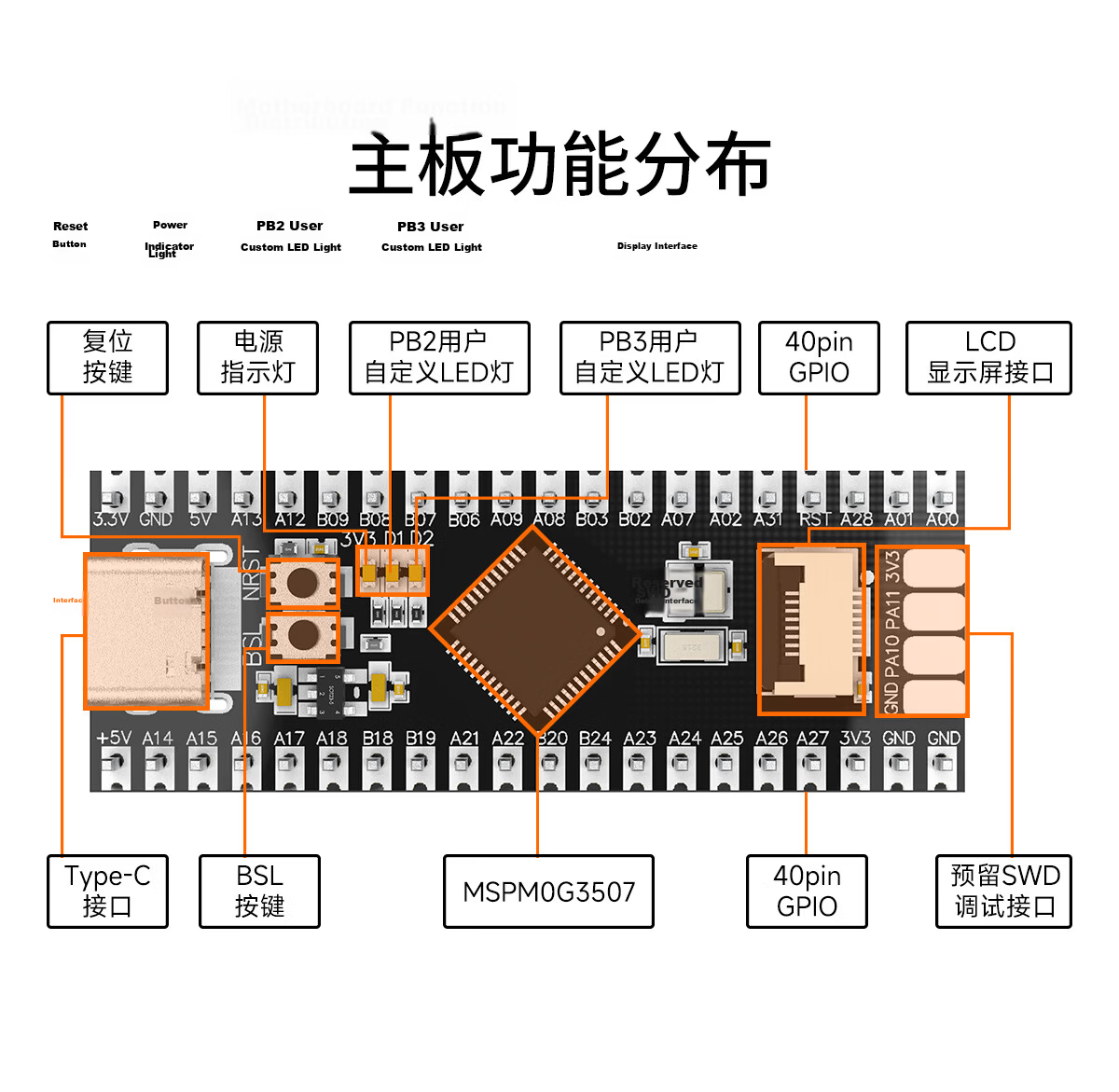

32 × GPIO pins exposed via 40-pin header with half-hole design for easy soldering
LCD display interface supporting TFT color screens

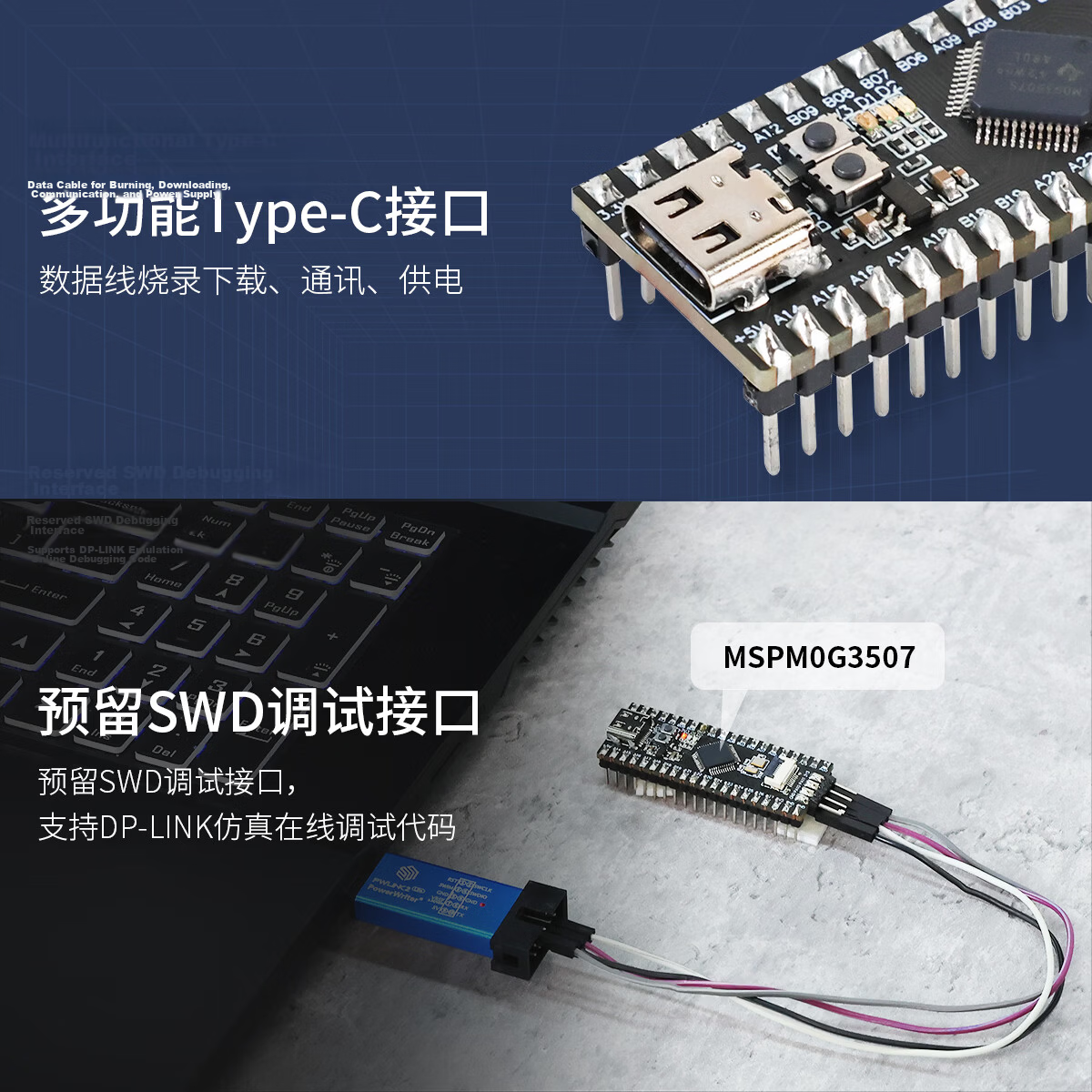

SWD debugging interface (reserved)

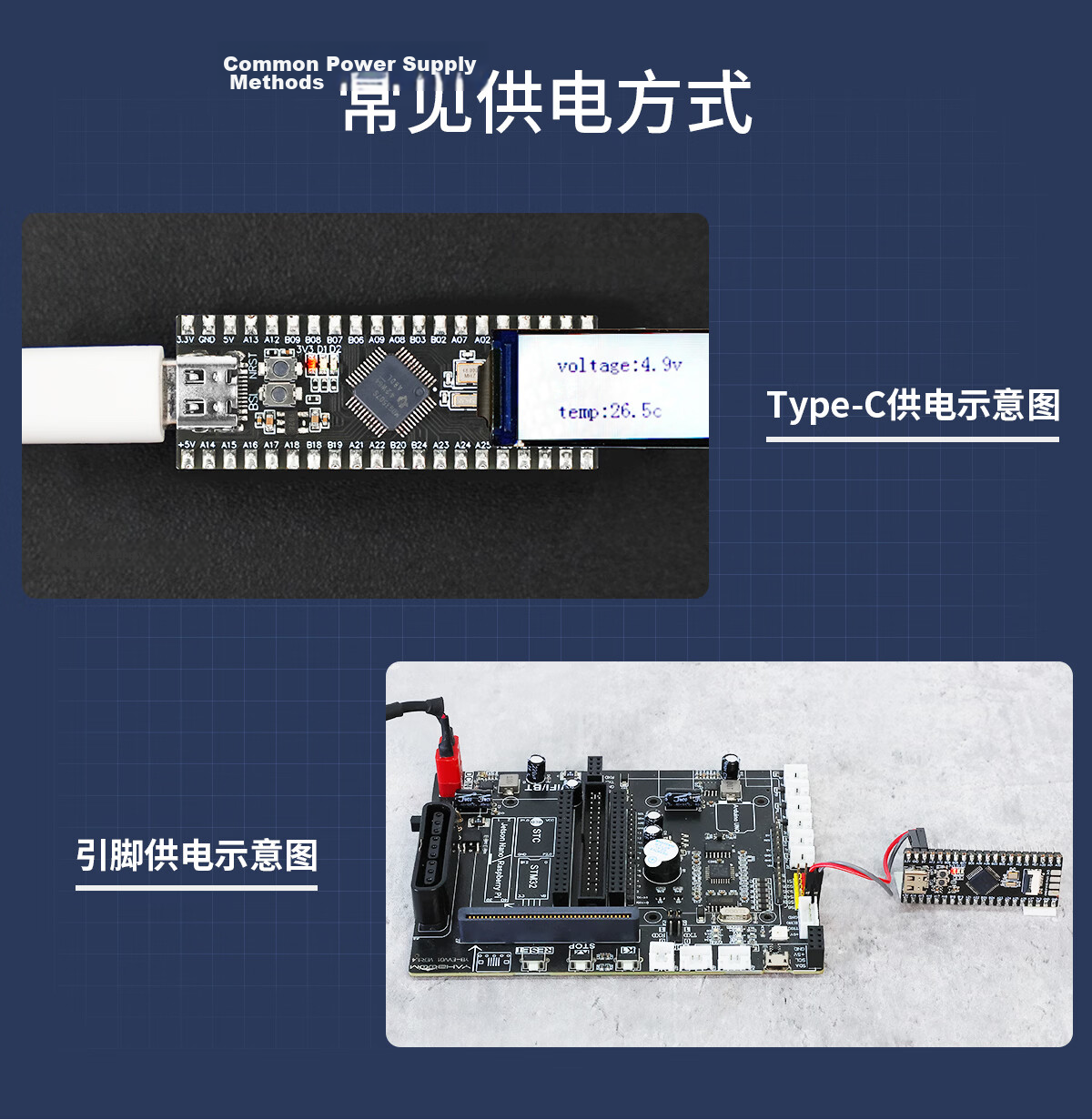

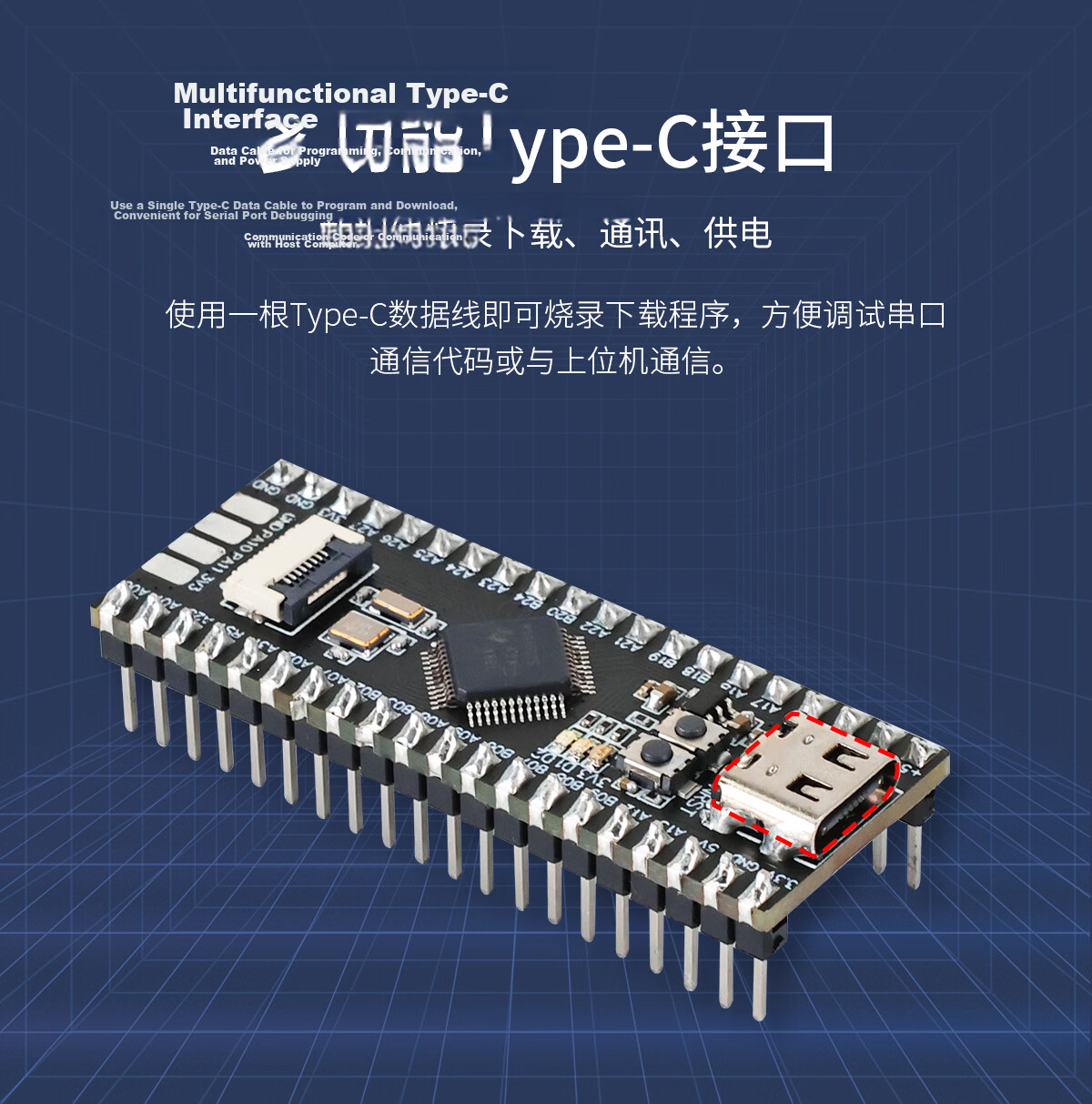

Type-C multi-function interface for programming, communication, and power supply

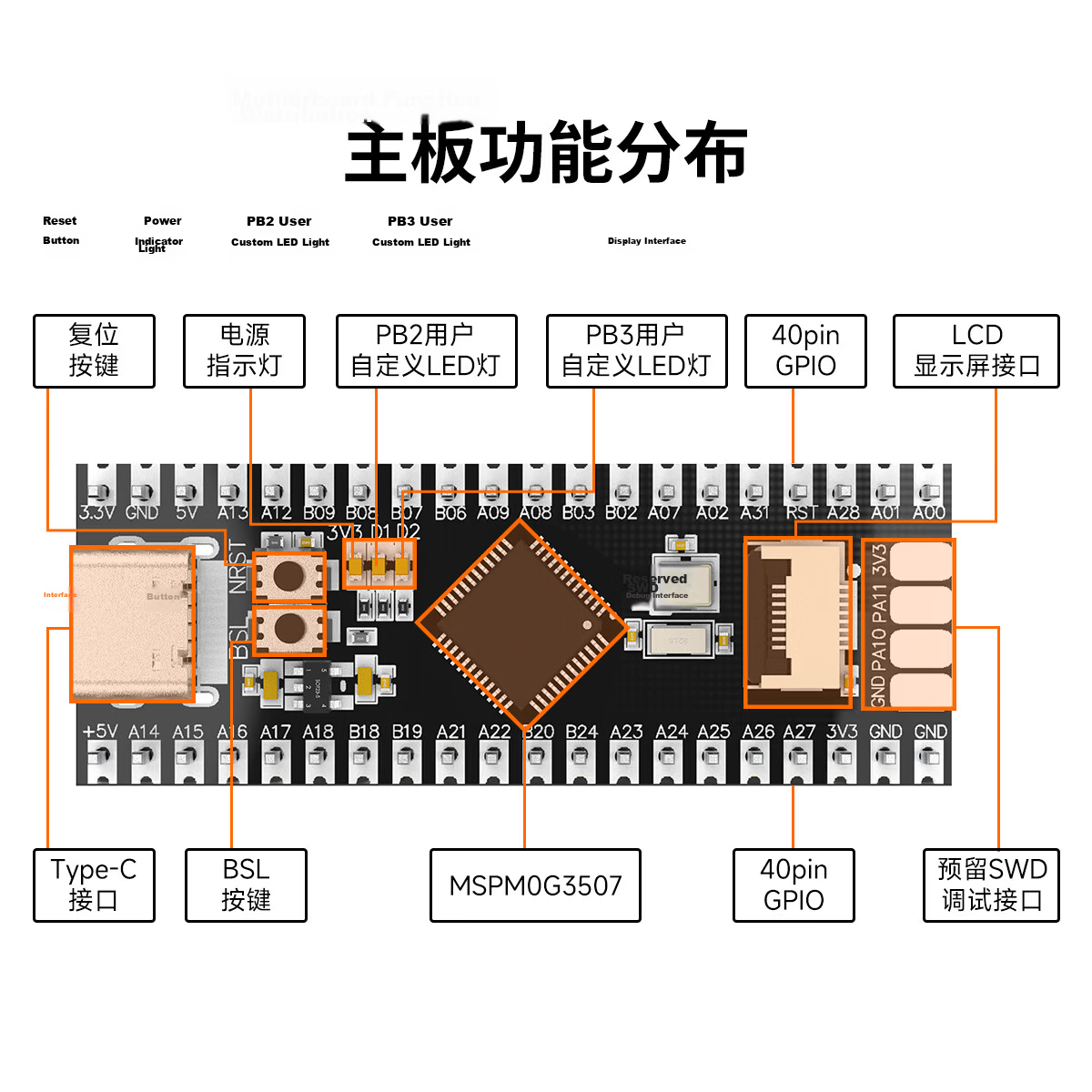

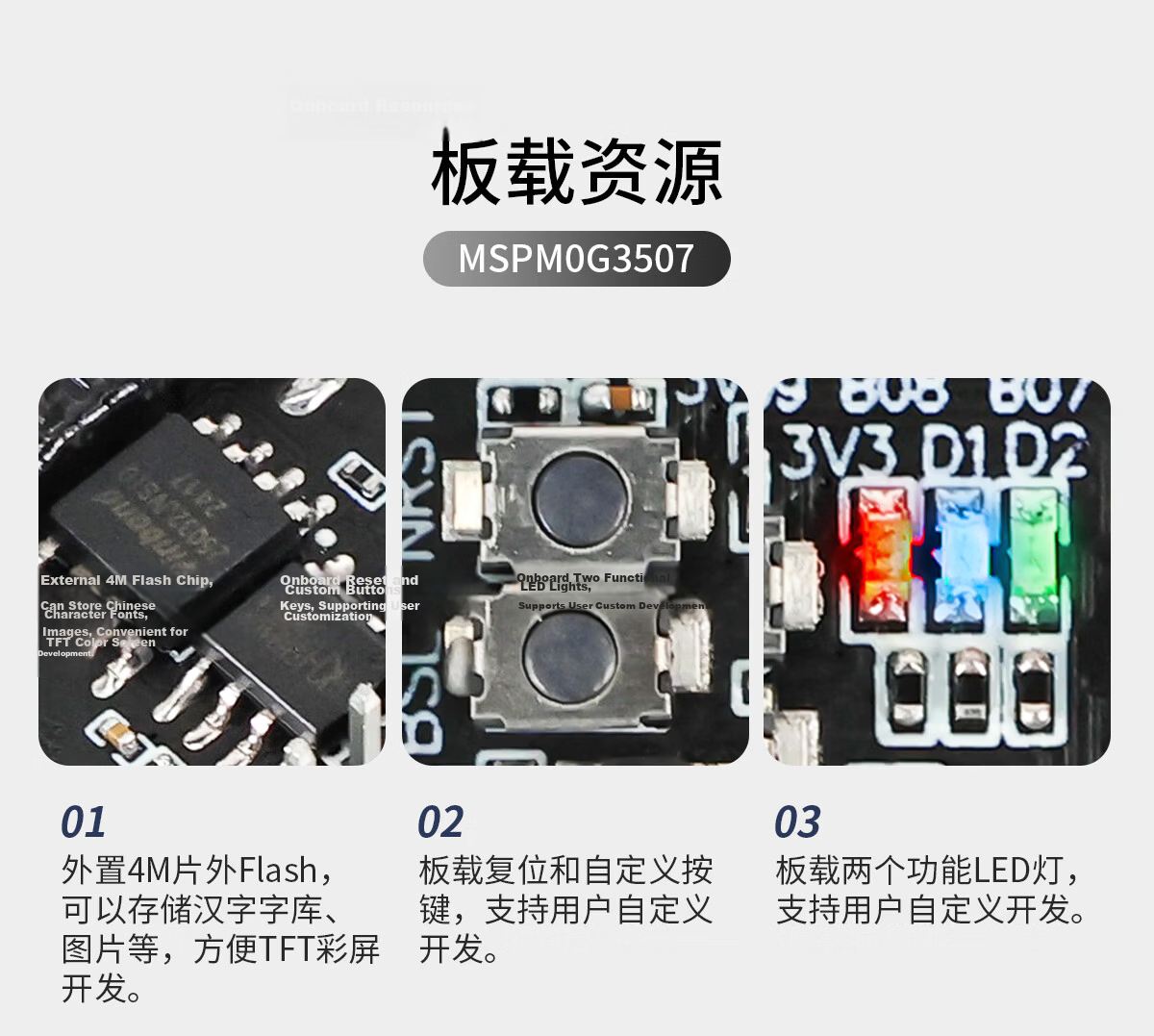

Onboard Components
Customizable buttons (reset and user-defined)
Two customizable LED indicators
High-quality crystal oscillator
Power and reset indicators
Additional details
Development Environment Support
Compatible with KEIL MDK, CCS, IAR, and other IDEs
Programming and Debugging
Supports one-key program download via SWD or USB serial through Type-C port
PCB

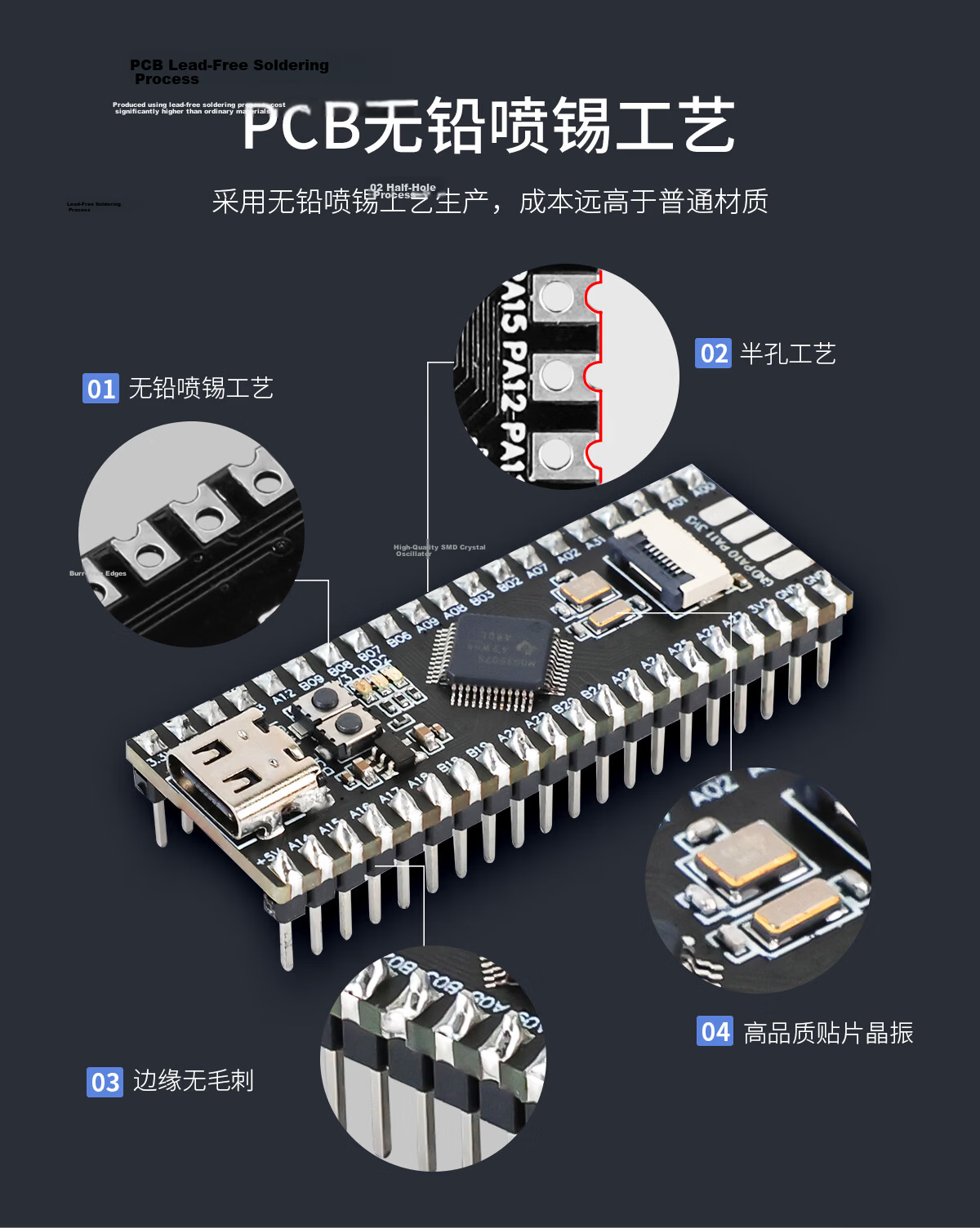

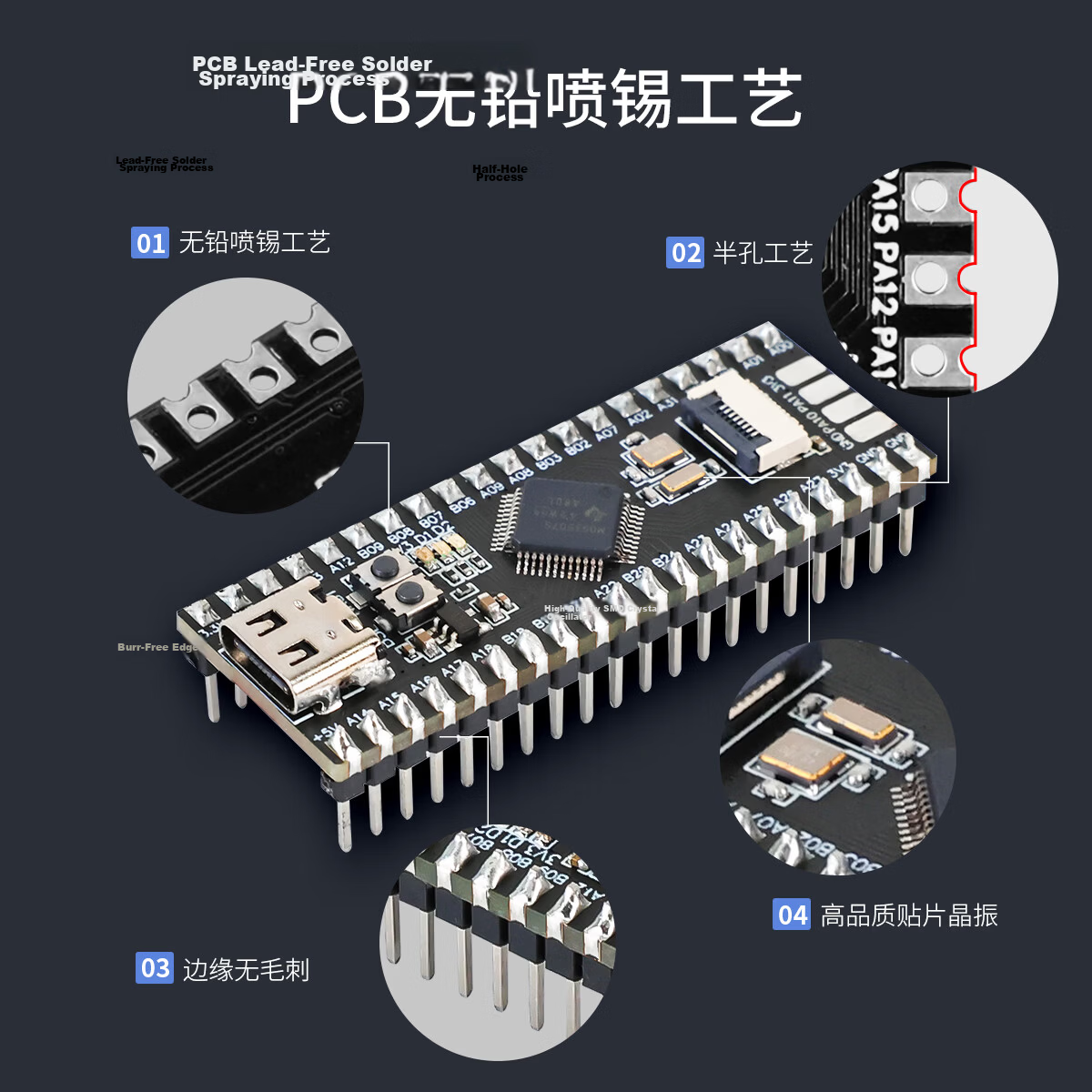

Lead-free soldering process with smooth edges and half-hole technology for reliable connections

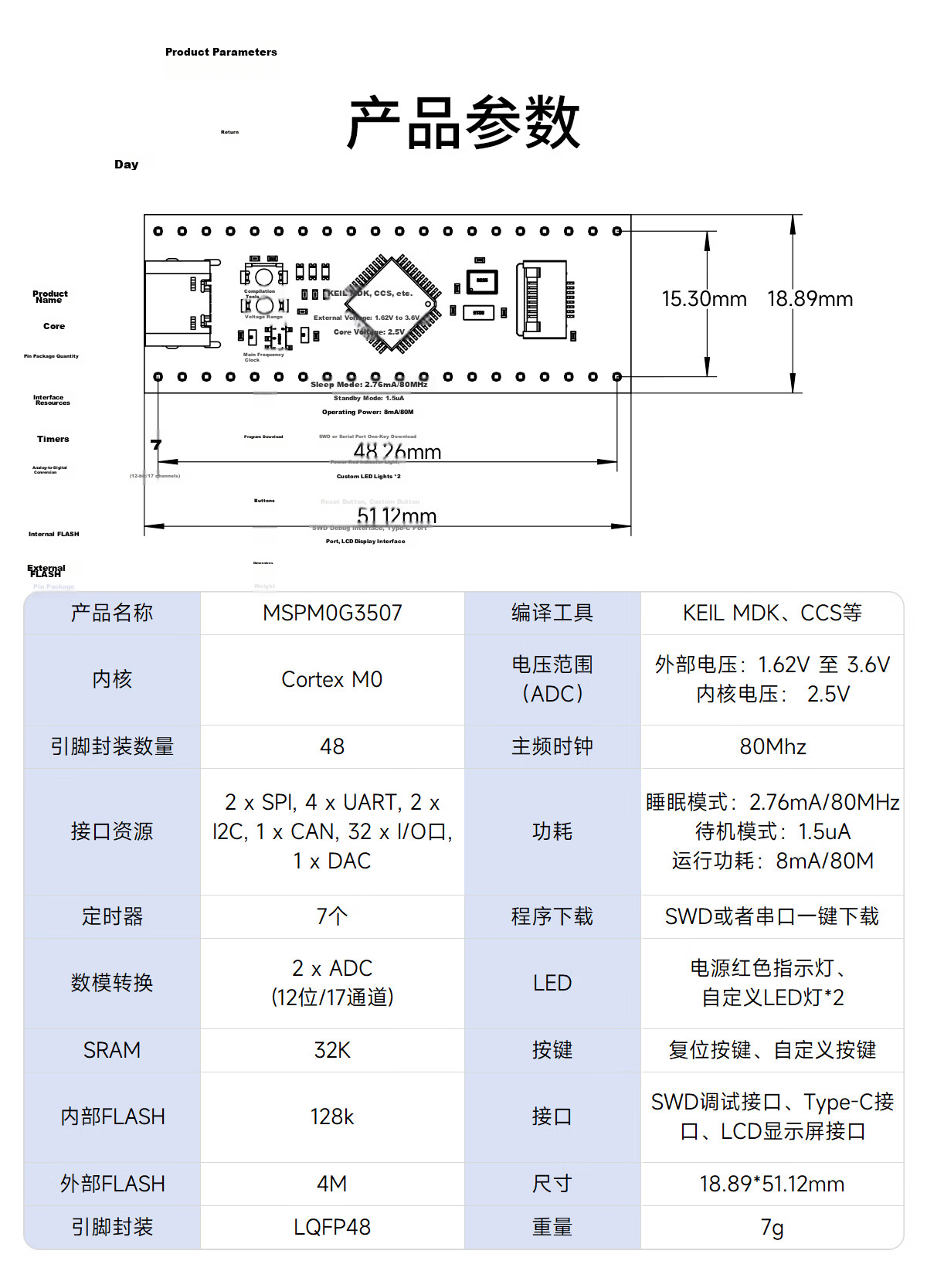

Dimensions
18.89 mm × 51.12 mm
Weight
Approx. 7 grams
Running
8mA at 80 MHz
Sleep Mode
2.76mA at 80 MHz
Standby Mode
1.5μA
TI Cup National Undergraduate Electronic Design Competition
Embedded applications such as smart home sensors, intelligent vehicles, and other IoT devices
Educational and development projects requiring rich peripheral interfaces and low power consumption

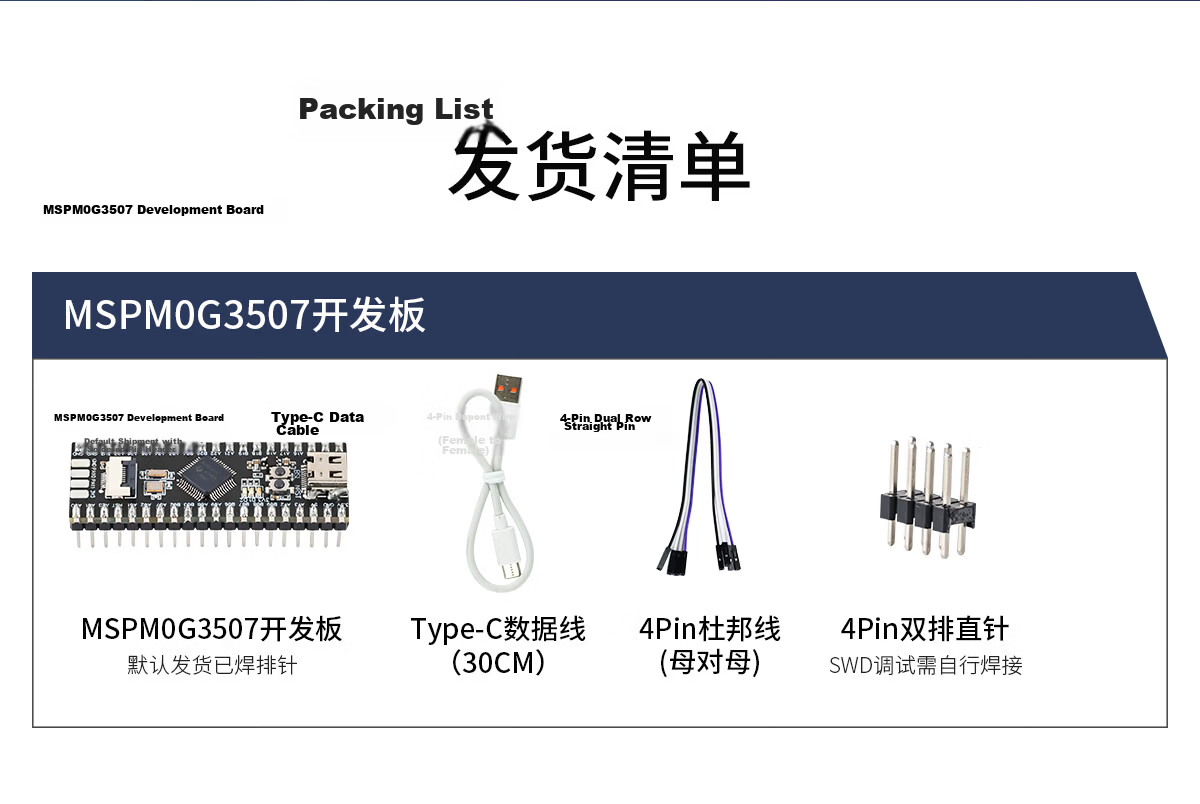

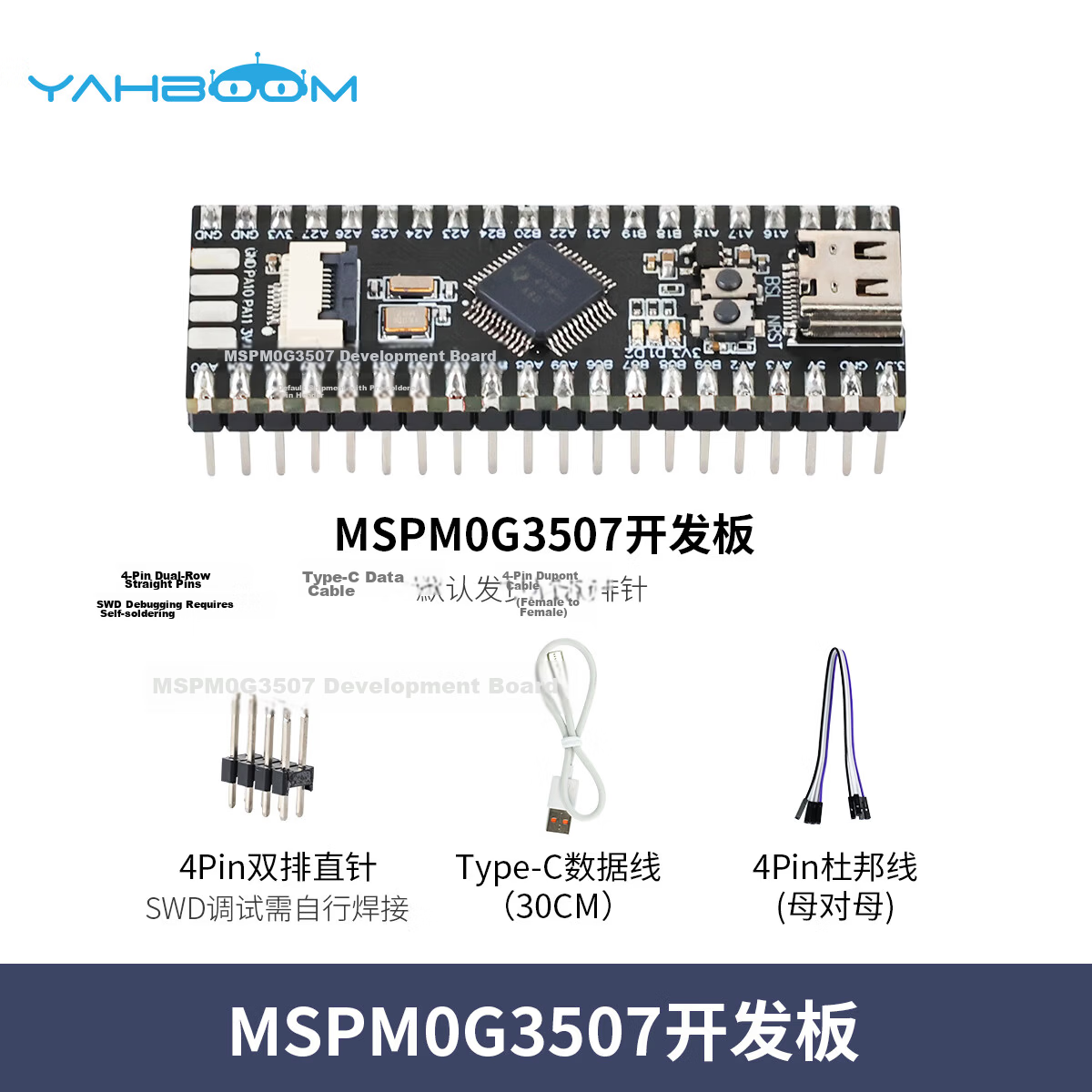

MSPM0G3507 Development Board
Type-C Data Cable (30 cm)
4-pin Dupont Wire (Female to Female)
4-pin Dual-row Straight Pin Header (pre-soldered by default)
SWD debugging header requires manual soldering
Comprehensive development resources including source code, schematics, and environment setup guides

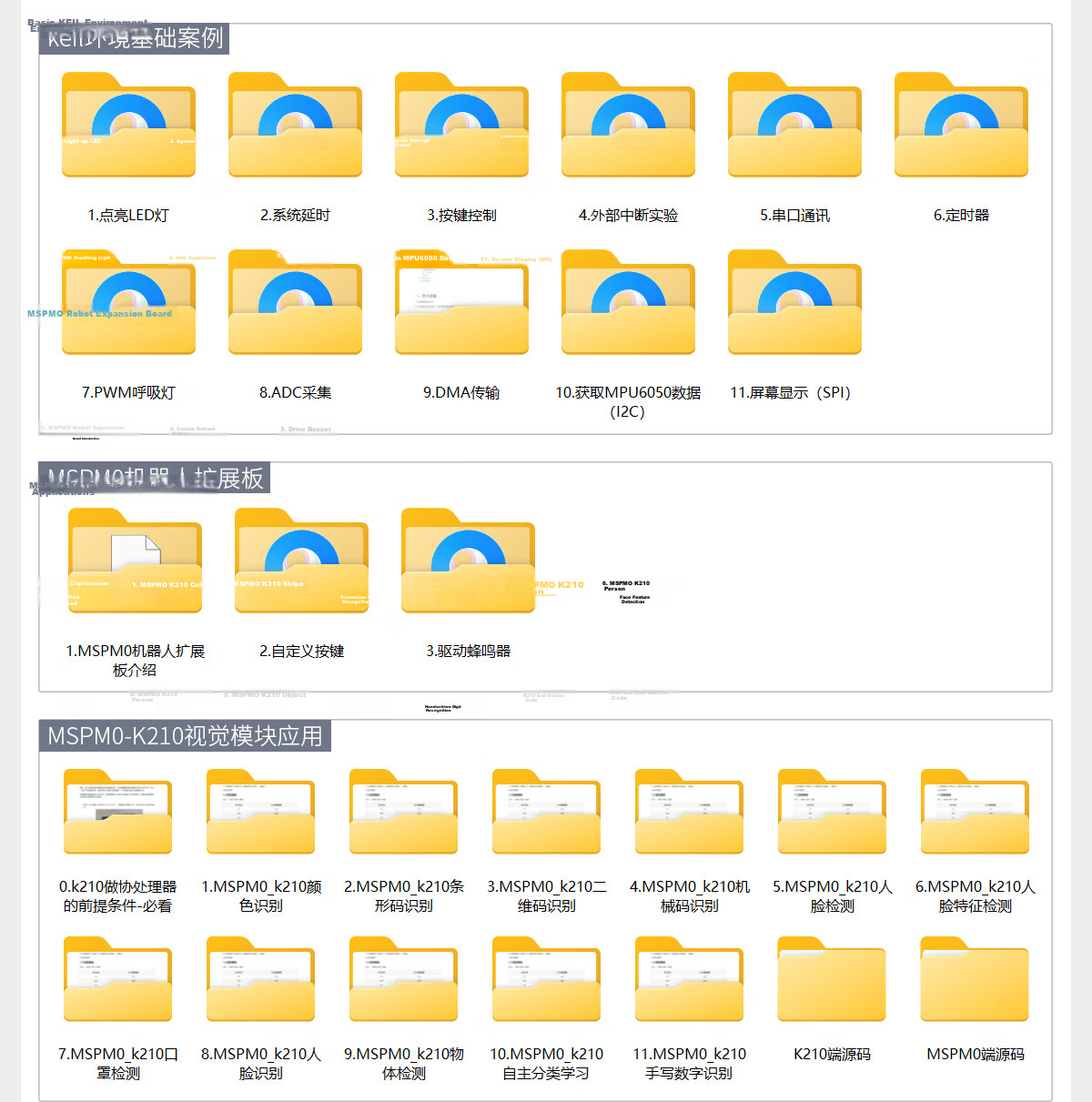

Supports multiple example projects such as LED control, system delay, button control, external interrupts, UART communication, timers, PWM breathing light, ADC acquisition, DMA transfer, MPU6050 data retrieval, and SPI LCD display
Compatible with MSPM0 robot expansion boards and K210 vision modules for advanced AI applications including face detection, color recognition, and handwritten digit recognition
This development board is an ideal platform for students and engineers participating in electronic design competitions and embedded system development, offering extensive features, reliable performance, and broad accessory compatibility.
