H3C Multi-WAN+4LAN Gigabit Enterprise-Grade VPN Wired Gateway Router, with 250 Devices, IPv6, Firewall, And Internet Behavior Management, MSR860-6EI
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4
Thumbnail 5
H3C•Data communication network equipment

H3C Multi-WAN+4LAN Gigabit Enterprise-Grade VPN Wired Gateway Router, with 250 Devices, IPv6, Firewall, And Internet Behavior Management, MSR860-6EI

CN¥899.00
SKU: 100197262160
Status:In Stock (5)
ID: 100197262160
Weight: 3180.00 g
Dims:544x338x88 mm

Specifications

Number of LAN ports
Other
Firewall
Supports firewall
Game Acceleration
No
Wireless protocols
No
WAN port
Gigabit Ethernet port
Body material
Metal
Type
Wired router
Total carrying capacity
201-300 terminals

Variants / Sale Attributes

Color: 2*WAN port | 4*LAN port | 250 devices supported
省心之选: 官方直营|京东物流|售后无忧

Package Contents

Main unit *1, power cord *1, installation accessories *1 set, all-in-one documentation *1 (Note: Packaging may vary between batches; please refer to the actual received goods!)

Product Description

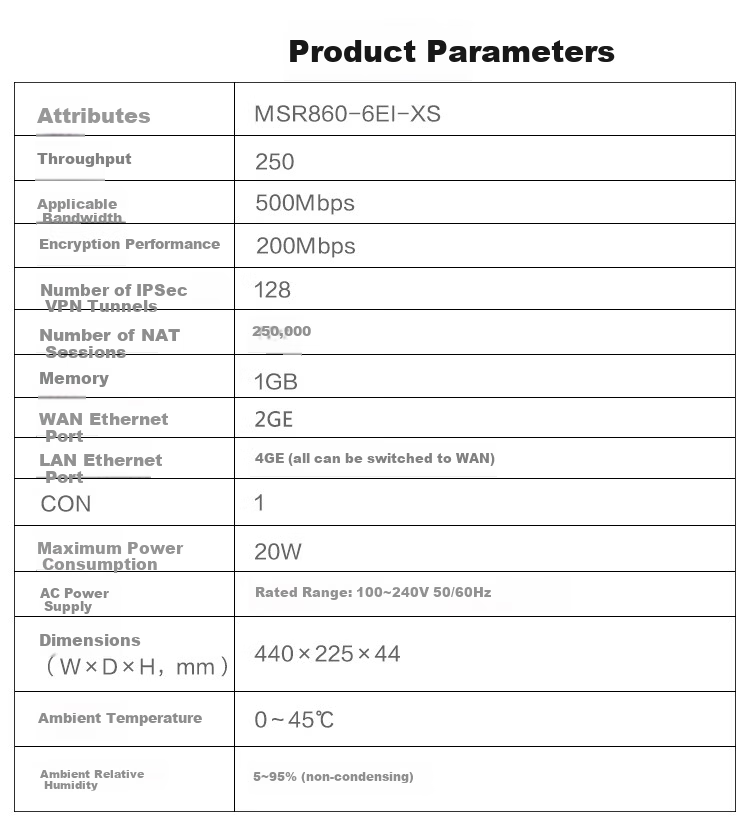

Product Specifications

Overview

Brand
H3C
Model
MSR860-6EI-XS
WAN Ports
2 x Gigabit Ethernet (2GE), default WAN ports, LAN ports can be switched to WAN
LAN Ports
4 x Gigabit Ethernet (4GE), all can be switched to WAN
Console Port
1
Memory
1GB
Maximum Power Consumption
20W

Similar Products

Out of Stock
MERCURY WiFi7 Ceiling AP BE3600 High-Speed Stable MC7AP3600HP
MERCURYData communication network equipment

MERCURY WiFi7 Ceiling AP BE3600 High-Speed Stable MC7AP3600HP

WiFi7 | 3600M | 3600HP Series

CN¥389.00

View
In Stock
TP-LINK Wi-Fi 7 Wireless Panel AP BE3600 Dual Band Dual 2.5G Ports Whole Home WiFi Kit Perfect for 2000M Broadband TL-7AP3622HI-PoE
TP-LINKData communication network equipment

TP-LINK Wi-Fi 7 Wireless Panel AP BE3600 Dual Band Dual 2.5G Ports Whole Home WiFi Kit Perfect for 2000M Broadband TL-7AP3622HI-PoE

Single | Dual 2.5G | TL7AP3622HIPoE

CN¥539.00

View
VPN
Support VPN virtual private network
WAN port type
Electrical port
Coverage
>400㎡
Online behavior management
Support online behavior management
Antenna
Other
Other ports
Other
Cooling method
Natural heat dissipation
Number of WAN ports
Other
VPN type
SSL VPN, IPSec VPN, Other
AP management
Support AP management
LAN output port
Gigabit Ethernet port
Wireless speed
No
Enterprise VPN
Support enterprise VPN
LAN port type
Electrical port
Power Supply
AC 100~240V, 50/60Hz
Dimensions (W×D×H)
440 × 225 × 44 mm
Operating Temperature
0~45°C
Operating Humidity
5~95% (non-condensing)
Recommended Concurrent Devices
250
Recommended Access Bandwidth
500 Mbps
Forwarding Performance
1,200 Kpps
Encryption Performance
200 Mbps
IPSec VPN Tunnels
128
NAT Sessions
250,000

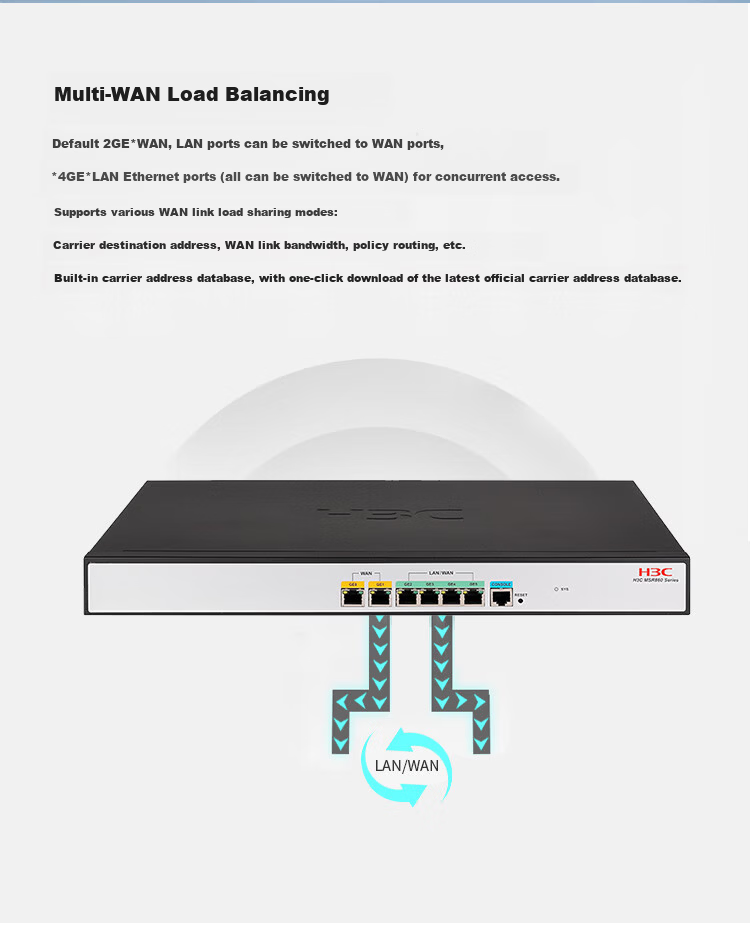

Multi-WAN Load Balancing with multiple WAN link load sharing modes including ISP destination address, WAN link bandwidth, and policy routing

Built-in ISP address database with one-click update from official website

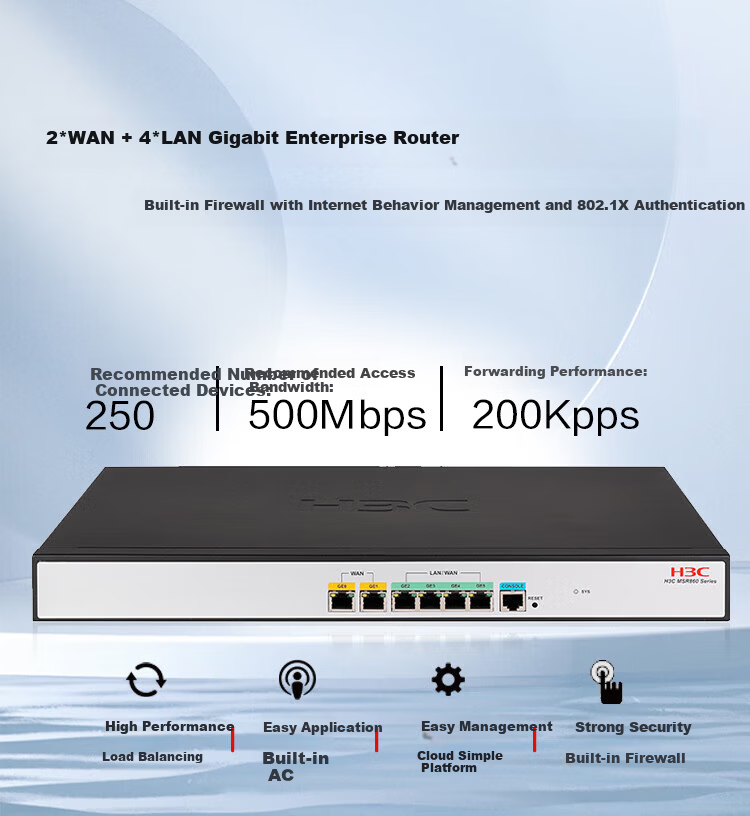

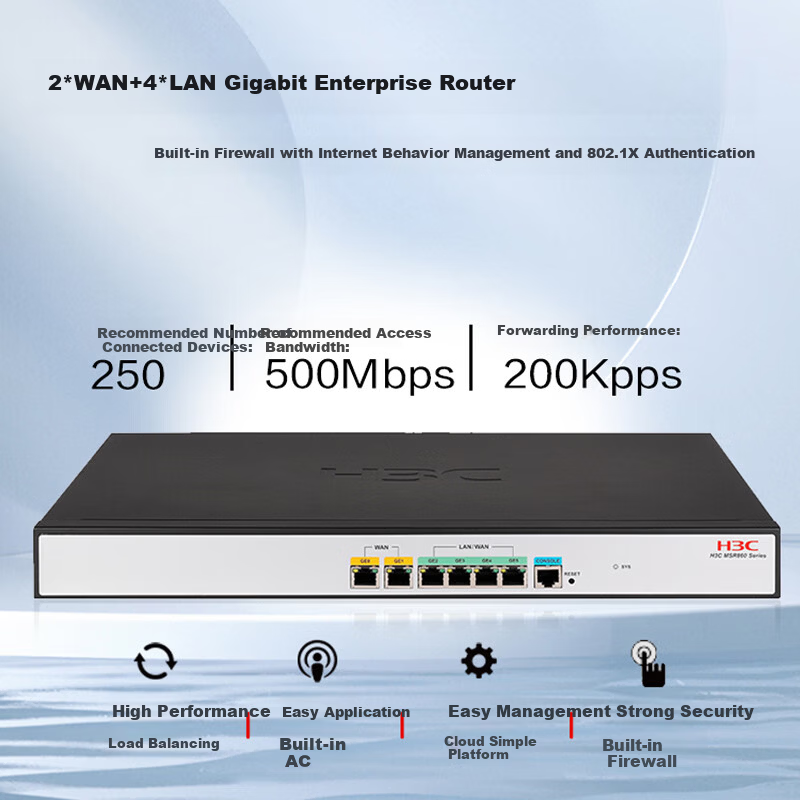

Supports 2*WAN + 4*LAN Gigabit Ethernet ports, LAN ports can be switched to WAN ports for flexible deployment

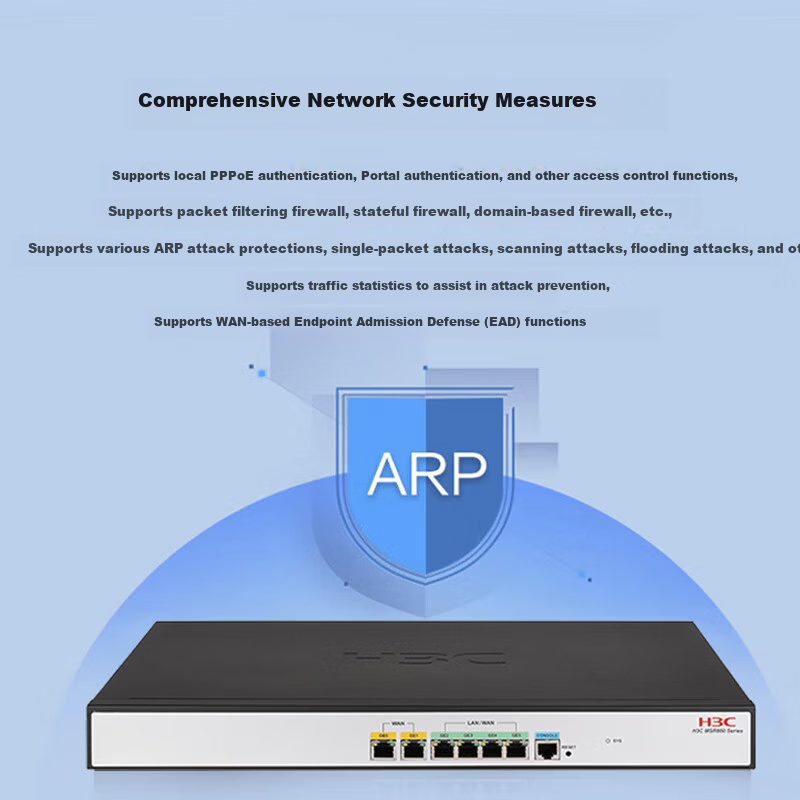

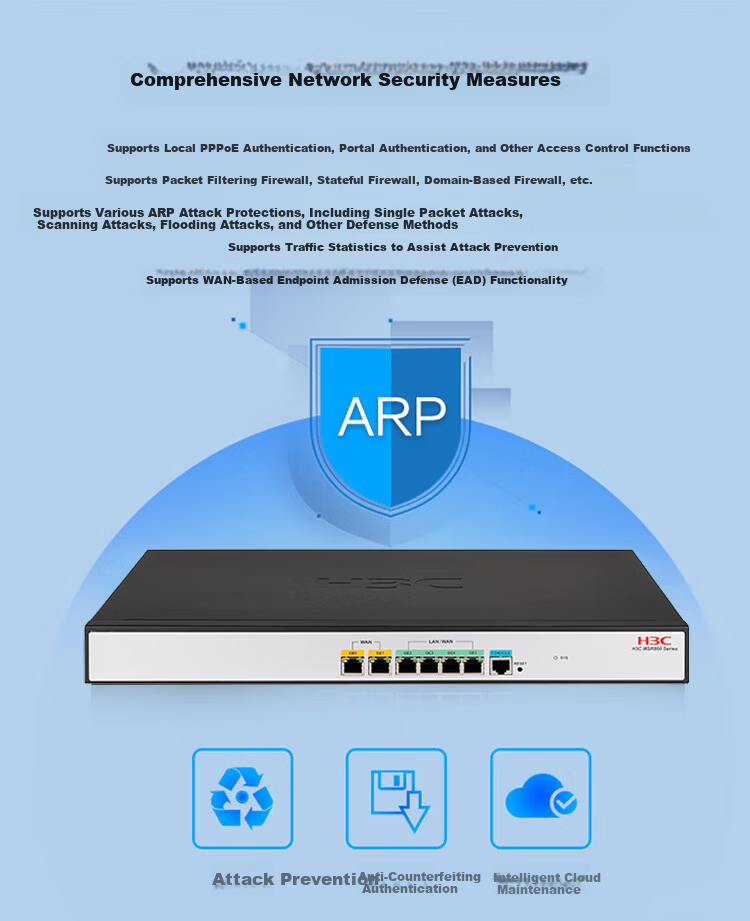

Built-in firewall with packet filtering, stateful firewall, domain-based firewall

Supports ARP attack prevention, single packet attack, scan attack, flood attack prevention

Supports traffic statistics to assist attack prevention

Supports local PPPoE authentication, Portal authentication, and other access control functions

WAN endpoint admission defense (EAD) support

Built-in firewall and internet behavior management

802.1X authentication support

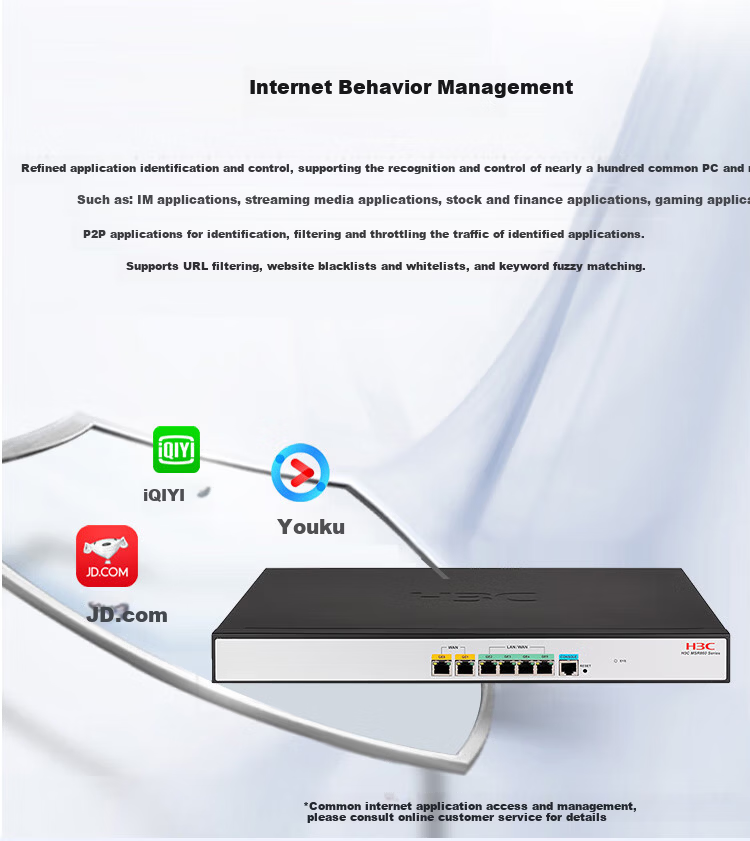

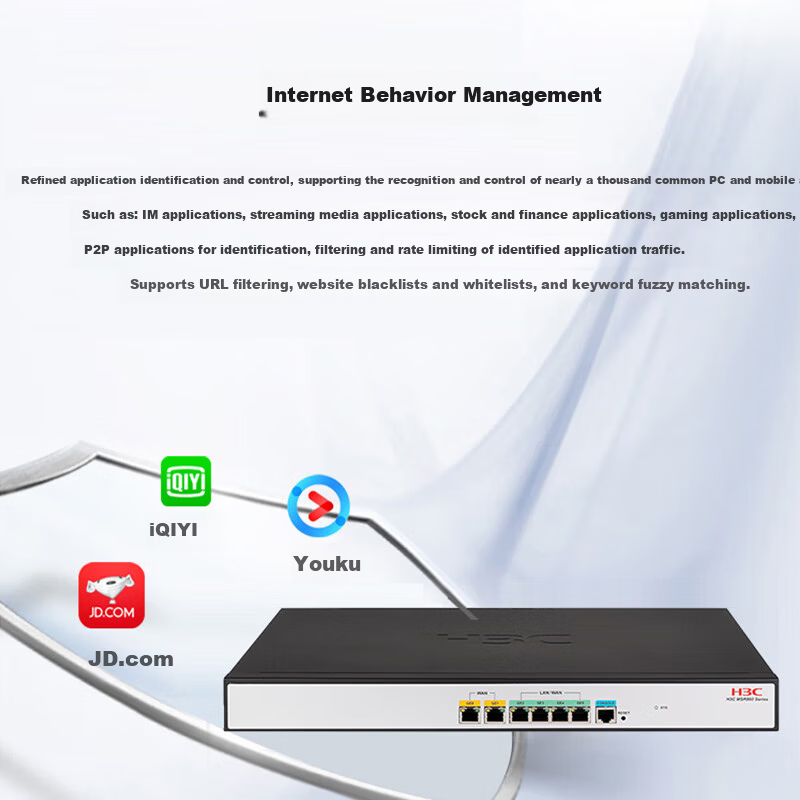

Fine-grained application identification and control for nearly 100 common PC and mobile applications including IM, streaming media, stock finance, gaming, P2P applications

Application traffic filtering and rate limiting

URL filtering, website whitelist/blacklist, keyword fuzzy matching

Supports common internet application access control (e.g., iQIYI, Youku, JD.com)

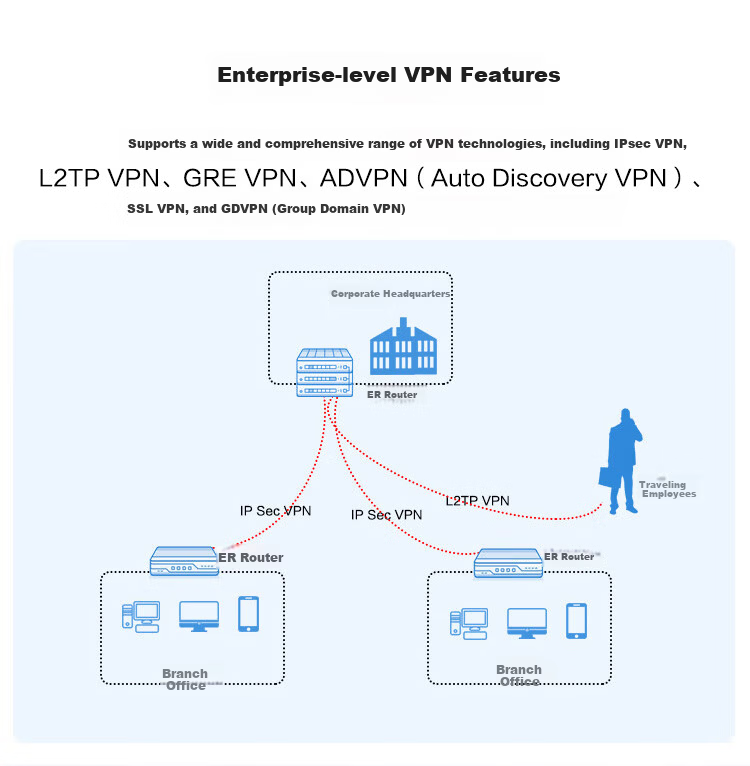

Enterprise-grade VPN support including IPsec VPN, L2TP VPN, GRE VPN, ADVPN (Auto Discovery VPN), SSL VPN, GDVPN (Group Domain VPN)

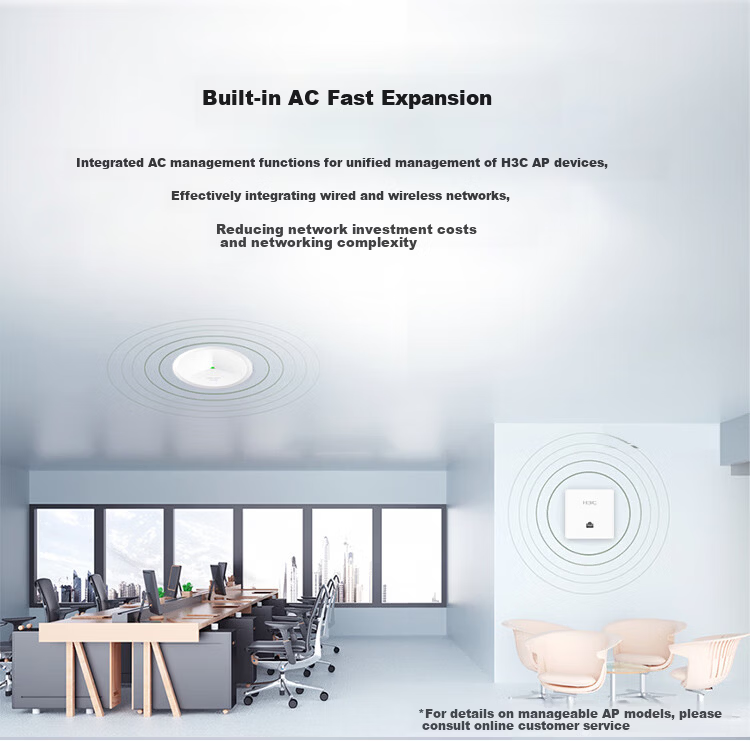

Integrated AC controller for unified management of H3C AP devices, enabling seamless wired and wireless network integration

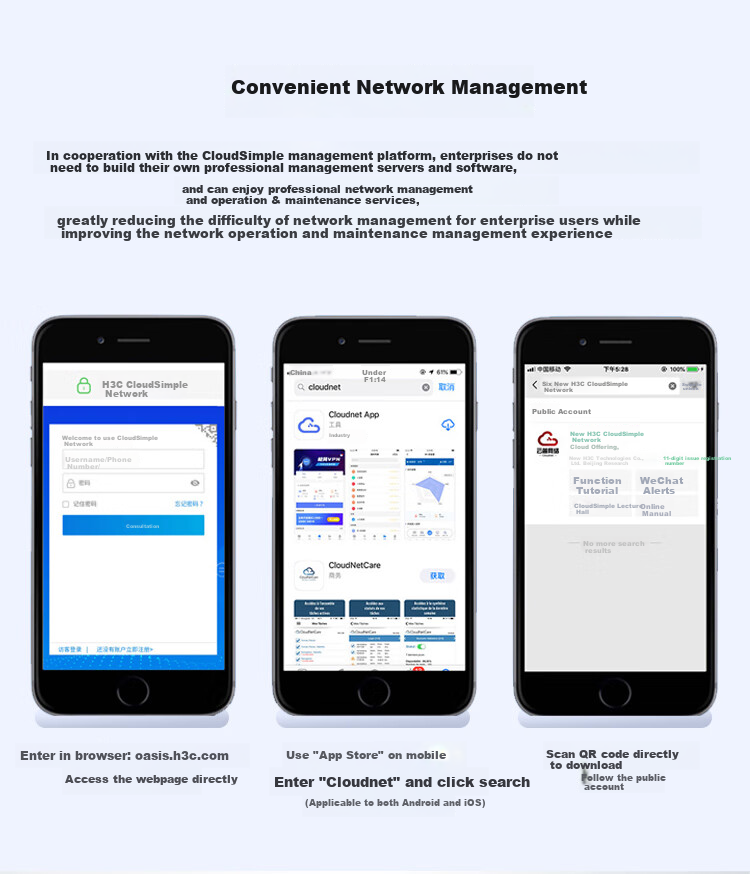

Supports cloud-based simplified network management platform (Cloudnet) for easy network operation and maintenance without the need for dedicated management servers or software

Cloudnet platform supports mobile app and web access, WeChat public account integration, online manuals, and alert notifications

Intelligent cloud maintenance and security updates

Load balancing across multiple WAN links

Supports policy routing and ISP destination address-based routing

Supports flexible port configuration (LAN ports can be converted to WAN ports)

Supports up to 128 IPSec VPN tunnels

Supports up to 250,000 NAT sessions

Additional details

Operating Temperature
0 to 45°C
Relative Humidity
5% to 95% (non-condensing)
