DELIXI ELECTRIC Digital Coating Thickness Gauge Automotive Paint Film Thickness Tester DTG D33

DELIXI ELECTRIC•Thickness gauge

DELIXI ELECTRIC Digital Coating Thickness Gauge Automotive Paint Film Thickness Tester DTG D33

CN¥252.08

SKU: 100201231068

Status:In Stock (94)

ID: 100044620266

Weight: 310.00 g

Dims:210x106x58 mm

Specifications

How it works: All in one
Category: coating thickness gauge
Material measurement: paint
Display type: digital display

Variants / Sale Attributes

Model: D33 Digital Thickness Gauge [1700μm]

Package Contents

product

Product Description

Product Specifications

Overview

Brand: DELIXI ELECTRIC

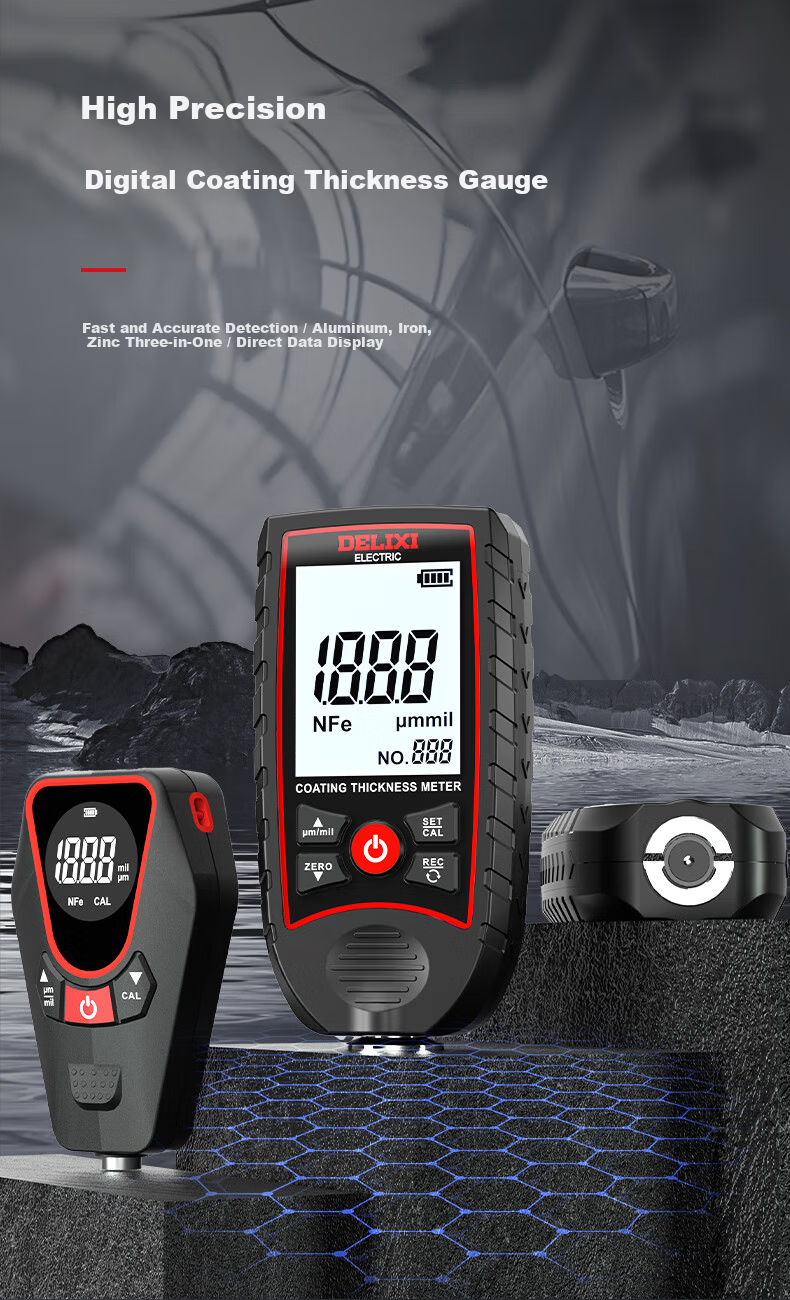

Product: High-Precision Digital Coating Thickness Meter
Models: DTGD31, DTGD32, DTGD33
Measurement Types: Magnetic (Fe) and Non-Magnetic (NFe) substrates

Measurement Range

Item	Detail
DTGD31	0–1200 μm
DTGD32	0–1500 μm
DTGD33	0–1700 μm

Similar Products

In Stock

DANAThickness gauge

DANA Ultrasonic Thickness Gauge for Metal, Steel Plate, Glass And Plastic Thickness Measurement DN2800 Ultra-Thin Thickness Meter

Ultrasonic Thickness Gauge

CN¥850.00

View

Out of Stock

SNDWAYThickness gauge

SNDWAY Coating Thickness Gauge Paint Film Thickness Meter High Precision Automotive Used Car Thickness Galvanized Layer Thickness Gauge SW-6310B

Lithium-ion voice model. Color display screen. USB data connectivity

CN¥469.00

View

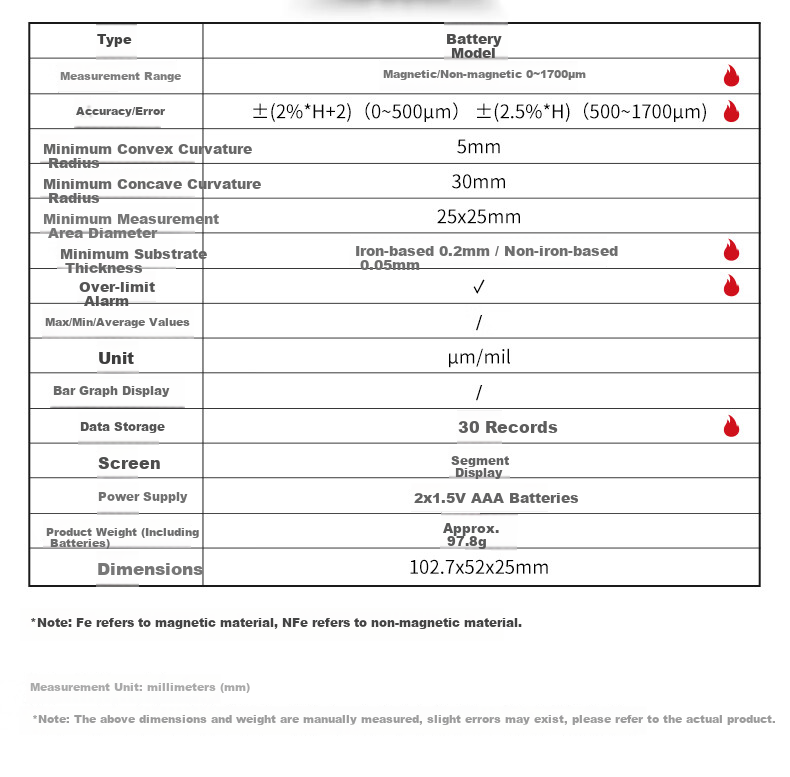

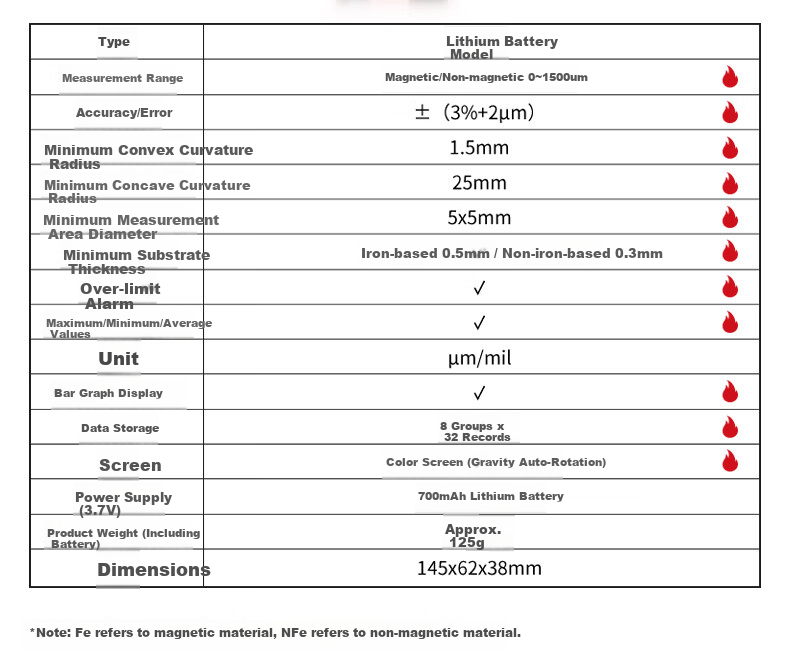

Accuracy

Item	Detail

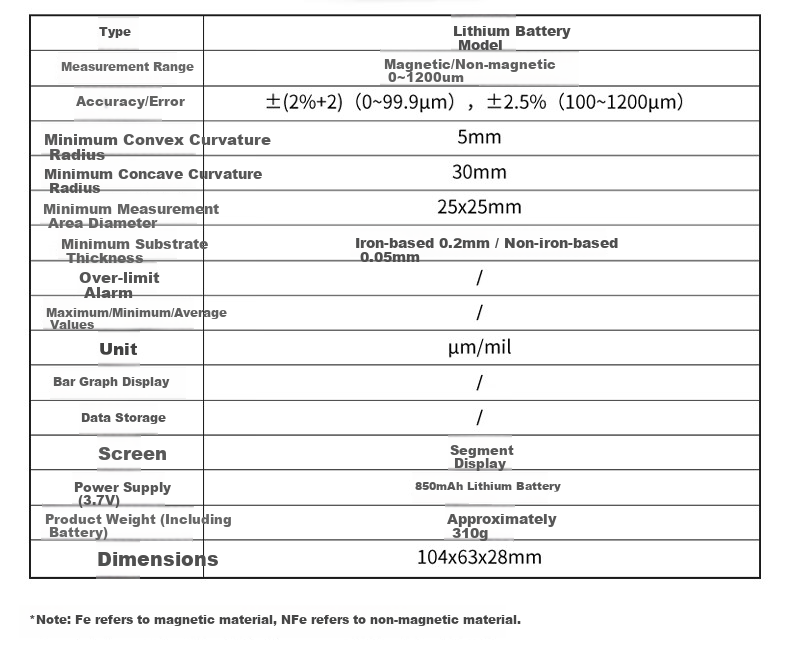

DTGD31	±(2%+2 μm) for 0–99.9 μm; ±2.5% for 100–1200 μm
DTGD32	±(3%+2 μm)
DTGD33	±(2%×H+2 μm) for 0–500 μm; ±(2.5%×H) for 500–1700 μm

Minimum Curvature Radius

Item	Detail
Convex Surface	DTGD31 - 5 mm; DTGD32 - 1.5 mm; DTGD33 - 5 mm
Concave Surface	DTGD31 - 30 mm; DTGD32 - 25 mm; DTGD33 - 30 mm

Minimum Measurement Area Diameter

Item	Detail
DTGD31 & DTGD33	25×25 mm
DTGD32	5×5 mm

Minimum Substrate Thickness

Item	Detail
DTGD31	Iron-based 0.2 mm / Non-iron-based 0.05 mm
DTGD32	Iron-based 0.5 mm / Non-iron-based 0.3 mm
DTGD33	Iron-based 0.2 mm / Non-iron-based 0.05 mm

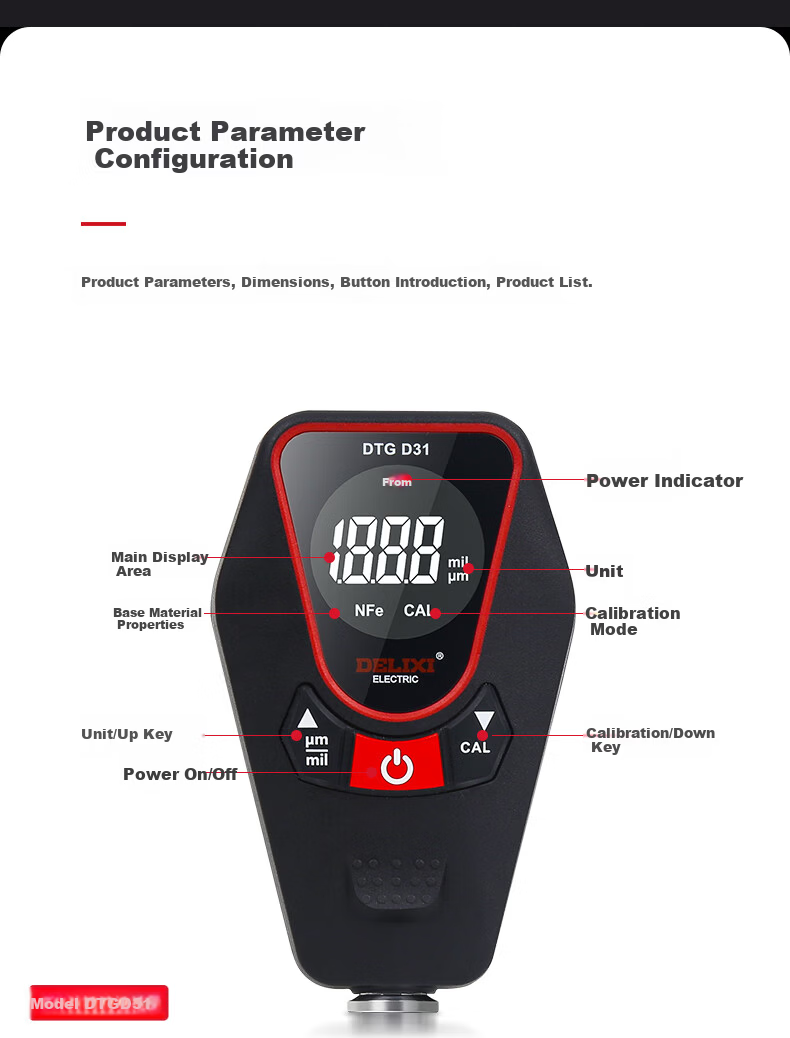

Additional details

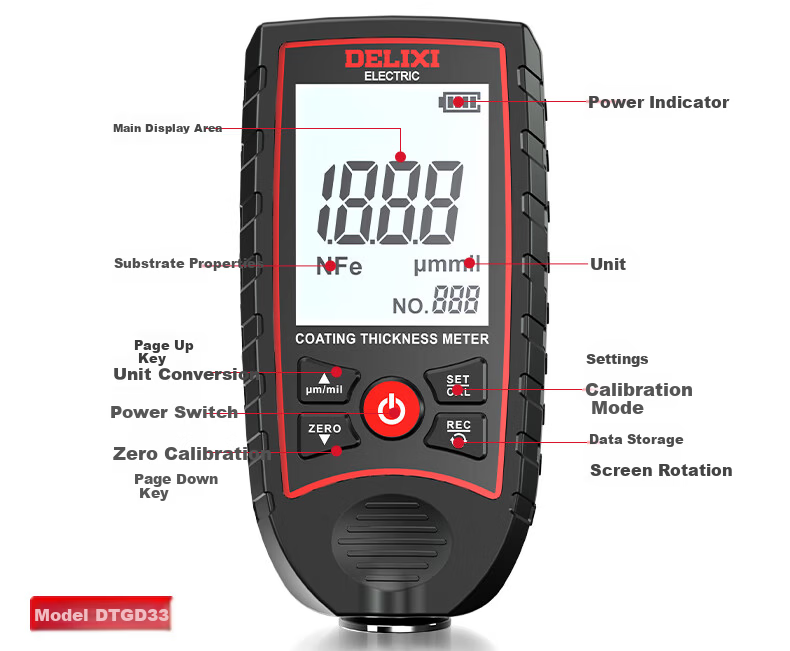

DTGD31 & DTGD33: Segment LCD screen

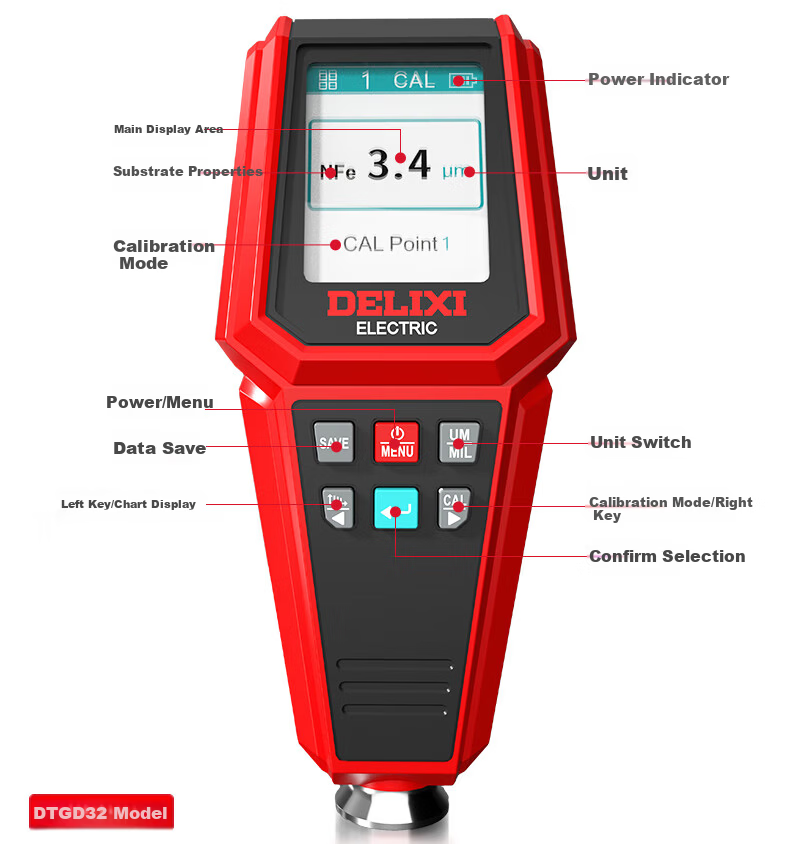

DTGD32: High-definition color screen with gravity sensor for automatic screen rotation
DTGD31: 3.7V 850mAh lithium battery
DTGD32: 3.7V 700mAh lithium battery
DTGD33: 2×1.5V AAA batteries
DTGD31: Approx. 310 g
DTGD32: Approx. 125 g
DTGD33: Approx. 97.8 g
DTGD31: 104×63×28 mm
DTGD32: 145×62×38 mm

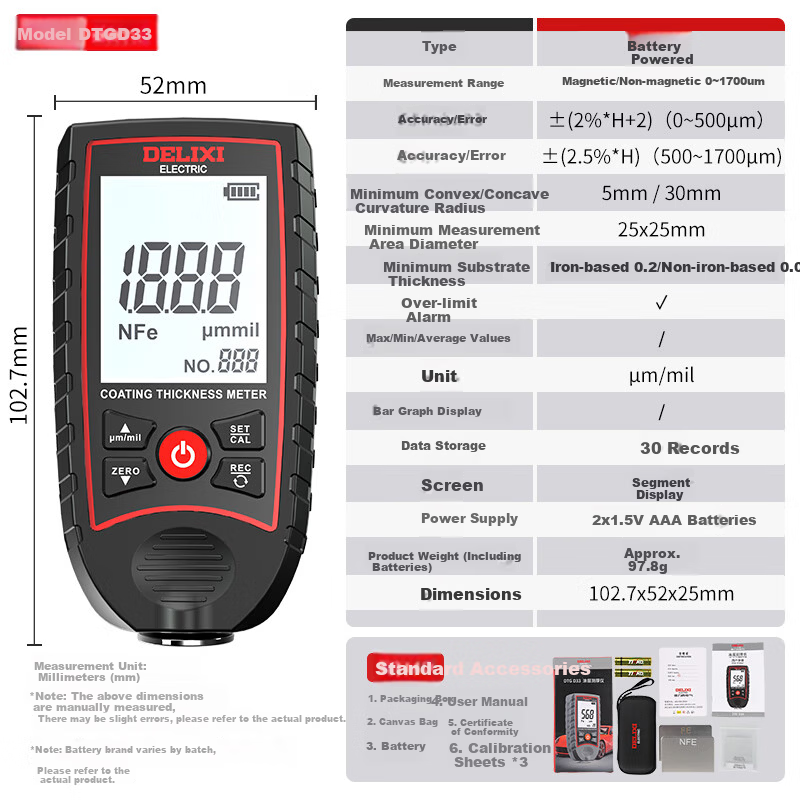

DTGD33: 102.7×52×25 mm

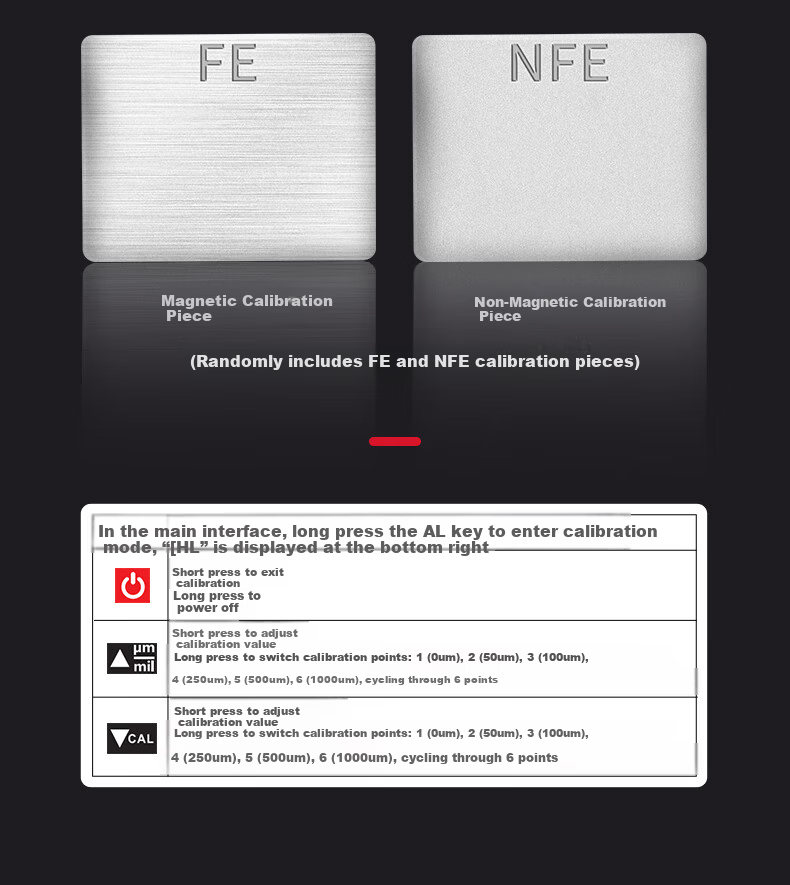

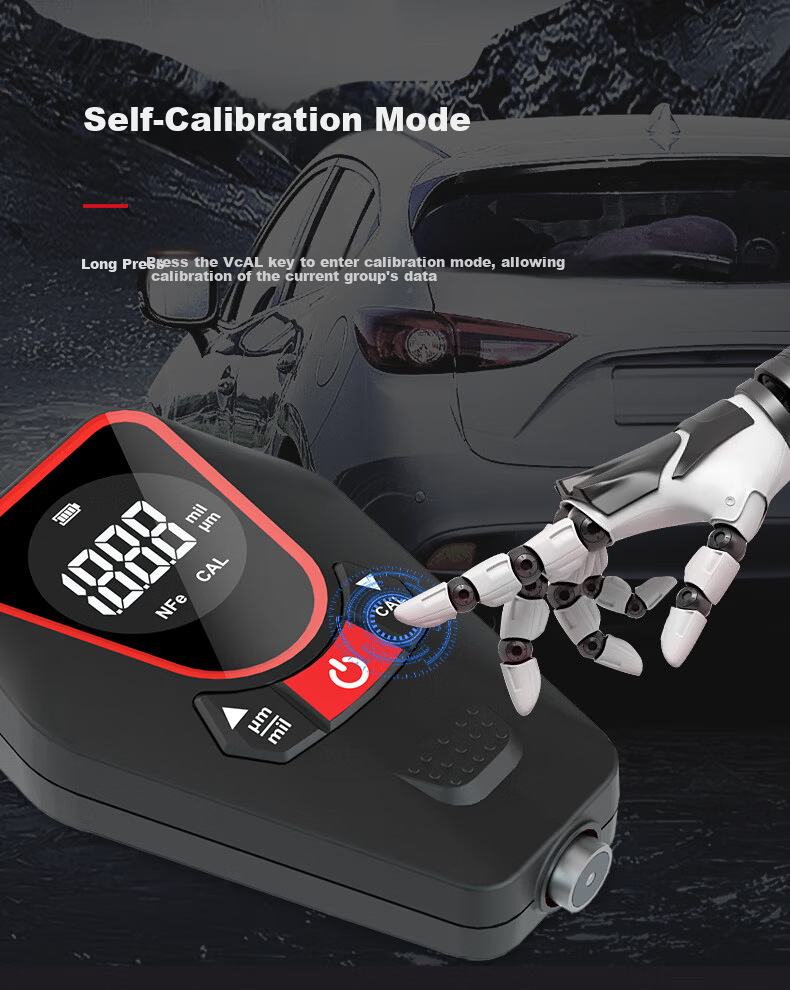

Self-calibration with 6 calibration points (0, 50, 100, 250, 500, 1000 μm)

Fast and accurate measurement

Data storage

Item	Detail

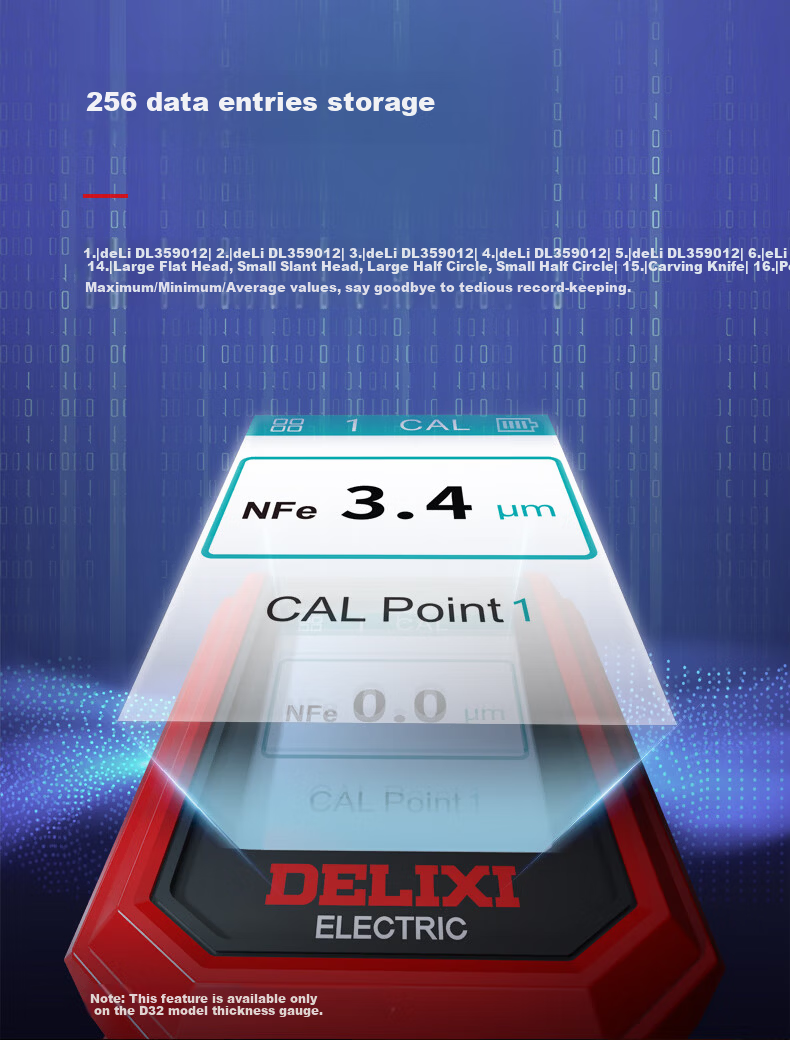

DTGD32	8 groups × 32 records

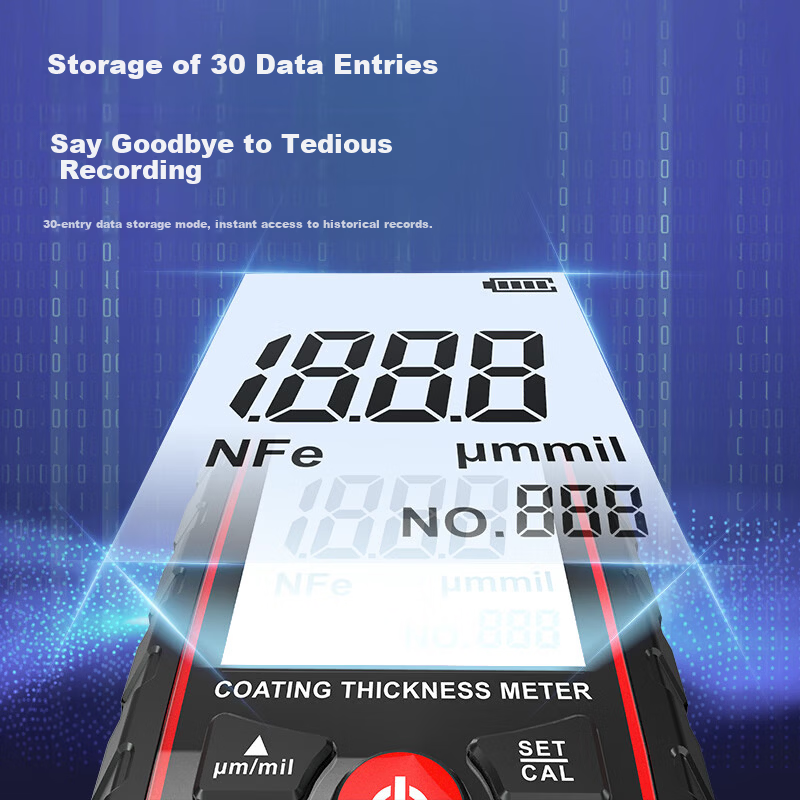

DTGD33	30 records
DTGD31	No data storage

Maximum, minimum, and average value display

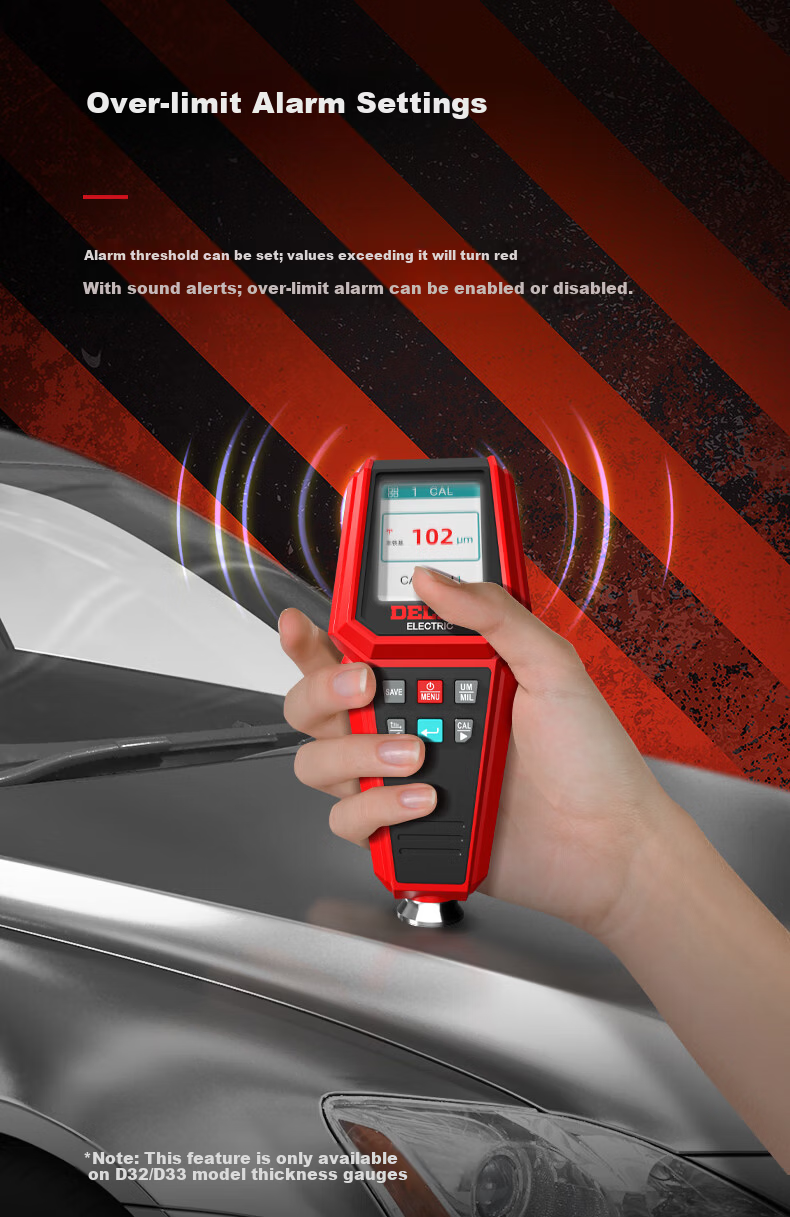

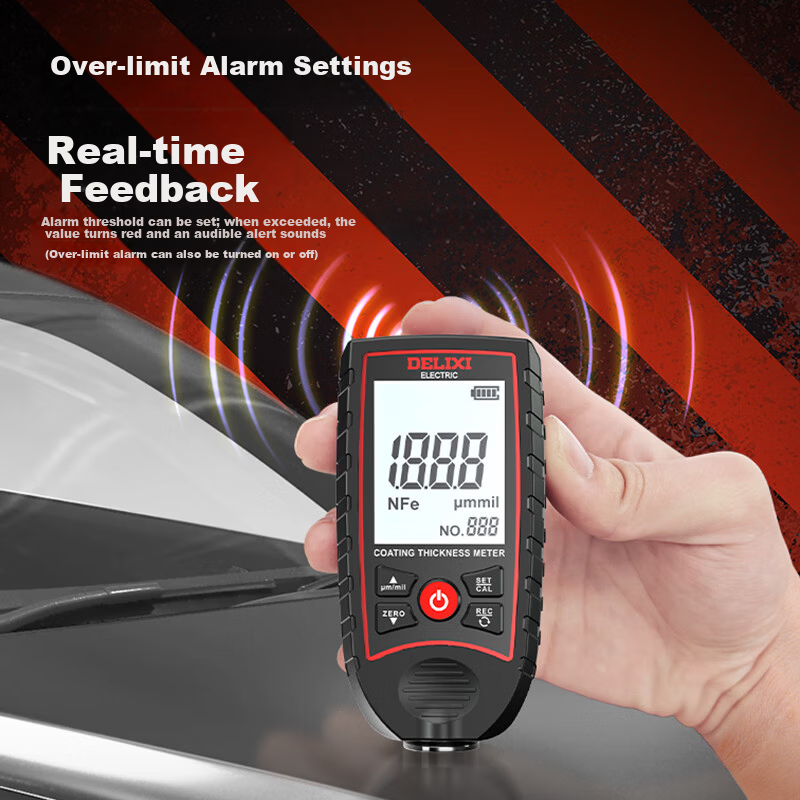

Limit warning with audible and visual alarms (available on DTGD32 and DTGD33)

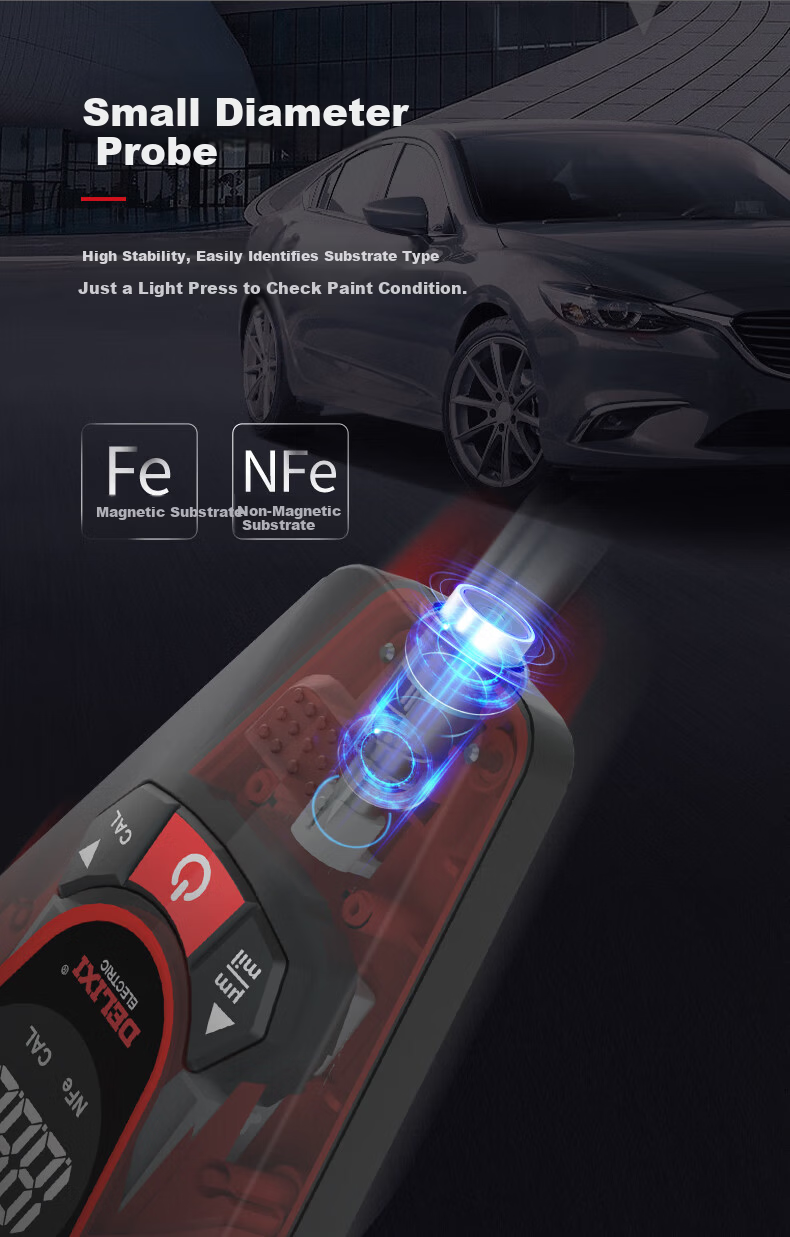

Small diameter probe for measuring small areas and curved surfaces

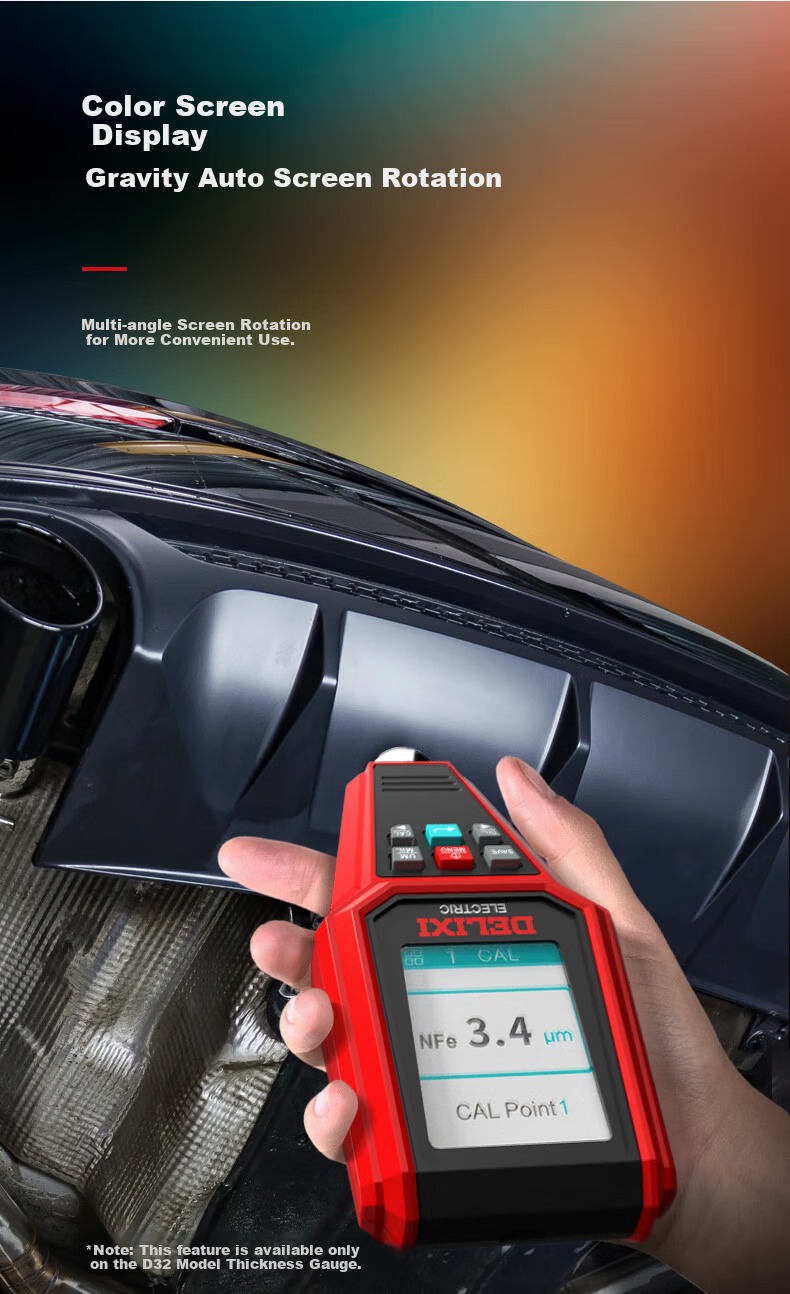

Automatic screen rotation (DTGD32)

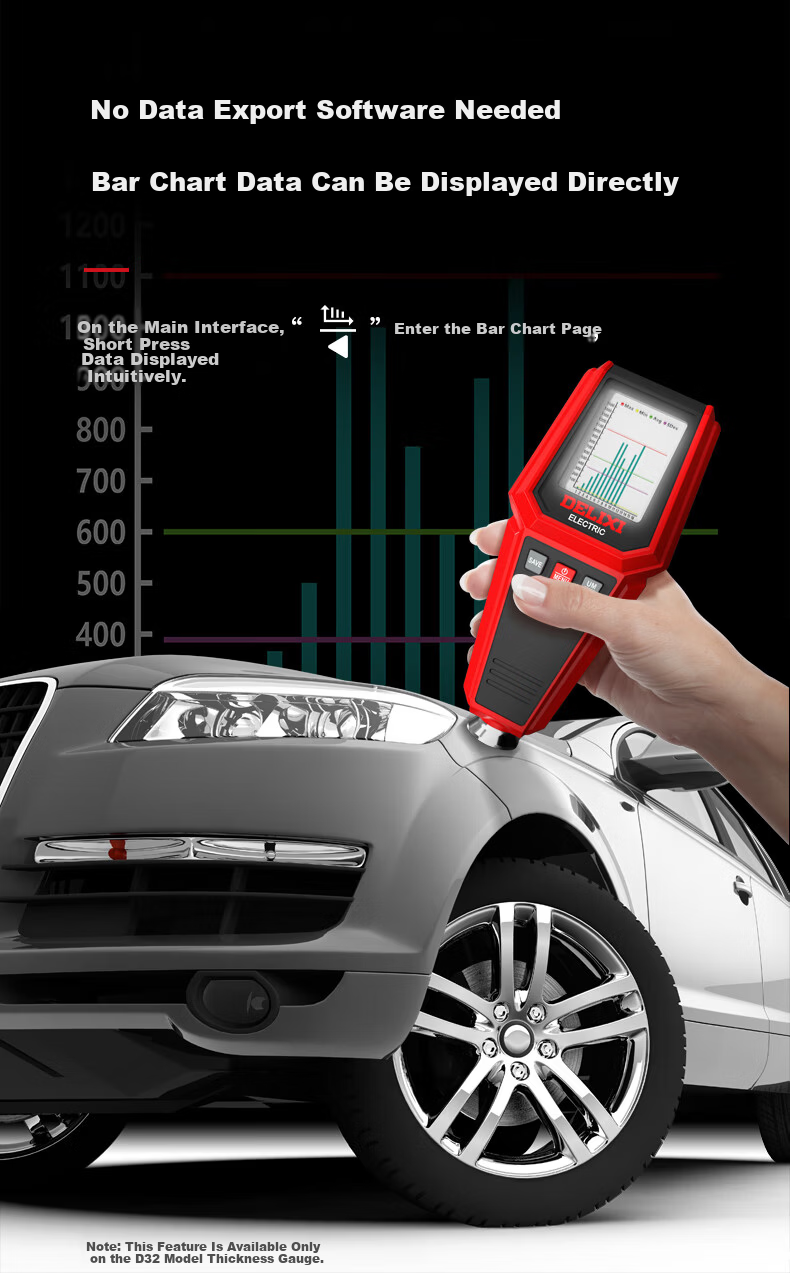

Bar graph data display (DTGD32)

Zero calibration function

Unit conversion between μm and mil

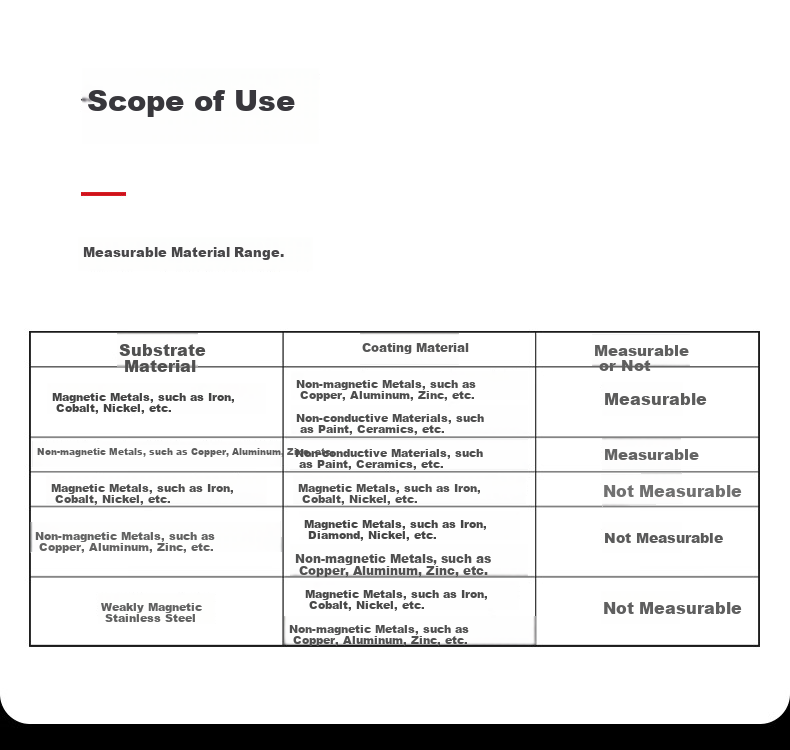

Suitable for measuring coating thickness on magnetic metals (iron, cobalt, nickel) and non-magnetic metals (copper, aluminum, zinc)

Can measure non-conductive coatings such as paint and ceramics on metal substrates

Not suitable for measuring coatings on magnetic metals over non-magnetic metals or vice versa

Additional details

DTGD31: Main unit, calibration box, calibration foils (Fe and NFe), data cable, lanyard, canvas bag, user manual, warranty card, color box

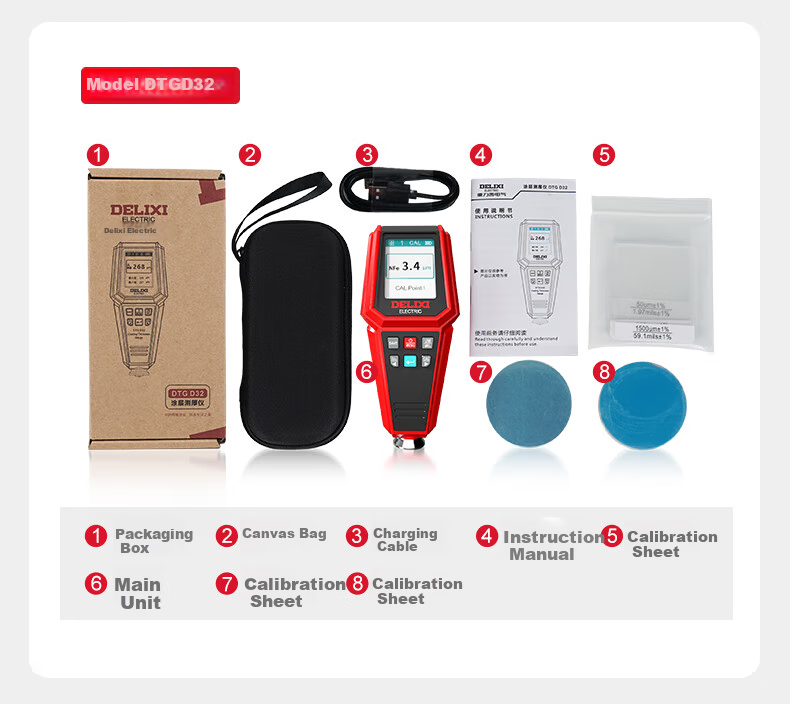

DTGD32: Main unit, calibration foils, charging cable, canvas bag, user manual, packaging box

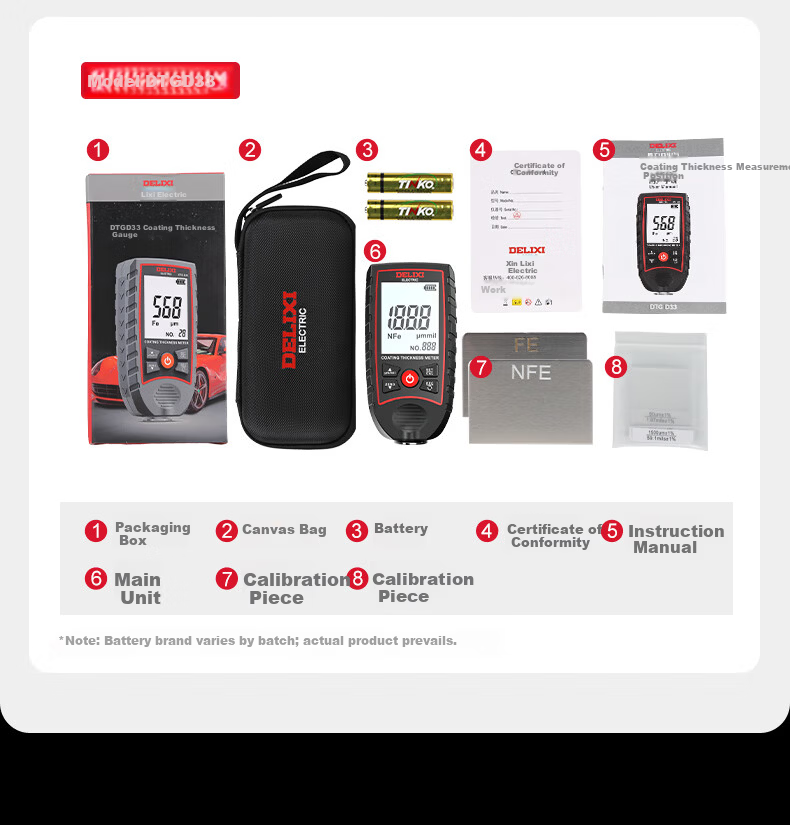

DTGD33: Main unit, calibration foils, batteries, canvas bag, user manual, packaging box, certificate of conformity

Additional details

Fe: Magnetic substrate; NFe: Non-magnetic substrate

Calibration foils for magnetic and non-magnetic materials are included

Battery brand may vary by batch

Measurement accuracy and features may vary slightly between models; please refer to the actual product

Dimensions and weight are manually measured and may have minor deviations
