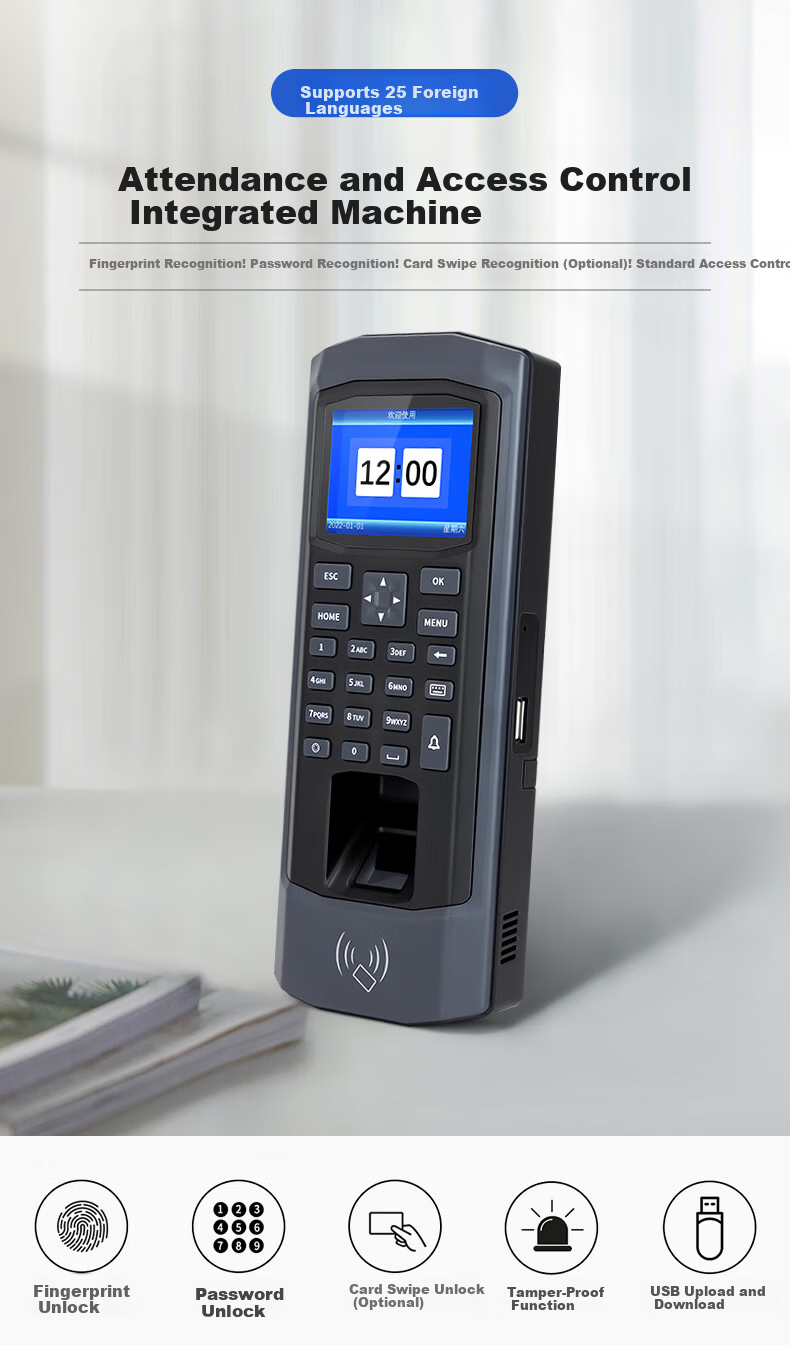

Dongwei Fingerprint Attendance and Access Control All-in-One Machine Office Glass Door Fingerprint+Password+ID Card Access Control Fire Door Wooden Door Access Control Lock
Specifications
Category Attendance and access control all-in-one machine
Output mode USB flash drive download
Attachment functions No
Reader interface Other
Store management method Single-store management
Attendance function Cross-day scheduling
Functions Automatically generate reports, Forced door opening alarm, Tamper alarm
Type Variants / Sale Attributes Type: [Fingerprint + Password + Card Swipe] Attendance + Access Control

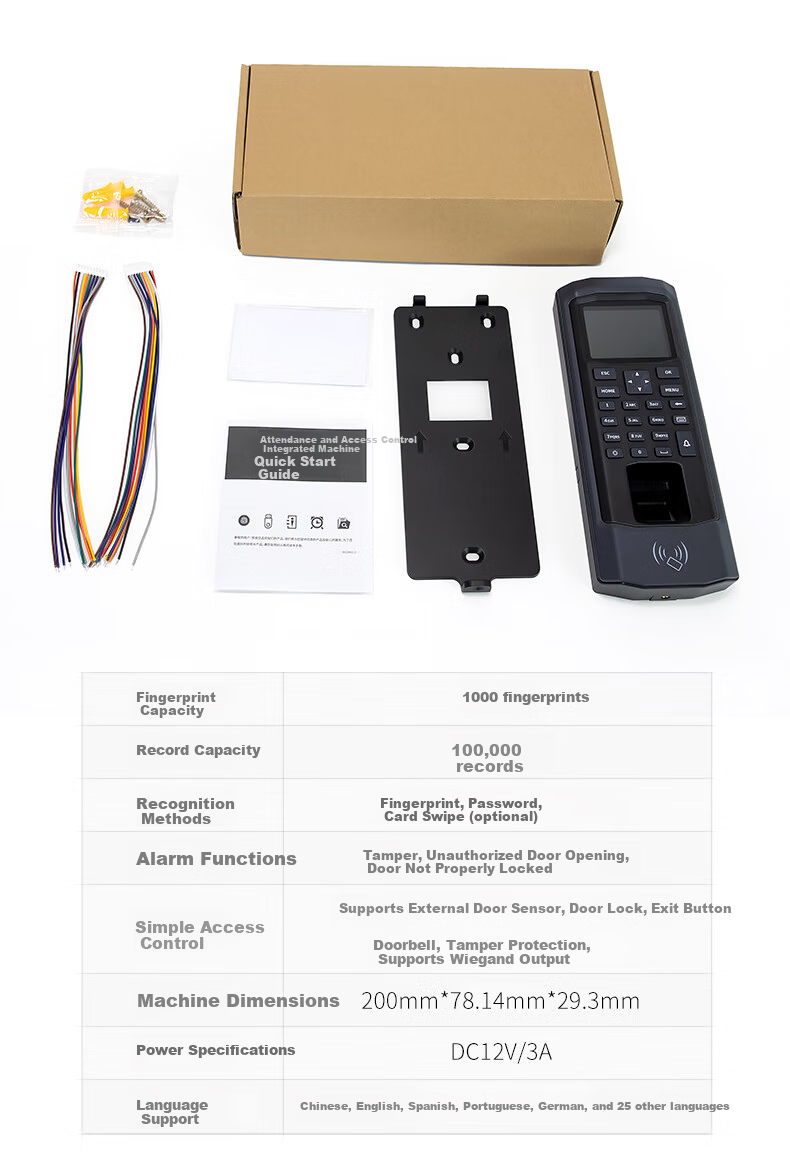

Package Contents Fingerprint access control *1 ID cards *5

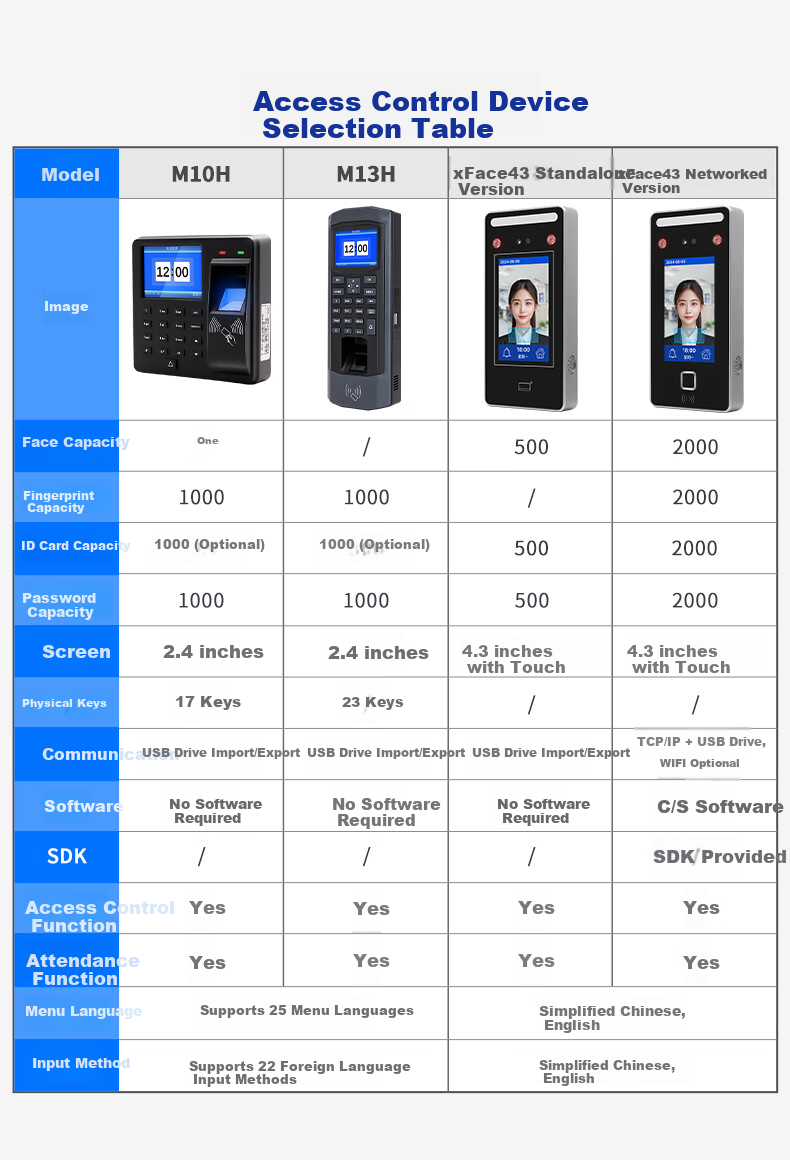

Product Description Product Specifications
M10H
M13H
xFace43 Standalone Version
xFace43 Network Version
Additional details
M10H 2.4-inch screen
M13H 2.4-inch screen
xFace43 Standalone 4.3-inch touchscreen
xFace43 Network 4.3-inch touchscreen
M10H Similar Products
Fingerprint recognition
17 keys
xFace43 Versions No physical keys
M10H, M13H, xFace43 Standalone USB flash drive import/export
xFace43 Network TCP/IP + USB flash drive, optional WiFi
M10H, M13H, xFace43 Standalone No software required
xFace43 Network Client/Server software, SDK provided Face Capacity Item Detail M10H 1 M13H 500 xFace43 Standalone 2000 xFace43 Network 2000
Fingerprint Capacity Item Detail M10H 1000 M13H 1000 xFace43 Standalone Not supported xFace43 Network 2000
ID Card Capacity (Optional) Item Detail M10H 1000 M13H 1000 xFace43 Standalone 500 xFace43 Network 2000
Password Capacity Item Detail M10H 1000 M13H 1000 xFace43 Standalone 500 xFace43 Network 2000

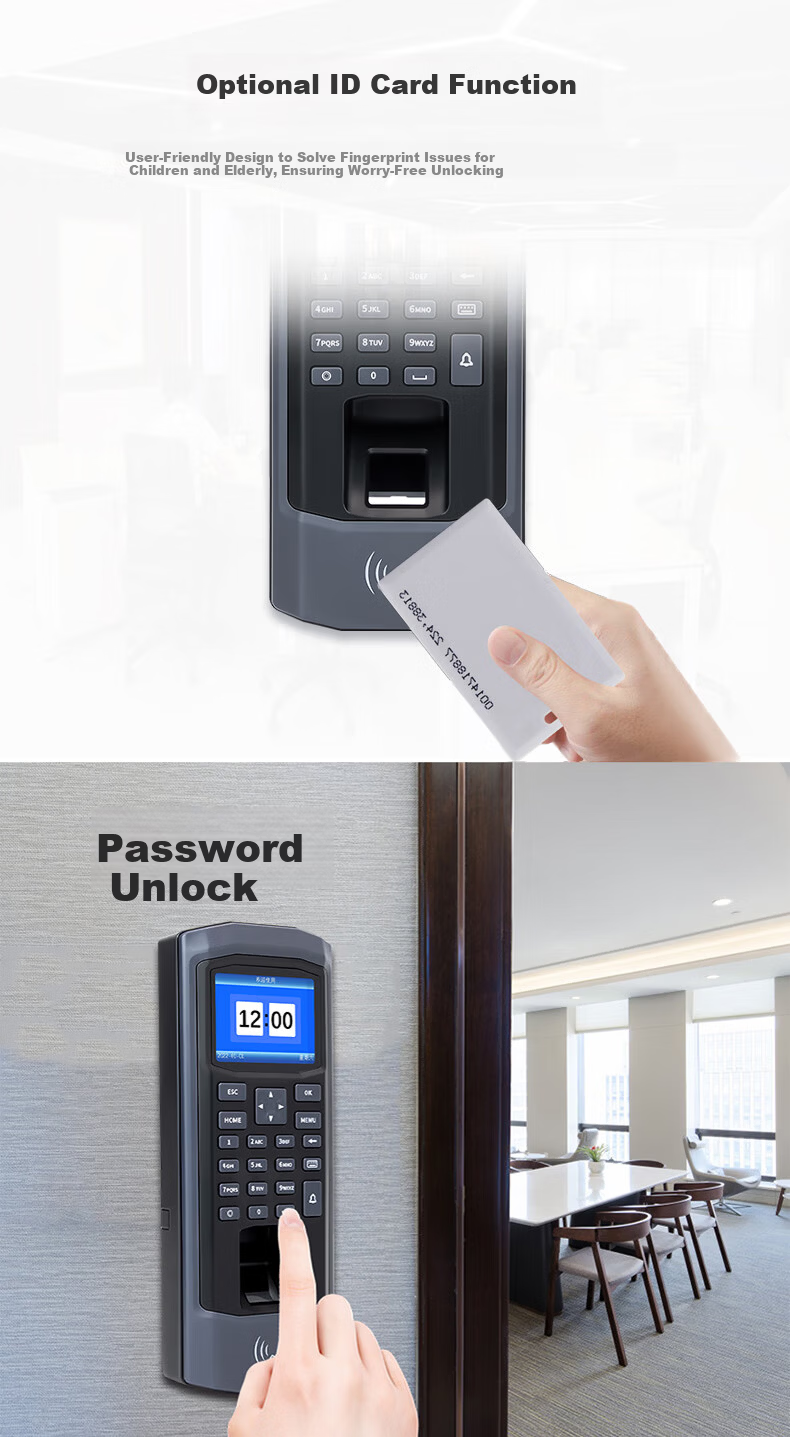

Fingerprint recognition, password recognition, and optional card reading
Anti-tamper alarm and door open alarm

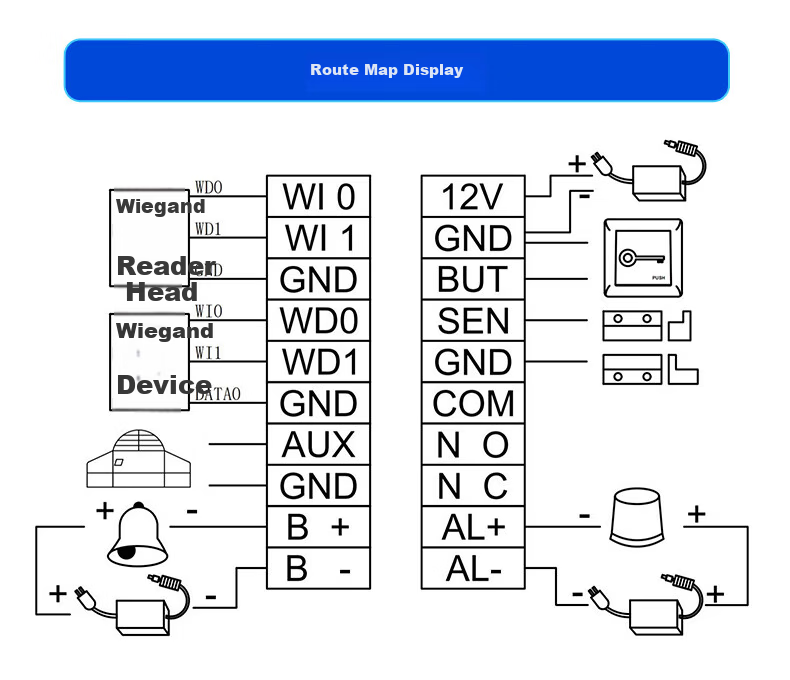

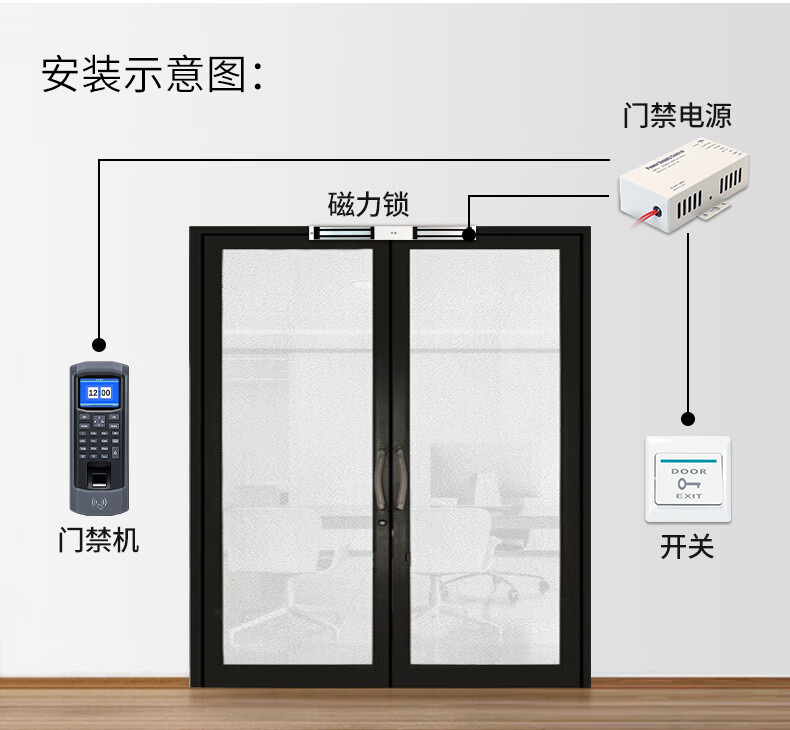

Support for external door sensor, door lock, exit button, doorbell, and alarm

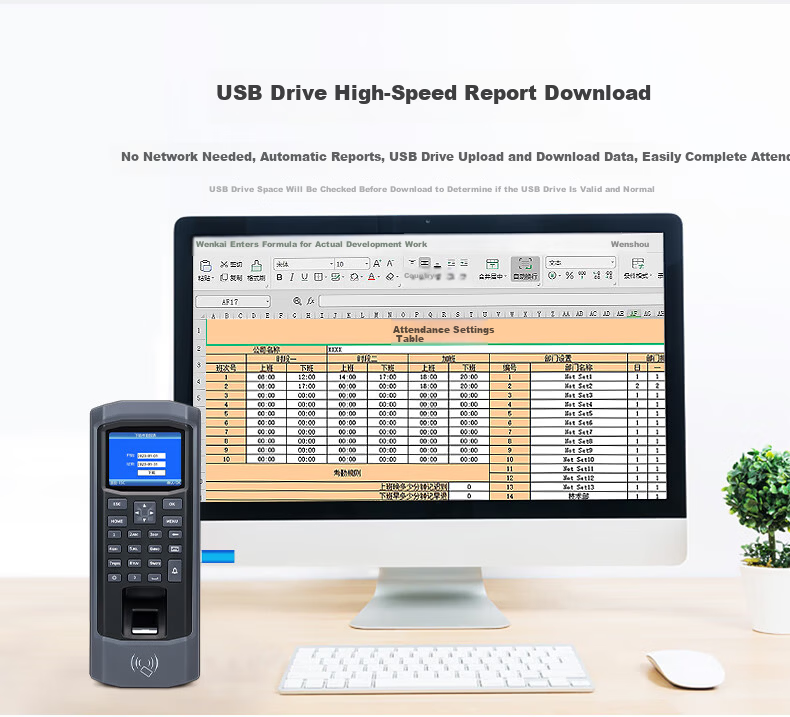

Automatic report generation via USB flash drive without network connection

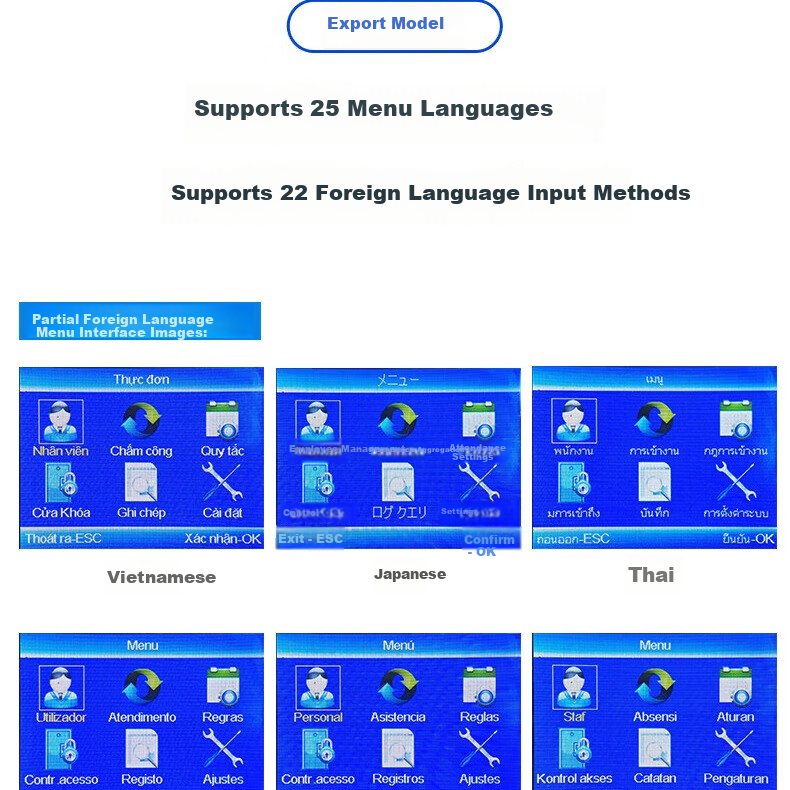

Supports 25 menu languages and 22 input languages including Simplified Chinese and English
High-speed 32-bit dual-core processor
Optical fingerprint sensor without membrane, supports dry and wet fingers
Recognition speed less than 1 second

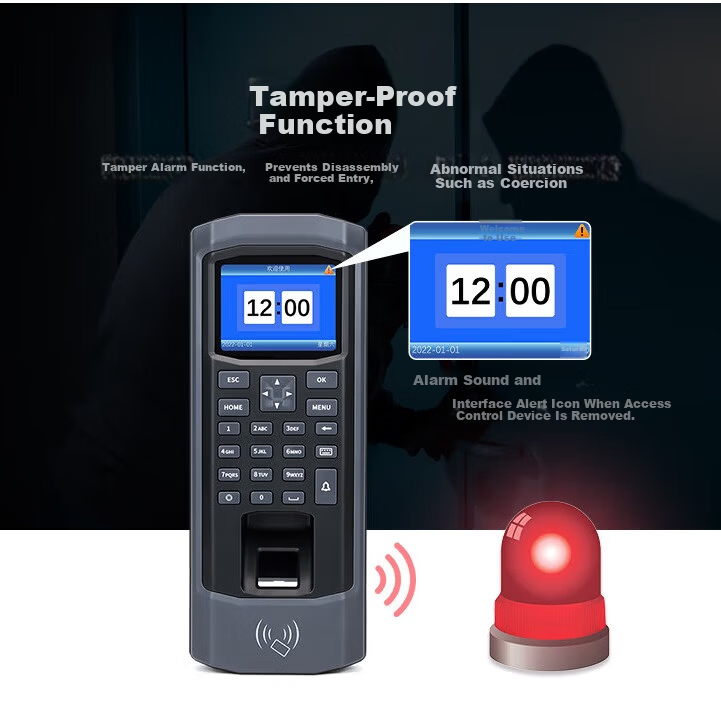

Anti-tamper and forced entry alarm functions
Additional details
Physical dimensions 200 mm x 78.14 mm x 29.3 mm
Power supply DC 12V/3A
M10H 17-key layout with ESC, OK, numeric and alphabet keys

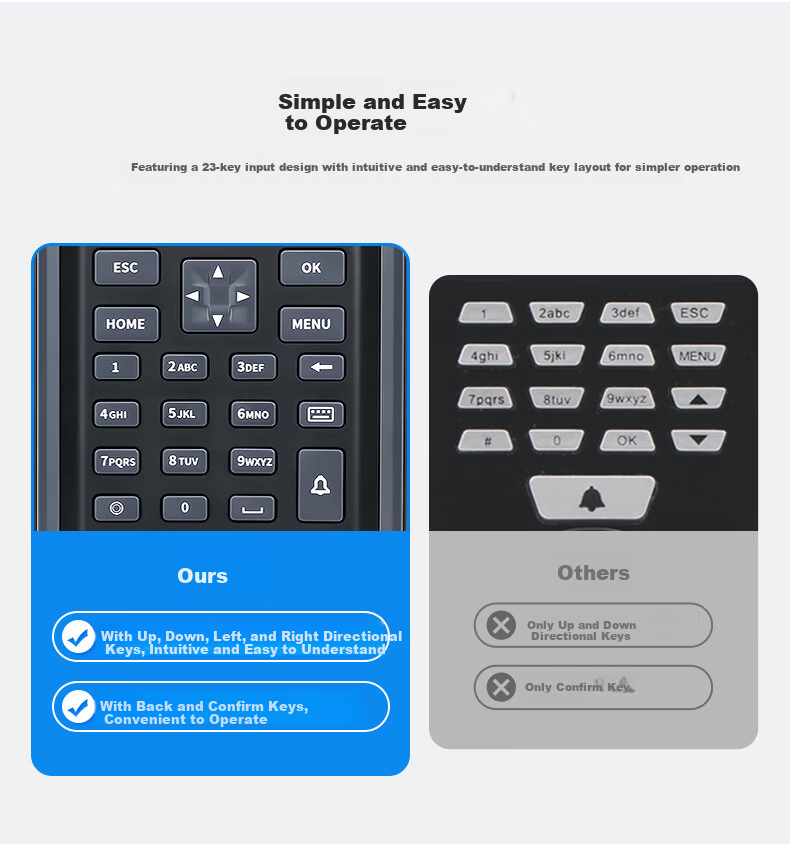

M13H 23-key layout with ESC, HOME, MENU, numeric and alphabet keys
xFace43 Touchscreen interface with intuitive navigation keys Fingerprint unlocking, password unlocking, optional card unlocking

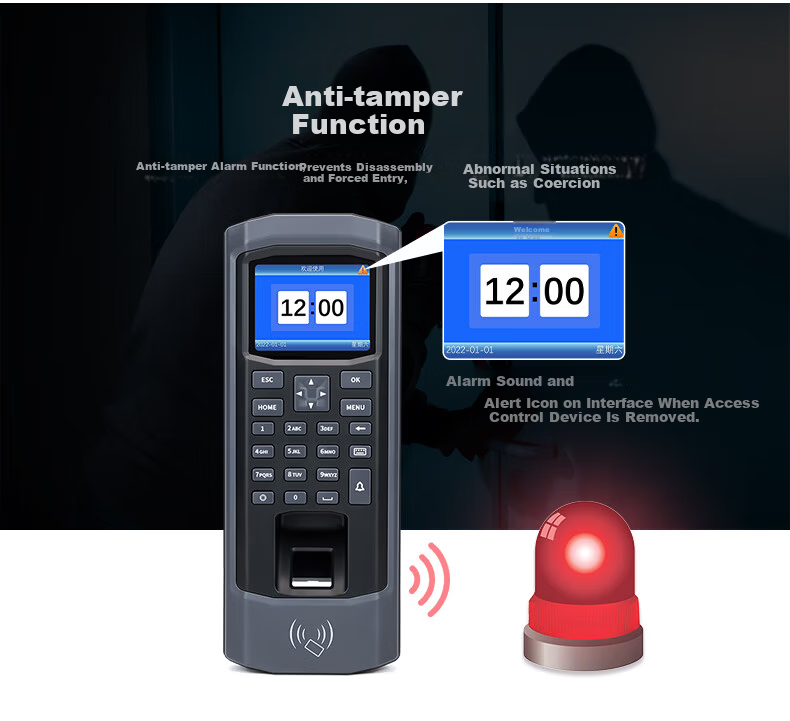

Anti-tamper alarm with audible and visual alerts
Built-in watchdog to prevent system crashes and automatic reboot on exceptions
Suitable for retail stores, corporate offices, government agencies, financial institutions, healthcare, and medium to small enterprises
Up to 100,000 attendance records
Up to 1000 fingerprint templates (varies by model)
Additional details

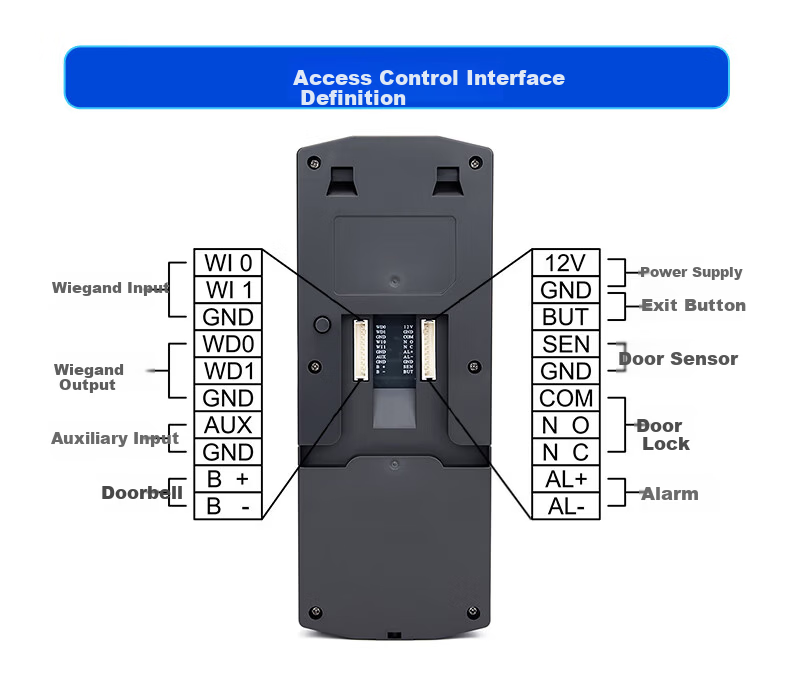

WI0 Wiegand input
WI1 Wiegand input
WD0 Wiegand output
WD1 Wiegand output
Power 12V
GND Ground
BUT Exit button
SEN Door sensor
COM, AUX, NO, NC Lock control and auxiliary inputs
AL+, AL- Alarm outputs 25 languages including Chinese (Simplified), English, Spanish, Portuguese, German
USB flash drive supports high-speed data download and upload
Automatic detection of USB flash drive capacity and validity
Supports multi-language menu and input methods
Flexible application scenarios with customizable attendance settings
Additional details
Date of Specification 2022-01-01
