ChuangLeBo K230 Development Board CanMV K230 3.0 AI Development Board Vision Recognition Module Camera Artificial Intelligence

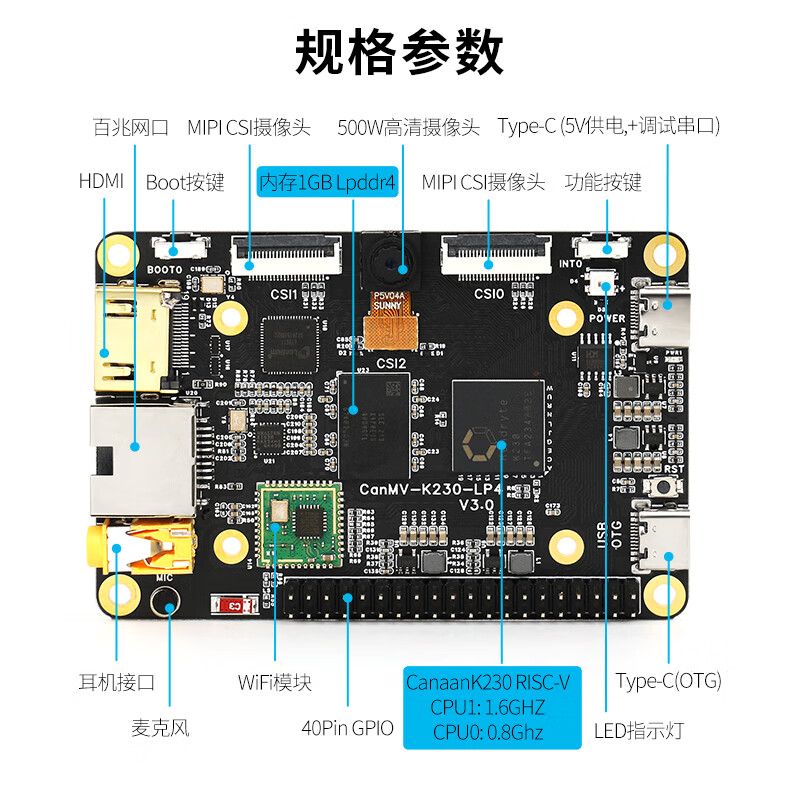

USB 2.0 OTG x2, Timers x5, RTC, WDT x5

AI 2D Engine, 3D structured light depth engine (max resolution 1920x1080)

FFT/IFFT support (up to 4096 points)

1GB LPDDR4 RAM (12.8 GB/s bandwidth, twice that of LPDDR3)

MicroSD card slot supporting up to 512GB

Onboard 5MP (500W) high-definition camera (1080p60)

Supports up to 3 MIPI CSI camera inputs (1x4 lane + 1x2 lane or 3x2 lane)

Superior image quality compared to traditional OV5640/OV5647 cameras

Supports H.264 and H.265 encoding/decoding up to 4096x4096 resolution

JPEG codec supports up to 8K (8192x8192) resolution

MIPI DSI display interface supporting 1080p60 output

Supports connection to 1080p HDMI monitors

Optional 3.5", 7", 10.1", and 13.3" HD touchscreens available

Gigabit Ethernet RJ45 port (100 Mbps)

Onboard WiFi module

2 x USB Type-C ports (1 x OTG)

3.5mm audio jack (headphone output) and microphone input

40-pin GPIO header compatible with Raspberry Pi pinout (UART/I2C/PWM/SPI/OSPI)

2D gimbal options with serial and standard servo motors for flexible X/Y axis locking and rotation

Compatible with PC, Raspberry Pi, Arduino, STM32, ESP32 and other mainstream controllers

Supports AI vision applications including color recognition, face recognition/detection, QR/barcode scanning, gesture recognition, object detection, license plate recognition, traffic light detection, safety helmet detection, and custom training

Cloud-based AI model training platform with project management, data annotation, training parameter configuration, and one-click training

Deployment resource packages compatible with K230 SDK for easy model deployment

Developer community with documentation, model libraries, and example projects

Standard development board kit with acrylic case, Type-C cable, AI vision color block kit

Optional touchscreen kits (3.5", 7", 10.1", 13.3") with SanDisk Ultra 32GB TF card and acrylic protection

Various bracket and gimbal kits available for different development needs

40-pin header with 3.3V, 5V, GND, UART, I2C, PWM, SPI, ADC inputs (0-3.6V, 0-10.8V, 0-1.8V ranges)

USB OTG and standard USB pins

Multiple PWM channels and ADC inputs for sensor integration

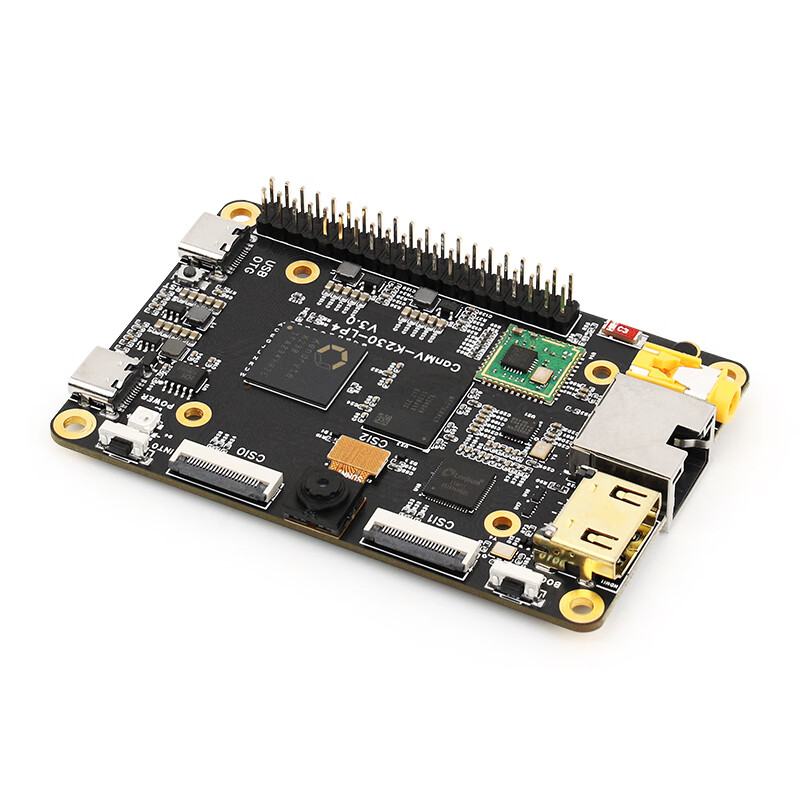

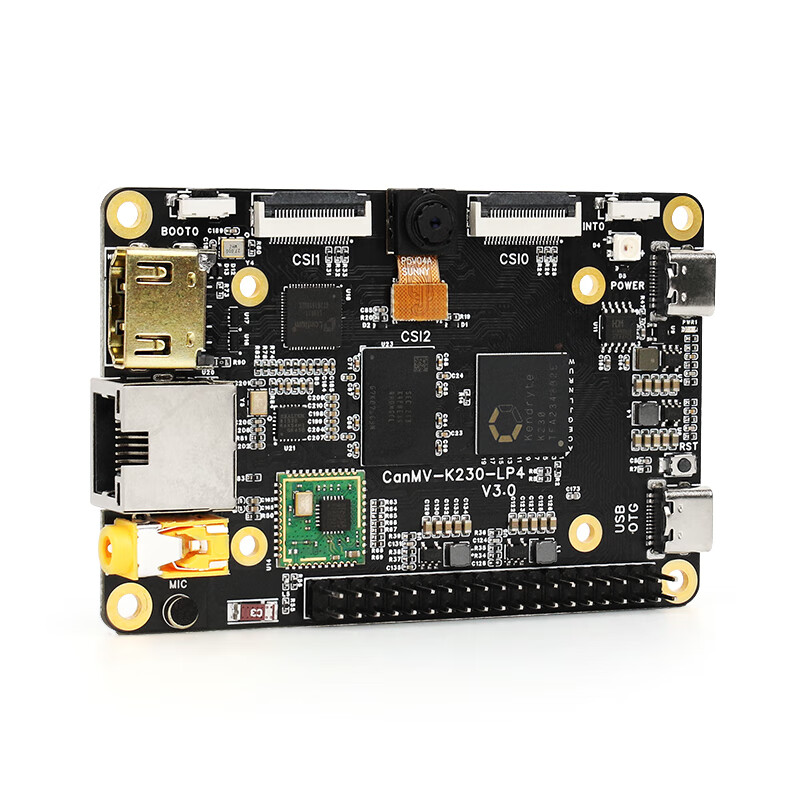

The CANMVK230AI development board is a high-performance AI vision platform based on the Canaan K230 dual-core RISC-V chip delivering 6 TOPS AI computing power. It features onboard 1080p60 HD camera, multiple MIPI CSI camera inputs, MIPI DSI display interface, and rich connectivity options including WiFi and Ethernet. The board supports extensive AI vision applications and custom model training with cloud platform integration. Its compact size, flexible mounting options, and compatibility with popular development platforms make it ideal for prototyping and deploying intelligent vision solutions in robotics, smart devices, and industrial applications.
