Back to CatalogUGREEN M.2 SSD Enclosure Compatible with Mac Mini M4 Expansion Dock, DP DisplayPort, USB 3.2, Compatible with Apple Host, Thunderbolt 4/5 Interface
Specifications
- Resolution Ratio
- 4K
- Form
- desktop, Other, Base bracket type, Mac mini dedicated docking station
- PD Charging Power
- Under 100W
- Supported refresh rate (Hz)
- 4K 240Hz, 4K 144Hz, 4K 120Hz, 2K 240Hz, 2K 144Hz, 2K 120Hz
- Interface
- USB 2.0 Gbps, Type-C3.2, USB2.0, SD/TF
- Video protocol version
- HDMI2.0
- Number of interfaces
- 10 or more
Variants / Sale Attributes
Color: Macmini [M.2 NVMe + Upgraded DP Version]

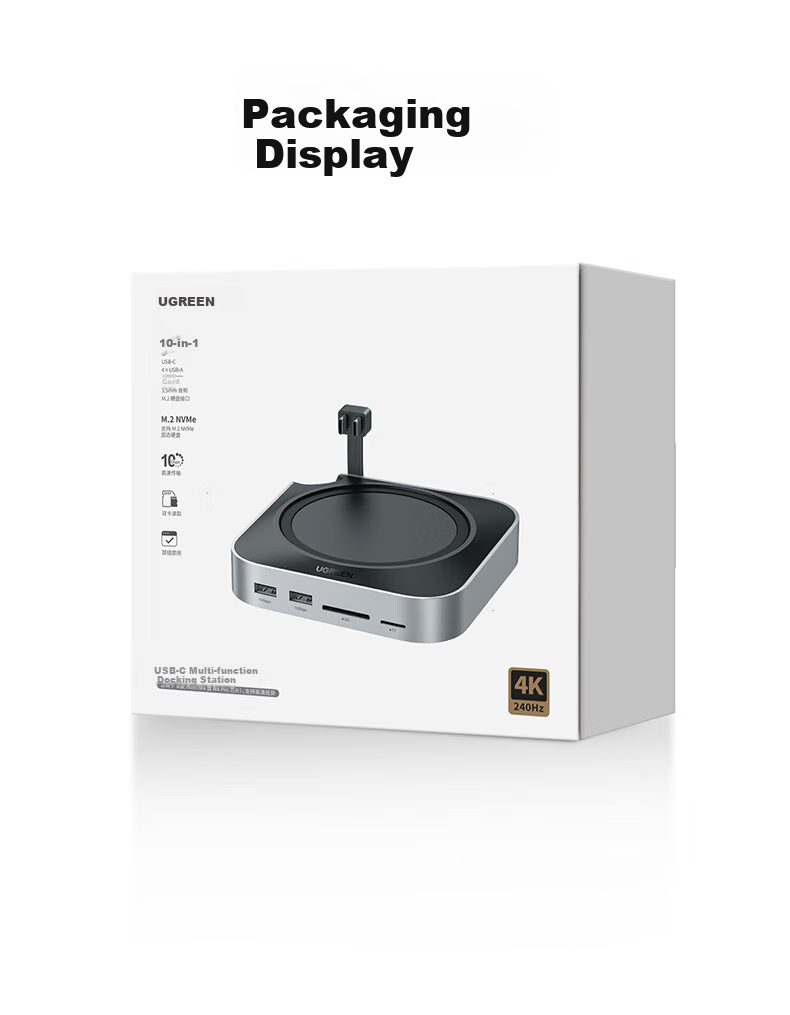

Package Contents
Compatible with Mac mini M4/M4Pro-M.2 hard drive enclosure expansion dock base *1 [DP version] + installation screwdriver *1
Product Description
Product Specifications
BCTC
EU CE Certification
US FCC Certification
UKCA EMC Certification
RoHS Certification

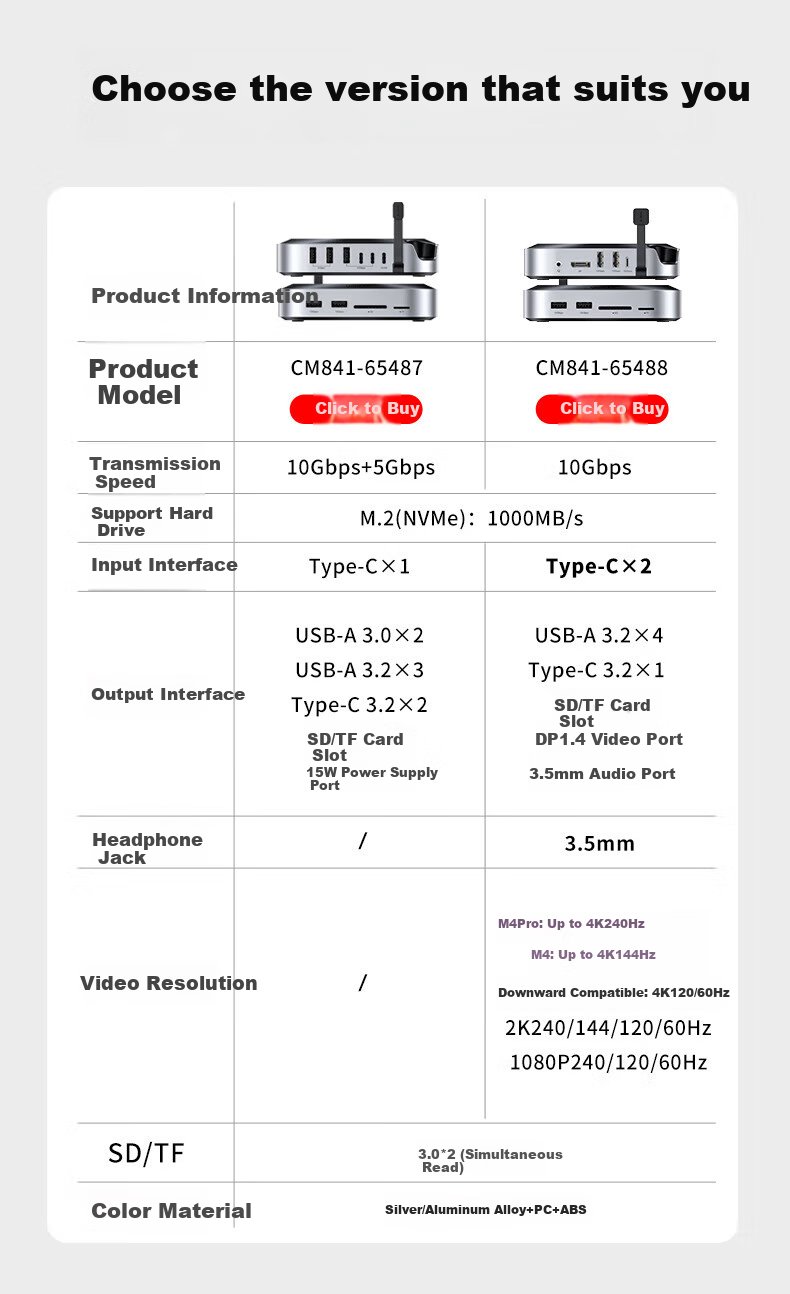

Basic Expansion
DP Display Version
40G Hard Drive Transmission Version
Thunderbolt 5 High-Speed Version
11-in-1
10-in-1 (multiple variants)
Up to 120 Gbps (single direction)
80 Gbps (bi-directional)
Additional details
- USB 3.2
- 10 Gbps
- Thunderbolt 5
- 40 Gbps to 64 Gbps
Similar Products
In Stock
In Stock

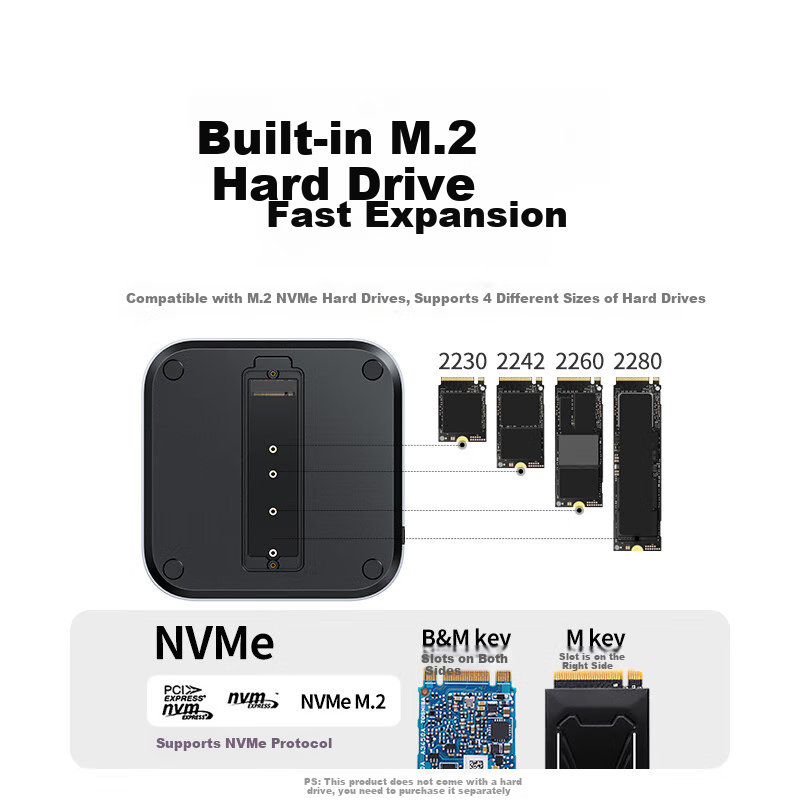

M.2 NVMe SSDs (supports 2230, 2242, 2260, 2280 sizes)

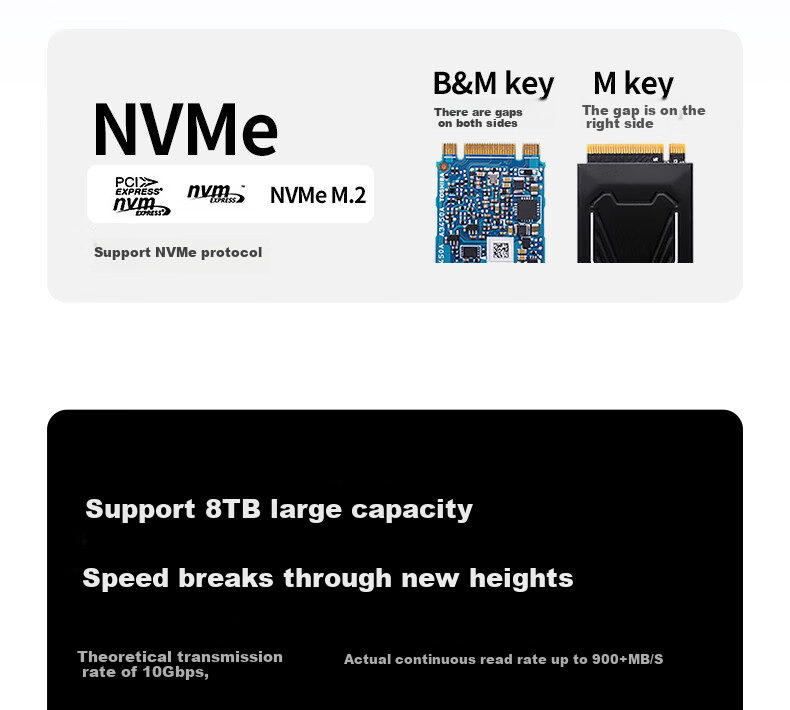

Supports B&M key, M key, NVMe protocol
Maximum capacity up to 8TB

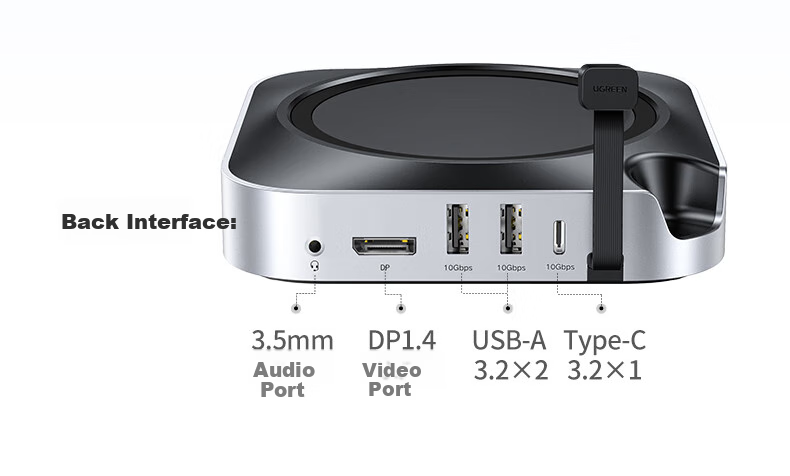

Thunderbolt 5 x2 (on Thunderbolt version)

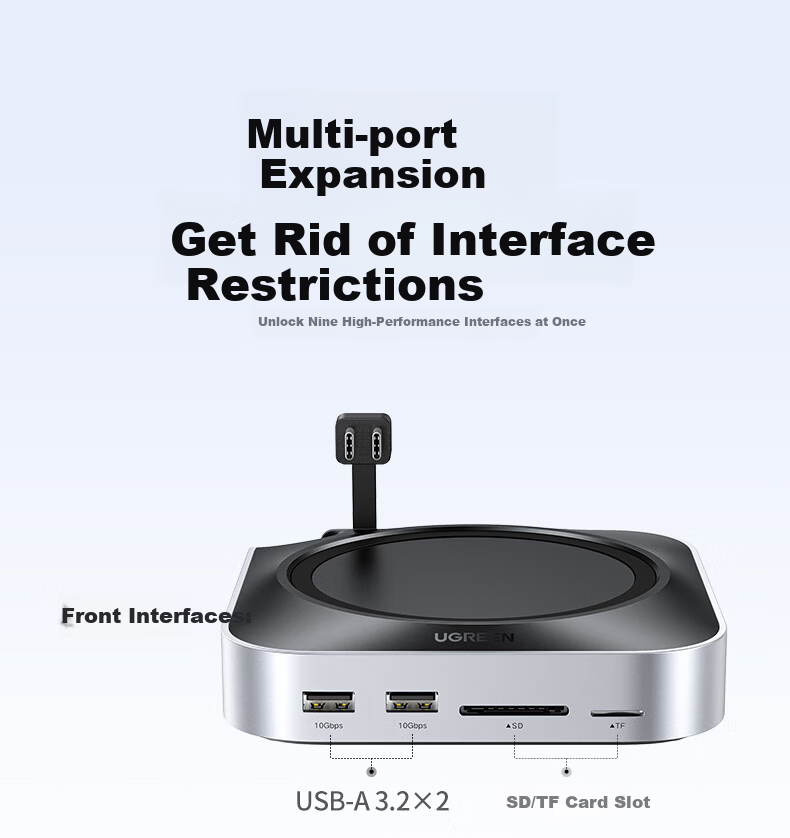

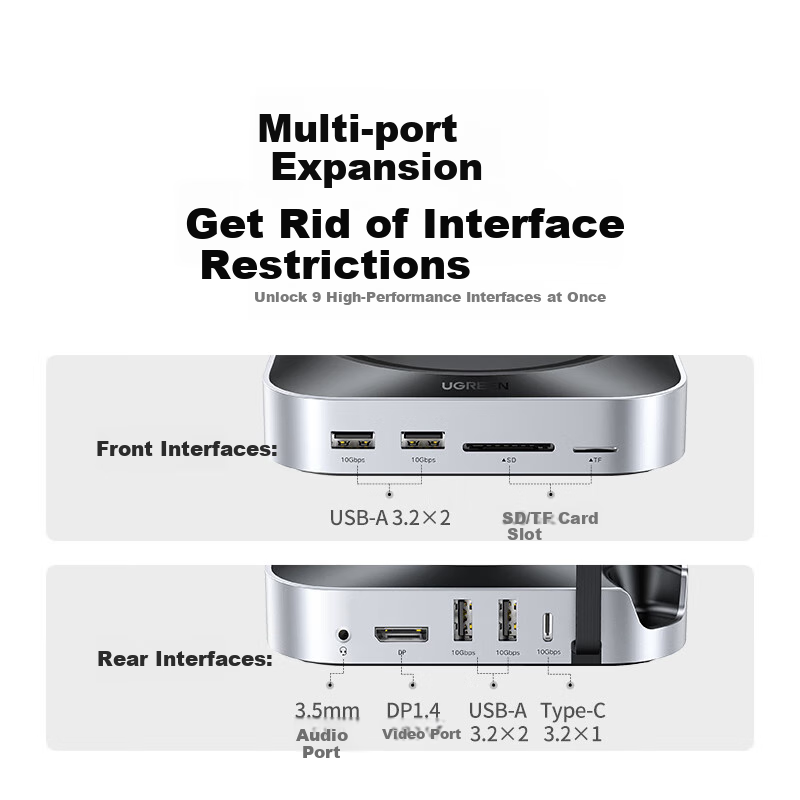

USB-A 3.2 x1 to x4 (depending on model)
SD/TF card slots (SD 3.0/4.0, TF 3.0/4.0)
DP 1.4 / DP 2.1 video output
HDMI 2.1 video output (on some models)

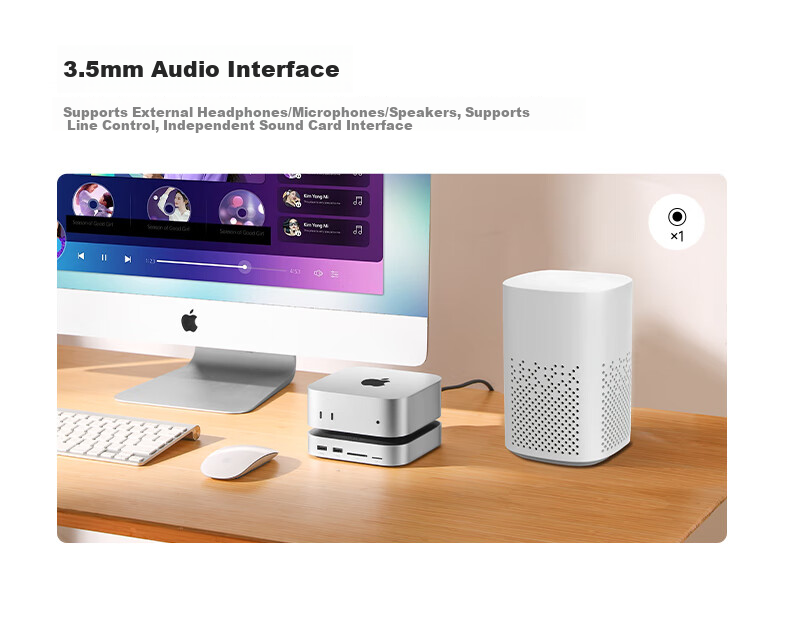

3.5mm audio jack (headset compatible, supports microphone and line control)
Maximum resolution up to 8K @ 30Hz (Thunderbolt 5 version)
Supports 4K up to 240Hz, 2K up to 240Hz, 1080p up to 240Hz
DP 1.4 and DP 2.1 compliant
Downward compatible with lower resolutions and refresh rates
Input charging support up to 15W or PD 65W (depending on model)
Docking station supports PD 65W power delivery

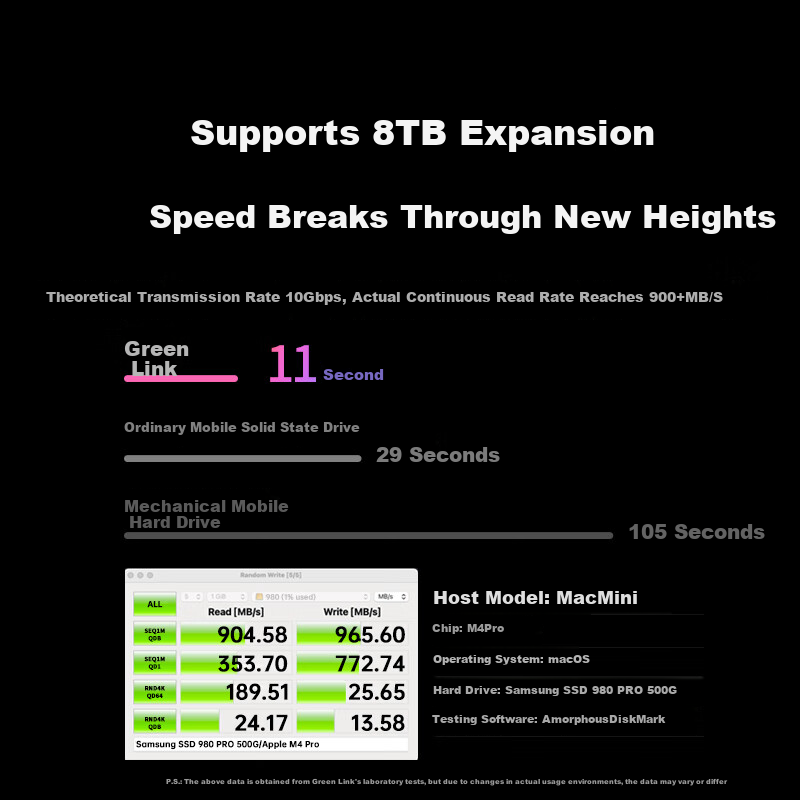

Theoretical transfer rate up to 10 Gbps

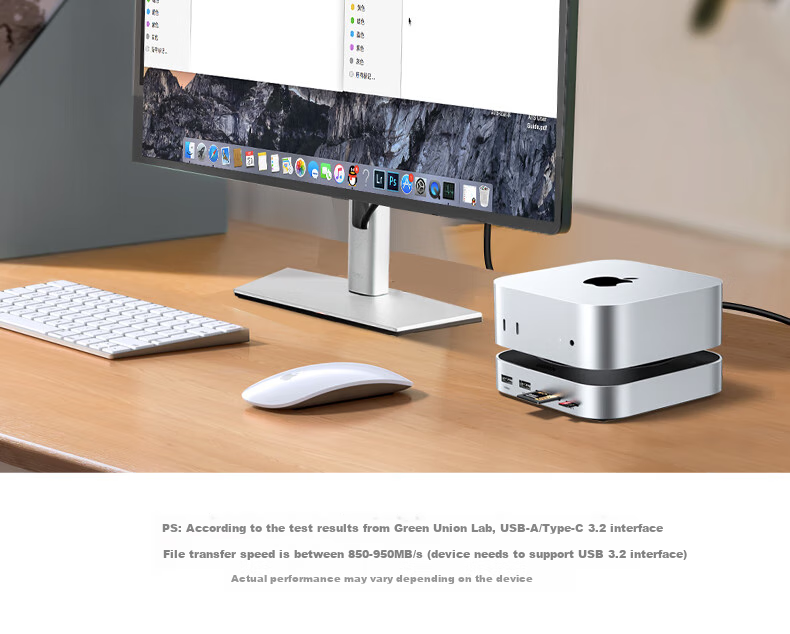

Real-world continuous read speeds over 900 MB/s (tested with Samsung SSD 9100 PRO 1TB)
SD/TF card read speeds up to 312 MB/s
Supports dual SD/TF card simultaneous reading

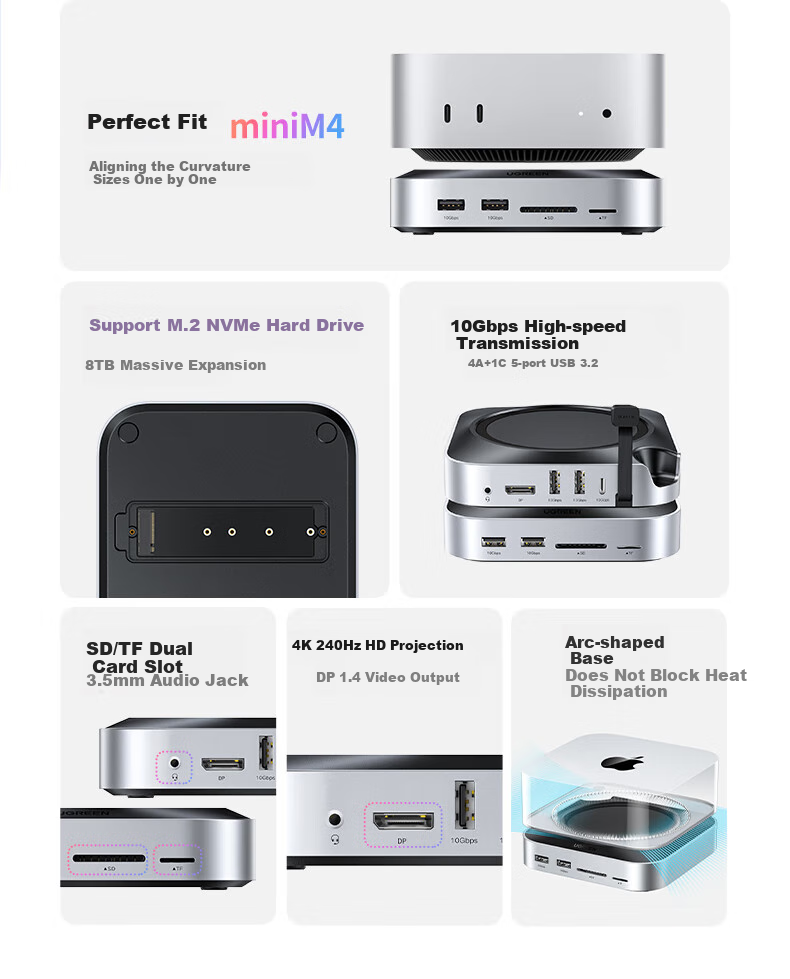

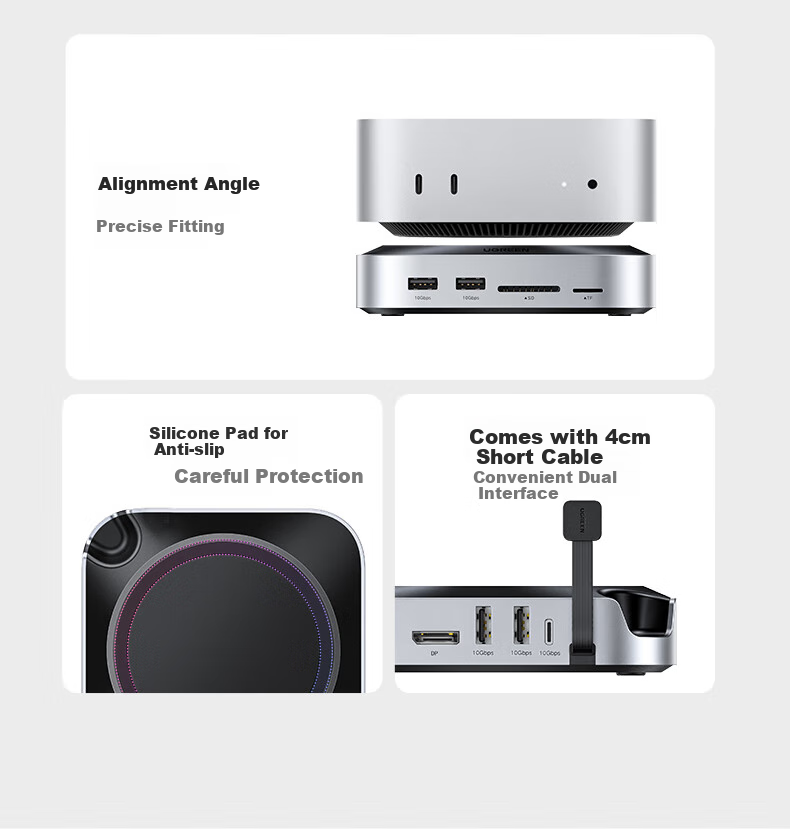

Aluminum heat dissipation design with curved base to avoid blocking Mac mini ventilation
Silicone anti-slip pads included
Short 4cm cable included for convenience
Reserved slot for power button access without lifting device
Compatible with Mac mini M4 and M4 Pro models
Additional details
- Supports multiple external devices
- keyboard, mouse, USB drives, external hard drives
Supports 4K dual-screen collaboration for enhanced productivity

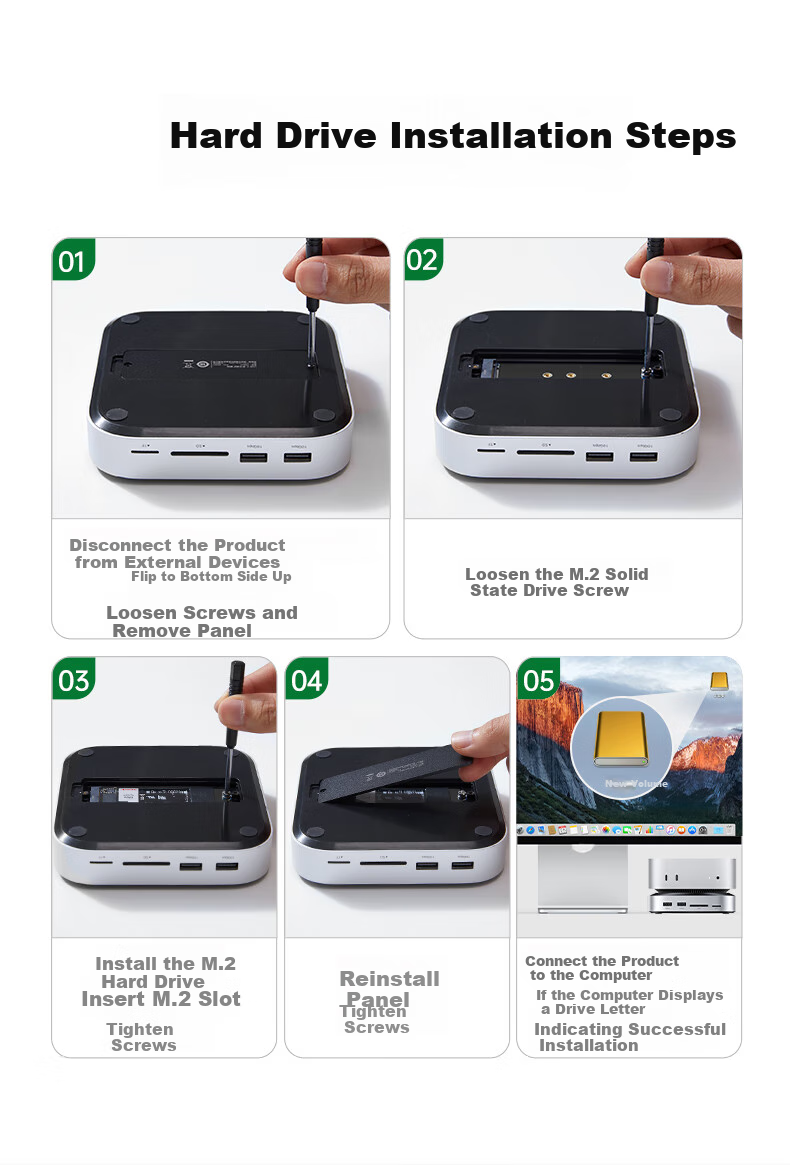

M.2 SSD installation requires powering off device before operation
Supports four M.2 SSD sizes and keys with NVMe protocol
Safe removal of storage devices recommended to avoid data loss
DP cable length and quality affect maximum supported resolution and refresh rate
Additional details
- Approximate size
- 127 mm x 29.1 mm (manual measurement)
Performance data based on UGREEN laboratory tests; actual results may vary depending on device and environment

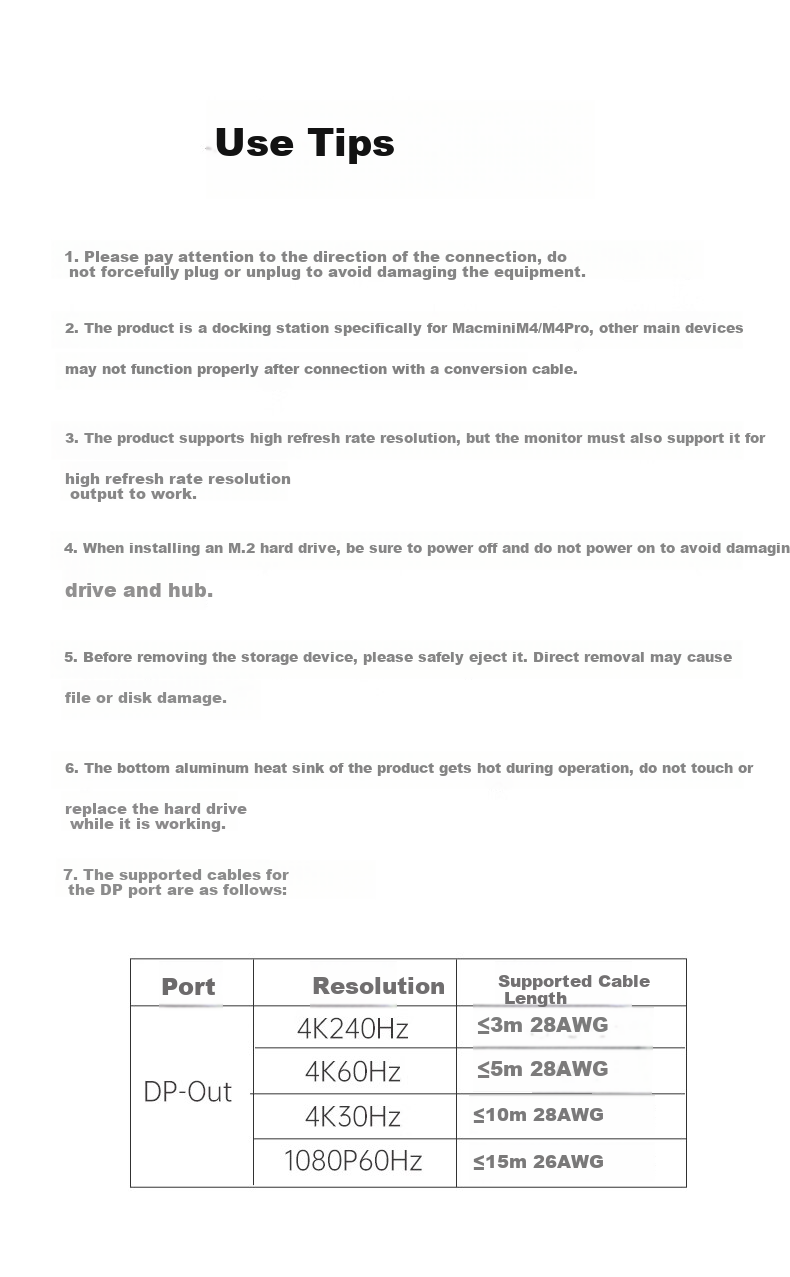

Ensure correct connection orientation to avoid damage
Designed specifically for Mac mini M4/M4 Pro; other devices may require adapters and may not be fully supported
Display must support high refresh rates to achieve maximum video output
Avoid touching device bottom during operation due to heat
Use recommended DP cables for optimal video performance
All specifications and data are subject to change without notice. Actual product may vary.
