JBL Control12C/T Ceiling Speaker Set with Enclosure Background Music Conference Room Public Address Ceiling Speakers Bluetooth Amplifier 2 Ceiling Speakers with Five-Zone Amplifier Gift

JBL•Ceiling speakers

JBL Control12C/T Ceiling Speaker Set with Enclosure Background Music Conference Room Public Address Ceiling Speakers Bluetooth Amplifier 2 Ceiling Speakers with Five-Zone Amplifier Gift

CN¥1,899.00

SKU: 100207635063

Status:In Stock (1)

ID: 100207635063

Weight: 5460.00 g

Dims:524x362x140 mm

Specifications

Connection method: Other
Type: Ceiling mounted
Suitable Scenarios: Commercial use

Variants / Sale Attributes

color: 12C/T 2 units + fivezone amplifier

Package Contents

amplifier

Product Description

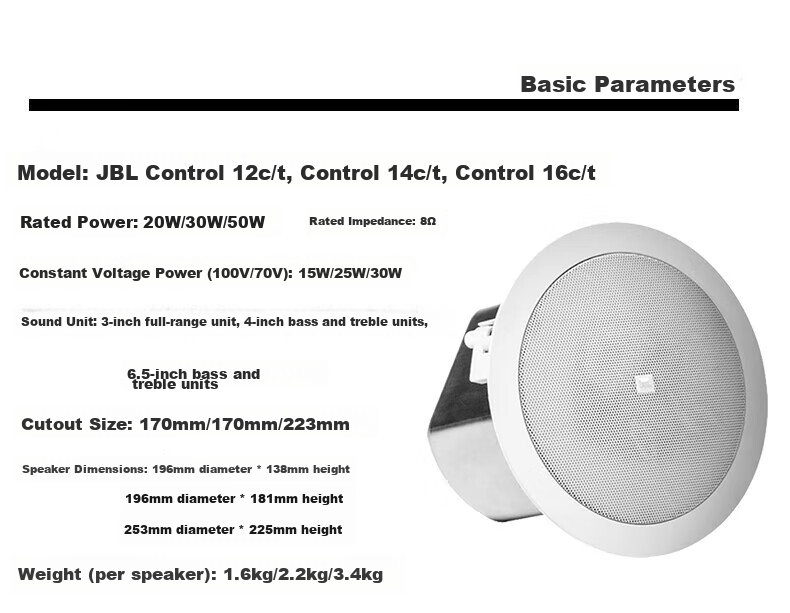

Product Specifications

Overview

Brand: JBL

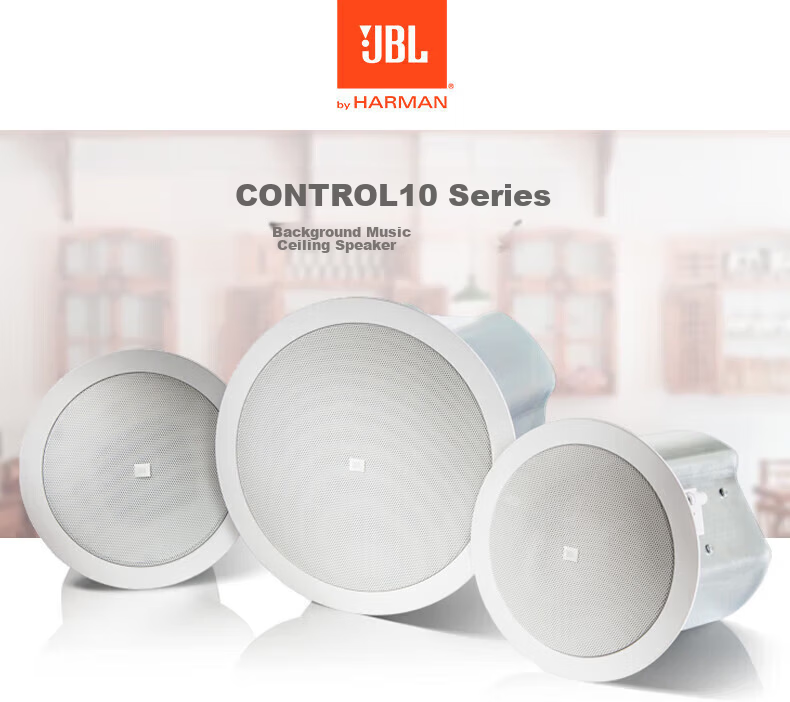

Models: Control 12C/T, Control 14C/T, Control 16C/T

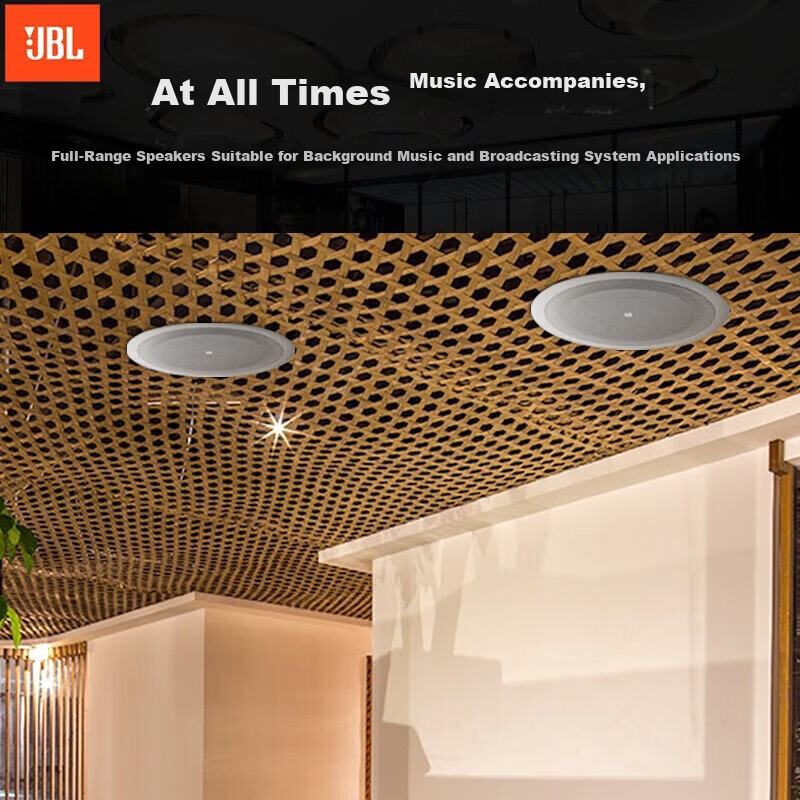

JBL Control Series ceiling speakers designed for background music and public address applications, featuring high-fidelity full-range sound reproduction with multiple power and impedance options. Available in black and white finishes.

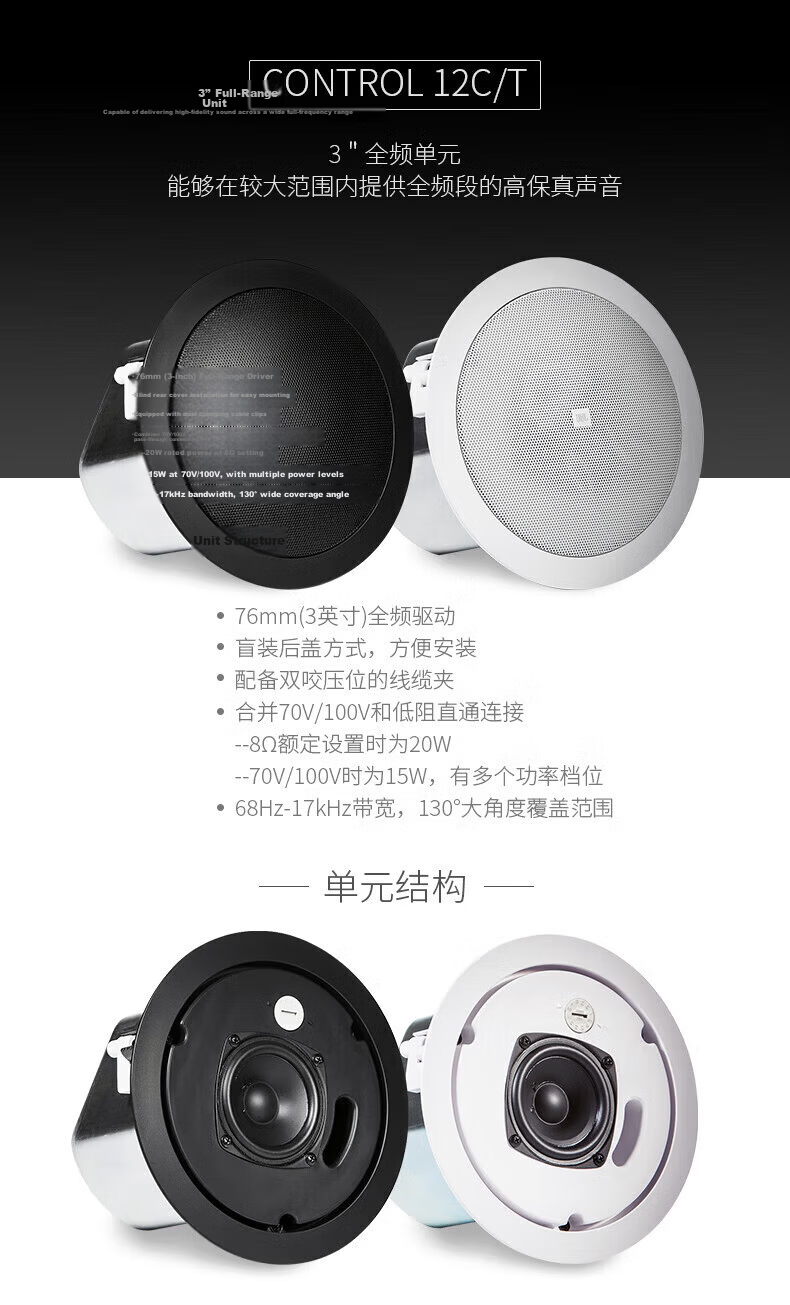

1. Control 12C/T

Additional details

Driver Units: 3-inch full-range driver
Frequency Response (-10dB): 68Hz – 17kHz
Frequency Response (±3dB): 95Hz – 15kHz

Similar Products

In Stock

SASTCeiling speakers

SAST Wall-Mounted Outdoor Constant Voltage Speaker Indoor Outdoor Commercial Restaurant School Mall Supermarket Public Broadcast Background Music System

10W wallmounted (requires amplifier)

CN¥44.10

View

In Stock

SASTCeiling speakers

SAST Wireless Wall-Mounted Speaker Set Bluetooth Speaker Public Address Home Shop Conference Campus Supermarket Background Music System Host Speaker Combo One-to-Four K54

Main unit + 4 highfidelity wallmounted speakers

CN¥1,051.20

View

Power Rating (Low Impedance)

20W continuous pink noise, 40W continuous music signal

Rated Sensitivity

84dB

Coverage Angle

130° conical

Directivity Factor (Q)

9.8

Directivity Index (DI)

7.4dB

Rated Sound Pressure Level

Average 97dB @1 m, Peak 103dB

Rated Impedance

8Ω (direct/bypass 8Ω setting)

Transformer Taps

15W, 7.5W, 3.8W @ 70V or 100V (1.9W @ 70V)

Crossover

12dB/oct low-pass to woofer, 12dB/oct high-pass to tweeter

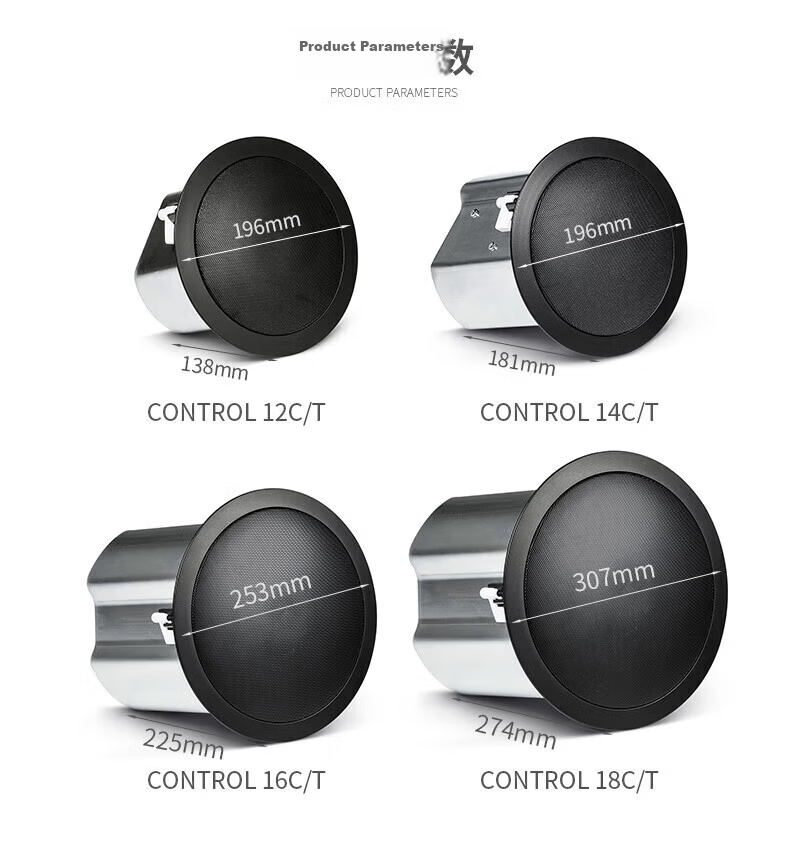

Dimensions (Diameter x Height)

196 mm x 138 mm

Ceiling Cutout Diameter

170 mm

Weight (Single Speaker)

1.6 kg

Shipping Weight (Pair)

6.7 kg

Additional details

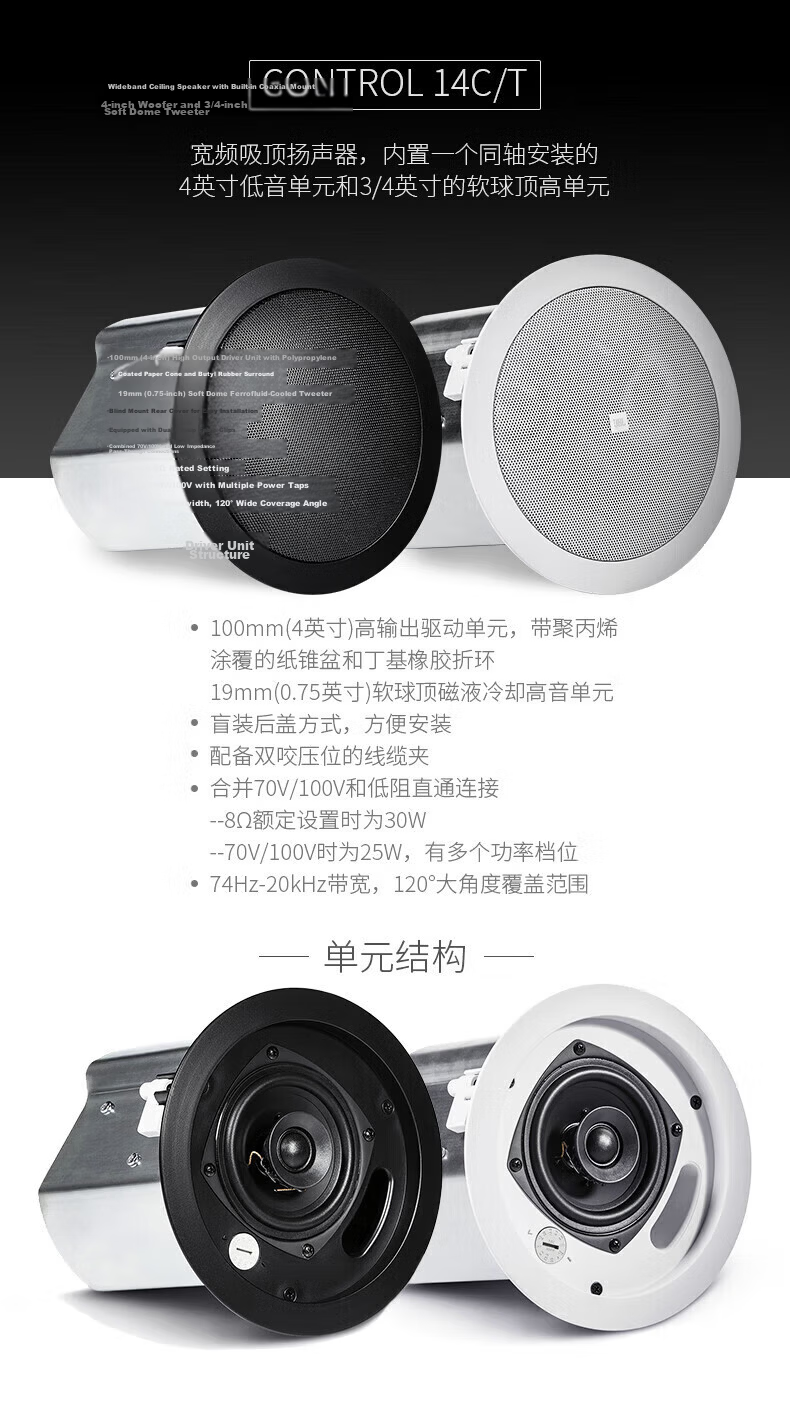

Driver Units: Coaxial 4-inch woofer and 0.75-inch soft dome tweeter
Frequency Response (-10dB): 74Hz – 20kHz
Frequency Response (±3dB): 100Hz – 20kHz
Power Rating (Low Impedance): 30W continuous pink noise, 60W continuous music signal
Rated Sensitivity: 87dB
Coverage Angle: 120° conical
Directivity Factor (Q): 7.6
Directivity Index (DI): 8.1dB
Rated Sound Pressure Level: Average 102dB @1 m, Peak 108dB
Rated Impedance: 8Ω (direct/bypass 8Ω setting)
Transformer Taps: 25W, 12.5W, 6.3W @ 70V or 100V (3.2W @ 70V)
Crossover: 12dB/oct low-pass to woofer, 12dB/oct high-pass to tweeter
Dimensions (Diameter x Height): 196 mm x 181 mm
Ceiling Cutout Diameter: 170 mm
Weight (Single Speaker): 2.2 kg
Shipping Weight (Pair): 8.2 kg

Additional details

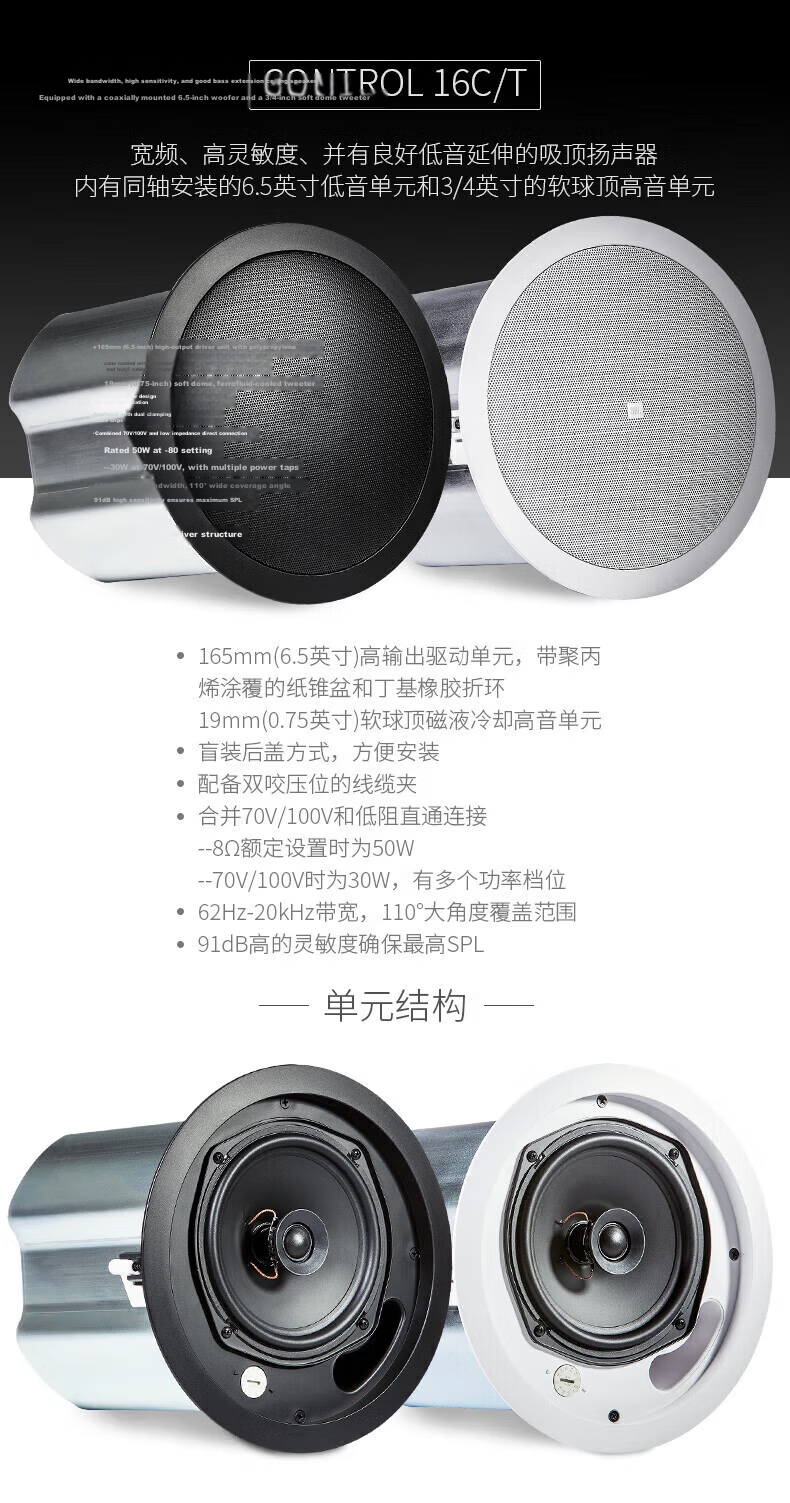

Driver Units: Coaxial 6.5-inch woofer and 0.75-inch soft dome tweeter
Frequency Response (-10dB): 62Hz – 20kHz
Frequency Response (±3dB): 96Hz – 15kHz
Power Rating (Low Impedance): 50W continuous pink noise, 100W continuous music signal
Rated Sensitivity: 91dB
Coverage Angle: 110° conical
Directivity Factor (Q): 7.8
Directivity Index (DI): 8.2dB
Rated Sound Pressure Level: Average 108dB @1 m, Peak 116dB
Rated Impedance: 8Ω (direct/bypass 8Ω setting)
Transformer Taps: 30W, 15W, 7.5W @ 70V or 100V (3.8W @ 70V)
Crossover: 12dB/oct low-pass to woofer, 12dB/oct high-pass to tweeter
Dimensions (Diameter x Height): 253 mm x 225 mm
Ceiling Cutout Diameter: 223 mm
Weight (Single Speaker): 3.4 kg
Shipping Weight (Pair): 11.2 kg

Blind-mount rear cover for easy installation

Dual cable clamps with compression fittings

Combined 70V/100V transformer and low impedance direct pass-through connection

Multiple power tap settings for flexible installation

High sensitivity and wide coverage angles ensure excellent sound distribution

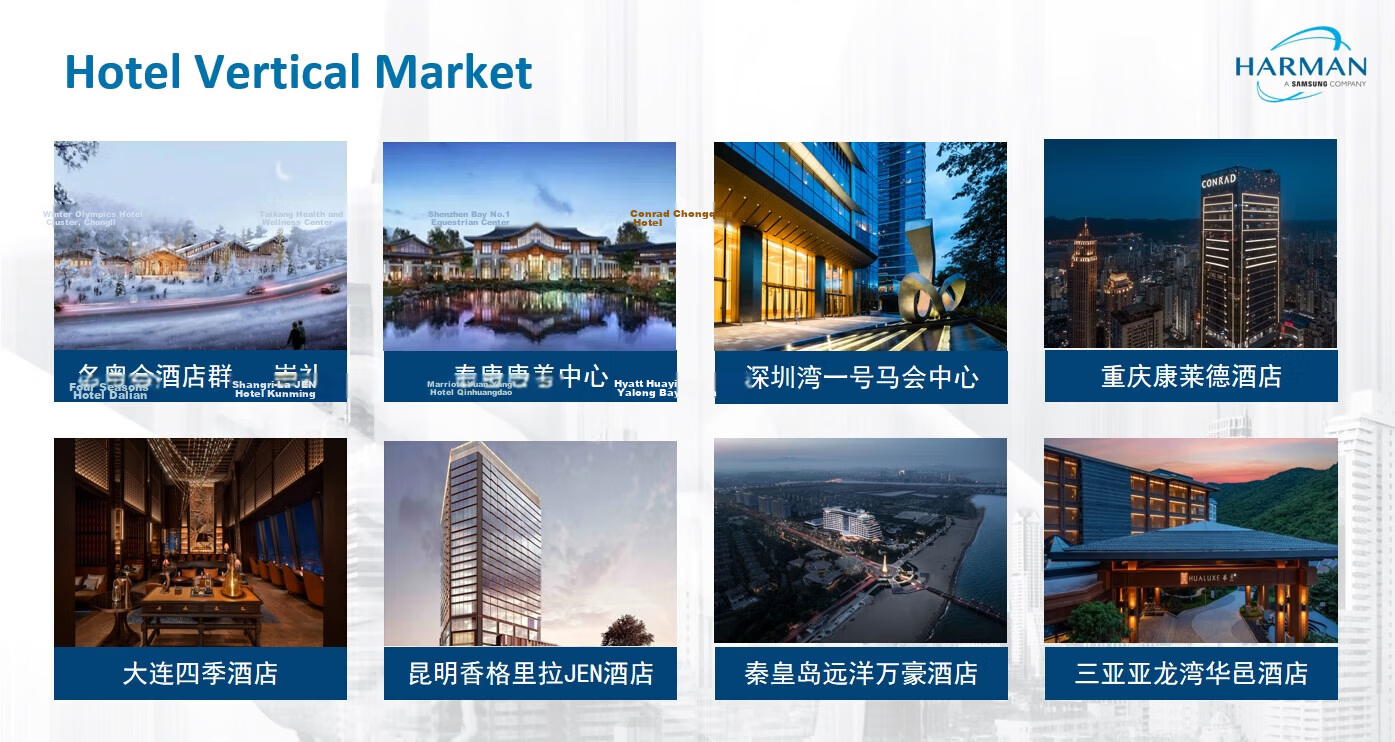

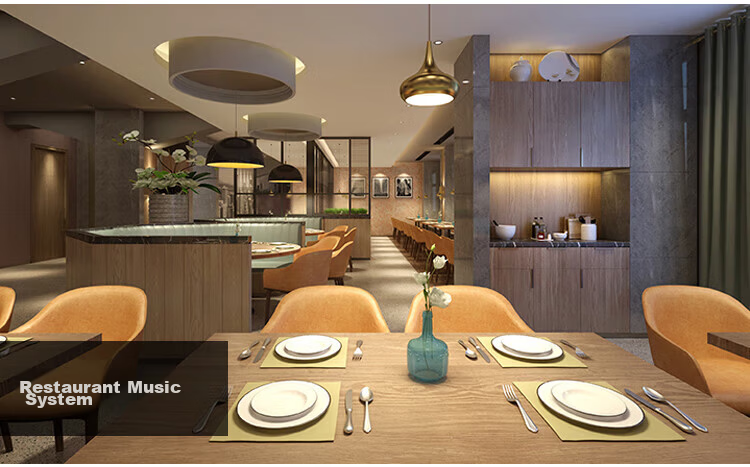

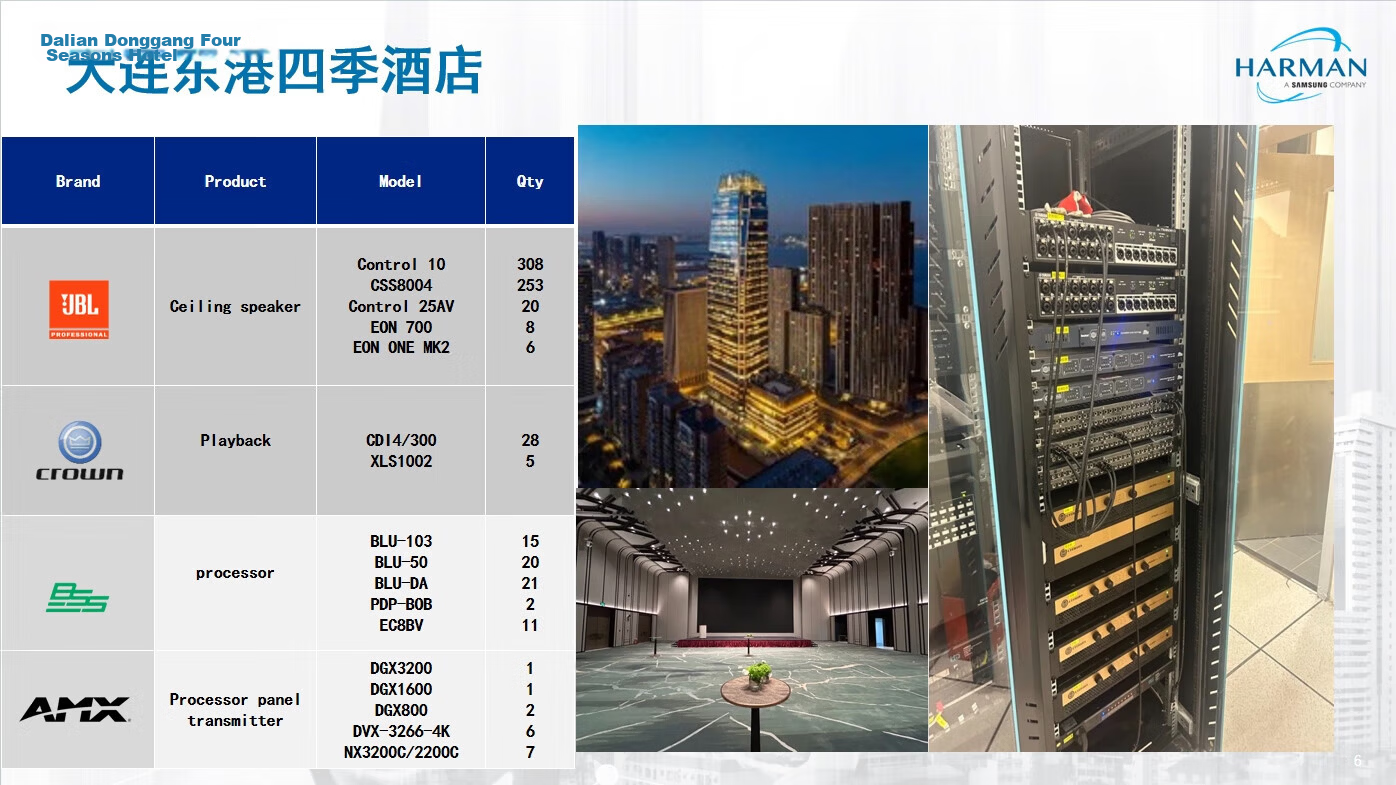

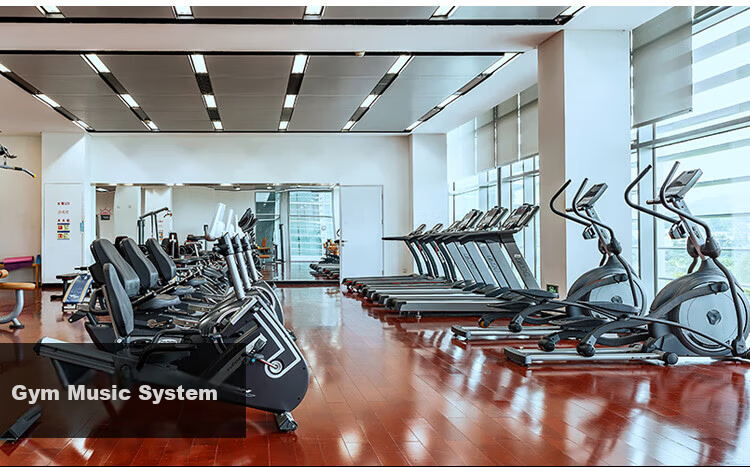

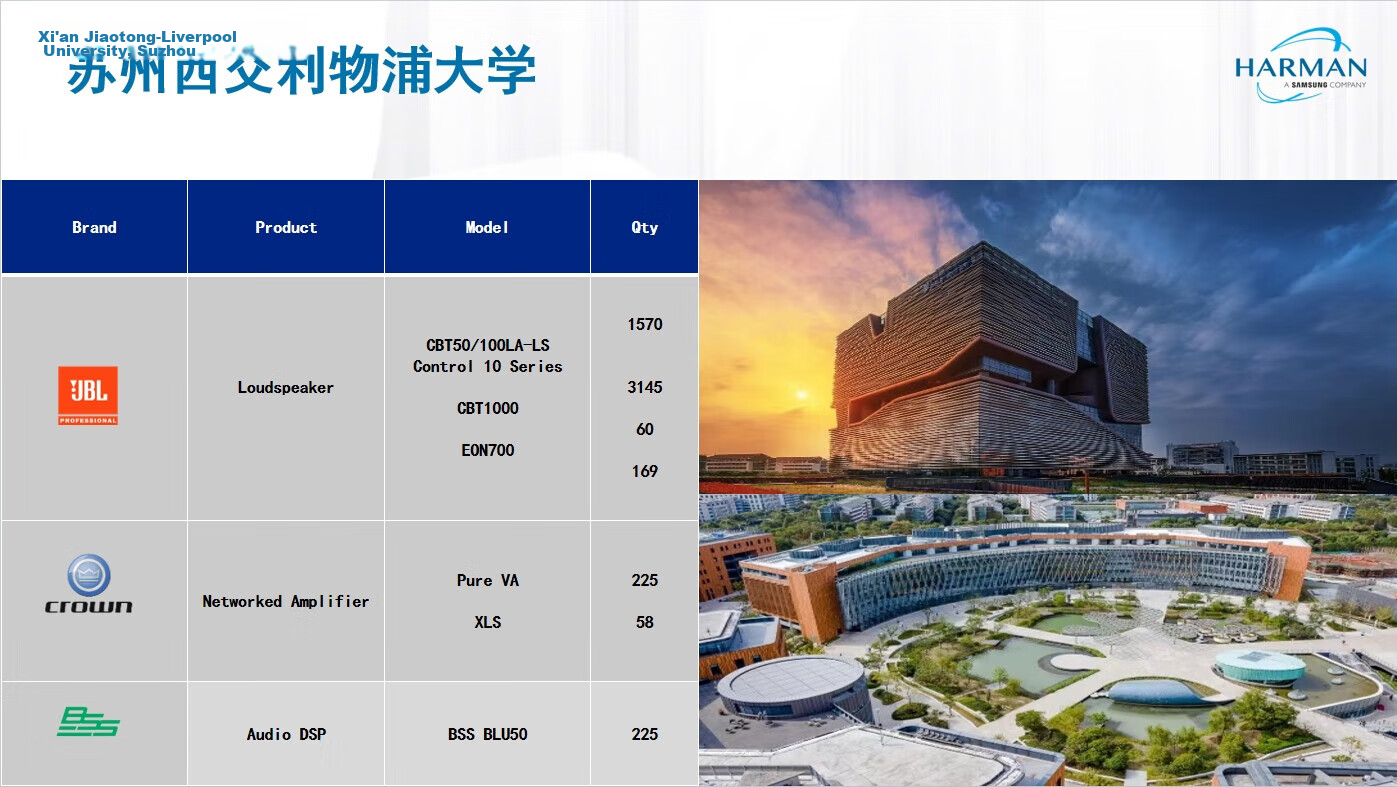

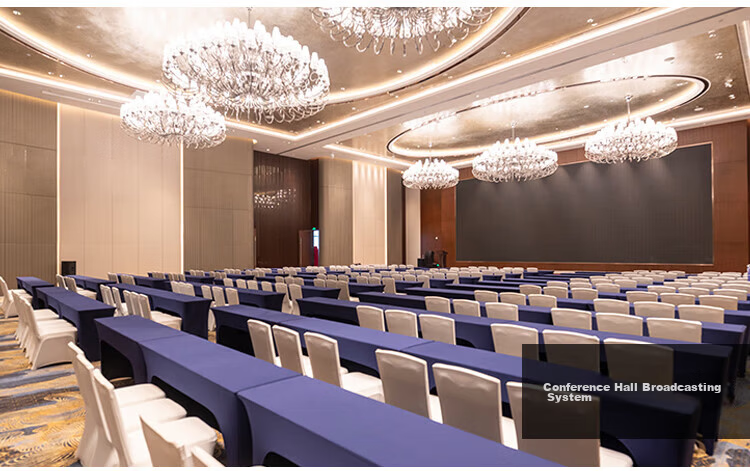

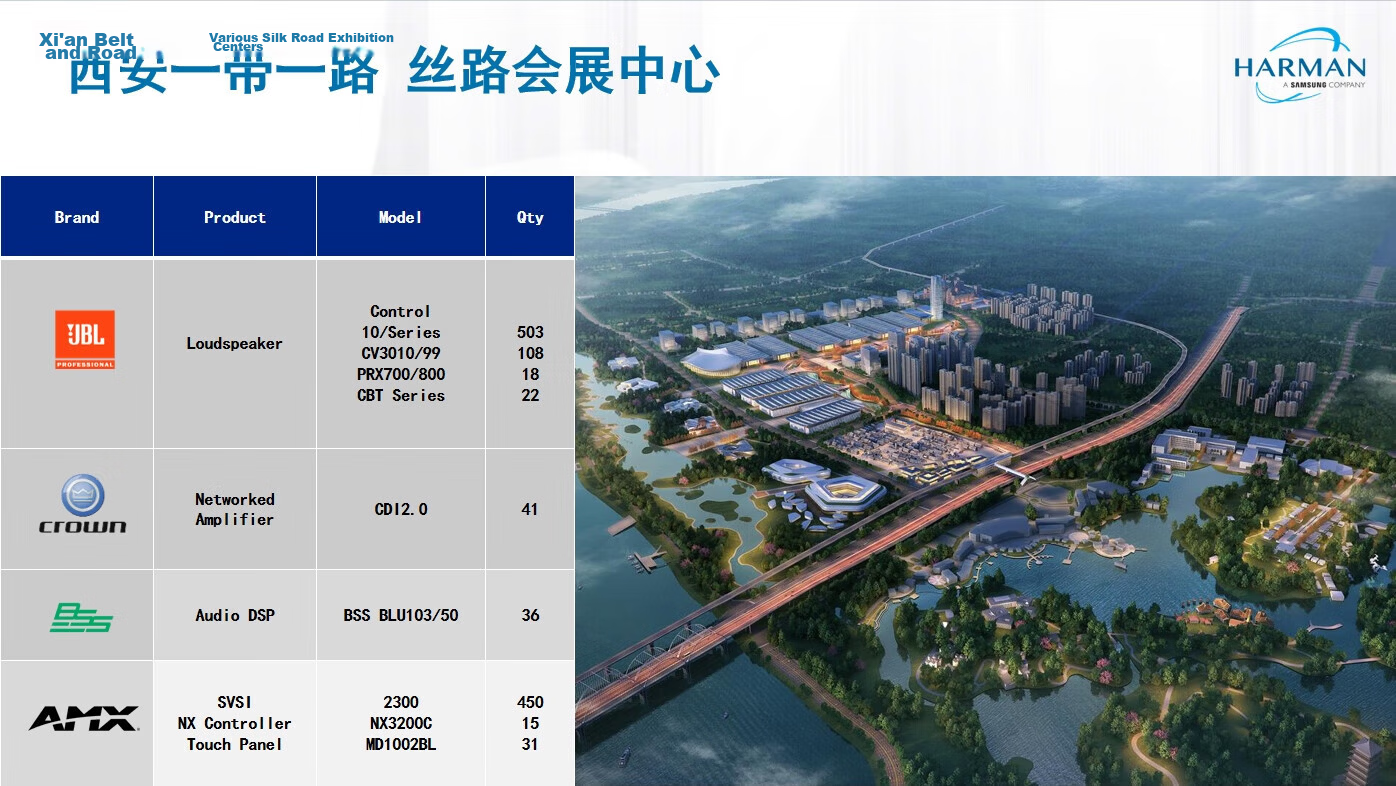

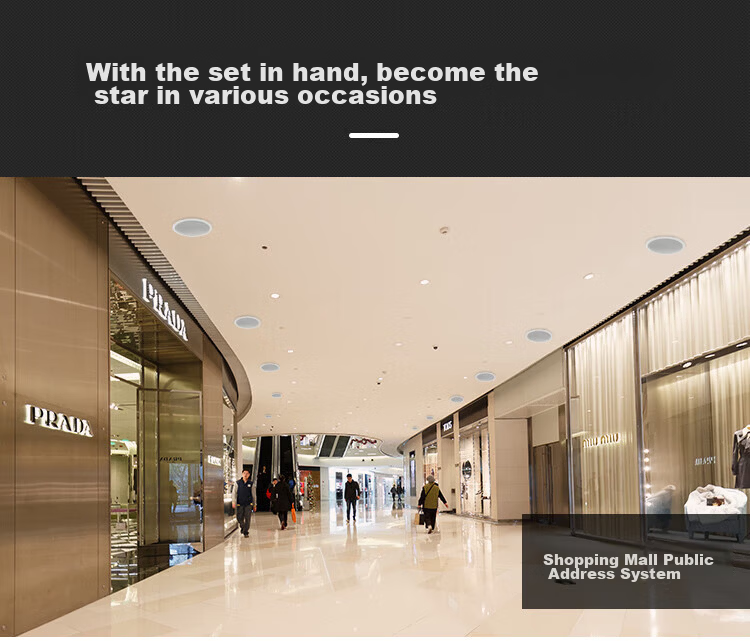

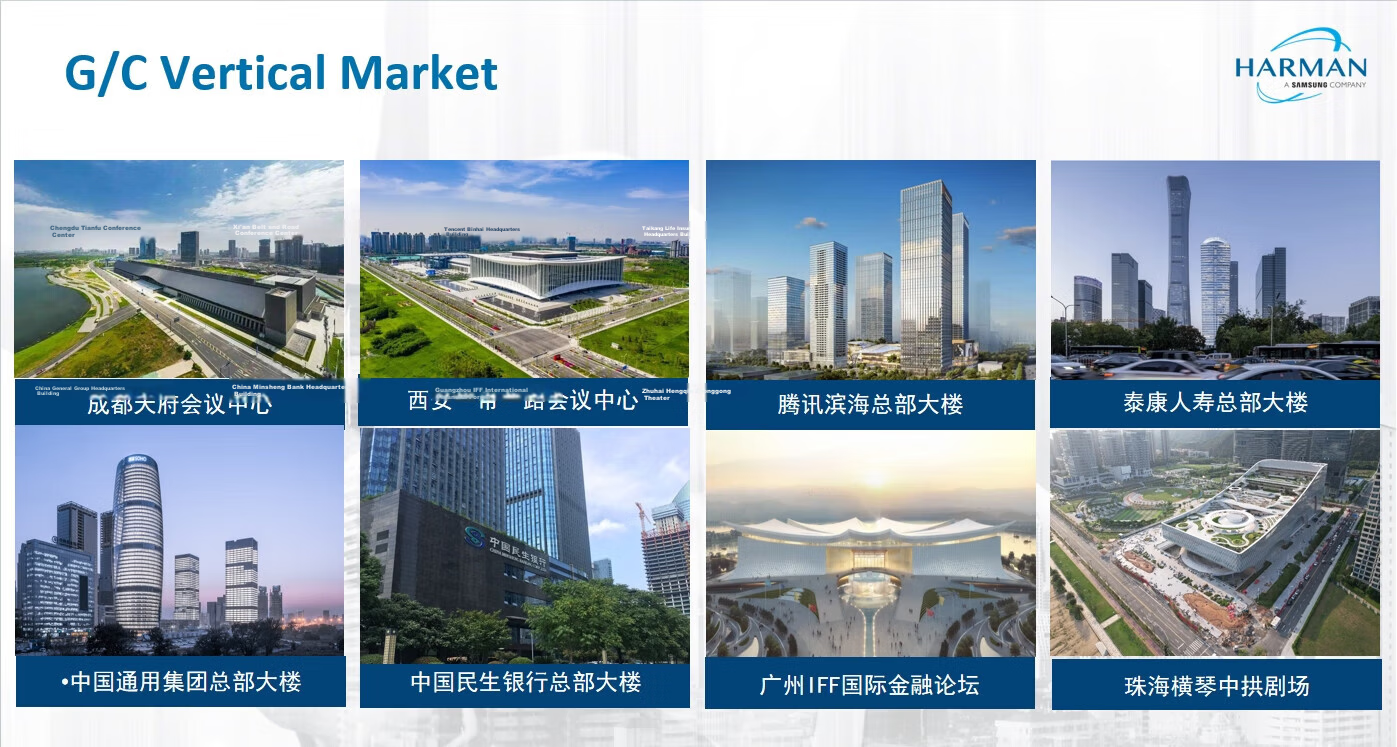

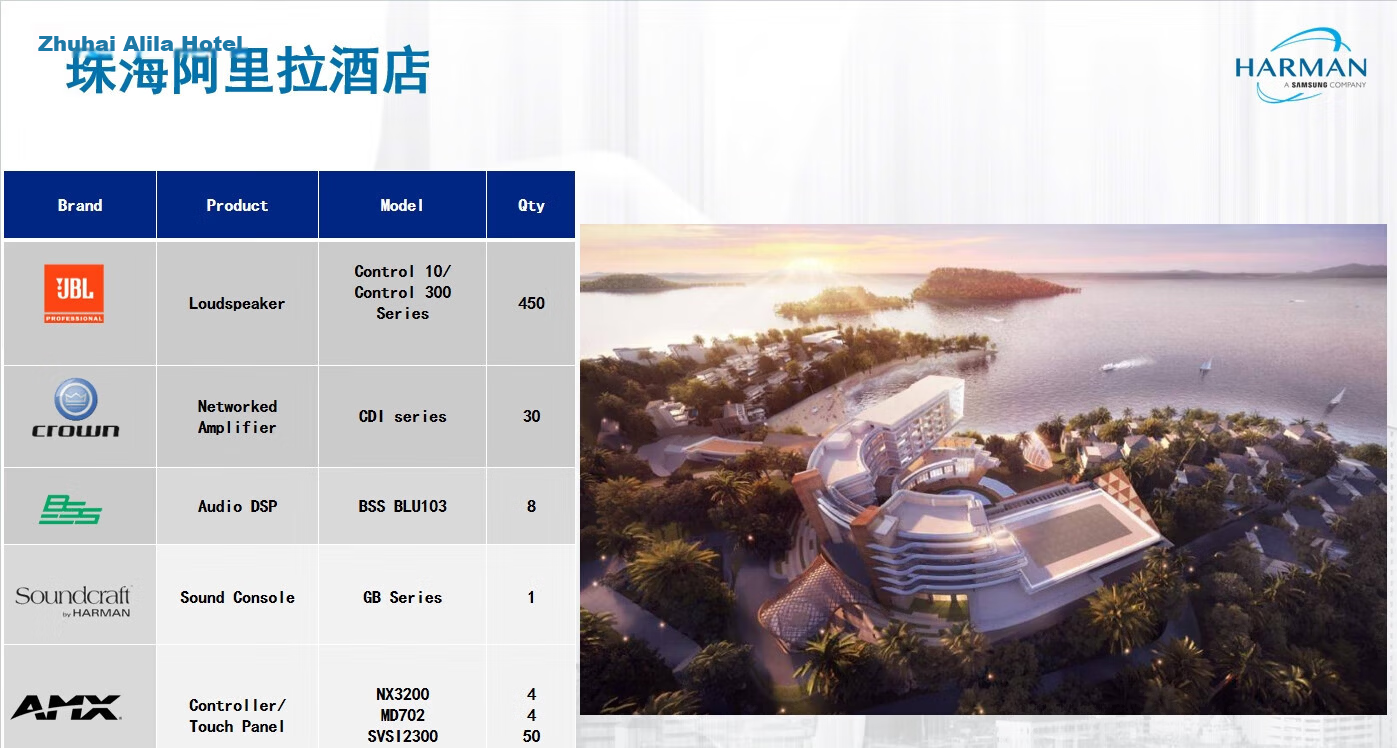

Widely used in hotels, conference centers, shopping malls, gyms, restaurants, and public address systems. Notable installations include Winter Olympics hotel clusters, luxury hotels such as Shenzhen Bay One, Conrad Chongqing, Four Seasons Dalian, Shangri-La Kunming, Marriott Qinhuangdao, and many others.

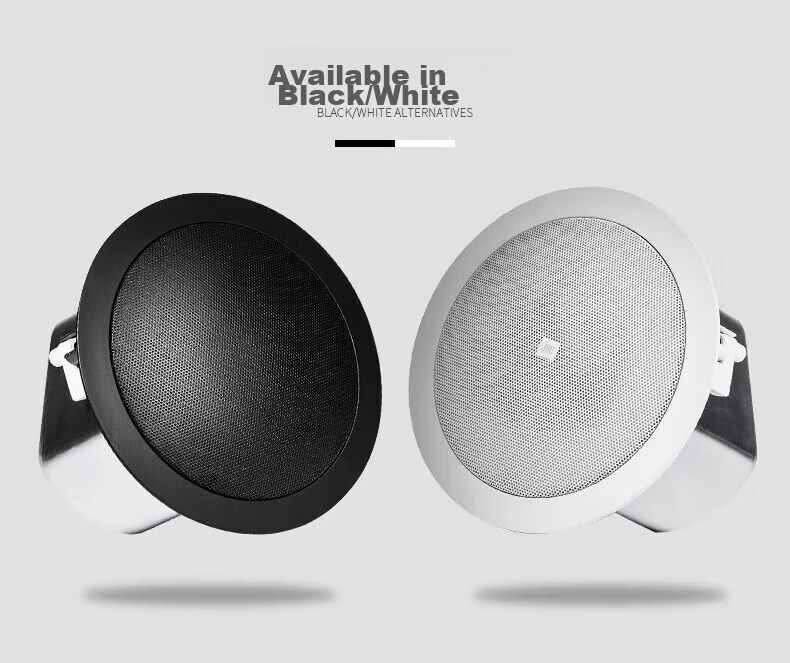

Available in Black and White finishes.

JBL, established in the 1940s in the USA, has over 70 years of audio research and development experience. The brand is renowned worldwide for its professional audio products used in cinemas, studios, automotive, sports arenas, and more.

End of Specifications.
