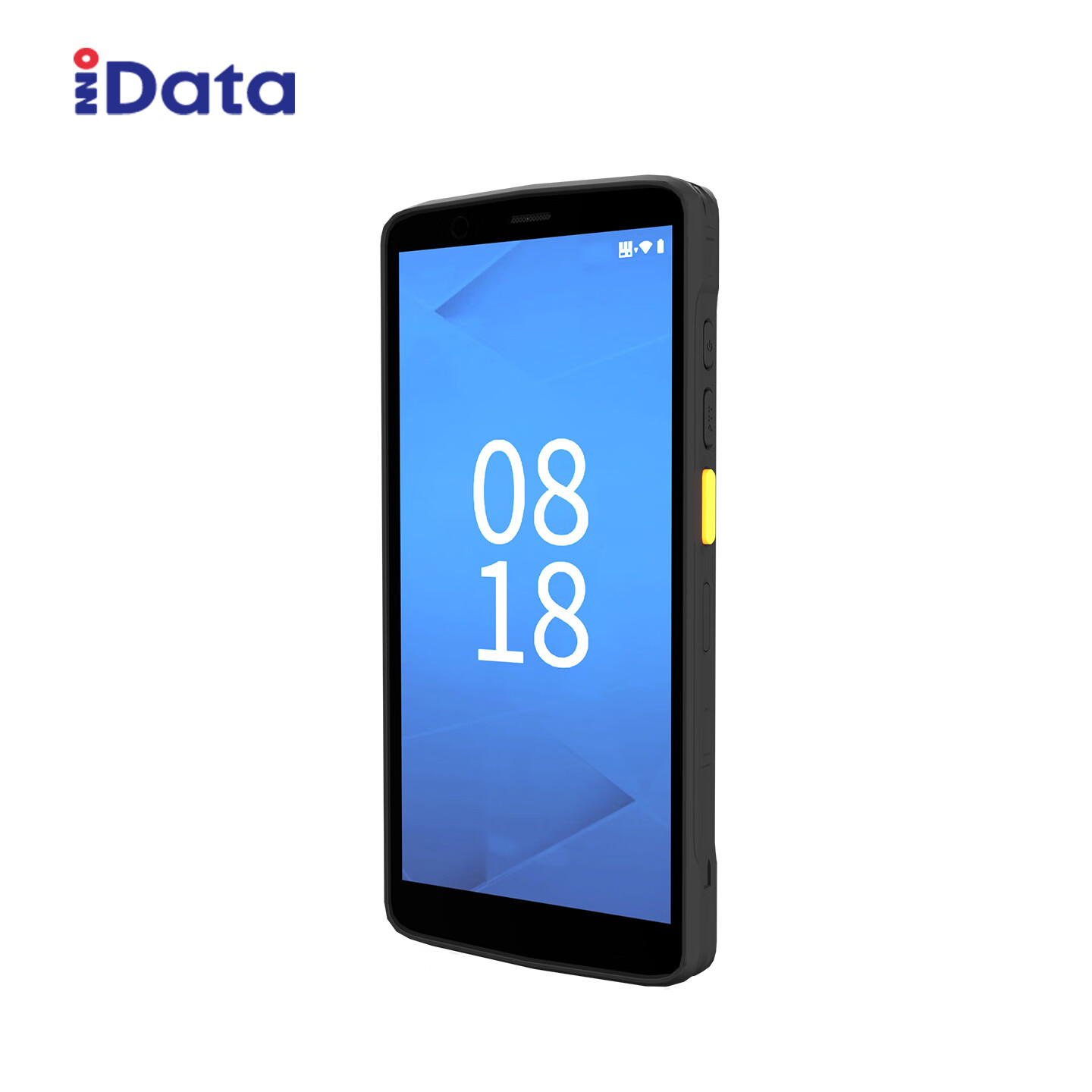

IData T5S 5G All-Network PDA Handheld Data Terminal WMS MES Warehouse Logistics Inbound and Outbound Data Collector Barcode Scanner 1D 2D Wireless

iData•PDA/Data Collector

IData T5S 5G All-Network PDA Handheld Data Terminal WMS MES Warehouse Logistics Inbound and Outbound Data Collector Barcode Scanner 1D 2D Wireless

CN¥3,788.00

SKU: 100208051955

Status:In Stock (1)

ID: 100208051955

Weight: 520.00 g

Dims:214x140x112 mm

Specifications

Transmission mode: Wireless
Decoding type: One-dimensional, Two-dimensional
Memory capacity: Above 3MB
Light source: Red light

Variants / Sale Attributes

Color: iData T5S (6+64GB Android 14) 5G Full Netcom

Package Contents

USB data cable *1, power adapter *1, strap *1, battery *1

Product Description

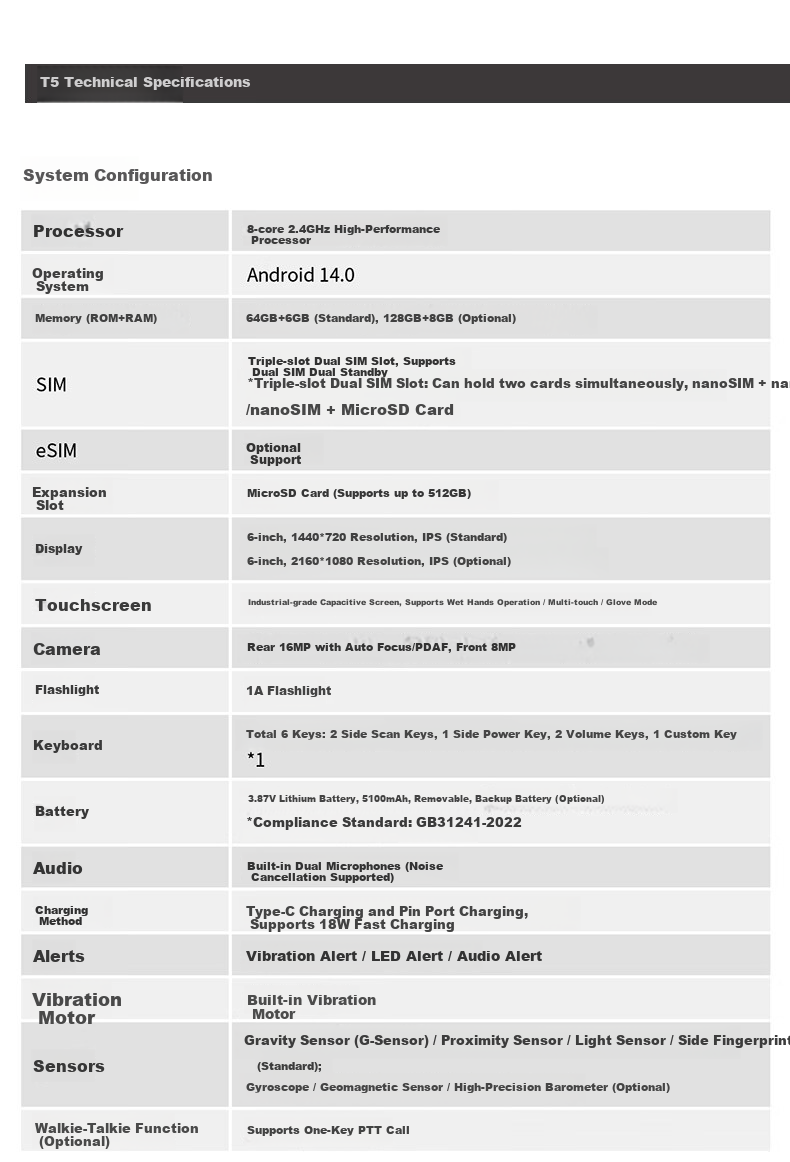

Product Specifications

Overview

Brand: iData
Model: T5

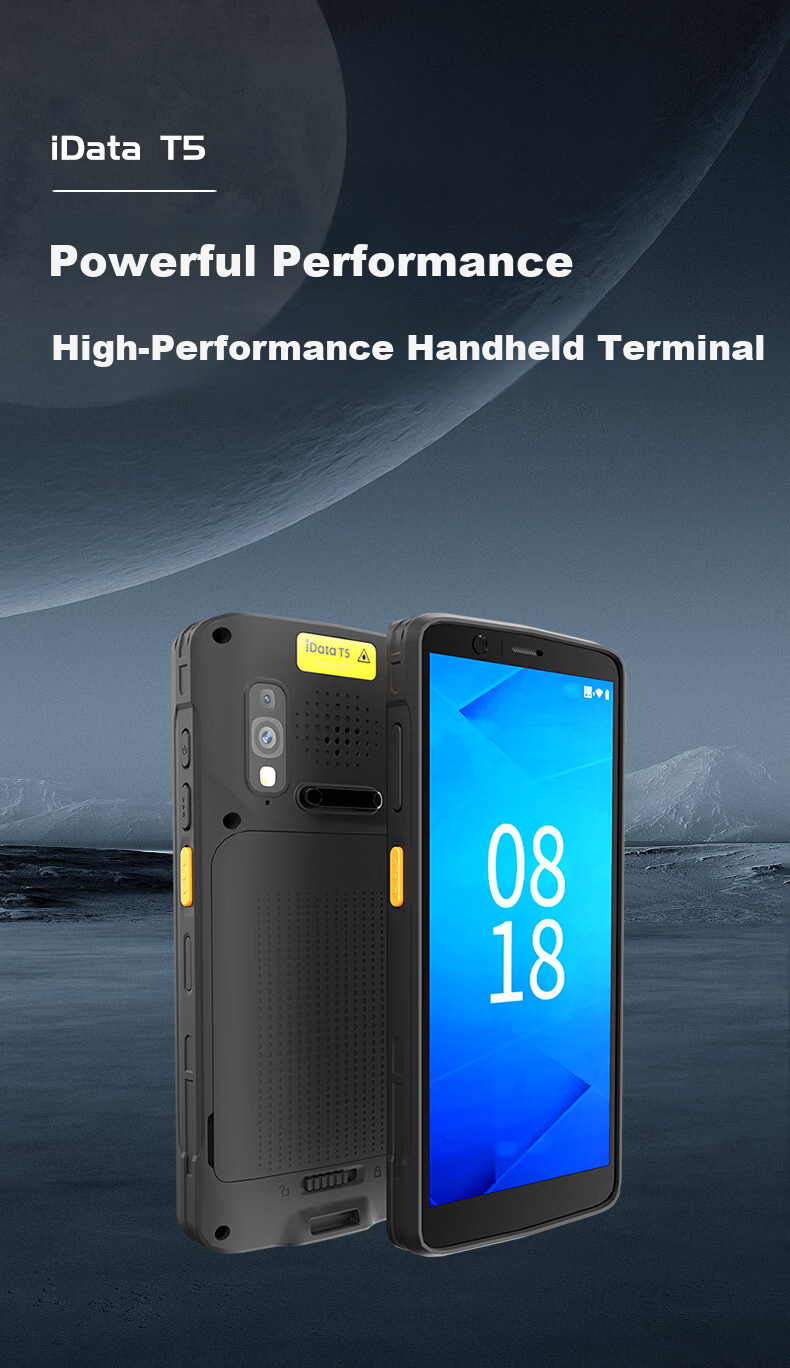

High-performance handheld terminal

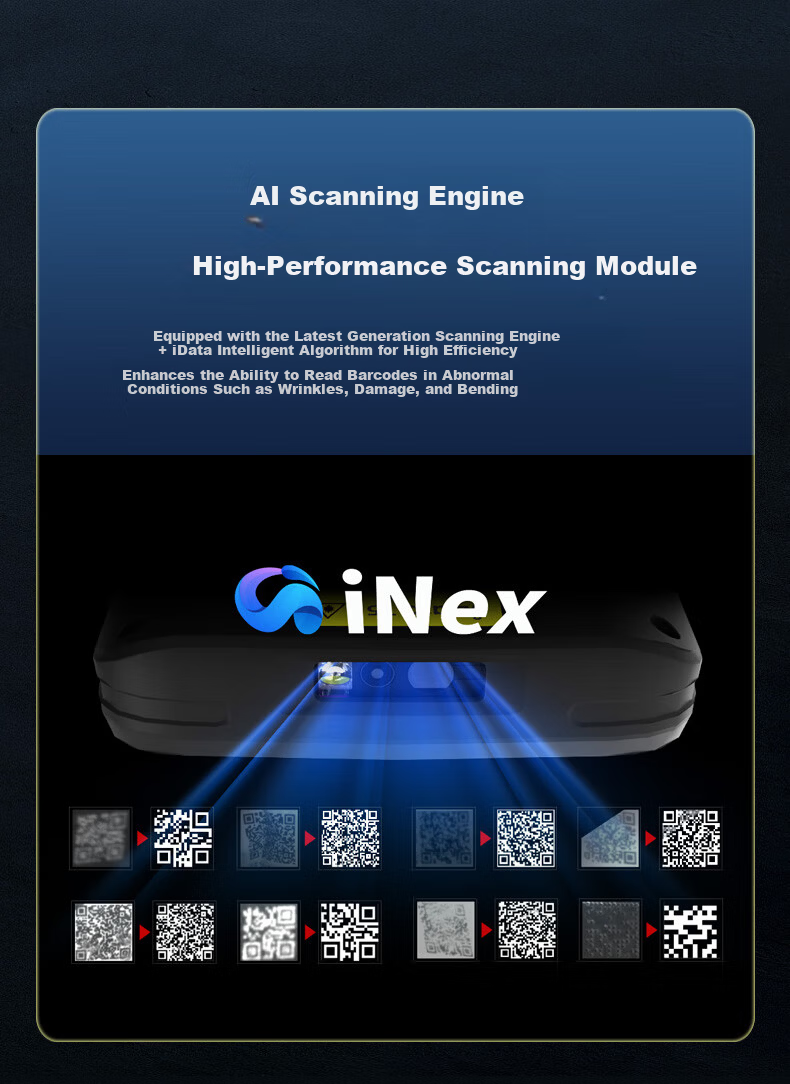

AI scanning engine with latest generation scanning module

Intelligent algorithm enhances barcode reading on wrinkled, damaged, or bent codes

Flagship core configuration with high-performance CPU and large memory capacity

8-core 2.4GHz processor based on flagship A78 architecture

Additional details

RAM + ROM: 8GB + 128GB (optional)
Operating System: Android 14.0

Wi-Fi 6 support for stable and smooth network connection

5G + Wi-Fi 6 full band coverage with ultra-low latency

Similar Products

In Stock

Seuic AUTOID Q9 Dongda Integrated Handheld Data Terminal PDA Android Collector Industrial Smartphone Telecom E-Commerce ERP Warehouse Inventory Machine with 1D/2D AI Algorithm

SeuicPDA/Data Collector

Seuic AUTOID Q9 Dongda Integrated Handheld Data Terminal PDA Android Collector Industrial Smartphone Telecom E-Commerce ERP Warehouse Inventory Machine with 1D/2D AI Algorithm

AUTOID Q9 (Flagship Model), 4G + 64GB, Octa-Core

CN¥2,979.00

In Stock

IData (Yingda) T1 Two-Dimensional PDA Handheld Data Terminal, Barcode Scanner PDA Collector Industrial Smartphone Warehouse Logistics Hospital Android System High Configuration / IData T1 Warranty Three Years

iDataPDA/Data Collector

IData (Yingda) T1 Two-Dimensional PDA Handheld Data Terminal, Barcode Scanner PDA Collector Industrial Smartphone Warehouse Logistics Hospital Android System High Configuration / IData T1 Warranty Three Years

iData T1 [Android 9 Octa-Core Processor, 4GB RAM + 64GB Storage]

CN¥1,849.10

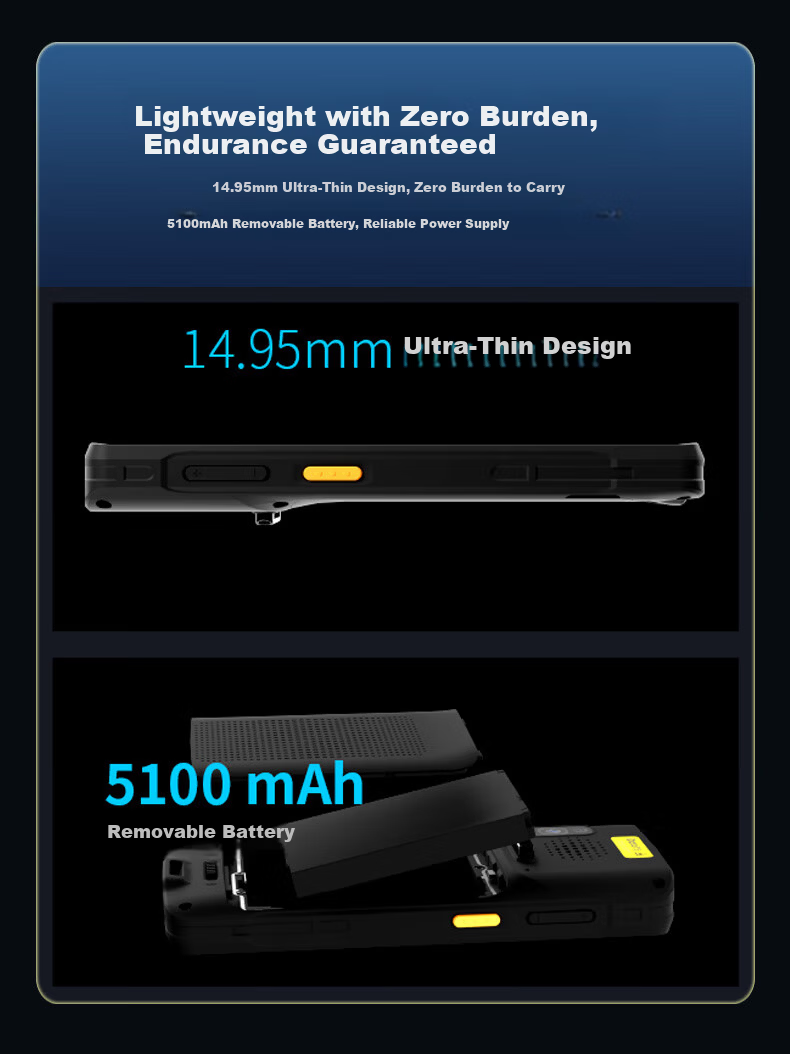

Ultra-thin design, 14.95mm thickness for lightweight portability

5100mAh removable lithium battery (3.87V)

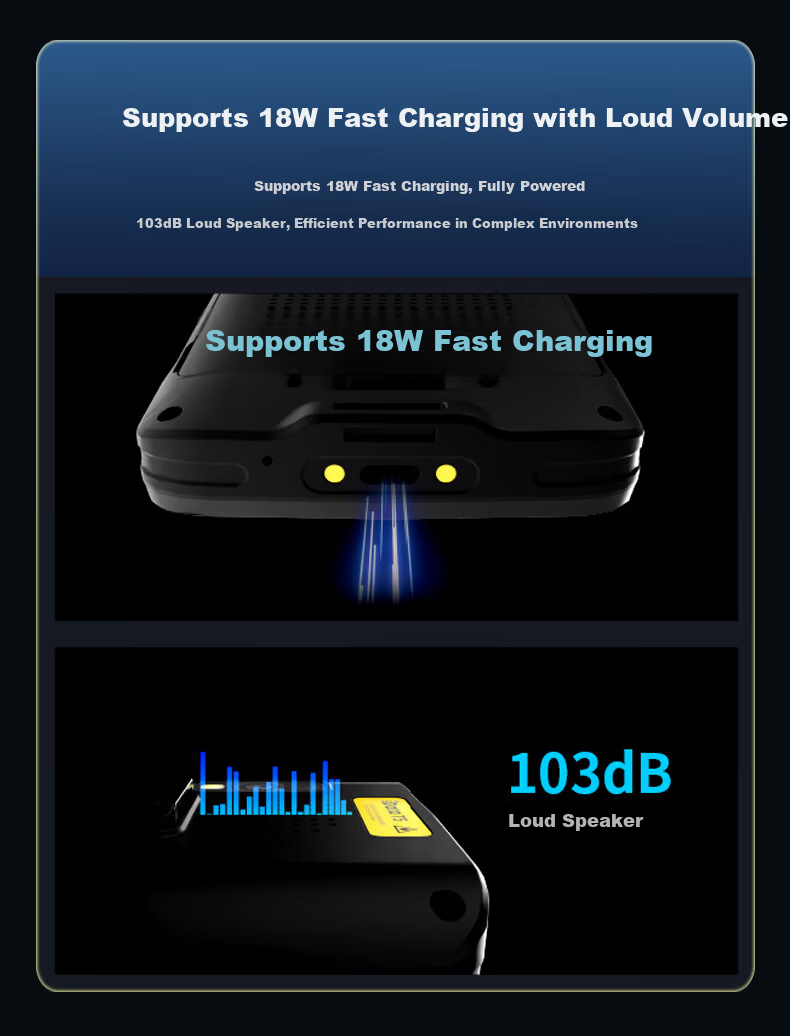

Supports 18W fast charging

Large volume 103dB speaker for clear audio in complex environments

Additional details

Standard: 6-inch IPS screen, 1440 x 720 resolution
Optional: 6-inch IPS screen, 2160 x 1080 resolution

Industrial-grade capacitive touchscreen supporting wet hand operation, multi-touch, and glove mode

Additional details

Rear: 16MP with autofocus and PDAF
Front: 8MP

1A flash light

Additional details

Total 6 keys: 2 side scan keys, 1 power key, 2 volume keys, 1 customizable key
Triple slot design supporting dual SIM standby: nanoSIM + nanoSIM or nanoSIM + MicroSD

Optional eSIM support

MicroSD card slot supports up to 512GB

Built-in dual microphones with noise reduction

Vibration motor

Additional details

Sensors: Gravity (G-sensor), proximity, light, side fingerprint sensor (standard)
Optional: Gyroscope, geomagnetic sensor, high-precision barometer

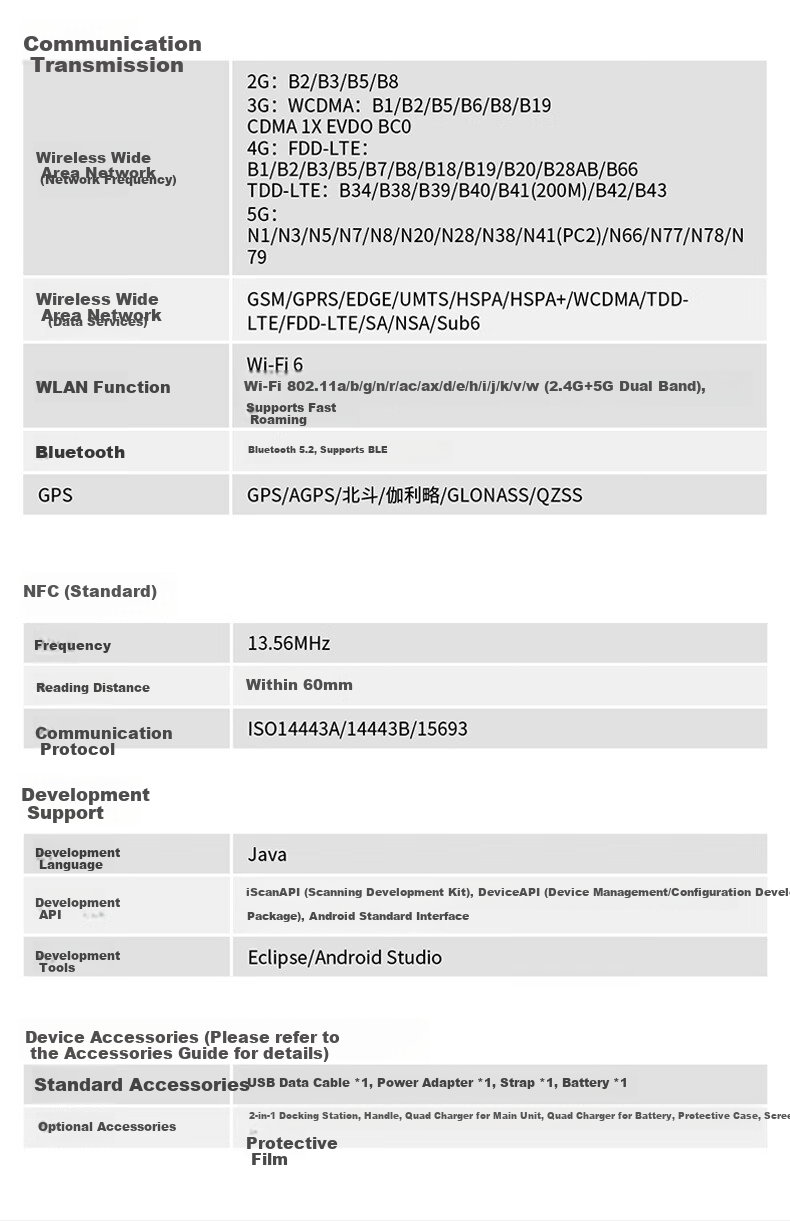

2G: B2/B3/B5/B8
3G: WCDMA B1/B2/B5/B6/B8/B19, CDMA1XEVDOBCO
4G: FDD-LTE B1/B2/B3/B5/B7/B8/B18/B19/B20/B28AB/B66, TDD-LTE B34/B38/B39/B40/B41(200 M)/B42/B43
5G: N1/N3/N5/N7/N8/N20/N28/N38/N41(PC2)/N66/N77/N78/N79
WLAN: Wi-Fi 802.11 a/b/g/n/r/ac/ax/d/e/h/i/j/k/v/w (2.4 G + 5 G dual band), supports fast roaming

Bluetooth 5.2 with BLE support

GPS

Additional details

NFC (standard): Frequency 13.56MHz, reading distance within 60 mm, supports ISO14443A/14443B/15693 protocols

Push-to-talk (PTT) one-key call support (optional)

Vibration, LED, and audio notifications

Additional details

Development languages: Java
SDKs: iScanAPI (scanning), DeviceAPI (device management/configuration)

Standard Android interfaces

Additional details

Development tools: Eclipse, Android Studio
Standard: USB data cable x1, power adapter x1, strap x1, battery x1

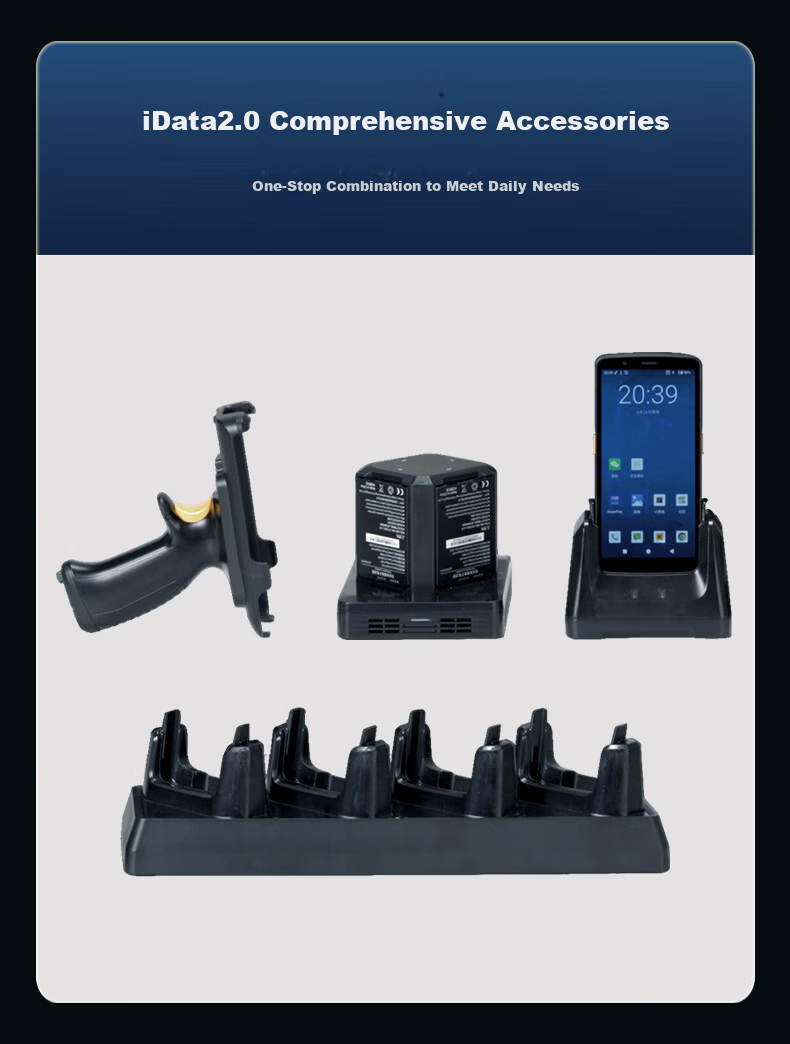

Optional: 2-in-1 charging dock, handle, 4-slot main unit charger, 4-slot battery charger, protective case, screen protector

Retail supermarkets

Express logistics

Manufacturing

Public utilities
