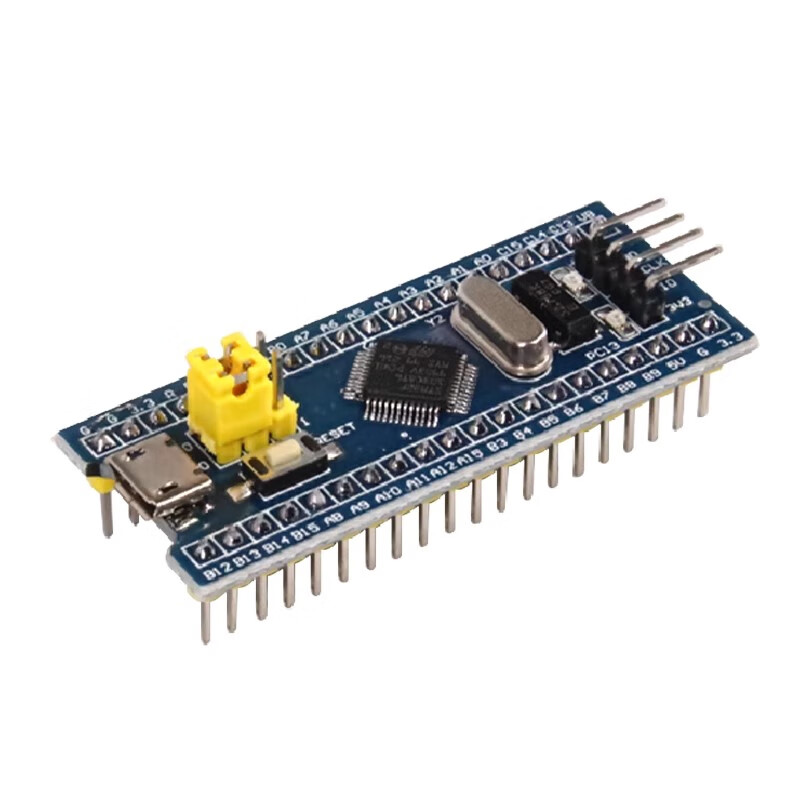

Wondy STM32F103C8T6 Core Board Development Board Mini System Board/APM32 System Board with SWD Interface and Pin Header STM32F103C6T6 Core Board Includes Pin Header Unassembled
CN¥22.57
SKU: 100216551142
Status:In Stock (5)
ID: 100216551142
Weight: 10.00 g

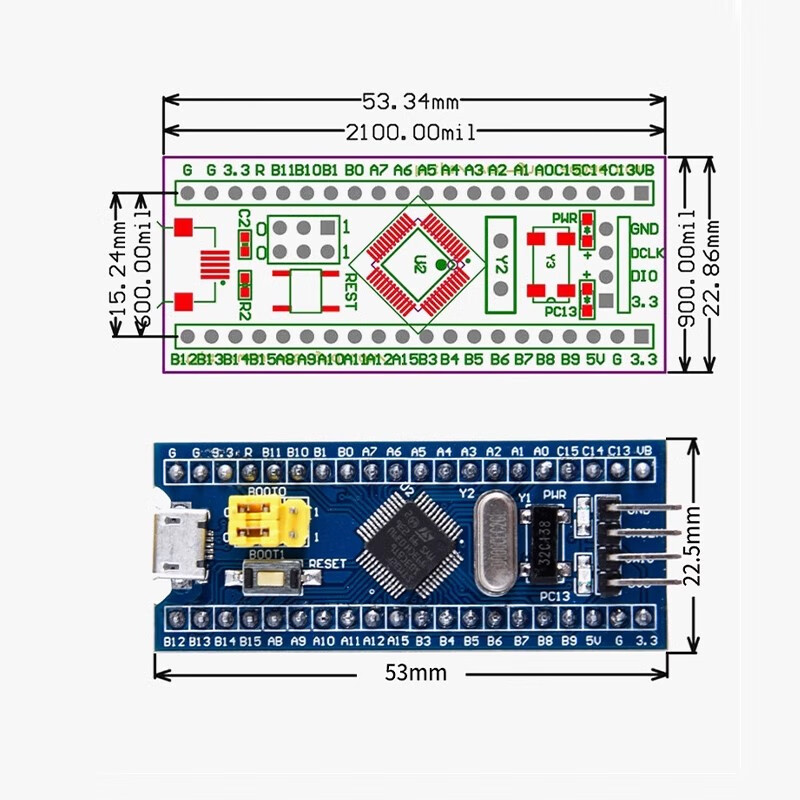

Dims:125x80x10 mm
Variants / Sale Attributes
Color: STM32F103C8T6 Port C, delivered with pin headers but not soldered
Package Contents
product
Product Description
Product Specifications

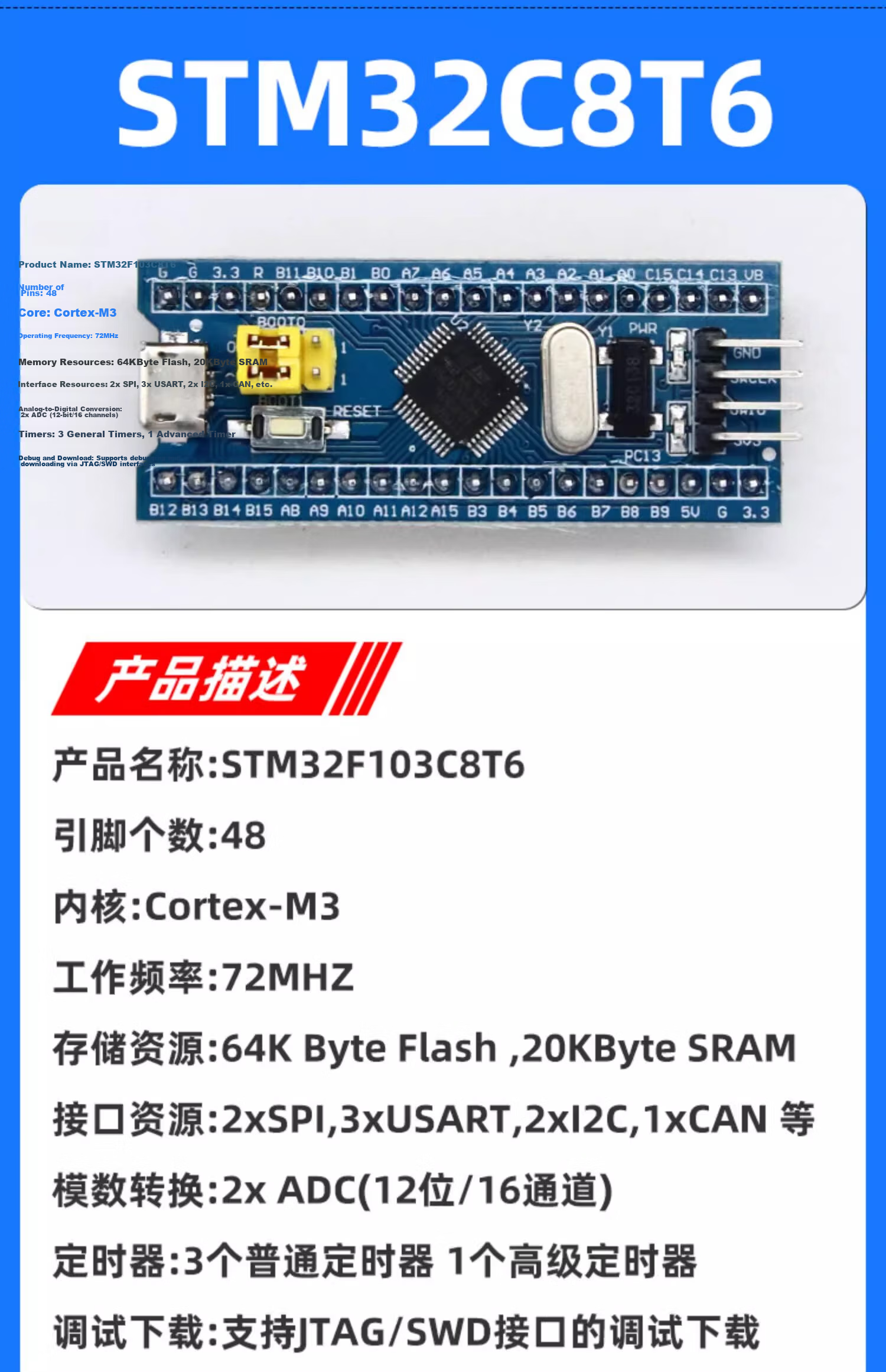

Overview
- Brand
- Wondi
- Core Processor

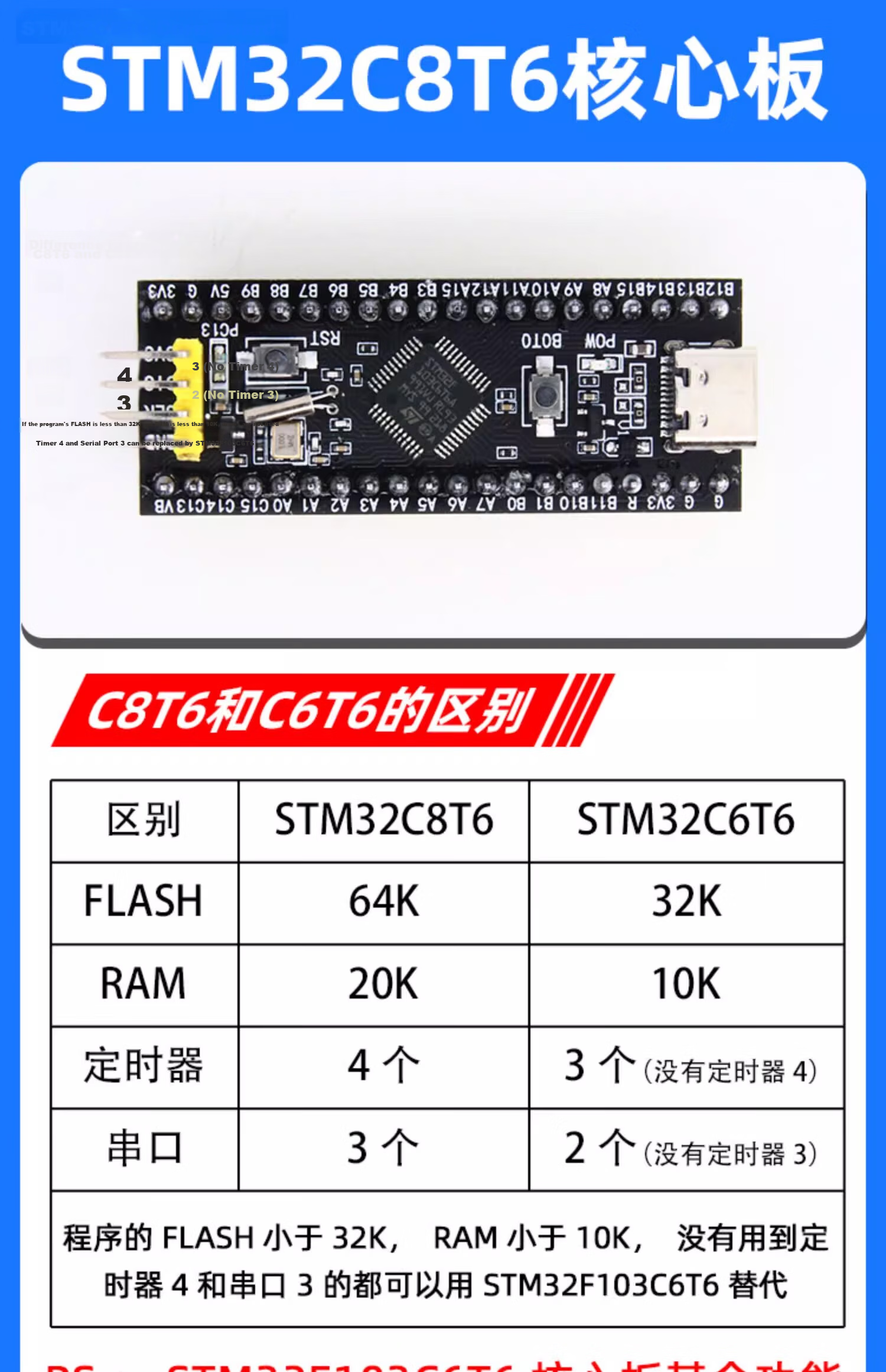

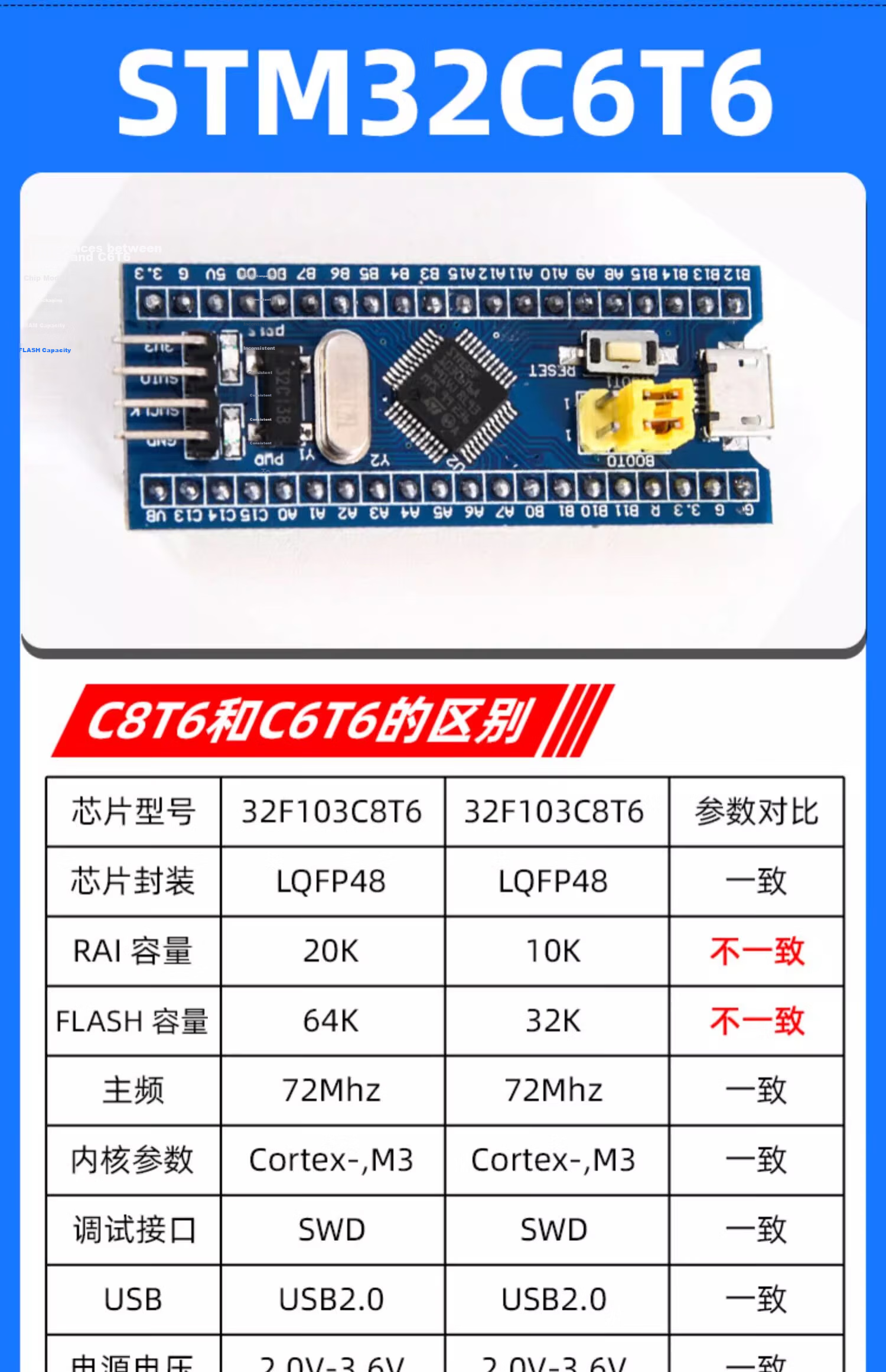

- STM32F103 series (STM32F103C8T6 and STM32F103C6T6 variants)

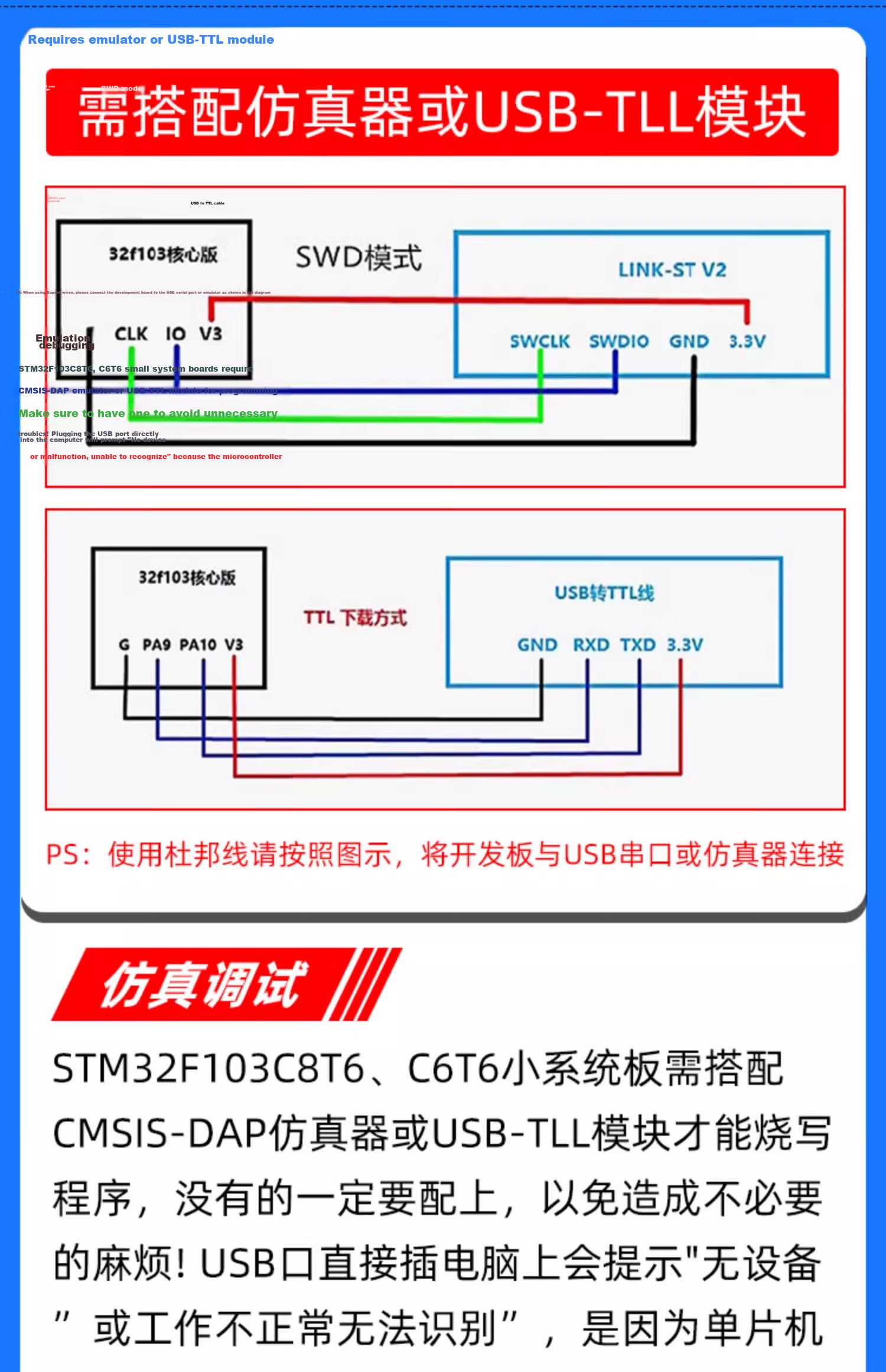

Requires connection with a debugger (CMSIS-DAP) or USB-TTL module for programming and debugging.
Supports SWD (Serial Wire Debug) mode with LINK-STV2 interface.
USB-TTL module supports serial port download only.
CMSIS-DAP debugger supports both serial download and debugging functions.
Development board includes BOOT key for ISP download mode activation.

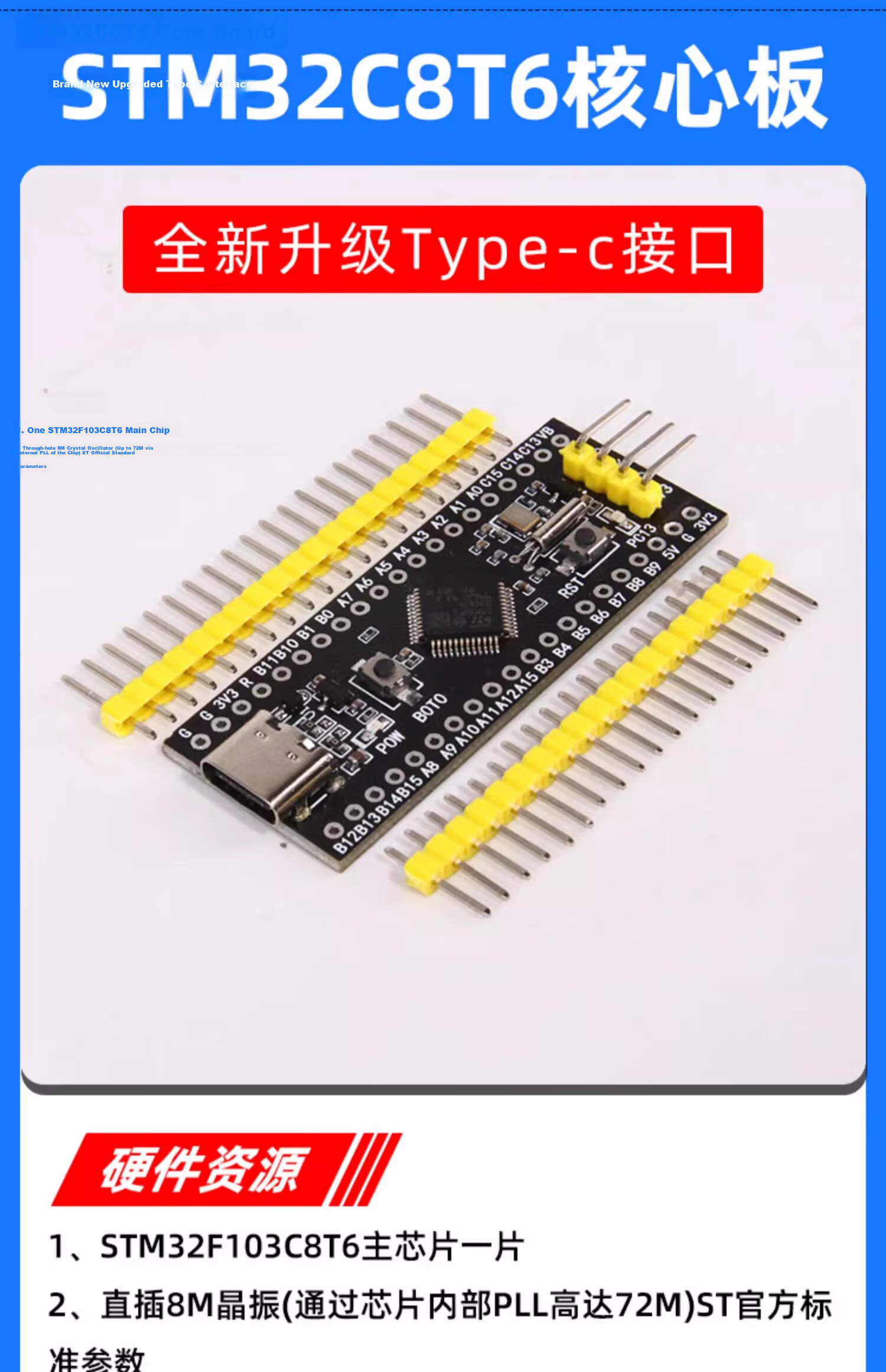

Compatible with USB 2.0 interface; Type-C upgraded interface on STM32C8T6 core board.

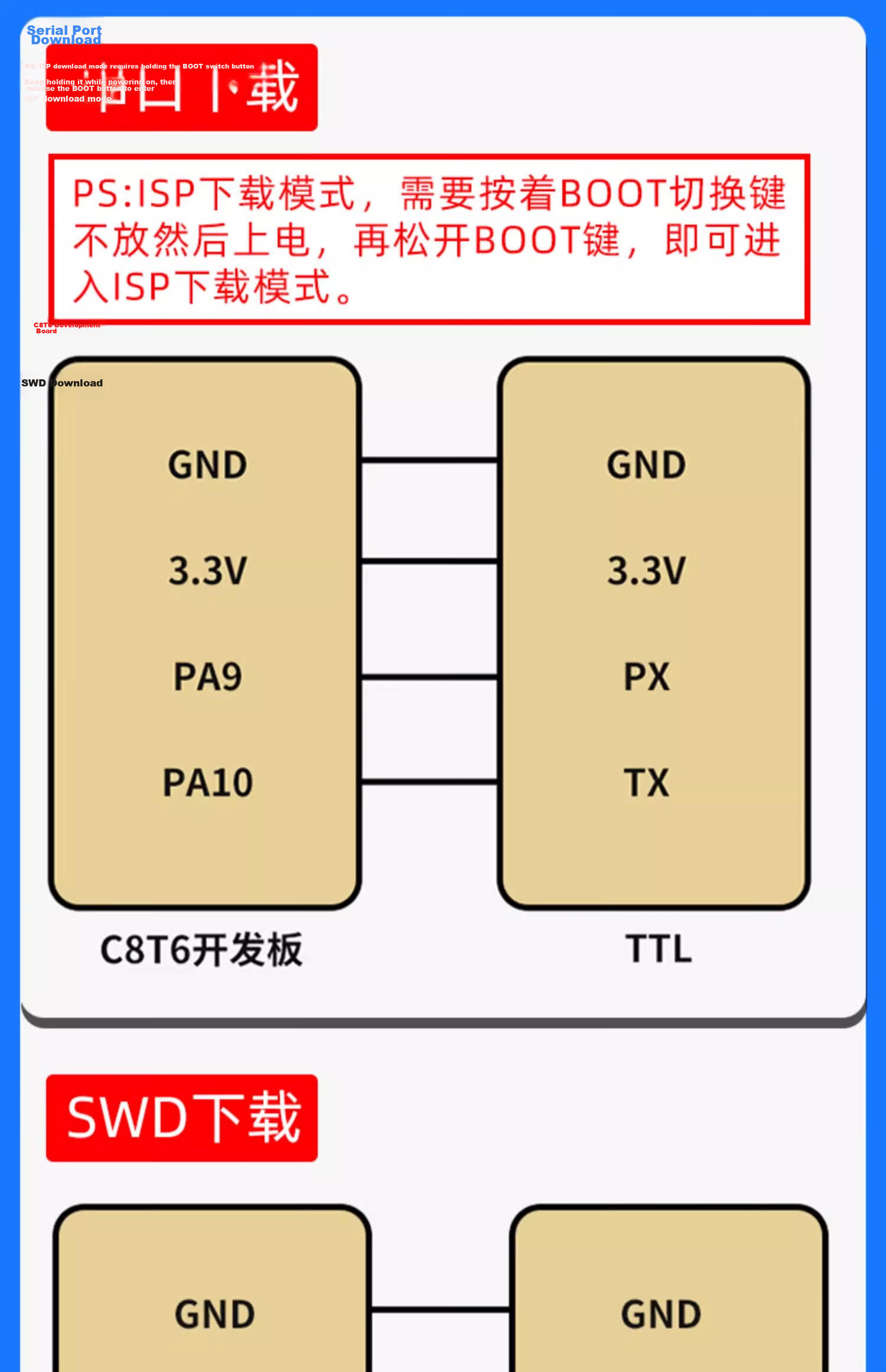

Supports TTL download via UART pins (GPA9, PA10).
Additional details

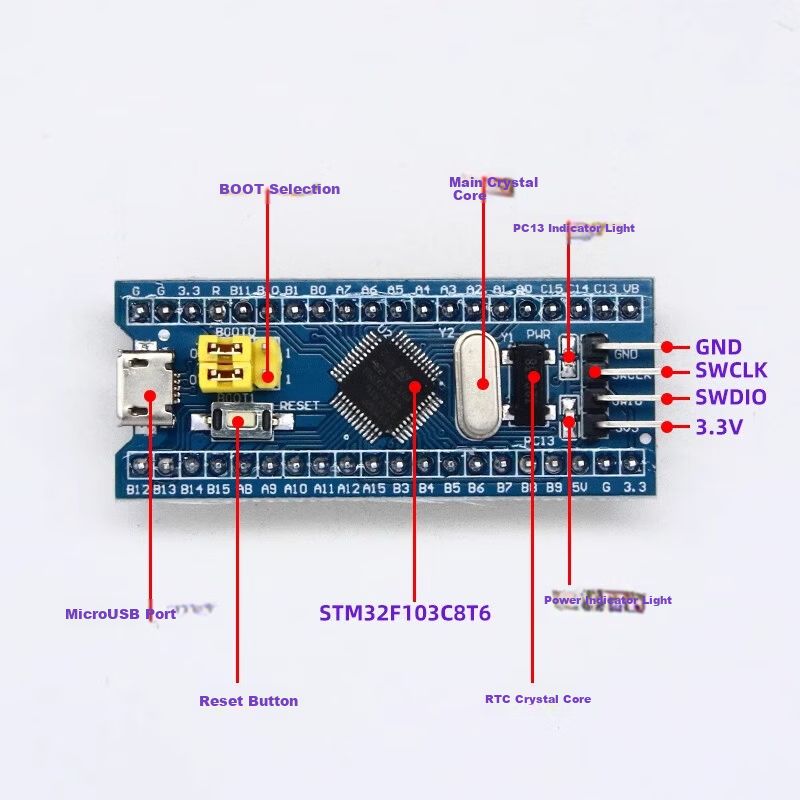

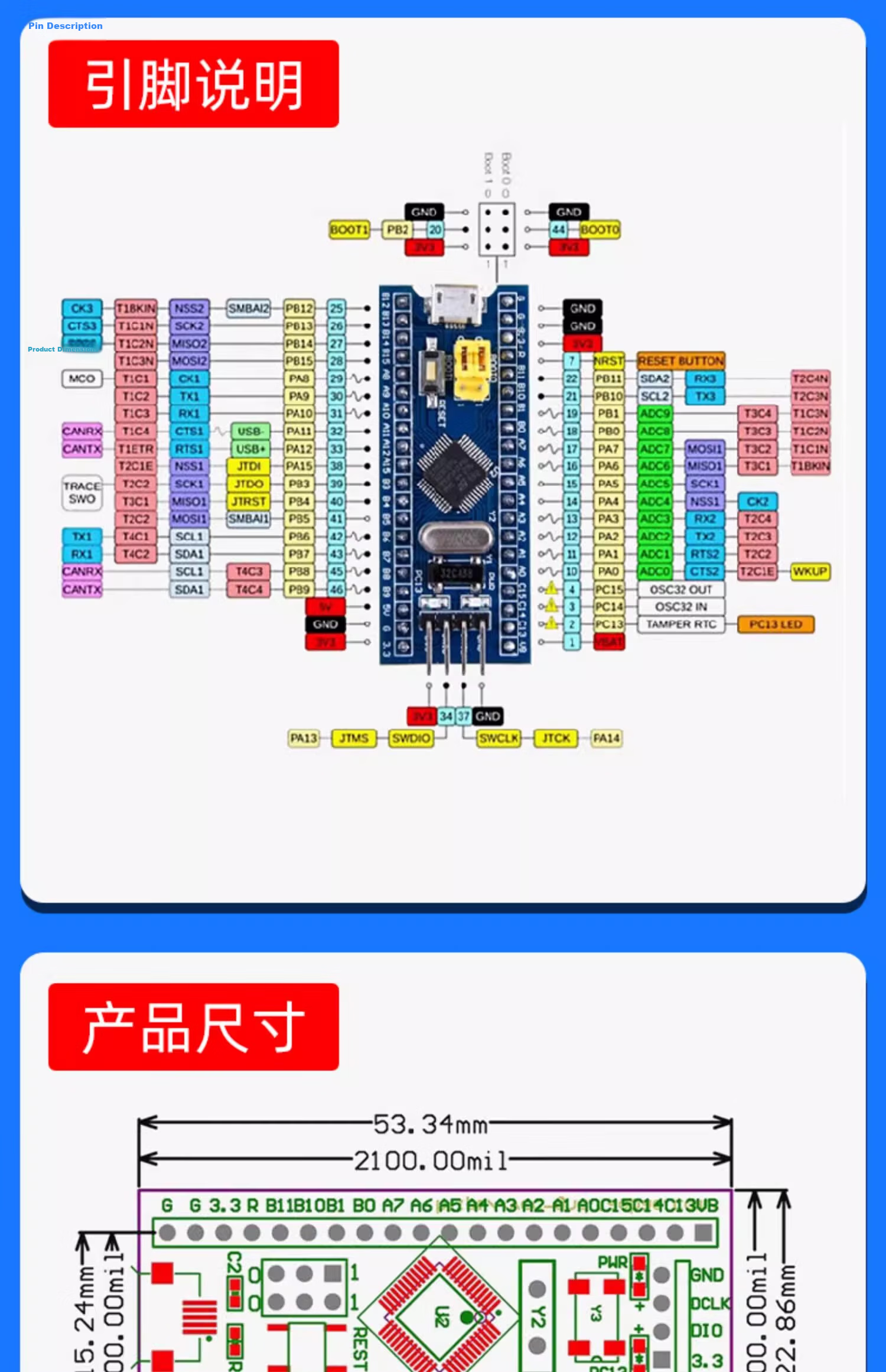

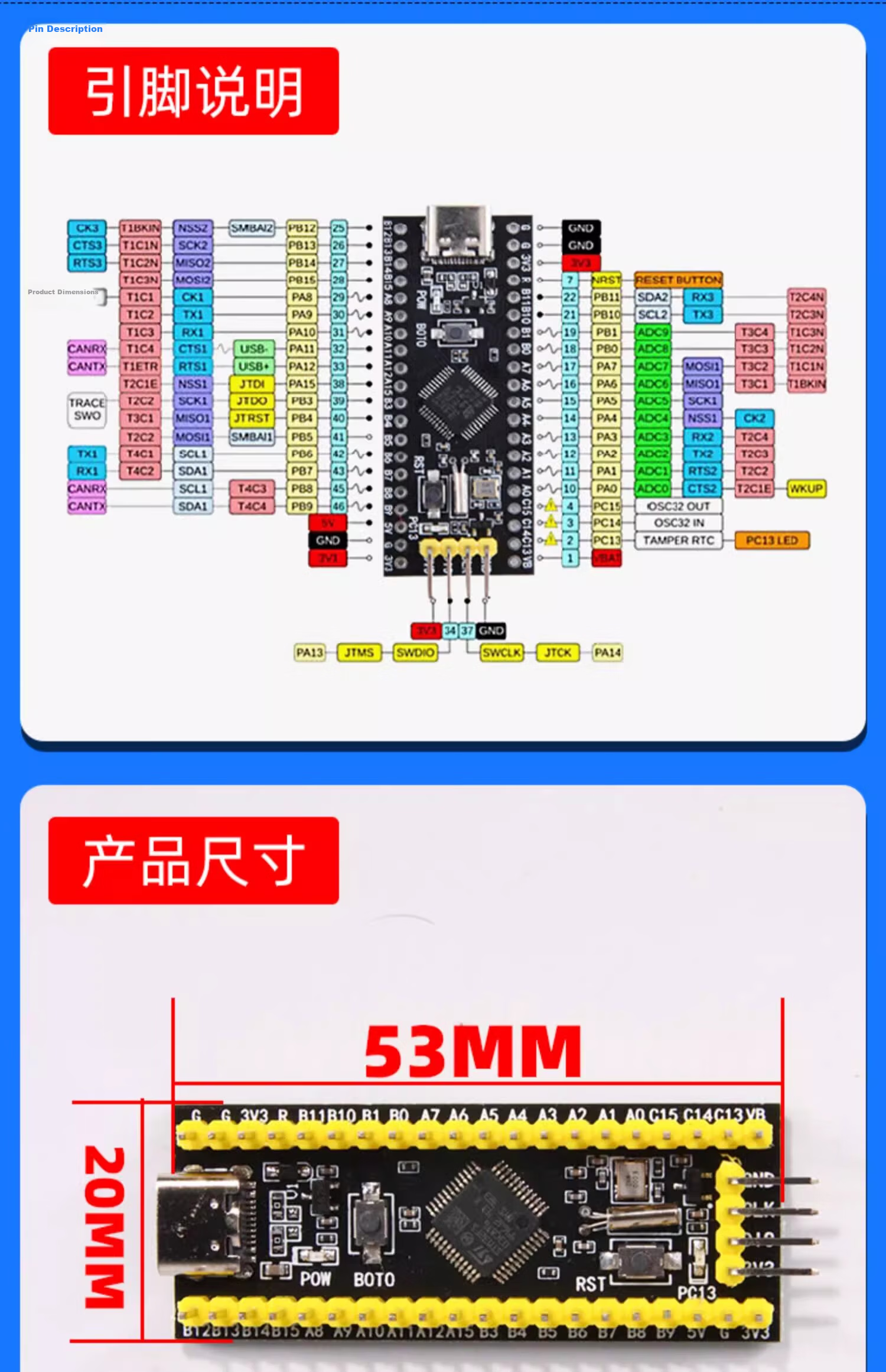

- Debugging pins

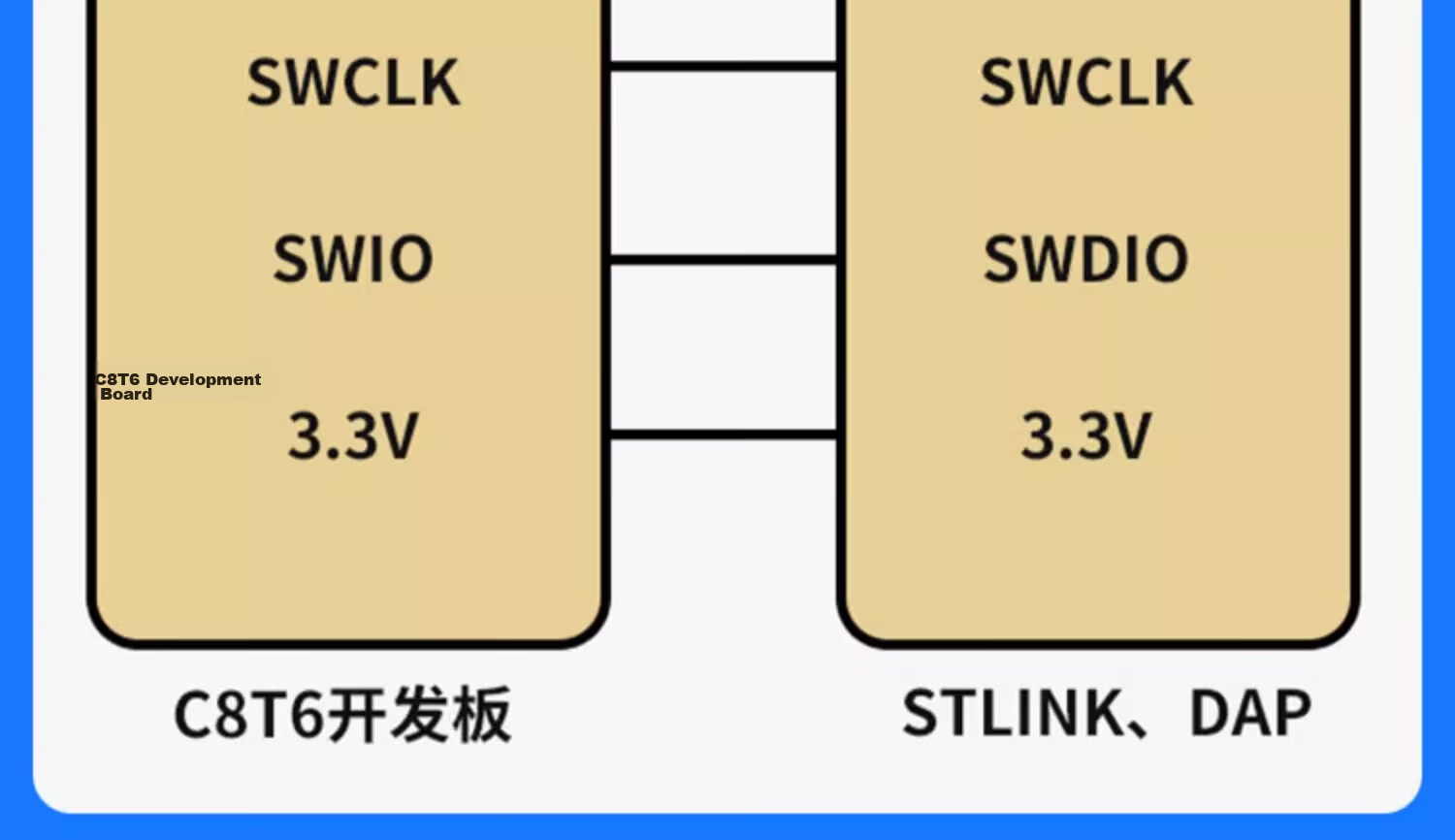

- SWCLK, SWDIO, GND, 3.3V.
Must use Dupont wires as per provided wiring diagram to avoid connection issues.
