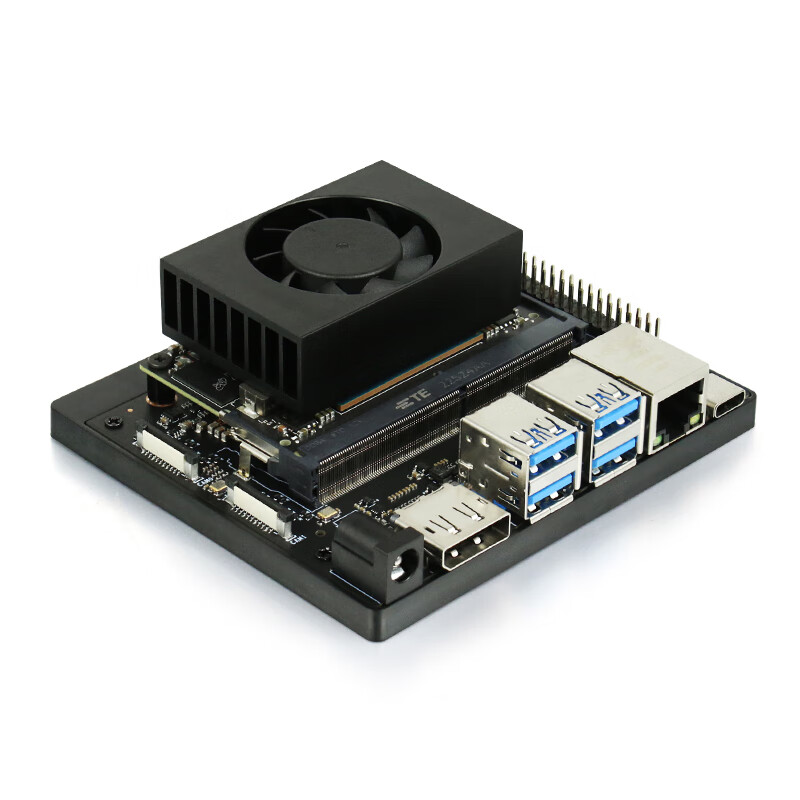

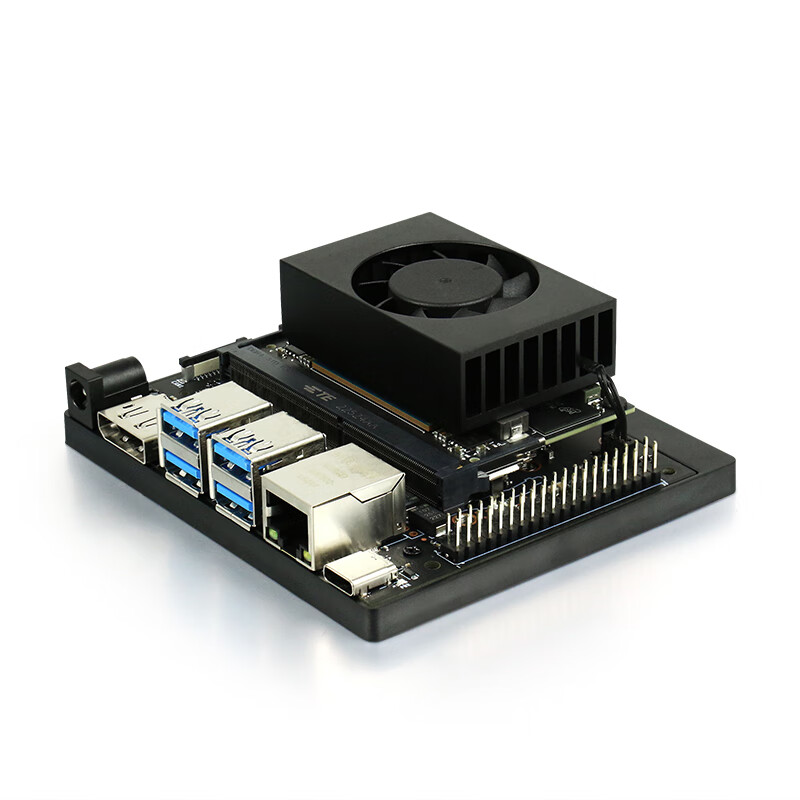

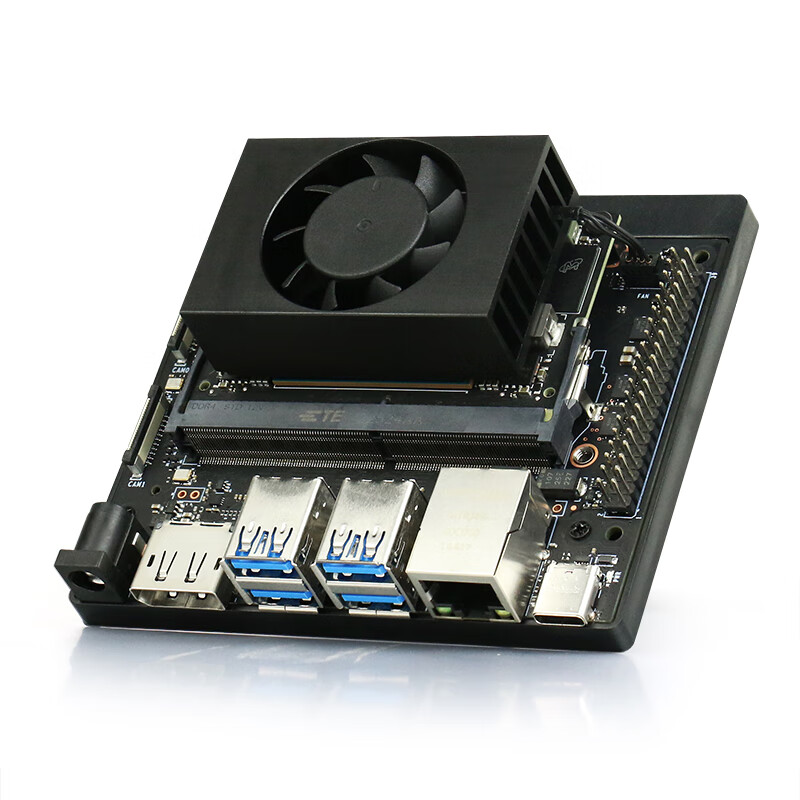

NVIDIA Jetson Orin NX Super 8G 16G Development Board AI Artificial Intelligence Starter Kit 4G Dual Ethernet 16G Orin NX with Metal Case
CN¥5,669.00
SKU: 100217172465
Status:In Stock (4)
ID: 100217172465
Weight: 1124.00 g
Dims:306x190x88 mm
Variants / Sale Attributes
Color: 8G Orin NX 256G SSD package with free case included
Package Contents
16G Orin NX with metal casing
Product Description
Overview
Brand
NVIDIA
Partner Level
Elite Partner (Official Elite Certified Partner)
Partner Website
https://www.nvidia.cn
Partner Types
Registered, Preferred, Elite (Elite is the highest level, involving investment in NVIDIA sales and technical training, access to product, sales, marketing tools, and special benefits)

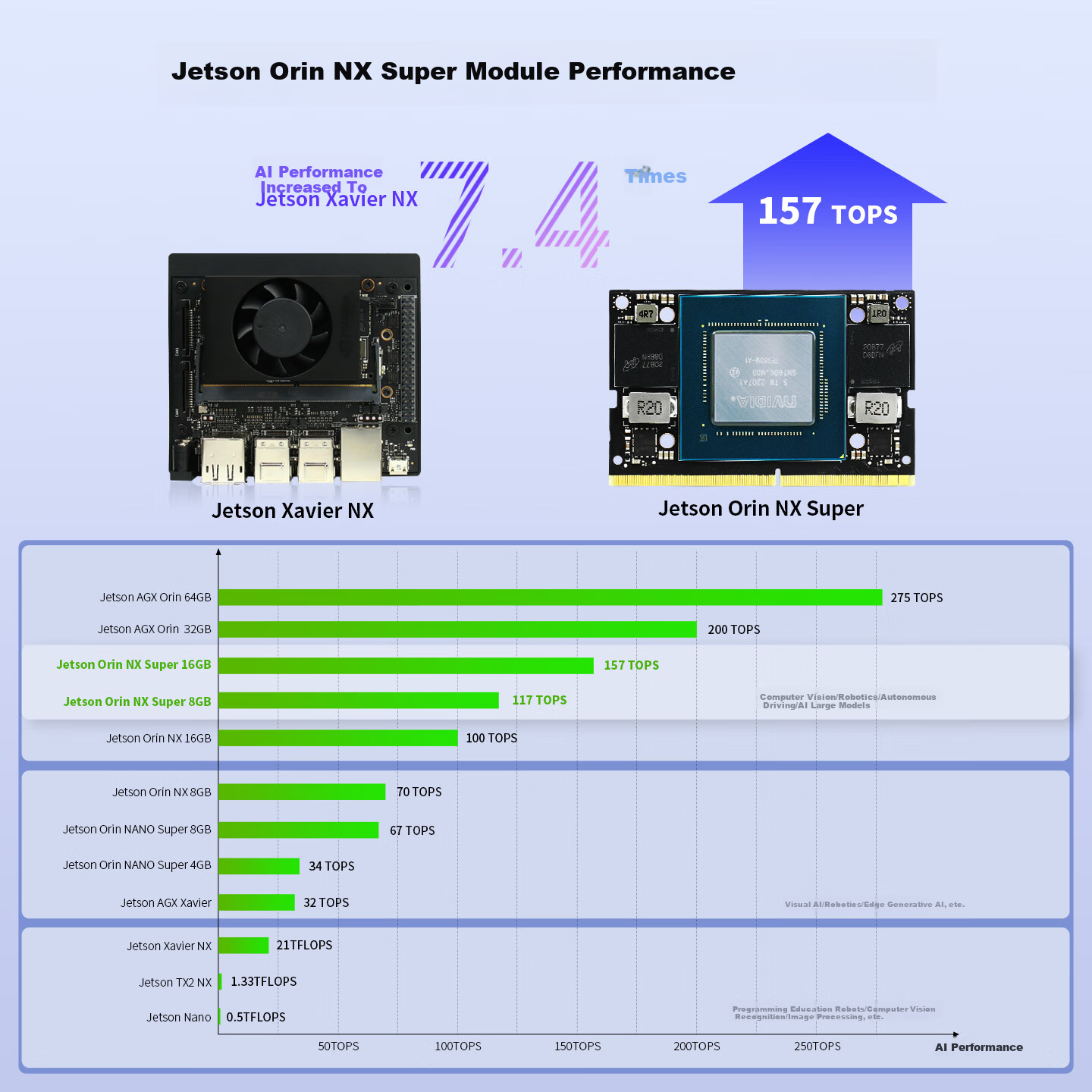

Up to 157 TOPS (1.57x to 1.67x higher than Jetson Orin NX)
GPU
NVIDIA Ampere architecture with 1024 CUDA cores and 32 Tensor Cores
GPU Frequency
Max 1173 MHz
CPU Options
6-core or 8-core Arm Cortex-A78AE v8.2 64-bit CPU
CPU Cache
1.5MB L2 + 4MB L3 or 2MB L2 + 4MB L3
CPU Frequency
Up to 2 GHz
Deep Learning Accelerators
1x or 2x NVDLA v2
Vision Accelerator
1x PVA v2
Memory
8GB or 16GB 128-bit LPDDR5, 102.4 GB/s bandwidth
Storage
256GB NVMe SSD
Video Encoding
Supports up to 1x 4K60 (H.265), 3x 4K30 (H.265), 6x 1080p60 (H.265), 12x 1080p30 (H.265)
Video Decoding
Supports up to 1x 8K30 (H.265), 2x 4K60 (H.265), 4x 4K30 (H.265), 9x 1080p60 (H.265), 18x 1080p30 (H.265)
Camera Interface
2x MIPI CSI-2 22-pin connectors
Expansion Slots
2x M.2 Key M, 2x mini PCIe (varies by model), M.2 Key E
USB Ports
4x USB 3.2, 2x USB Type-C
Network
1x or 2x RJ45 Gigabit Ethernet ports
Display Outputs
1x DisplayPort, 1x Micro HDMI, 1x HDMI (varies by model)
Other Interfaces
UART, CAN, SPI, I2C, GPIO (30-pin or 40-pin expansion headers), 4-pin fan connectors, DC power input (9-20V), recovery key
Wireless
Optional WiFi and Bluetooth modules with antenna connectors
Dimensions
Varies by kit, e.g., 103x90x35 mm, 115.5x85x57 mm, 120x95x37 mm
Weight
Ranges from 155 g to 510 g depending on configuration
Certifications
CE certified, EMC compliant, EN IEC 62311:2020, EN IEC 62368-1:2020+A11:2020, ETSI EN 301 489-1 V2.2.3, ETSI EN 301 489-17 V3.2.4, ETSI EN 300 328 V2.2.2
Operating System
Ubuntu 22.04 based Jetson Linux environment with pre-installed JetPack components
Comprehensive AI development guides tailored for Jetson Orin NX Super, including ROS2 acceleration, GPIO usage, DNN inference examples, video processing, and remote desktop setup
Power Modes
Supports power profiles from 10W to 40W, including PoE power input and output support
Enclosure Options
Acrylic and aluminum alloy cases available for development kits and edge AI smart boxes
Included Accessories (varies by kit)
Power cables, DP to HDMI cables, Type-C cables, microSD cards, wireless network cards, antennas, USB drives
CLB (MicroSD and NVMe SSD versions), YLB (Dual Ethernet), Edge AI Smart Box
Jetson Orin NX Super AI Development Kit (CLBW09)
Computer Vision, Robotics, Autonomous Driving, Large AI Models, Edge AI Inference, AI Education and Research
Focus on product quality with official certifications and compliance reports issued by Shenzhen HTT Technology Co., Ltd.
CE marking and compliance with EU Radio Equipment Directive (RED)
The NVIDIA Jetson Orin NX Super series, provided by elite partner Hunan Chuanglebo Intelligent Technology Co., Ltd., offers high-performance embedded AI computing platforms with advanced GPU and CPU architectures, extensive I/O interfaces, and comprehensive software support. These development kits and modules are designed for AI developers, researchers, and enterprises focusing on edge AI, robotics, and computer vision applications, backed by official NVIDIA certification and partner support.
