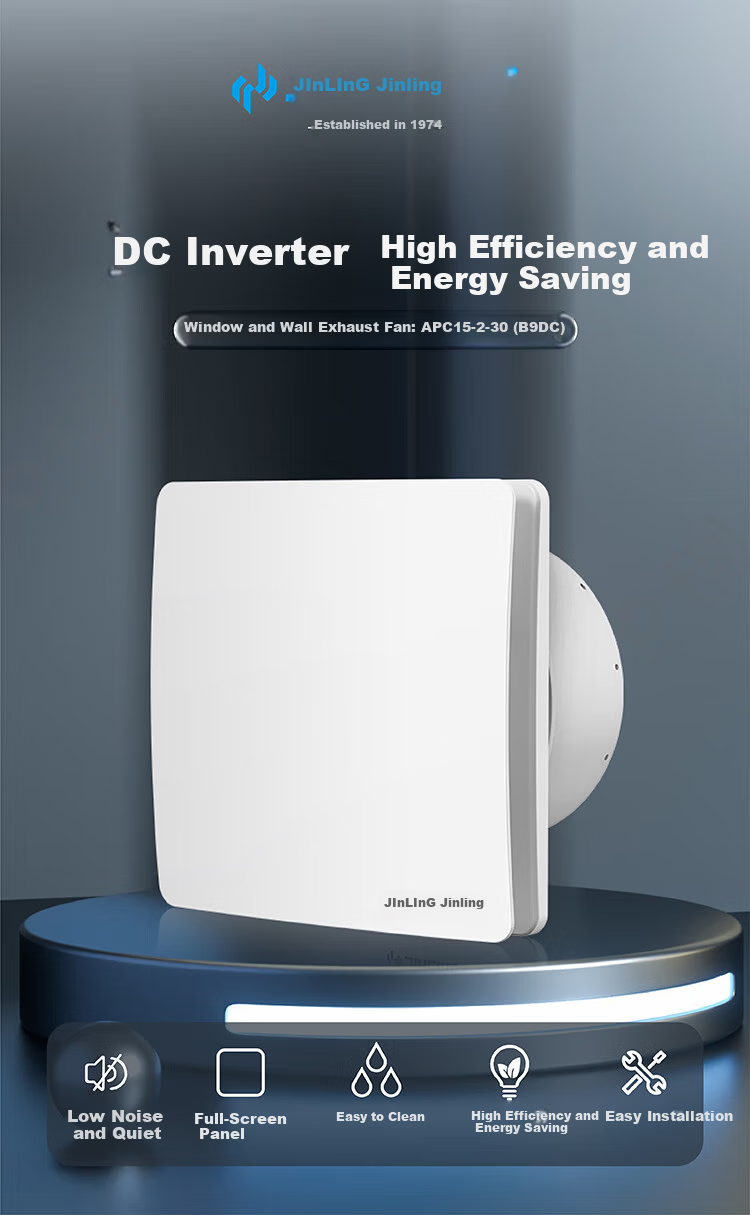

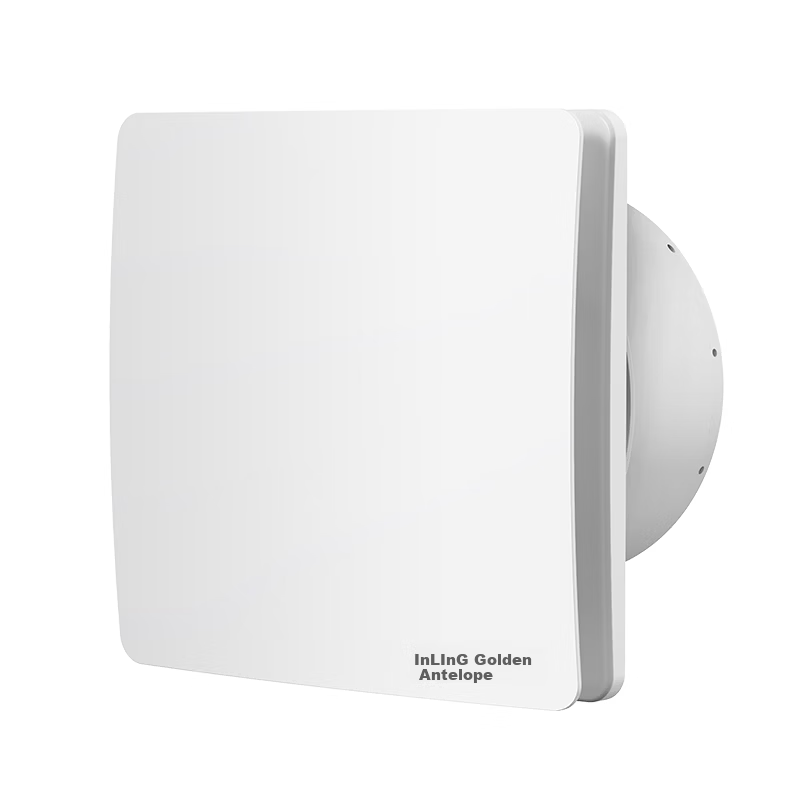

JINLING Window Wall Exhaust Fan DC Inverter Low Noise Bathroom Kitchen 6-Inch Ventilation Fan 15-C(B9DC)

Powerful airflow

up to 240 m³/h suction capacity

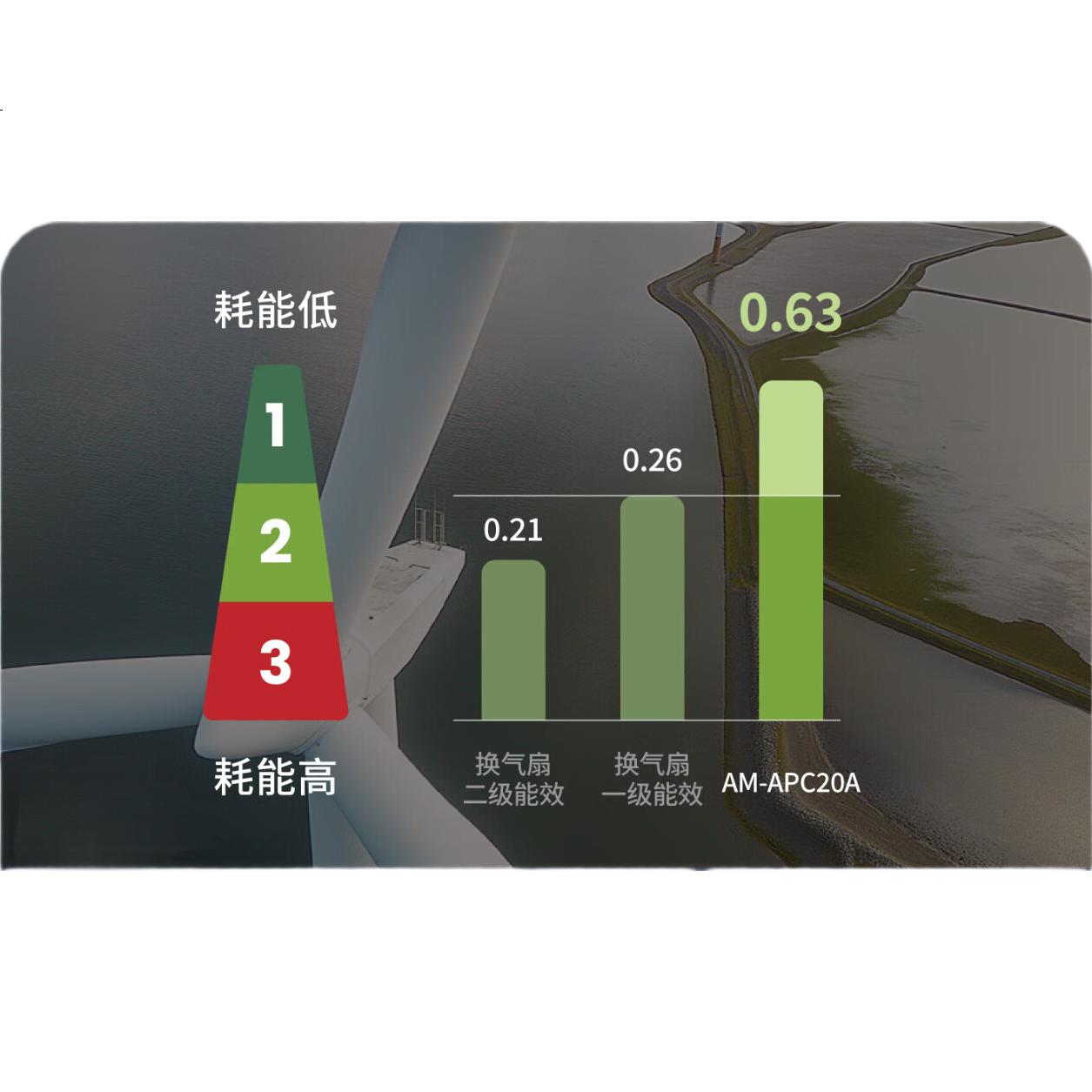

Energy efficiency surpasses Level 1 standards

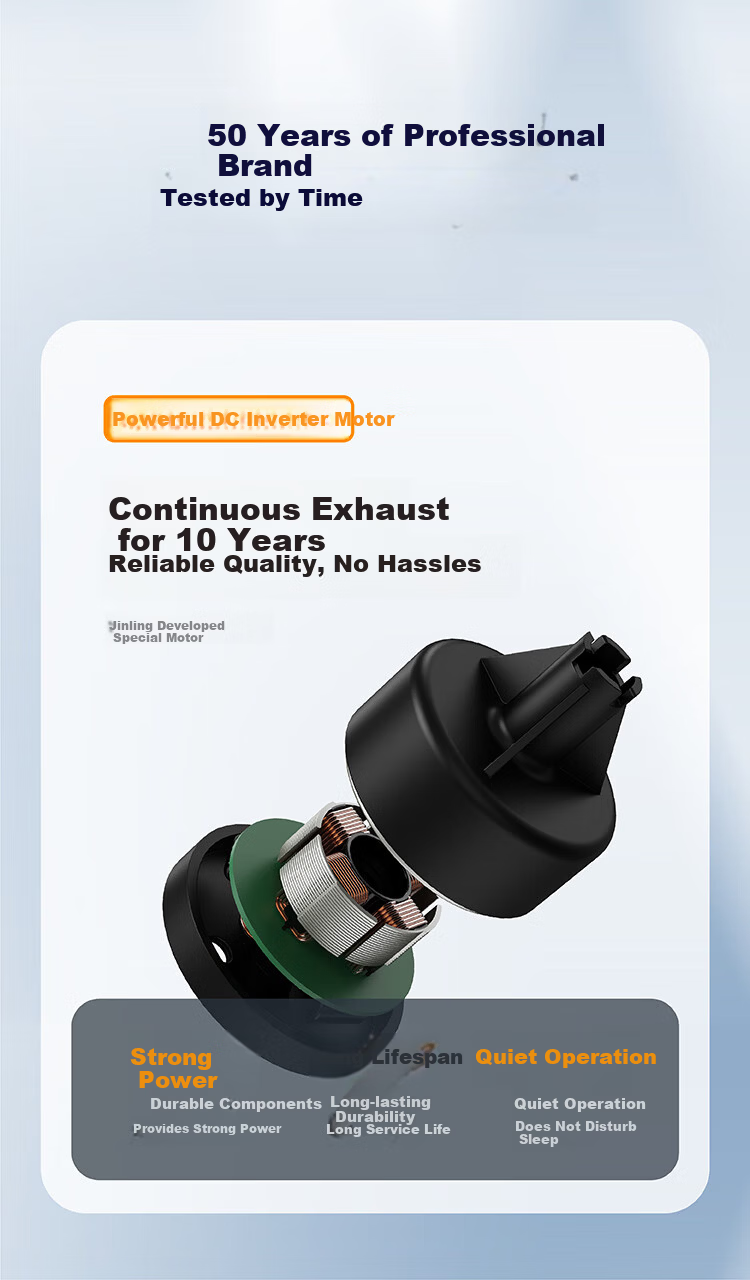

Durable, quiet, and long-lasting motor developed in-house

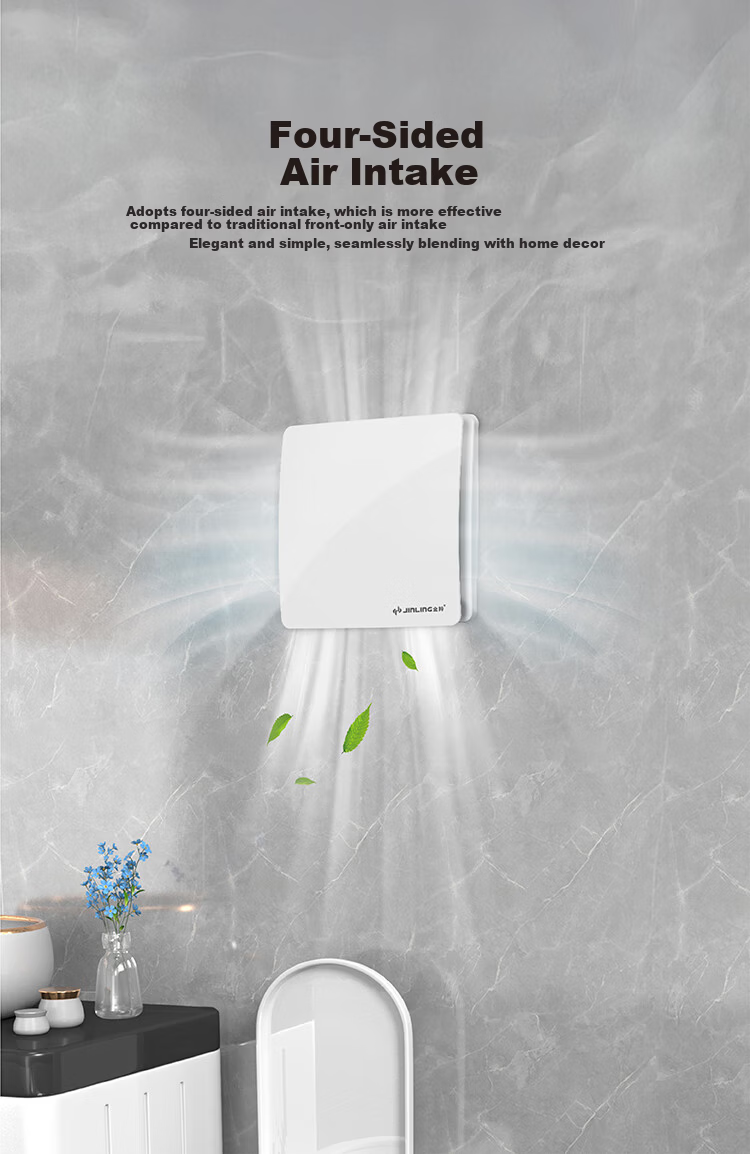

Four-sided air intake design for improved aesthetics and performance

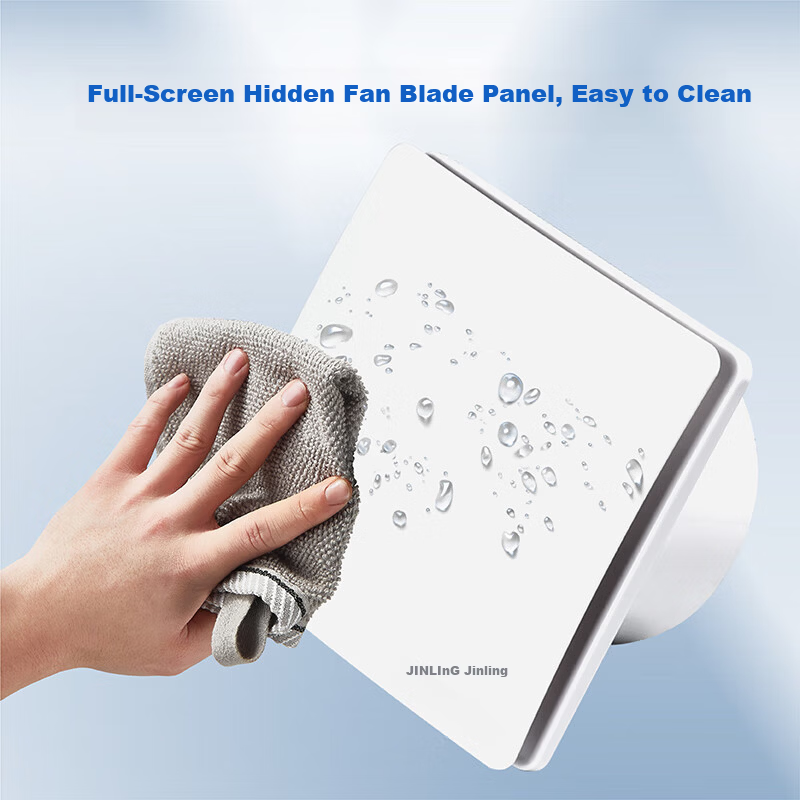

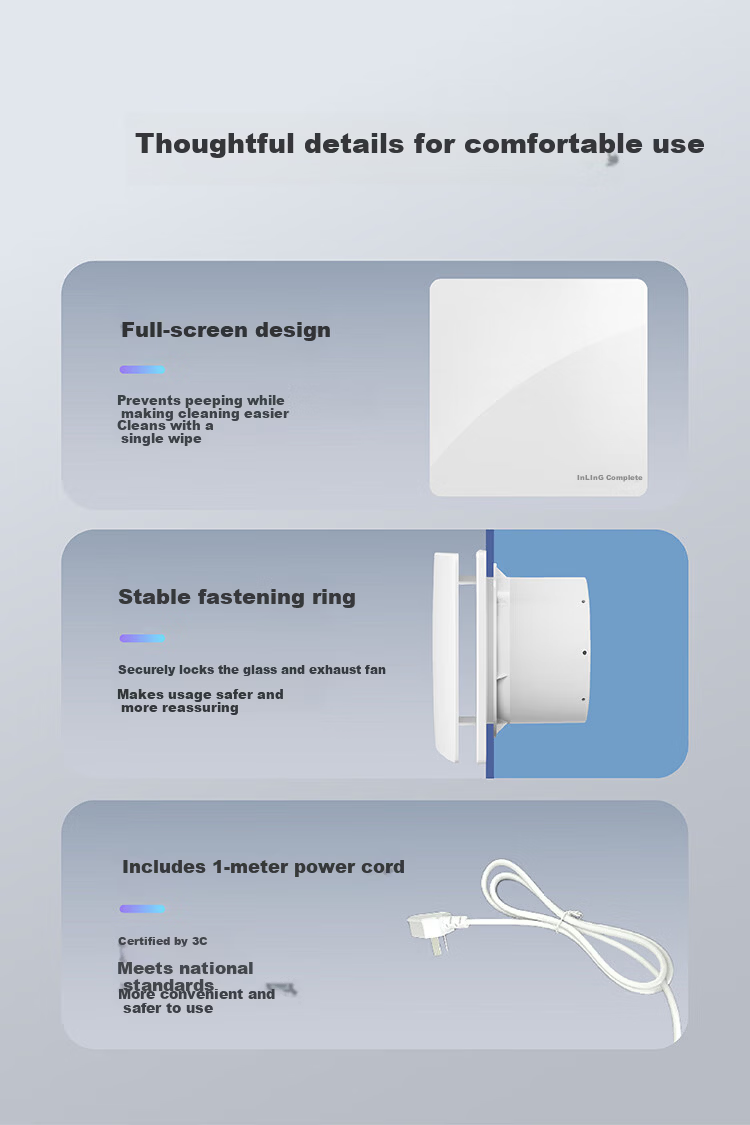

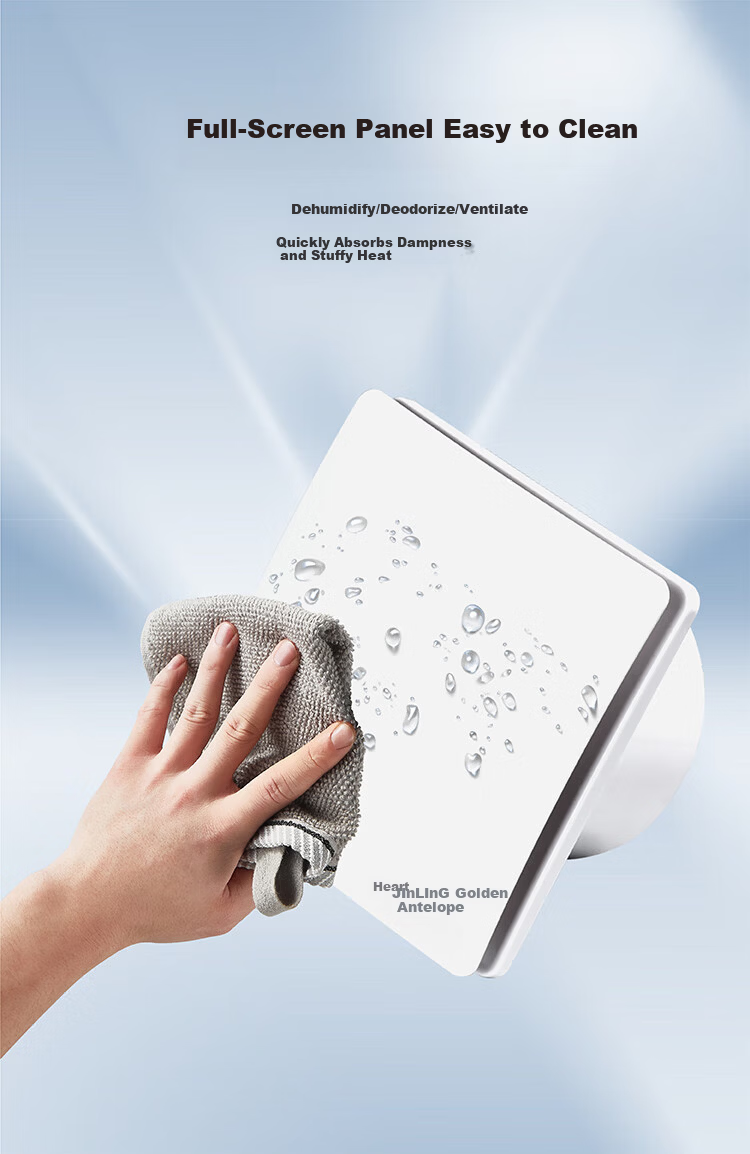

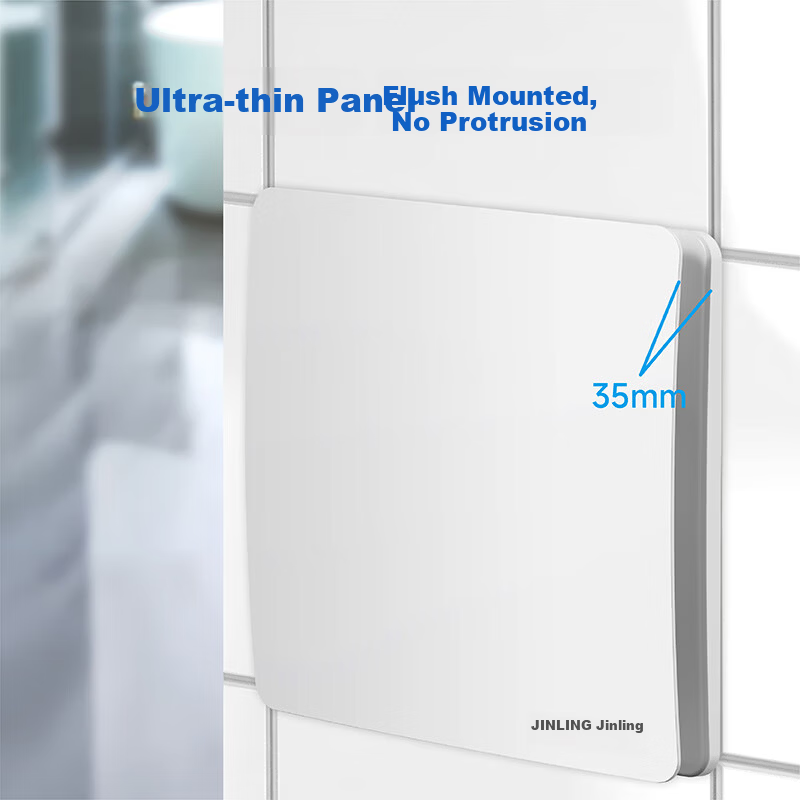

Full-screen panel design for easy cleaning and anti-peep protection

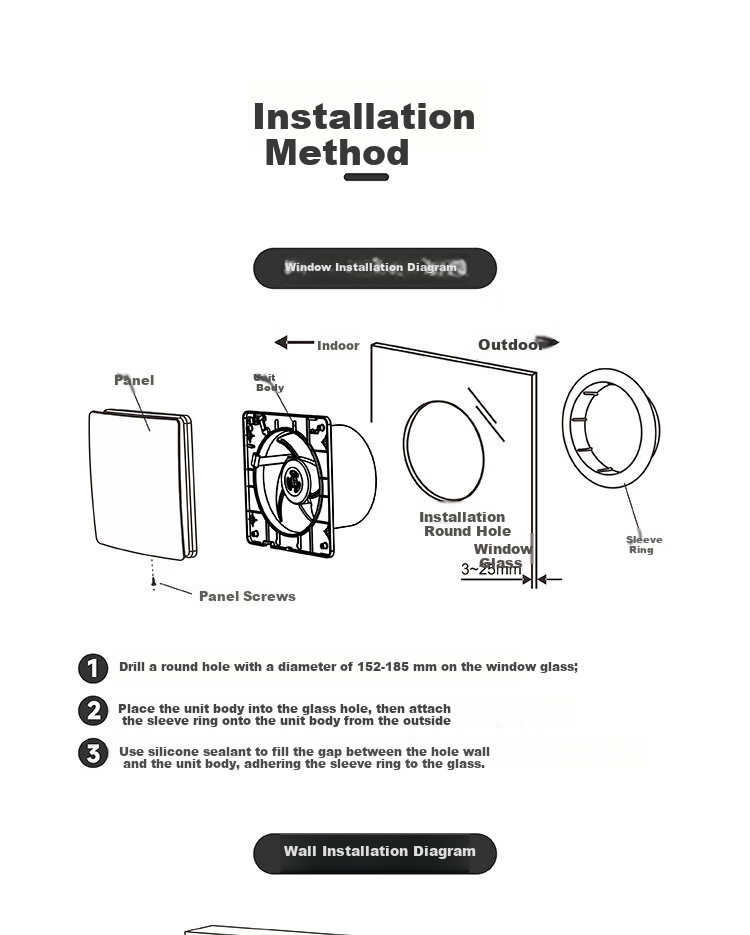

Simple installation with included 1-meter power cord, 3C certified

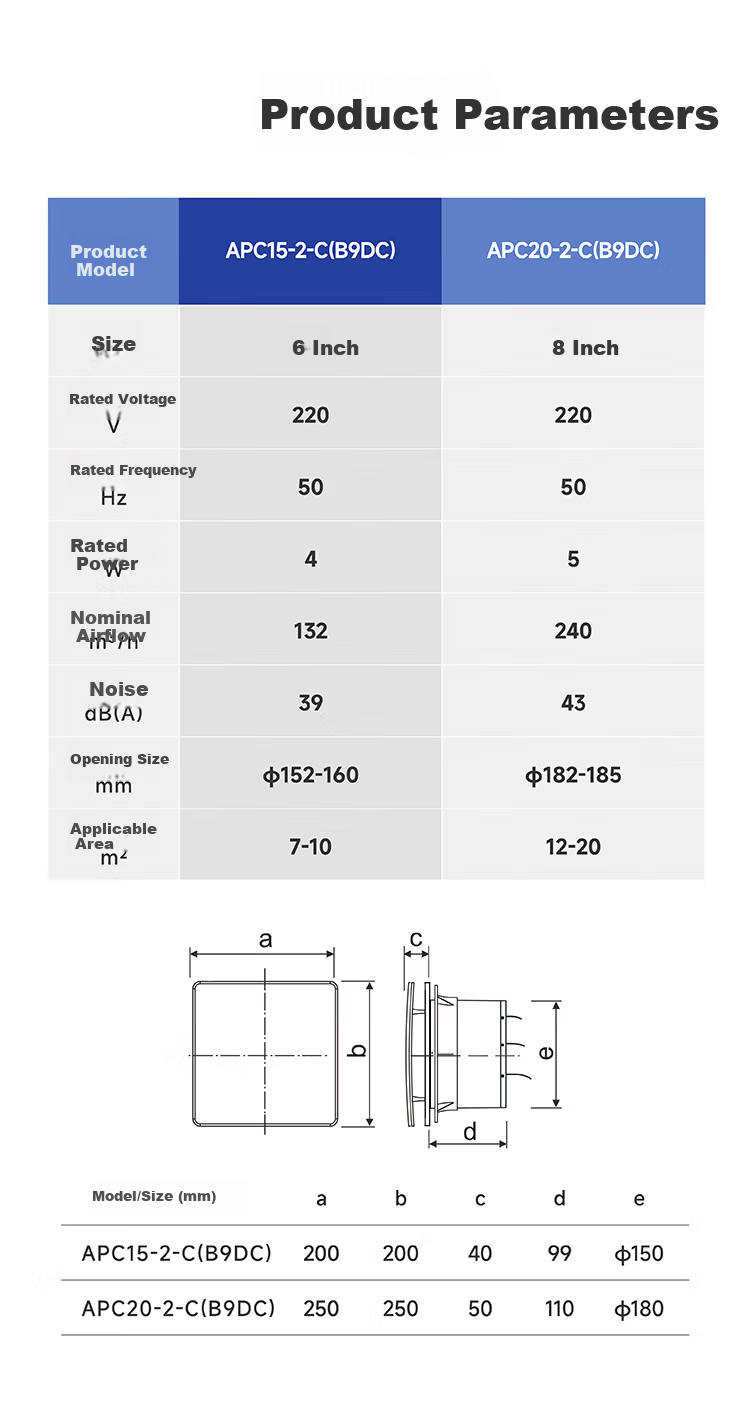

| Model | APC15-2-C(B9DC) | APC20-2-C(B9DC) |

|---------------------|-----------------|-----------------|

| Size | 6 inch | 8 inch |

| Rated Voltage | 220 V | 220 V |

| Rated Frequency | 50 Hz | 50 Hz |

| Rated Power | 4 W | 5 W |

| Nominal Air Volume | 132 m³/h | 240 m³/h |

| Noise Level | 39 dB(A) | 43 dB(A) |

| Opening Diameter | Φ152-160 mm | Φ182-185 mm |

| Applicable Area | 7-10 m² | 12-20 m² |

| Model | a | b | c | d | e |

|---------------------|-----|-----|----|-----|-------|

| APC15-2-C(B9DC) | 200 | 200 | 40 | 99 | Φ150 |

| APC20-2-C(B9DC) | 250 | 250 | 50 | 110 | Φ180 |

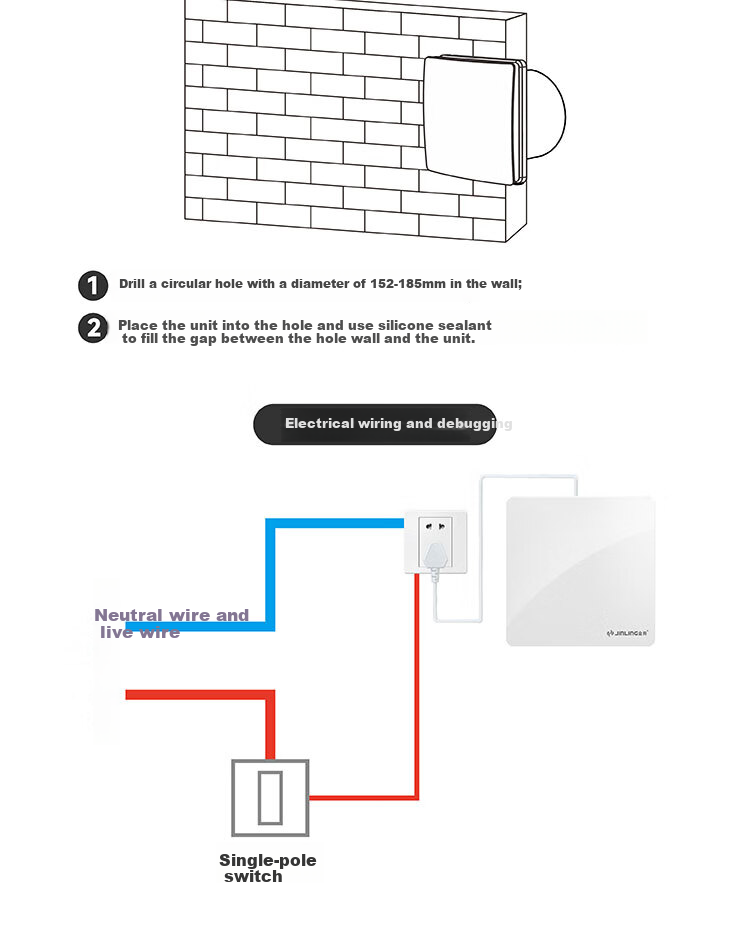

Single control switch wiring with live and neutral wires

Complies with national standards and 3C certification

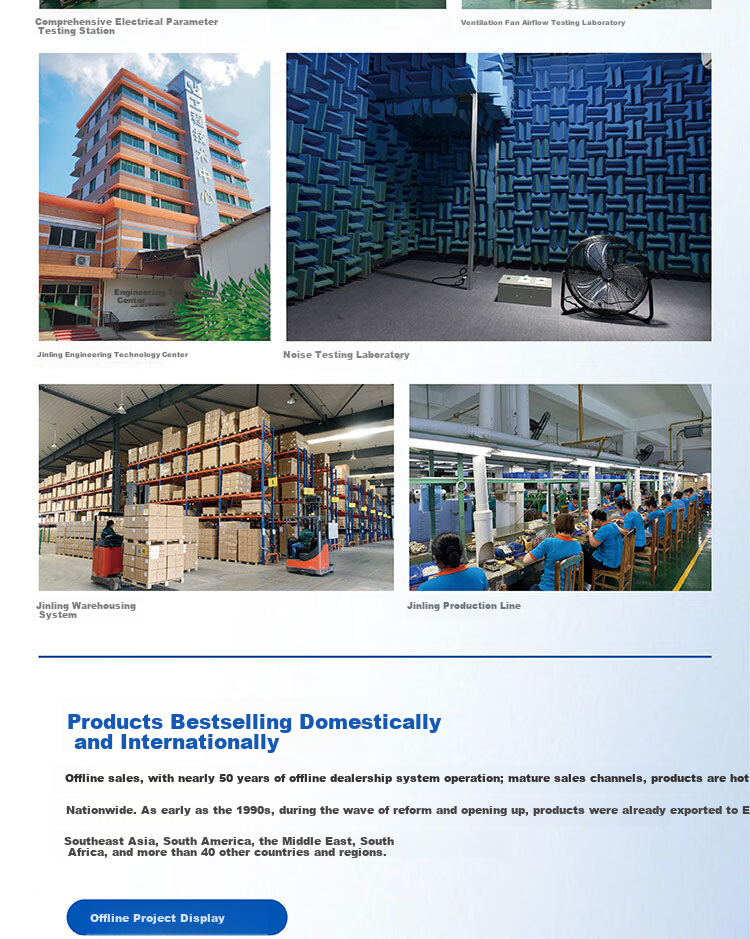

Comprehensive electrical parameter testing

Air volume testing in dedicated laboratory

Noise testing in specialized noise lab

Engineering technology center support

Robust warehousing and production lines ensuring quality and supply

Suitable for residential, commercial, and institutional buildings

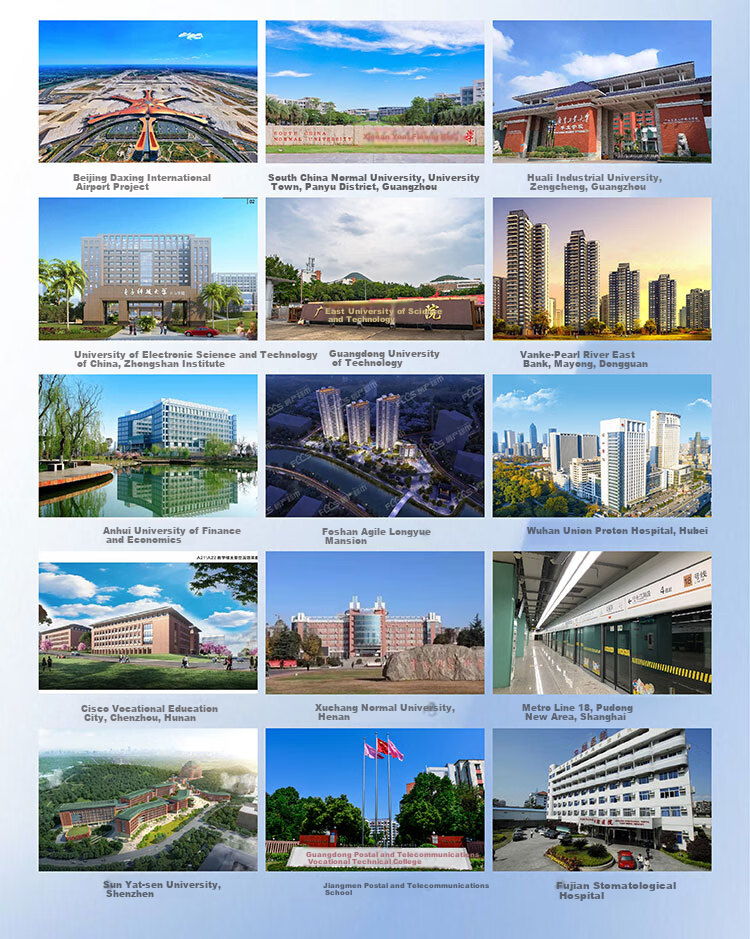

Widely used in major projects such as Beijing Daxing International Airport, South China Normal University, Guangzhou Panyu University Town, Wuhan Concord Proton Hospital, and many others

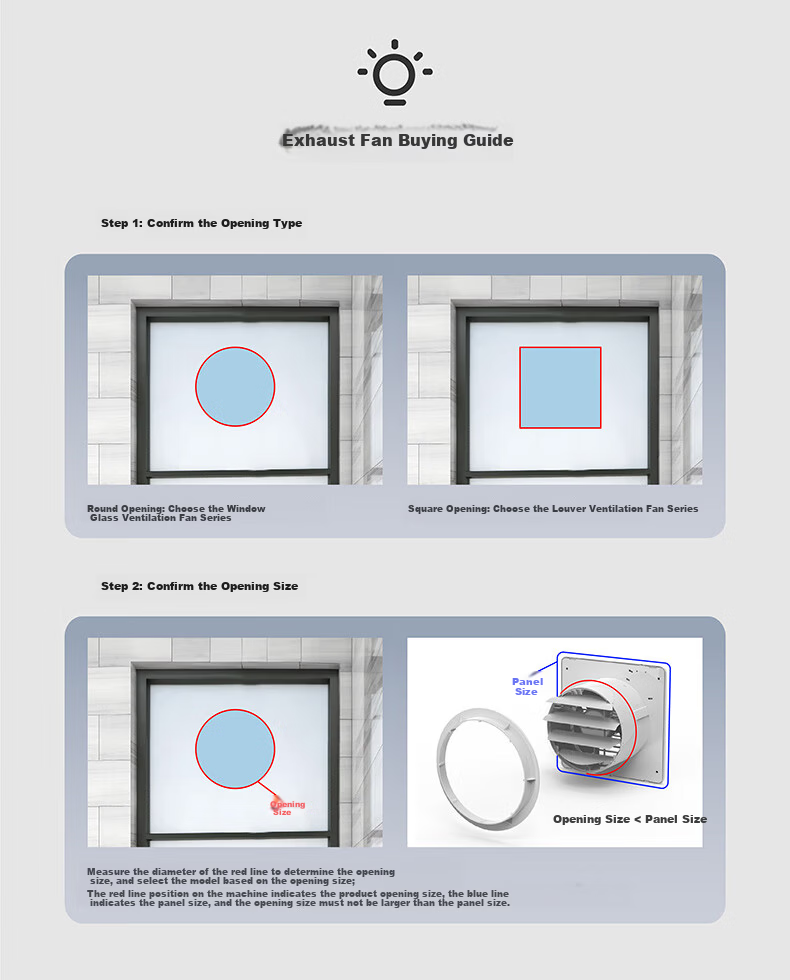

Panel size must be larger than the opening size

Red line on product indicates opening size; blue line indicates panel size

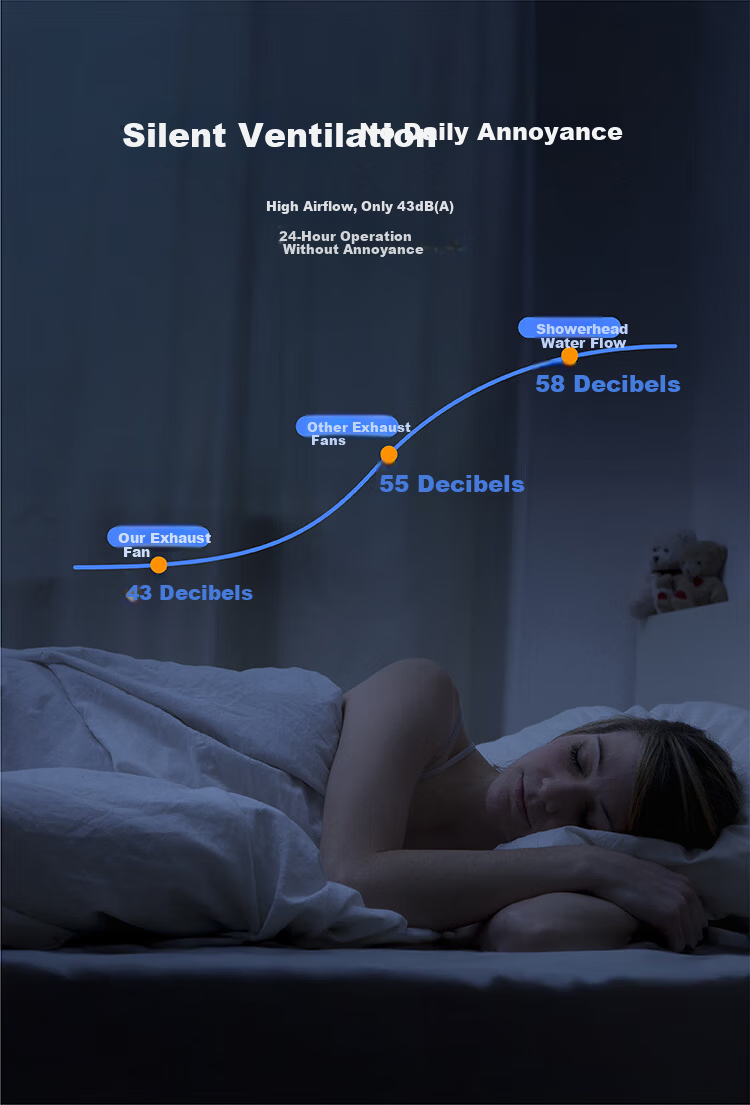

Designed for quiet, continuous 24-hour operation without disturbance (43 dB(A) noise level compared to 55-58 dB(A) for other fans)
