Back to CatalogKuanteng Open and Close Elastic Pin Carbon Steel Wave Pin R-Shaped Cotter Pin Hairpin Lock Pin Bolt Pin B-Type Pin Set
Specifications
- Category
- multifunctional tool set
Variants / Sale Attributes

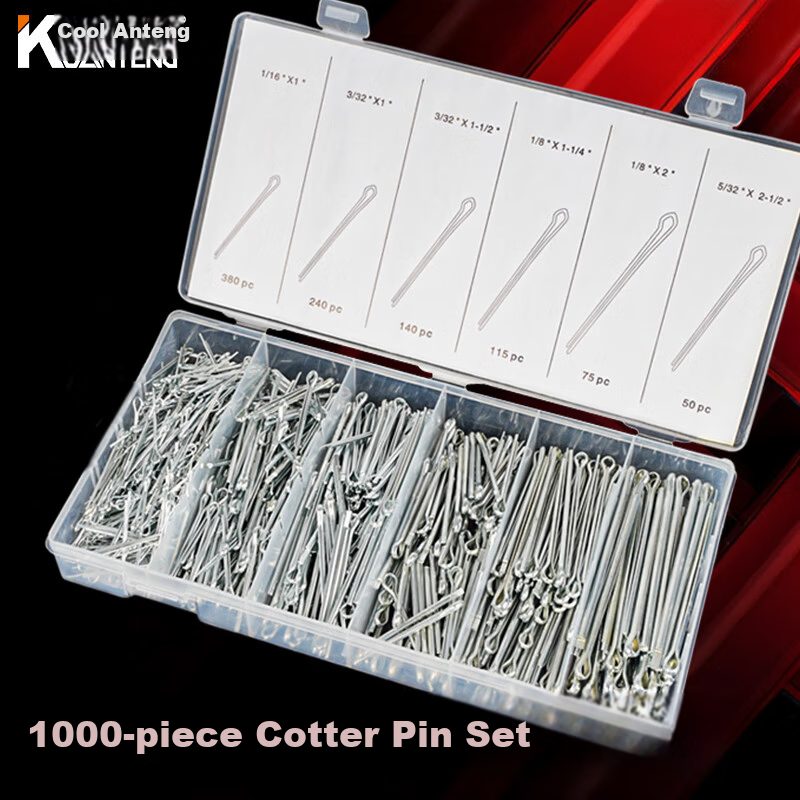

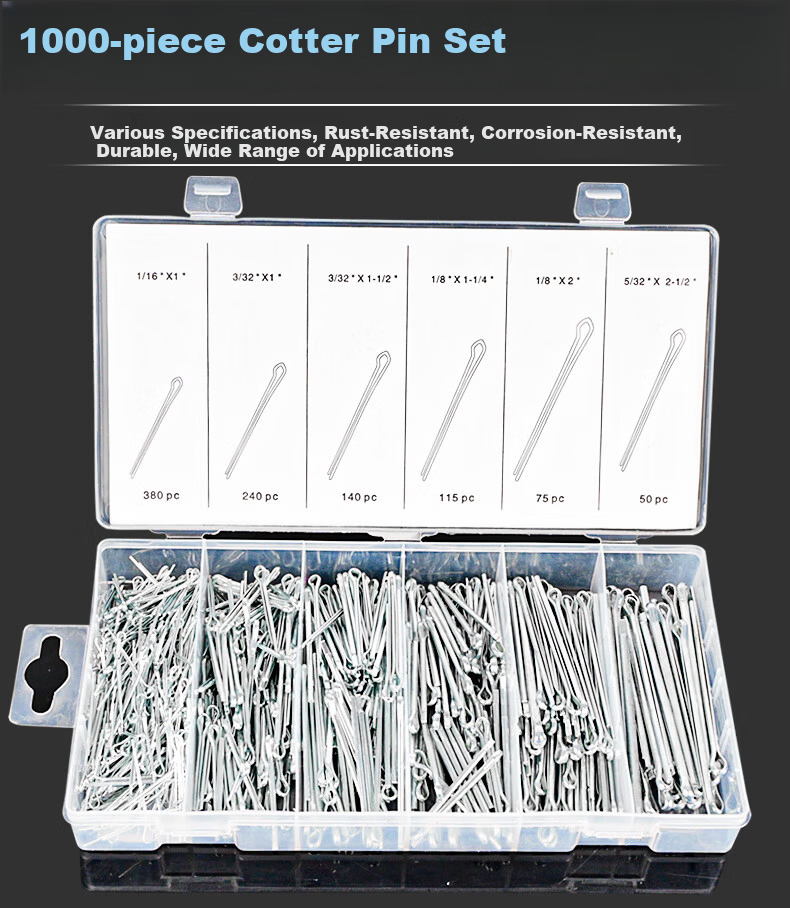

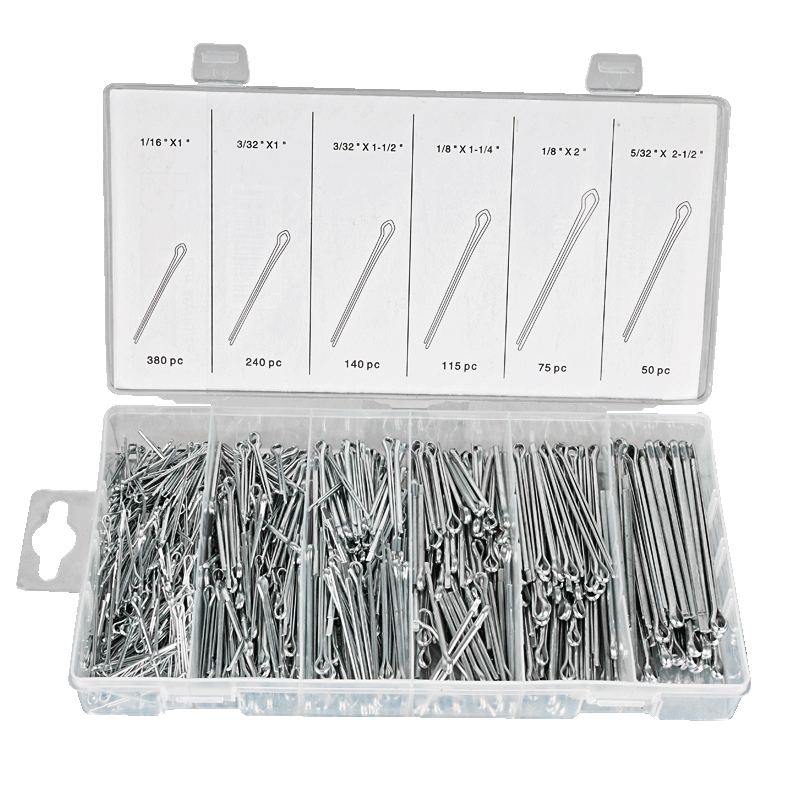

Case: 1000piece cotter pin set
Package Contents
Cotter Pin Set *1
Product Description
Product Specifications
Overview
- Brand
- Kuanteng ()
- Product Name
- Split Pin Assortment Kit
- Package Quantity
- 1000 pieces total

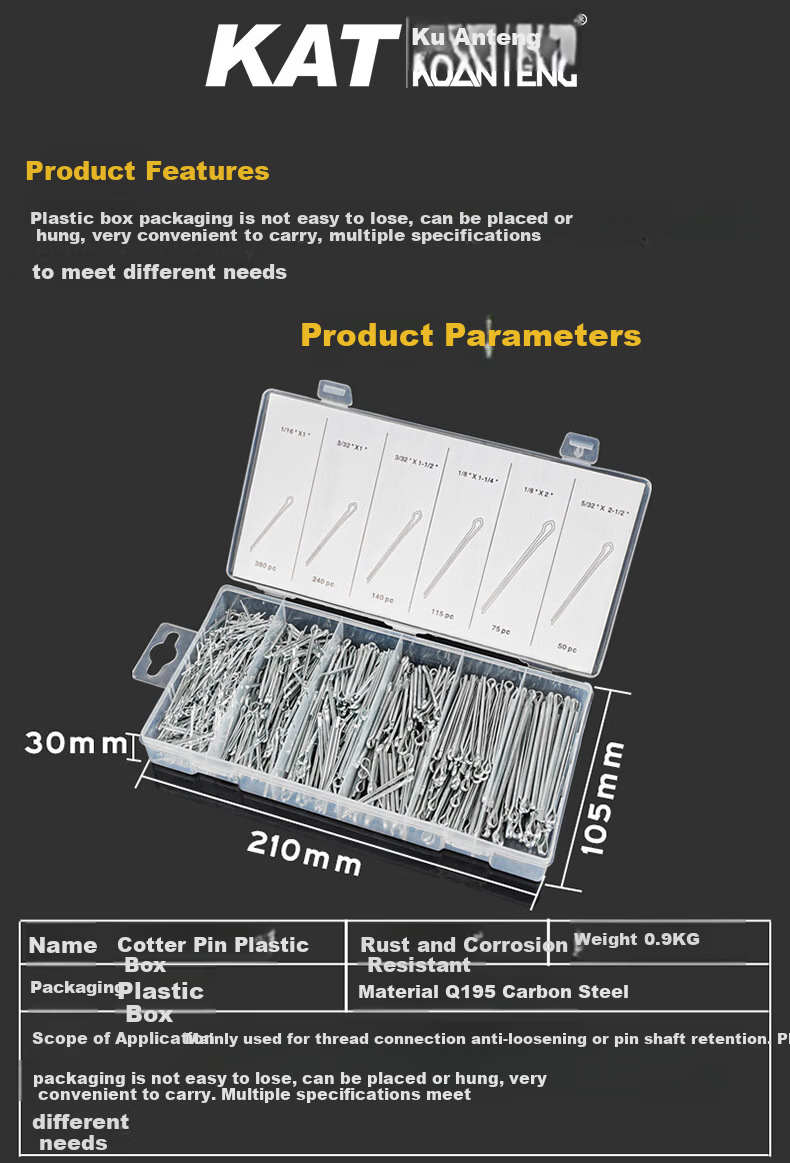

- Material
- Q195 Carbon Steel
- Finish
- Zinc-plated for rust and corrosion resistance
- Packaging
- Plastic storage box with hanging capability for easy carrying and storage
- Weight
- 0.9 KG
Rust and corrosion resistant
Similar Products
In Stock
Out of Stock
In Stock
Durable and sturdy construction
Multiple specifications to meet various needs
Plastic box packaging prevents loss and allows convenient storage or hanging
Smooth surface without burrs for comfortable handling
Mainly used for securing threaded connections to prevent loosening or pin shaft falling out

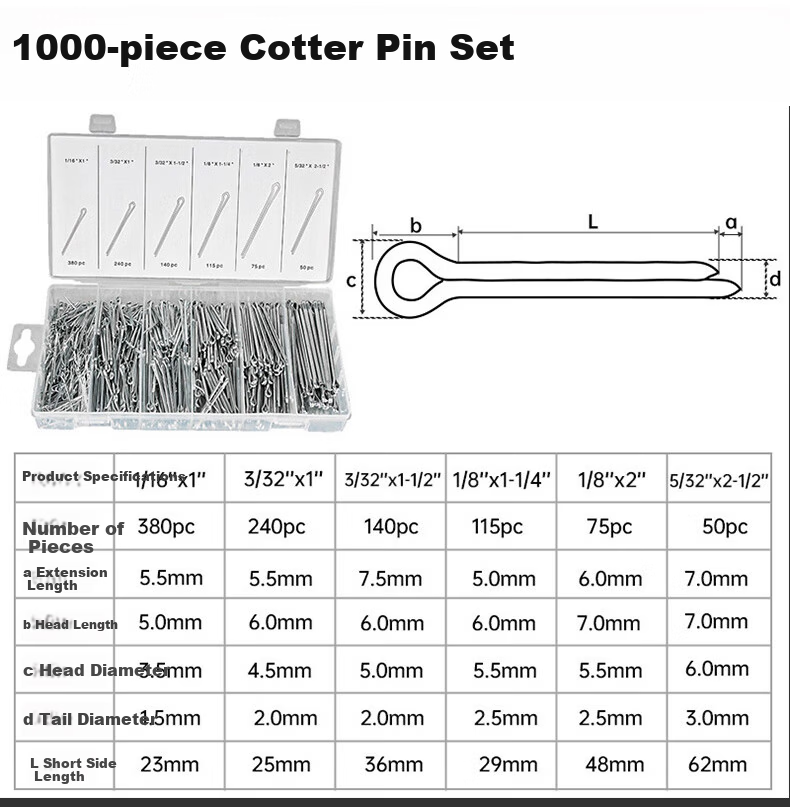

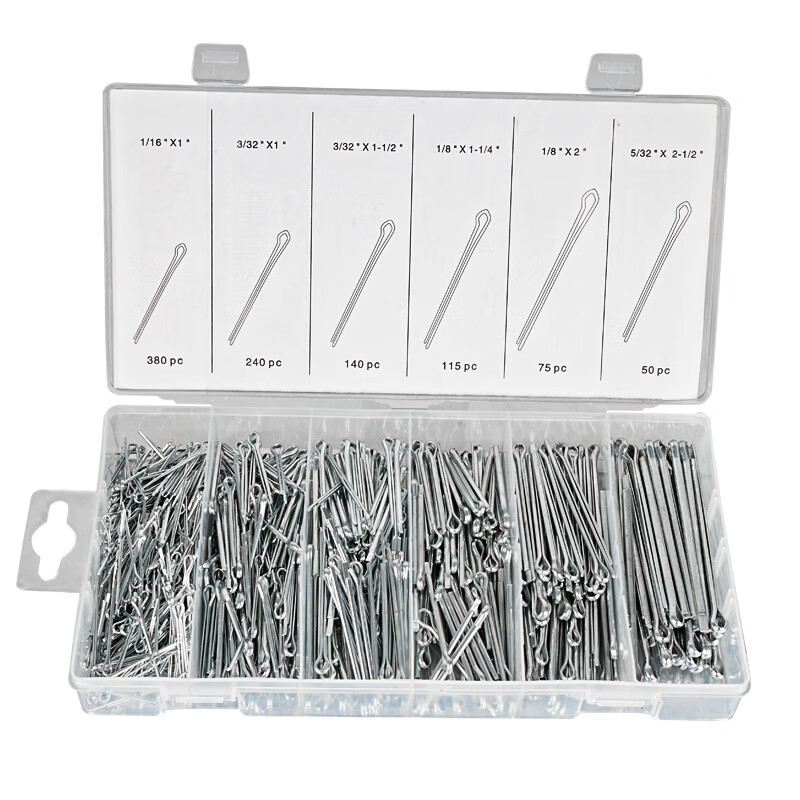

Sizes and Quantities
| Item | Detail |
|---|
| 1/16" x 1" – 380 pcs | — |
| 3/32" x 1" – 240 pcs | — |
| 3/32" x 1-1/2" – 140 pcs | — |
| 1/8" x 1-1/4" – 115 pcs | — |
| 1/8" x 2" – 75 pcs | — |
| 5/32" x 2-1/2" – 50 pcs | — |
Dimensions (per size)
| Size | Unfolded dimensions |
|---|
| a (Extended Length) | 5.5 mm, 5.5 mm, 7.5 mm, 5.0 mm, 6.0 mm, 7.0 mm |
| b (Head Length) | 5.0 mm, 6.0 mm, 6.0 mm, 6.0 mm, 7.0 mm, 7.0 mm |
| c (Head Diameter) | 3.5 mm, 4.5 mm, 5.0 mm, 5.5 mm, 5.5 mm, 6.0 mm |
| d (Tail Diameter) | 1.5 mm, 2.0 mm, 2.0 mm, 2.5 mm, 2.5 mm, 3.0 mm |
| L (Short Side Length) | 23 mm, 25 mm, 36 mm, 29 mm, 48 mm, 62 mm |

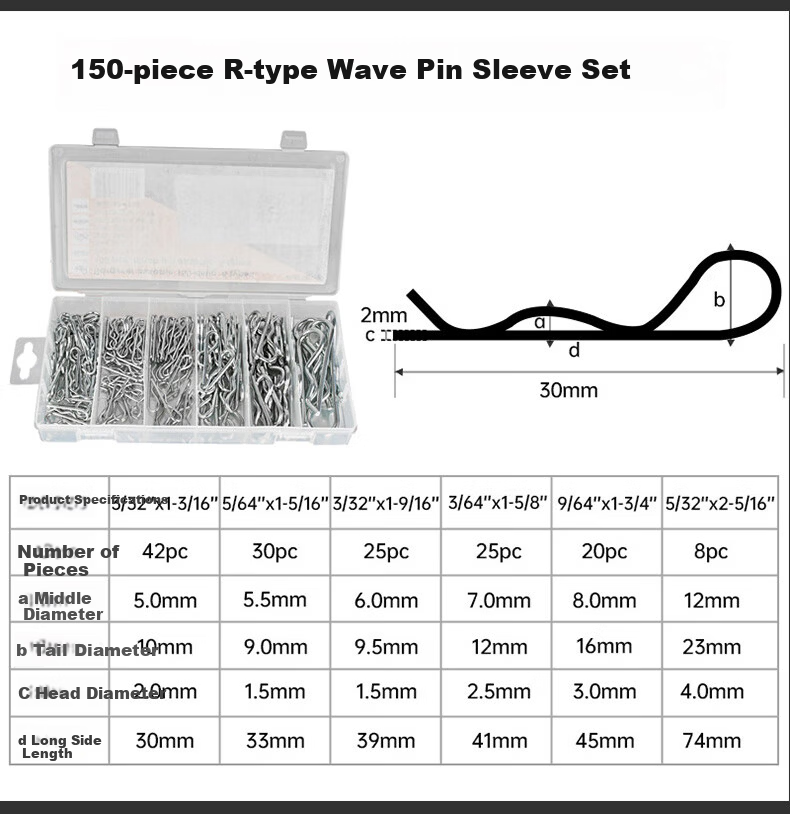

Sizes and Quantities
| Item | Detail |
|---|
| 3/32" x 1-3/16" – 42 pcs | — |
| 5/64" x 1-5/16" – 30 pcs | — |
| 3/32" x 1-9/16" – 25 pcs | — |
| 3/64" x 1-5/8" – 25 pcs | — |
| 9/64" x 1-3/4" – 20 pcs | — |
| 5/32" x 2-5/16" – 8 pcs | — |
Dimensions (per size)
| Size | Unfolded dimensions |
|---|
| a (Middle Diameter) | 5.0 mm, 5.5 mm, 6.0 mm, 7.0 mm, 8.0 mm, 12 mm |
| b (Tail Diameter) | 10 mm, 9.0 mm, 9.5 mm, 12 mm, 16 mm, 23 mm |
| c (Head Diameter) | 2.0 mm, 1.5 mm, 1.5 mm, 2.5 mm, 3.0 mm, 4.0 mm |
| d (Long Side Length) | 30 mm, 33 mm, 39 mm, 41 mm, 45 mm, 74 mm |

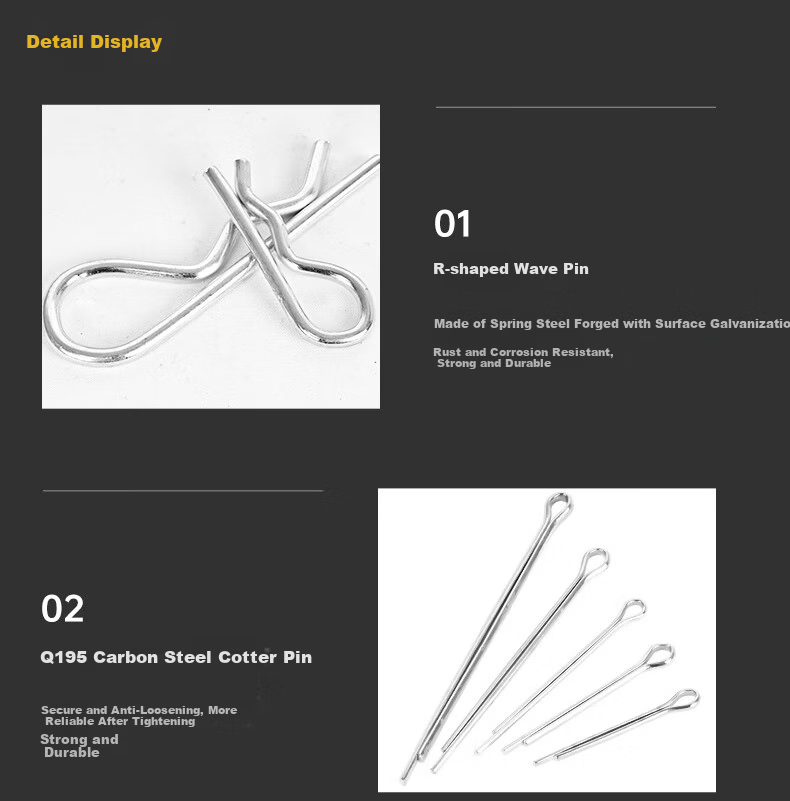

R-Type Wave Pins are forged from spring steel with zinc plating for enhanced rust and corrosion resistance, ensuring durability.

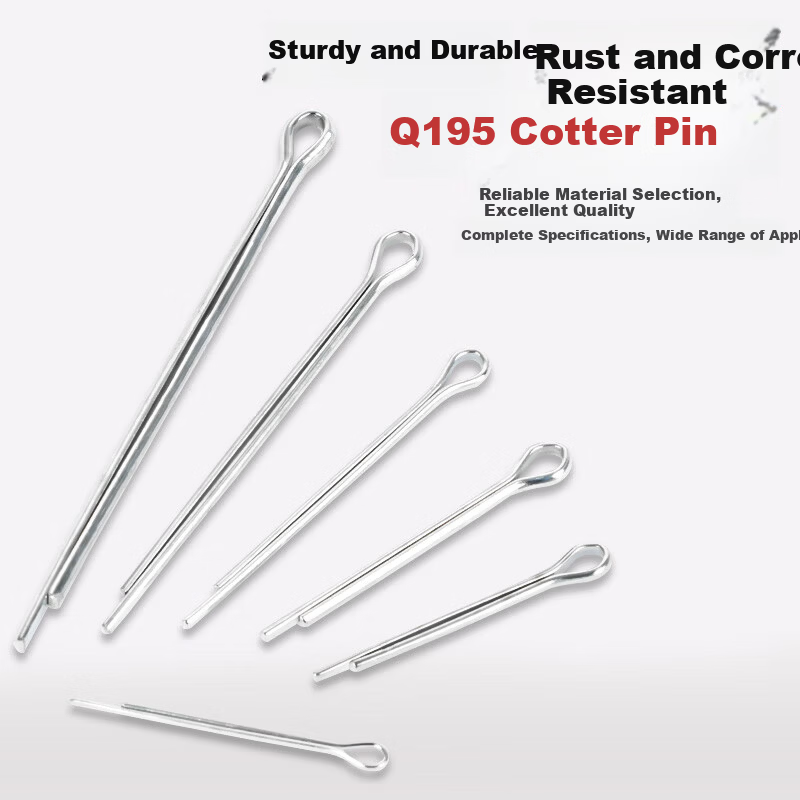

Q195 Carbon Steel Split Pins provide reliable fastening and anti-loosening performance after tightening.
Smooth, burr-free surface for comfortable handling and operation.

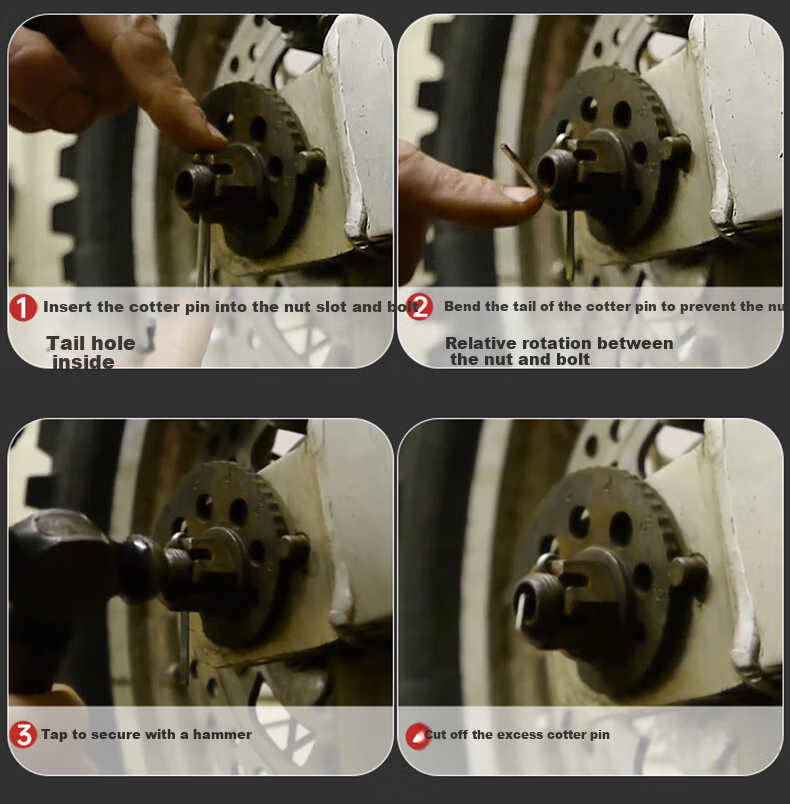

1. Insert the split pin into the nut slot and bolt.
2. Bend the tail end of the pin to prevent relative rotation between the nut and bolt.
3. Hammer the pin to secure it firmly.
4. Trim any excess length of the split pin as needed.
