HIKMICRO Thermal Imaging Camera, High-Definition Infrared Thermal Imager, Temperature Measuring Device, Night Vision Goggles, Underfloor Heating Inspection, Water Leak Detector H10+

HIKMICRO•Infrared thermal imager

HIKMICRO Thermal Imaging Camera, High-Definition Infrared Thermal Imager, Temperature Measuring Device, Night Vision Goggles, Underfloor Heating Inspection, Water Leak Detector H10+

CN¥1,499.00

SKU: 100221425042

Status:Out of Stock

ID: 100221425042

Weight: 1460.00 g

Dims:352x229x191 mm

Specifications

Suitable Scenarios: leak test, Outdoor, firefighting, scientific research, repair, Power inspection, Industry, military
Category: Handheld
work shift: Long wave

Variants / Sale Attributes

Model: [New Upgrade] H10+ (Ultra HD 384x288)

Package Contents

Standard configuration: instrument/factory certificate/user manual/plug/data cable

Product Description

Overview

Brand: HIKMICRO
Model: H10+/H10S+

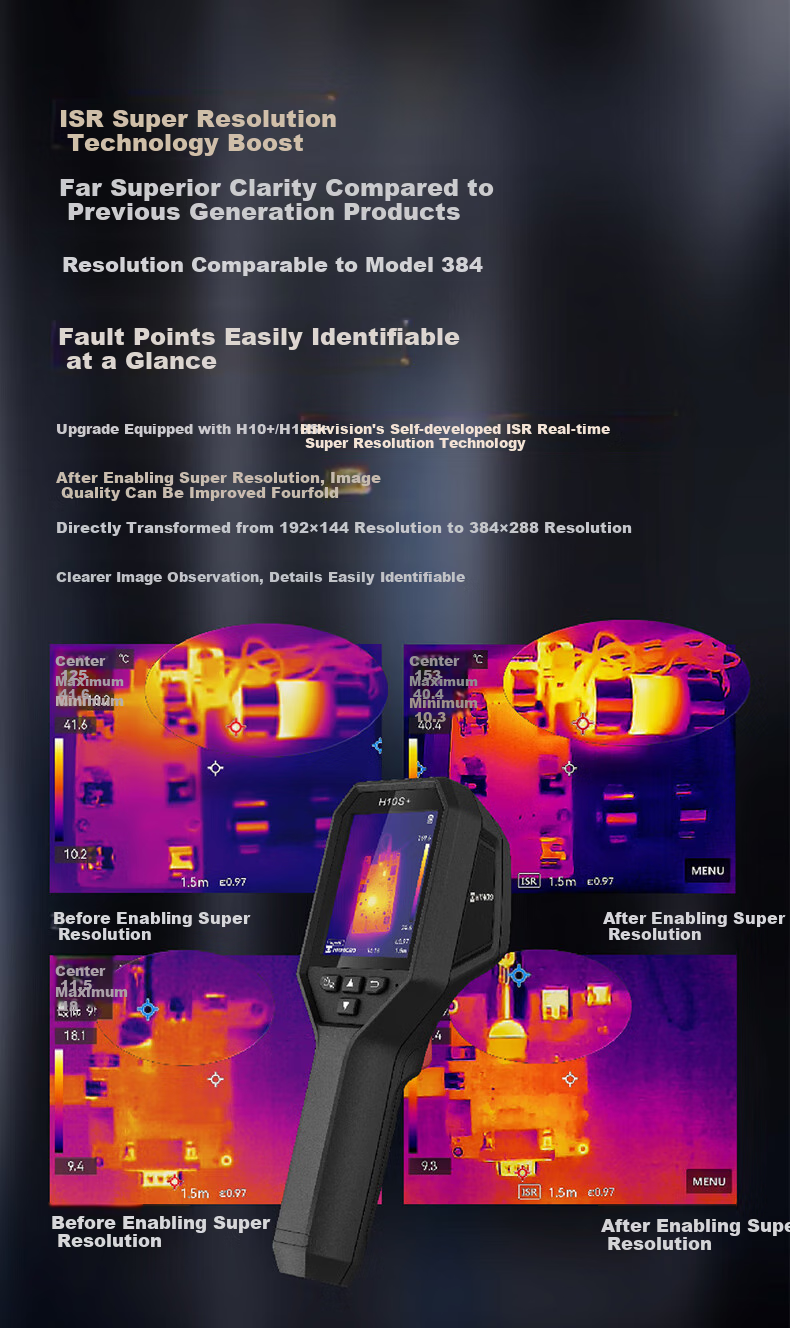

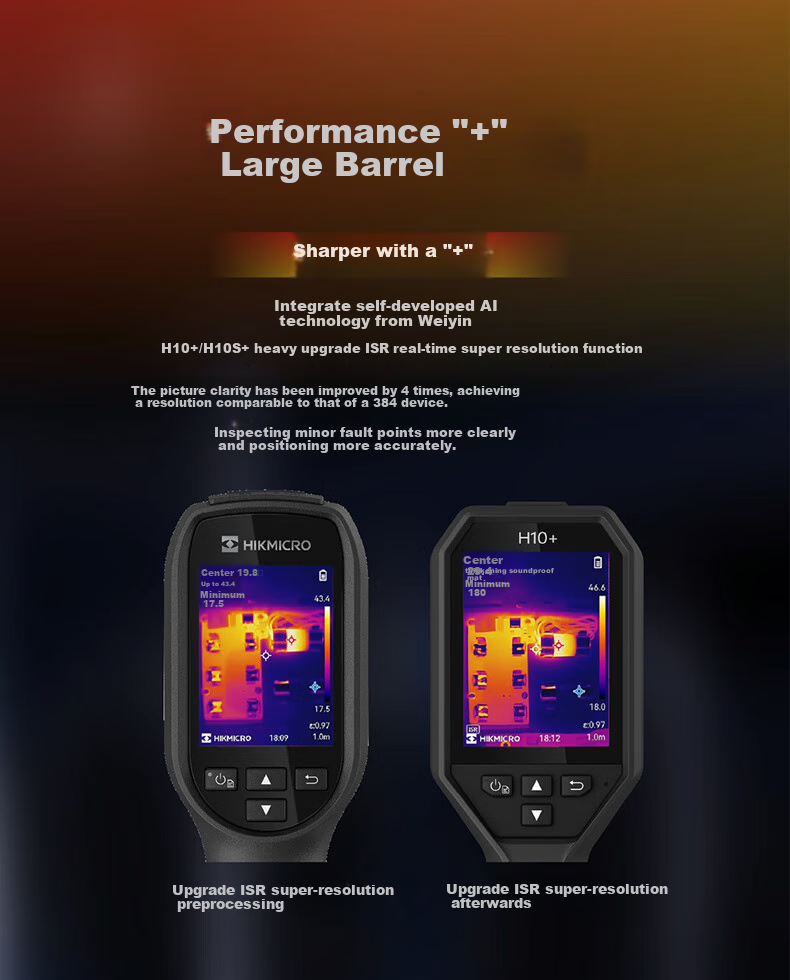

Performance: Enhanced clarity with self-developed AI technology, featuring ISR real-time super-resolution function. Image clarity improved by 4 times, resolution comparable to 384 devices. Enhanced fault detection for clearer and more accurate positioning.

Temperature Range

Center: 29.4°C, Highest: 46.6°C, Lowest: 17.5°C

Additional details

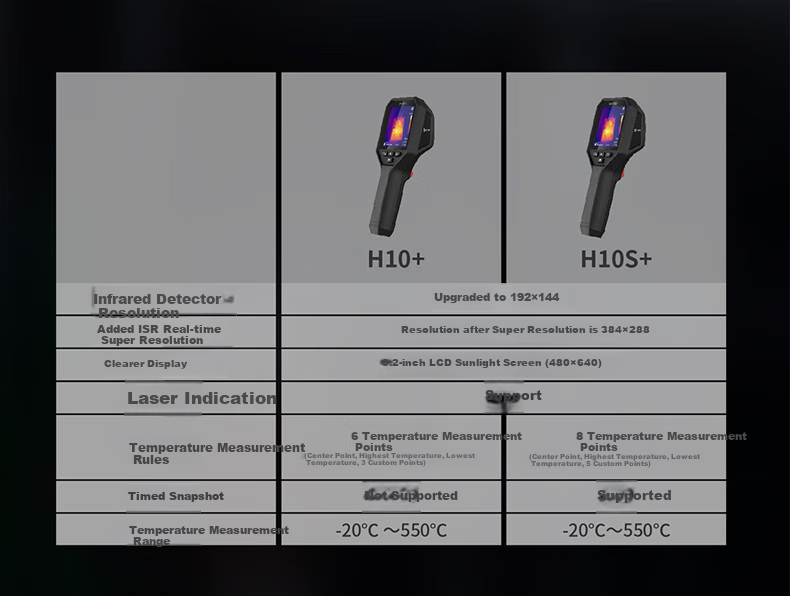

Infrared Detector Resolution: Upgraded to 192×144, with additional ISR real-time super-resolution function achieving 384×288 resolution for clearer display.

Similar Products

In Stock

HIKMICRO Thermal Imaging Camera, High-Definition Infrared Thermal Imager, Industrial Temperature Measurement, Power Inspection, Underfloor Heating Leak Detection Device H13PRO

HIKMICROInfrared thermal imager

HIKMICRO Thermal Imaging Camera, High-Definition Infrared Thermal Imager, Industrial Temperature Measurement, Power Inspection, Underfloor Heating Leak Detection Device H13PRO

[Touchscreen Model] H13Pro (Pixel 192*144/digital Zoom/photography And Video Recording)

CN¥4,699.00

In Stock

FLUKE TC01A Smartphone Thermal Imager, Thermal Imaging Night Vision Device, Infrared Thermometer, High-Definition Thermal Imager

FLUKEInfrared thermal imager

FLUKE TC01A Smartphone Thermal Imager, Thermal Imaging Night Vision Device, Infrared Thermometer, High-Definition Thermal Imager

TC01A - Supports Android System

CN¥2,536.00

Display

3.2-inch LCD sunlight screen (480×640) with laser indicator.

Temperature Measurement Points

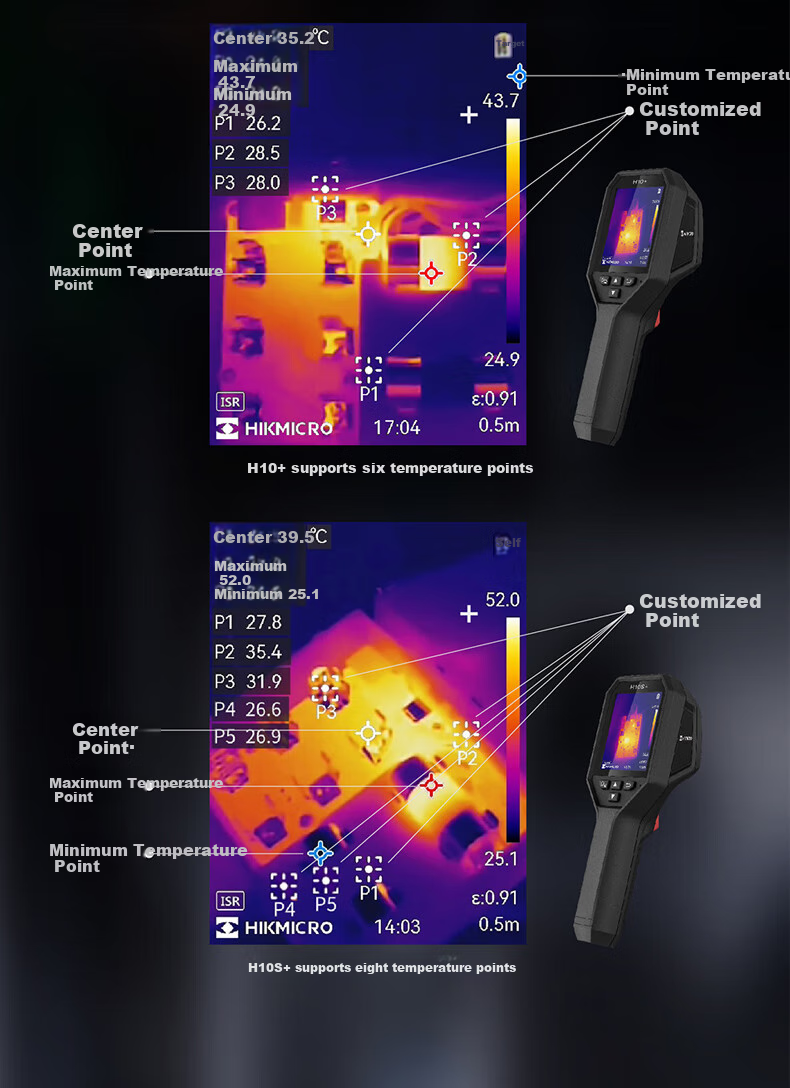

H10+ supports 6 points, H10S+ supports 8 points.

Temperature Measurement Rules

Includes center point, highest temperature, lowest temperature, and customizable points.

Temperature Measurement Range

-20°C to 550°C.

Features

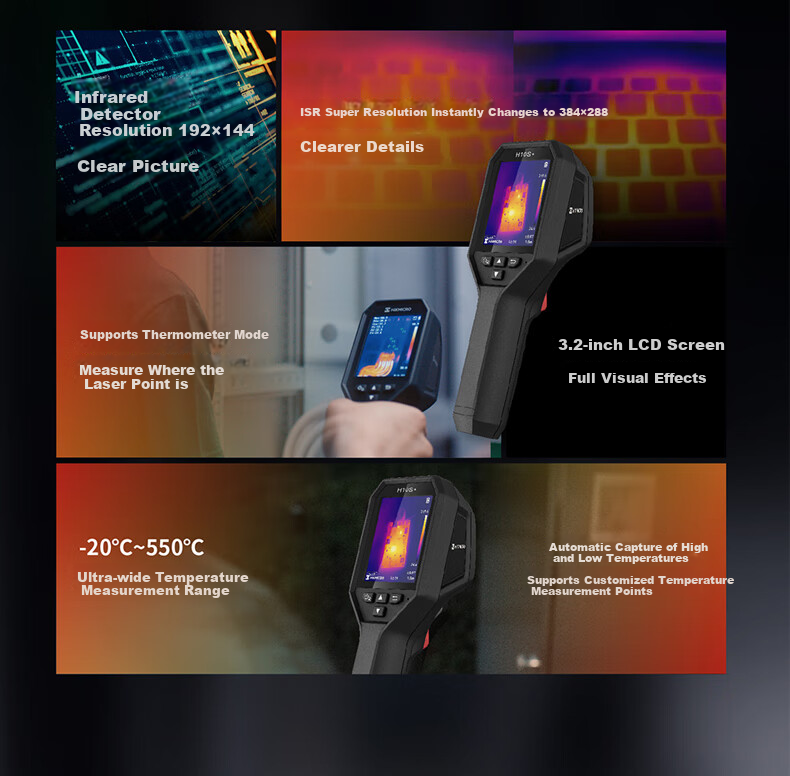

ISR super-resolution technology for enhanced image clarity
Fault detection
And precise positioning.

Additional details

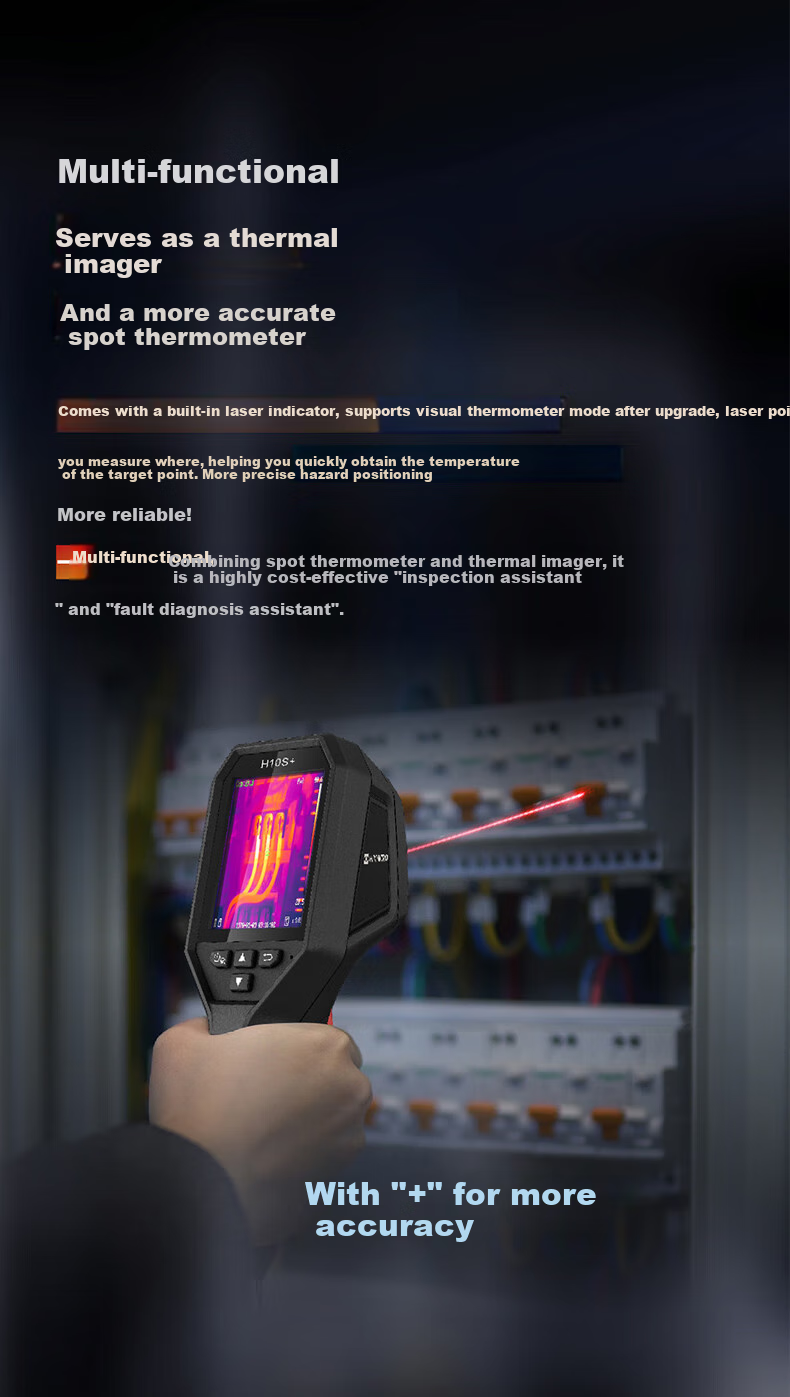

Multi-Purpose: Functions as a thermal imager and accurate point thermometer with laser indicator for quick temperature readings.

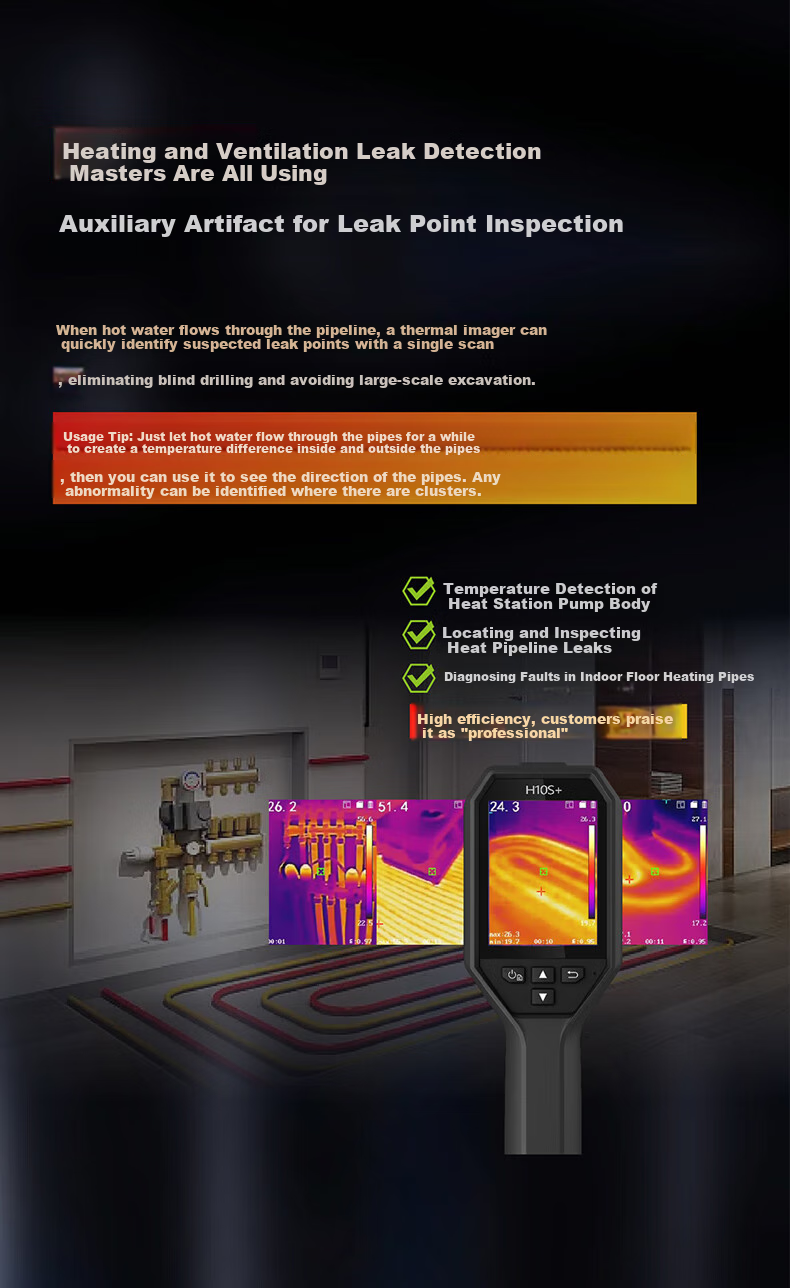

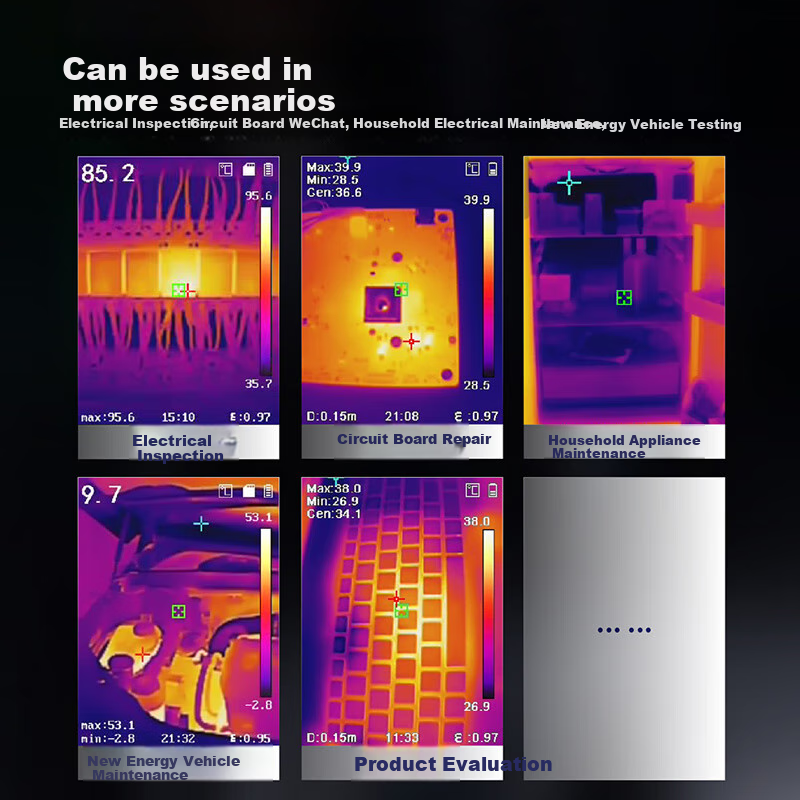

Applications: Ideal for leak detection in heating systems, fault diagnosis in underfloor heating pipes, and efficient equipment maintenance.
Compatibility: Widely used in various industries for electrical inspections, underfloor heating measurements, equipment maintenance, digital assessments, live demonstrations, car repairs, and privacy protection.

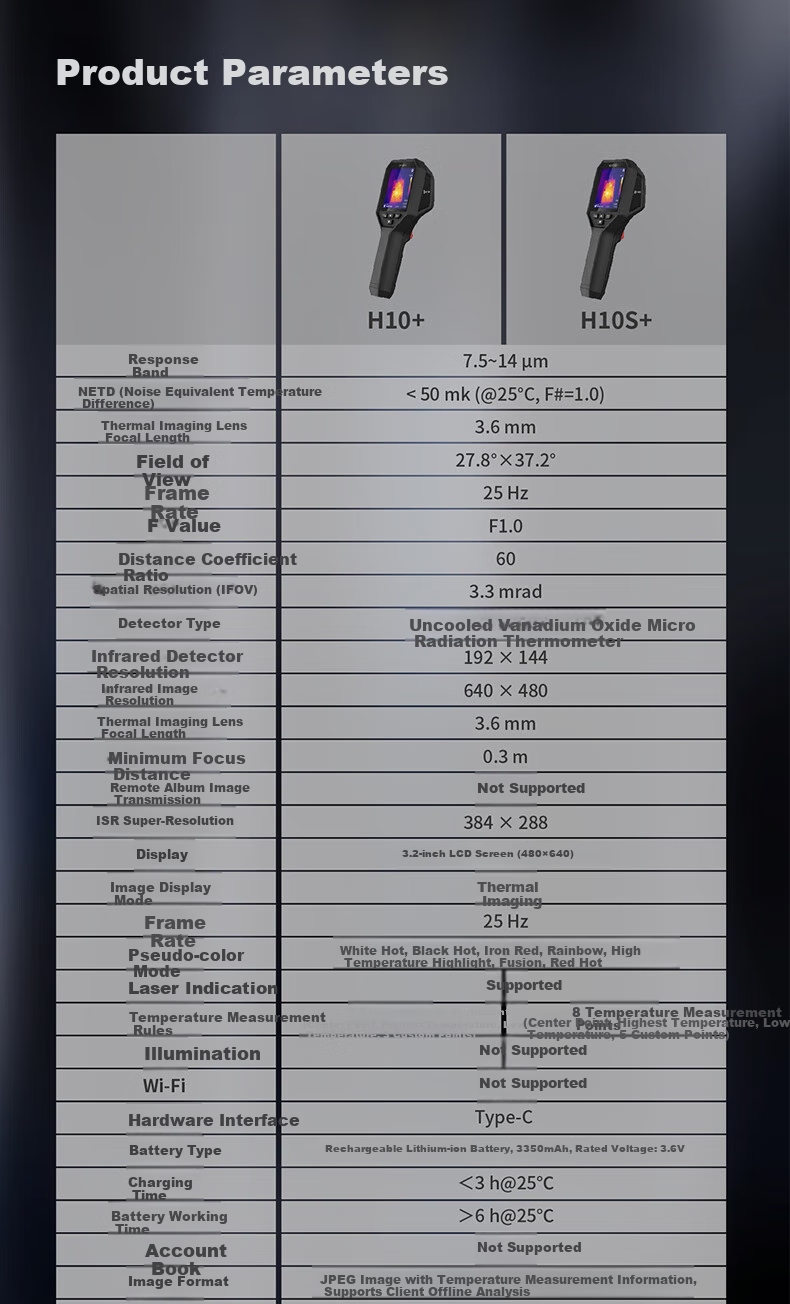

Response Band: 7.5~14μm
NETD: <50mk (@25°C, F#=1.0)

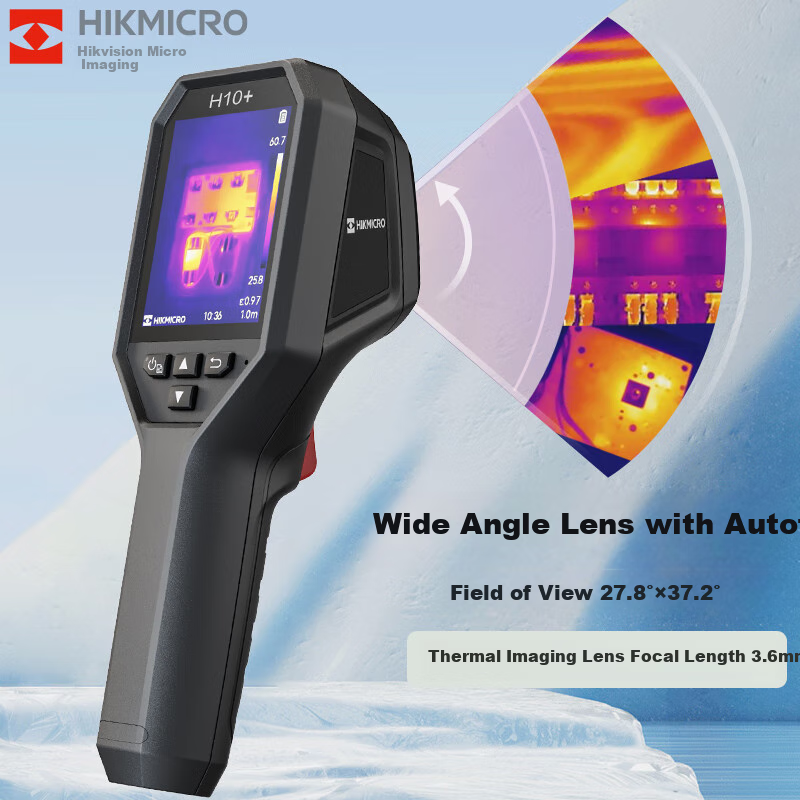

Thermal Imaging Lens: 3.6 mm focal length
Field of View: 27.8°×37.2°
Frame Rate: 25Hz
F-Value: F1.0
Distance Coefficient Ratio: 60
Spatial Resolution (IFOV): 3.3mrad
Detector Type: Uncooled vanadium oxide micro radiation thermal sensor
Infrared Image Resolution: 640X480
Minimum Focus Distance: 0.3 m
Image Resolution after ISR Super-Resolution: 384×288
Display: 3.2-inch LCD screen (480×640)

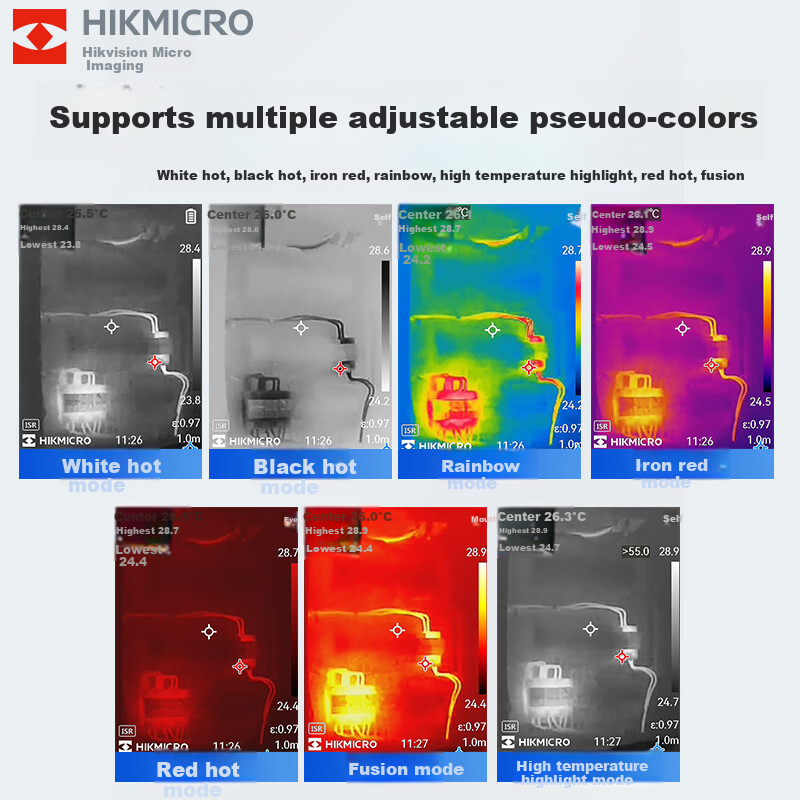

Display Modes: Thermal imaging with various color palettes
Laser Indicator: Supported
Temperature Measurement Points: 6 points for H10+, 8 points for H10S+
Illumination: Not supported
Wi-Fi: Not supported

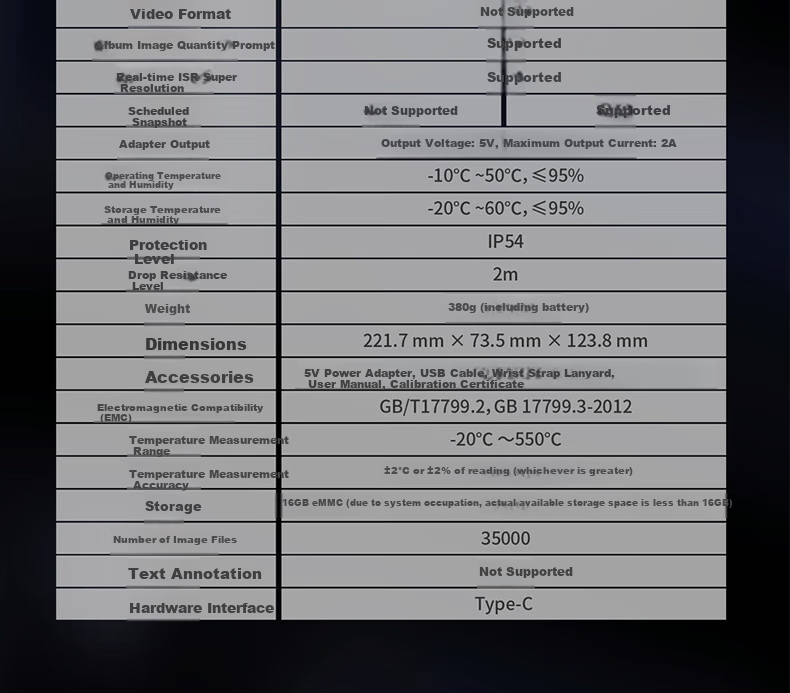

Hardware Interface: Type-C
Battery Type: Rechargeable lithium-ion battery (3350mA*h)
Charging Time: <3h @25°C
Battery Life: >6h @25°C
Protection Level: IP54
Drop Resistance: 2 m
Weight: 380 g (including battery)
Dimensions: 221.7 mm×73.5 mm×123.8 mm
Accessories: 5V power adapter, USB cable, wrist strap, user manual, calibration certificate
EMC: GB/T17799.2, GB17799.3-2012
Temperature Measurement Accuracy: ±2°C or ±2% of reading (whichever is greater)
Storage: 16GB eMMC (actual available storage space may be less due to system requirements)
Image File Quantity: 35000
Text Annotation: Not supported

This HIKMICRO thermal imaging device combines advanced features, enhanced resolution, and precise temperature measurement capabilities, making it a versatile tool for various industries and applications.
