Back to CatalogBULL Wall AP Panel Computer Network Wireless WIFI Socket Router 1300Mbps GTW05A (Panel Required)
Specifications
- Jack current
- non-socket
- Lamp circuit control
- Non-Switching
- Mounting Hole Distance
- 60mm
- Number of units
- perforation
- Socket type
- computer socket
- Category
- Socket
- Product Dimensions
- 86*86mm
- Toggle method
- Non-Switching
Variants / Sale Attributes
Type: 1300 Mbps WiFi 5 Socket (requires matching faceplate)
Package Contents
AP functional component *1
Product Description
Product Specifications
Overview
- Brand
- BULL
- Product Name
- BULL Invisible Whole-House Wi-Fi
- 300M
- 2.4GHz theoretical wireless rate 300Mbps; Ethernet port speed 10/100Mbps
- 1300M
- 2.4GHz 400Mbps + 5GHz 866Mbps, total 1300Mbps; Ethernet port speed 10/100/1000Mbps
- 3000M
- 2.4GHz 574Mbps + 5GHz 2402Mbps, total 3000Mbps; Ethernet port speed 10/100/1000Mbps
- Power Input
- 220V~50Hz
Similar Products
In Stock
In Stock
TypeHigh-voltage model (requires live and neutral wire connection) AntennaBuilt-in independent antenna units 3000M model5 internal antennas for stable signal and reduced interference 1300M model4 internal antennas Wireless Frequency BandsDual-band 2.4GHz and 5GHz (300 M model supports only 2.4GHz) Supports 5G frequency band for better speed and experience (1300M and 3000M models)
Wireless bridging supported for installation in areas without Ethernet cable (e.g., kitchen, basement, porch)
New generation self-developed AP technology for flexible networking without POE
Multiple APs can be combined for whole-house Wi-Fi coverage with seamless roaming
Supports up to 120 connected devices (data from BULL laboratory)
160MHz ultra-wide bandwidth on 3000M model for smooth data throughput
Four-layer heat dissipation system to prevent wall heating and device overheating
Parental controls available on 1300M and 3000M models (not supported on 300M)
Compatible with VLAN-isolated optical modems with additional wired switch for parental control
Additional details
- Ultra-thin faceplates available in two thicknesses
- 6.4 mm (ultra-thin) and 8.2 mm (standard)
Faceplate colors
- 6.4mm: Twilight White, Glossy White, Distant Mountain Gray, Moon Shadow Gray
- 8.2mm: Twilight White, Glossy White, Space Silver, Starry Gray
Faceplates and Wi-Fi sockets sold separately
Embedded in-wall design hides cables and saves space, matching home decor aesthetics
Dimensions and appearance may vary slightly due to manual measurement and batch differences

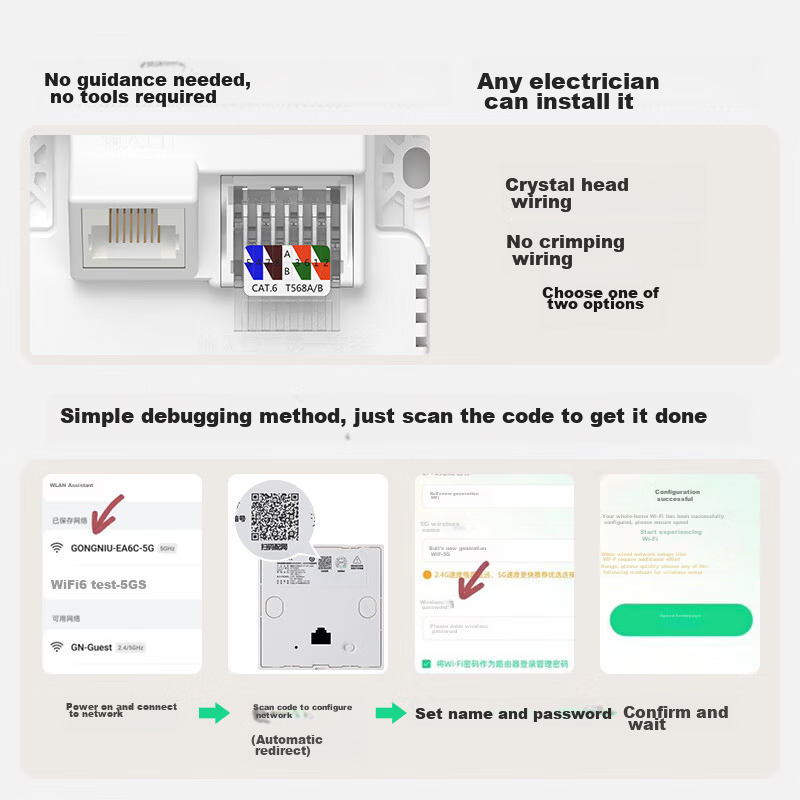

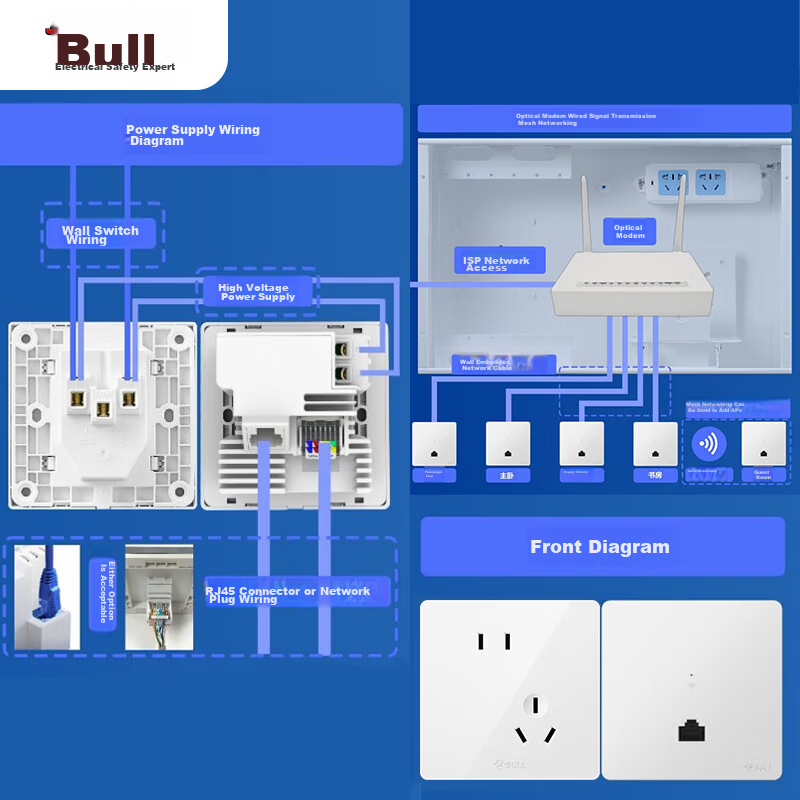

Installation includes screws and alignment with bottom box screw holes; follow manual or video guide for setup
Additional details
- Main unit
- 1
- Neutral wire
- 1
- Live wire
- 1
- Faceplate (sold separately)
- 1
- Screws
- multiple
- User manual
- 1
- For two-bedroom one-living room
- 1×1300 M + 2×300 M units
- For three-bedroom one-living room
- 1×1300 M + 3×300 M units
- For four-bedroom one-living room
- 1×1300 M + 4×300 M units
- For villa or duplex (two floors)
- 2×1300 M + 6×300 M units
- Recommended placement
- living room (large area), master bedroom or gaming room (high demand)
Product label optimized for easier installation and debugging without affecting performance
Shipments may contain mixed old and new stock batches; all are original BULL products with guaranteed normal use
Actual product appearance prevails over comparison images
Data and performance may vary depending on environment and device compatibility
Member of the Wi-Fi Alliance ensuring international technology standards compliance
