Chuanglebo NVIDIA Jetson Orin Nano NX AI Edge Computing Box ORIN NANO NX Core Board Smart Box Industrial Enclosure

•Development board

Chuanglebo NVIDIA Jetson Orin Nano NX AI Edge Computing Box ORIN NANO NX Core Board Smart Box Industrial Enclosure

CN¥3,789.00

SKU: 100223347668

Status:In Stock (5)

ID: 100223347668

Weight: 1411.00 g

Dims:190x175x105 mm

Variants / Sale Attributes

Color: ORIN NANO SUPER 4G (Standard Edition)

Package Contents

Jetson ORIN NX 8G Industrial Enclosure Kit (Wireless Network Card Version) J202*1

Product Description

Product Specifications

Overview

Brand: ChuangLeBo
Product Series: Jetson Orin Super Edge AI Computing Box

Jetson Orin Nano Super (4GB / 8GB)

Jetson Orin Nano (4GB / 8GB)

Jetson Orin NX Super (8GB / 16GB)

Jetson Orin NX (8GB / 16GB)

Additional details

AI Performance Range: 20 TOPS to 157 TOPS
Jetson Orin Nano Super: Up to 67 TOPS (67% performance increase over previous generation)
Jetson Orin NX Super

Similar Products

In Stock

ARDUINODevelopment board

100133349236

Arduino uno r3国民套件

CN¥199.00

View

Out of Stock

ARDUINODevelopment board

100060866511

Arduino UNO R3

CN¥169.00

View

In Stock

ZAVEDevelopment board

ZAVE Arduino Nano Uno Development Board Kit TYPE-C Interface 168P Chip Solder Pin Header + Cable

TYPEC interface 168P chip soldered + cable

CN¥22.68

View

Up to 157 TOPS (67% performance increase)

GPU

NVIDIA Ampere architecture with Tensor Cores

Orin Nano

512-core GPU with 16 Tensor Cores

Orin NX

1024-core GPU with 32 Tensor Cores

CPU

Item	Detail
Orin Nano	6-core Arm Cortex-A78AE v8.2 64-bit CPU, up to 1.7 GHz
Orin NX	6-core or 8-core Arm Cortex-A78AE v8.2 64-bit CPU, up to 2.0 GHz

Memory

Item	Detail
Orin Nano	4GB or 8GB LPDDR5, 34GB/s or 68GB/s bandwidth
Orin NX	8GB or 16GB LPDDR5, 102.4GB/s bandwidth

Additional details

Storage: 256GB NVMe SSD included

Video Encoding

Item	Detail
Orin Nano	Up to 1080p30 supported by CPU cores
Orin NX	Supports up to 1x8K30 (H.265), multiple 4K and 1080p streams (H.265)

Additional details

Camera Interface: 2x MIPI CSI-2 22-pin connectors
USB: 4x USB 3.2 ports, USB Type-C
Network: 1x Gigabit Ethernet (RJ45), M.2 Key E slot (supports WiFi & Bluetooth modules)
Display: DisplayPort (DP)
Expansion: 40-pin header (UART, SPI, I2S, I2C, GPIO), 12-pin button header
Other I/O: 4-pin fan connector, DC power jack
Power Consumption: 7W to 25W depending on model and workload
Input Voltage: 9V to 19V DC
Module Size: 103 x 90 x 34 mm
Supported AI Frameworks: Compatible with NVIDIA AI software stack, TensorRT, CUDA 11.4.19, cuDNN 8.6.0, DeepStream 6.2, YOLOv5
Development Environment: Ubuntu 20.04 based Jetson Linux with pre-installed JetPack components, Jupyter Lab, jetson_inference library, ROS2 Foxy via Docker
AI Model Performance: Significant improvements in large language models (LLM), vision-language models (VLM), and vision transformers with up to 2.04x performance gains over previous generation
Development Guide: ChuangLeBo provides a comprehensive developer guide tailored for Jetson Orin series, covering software stack, frameworks, practical examples, and step-by-step tutorials for AI application development
Enclosure: Full aluminum alloy casing for efficient heat dissipation and industrial-grade durability
Cooling: Built-in fan for long-term stable operation
Optional Configurations: Wireless network card with dual-band WiFi & Bluetooth module pre-installed, antennas included
Indicators: Power LED, DC power input indicator

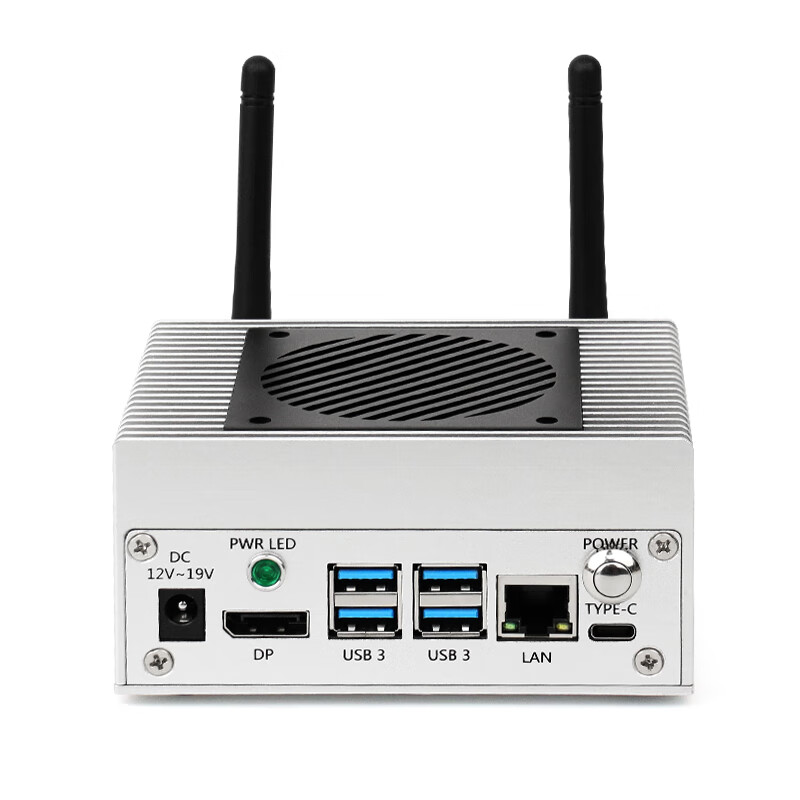

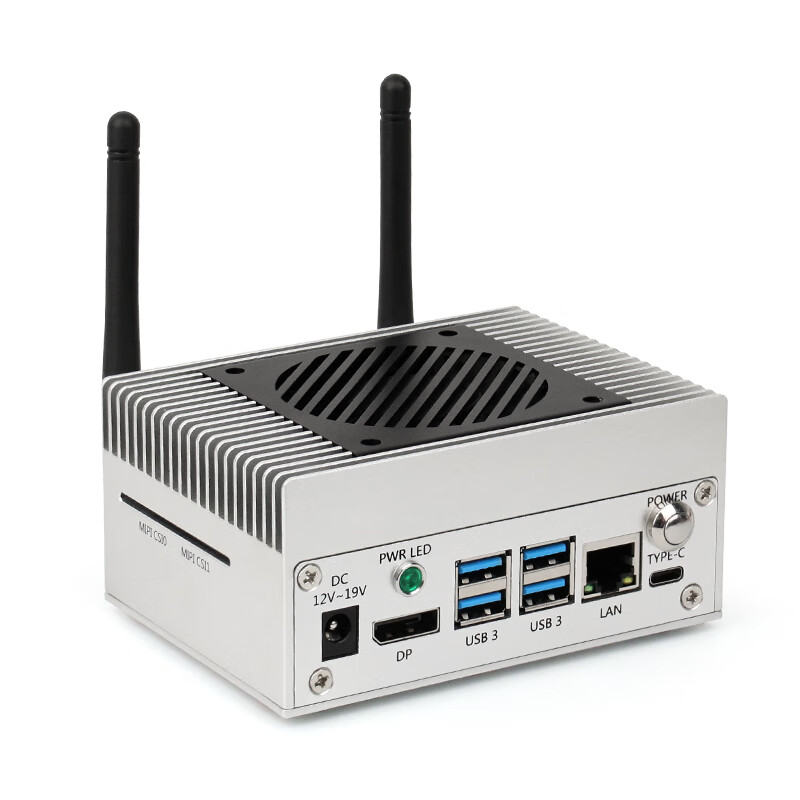

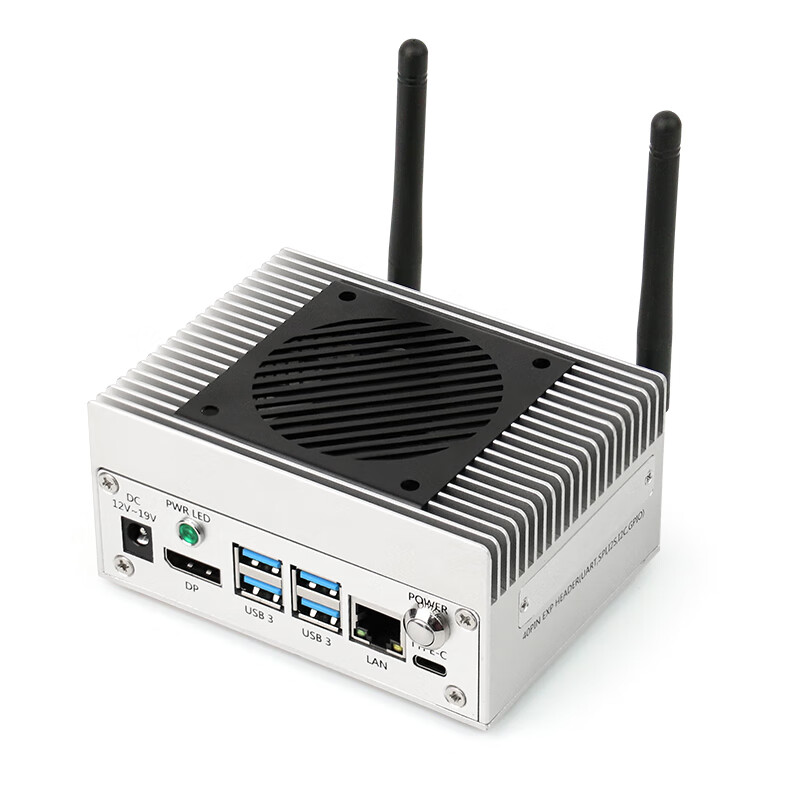

Interfaces: USB 3.2, Type-C, DisplayPort, Gigabit Ethernet, 40-pin expansion header, buttons, fan connector, antenna connectors
Included Accessories: 256GB NVMe SSD, power adapter, power cable, DP to HDMI cable, Type-C cable

Suitable for robotics, drones, intelligent cameras, portable medical devices, smart city infrastructure, industrial AI, and edge computing applications requiring high AI performance and energy efficiency

Jetson Orin Super CLB Development Kit available with Orin Nano Super or Orin NX Super modules

Additional details

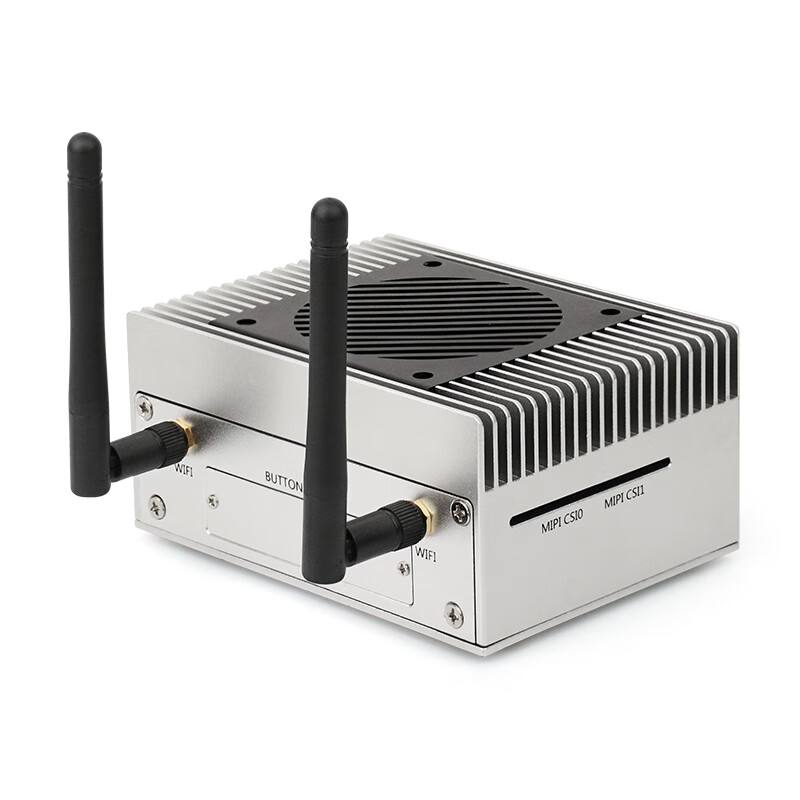

Includes multiple interfaces: 2x CSI cameras, 4x USB 3.2, Type-C, DisplayPort, RJ45 Gigabit Ethernet, M.2 SSD slot, WiFi & Bluetooth module

Preloaded with development environment and software for immediate use

ChuangLeBo Jetson Orin Super series offers a powerful, energy-efficient edge AI computing platform with significant performance improvements over previous generations. The product line supports a wide range of AI workloads including large language models and vision transformers, packaged in a robust industrial design with comprehensive software and development support to accelerate AI product deployment at the edge.
