Back to CatalogClean Family Compatible Westinghouse Water Purifier Filter Cartridge Manhattan F1/F4/F5/F7/F8/C5 Series Complete Filter Set No.1 No.2 RO Reverse Osmosis Membrane Filter Universal
Specifications
- Material
- RO reverse osmosis membrane
- Category
- water purifier filter
Variants / Sale Attributes
color: RO Reverse Osmosis Membrane Filter Cartridge [No. 2 Filter Cartridge]
Package Contents
PCB filter element *1 piece
Product Description
Overview
- 1. Brand
- JieJing ShiJia ()
2. Product Types
- PCB Composite Filter Cartridge
- Upgraded RO Reverse Osmosis Membrane Filter Cartridge
3. Features
- Genuine JieJing ShiJia filter cartridges ensuring fresh and clean water
- High sales volume: Over 25,000 sets sold with 99% positive reviews (Data source: JD.com)
- Certified quality with health and safety permits from Jiangsu Province for drinking water products
Similar Products
Out of Stock

In Stock

In Stock

Suitable for Westinghouse water purifiers
High-end quality for healthy water consumption by family members 4. Filtration Technology
- Multi-layer composite filtration with PP cotton first layer and carbon rod second layer using needle-punched groove technology for enhanced filtering
- Effectively reduces turbidity, color, visible particles, oxygen consumption, large impurities, sand, red worms, rust, and suspended solids
- Adsorption rate of 99.99% for chloroform
- Carbon surface area: 1000 m²/g
- Layered structure: loose outer layer, compact inner layer, and precision layer for thorough filtration
- RO membrane filter removes bacteria, viruses, heavy metals with 0.0001 micron precision for direct drinking water
5. Material
- Food-grade polypropylene for composite filter
- Upgraded RO membrane material for RO filter

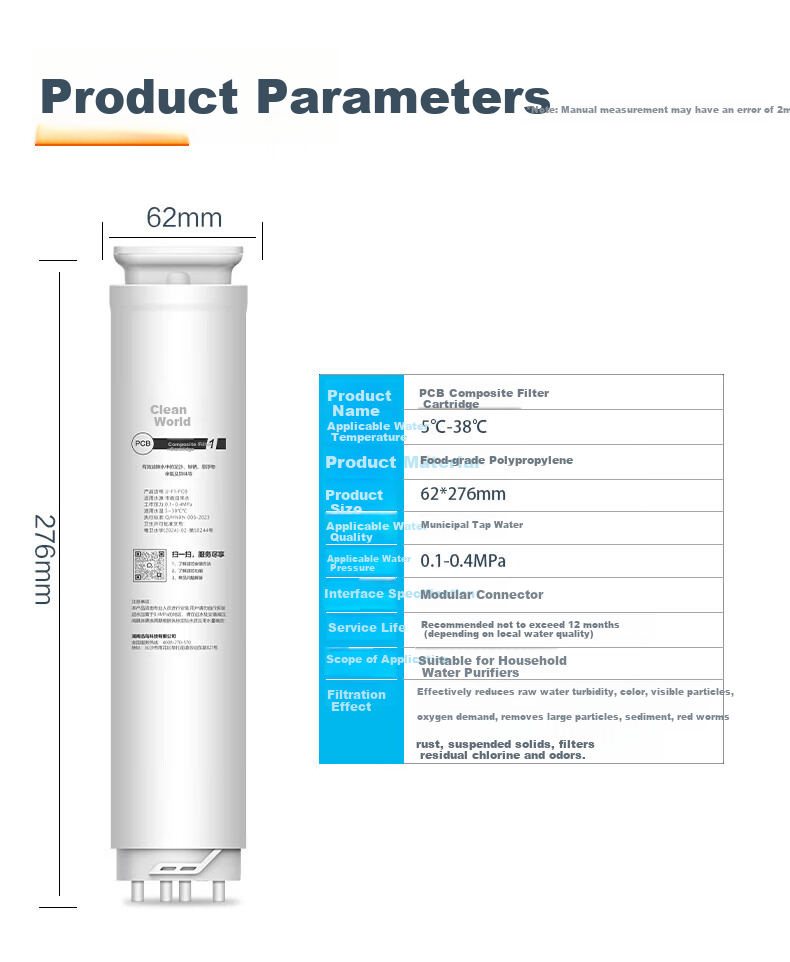

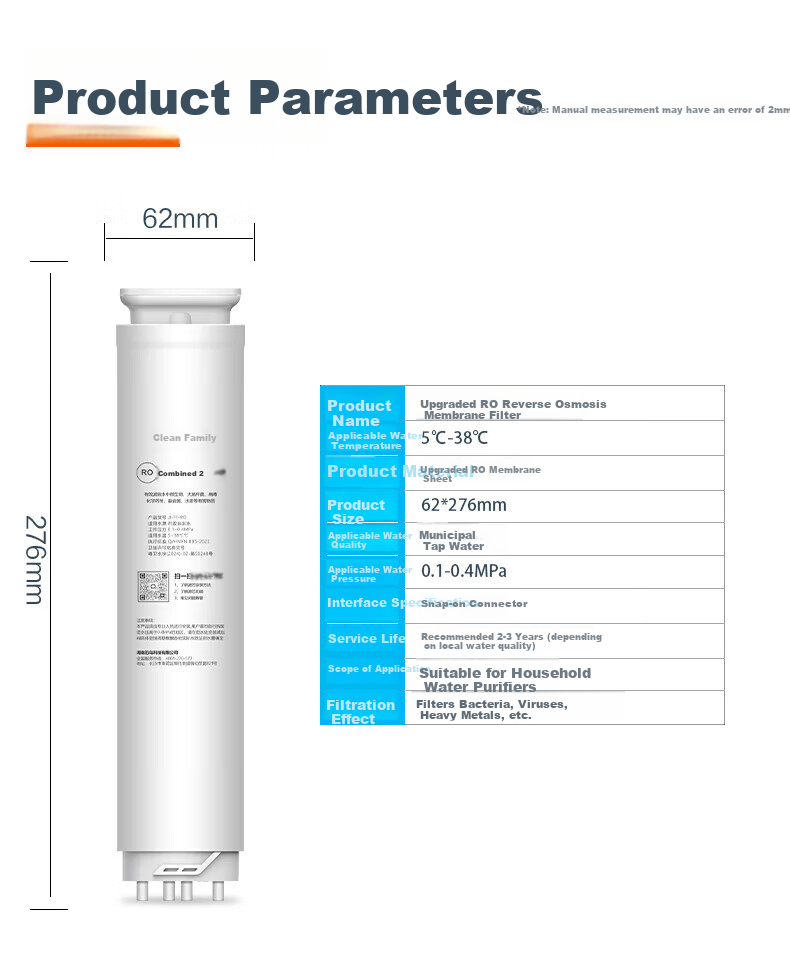

6. Dimensions
| Size | Unfolded dimensions |
|---|
| Size | 62 mm diameter x 276 mm length (±2 mm manual measurement tolerance) |
7. Operating Conditions
| Item | Detail |
|---|
| Water temperature | 5°C to 38°C |
| Water pressure | 0.1 to 0.4 MPa |
| Suitable water source | Municipal tap water |
8. Connection Type
- Composite filter: Modular connector
- RO membrane filter: Snap-fit connector
9. Lifespan
| Item | Detail |
|---|
| Composite filter | Recommended replacement within 12 months depending on local water quality |
| RO membrane filter | Recommended replacement every 2-3 years depending on local water quality |
10. Application
- Compatible with household water purifiers

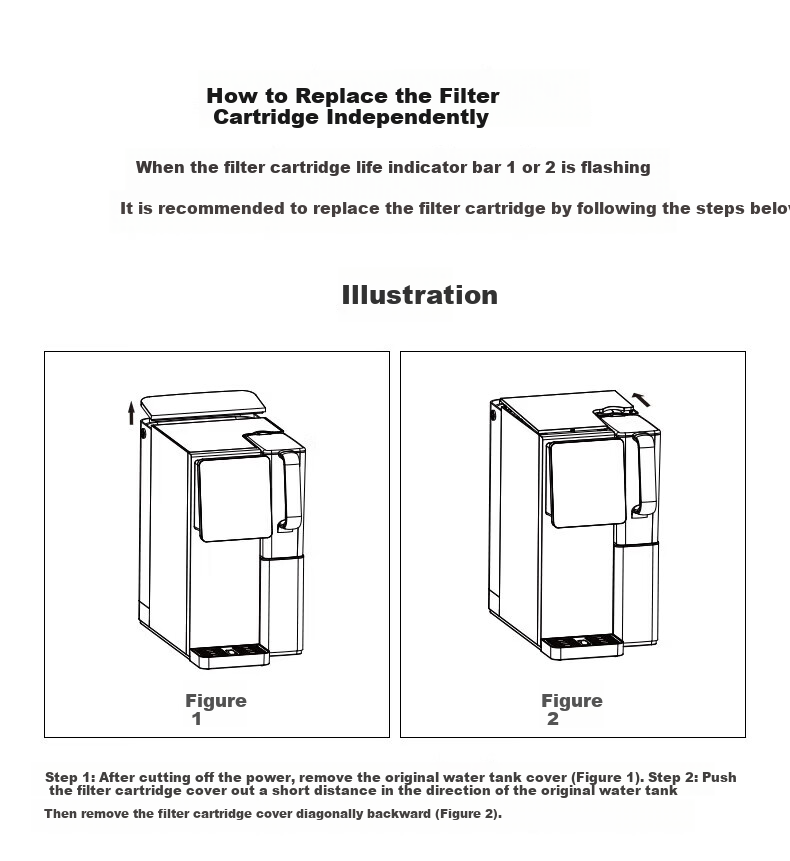

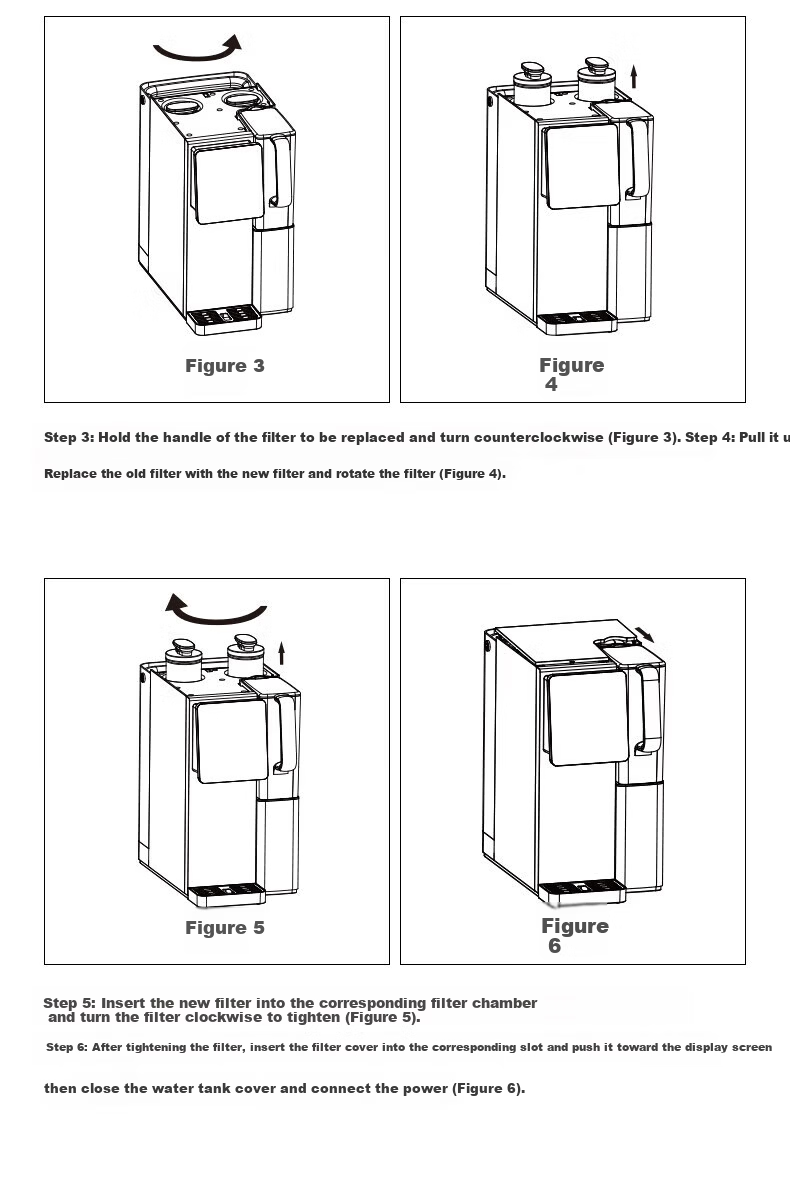

11. Replacement Instructions
- When filter life indicator flashes (1) or (2), replace filter following steps:
1. Power off and remove raw water tank cover
2. Push filter cover partially out and remove it diagonally backward
3. Turn filter handle counterclockwise and pull out old filter
4. Insert new filter and rotate clockwise to secure
5. Insert filter cover into slot and push towards display screen
6. Replace water tank cover and power on device
All measurements are approximate and may vary by ±2mm due to manual measurement.
