Back to CatalogHysoon S28H Wired Barcode Scanner QR Code Reader for Pharmaceutical Traceability Warehouse Logistics Retail Payment
Specifications
- Scanning media
- Paper, Screen, film
- Light source
- Image
- Wireless transmission distance
- Does not support wireless transmission
- Transmission mode
- Wired
- Decoding type
- One-dimensional, Two-dimensional
Variants / Sale Attributes
Color: [Wired] One/QR Code | Precise and HighSpeed
Size: Plug and play | 7day free trial
Package Contents
Scanner*1, Instruction Manual*1
Product Description
Product Specifications
High-capacity reading of 1D/2D barcodes and QR codes
Wired fast scanning with up to 320 scans per minute
CMOS global shutter imaging for precise decoding
Supports decoding of various codes including QR, UDI, payment codes, medical insurance codes, and more
Professional decoding chip with 90 scans per second speed

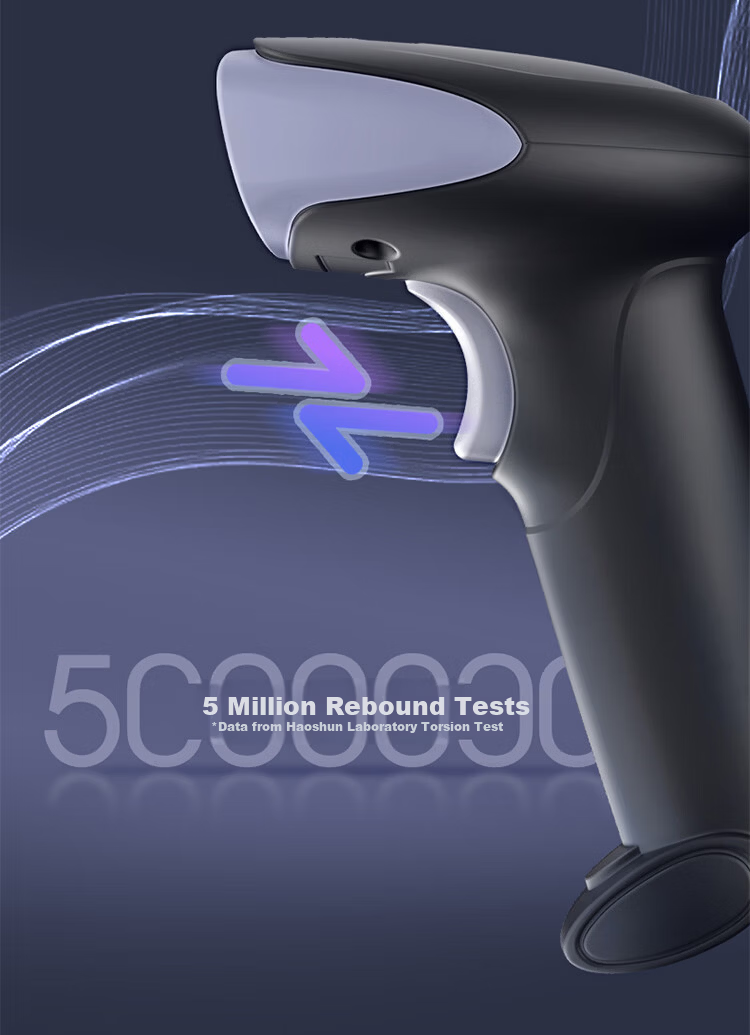

Durable high-rebound mechanical switch rated for 5 million actuations

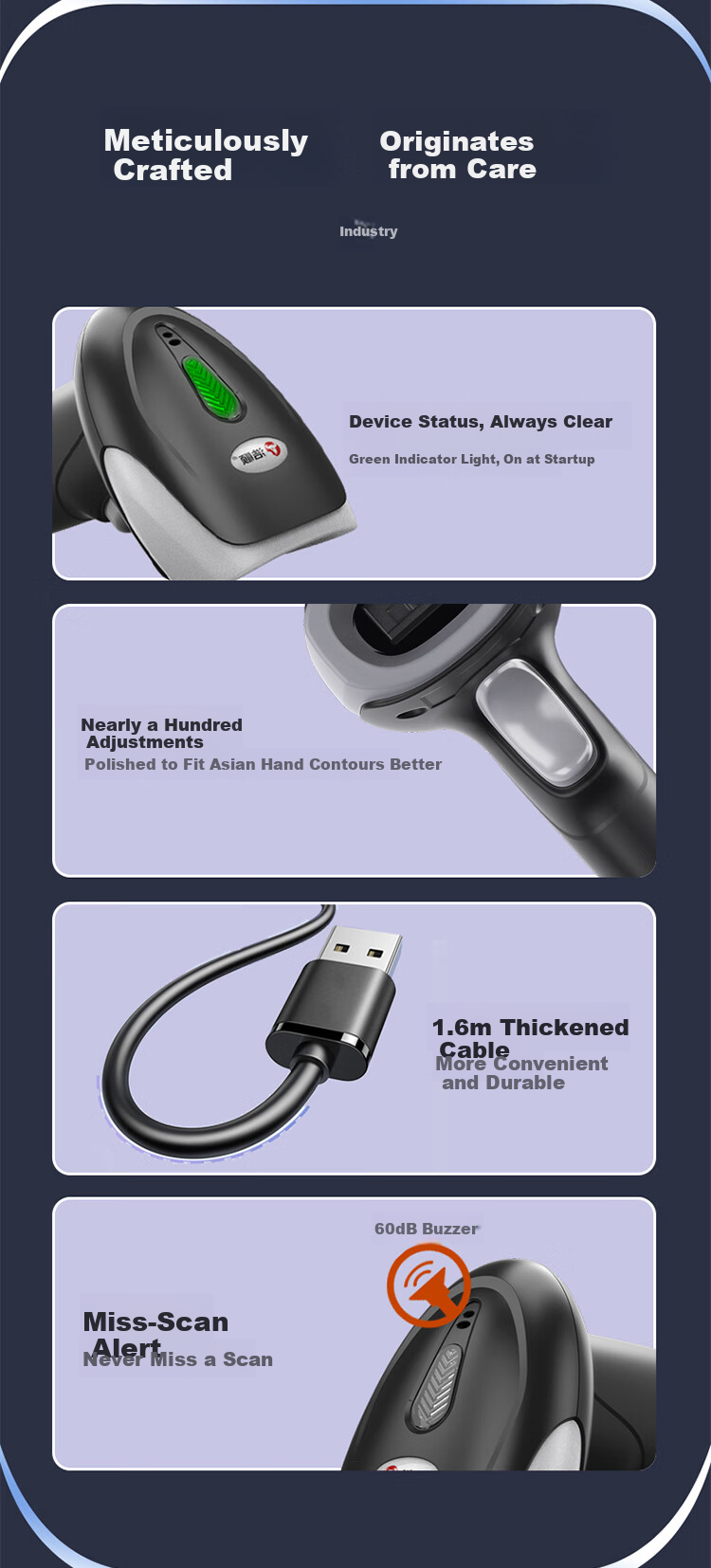

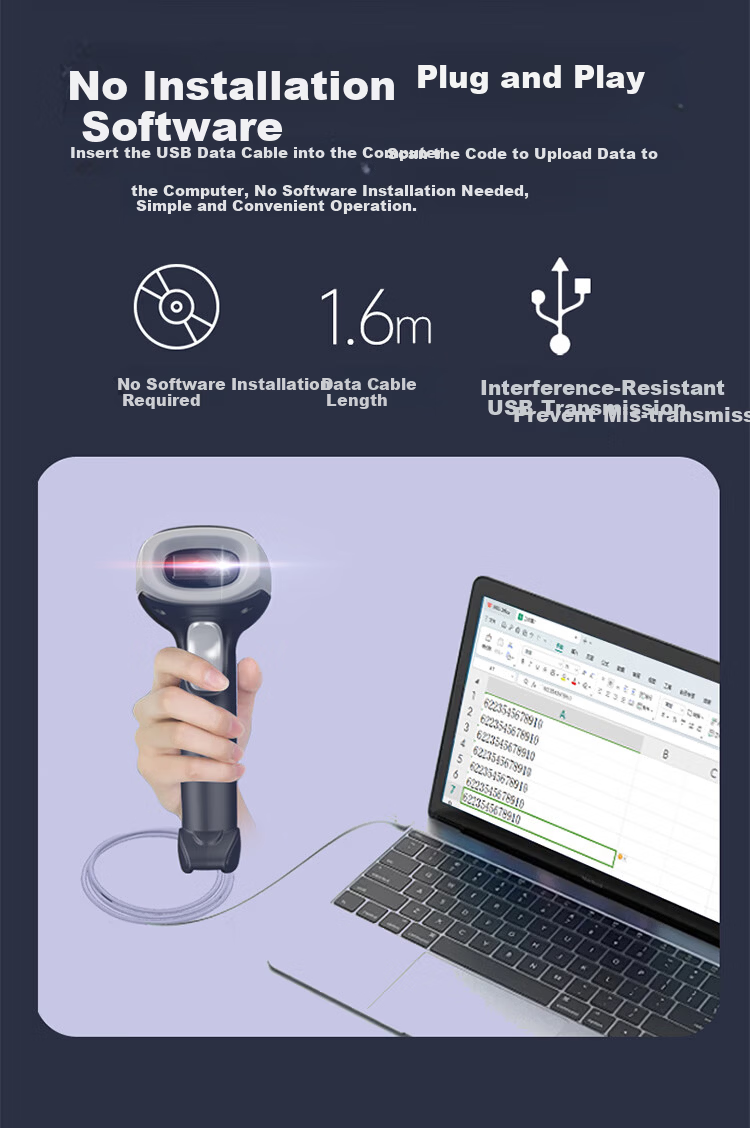

Anti-interference data cable with 1.6m length
Able to read distorted and twisted barcodes

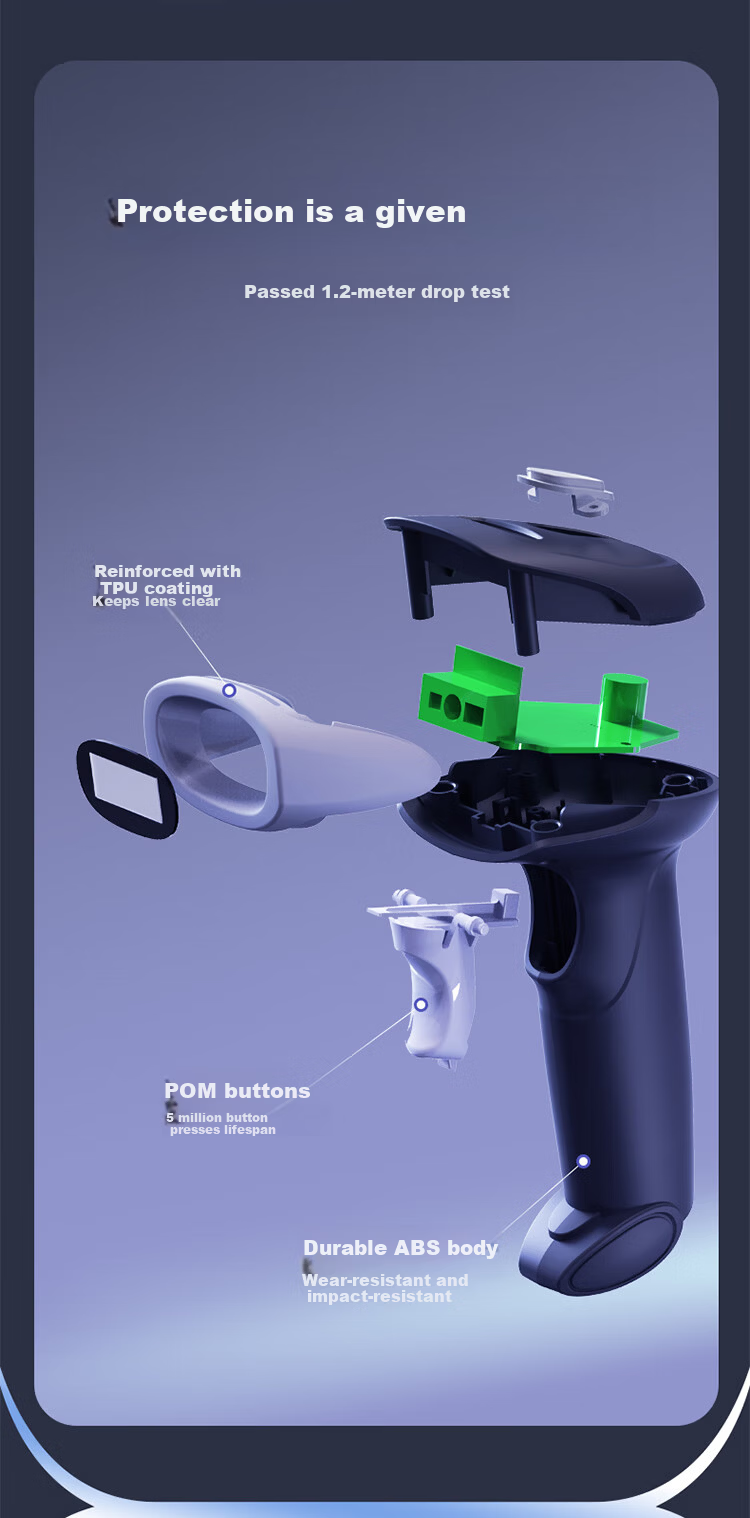

ABS eco-friendly shockproof and drop-resistant housing, withstands free fall from 1.2 meters
Additional details
- Suitable for multiple industries
- retail checkout, warehousing and logistics, medical, catering and entertainment
Similar Products
Out of Stock

Out of Stock

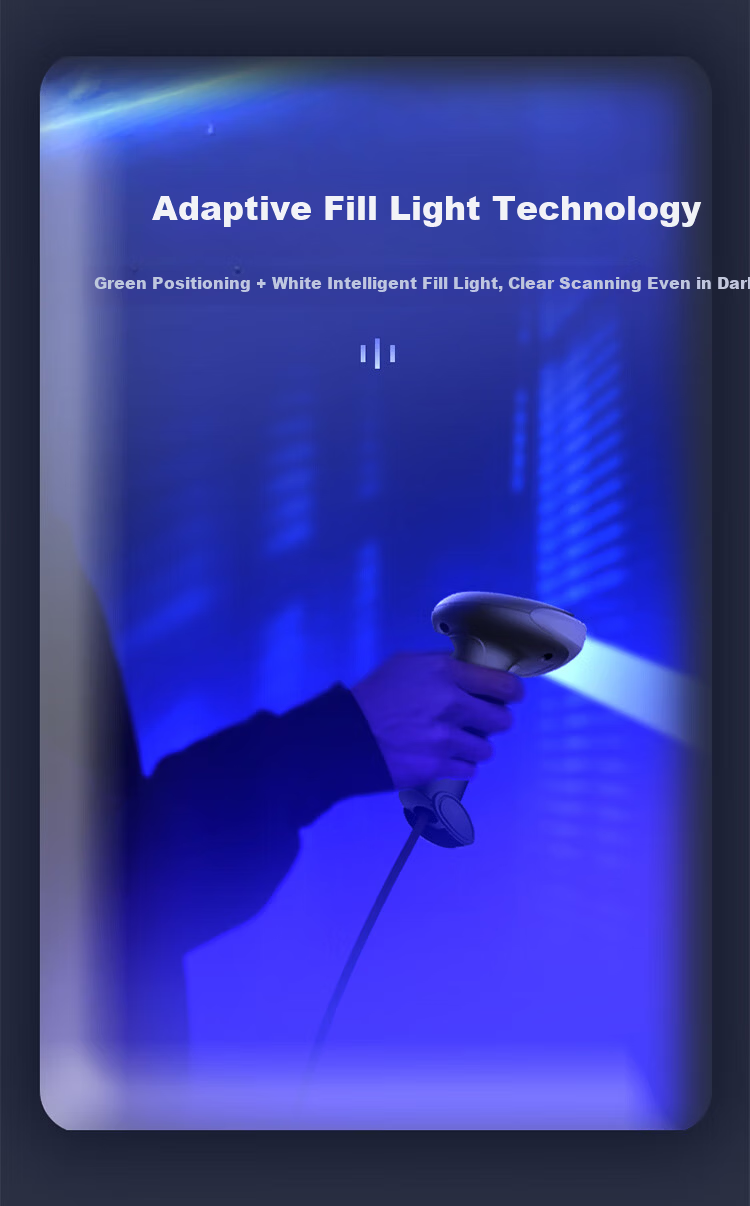

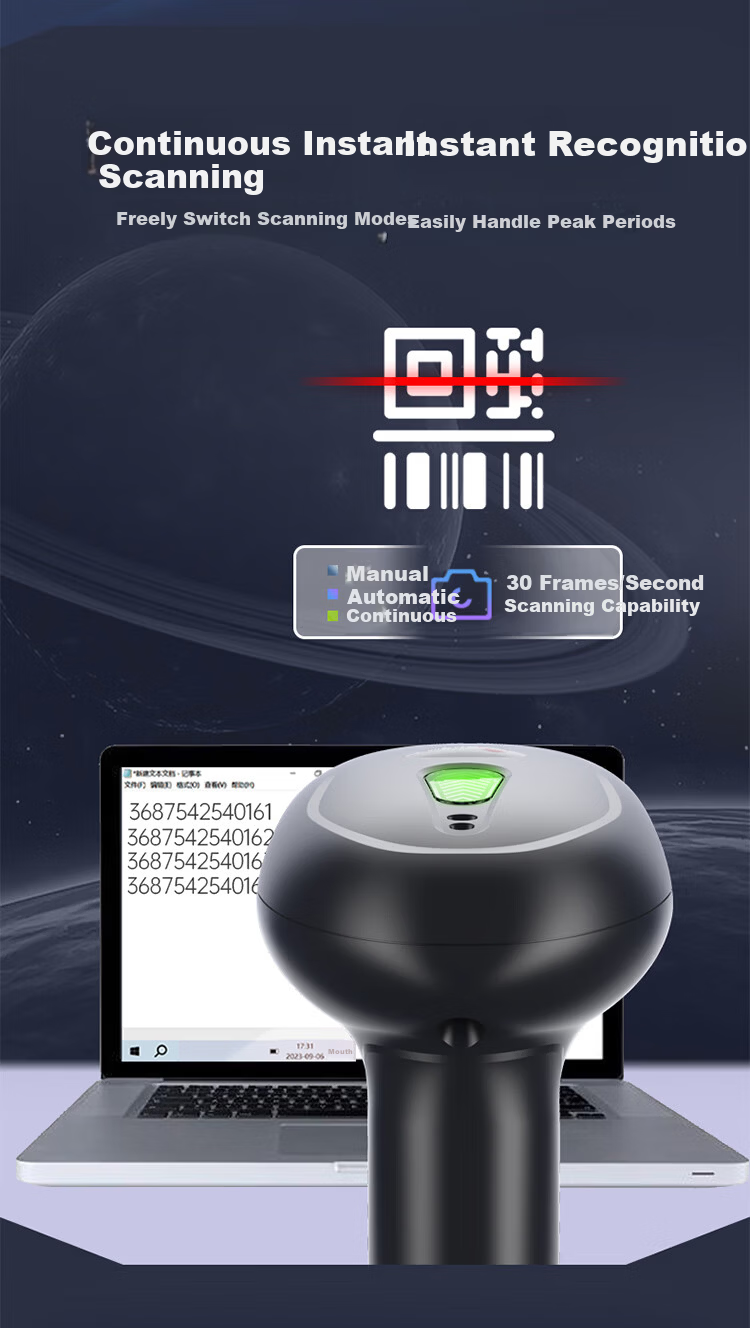

Image Sensor960×640 global CMOSIlluminationWhite fill light with red positioning light Scanning Speed90 frames per second Scanning ModesButton trigger, continuous scan, automatic sensing Scanning Depth25 mm to 350 mm (QR code 20mil), 50 mm to 320 mm (EAN13 13mil) Scanning Angle360° rotation, ±55° tilt and skew Field of ViewHorizontal 38°, Vertical 28° Scanning Angle Recognition130°, wide-angle scanning with large depth of field 1DCode128, EAN-8, EAN-13, UPC-E, UPC-A, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Code39, Codabar, Code93, Code11, Code32, ISBN, ISSN, MSI Plessey, GS1-128, AIM128, etc. 2DQR Code, Data Matrix, PDF417, Aztec, Micro QR, Micro PDF417, Maxicode, Hanxin Charging VoltageDC 5V ±0.5V USB (HID Keyboard, Virtual COM Port)
Additional details
- Shock Resistance
- ABS eco-friendly housing, drop tested from 1.2 meters onto concrete (six faces)
- Mechanical Switch Life
- 5 million actuations (tested in Haoshun laboratory)
- Temperature
- -10°C to 50°C
- Humidity
- 5% to 95% non-condensing
- Storage Temperature
- -25°C to 65°C
- Weight
- 180 g ±10 g

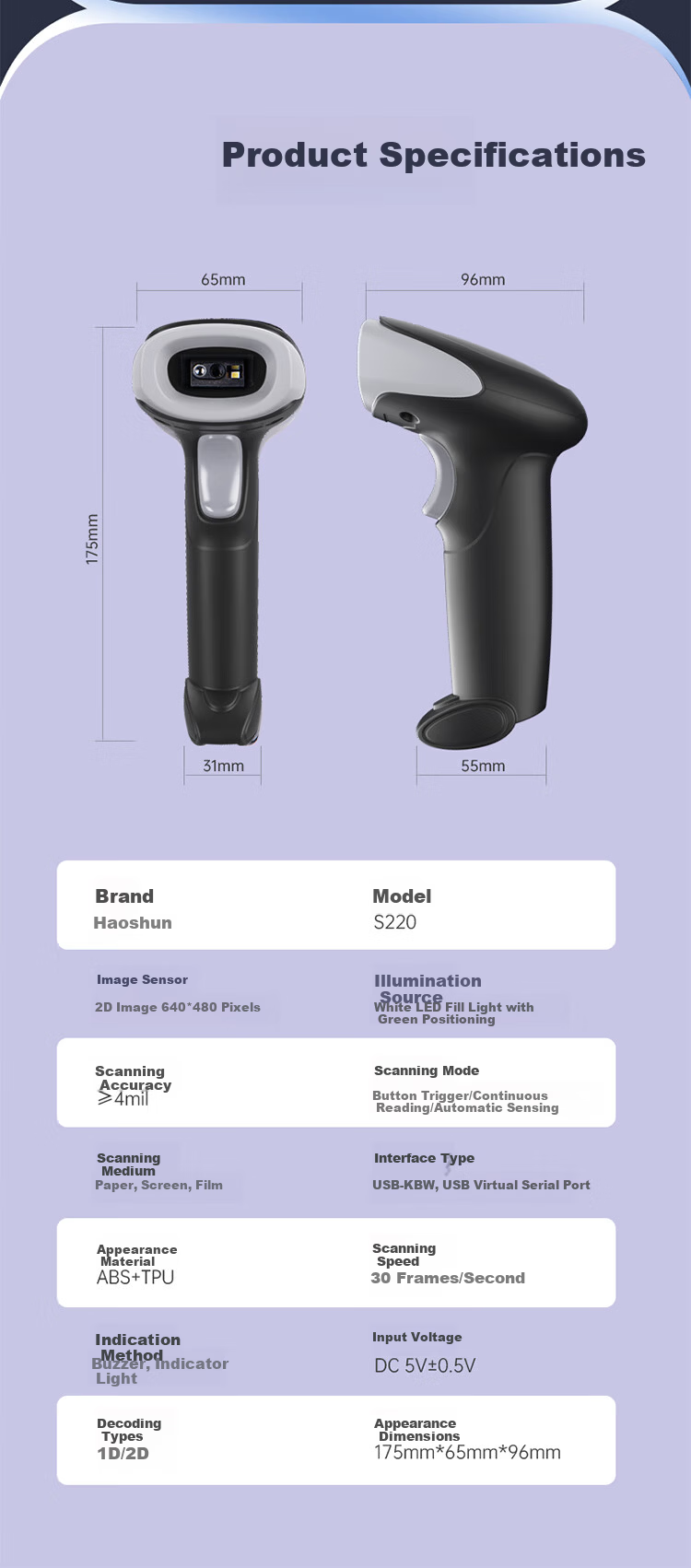

- Dimensions
- 165 mm × 97 mm × 65 mm
- Packaging Dimensions
- 19 cm × 10.5 cm × 7.8 cm

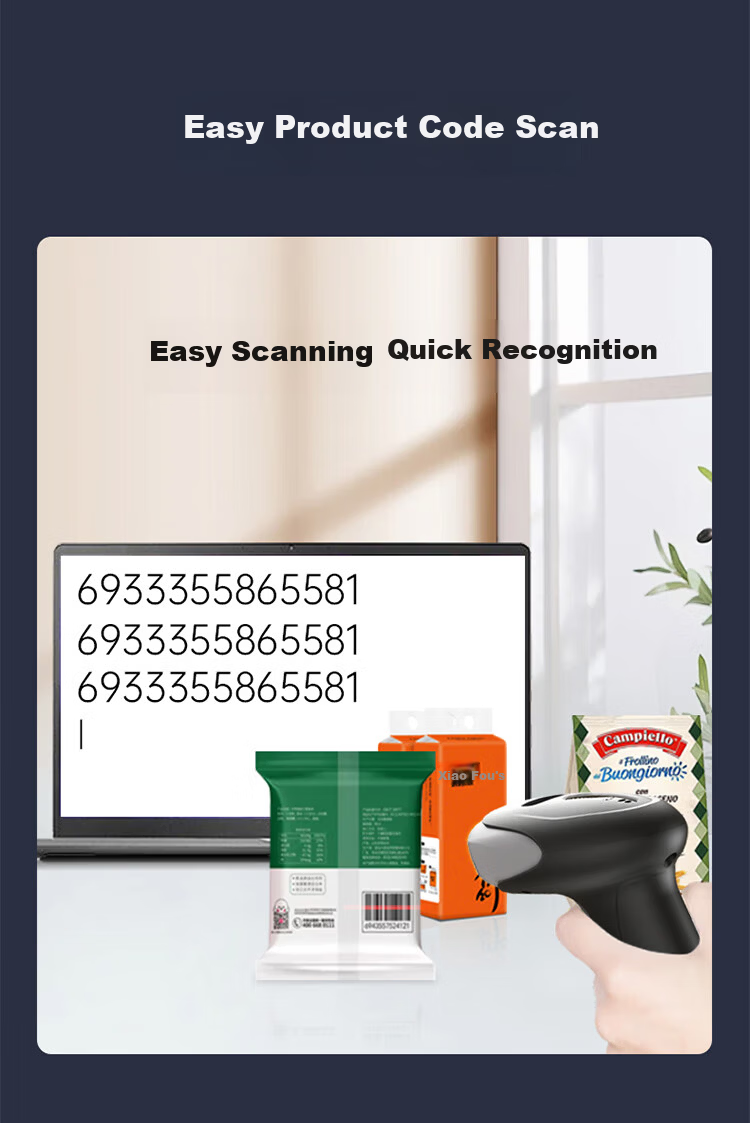

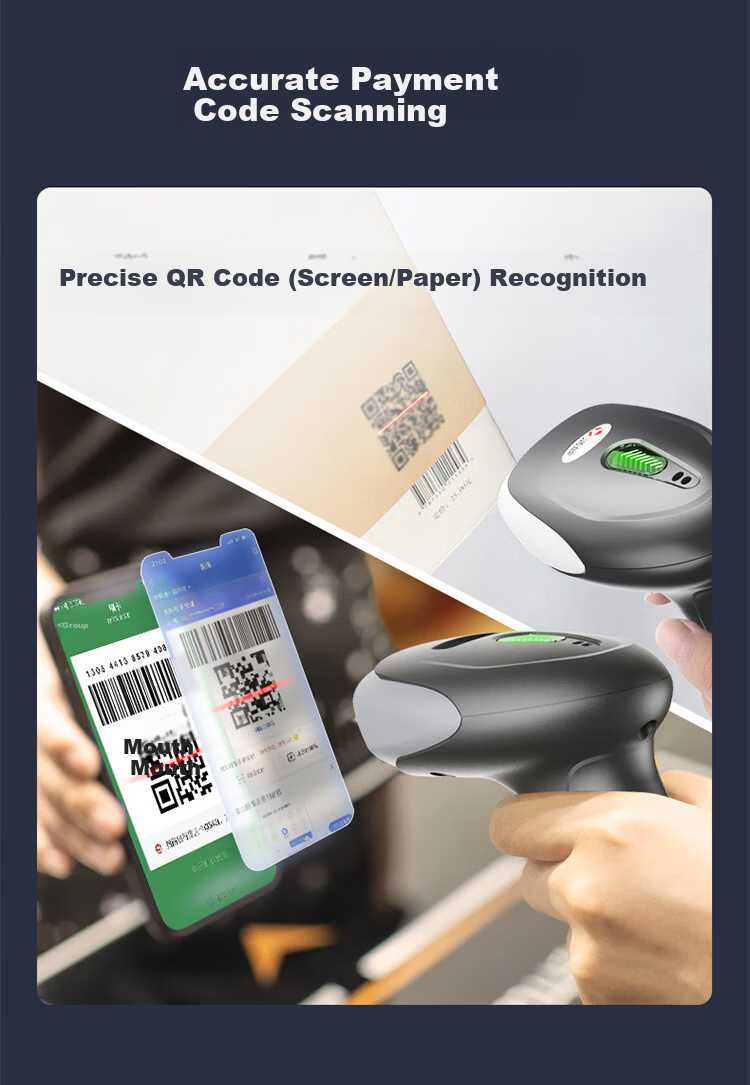

Retail checkout (product barcodes, screen payments)
Warehousing and logistics (express delivery)
Medical industry (drug traceability, medical insurance codes)
Catering and hospitality (verification codes)
Bookstores and libraries (ISBN codes)
Entertainment venues (membership codes)
