CEM T-165P Infrared Thermal Imager Pocket Thermal Camera Industrial Temperature Measurement Floor Heating Leak Detector Mainboard Inspection Instrument

CN¥2,080.00

SKU: 100230138090

Status:In Stock (5)

ID: 1428431

Weight: 280.00 g

Dims:140x112x42 mm

Specifications

Category: Handheld
work shift: Long wave
Suitable Scenarios: leak test, Power inspection, Outdoor, military, firefighting, scientific research, Industry, repair

Variants / Sale Attributes

Model: 165P resolution 160*120 pocket thermal imager

Package Contents

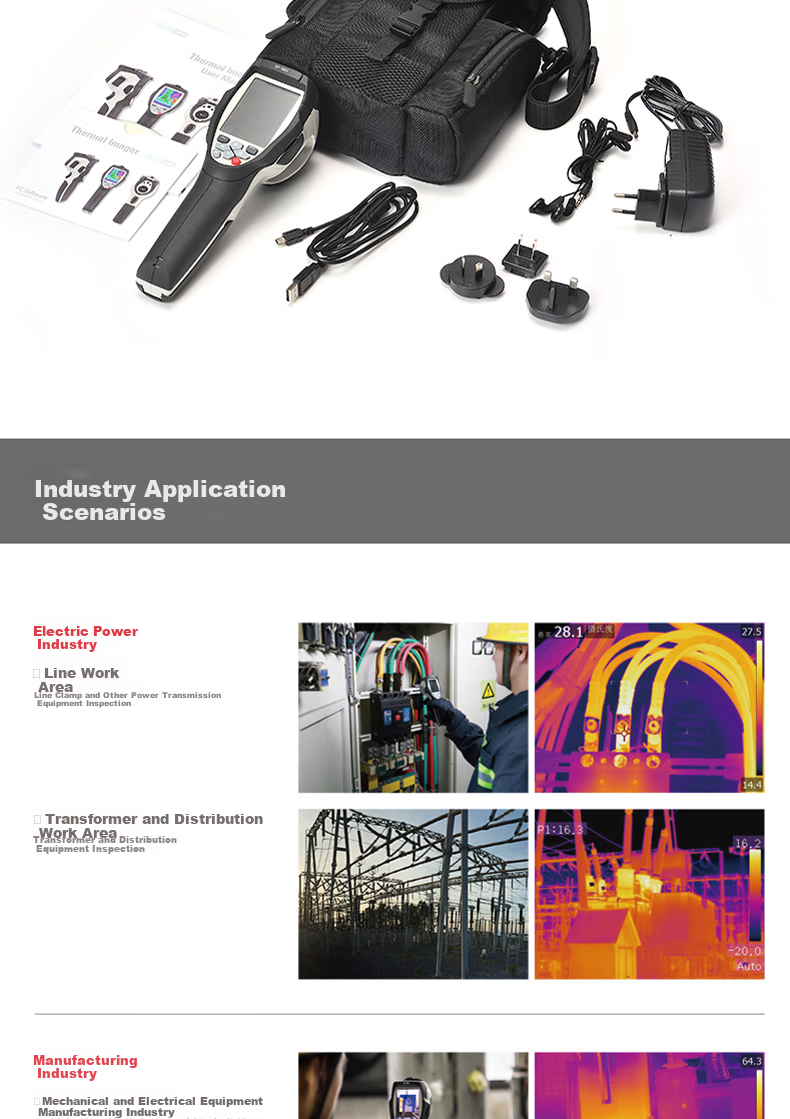

1 canvas bag, 1 power adapter, 3 power adapter plugs, 1 anti-drop lanyard, 1 USB data cable, 1 SD card, 1 user manual, 1 CD, 1 warranty card, 1 certificate of conformity

Product Description

Product Specifications

Overview

Brand: CEM
Model: T-165P

Pocket-sized Mini Infrared Thermal Imager

Lightweight and compact, approximately half the size of a typical smartphone

Weight less than 180g, easily fits in pocket or bag

Single-hand operation, user-friendly design

Rechargeable lithium battery with MicroUSB interface for cyclic charging

8GB built-in storage supporting up to 6000 images

Supports photo and video capture with one-key switching

Compatible with ThermviewPro software for professional infrared analysis and report export

Environmentally friendly and durable design

Additional details

Infrared Resolution: 160 x 120 pixels

Similar Products

In Stock

HIKMICROInfrared thermal imager

HIKMICRO Thermal Imaging Camera, High-Definition Infrared Thermal Imager, Industrial Temperature Measurement, Power Inspection, Underfloor Heating Leak Detection Device H13PRO

[Touchscreen Model] H13Pro (Pixel 192*144/digital Zoom/photography And Video Recording)

CN¥4,699.00

View

In Stock

FLUKEInfrared thermal imager

FLUKE TC01A Smartphone Thermal Imager, Thermal Imaging Night Vision Device, Infrared Thermometer, High-Definition Thermal Imager

TC01A - Supports Android System

CN¥2,536.00

View

Uncooled Microbolometer

Spectral Range

8-14 μm

Field of View (FOV)

42° × 32°

Minimum Focus Distance

0.5 m

Thermal Sensitivity (NETD)

<0.05°C @ +30°C (50 mK)

Image Frame Rate

25 Hz

Focus Mode

Fixed focus (no adjustment required)

Display

2.8-inch color TFT LCD screen

Visible Light Camera

3 Megapixels, 65° FOV

Measurement Range

Item	Detail
Range 1	-20°C to +150°C
Range 2	0°C to +550°C

Additional details

Accuracy: ±2°C or ±2% of reading (ambient temperature 10°C-35°C, object temperature >0°C)
Emissivity: Adjustable (default 0.95)

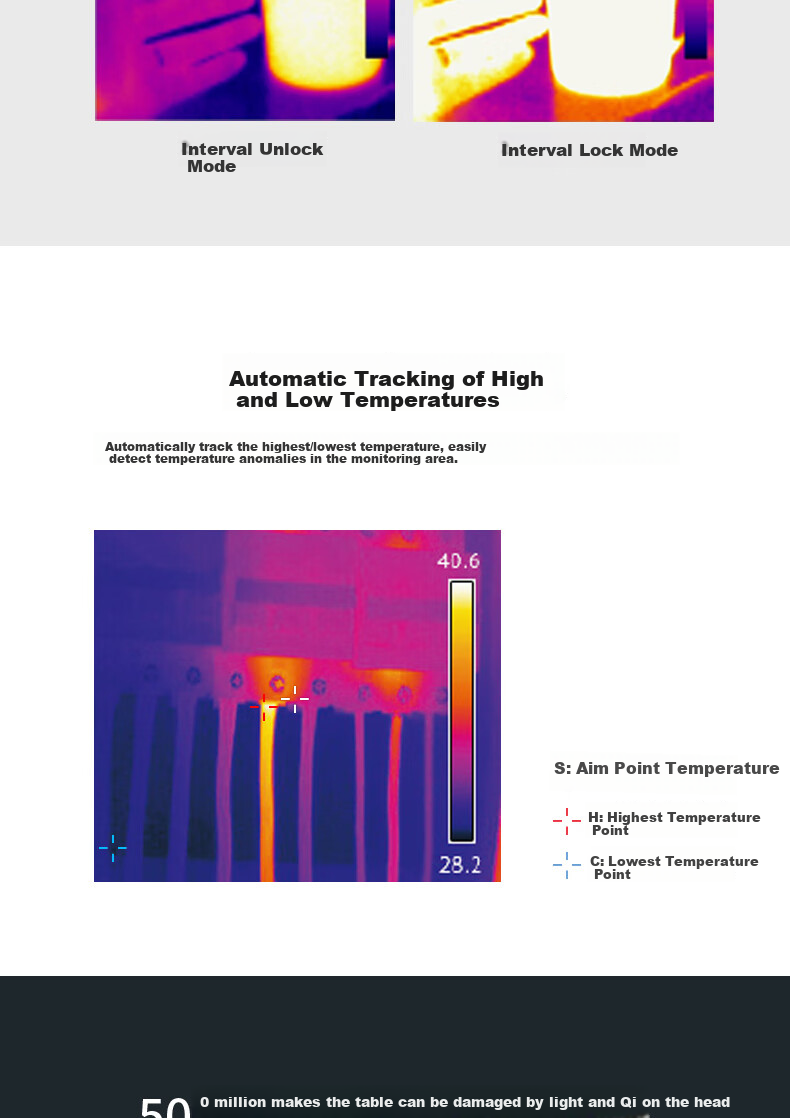

Measurement Modes: Center point, automatic tracking of maximum and minimum temperature points within the area
Temperature Correction Parameters: Emissivity, ambient temperature, reflected temperature, atmospheric humidity, infrared compensation, measurement distance

Automatic high and low temperature alarms with customizable threshold settings

Additional details

Storage Media: 8GB MicroSD card and 3.4GB internal eMMC
Image Format: Standard JPEG or HIR format including measurement data
Video Format: MPEG-4, 640x480 resolution at 30 fps, over 60 minutes recording time
Storage Modes: Infrared and visible light images and videos

Infrared, visible light, and AUF automatic fusion (patented technology)

Additional details

Color Palettes: Iron Red, Rainbow, White Hot, Black Hot, Brown Hot, Blue Red, Hot-Cold, Feather

AUF patented fusion technology (Patent No. ZL201680000185.3) enhances image clarity and accuracy by combining infrared and visible light images

AUF automatic fusion detail enhancement

Abnormal temperature detection with automatic tracking and analysis

Rapid capture and analysis of thermal images

Professional infrared analysis software compatibility (PC and mobile app)

Multi-language support

USB Type-C interface for data transfer between thermal imager and PC

Additional details

Electrical Inspection: Detects overheating joints, three-phase imbalance, capacitor aging, corrosion of electrical fittings, insulation failure, etc.
Process Inspection: Identifies motor aging or overload, pipe wall thinning or thickening, valve leakage, insulation layer damage, equipment leaks, tank liquid levels, etc.
Building Inspection: Detects leaks, hollowing, missing insulation, building airtightness, electrical and lighting system issues, etc.

Product specifications, accessories, and detailed parameters are subject to the actual product.
