HUAWEI Kunling WiFi6 Wireless Panel AP162E Home Whole-House WiFi6 Router Gigabit Dual-Band 3000Mbps Enterprise-Level Large Apartment AC+AP Networking 160MHz Bandwidth
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4
Thumbnail 5
HUAWEI•Data communication network equipment

HUAWEI Kunling WiFi6 Wireless Panel AP162E Home Whole-House WiFi6 Router Gigabit Dual-Band 3000Mbps Enterprise-Level Large Apartment AC+AP Networking 160MHz Bandwidth

CNÂ¥699.00
SKU: 100230979966
Status:In Stock (6)
ID: 100230979966
Weight: 215.00 g
Dims:117x98x71 mm

Specifications

Coverage
50-70㎡
Wireless protocols
Wi-Fi 6
LAN output port
Gigabit Ethernet port
WAN port
Gigabit Ethernet port
Type
Panel AP
Power Supply Method
POE power supply
Game Acceleration
No
WAN port type
Electrical port

Variants / Sale Attributes

Color: AP162E | 3000M | Supports 64 Devices | Elegant White

Package Contents

[Elegant White] Main unit *1, screws. No power adapter included by default; please purchase separately if needed. (Note: Packaging may vary between batches; please refer to the actual product received!)

Product Description

Product Specifications

Overview

Brand
HUAWEI
Model
eKitEngineAP162E
Product Type
Ultra-thin Panel Access Point (AP) with Wi-Fi 6
Ultra-thin design
8 mm thickness, lightweight and aesthetically pleasing, protrusion from wall only 8 mm

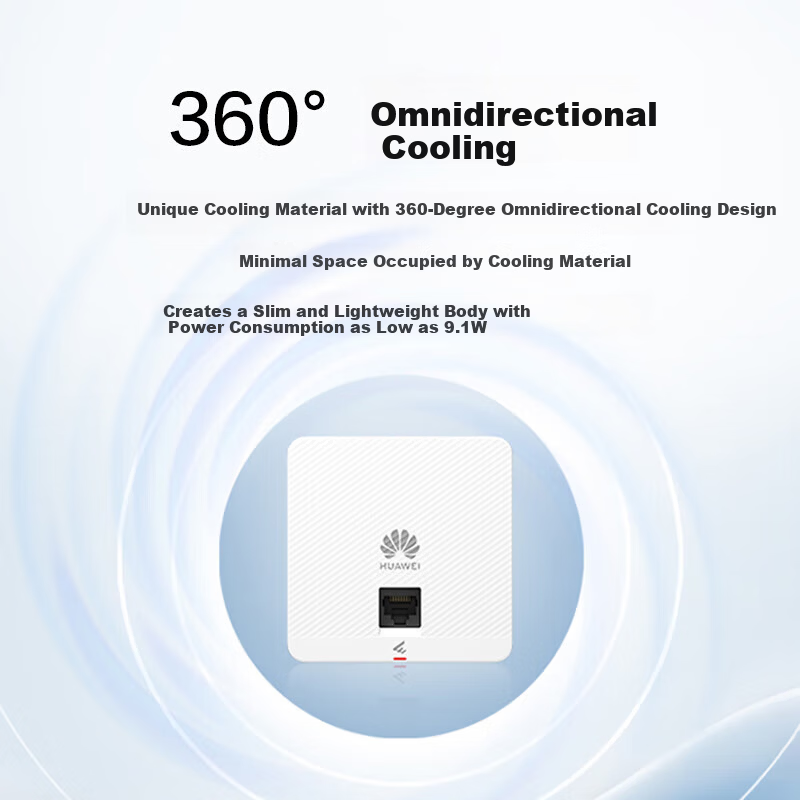

360° omnidirectional heat dissipation with unique heat dissipation materials occupying minimal space, enabling a slim body and low power consumption of 9.1W

Additional details

Environmentally friendly and safe
European home-grade environmental standards, eco-friendly PC material, green and non-polluting, compliant with European EMC Class B home-grade electromagnetic environmental standards

Similar Products

Out of Stock
MERCURY WiFi7 Ceiling AP BE3600 High-Speed Stable MC7AP3600HP
MERCURYData communication network equipment

MERCURY WiFi7 Ceiling AP BE3600 High-Speed Stable MC7AP3600HP

WiFi7 | 3600M | 3600HP Series

CNÂ¥389.00

View
In Stock
TP-LINK Wi-Fi 7 Wireless Panel AP BE3600 Dual Band Dual 2.5G Ports Whole Home WiFi Kit Perfect for 2000M Broadband TL-7AP3622HI-PoE
TP-LINKData communication network equipment

TP-LINK Wi-Fi 7 Wireless Panel AP BE3600 Dual Band Dual 2.5G Ports Whole Home WiFi Kit Perfect for 2000M Broadband TL-7AP3622HI-PoE

Single | Dual 2.5G | TL7AP3622HIPoE

CNÂ¥539.00

View
Wireless speed
3000M
Without packaging
86 × 42.5 × 86 mm (W × D × H)
With packaging
117 × 73 × 98 mm (W × D × H)
Weight without packaging
0.14 kg
Weight with packaging
0.24 kg
Maximum power consumption
9.1 W
Maximum heat dissipation
29.5 BTU/hour
Power supply
Power over Ethernet (PoE), compliant with IEEE 802.3af standard
PoE port surge protection
Common mode 4kV (1.2/50μs), 42Ω business port lightning protection, Class C criteria
NAND Flash
256 MB

2 × Gigabit Ethernet (RJ45) ports supporting 10M/100M/1000Mbit/s, auto-negotiation

Additional details

Operating temperature
0°C to 40°C (at altitudes 1800 m to 5000 m; for every 300 m increase in altitude, maximum operating temperature decreases by 1°C)
Storage temperature
-40°C to 70°C
Relative humidity
5% to 95% RH (non-condensing)
Operating altitude
-60 m to 5000 m
Atmospheric pressure
53 kPa to 106 kPa (ETS 1300019-2-3)
Grounding
Floating ground
Number of RF chains
2
MIMO spatial streams
2.4 GHz: 2x2, 5 GHz: 2x2

Wi-Fi standards supported

ItemDetail
2.4 GHz802.11b/g/n/ax
5 GHz802.11a/n/ac/ac wave 2/ax

Additional details

Antenna
Built-in smart antenna

Antenna gain

ItemDetail
2.4 GHz3 dBi per chain (peak), 3 dBi combined gain
5 GHz2 dBi per chain (peak), 1 dBi combined gain

Maximum transmit power

ItemDetail
2.4 GHz17 dBm per chain, 20 dBm combined power
5 GHz17 dBm per chain, 20 dBm combined power

Additional details

Mean Time Between Failures (MTBF)
446 years
Mean Time To Repair (MTTR)
2 hours
802.3af
Negotiated power supply, all functions fully supported
802.3at
Negotiated as 802.3af, all functions fully supported
802.3bt
Negotiated as 802.3af, all functions fully supported

2.4 GHz and 5 GHz

±20 ppm
