Supvan G15 Cable Label Printer Heat Shrink Tube Wire Number Printer Thermal Transfer Communication Engineering Maintenance Distribution Box Identification Number Tube Coding Machine G15Mini (Bluetooth
Specifications
Barcode Type paper barcode
Port Type No interface
Category Label/Barcode Printer Variants / Sale Attributes size: G15 Mini Cable Label Printer Heat Shrink Tube Wire Numbering Machine
Package Contents Label printer G15mini*1, instruction manual (including warranty card and certificate of conformity)
Product Description Product Specifications

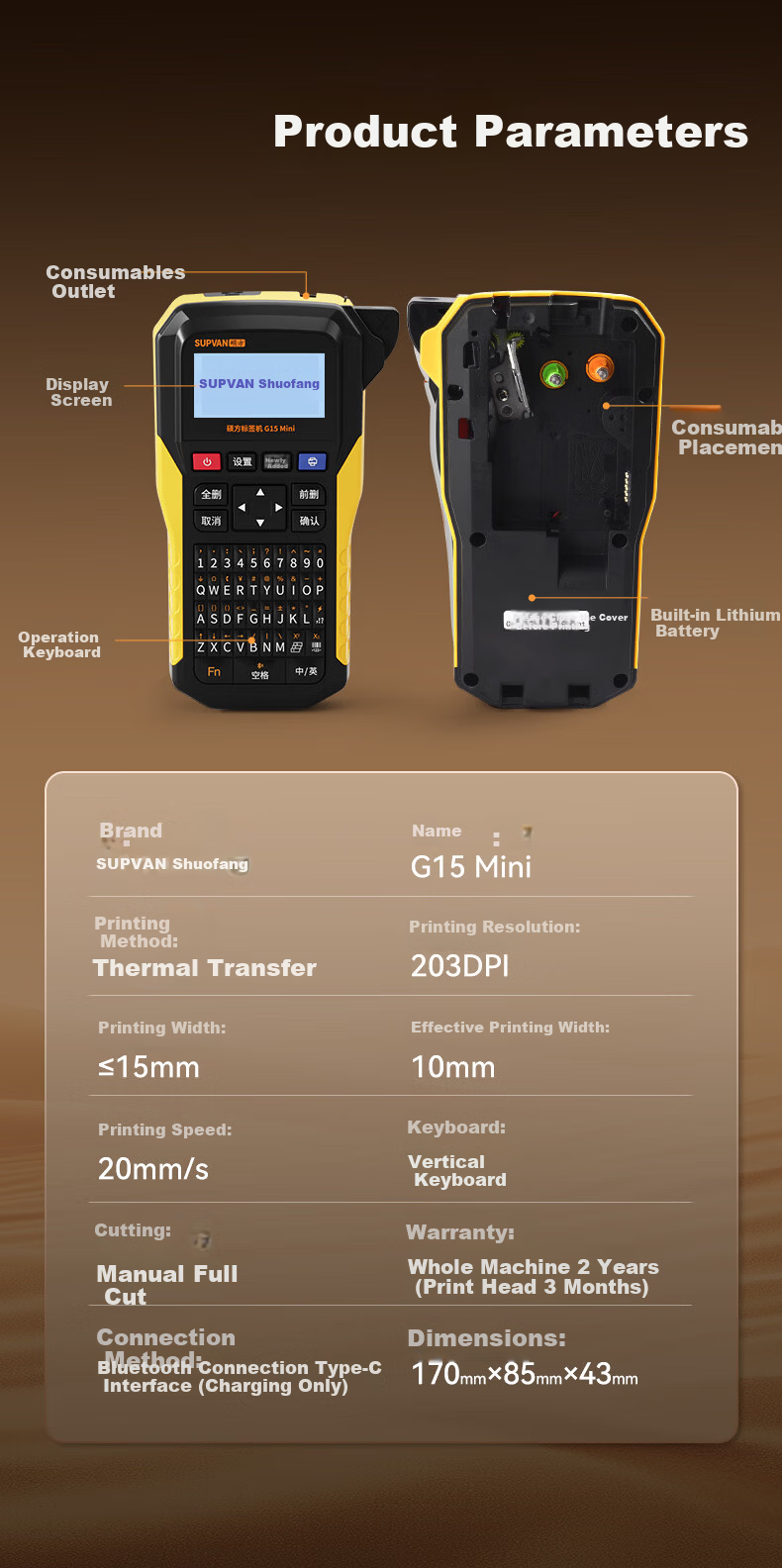

Overview
Brand SUPVAN ()
Model G15 Mini

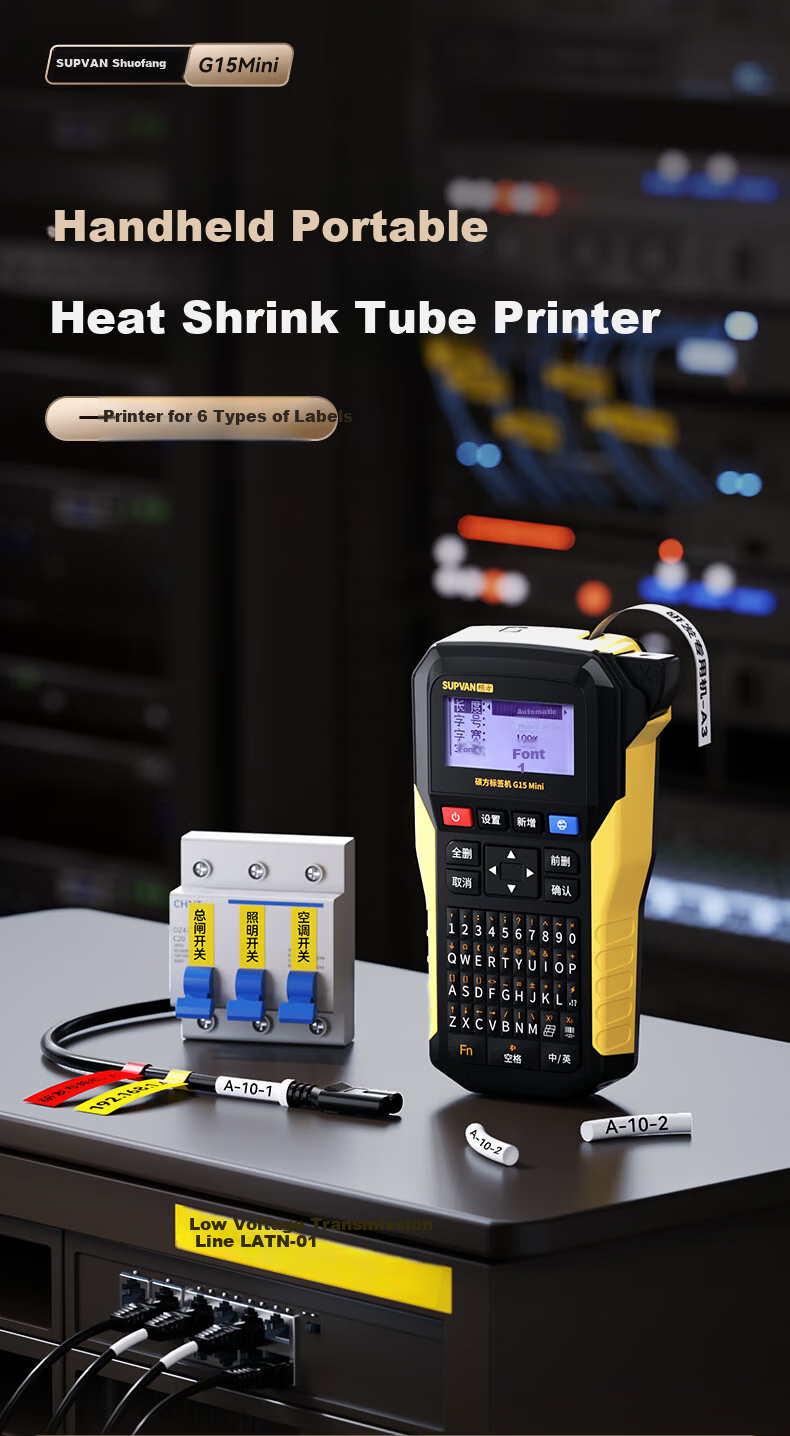

Product Type Handheld Portable Heat Shrink Tube Printer
Printing Technology Thermal Transfer Printing
Print Resolution 203 DPI
Print Width Maximum 15 mm
Effective Print Width 10 mm
Print Speed Similar Products
20 mm/s
Print Modes Keyboard Editing, Mobile App Editing
Keyboard Layout Vertical keyboard with QWERTYUIOP, ASDFGHJKL, ZXCVBNM, supports Chinese (Traditional and Simplified), Uyghur language input, and symbol input Compatible with 3 specifications covering wire diameters from 0.3mm² to 10mm²
Additional details

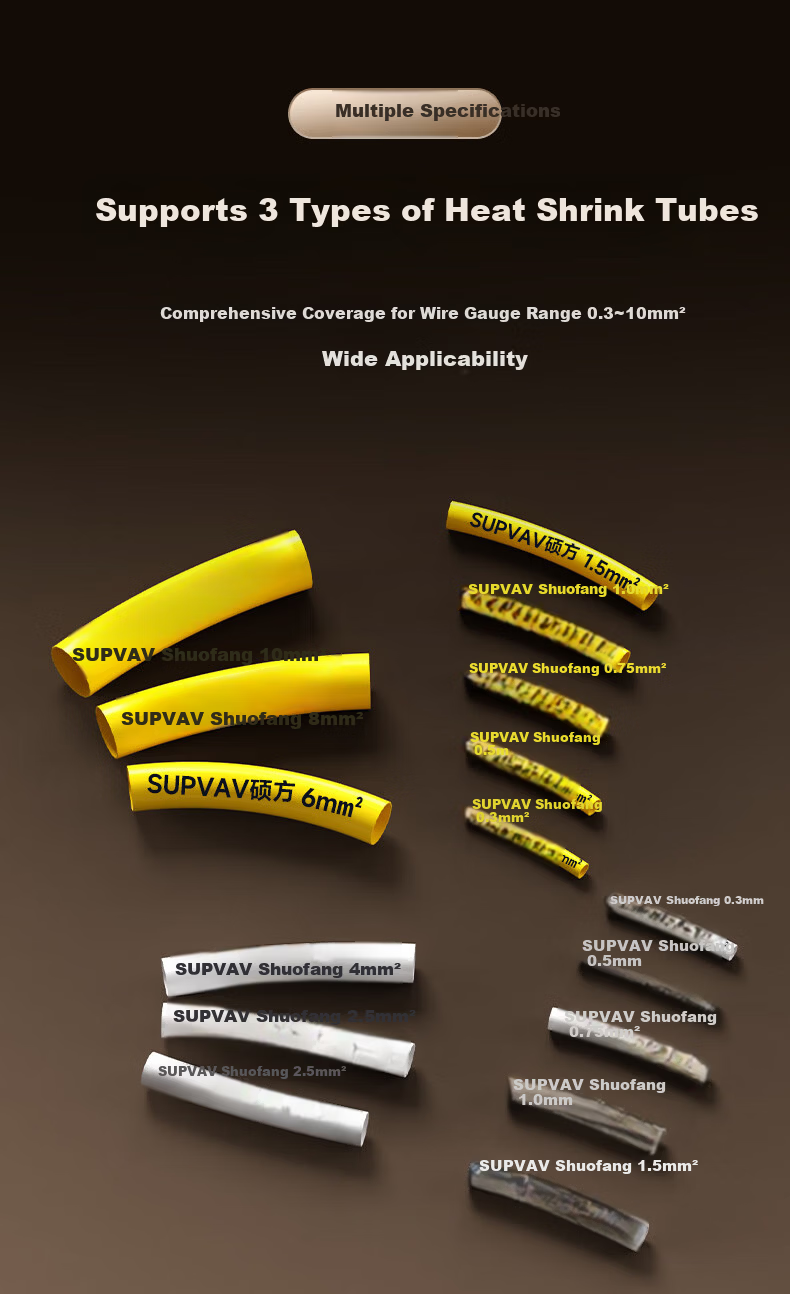

Tube diameters before shrinkage 4.2~4.5 mm, 3.7~4.0 mm, 3.1~3.4 mm, 2.6~2.9 mm, 2.3~2.6 mm
Tube diameters after shrinkage varies accordingly
Tube lengths 0.5 m, 1.5 m, 2 m options
Colors available Yellow, White, Transparent, Silver, Cartoon patterns

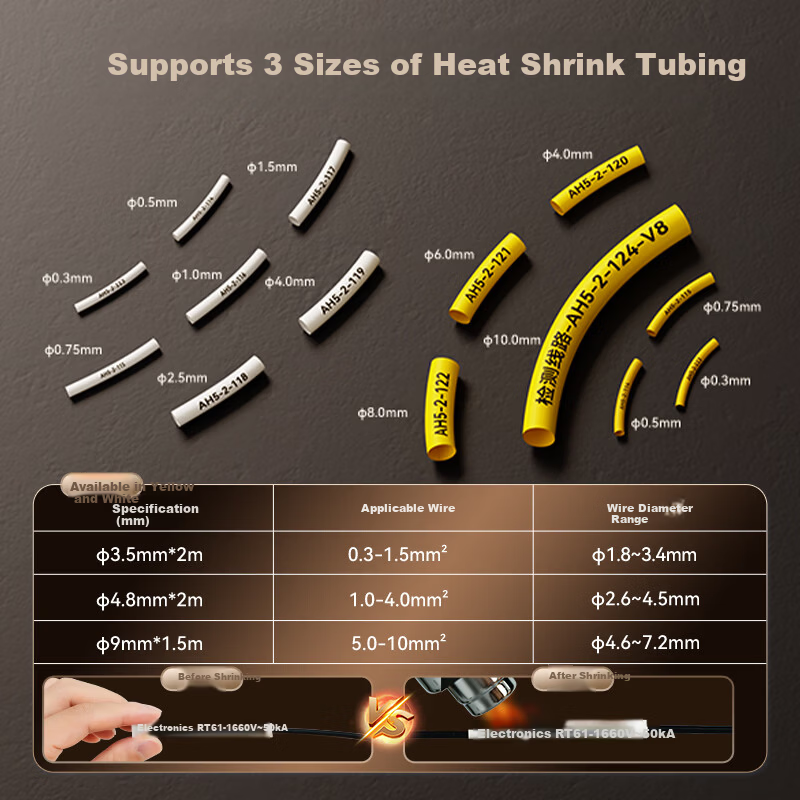

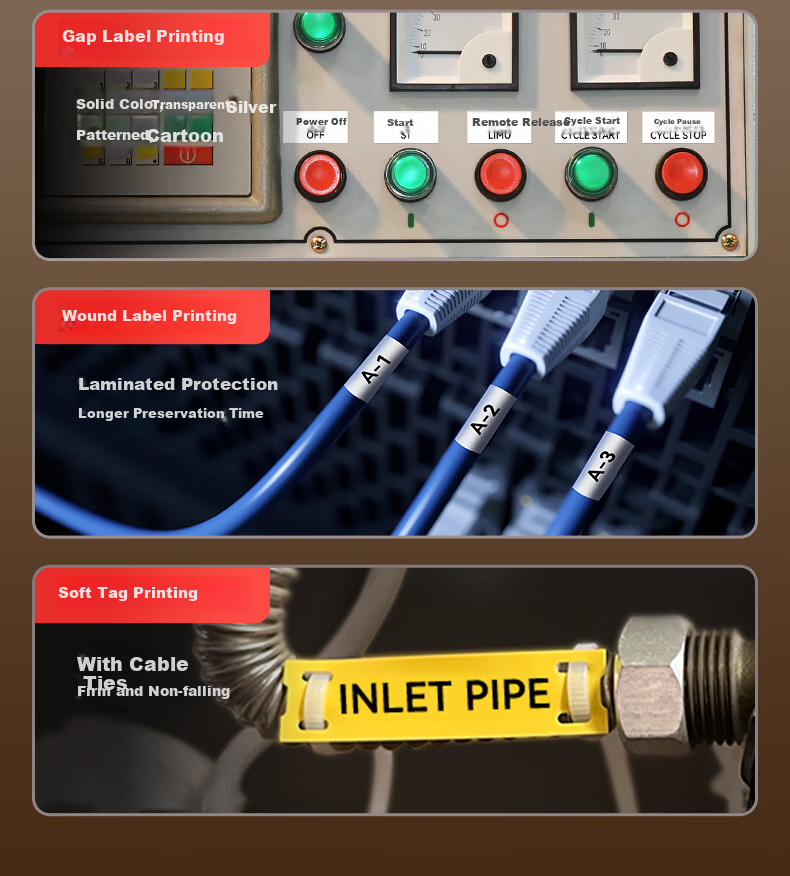

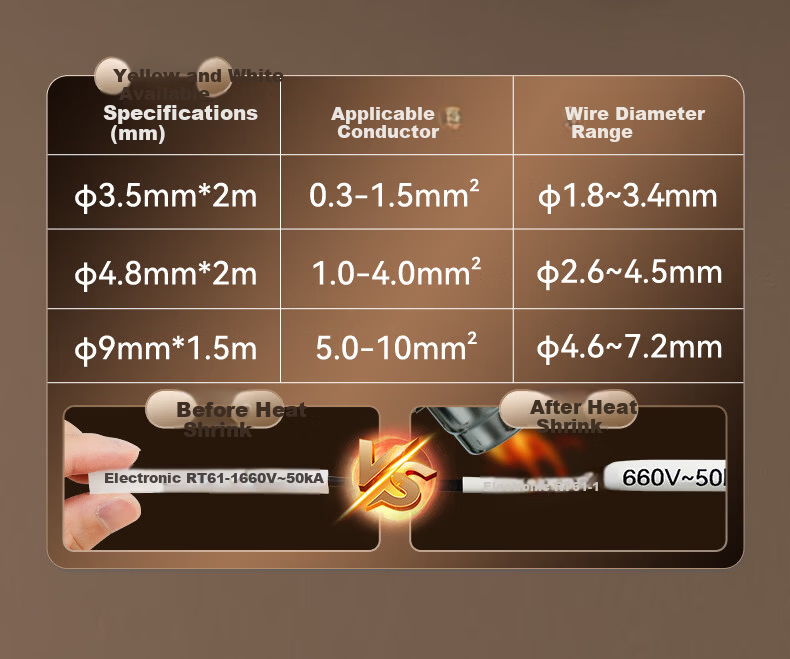

Tube specifications examples Φ3.5 mm*2 m (0.3-1.5 mm²), Φ4.8 mm*2 m (1.0-4.0 mm²), Φ9 mm*1.5 m (5.0-10 mm²) Gap labels (pure color, transparent, silver, cartoon)
Wrapped labels with lamination for longer durability
Soft tags compatible with cable ties

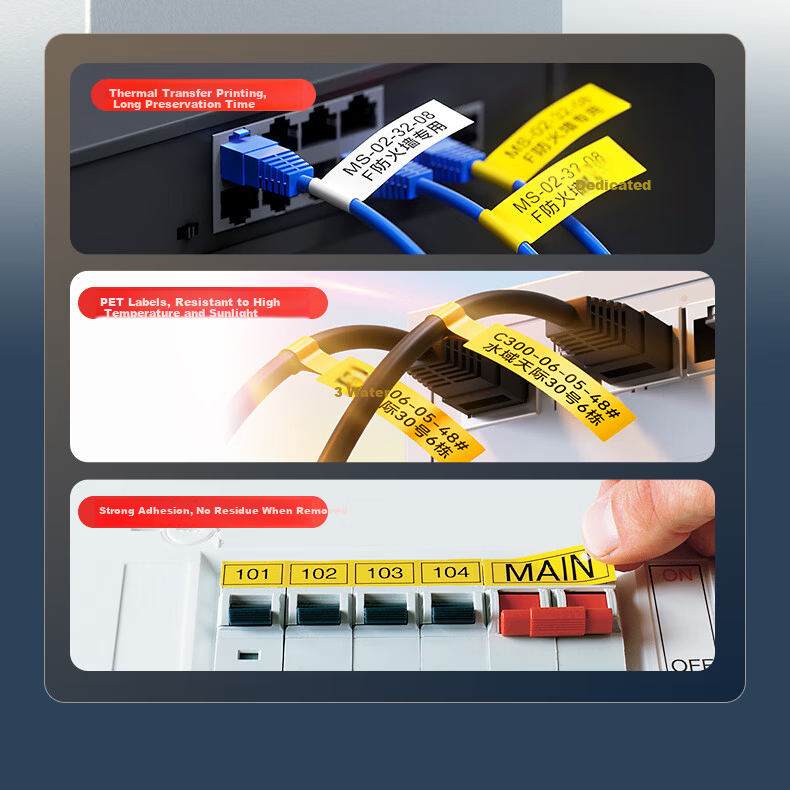

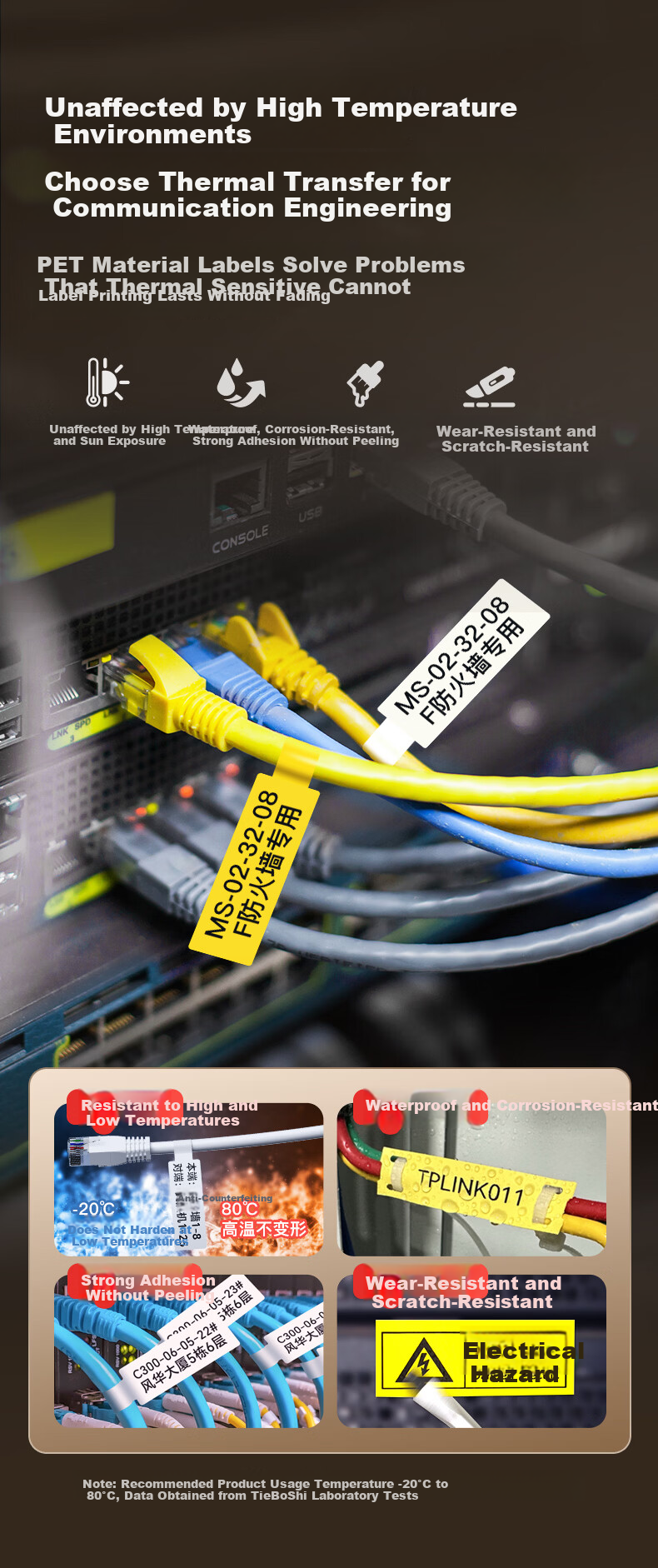

PET labels resistant to high temperature, sunlight, water, corrosion, abrasion, and fading

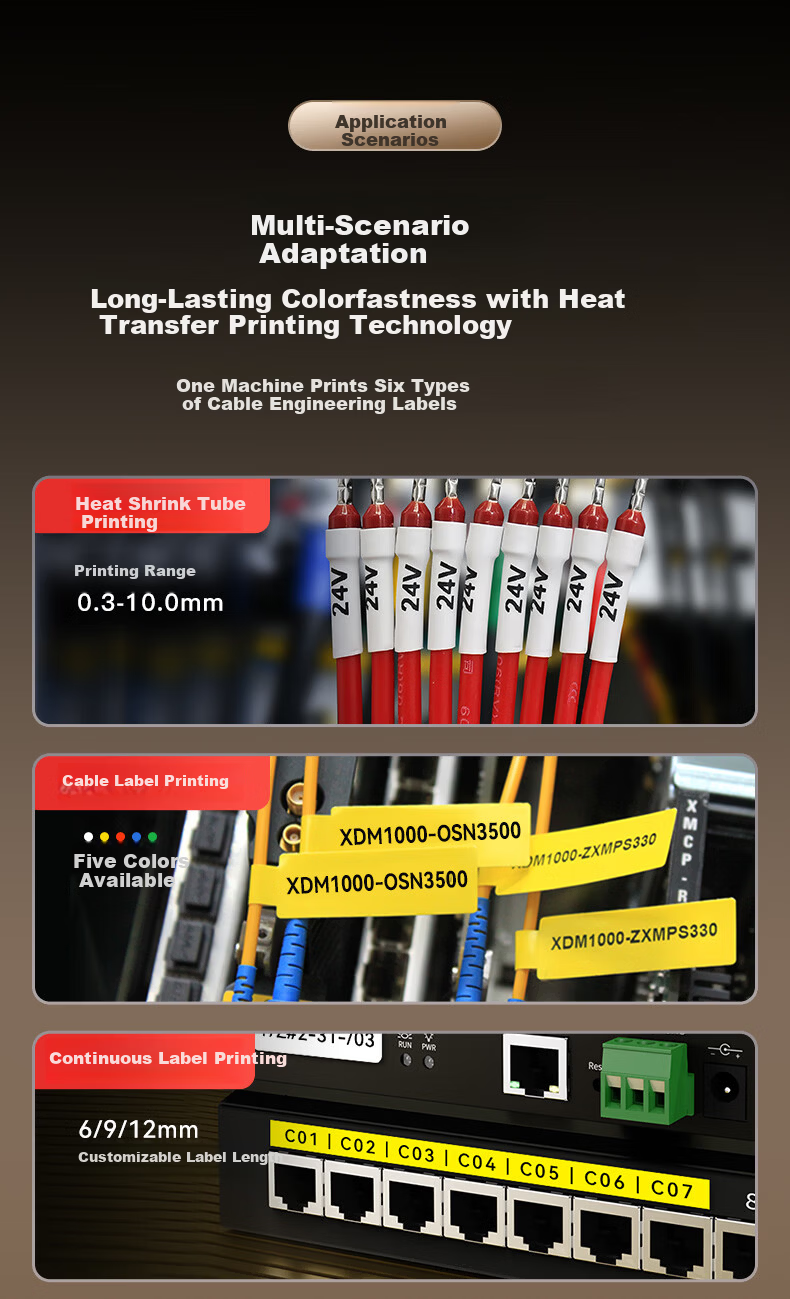

Supports printing of 6 types of cable engineering labels

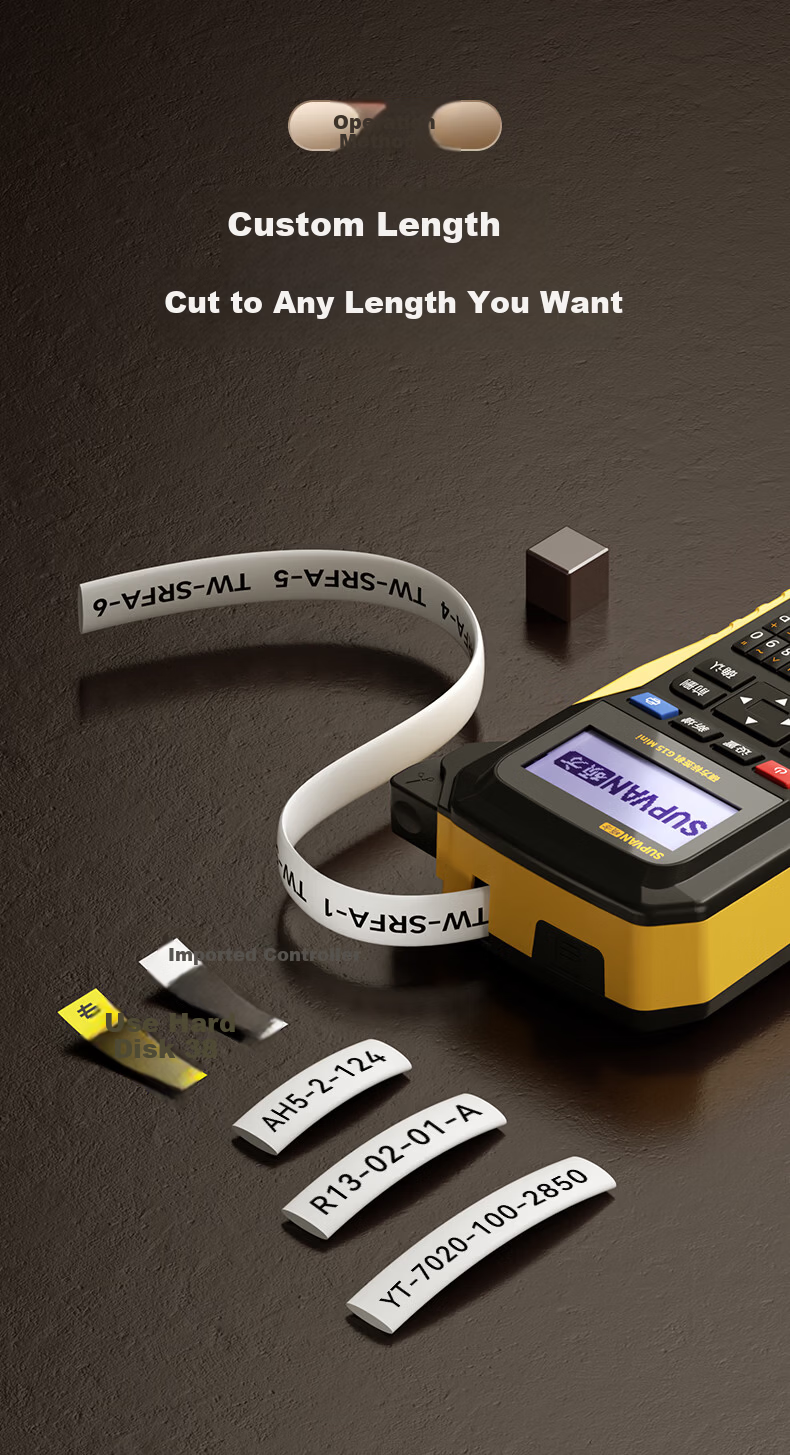

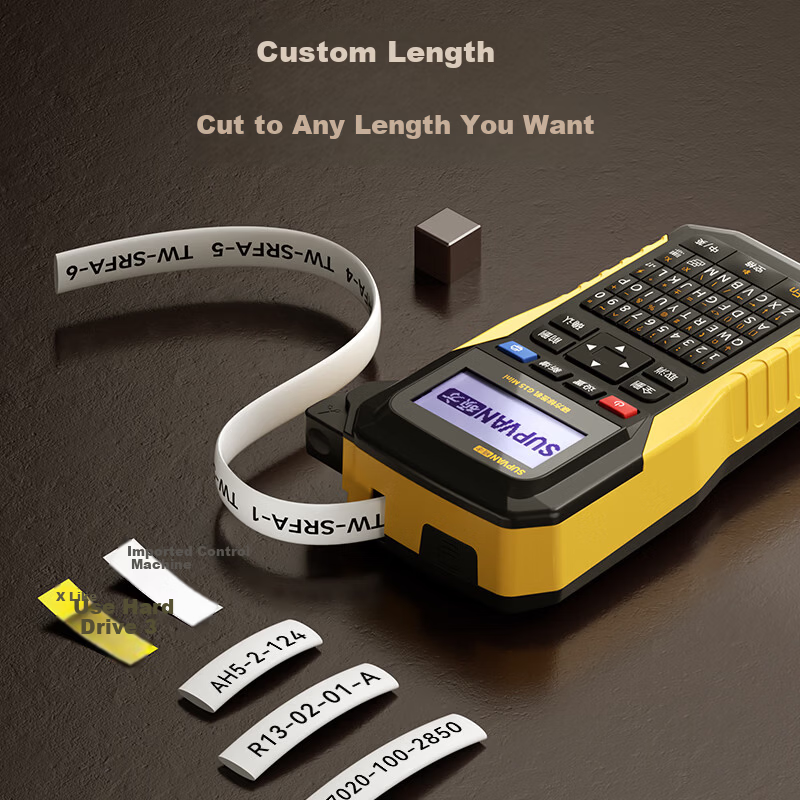

Customizable label length
Multi-copy printing (up to 99 copies of the same content)
Batch import for different label contents
Supports printing of logos and symbols via app
Color ribbon printing for long-lasting labels
Labels withstand temperature range from -20°C to 80°C
Resistant to water, corrosion, abrasion, and sunlight exposure

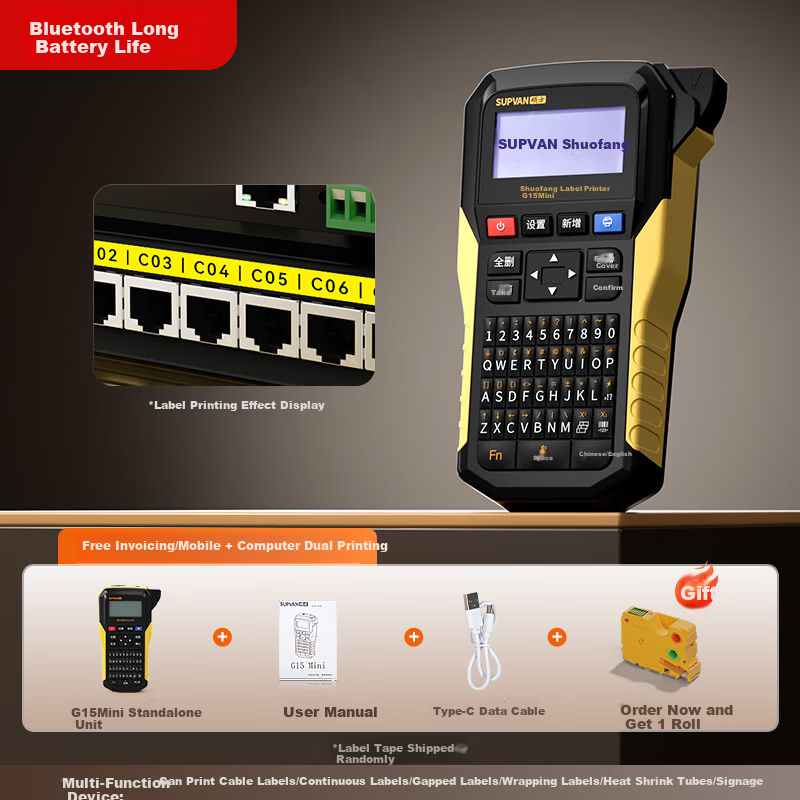

Bluetooth connection for mobile app printing
Type-C interface for charging only
Built-in large capacity lithium battery (2000mAh) for extended use
Wireless operation eliminates cable constraints and battery anxiety
Additional details
Whole machine 2 years

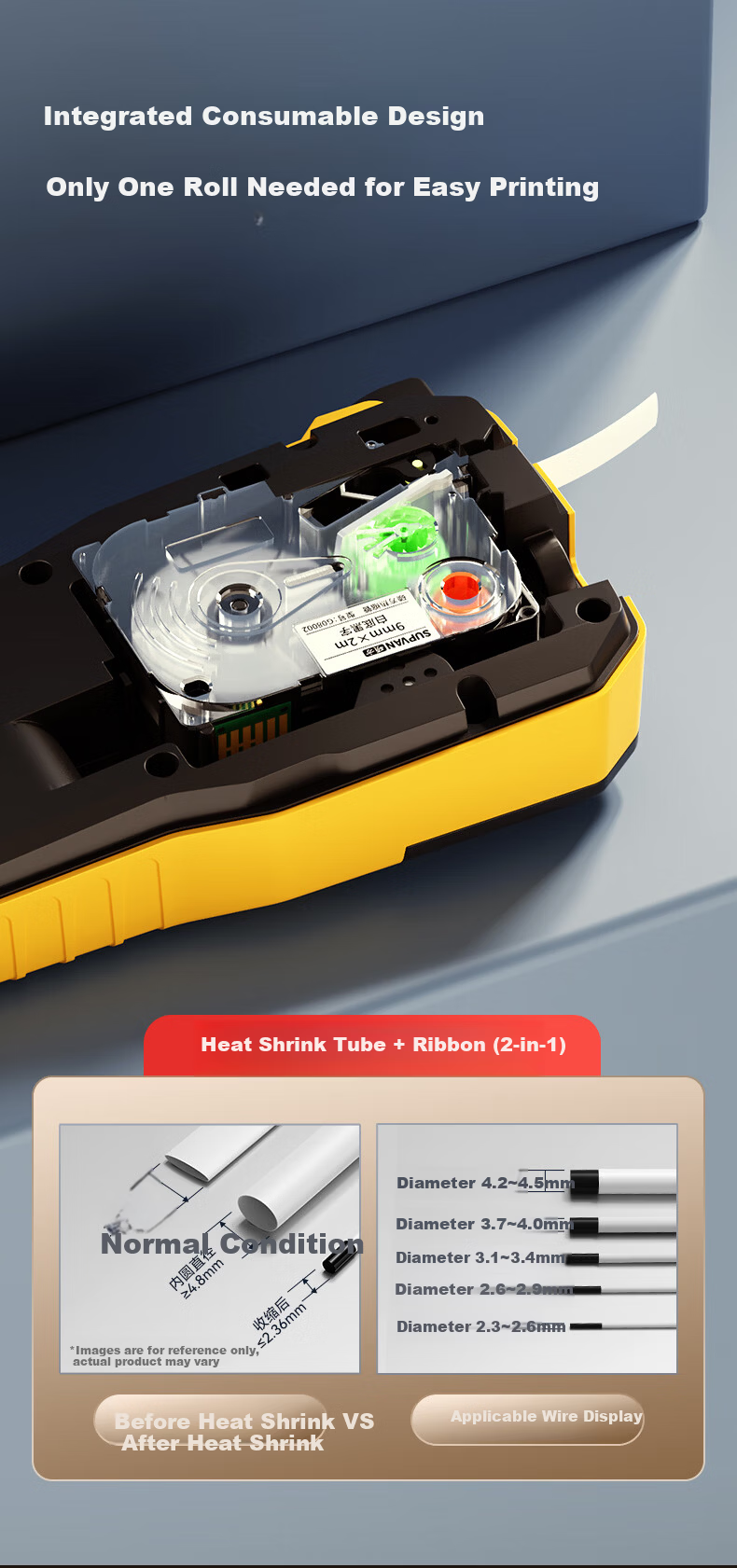

Print head 3 months Integrated consumables design (heat shrink tube + ribbon in one roll)
Supports multi-language input without input method restrictions
Supports remote start, stop, pause, and cycle functions
Suitable for various environments including outdoor and construction sites without network
Durable and reliable for communication engineering applications
Additional details
Recommended operating temperature -20°C to 80°C (tested by professional laboratory)
