Back to CatalogLAOA LA825205 Digital Multimeter Electrician Anti-Burn Voltage Current Capacitance Resistance Universal Meter
Specifications
- Category
- digital multimeter
- testing principles
- Relative value measurement
- Functions
- voltage, Resistor, electric current, Capacitance, Smart NCV, diode, frequency, On/Off (buzzing), backlight
- Measuring range
- Manual range
- Precision
- three and a half
Variants / Sale Attributes
Model: Classic Model AntiBurn Multimeter LA825205
Package Contents
Multimeter *1, Multimeter probes *1, Instruction manual *1, Battery *1
Product Description
Product Specifications - LAOA Digital Multimeter Model LA825205
Overview
- Brand
- LAOA
- Type
- Digital Multimeter with NCV (Non-Contact Voltage) sensing
- Measurement Functions
- AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency, Diode Test, Continuity with buzzer
Data Hold function
Relative measurement (REL)
Auto Power Off (APO) after 15 minutes of inactivity
True RMS measurement for accurate AC readings
Backlit LCD display with large screen for easy reading in dark environments
Built-in flashlight for illumination during power outages or low light conditions
Rubber protective sleeve for enhanced durability and drop resistance
Similar Products
In Stock
In Stock
Automatic range selection (AUTO)
Additional details
- Maximum input ratings
- 10A current, 600V voltage
Fuse protection for current inputs (600mA/250V fused, 10A fused)
Additional details
- Input terminals
- COM, VΩHz, mA, 10A
Additional details
- Ranges
- 60.00mV, 600.0mV, 6.000V, 60.00V, 600.0V, 1000V
- Resolution
- 0.01mV to 1V depending on range
- Accuracy
- ±(0.5% reading + 4-5 digits) for up to 60V, ±(1.0% reading + 6 digits) for higher ranges
Additional details
- Ranges
- 60.00mV, 600.0mV, 6.000V, 60.00V, 600.0V, 750V
- Resolution
- 0.01mV to 1V depending on range
- Accuracy
- ±(0.8% reading + 10 digits) up to 60V, ±(1.2% reading + 10 digits) for higher ranges
Additional details
- Ranges
- 600.0µA, 6000µA, 60.00mA, 600.0mA, 6.000A, 10.00A
- Resolution
- 0.1µA to 0.01A depending on range
- Accuracy
- ±(1.2% reading + 8-10 digits)
Additional details
- Ranges
- 600.0µA, 6000µA, 60.00mA, 600.0mA, 6.000A, 10.00A
- Resolution
- 0.1µA to 0.01A depending on range
- Accuracy
- ±(1.5% to 2.0% reading + 5-10 digits)
Additional details
- Ranges
- 600.00Ω, 6.000kΩ, 60.00kΩ, 600.0kΩ, 6.000 MΩ, 60.00 MΩ
- Resolution
- 0.01Ω to 0.01 MΩ depending on range
- Accuracy
- ±(0.8% reading + 4 digits) up to 60kΩ, ±(1.2% reading + 10 digits) for higher ranges
Additional details
- Ranges
- 6.000nF, 60.00nF, 600.0nF, 6.000µF, 60.00µF, 600.0µF, 6.000mF, 60.00mF
- Resolution
- 0.001nF to 0.01mF depending on range
- Accuracy
- ±(2.0% to 5.0% reading + 5-10 digits)
Additional details
- Range
- 10Hz to 10MHz
- Resolution
- 0.01Hz to 0.01MHz
- Accuracy
- ±(0.1% reading + 3 digits)

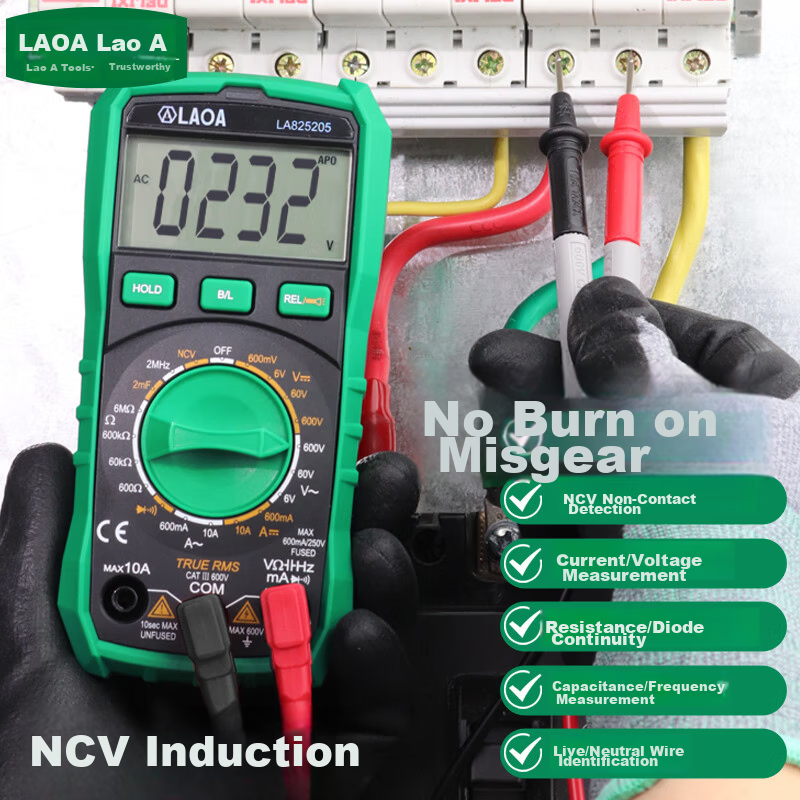

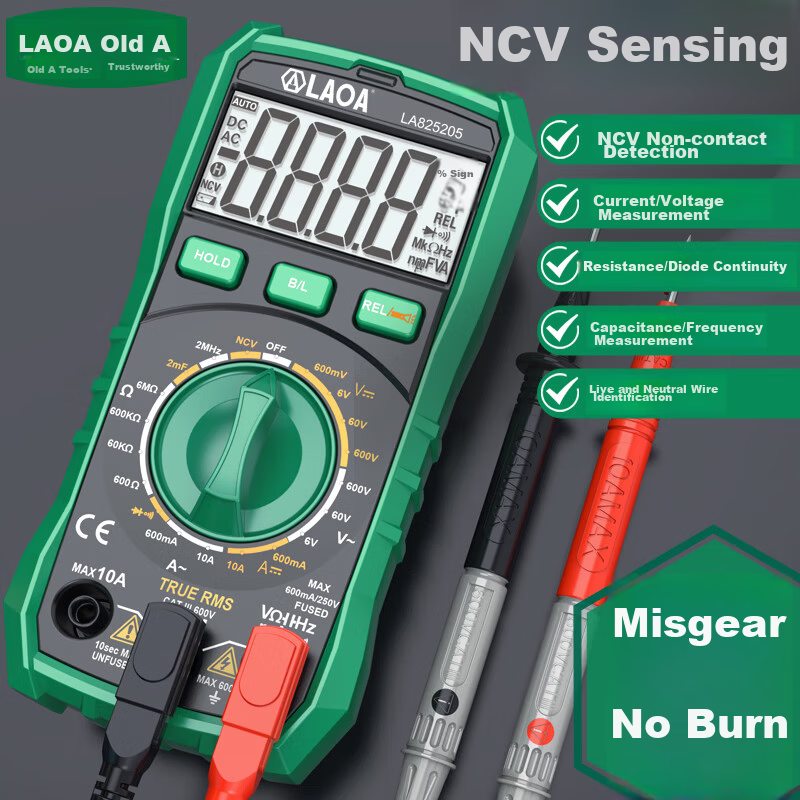

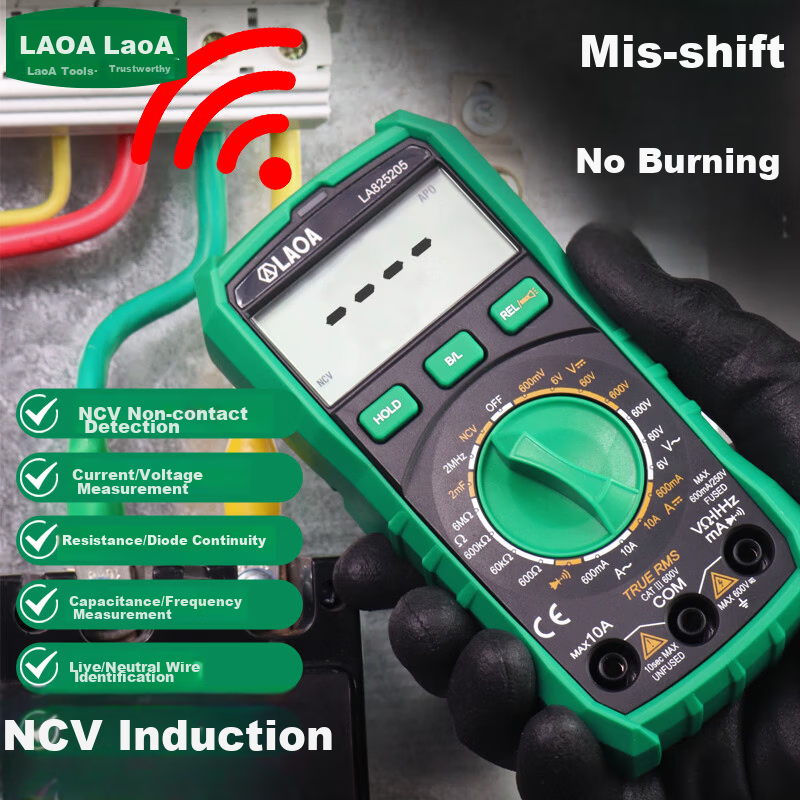

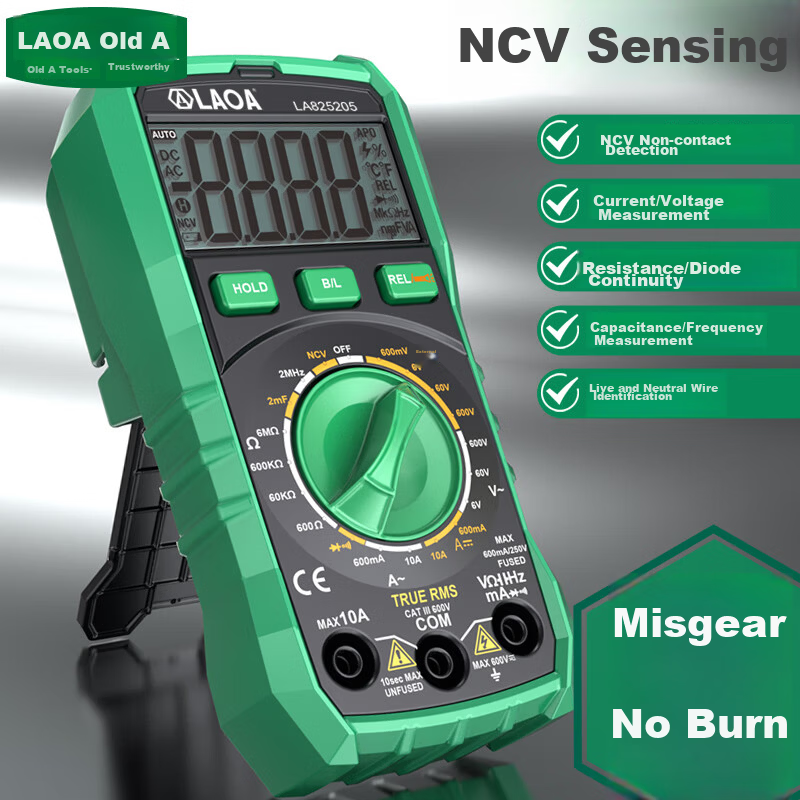

NCV (Non-Contact Voltage) detection with audible and visual alerts for live AC voltage presence
Continuity buzzer with LED indicator
Relative measurement mode (REL)
Data hold (HOLD) function to freeze readings
Auto backlight control for LCD display
Overload and input protection with fused inputs
Additional details
- Input terminal markings
- COM, VΩHz, mA, 10A
Automatic shutdown after 15 minutes of inactivity to save battery
Includes rubber protective sleeve for shock and dust resistance
Comes with test leads, 2 batteries, user manual, and packaging box
CAT I 600V rated for insulation and overvoltage protection
Shock-resistant rubber sleeve
Dust and water resistant design
Suitable for professional electrical measurement and troubleshooting
