Back to CatalogDELIXI ELECTRIC Coating Thickness Gauge Paint Film Thickness Meter Galvanized Thickness Tester High Precision Vehicle Paint Inspection Instrument
Specifications
- Display type
- digital display
- How it works
- All in one
- Material measurement
- Metal, paint film, Coating, plating
- Category
- coating thickness gauge
Variants / Sale Attributes
Model: [Best Seller] Metal Putty / Iron / Zinc / Aluminum
Measuring range: official standard configuration
Package Contents
Main product * 1
Product Description
Product Specifications
Overview
- Brand
- DELIXI ELECTRIC

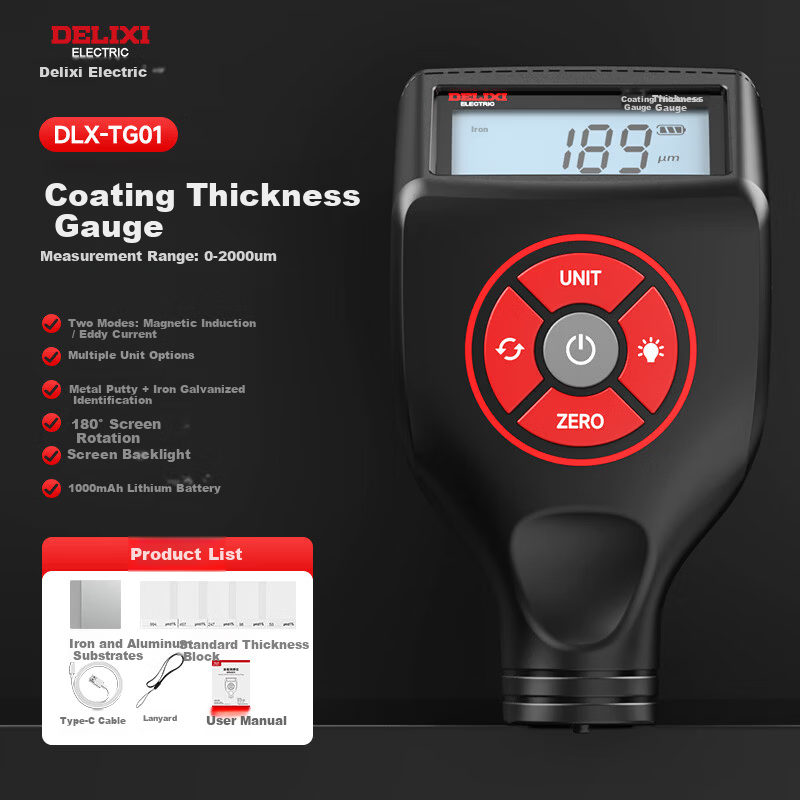

- Product Name
- Coating Thickness Gauge
- Model
- DLX-TG01
- Ferrous substrates
- Magnetic induction method
- Non-ferrous substrates
- Eddy current method

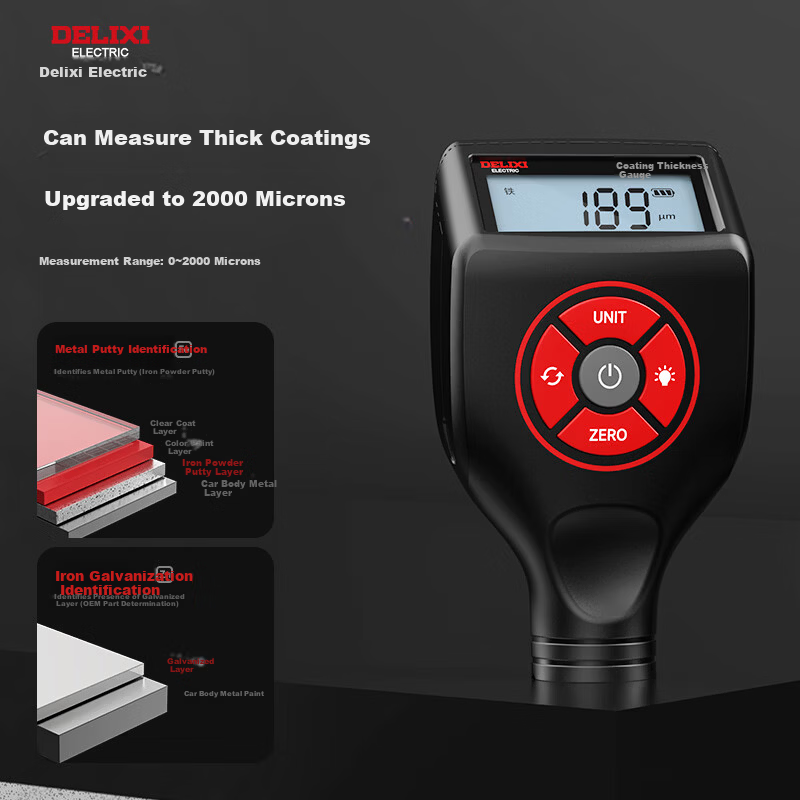

- Measurement Range
- 0–2000 μm
- Measurement Accuracy
- ±(3% reading + 1 μm)
Similar Products
In Stock
Out of Stock

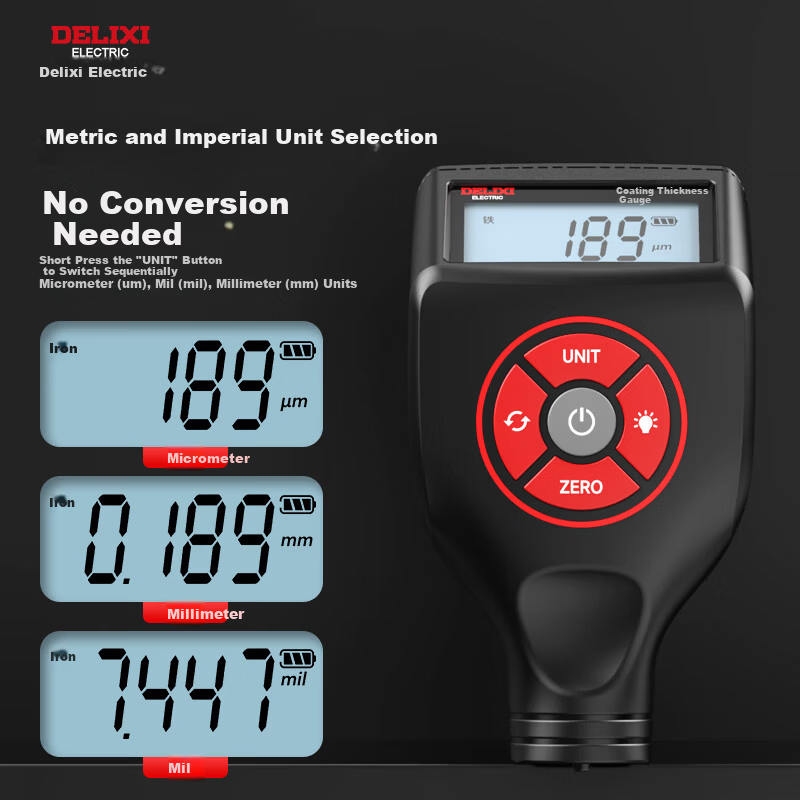

Resolution0.1 μm (0–99.9 μm); 1 μm (≥100 μm) UnitsSelectable between micrometers (μm), millimeters (mm), and mils (mil) via UNIT key Large digital LCD screen with backlight for clear and intuitive readings
180° rotatable screen for convenient data viewing in different scenarios
Zero calibration function
Additional details
- Self-calibration accessories included
- 5 standard thickness calibration blocks plus iron and aluminum standards
- Calibration accuracy
- ±1% at 1005 μm and 50 μm

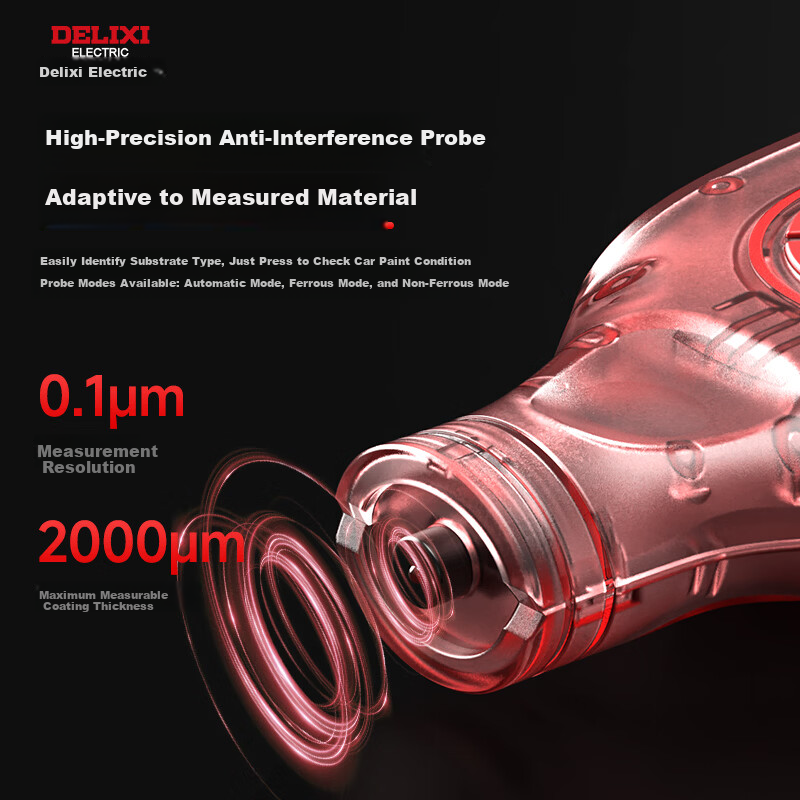

High sensitivity probe with automatic substrate recognition
Non-destructive testing capability
Additional details
- Minimum measurement area diameter
- 15 mm
- Probe trigger force
- 0.5–1.2 N
- Minimum substrate thickness
- Ferrous 0.30 mm; Non-ferrous 0.05 mm
- Minimum curvature radius
- Convex 5 mm; Concave 25 mm
Built-in 1000mAh lithium battery with Type-C direct charging
USB charging interface for convenient and continuous use
Accurate battery level display with auto shutdown feature
Additional details
- Dimensions
- 106 mm (L) × 62 mm (W) × 25 mm (H)
- Weight
- 74 g
- Housing Material
- ABS plastic
- Protection Level
- IP40
Compact and portable design with ergonomic symmetrical structure for stable handheld operation
Includes lanyard hole for easy carrying
High precision digital display with micron-level accuracy
Additional details
- Dual non-destructive testing modes
- magnetic induction for ferrous metals and eddy current for non-ferrous metals
Fast measurement speed up to 2–3 readings per second (K0.5s)
Sensitive probe automatically identifies substrate type
Supports multiple coating types including car paint, rubber, enamel, and other non-conductive or non-magnetic coatings
Additional details
- Wide application fields
- automotive industry, manufacturing, metal processing, chemical industry, commodity inspection, and more
User-friendly operation with quick unit switching, zero calibration, and auto power off
Rotatable screen and compact size enhance usability in various measurement environments
Accurate and reliable coating thickness measurement for quality control and assurance
Ideal for detecting car paint conditions, identifying accident repairs, and verifying coating integrity
Suitable for ferrous and non-ferrous metal substrates with various coating materials
Product images are for design reference only; actual product specifications prevail.
