DELIXI ELECTRIC Leakage Protection Switch Tester with Voltage and Loop Resistor, Leakage Current Measurement 10-500mA

DELIXI ELECTRIC•Leak detector

DELIXI ELECTRIC Leakage Protection Switch Tester with Voltage and Loop Resistor, Leakage Current Measurement 10-500mA

CN¥658.75

SKU: 100239347546

Status:In Stock (10)

ID: 100239347546

Weight: 1765.00 g

Dims:334x274x94 mm

Package Contents

product

Product Description

Product Specifications

Overview

Brand: DELIXI ELECTRIC
Product Name: DI-795A Leakage Protection Switch Tester / RCD/Loop Tester

IEC/EN 61010-1

Additional details

Rated Voltage Category: 1000V CAT II / 600V CAT IV

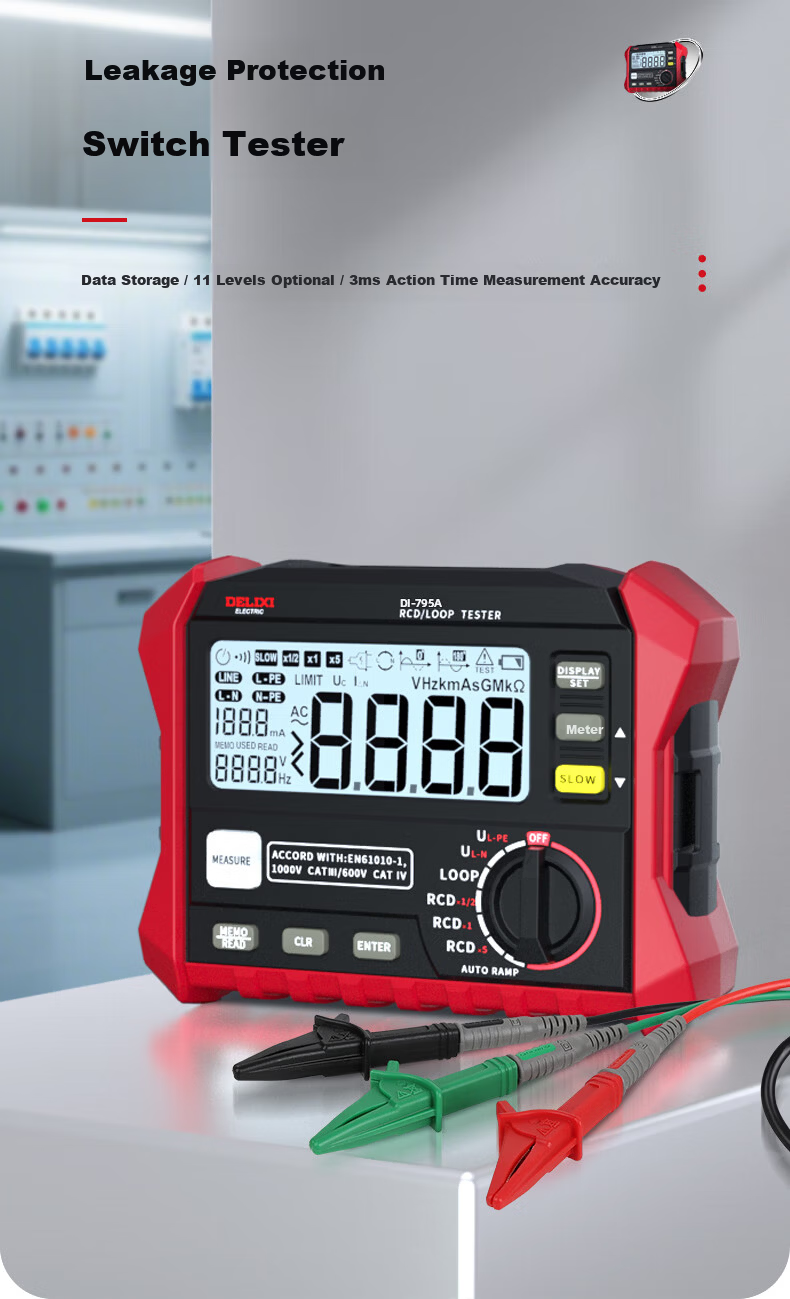

The DI-795A is a professional leakage protection switch tester designed for accurate and reliable testing of residual current devices (RCDs) and loop impedance. It is suitable for use in power, manufacturing, metallurgy, chemical, and household electrical safety measurements. The device supports multiple test modes, data storage, and USB data export, making it ideal for production, installation, inspection, and maintenance of leakage protection switches.

Additional details

Similar Products

In Stock

Leak detector

Airup Air Conditioner Refrigerant Leak Detector Refrigerant Leak Tester Refrigerant Leak Detection Instrument

Refrigerant

CN¥368.00

View

In Stock

HIKMICROLeak detector

HIKMICRO Leak Detection Pipe Detector High-Precision Leak Tester Floor Heating Leak Detection Instrument A3

A3 (Dual Probe Professional Edition)

CN¥2,599.00

View

In Stock

HIKMICROLeak detector

HIKMICRO Leak Detection AI High-Precision Water Leak Locator for Pipes and Underfloor Heating A5

["Lightweight" dual probes] "AI" intelligent leak detection

CN¥2,999.00

View

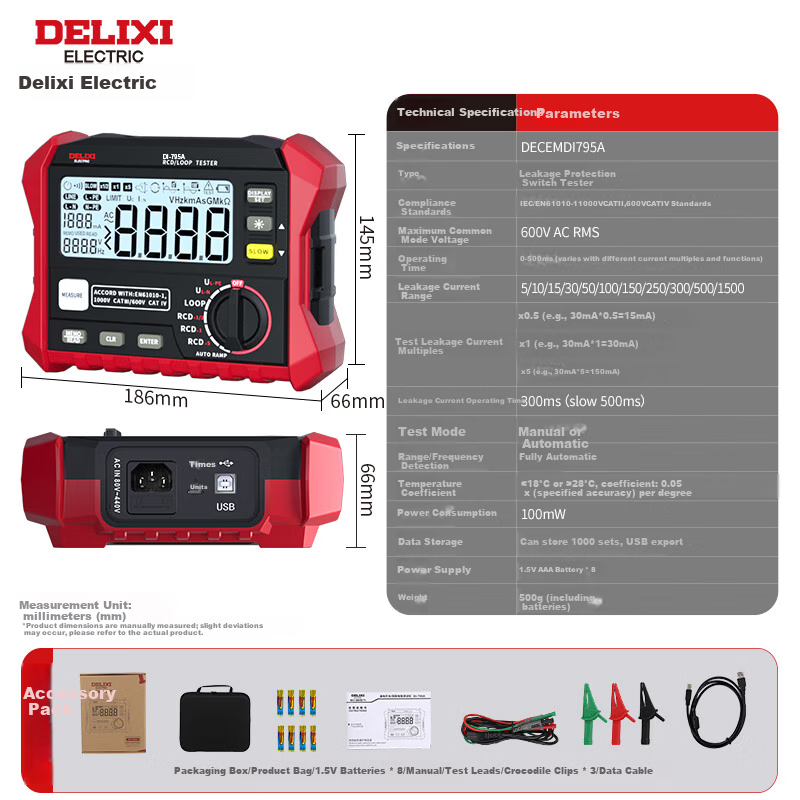

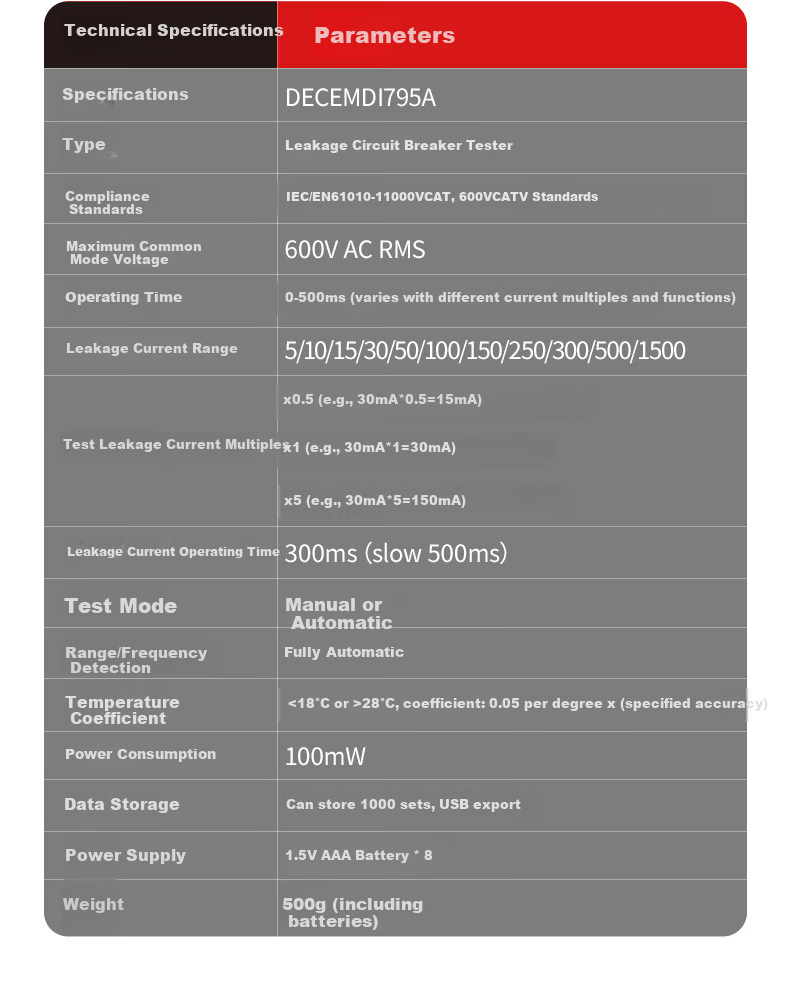

Measurement Functions

Leakage current, voltage (L-PE, L-N), loop impedance, action time

Test Modes

Manual and automatic

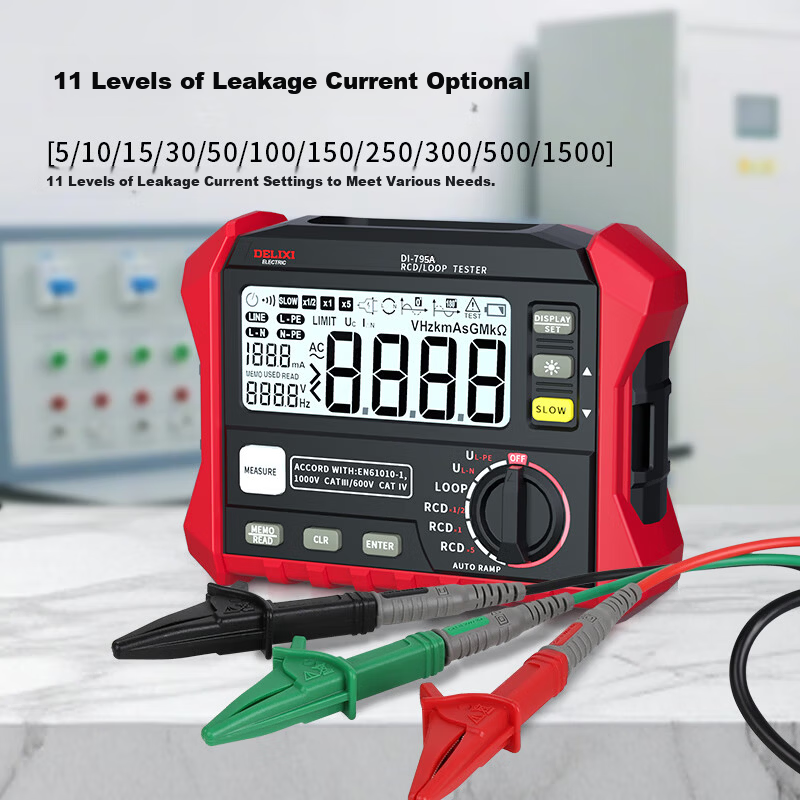

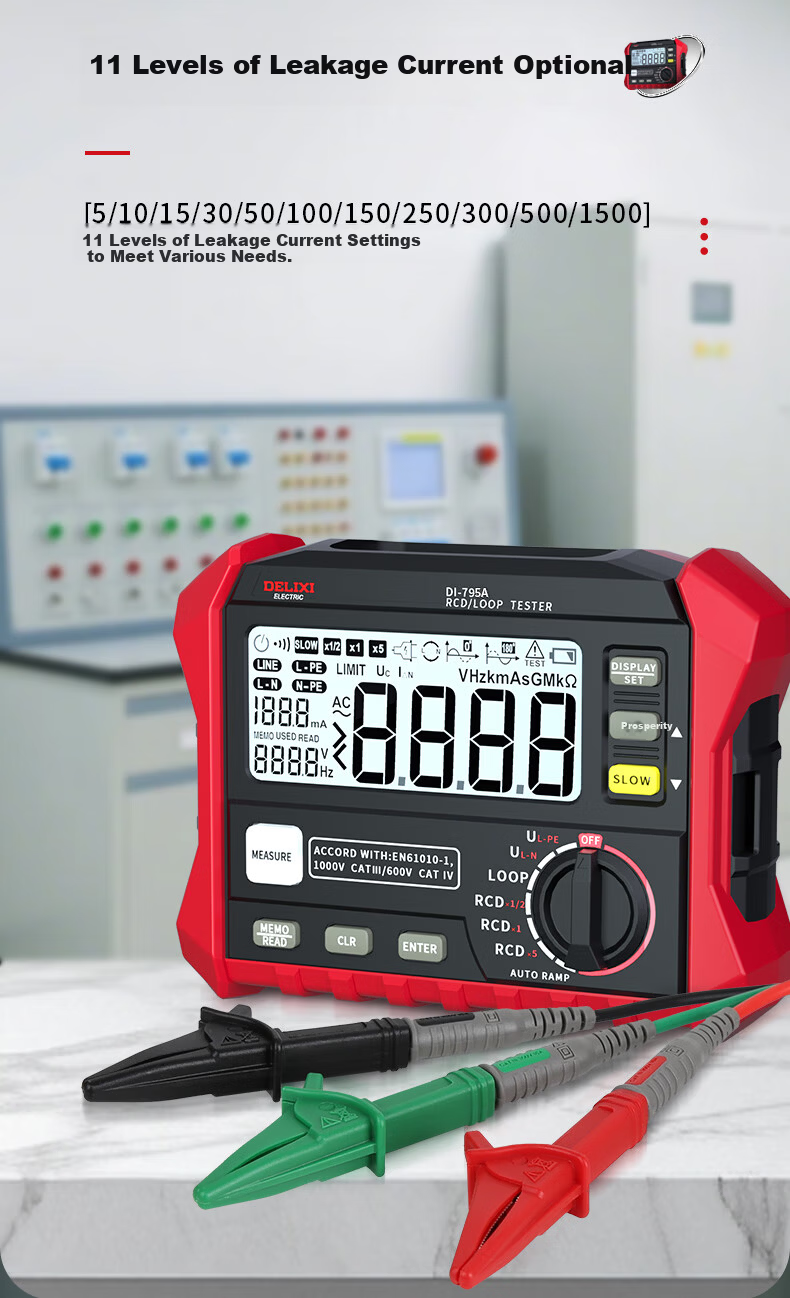

Leakage Current Test Levels

5/10/15/30/50/100/150/250/300/500/1500 mA

Leakage Current Multipliers

0.5x, 1x, 5x (e.g., 30mA x 0.5 = 15mA)

Action Time Range

0-500 ms (depending on current multiplier and function), slow action time 300-500 ms

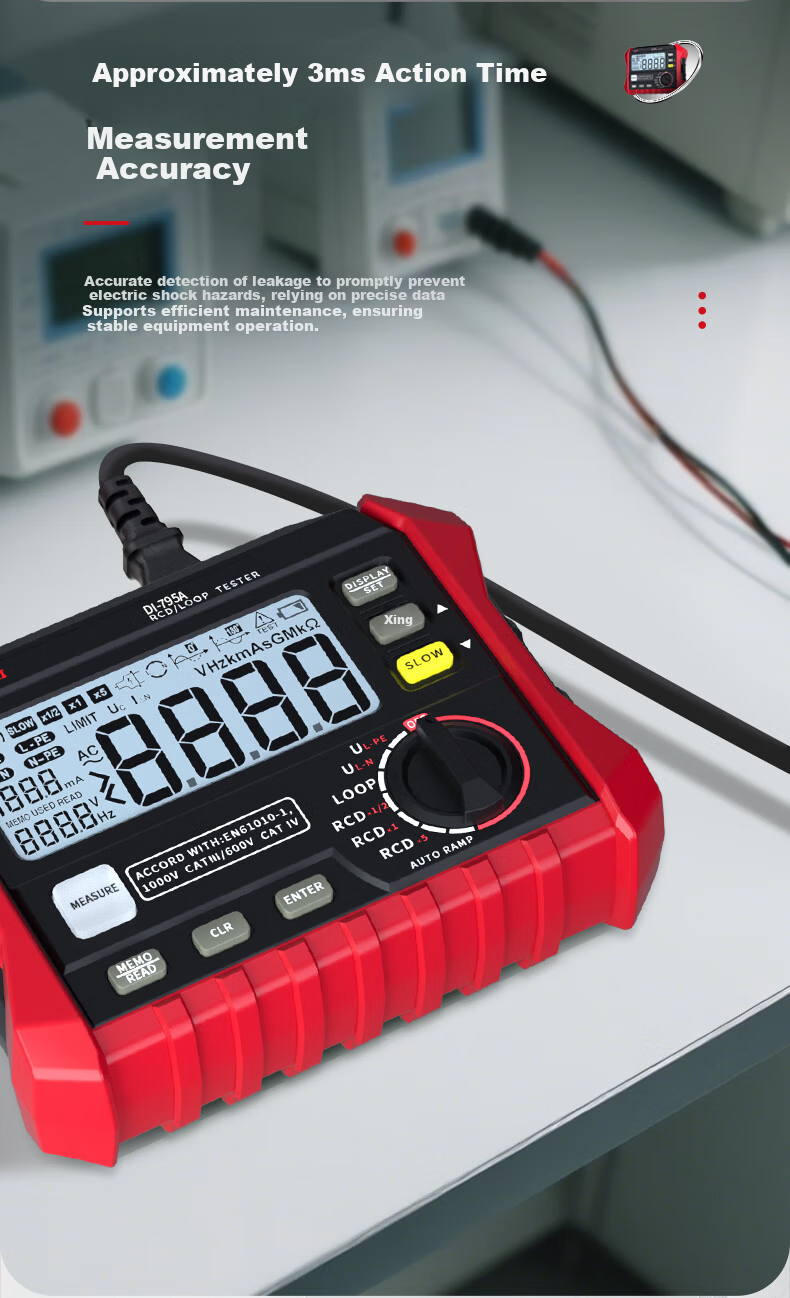

Measurement Accuracy

±3 ms action time accuracy

Temperature Coefficient

For temperatures below 18°C or above 28°C, accuracy adjustment factor of 0.05 per degree

Power Consumption

100 mW

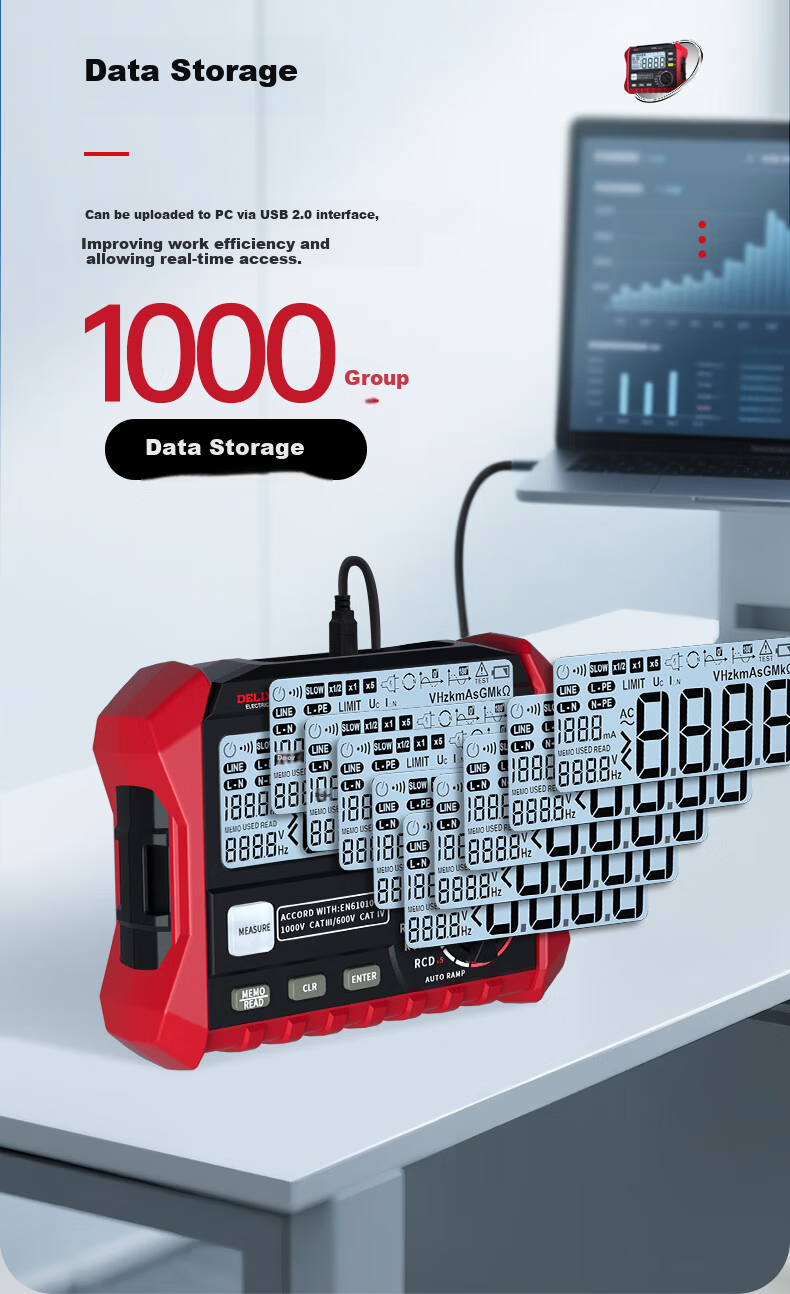

Data Storage

Up to 1000 test records with USB 2.0 interface for PC data export

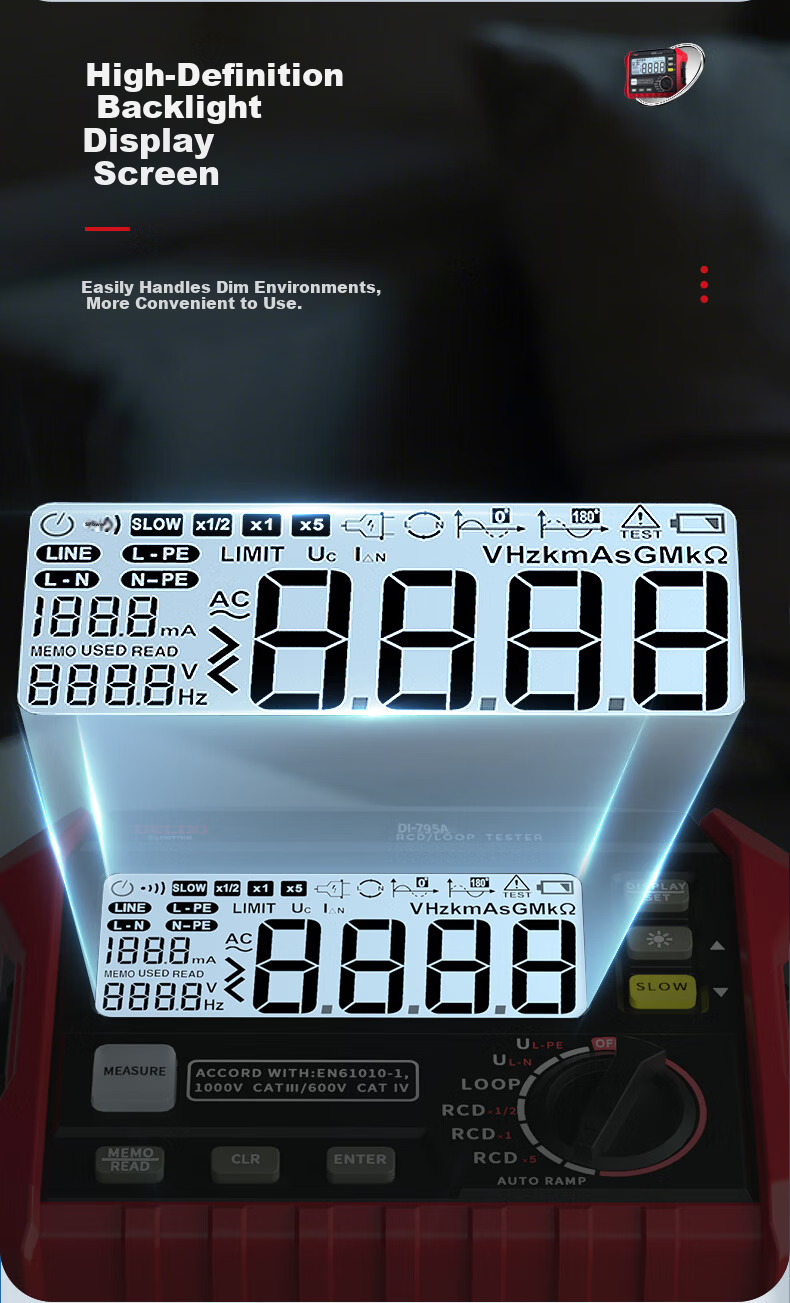

Display

High-definition backlit LCD for easy reading in low light conditions

Automatic Shutdown

Device automatically powers off; knob must be turned to OFF position and wait 5 seconds before next operation

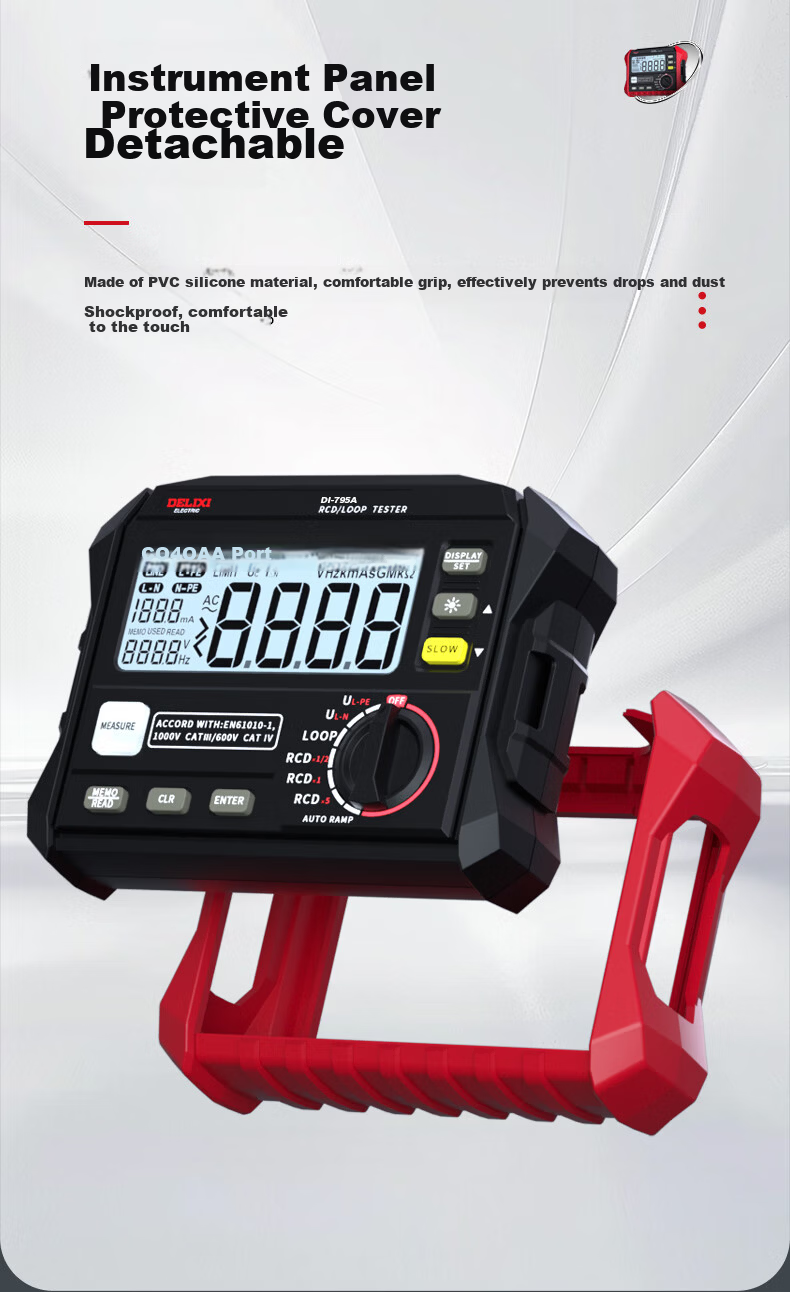

Protective Case

Removable PVC silicone case for shock, dust, and drop protection with comfortable grip

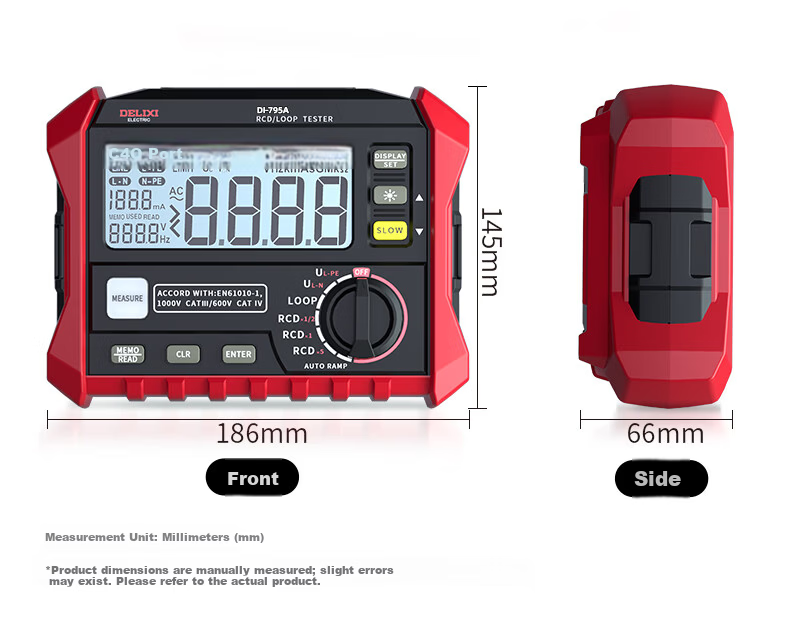

Dimensions

Approx. 186 mm (length) x 66 mm (width) x 145 mm (height)

Weight

Approx. 500 g (including batteries)

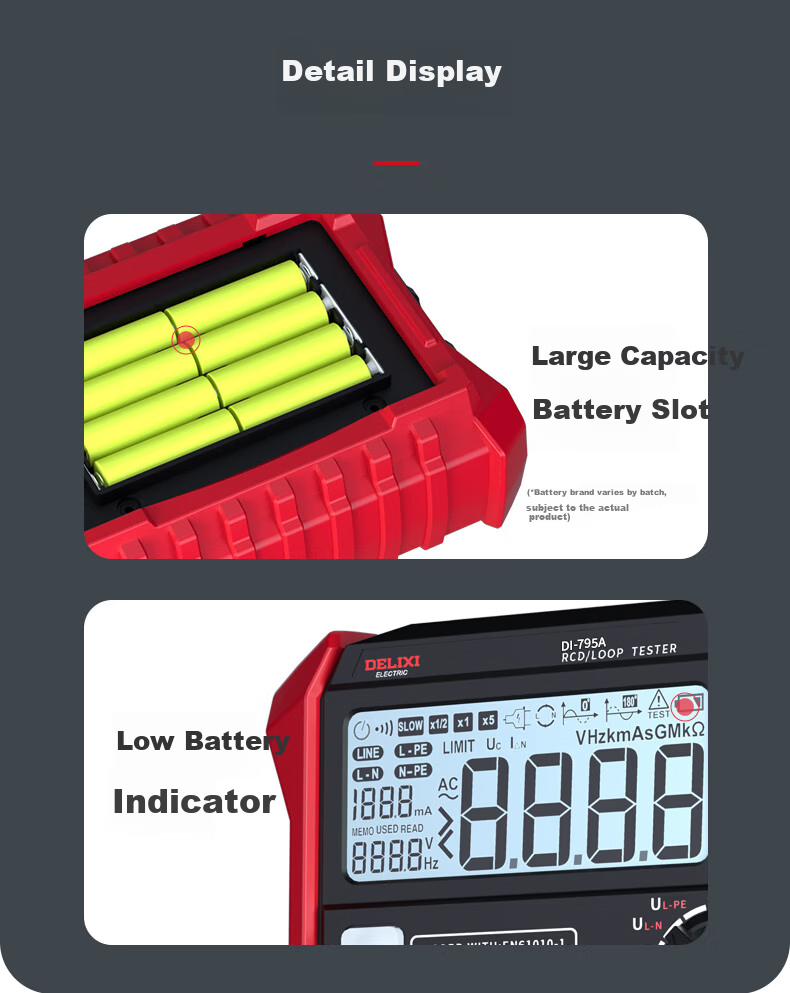

Battery

8 x 1.5V AAA batteries (battery brand may vary by batch)

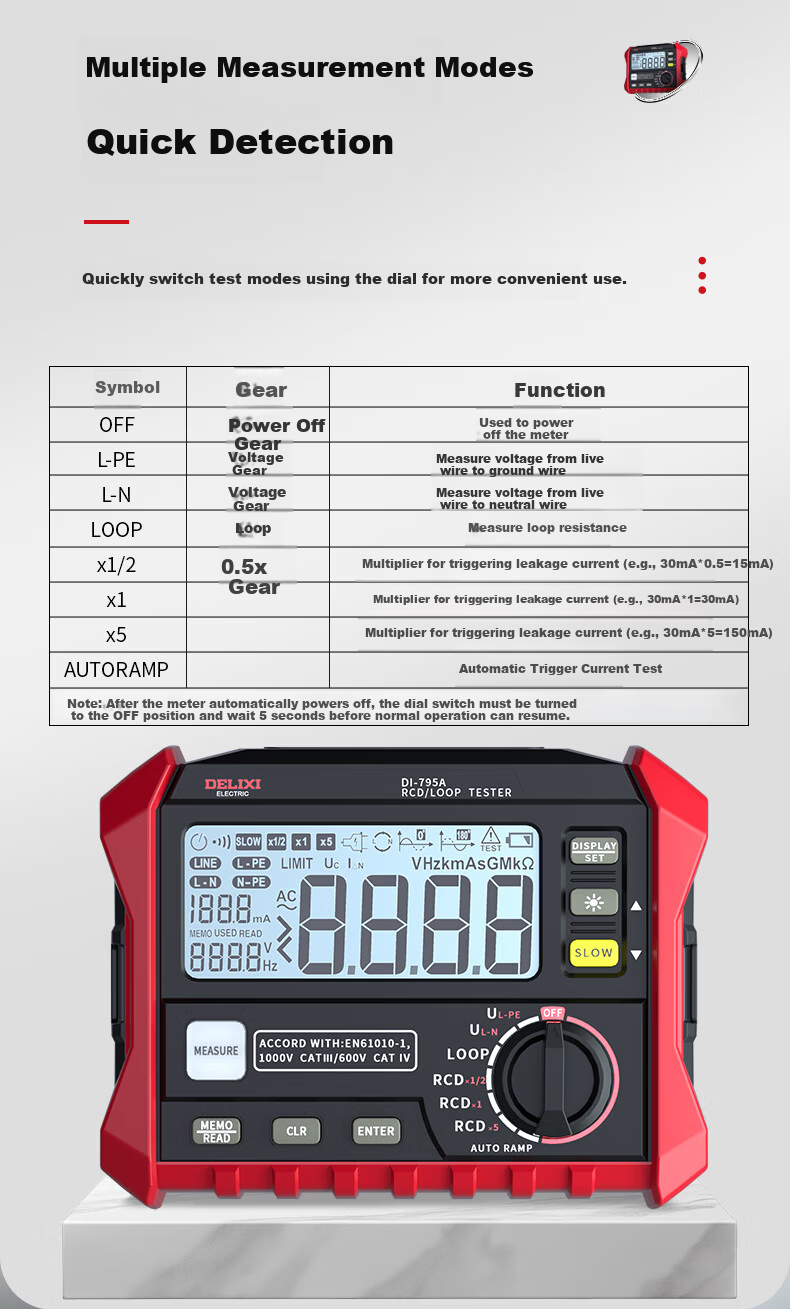

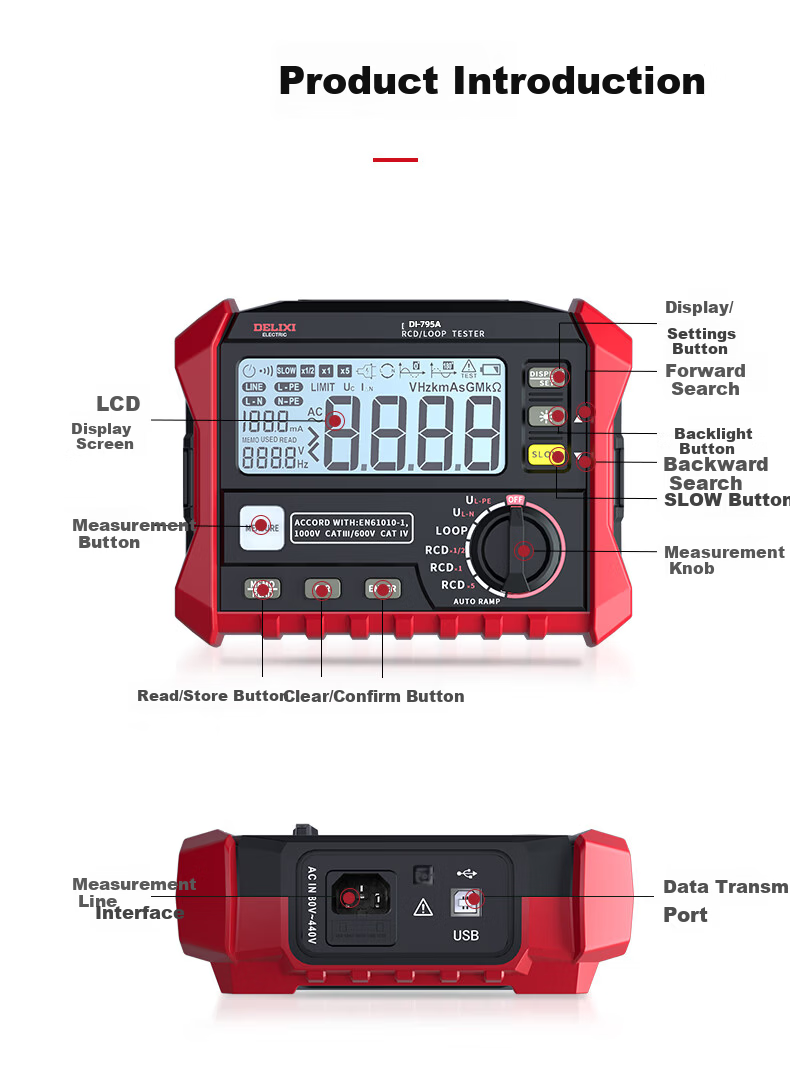

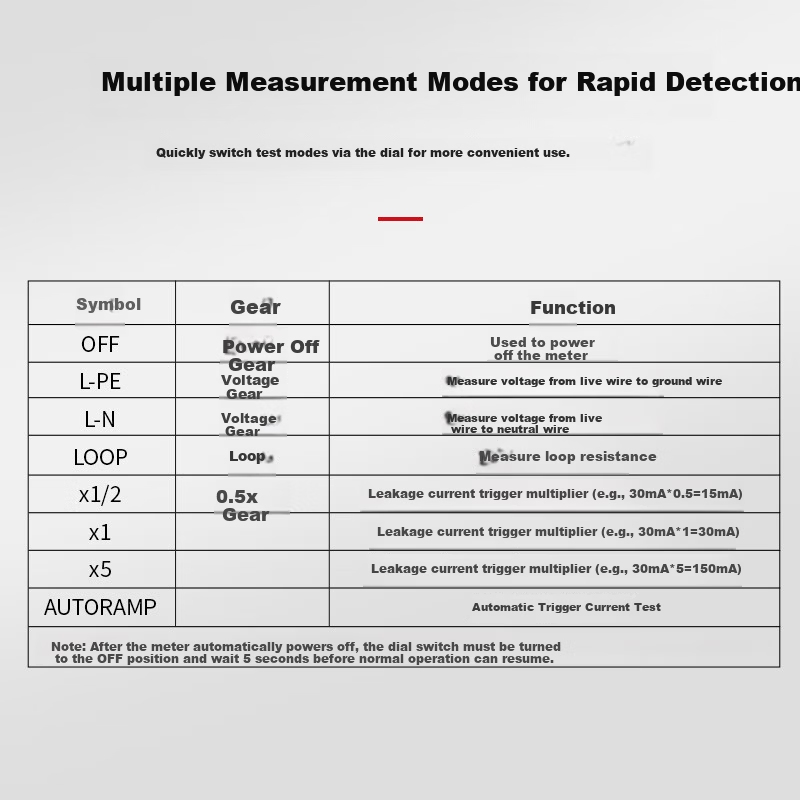

L-PE

Voltage measurement between live and earth

L-N

Voltage measurement between live and neutral

LOOP

Loop impedance measurement

x0.5, x1, x5

Leakage current trigger multipliers

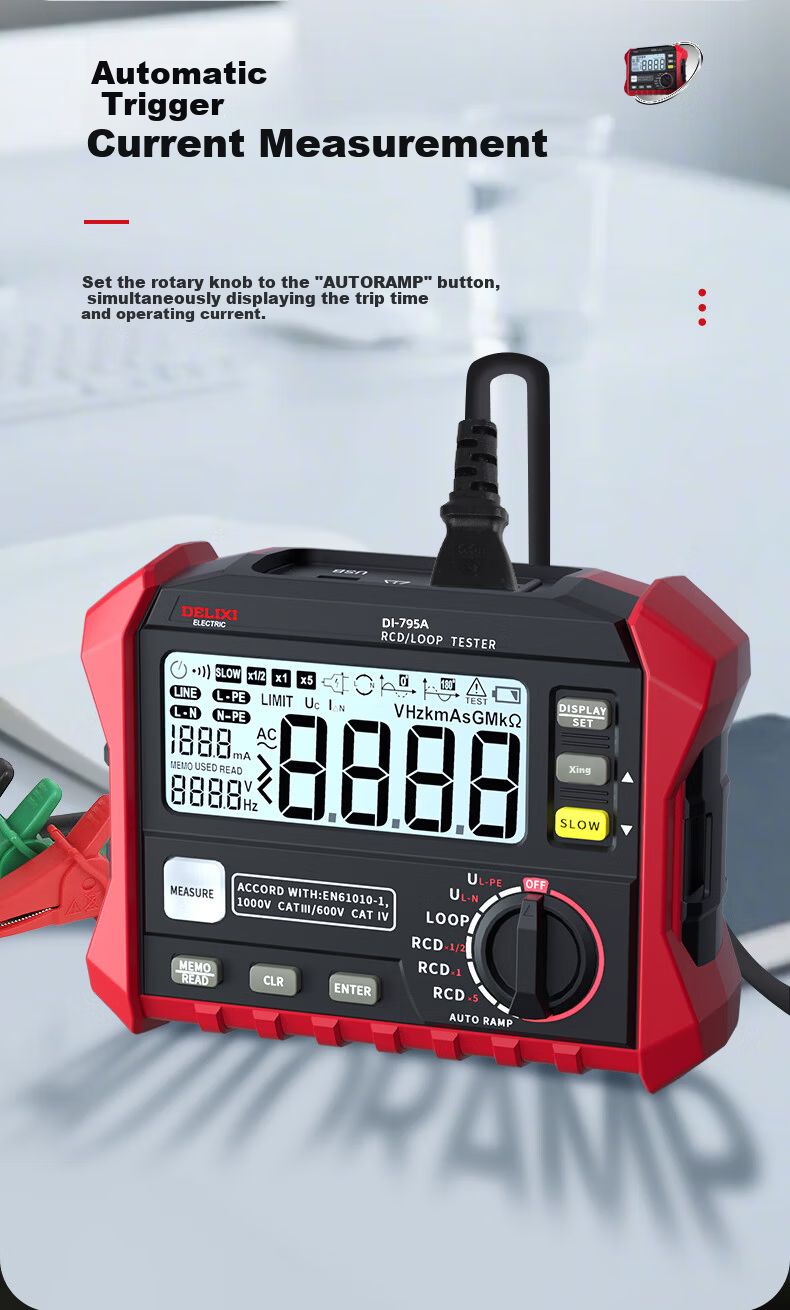

AUTORAMP

Automatic ramp current test mode

MEMO

Data storage and recall

CLR

Clear stored data

ENTER

Confirm selection

SLOW

Slow action time measurement mode

MEASURE

Start measurement

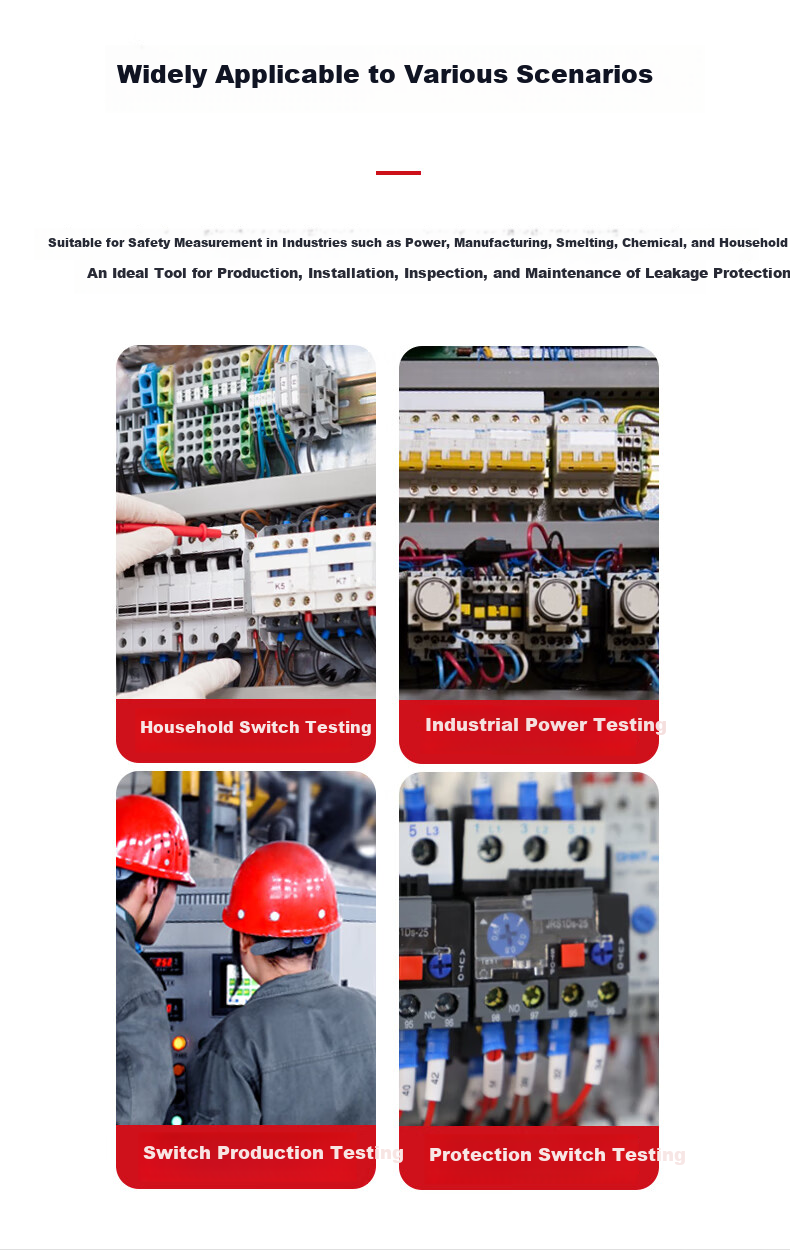

Household switch testing

Industrial power supply testing

Switch production quality control

Protection switch inspection and maintenance

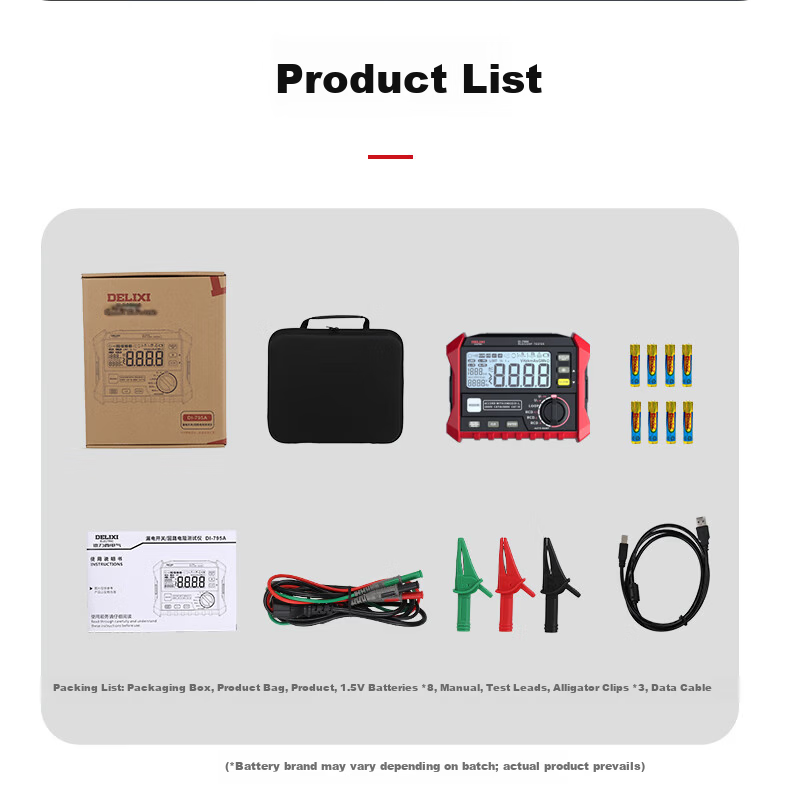

8 x 1.5V AAA batteries (brand varies)

Protective carrying case

1. Refer to the user manual for detailed operation instructions.

2. After automatic shutdown, turn the rotary switch to OFF and wait 5 seconds before next use.

3. Avoid impacts, especially on the clamp contact surfaces.

4. Press the HOLD button after measurement to lock the reading and reduce battery consumption.

DELIXI ELECTRIC is a trusted brand under the DELIXI Group, a top 500 Chinese enterprise, jointly established with Schneider Electric, a global Fortune 500 company. DELIXI ELECTRIC offers extensive service networks with over 60000 stores and 4000+ distributors nationwide, supported by multiple production bases and R&D centers, ensuring high-quality electrical products and solutions.
