Dahua NVR Surveillance Hard Drive Recorder 16-Channel 4-Bay POE Network Power Supply HD Smart Network Monitoring Host Perimeter Protection DH-PN4416-S16P Without Hard Drive

dahua•industrial security monitoring

Dahua NVR Surveillance Hard Drive Recorder 16-Channel 4-Bay POE Network Power Supply HD Smart Network Monitoring Host Perimeter Protection DH-PN4416-S16P Without Hard Drive

CN¥2,143.00

SKU: 100239945877

Status:In Stock (1)

ID: 100037865788

Weight: 6850.00 g

Dims:524x496x204 mm

Specifications

Night Vision Type: No night vision type
Resolution: No
Storage mode: No
Waterproofing Level: No waterproof grade
Storage Capacity: No
builtin large model: No large model
Category: Network Video Recorder/NVR
Network Distribution Method: Cable

Variants / Sale Attributes

Color: 16channel POE NVR / 4bay

Package: POE recorder

Package Contents

1 packaging box, 1 video recorder, 1 power supply, 1 mouse (All the above accessories are indispensable. Returns are not supported if any accessory is missing)

Product Description

Product Specifications

Overview

Brand: dahua

Multi-screen display with AI preview

Intelligent detection boxes and detection results with right-side statistical prompts

Additional details

Supports types: Perimeter Intrusion Detection (person, motor vehicle)

Multi-screen playback varies by camera resolution; refer to recorder decoding capability

Additional details

Playback modes: normal, motion detection, alarm, motion detection & alarm, intelligent

Multi-speed fast-forward playback supported

Recording schedule configurable by time and type (normal, motion detection, alarm, intelligent, POS)

Pre-recording and network interruption continuation supported

Similar Products

In Stock

Newmine Wireless Home AI Camera, Remote Monitoring Via Smartphone, 360-Degree Coverage with Night Vision, Panoramic View, Voice Control, Outdoor Waterproof Rotating Camera for Rural Areas, High Definition, Two-Way Audio

Newmineindustrial security monitoring

Newmine Wireless Home AI Camera, Remote Monitoring Via Smartphone, 360-Degree Coverage with Night Vision, Panoramic View, Voice Control, Outdoor Waterproof Rotating Camera for Rural Areas, High Definition, Two-Way Audio

[Ball Machine WiFi Version] Intelligent Full-Color Night Vision

CN¥99.00

Power Supply Method

Network cable + power supply

Smart recognition

Other

Tracking Method

No

intelligent ecological products

No

Number of probes

No probes

AI Features

intelligent playback

Coverage

Other

Hard disk quota allocation per channel to extend important footage retention

Additional details

Storage capacity example: 3720 GB total, 1260 GB estimated recording capacity, 30 days recording duration at 4096 Kb/s bitrate

Backup and download supported via USB and network

Additional details

Front-end intelligence: face detection, face recognition, perimeter protection, intelligent motion detection, 3D behavior analysis, crowd distribution, people counting, license plate recognition, object monitoring, high-altitude throwing detection, electric bike elevator entry
Back-end intelligence: supports person and vehicle detection (no attribute recognition), up to 10 intrusion rules (area intrusion, perimeter protection, tripwire)

Intelligent preview panel displays object categories, event types, trigger time, and snapshot extraction

Supports event-based playback with 10 seconds before and after event

Face detection supports up to 12 faces per channel at 1080p

Additional details

Face attributes: gender, age group, glasses, expression, mask, beard
Video compression: Smart H.265, H.265, Smart H.264, H.264
Audio compression: PCM, G711A, G711U, G726, AAC
Video output: 1 HDMI (up to 3840×2160), 1 VGA (up to 1920×1080)
Screen split: main screen 1/4/8/9/16, auxiliary screen 1/4/8/9/16

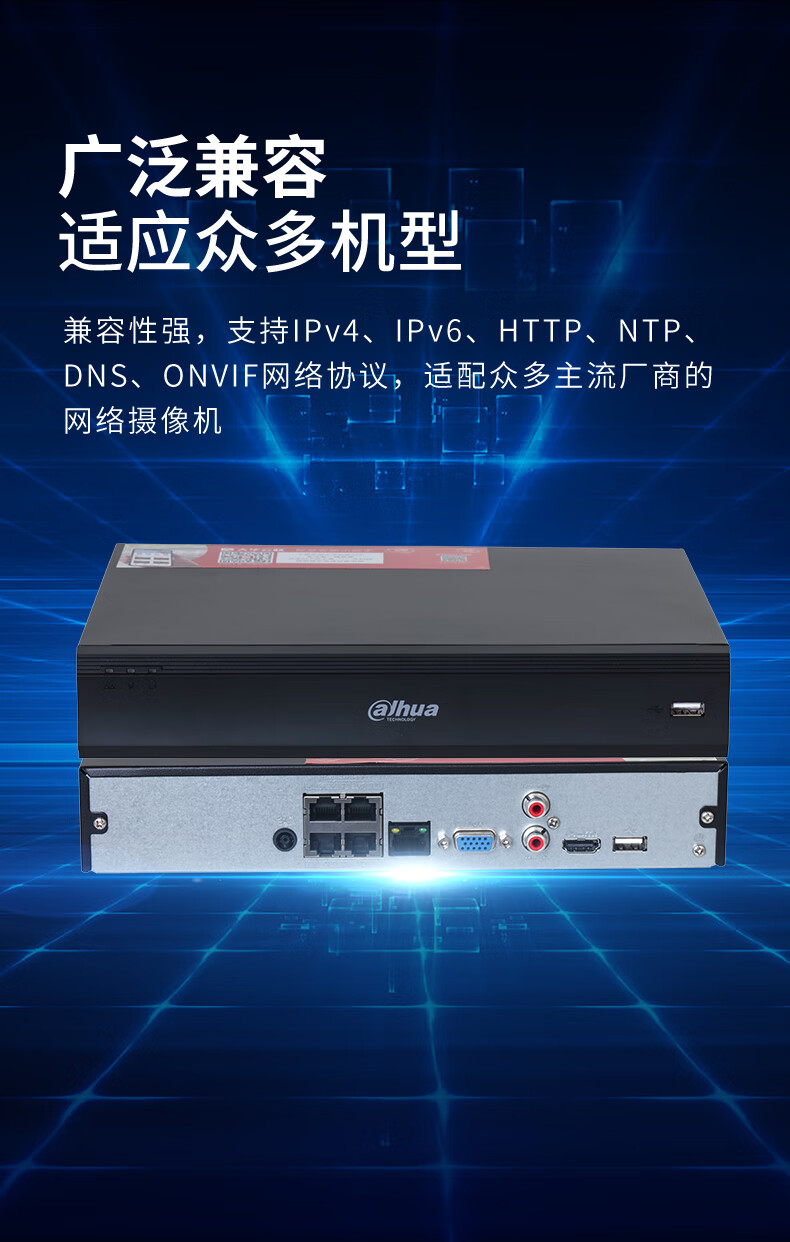

Supports ONVIF, RTSP, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Hanwha, GB/T28181 protocols

Supports multi-channel playback up to 16 channels

Additional details

Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IPFilter, PPPoE, DDNS, FTP, Alarm Center, IP Search, Multicast, P2P, Active Registration

Mobile access via CloudLink app

Additional details

Browser compatibility: Chrome, Firefox, Safari, Edge, IE

Supports motion detection, video tampering, video loss, PIR alarm, external IPC alarm, scene change

Supports front-end device offline, storage error/full, IP/MAC conflict, login lock, network security anomaly alarms

Additional details

Alarm linkage: recording, snapshot, external alarm output, buzzer, log, preset, email
Audio input: 1 channel, RCA
Audio output: 1 channel, RCA
Alarm input: 8 channels
Alarm output: 2 channels
Hard disk interface: 4 SATA ports, max 20TB per disk
RS-232: 1 port
RS-485: 1 port
USB: 2 ports (1 front USB 2.0, 1 rear USB 3.0)
HDMI: 1 port
VGA: 1 port
Network: 1 RJ-45 (10/100/1000 Mbps)

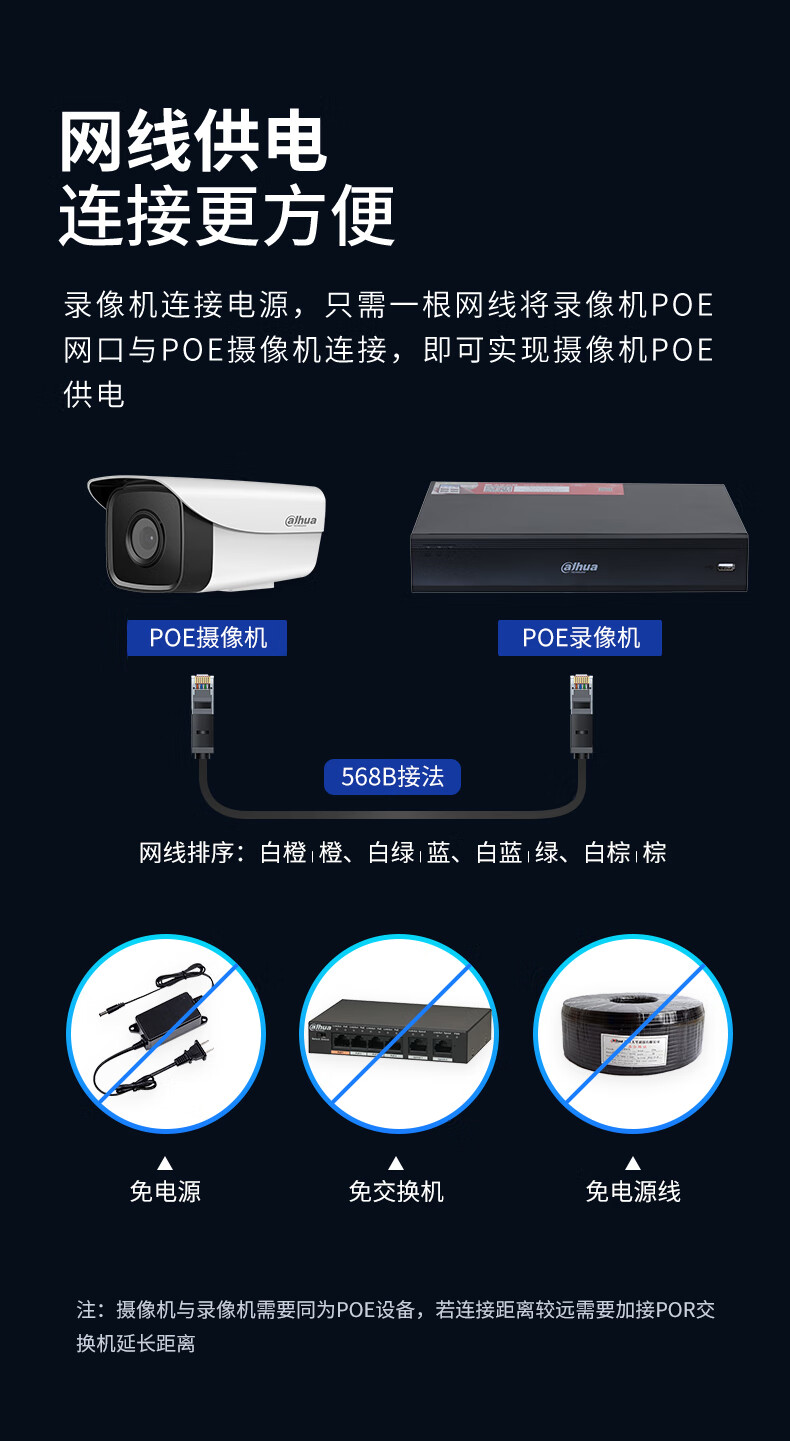

PoE: 16 ports (10/100 Mbps), IEEE802.3af/at compliant, total power 150W, max 25.5W per port
Main processor: industrial-grade microcontroller
Operating system: embedded Linux
User interface: Web and local GUI
Decoding capability (without intelligence): up to 2 channels 16MP@30fps, 4 channels 8MP@30fps, 16 channels 2MP@30fps
Decoding capability (with intelligence): up to 1 channel 16MP@30fps, 4 channels 5MP@30fps, 12 channels 2MP@30fps
Power supply: 100-240 VAC, 50-60 Hz
Power consumption: <10W (without hard disk, idle)
Operating temperature: -10°C to +55°C
Storage temperature: -20°C to +60°C
Operating humidity: 10% to 90%
Operating altitude: up to 3000 m
Net weight: 4.82 kg (10.63 lbs)
Gross weight: 6.78 kg
Product dimensions (W×D×H): 440.0 mm × 415.6 mm × 76.0 mm (17.32" × 16.36" × 2.99")
Packaging dimensions (W×D×H): 529.0 mm × 499.0 mm × 211.0 mm (20.83" × 19.65" × 8.31")
