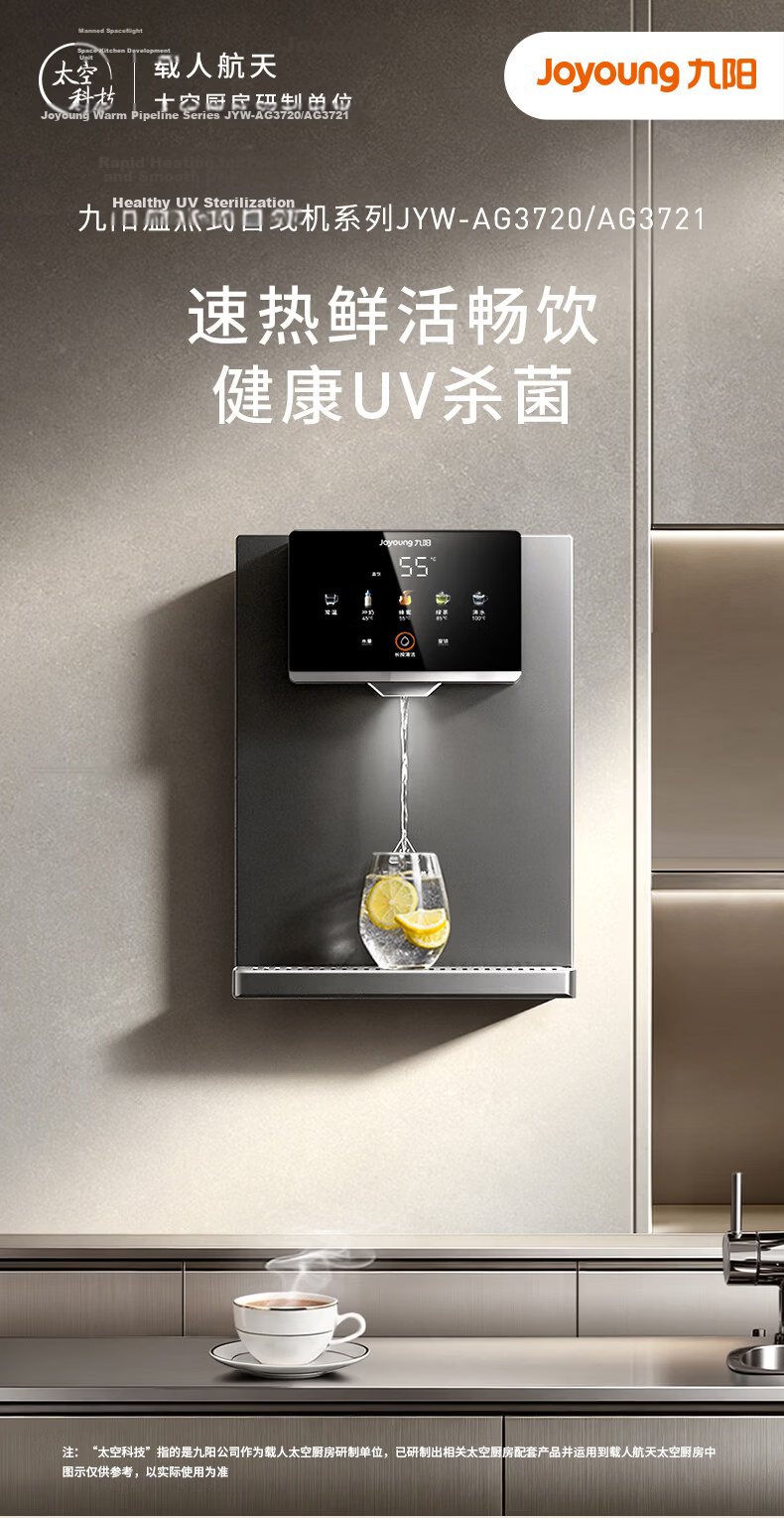

Joyoung High-End Home Wall-Mounted Pipeline Water Dispenser Full Flow 13-Level Temperature Control Self-Cleaning Rapid Heating Water Purifier JYW-AG3720
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4
Joyoung•Wall-Mounted Pipeline Machine

Joyoung High-End Home Wall-Mounted Pipeline Water Dispenser Full Flow 13-Level Temperature Control Self-Cleaning Rapid Heating Water Purifier JYW-AG3720

CN¥698.98
SKU: 100241086773
Status:In Stock (11)
ID: 100321702084
Weight: 4260.00 g
Dims:502x388x216 mm

Specifications

Installation
Wall-mounted
Sanitary License for Products Related to Water Hygiene and Safety
Yes

Variants / Sale Attributes

款式: 远航灰|温热款|可连桶装水

Package Contents

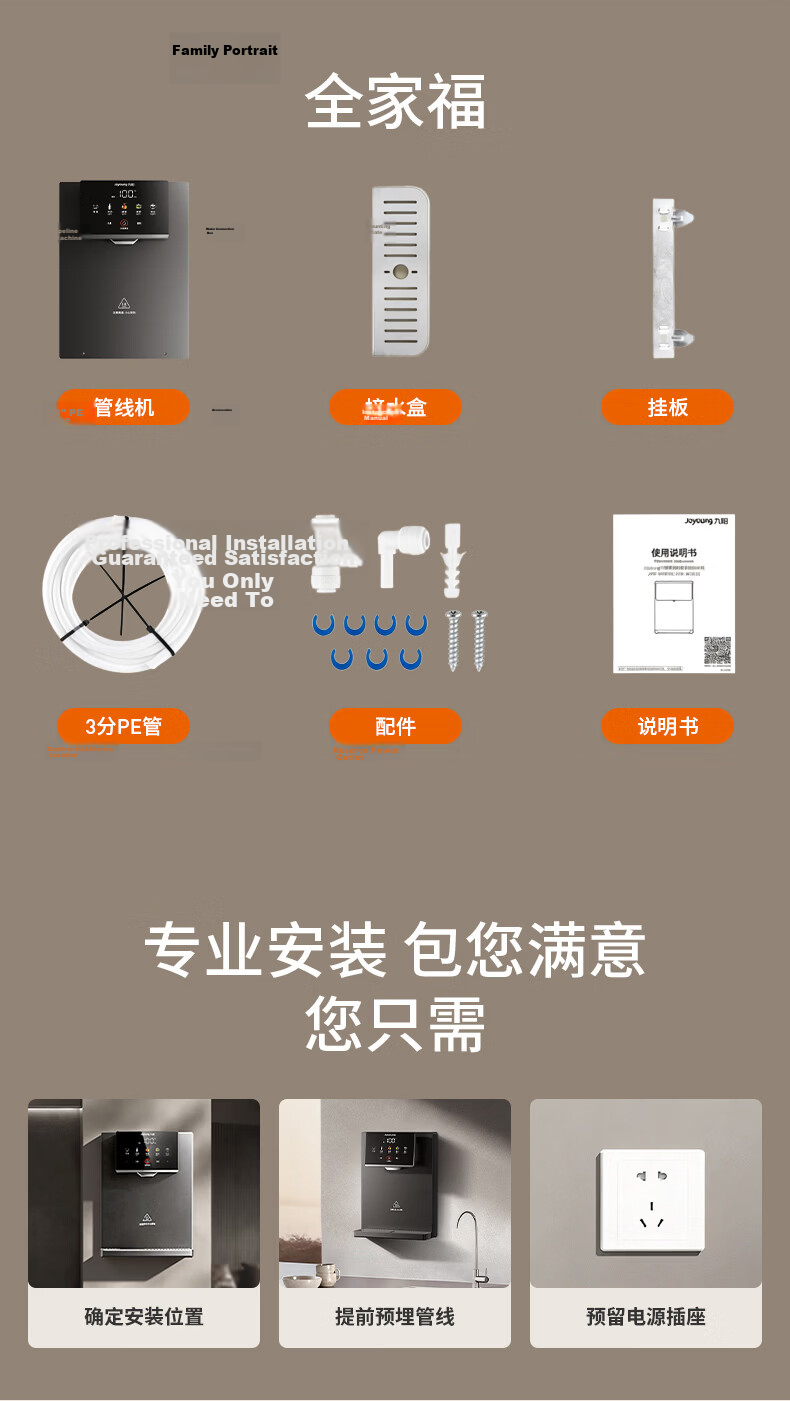

Complete machine, water collection box, three-way quick connector, L-shaped plug, anti-suction plug, silicone tube, 3/8 inch PE tube, plastic expansion tube, self-tapping screw, blue card, mounting plate, instruction manual, L-shaped joint

Product Description

Product Specifications

Overview

Brand
Joyoung
Model
JYW-AG3720
Product Type
Warm and hot water dispenser with pipeline system
Color
Voyage Gray
Dimensions (W×D×H)
305 × 417 × 160 mm
Water Inlet Pressure
0.1–0.4 MPa
Rated Power
2100W
Heating Capacity

Similar Products

In Stock
CASDON Wall-Mounted Pipeline Water Dispenser Household Direct Drinking Machine Refrigeration and Heating Integrated Water Cooler Ice Spring KG1Pro Yang Mi Edition
CASDONWall-Mounted Pipeline Machine

CASDON Wall-Mounted Pipeline Water Dispenser Household Direct Drinking Machine Refrigeration and Heating Integrated Water Cooler Ice Spring KG1Pro Yang Mi Edition

KG1Pro hot and cold | compatible with bottled water

CN¥2,299.51

View
In Stock
CASDON Wall-Mounted Direct Drinking Water Dispenser with Refrigeration And Heating Functions, Integrated Beverage Machine for Home Use, Sideboard Model KG1, Yang Mi's Choice
CASDONWall-Mounted Pipeline Machine

CASDON Wall-Mounted Direct Drinking Water Dispenser with Refrigeration And Heating Functions, Integrated Beverage Machine for Home Use, Sideboard Model KG1, Yang Mi's Choice

KG1 Ice Spring Series

CN¥2,099.00

View
In Stock
3M Instant Hot Water Dispenser, Water Purifier, Quick Heating, Smart Touch Control, Precise Water Output, Full Flow Rate, Wall-Mounted WHS200-BL
3MWall-Mounted Pipeline Machine

3M Instant Hot Water Dispenser, Water Purifier, Quick Heating, Smart Touch Control, Precise Water Output, Full Flow Rate, Wall-Mounted WHS200-BL

CN¥1,709.01

View
22L/h (≥90°C)
Standby Power Consumption
0.035 kWh/24h

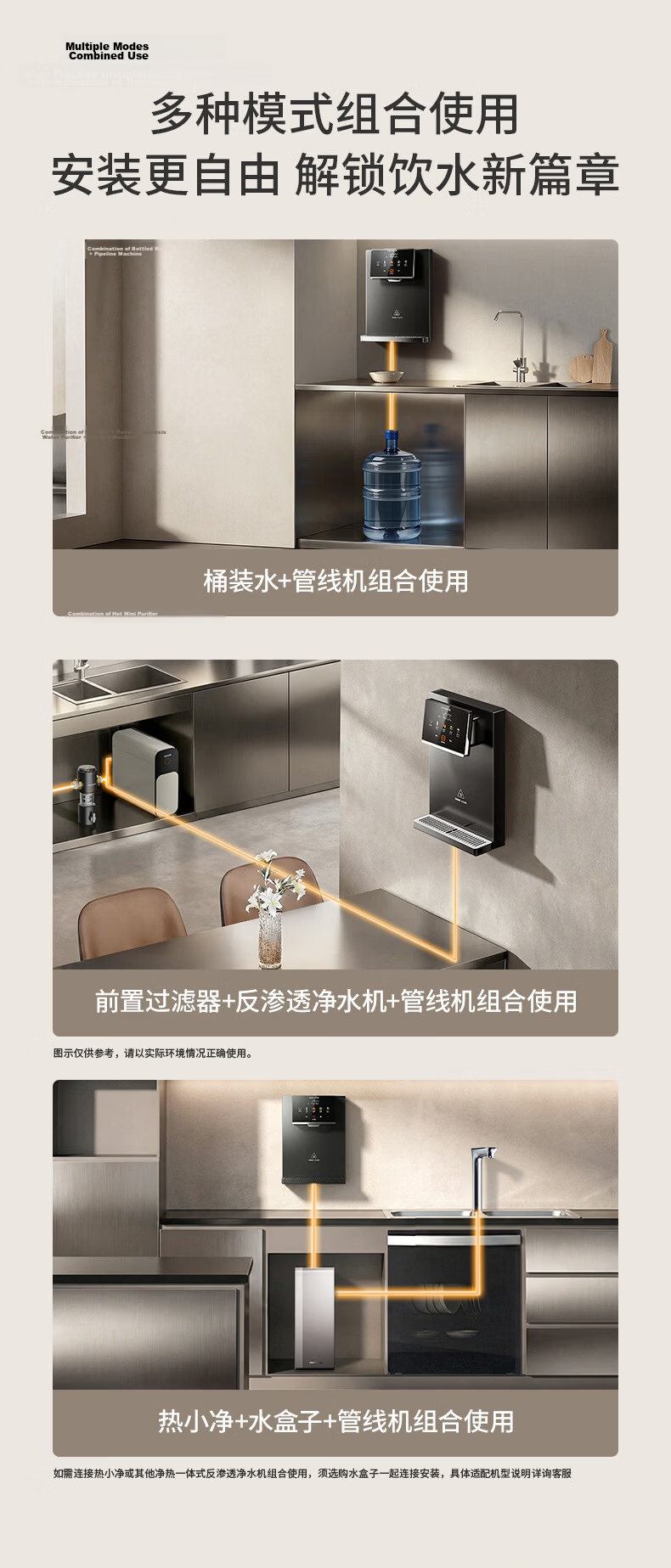

Multiple mode combinations for flexible installation and water source options

  • Barrel water + pipeline machine

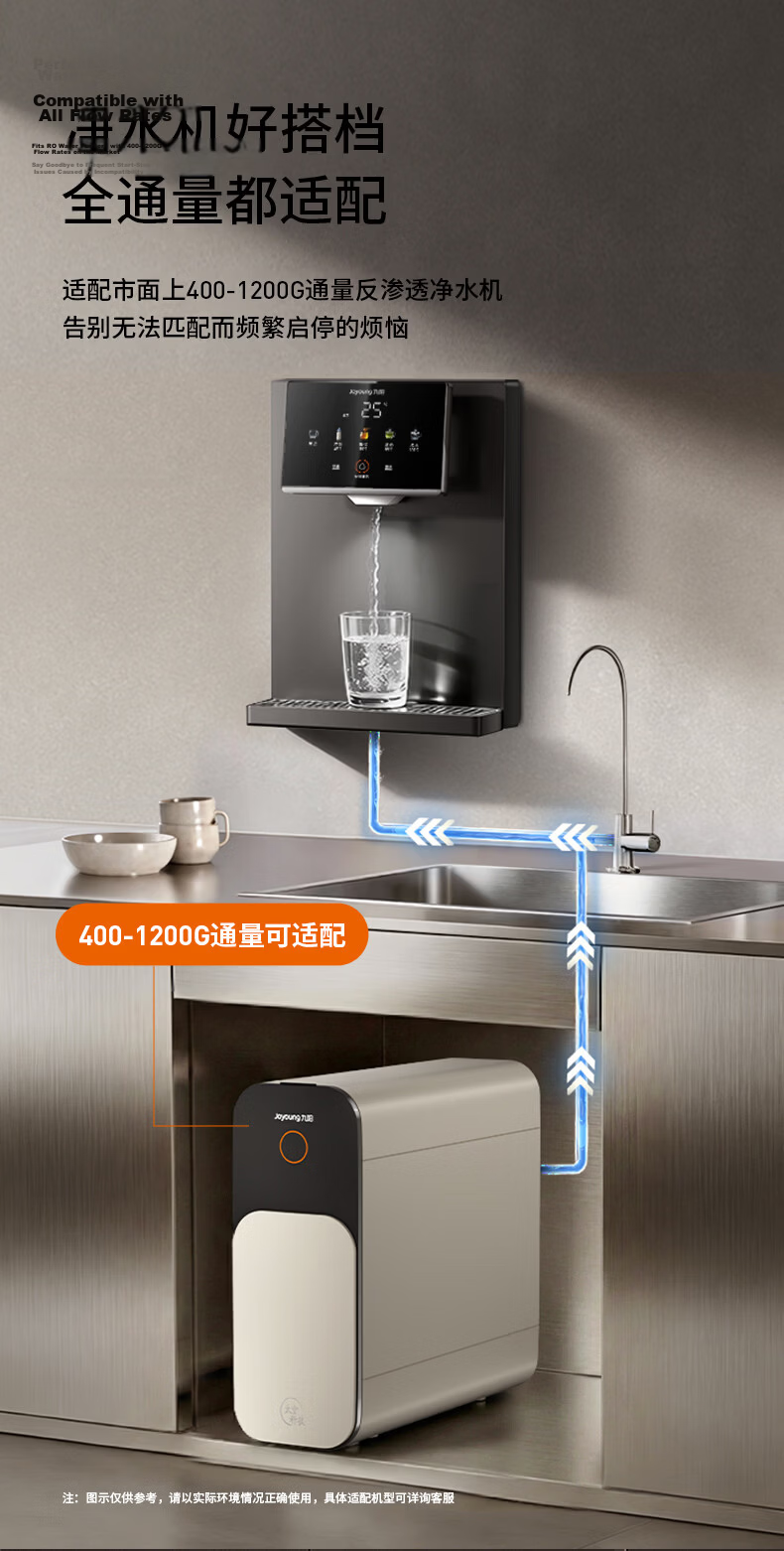

  • Pre-filter + reverse osmosis (RO) water purifier + pipeline machine
  • Hot water purifier + water box + pipeline machine (requires separate purchase of water box)

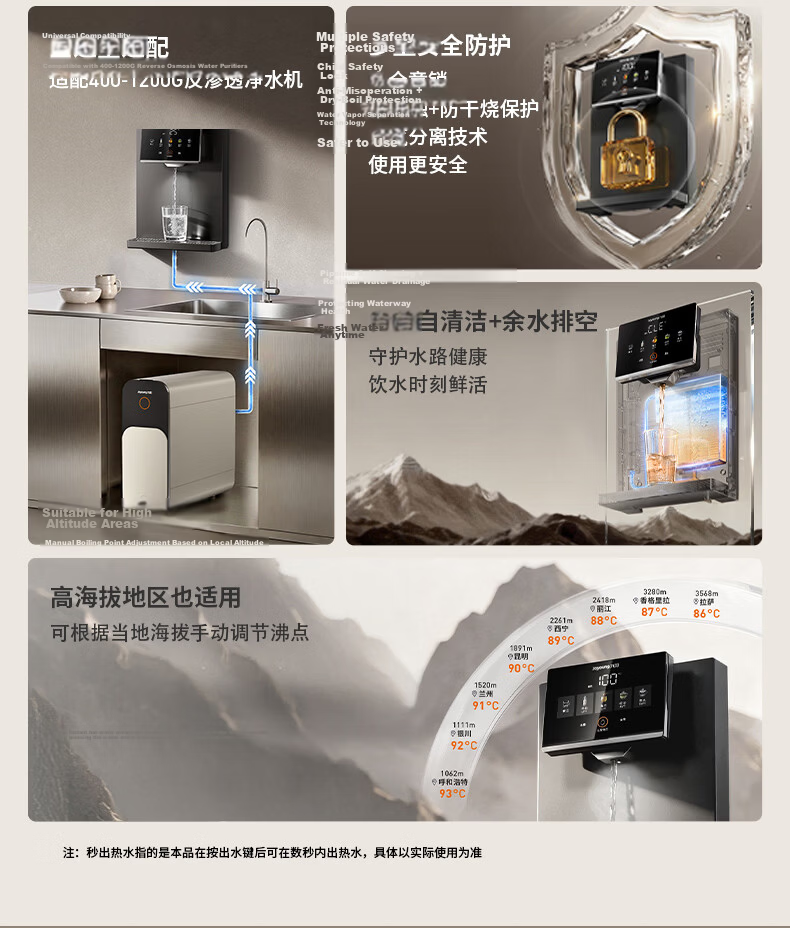

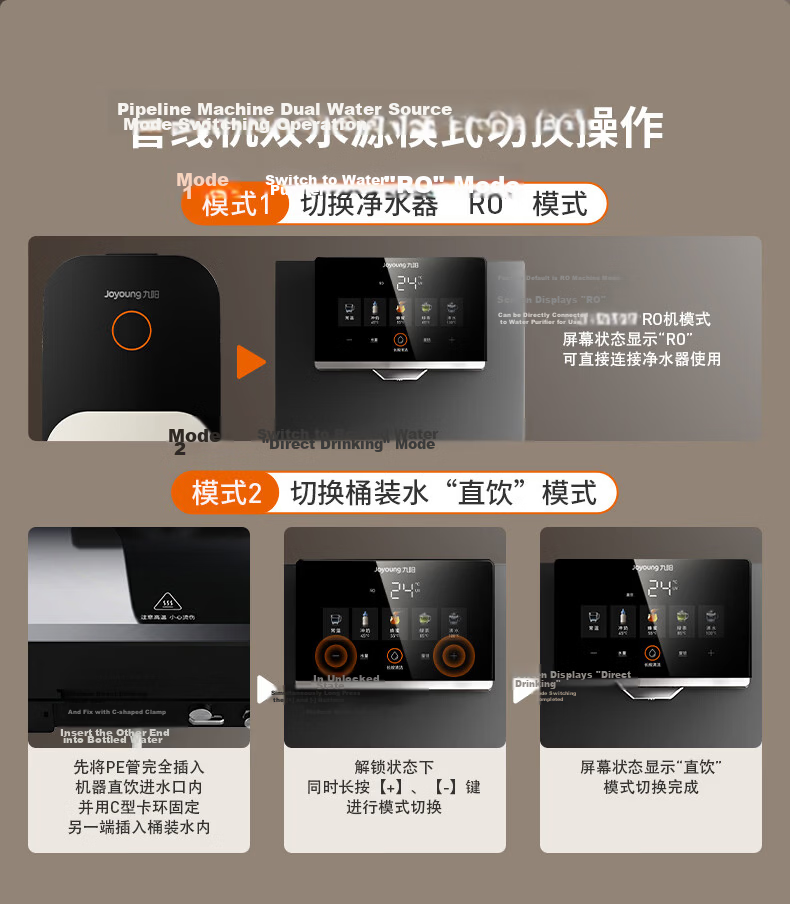

Dual water source mode with built-in self-priming pump for barrel water and RO water compatibility (supports 400–1200G RO systems)

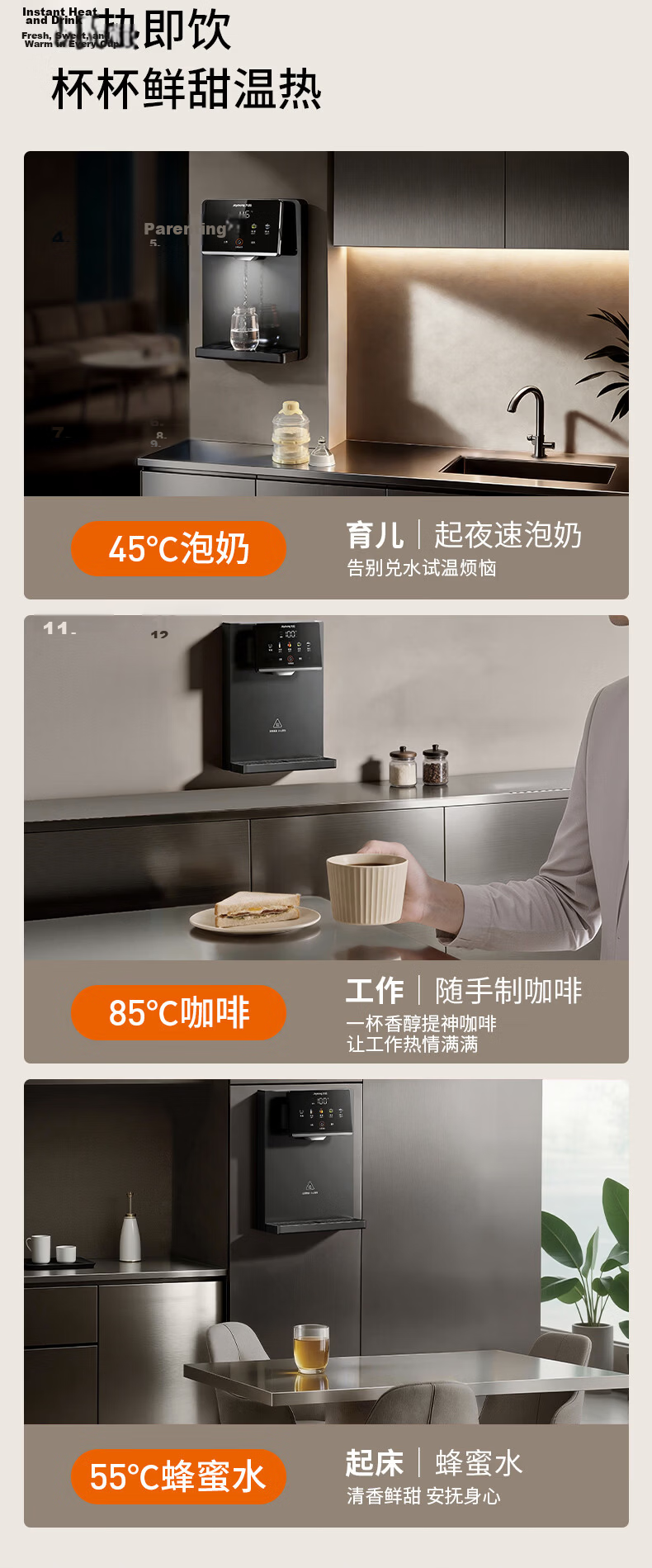

13-level temperature adjustment with 5 preset water volume settings and 45°C milk preparation mode

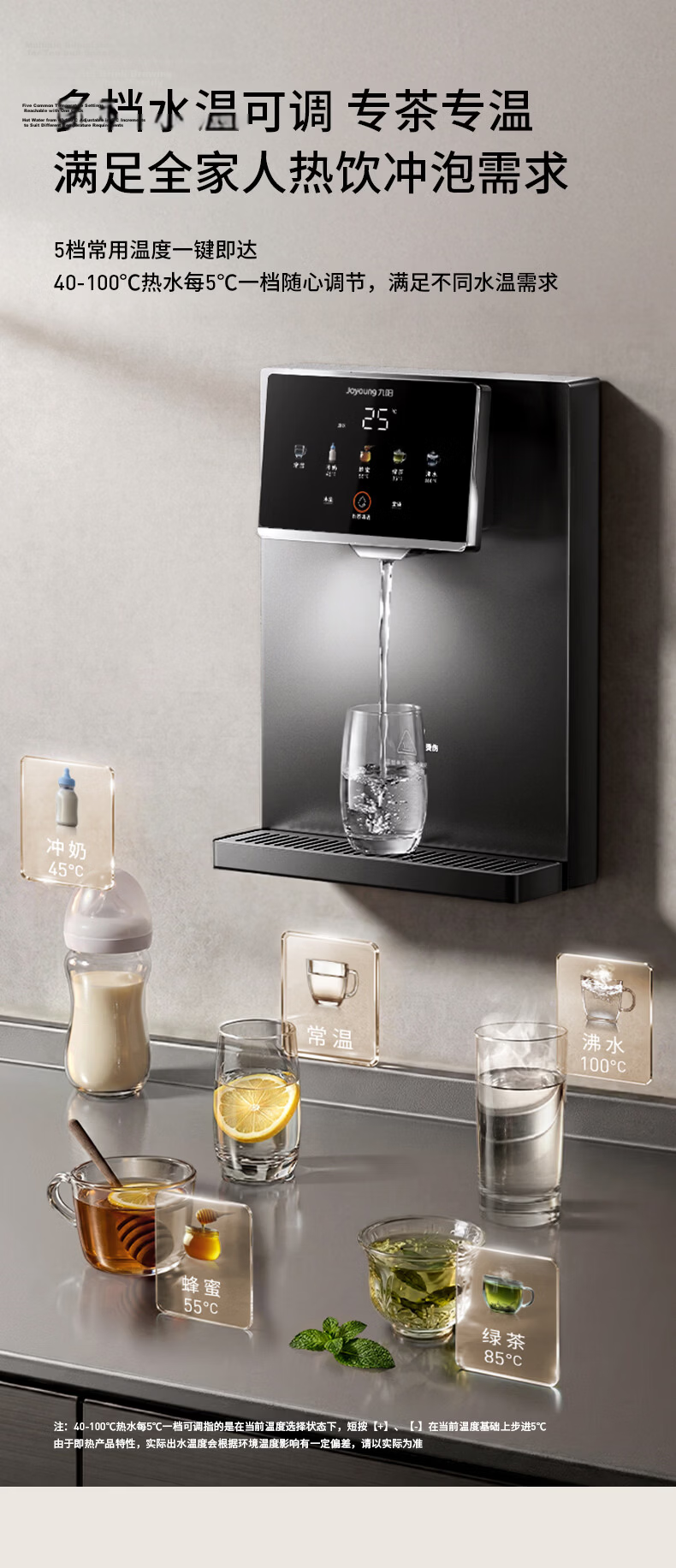

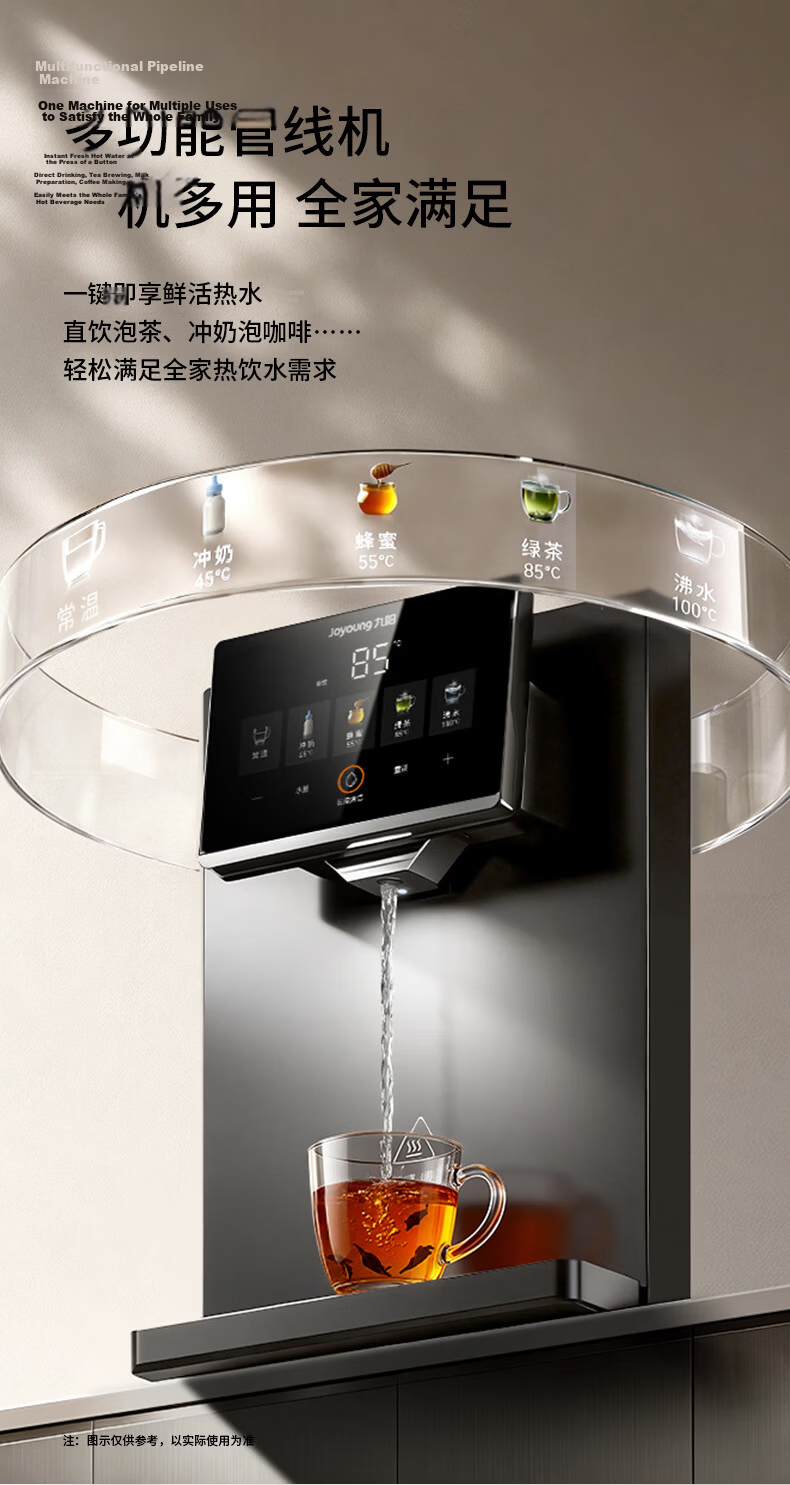

Multi-temperature settings from 40°C to 100°C adjustable in 5°C increments for specialized tea and beverage preparation

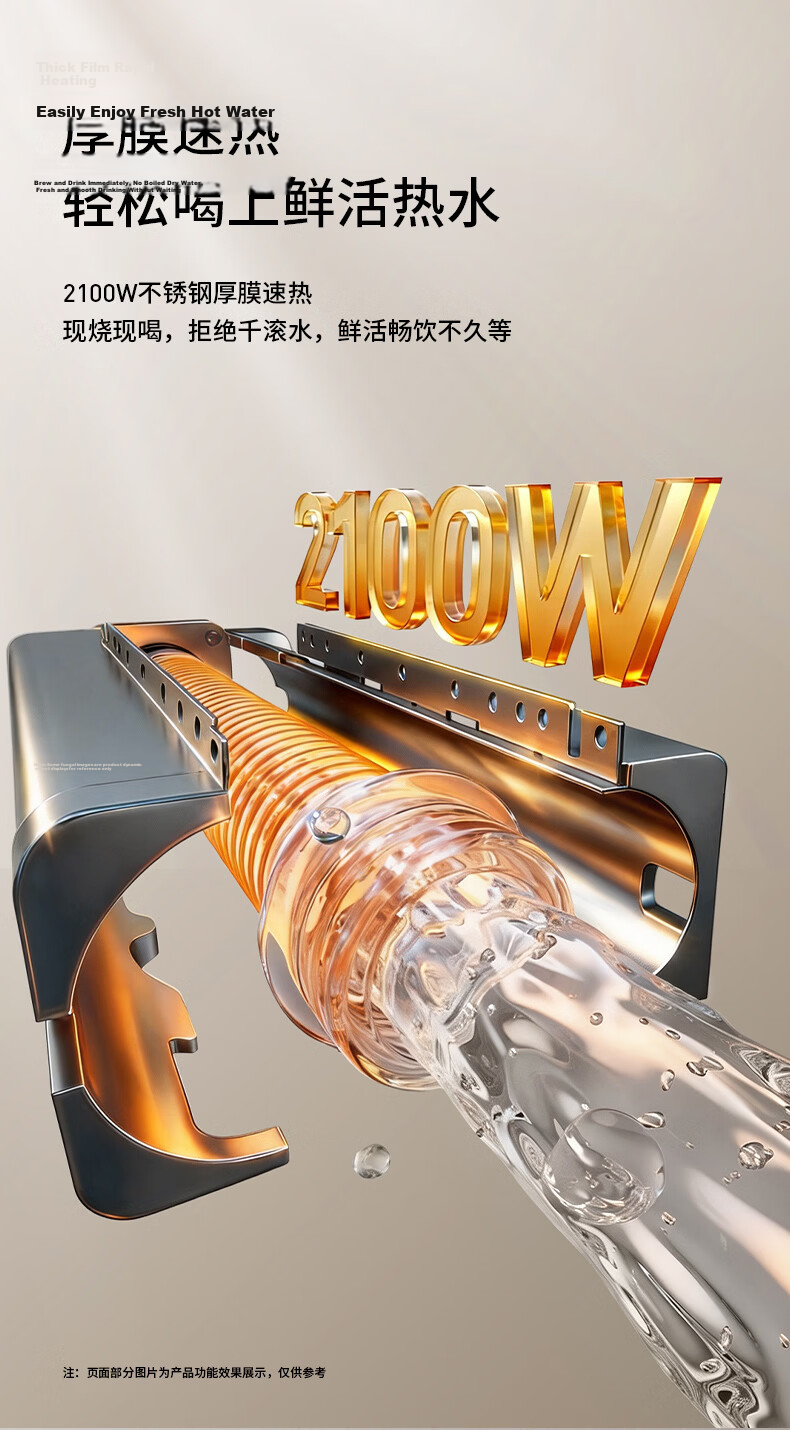

Instant heating technology with 2100W stainless steel thick film heater for fresh hot water on demand, avoiding reboiled water

Safety features including child lock, steam separation technology, anti-dry burn protection, dual temperature control, and water level monitoring

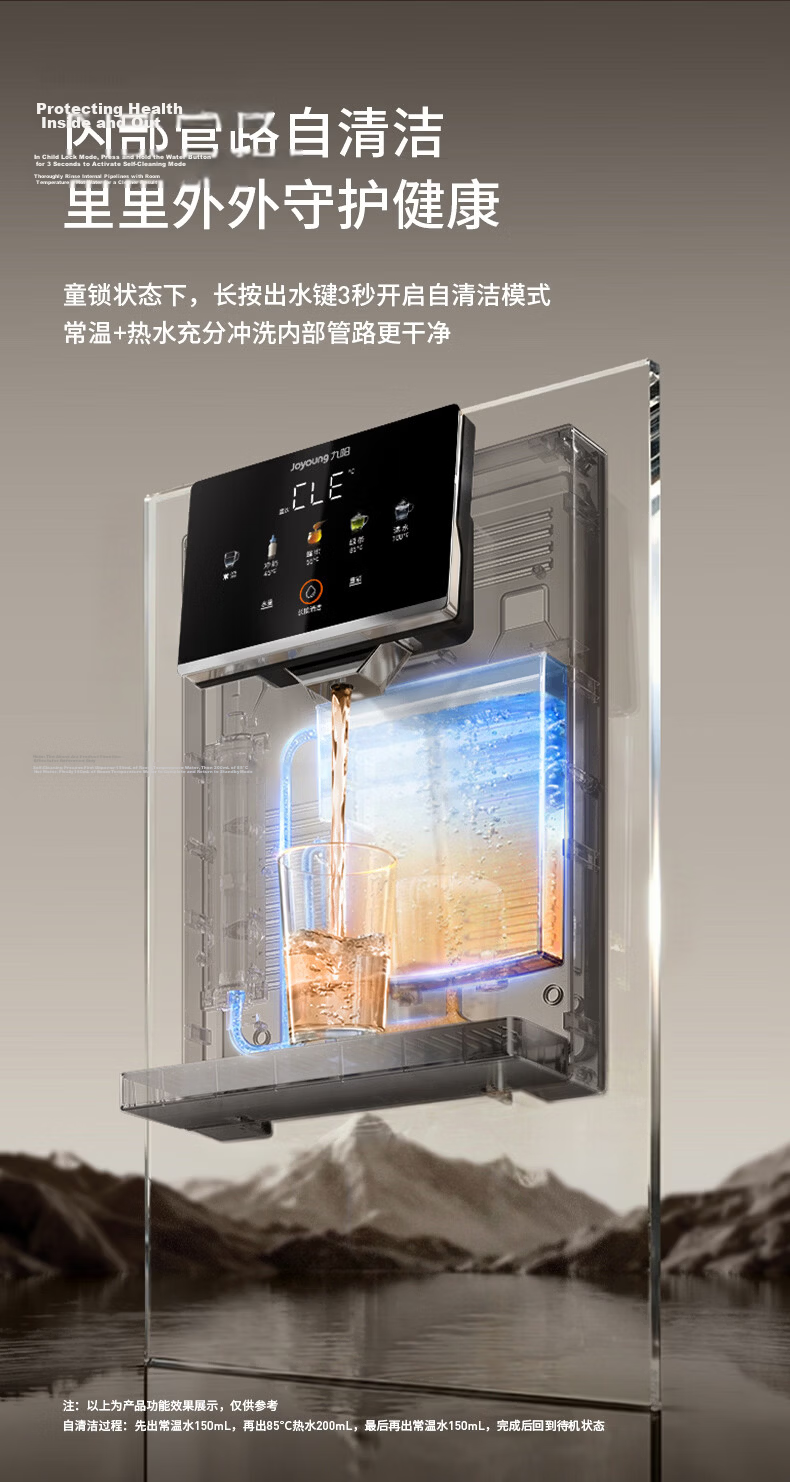

Internal pipeline self-cleaning mode activated by long press, flushing with warm and hot water to maintain hygiene

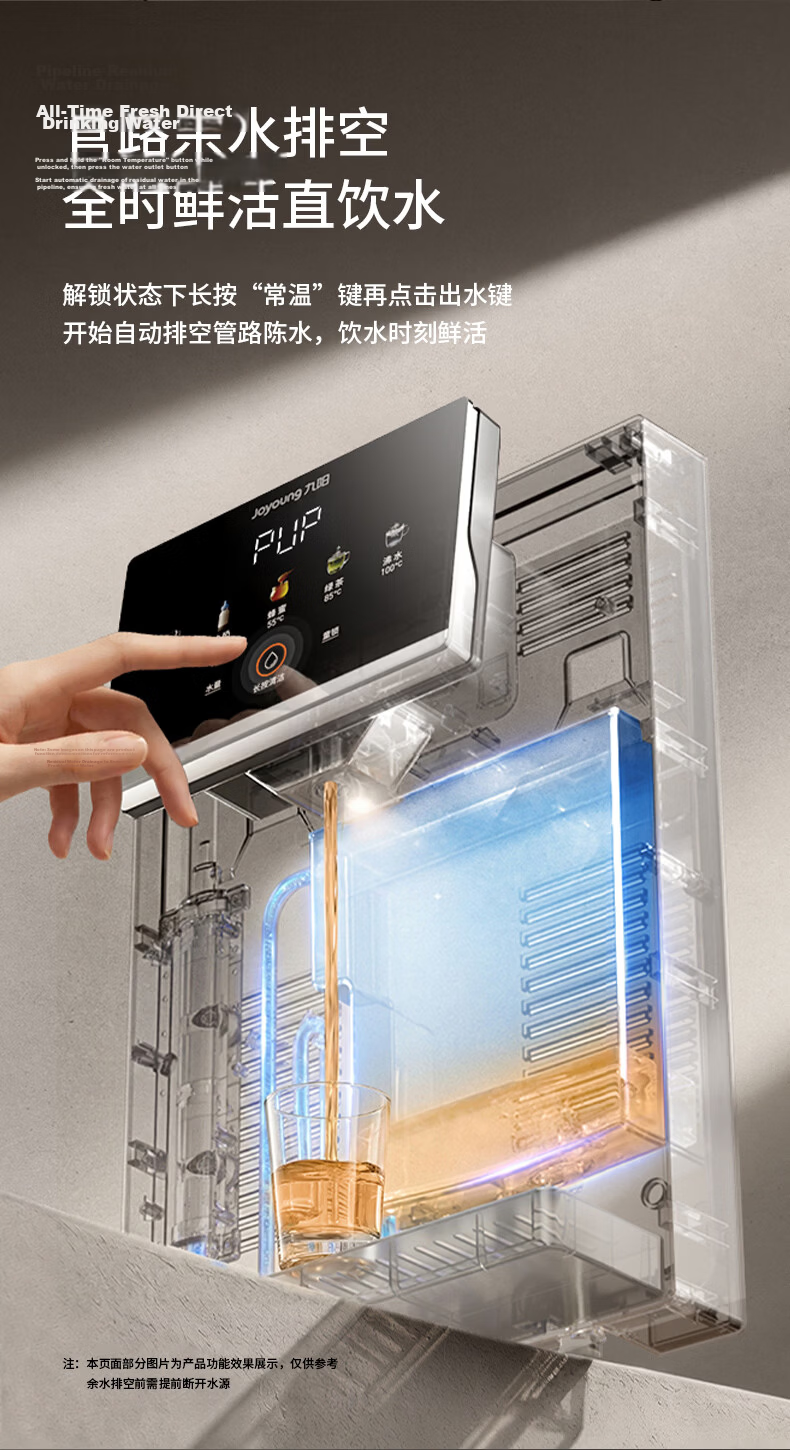

Residual water drainage function to ensure fresh water supply

High altitude boiling point adjustment (86°C to 100°C) suitable for elevations up to approximately 3568m

Quiet operation with noise level ≤56dB for undisturbed use

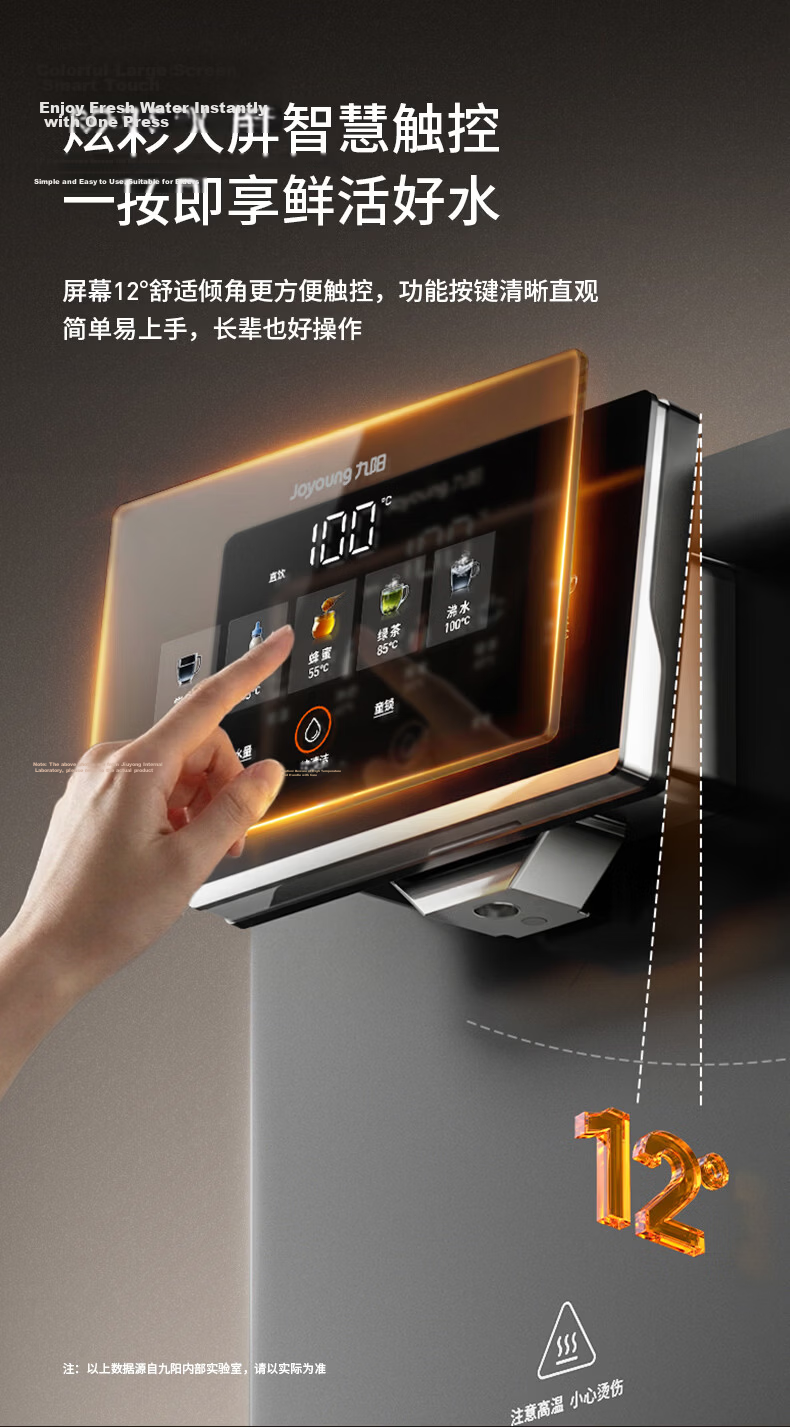

Large 12-inch smart touch screen with 12° tilt for easy operation and clear display

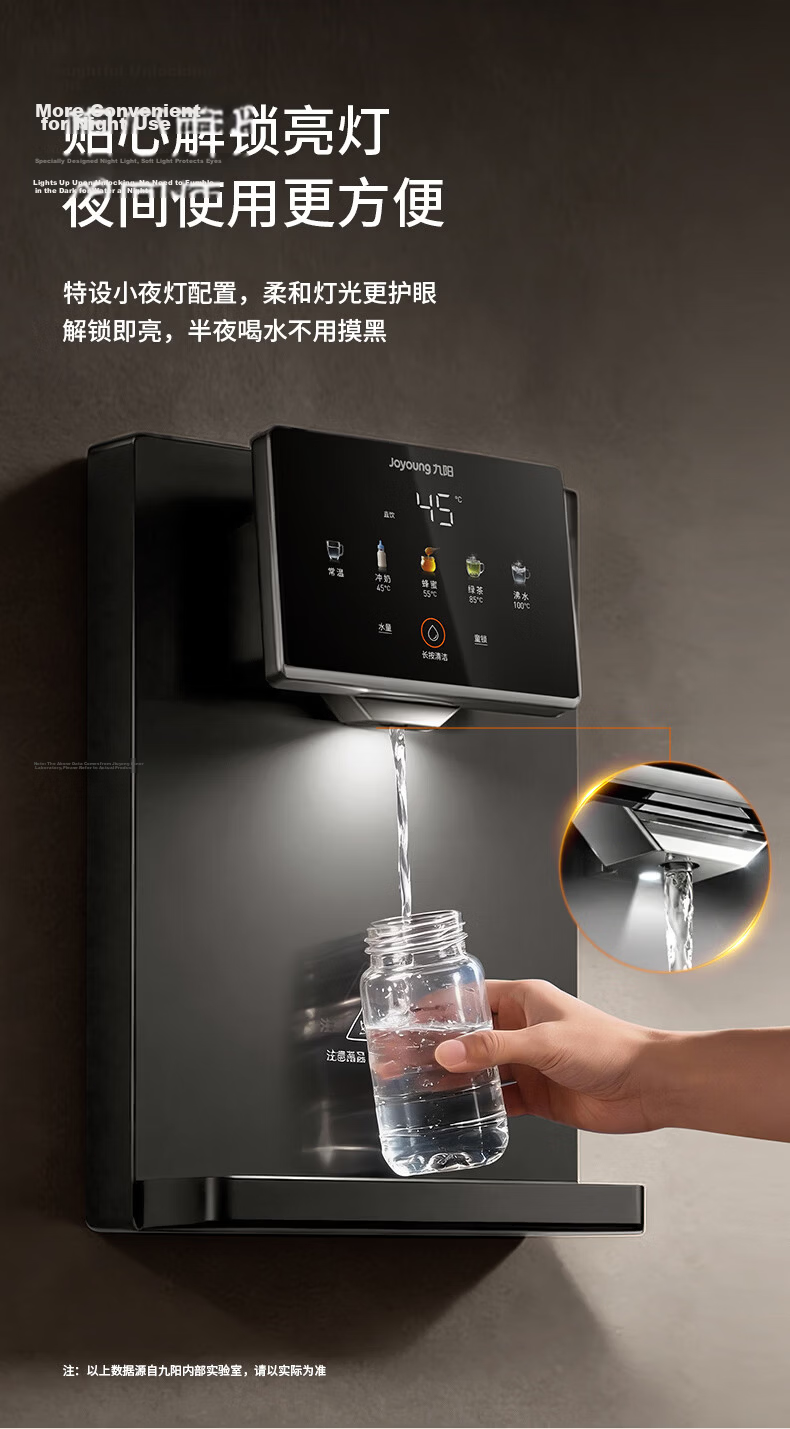

Night light function for convenient nighttime use

BPA-free water pathways and internal components certified by authoritative testing institutions

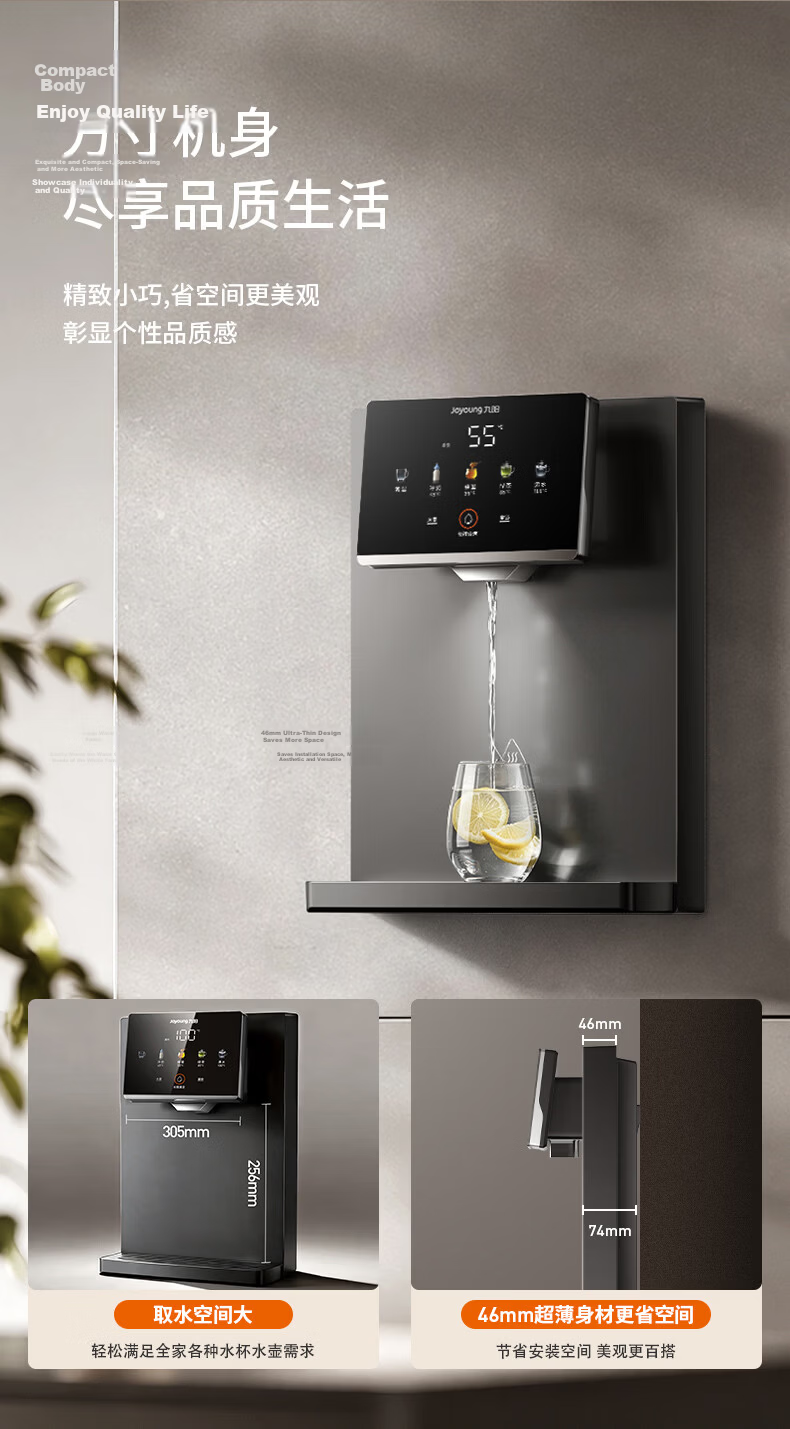

Compatible with various installation modes including wall-mounted and embedded designs for space-saving and aesthetic integration

Additional details

Five preset volumes
150mL, 240mL, 350mL, 500mL, and 999mL (default max 2L)

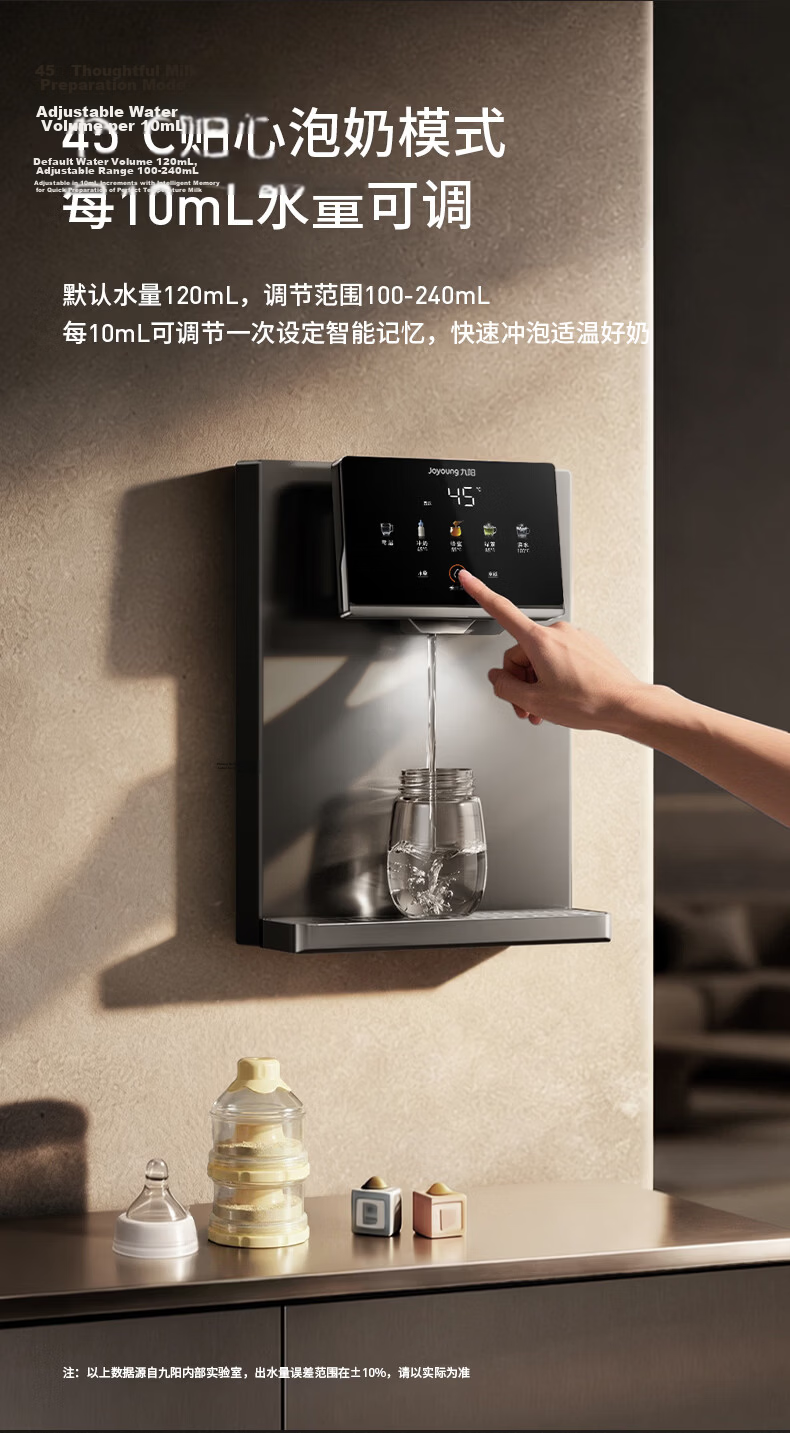

Adjustable milk preparation volume from 100mL to 240mL in 10mL increments with intelligent memory

BPA content tested and not detected in internal silicone tubing and whole machine (Reports: FCM2581200, A2260073084101001C)

Multiple safety protections including child lock, steam separation, anti-dry burn, and temperature monitoring

Pipeline machine unit

Water box

Wall mount bracket

User manual

3/8 inch PE tubing

Installation accessories

Additional details

Recommended maximum height from machine top to ground
1.5 m for optimal water suction

Proper installation and mode switching instructions provided; consult customer service for specific compatibility and installation guidance

Suitable for family use with diverse drinking needs including direct drinking, tea brewing, milk preparation, coffee making, and honey water

Designed for convenience in kitchens, dining rooms, and living areas with aesthetic and functional integration

Product images and function demonstrations are for reference only; actual use may vary

Product undergoes water quality testing before shipment; minor residual water inside machine is normal

Not suitable for use by minors without supervision; follow safety instructions during operation
