DIAMOND Air Curtain Machine Commercial Silent Elevator Powerful Industrial Cold Storage Air Door Curtain 1 Meter Switch Model

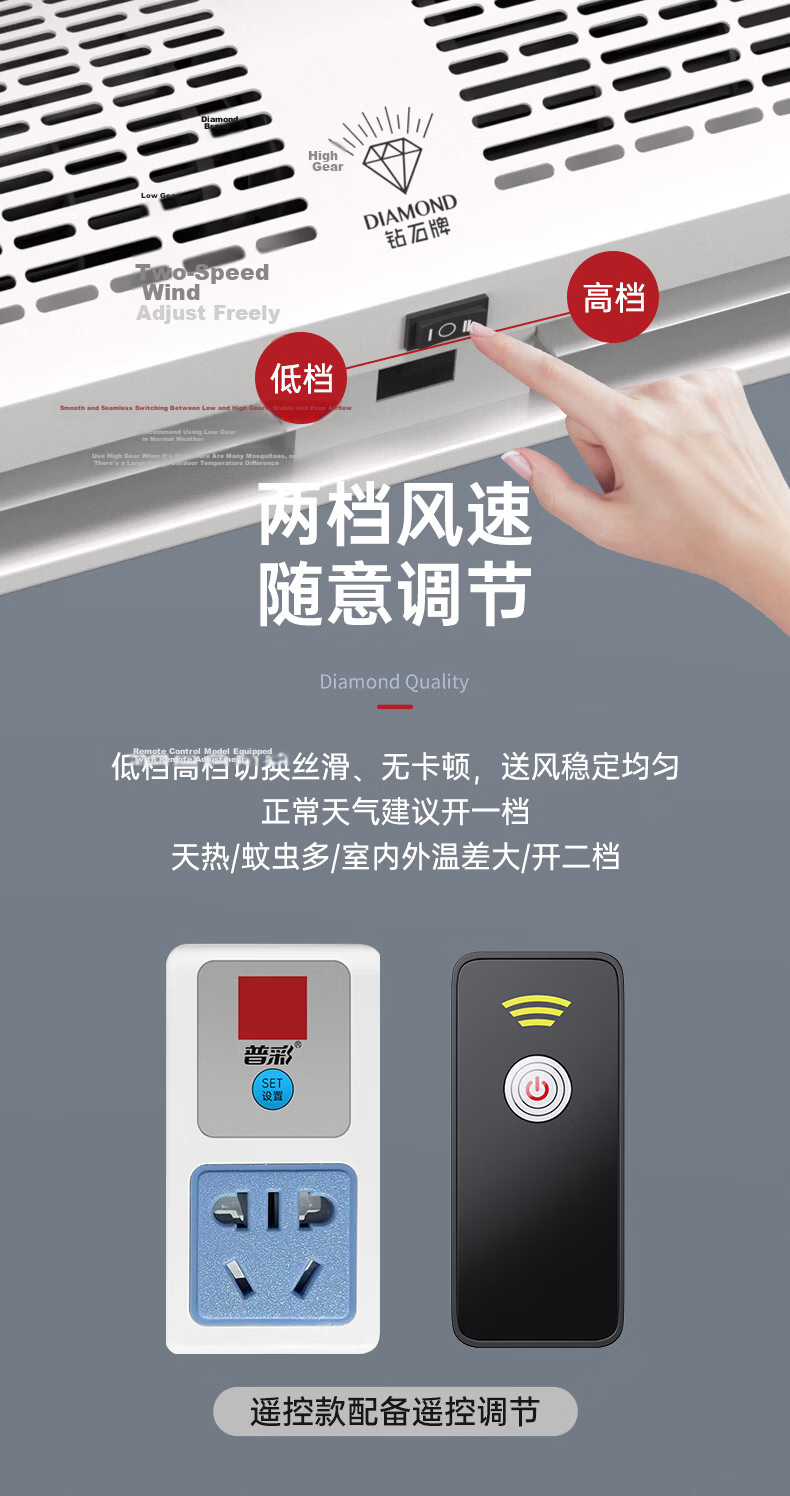

Two-speed settings (high and low) with smooth switching and stable airflow; remote control available for models with remote function

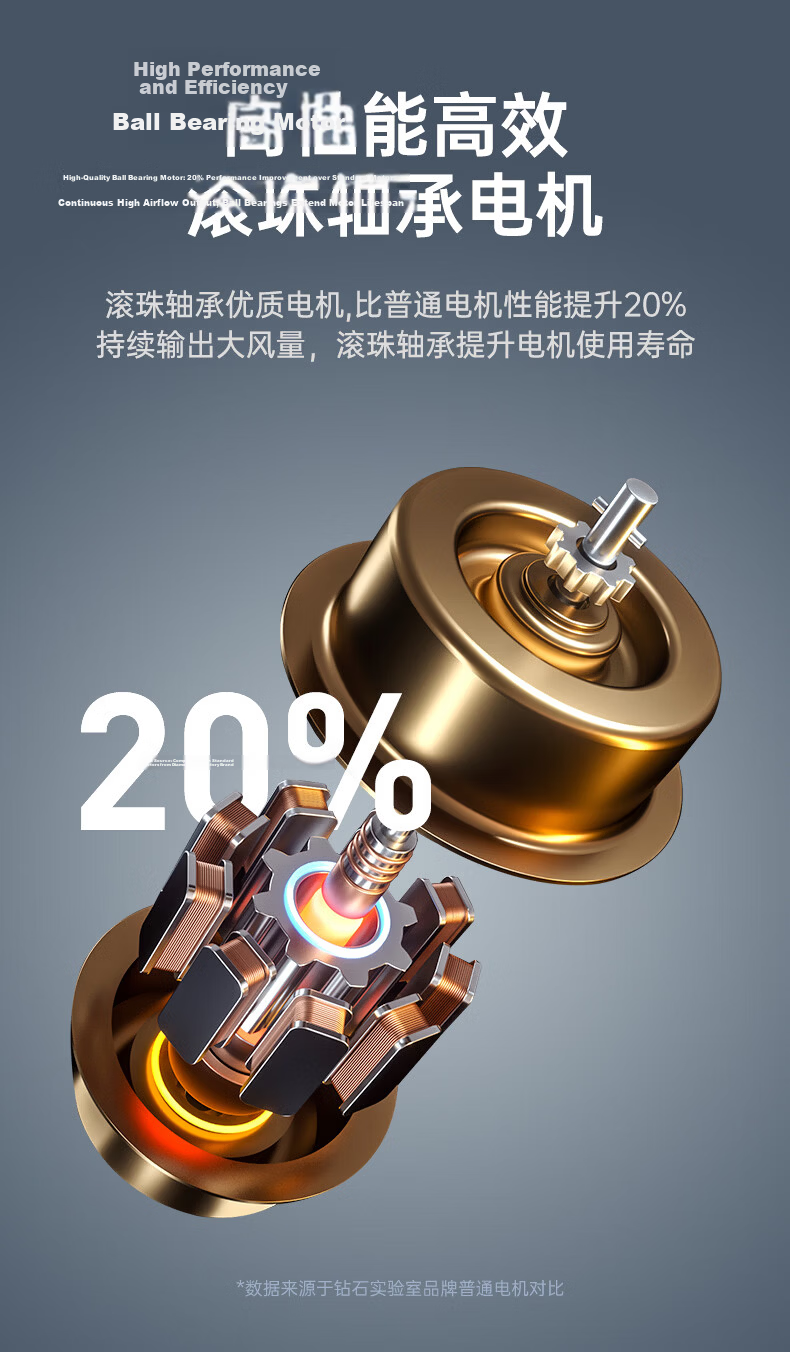

High-quality ball bearing motor offering 20% performance improvement and extended motor lifespan compared to standard motors

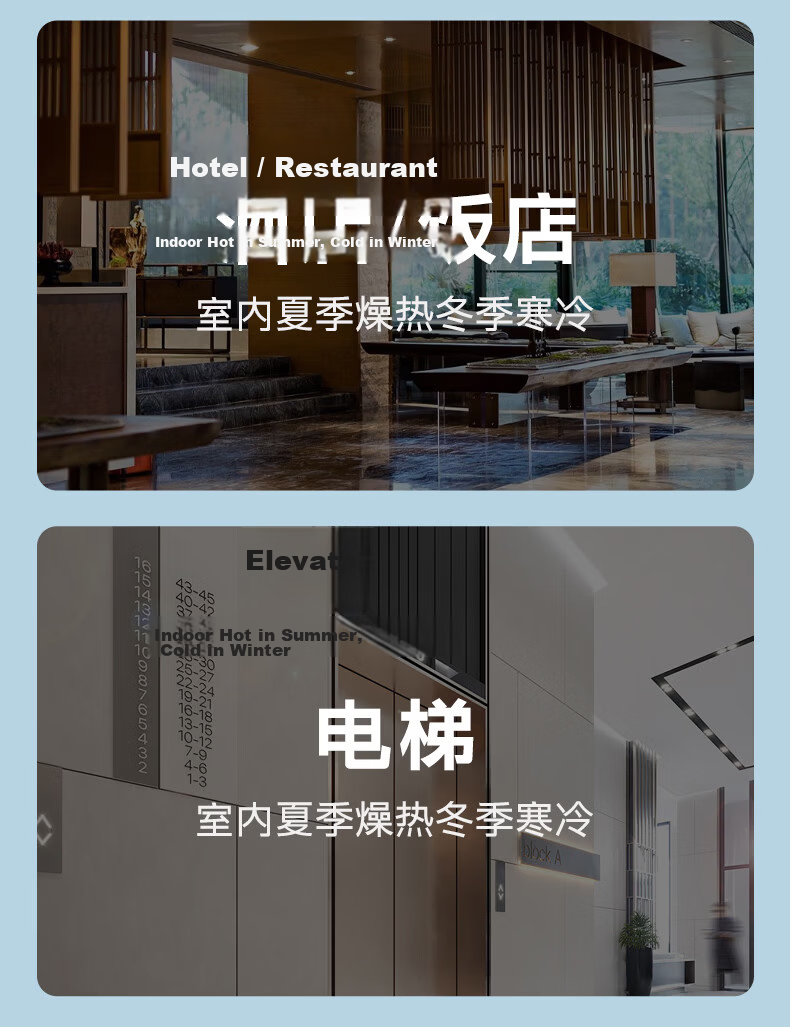

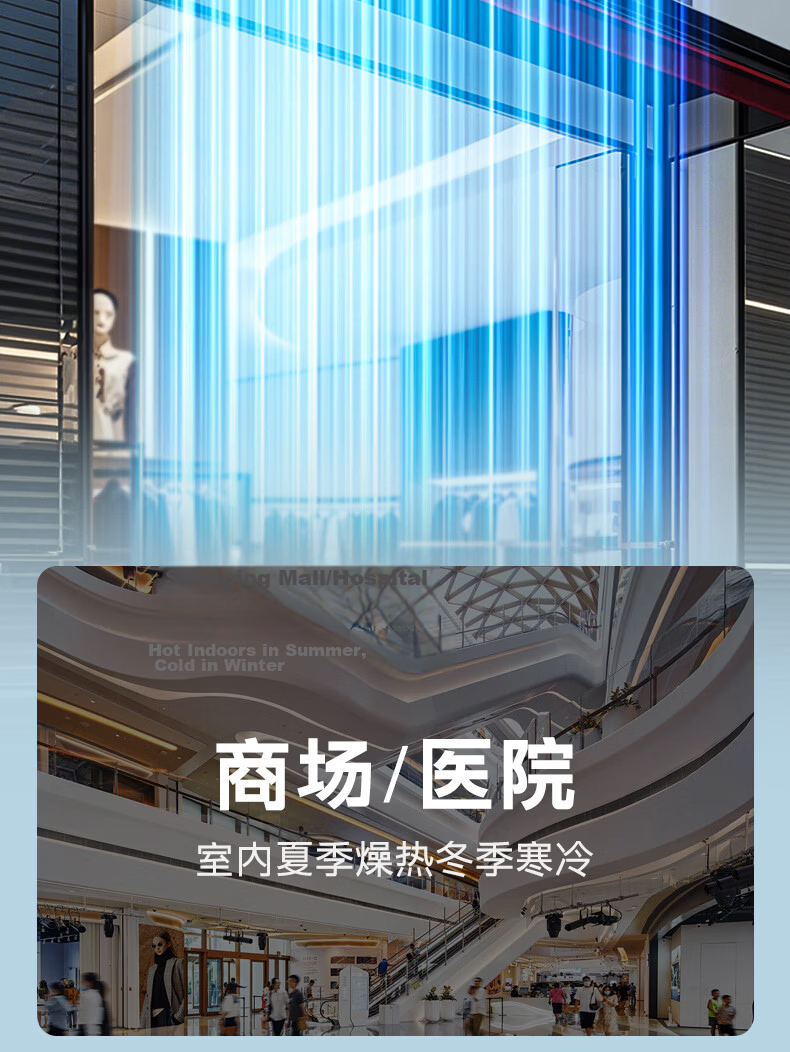

Shopping malls, hospitals, hotels, restaurants, elevators

Suitable for indoor environments with seasonal temperature variations

Installation height recommended between 2.5 to 3 meters

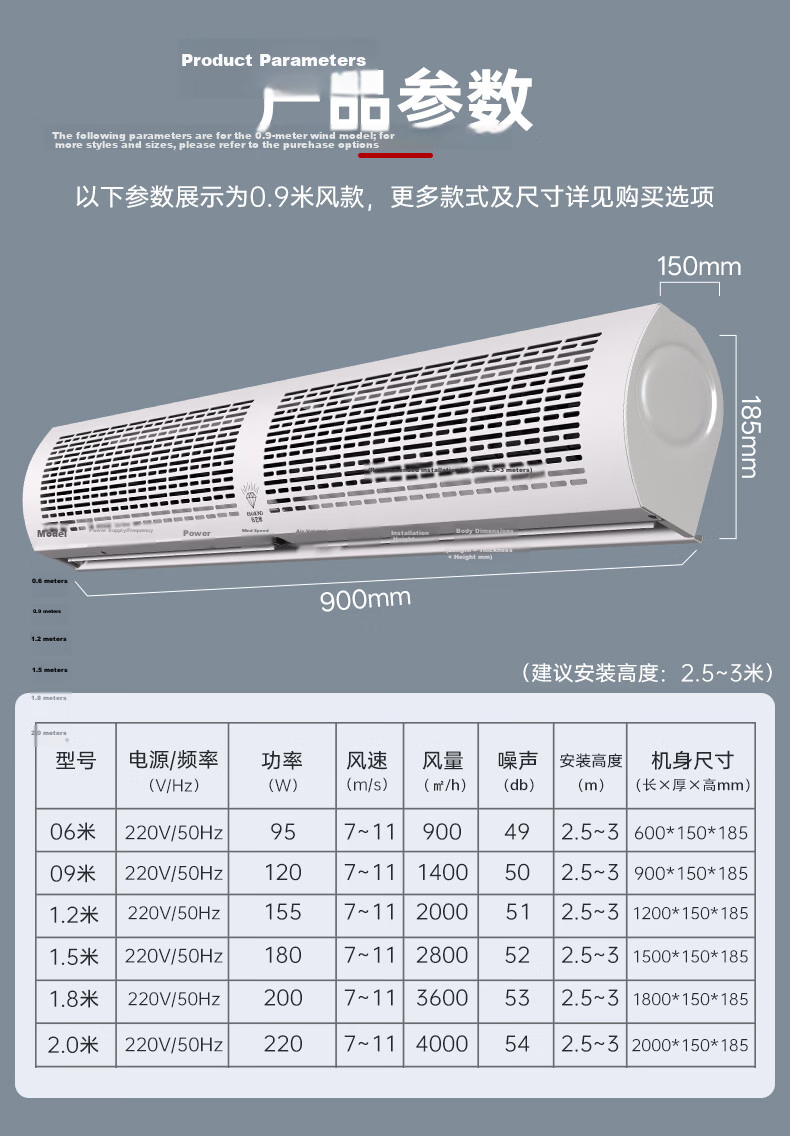

| Model | Power Supply (V/Hz) | Power (W) | Wind Speed (m/s) | Air Volume (m³/h) | Noise (dB) | Installation Height (m) | Dimensions (L×W×H mm) |

|--------|---------------------|-----------|------------------|-------------------|------------|------------------------|------------------------|

| 0.6 m | 220V/50Hz | 95 | 7~11 | 900 | 49 | 2.5~3 | 600×150×185 |

| 0.9 m | 220V/50Hz | 120 | 7~11 | 1400 | 50 | 2.5~3 | 900×150×185 |

| 1.2 m | 220V/50Hz | 155 | 7~11 | 2000 | 51 | 2.5~3 | 1200×150×185 |

| 1.5 m | 220V/50Hz | 180 | 7~11 | 2800 | 52 | 2.5~3 | 1500×150×185 |

| 1.8 m | 220V/50Hz | 200 | 7~11 | 3600 | 53 | 2.5~3 | 1800×150×185 |

| 2.0 m | 220V/50Hz | 220 | 7~11 | 4000 | 54 | 2.5~3 | 2000×150×185 |

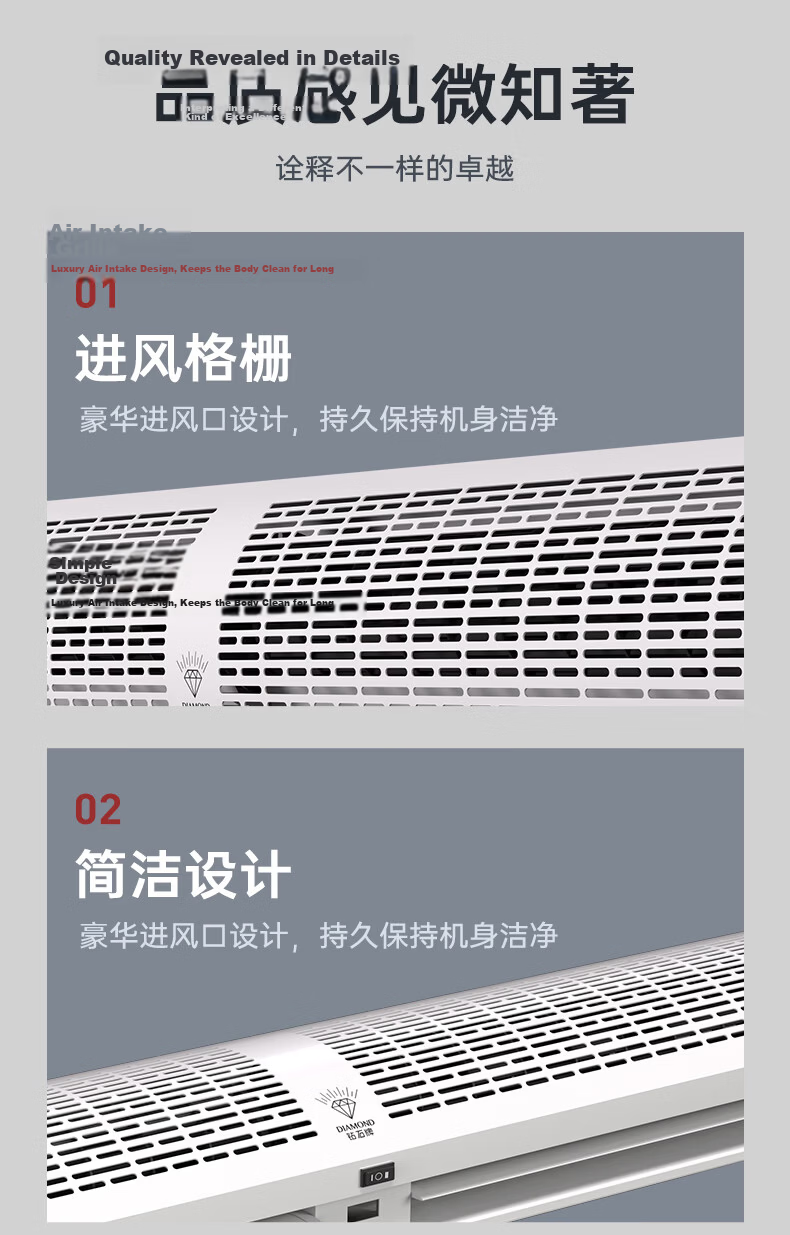

Luxury air intake grille designed to maintain cleanliness and durability

Simplified and elegant design for aesthetic appeal

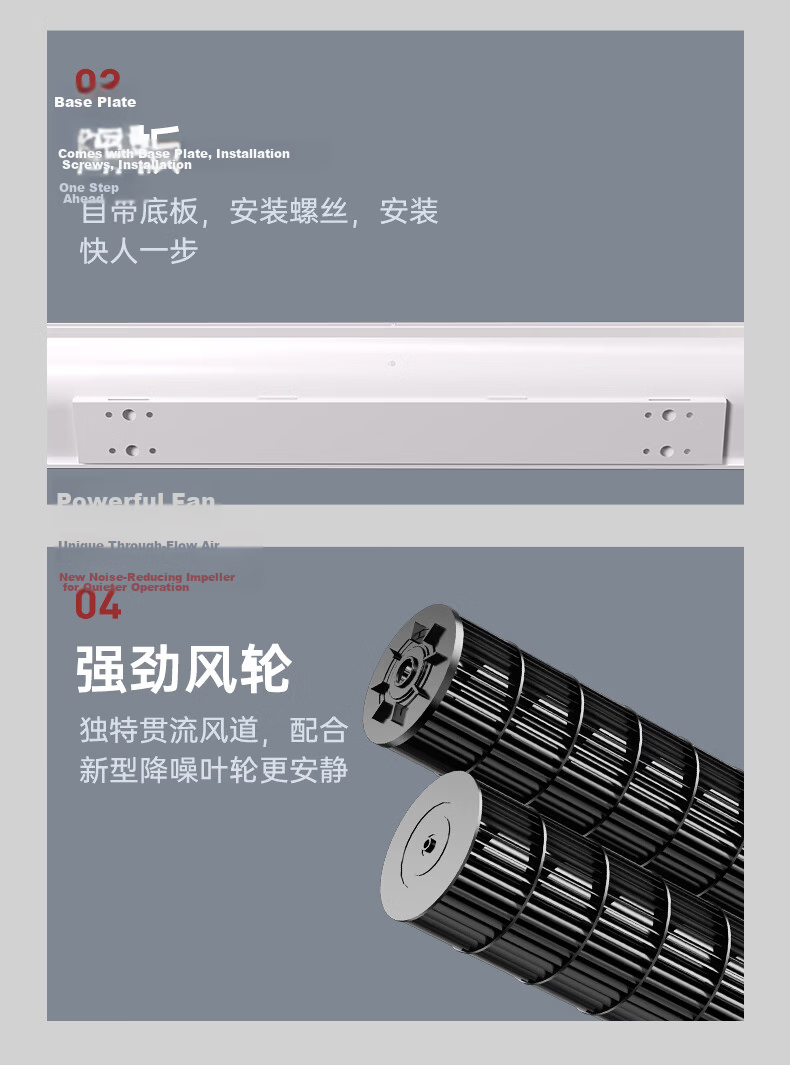

Equipped with base plate and installation screws for quick and easy mounting

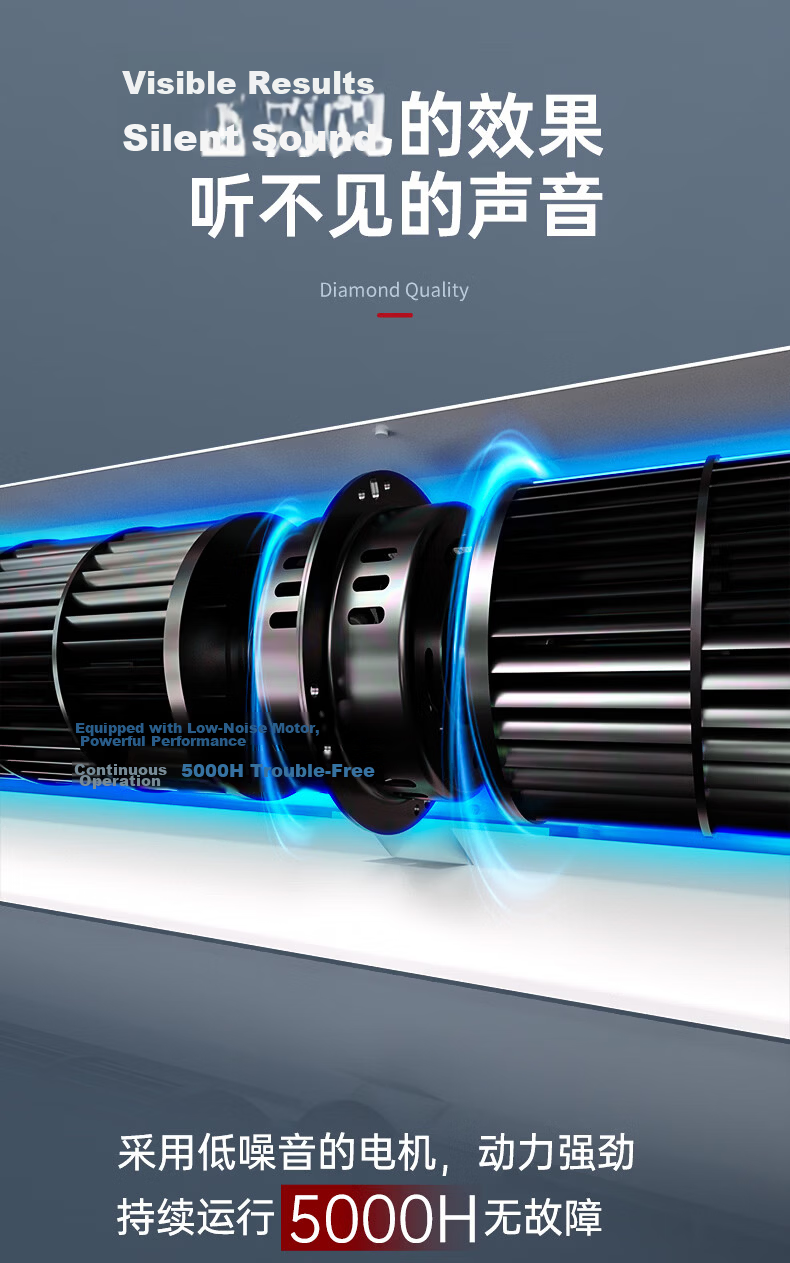

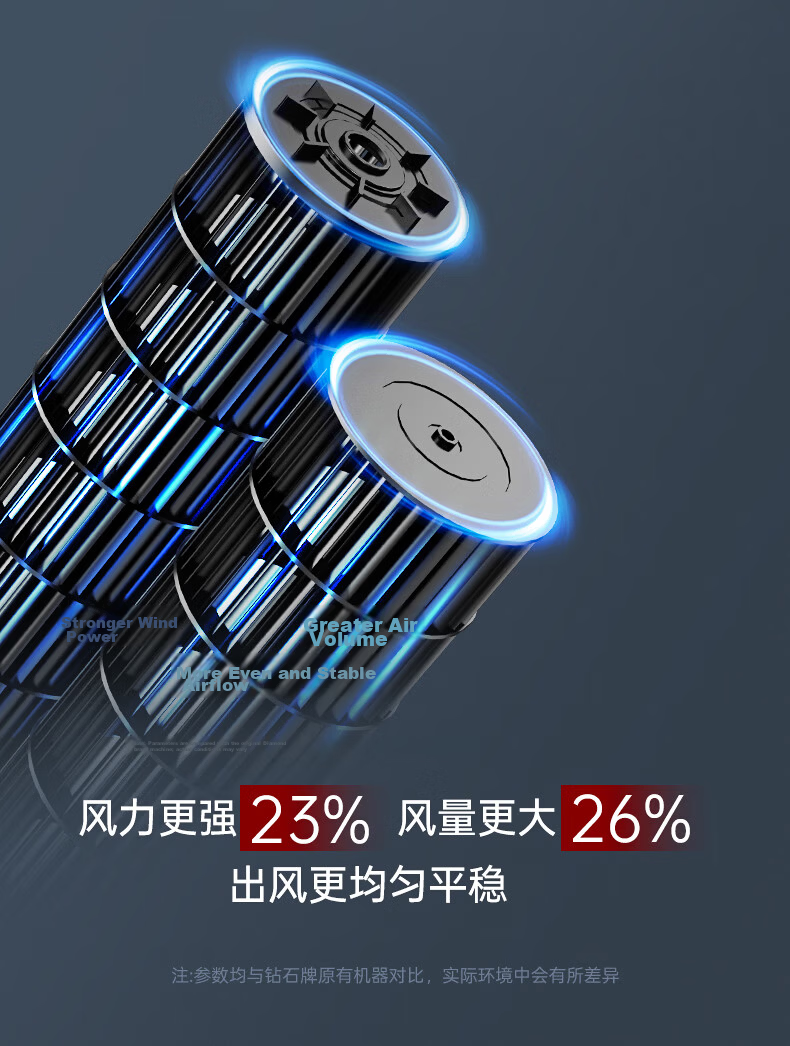

Unique strong wind wheel with cross-flow air duct and new noise-reducing blades for quieter operation

Performance parameters are based on DIAMOND’s original machines; actual results may vary depending on environmental conditions.
