HSD Pneumatic Spray Gun Automotive Sheet Metal High Atomization Spray Pot Primer Spray Gun K-3 Top Cup 0.5mm Nozzle

•Other manual tools

HSD Pneumatic Spray Gun Automotive Sheet Metal High Atomization Spray Pot Primer Spray Gun K-3 Top Cup 0.5mm Nozzle

CN¥49.20

SKU: 100257408043

Status:In Stock (26)

ID: 100063344400

Weight: 300.00 g

Dims:172x122x62 mm

Specifications

Category: Spray gun

Variants / Sale Attributes

Style: K3 Upper Pot 0.5 Caliber [Jingpei]

Package Contents

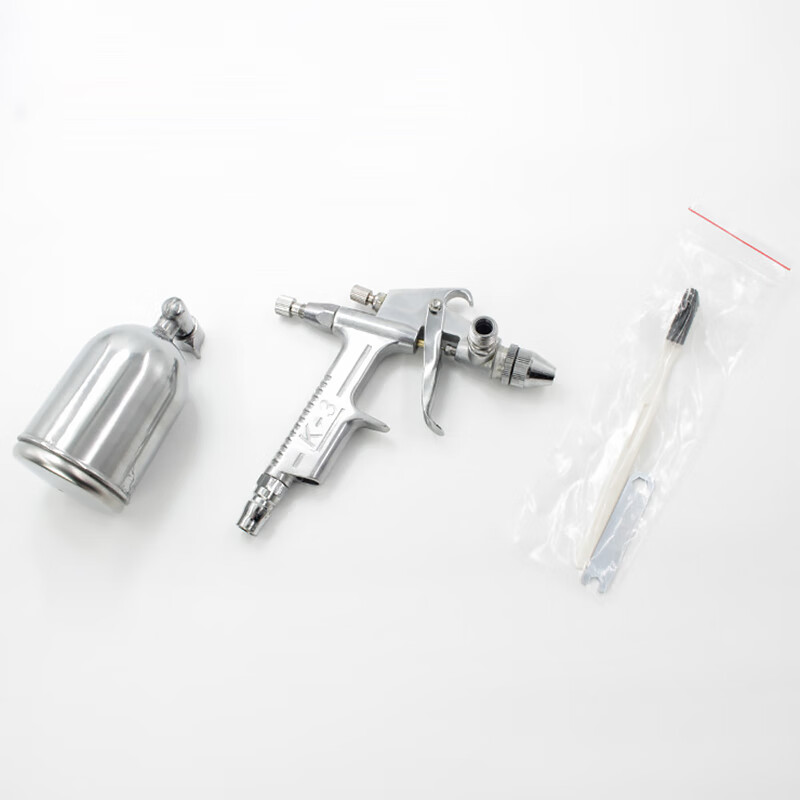

Pneumatic spray gun *1

Product Description

Product Specifications

Overview

Brand: HSDC (Haiseidike)

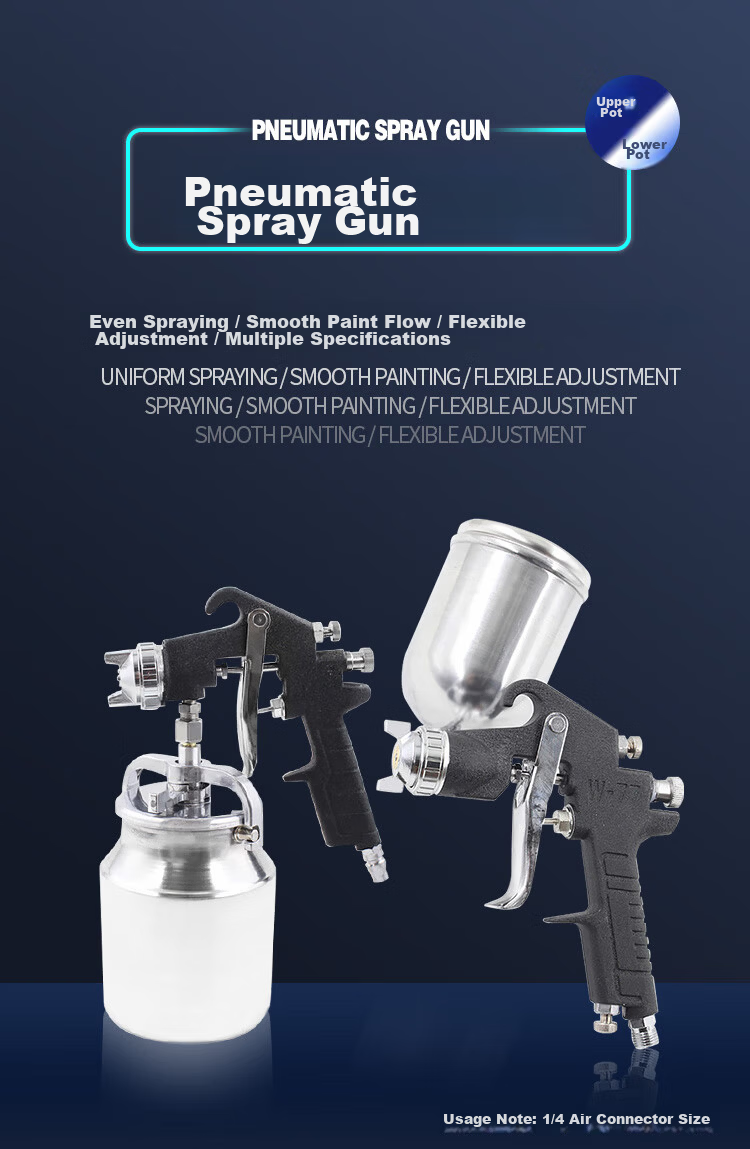

Upper Cup Pneumatic Spray Gun

Lower Cup Pneumatic Spray Gun

Uniform spraying, smooth paint flow, flexible adjustment

Multiple specifications available

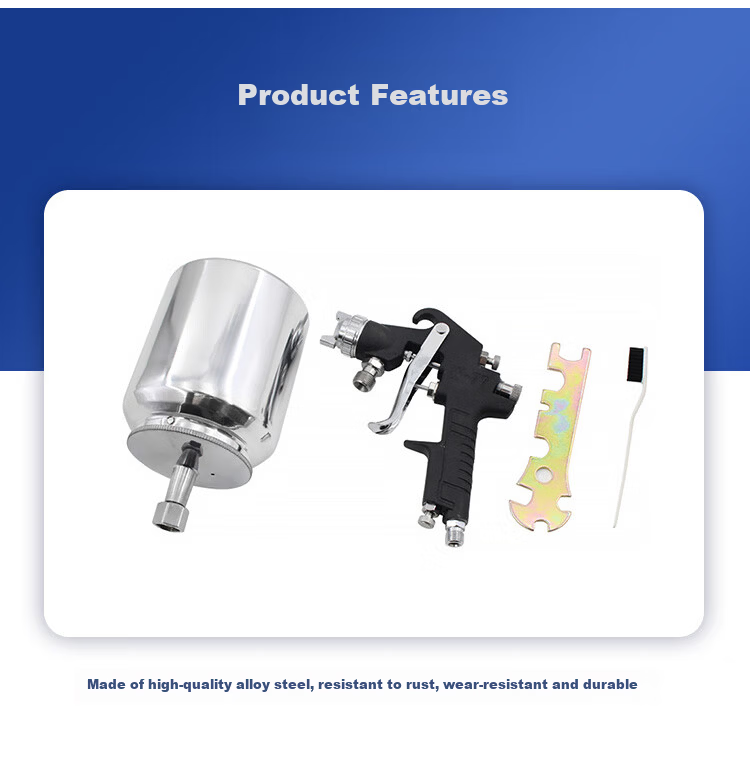

Made of high-quality alloy steel for rust resistance, wear resistance, and durability

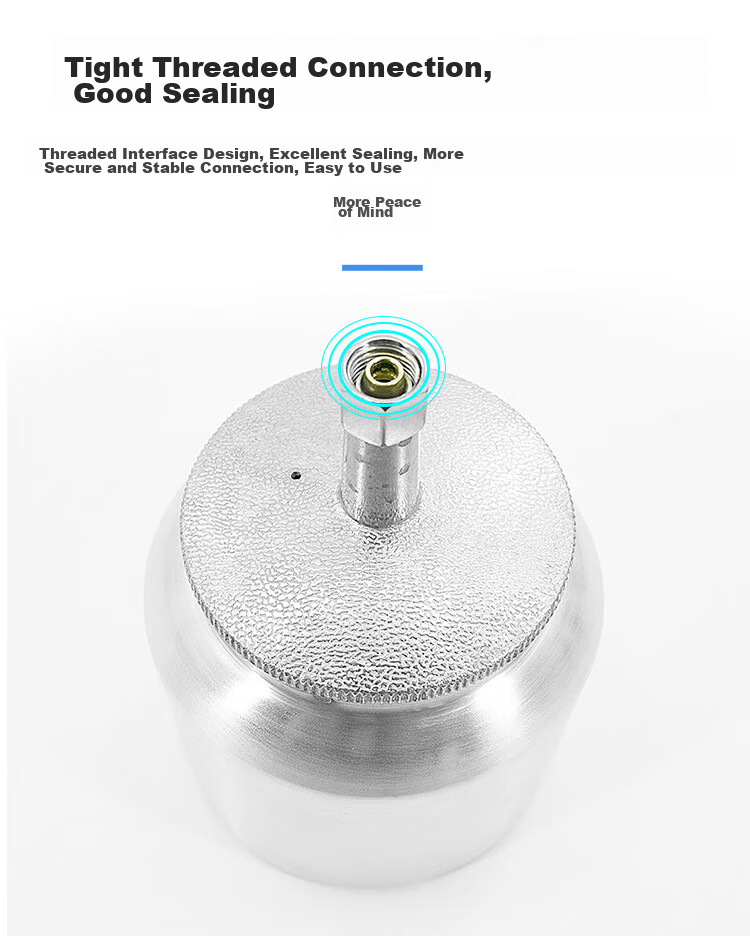

Tight threaded connections for excellent sealing and stability

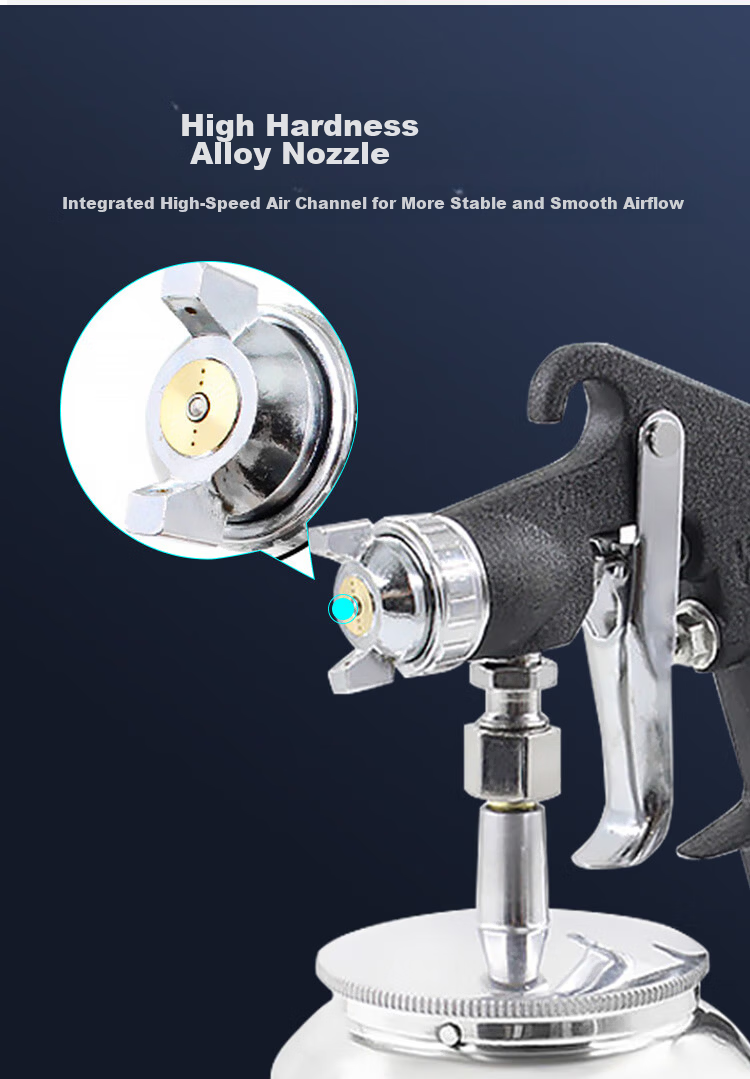

High hardness alloy nozzle with integrated high-speed air channel for stable and smooth air transmission

Portable hook for easy hanging

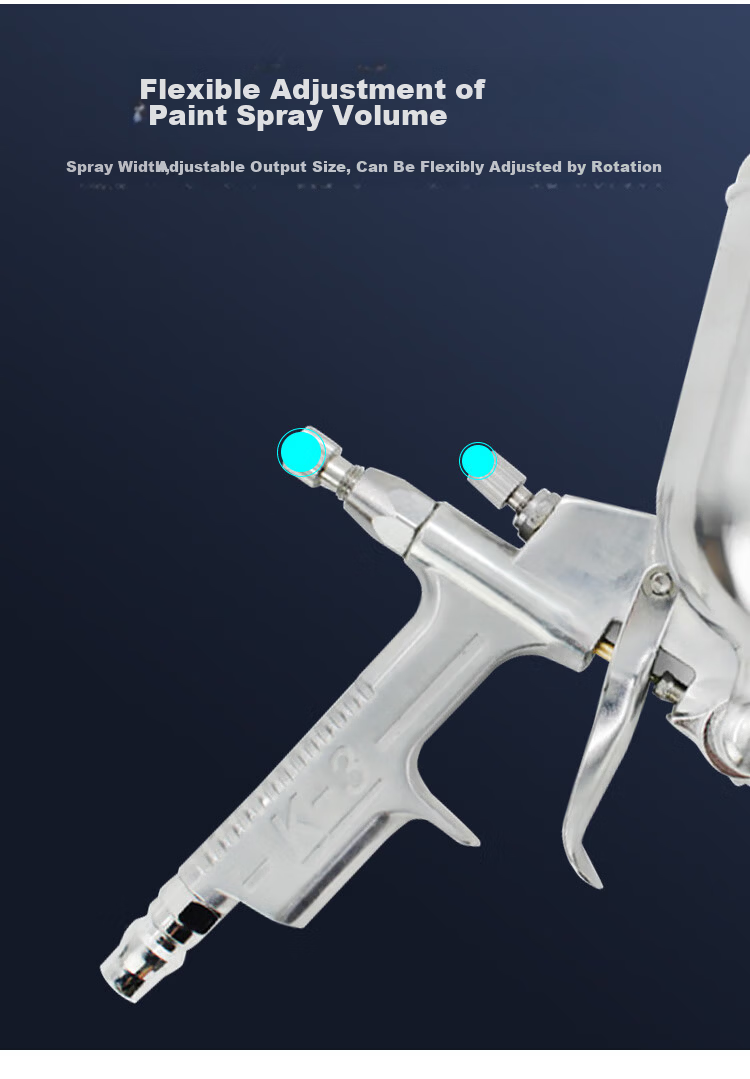

Adjustable spray width and paint output volume

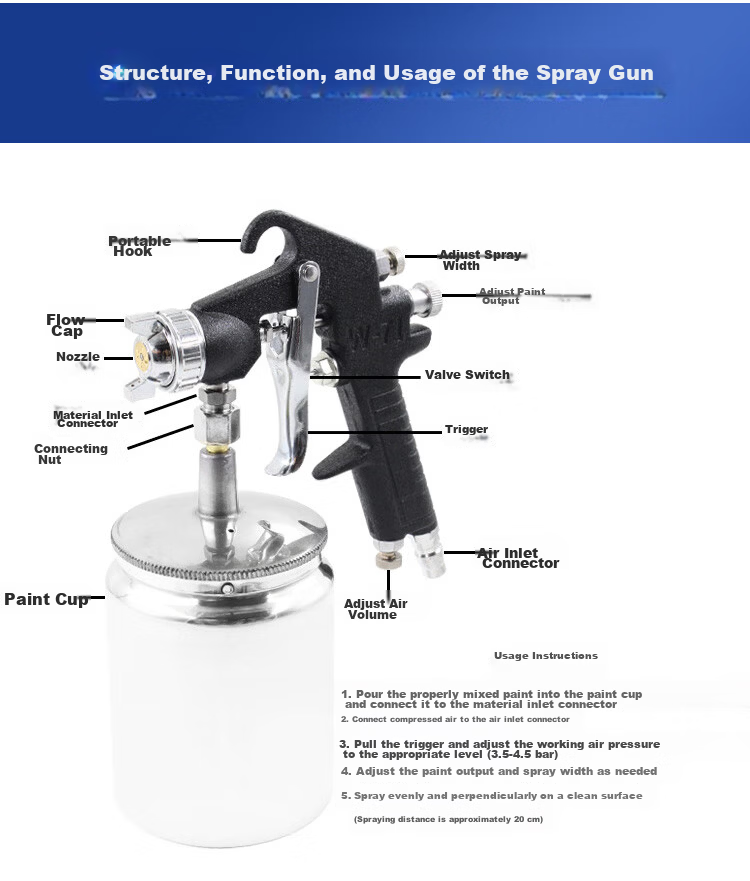

Flow cap, nozzle, valve switch, feed connector, trigger, connection nut, air inlet, and paint cup included

Additional details

Air connector size: 1/4 inch

Suitable for a wide range of applications including furniture spraying, metal crafts, plastic products, woodworking, automotive repair, and model painting

Similar Products

Out of Stock

ANCHOROther manual tools

ANCHOR Multifunctional Punching Woodworking Electric Drill Alloy Bit Set 8cm Woodworking Drill 5 Pieces

Carpentry drill bits (set of five, flexible)

CN¥10.00

View

In Stock

Other manual tools

Lekali Electric Drill to Reciprocating Saw Conversion Head Household Small Electric Saw Handheld Woodworking Saber Saw

Electric drill to electric saw adapter + 6 saw blades

CN¥39.84

View

In Stock

WORKPROOther manual tools

WORKPRO Foldable Shopping Cart Trolley Portable Hand-Pulled Cart for Grocery Shopping Elderly Use

Avocado Green Large 65L

CN¥125.00

View

Spray distance approximately 20 cm

Additional details

Recommended working air pressure: 3.5-4.5 bar

Adjust spray width and paint output as needed

Spray clean surfaces with parallel and vertical strokes

Additional details

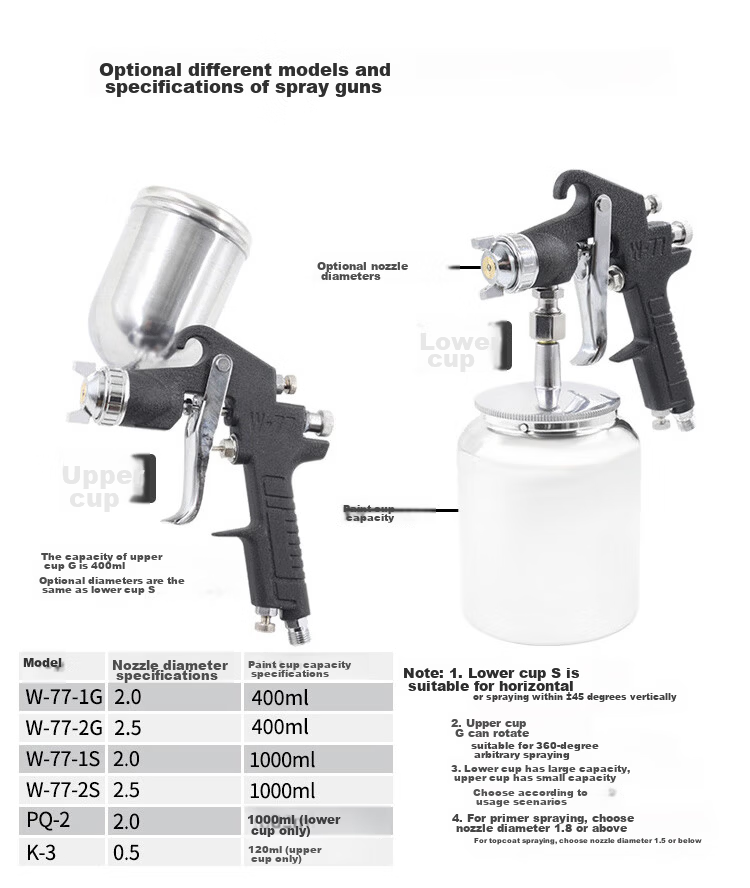

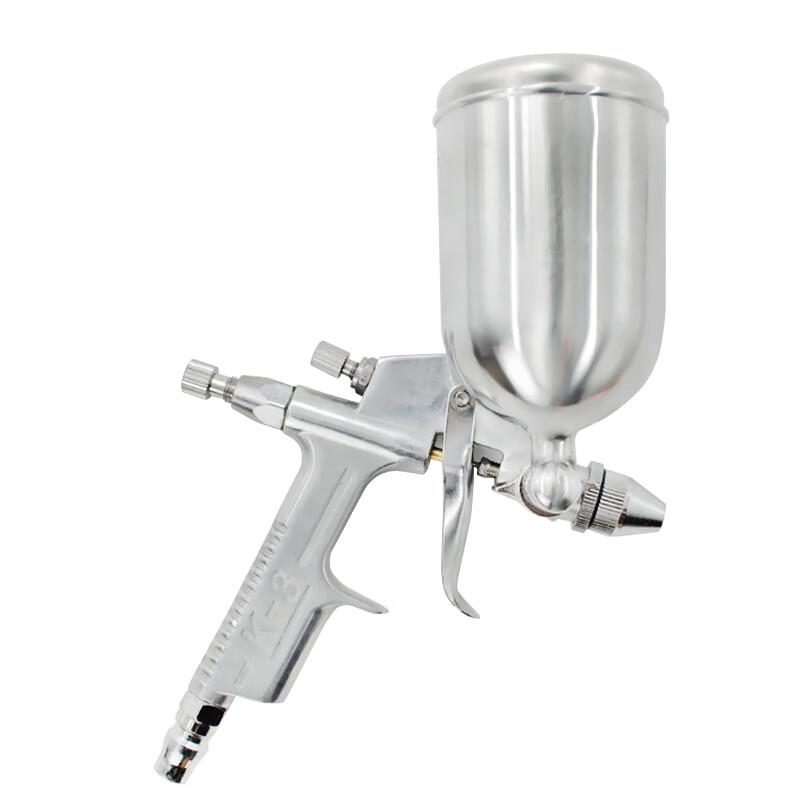

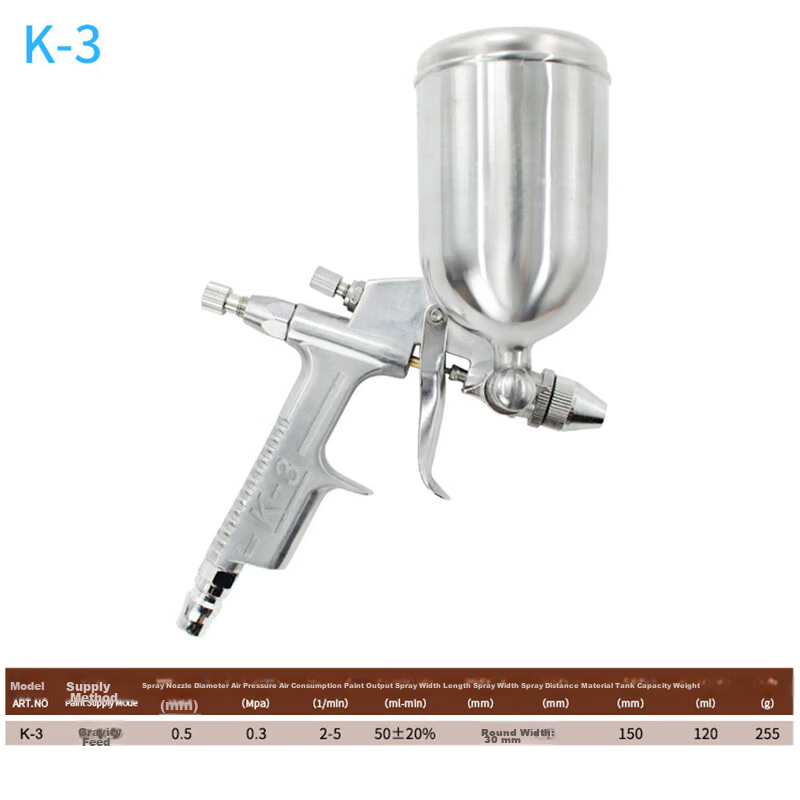

1. Upper Cup Spray Gun (Model: W-77-1 G, W-77-2 G, K-3)
Cup capacity: 400 ml (W-77 series), 120 ml (K-3)
Nozzle diameters: 0.5 mm (K-3), 2.0 mm (W-77-1 G), 2.5 mm (W-77-2 G)

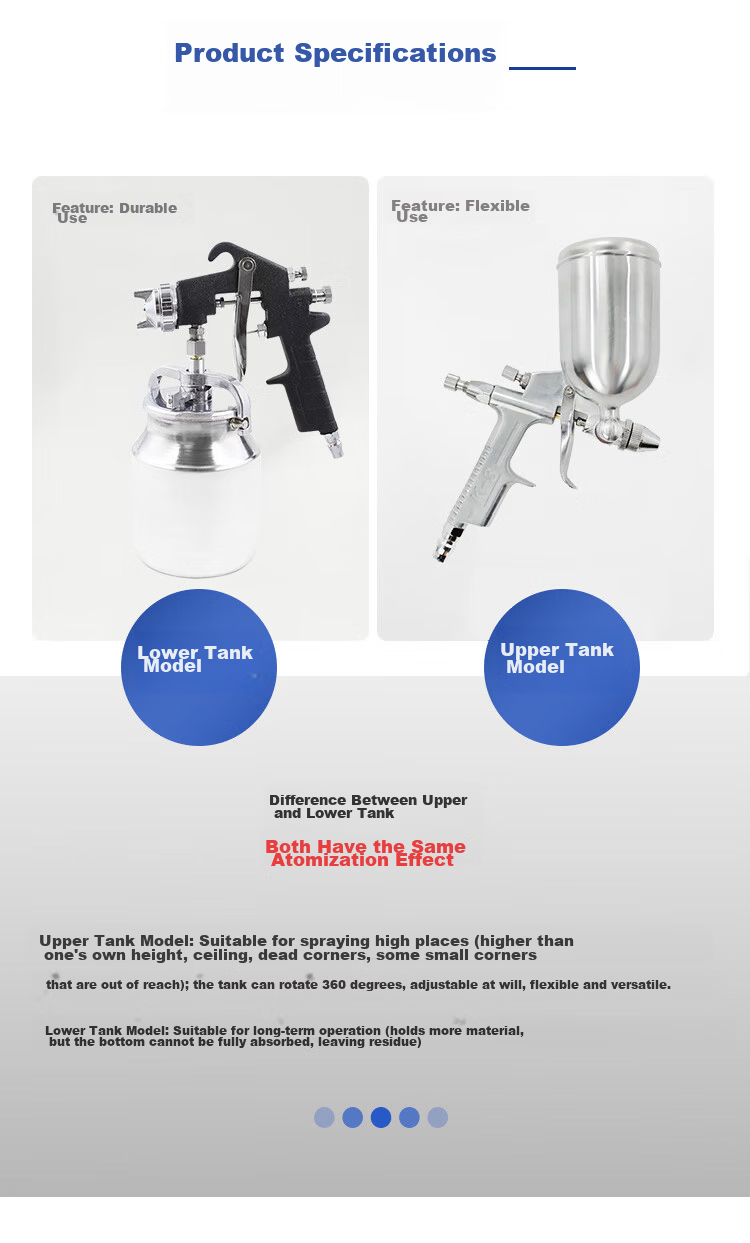

Features 360-degree rotatable cup for spraying at any angle, ideal for high or hard-to-reach areas

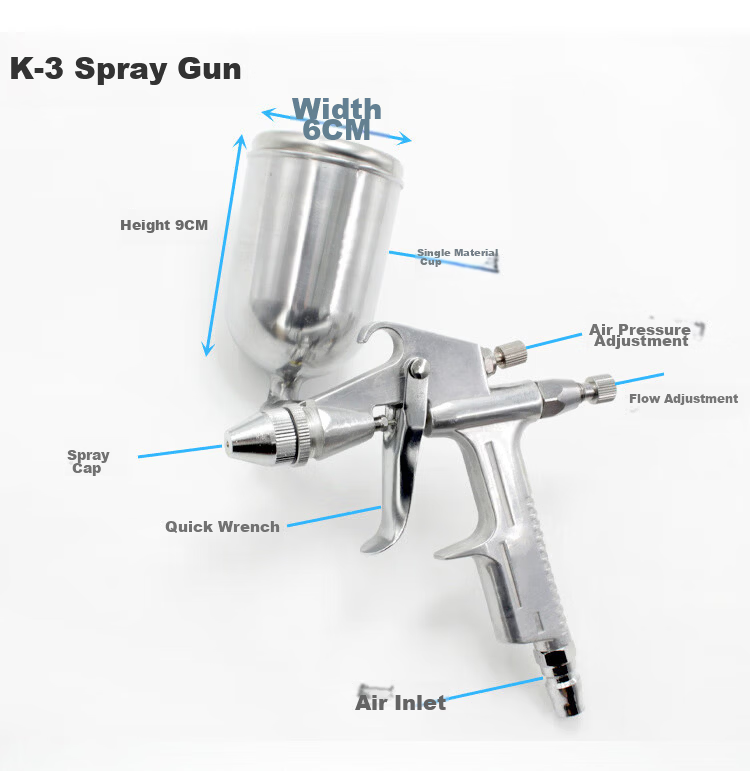

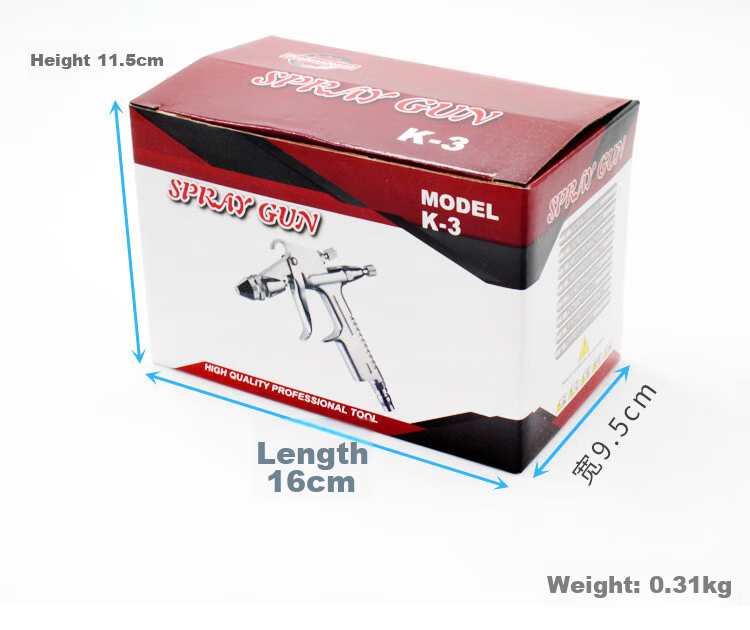

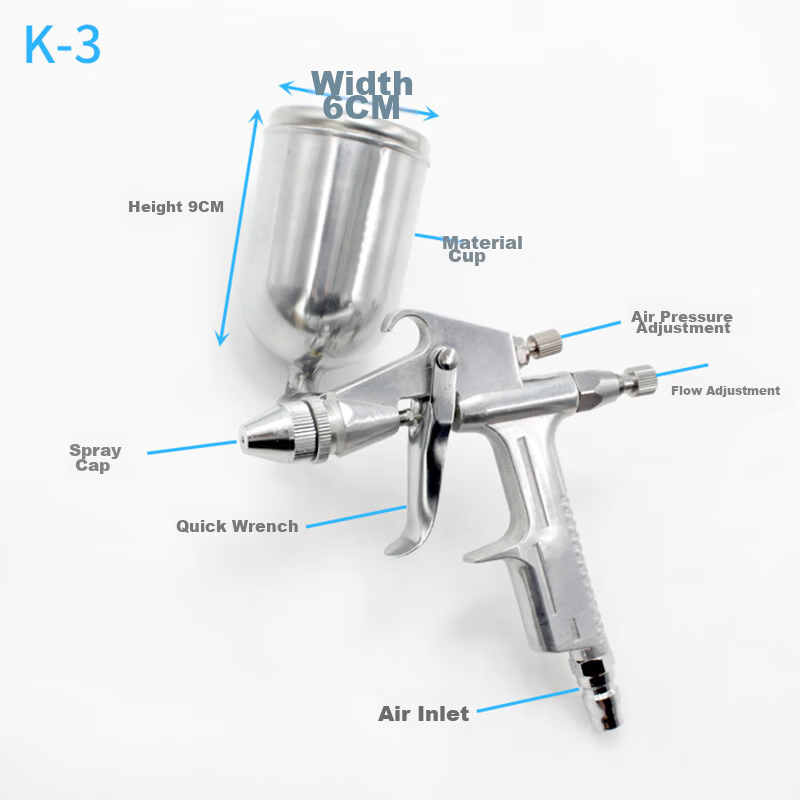

Compact size example: K-3 (Width: 6 cm, Height: 9 cm, Length: 16 cm, Weight: 0.31 kg)

Additional details

2. Lower Cup Spray Gun (Model: W-77-1S, W-77-2S, PQ-2)
Cup capacity: 1000 ml (W-77 series, PQ-2)
Nozzle diameters: 2.0 mm (W-77-1S, PQ-2), 2.5 mm (W-77-2S)

Suitable for long-duration work with larger paint capacity; best used for horizontal or slight angle spraying (less than 45 degrees)

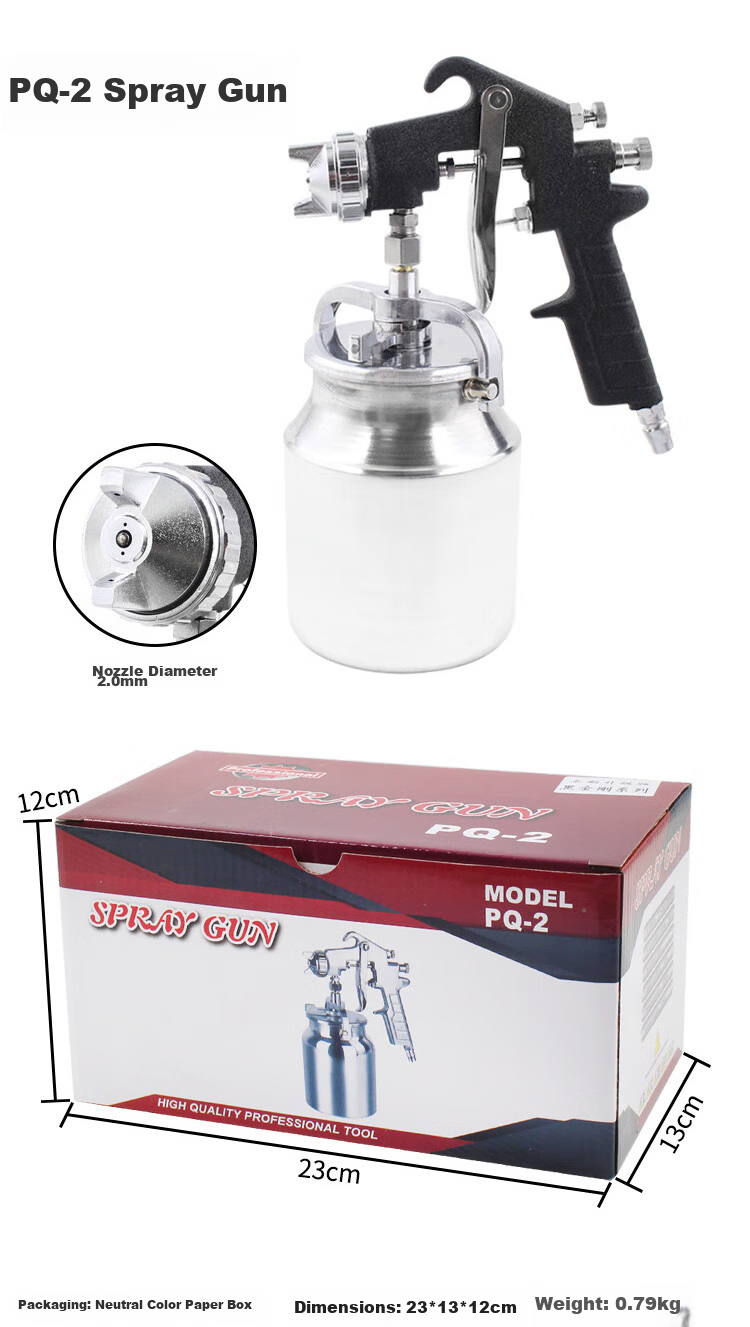

Example size: PQ-2 (Length: 23 cm, Weight: 0.79 kg)
PQ-2 is lower cup only

3. Nozzle Diameter Recommendations

Item	Detail
Primer spraying	1.8 mm or above
Topcoat spraying	1.5 mm or below

1. Pour properly mixed paint into the paint cup and connect to the feed connector.

2. Connect compressed air to the air inlet.

3. Pull the trigger and adjust working air pressure between 3.5-4.5 bar.

4. Adjust paint output and spray width as required.

5. Spray clean surfaces with parallel and vertical strokes at approximately 20 cm distance.

Neutral color printed cardboard box

Additional details

Dimensions: 23 x 13 x 12 cm (example for PQ-2)

HSDC pneumatic spray guns offer durable, flexible, and efficient painting solutions with options for upper and lower cup designs, multiple nozzle sizes, and adjustable spray parameters suitable for diverse industrial and hobbyist applications.
