Back to CatalogJOMOO Smart Thermostatic Digital Display Star Arc Rainfall Shower Head 26219-A74/HBS-1
Specifications
- Category
- Water overflow
- Surface treatment
- electroplate
- Control method
- piano keys
- Additional functions
- Temperature control, Digital display
- Water efficiency rating
- not detected
- Body Material
- ABS plastic
Variants / Sale Attributes
Style: [Major Upgrade] Curved Constant Temperature Digital Display Silky Rain 26219 Gray
Package Contents
Showerhead *1
Product Description
Product Specifications
Overview
- Brand
- JOMOO
- Model
- 26219-A74/HBS-1
- Product Type
- Arc-shaped Lightweight Smart Shower System
- Showerhead
- Tempered glass shelf + 59A brass + PPA waterway
- Pipe body
- Aluminum alloy
- Top spray and handheld shower
- ABS
- Handheld shower inlet distance
- 130 mm
Similar Products
In Stock
In Stock

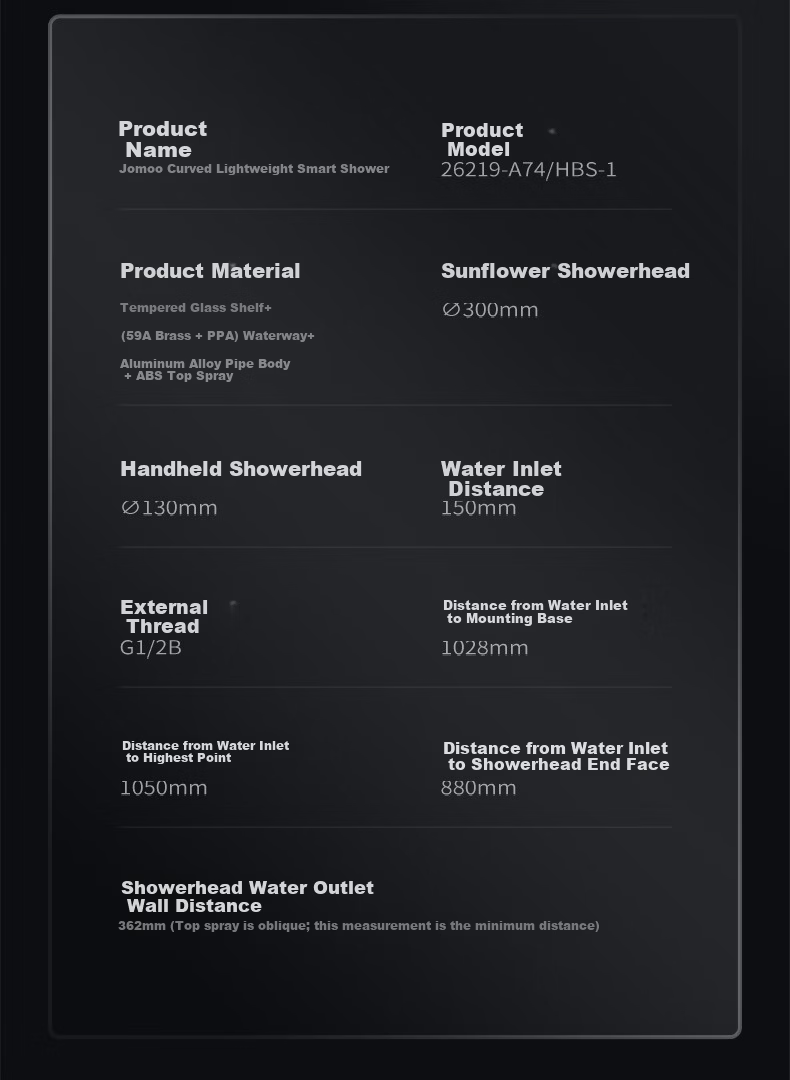

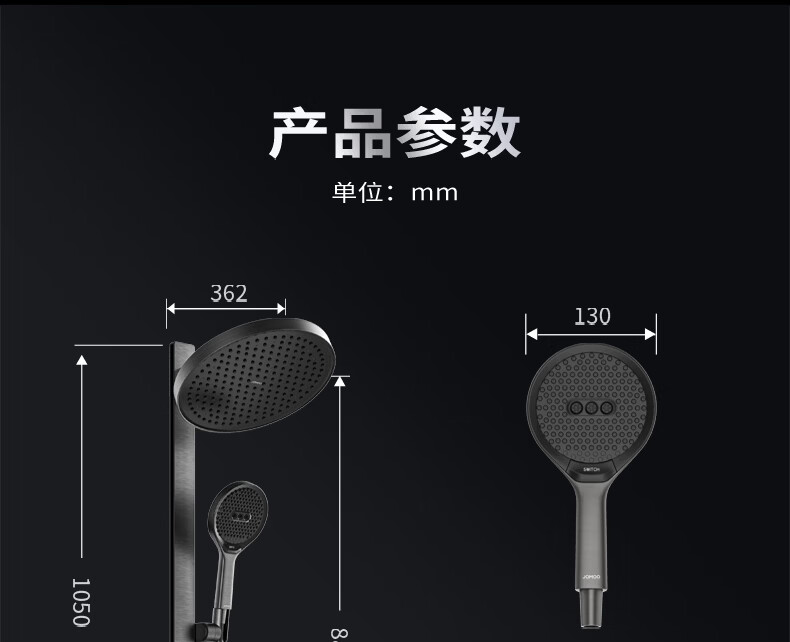

Inlet threadG1/2B external thread Distance from inlet to fixed seat1028 mm Distance from inlet to highest point1050 mm Distance from inlet to shower end face880 mm Shower outlet to wall distance362 mm (minimum, due to angled top spray) Operating pressure range0.05–0.75 MPa Recommended pressure0.2–0.5 MPa (optimal 3 kg/cm²) Water volume≥2 liters per 10 seconds at 0.1–0.75 MPa True thermostatic valve core 2.0 with ±2°C temperature control accuracy
LED temperature display with real-time water temperature sensing (basic model without display available)
Additional details

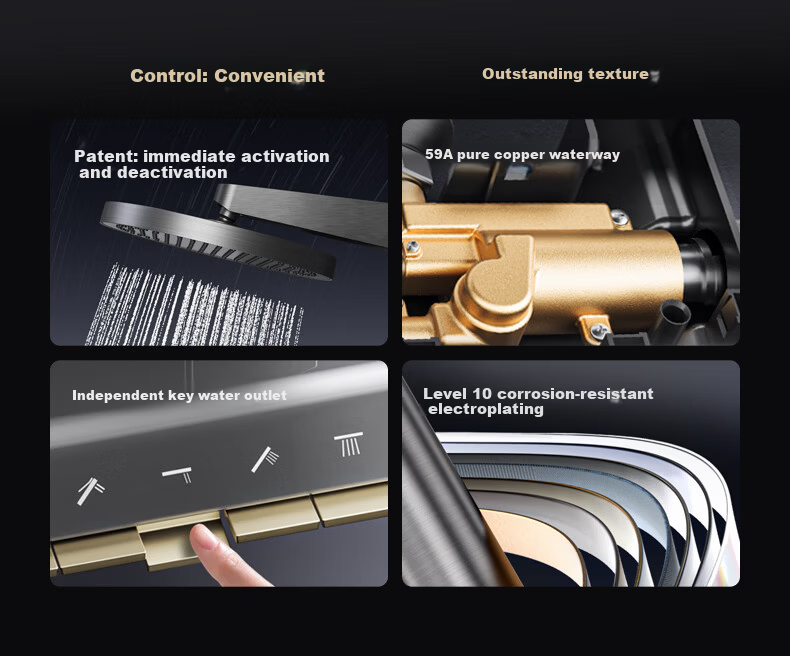

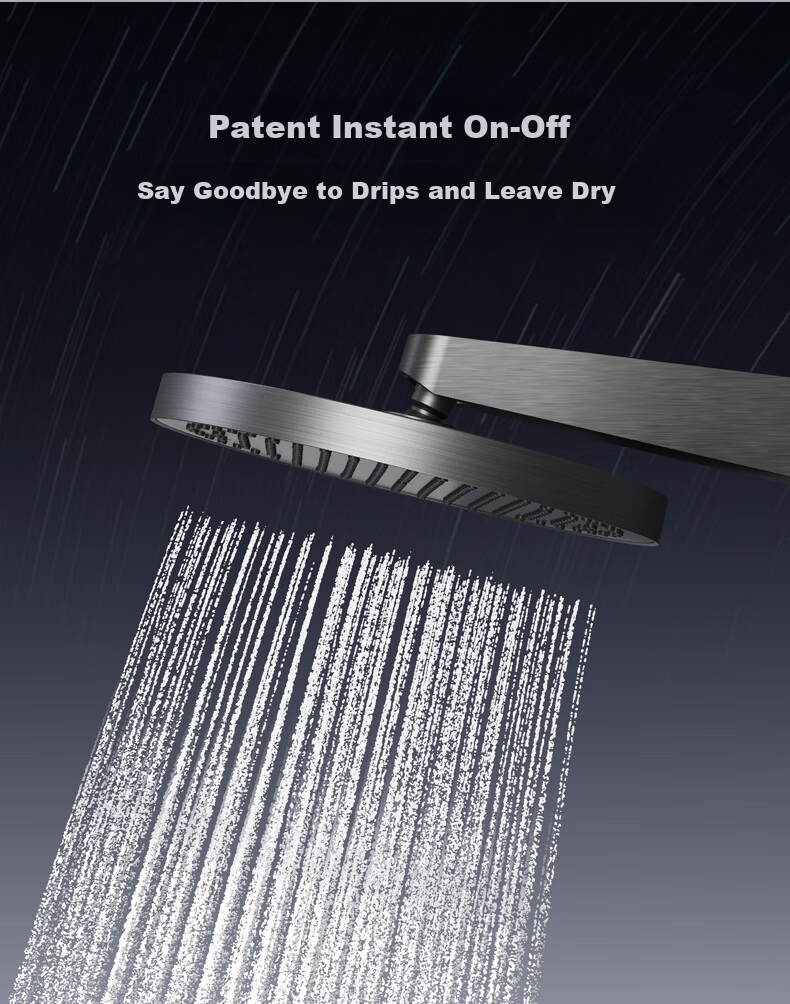

- Patented instant shut-off technology to prevent dripping (Patent No.
- ZL201920706604.6)

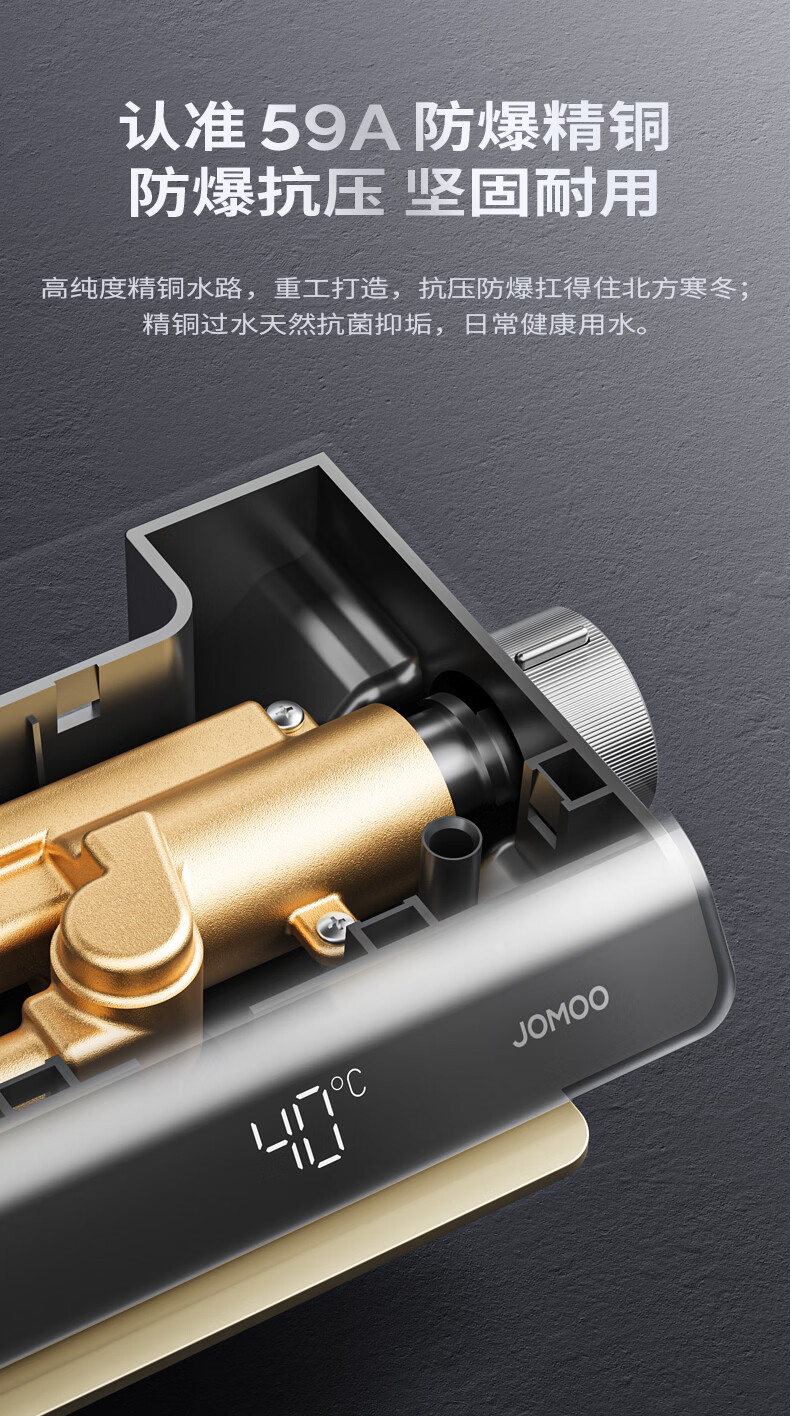

59A precision brass waterway for high durability, corrosion resistance, and antibacterial properties
German BASF explosion-proof PPA waterway for mixed water outlet

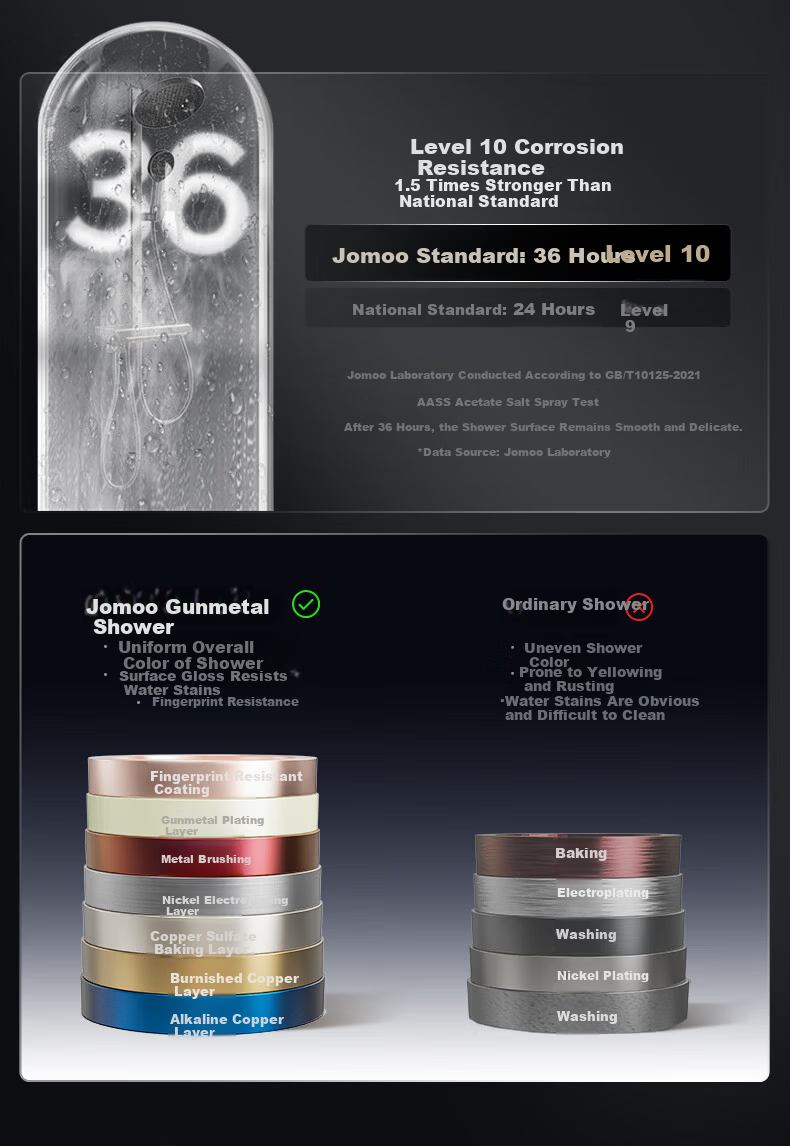

10-level corrosion resistance coating, surpassing national standards (36-hour salt spray test)

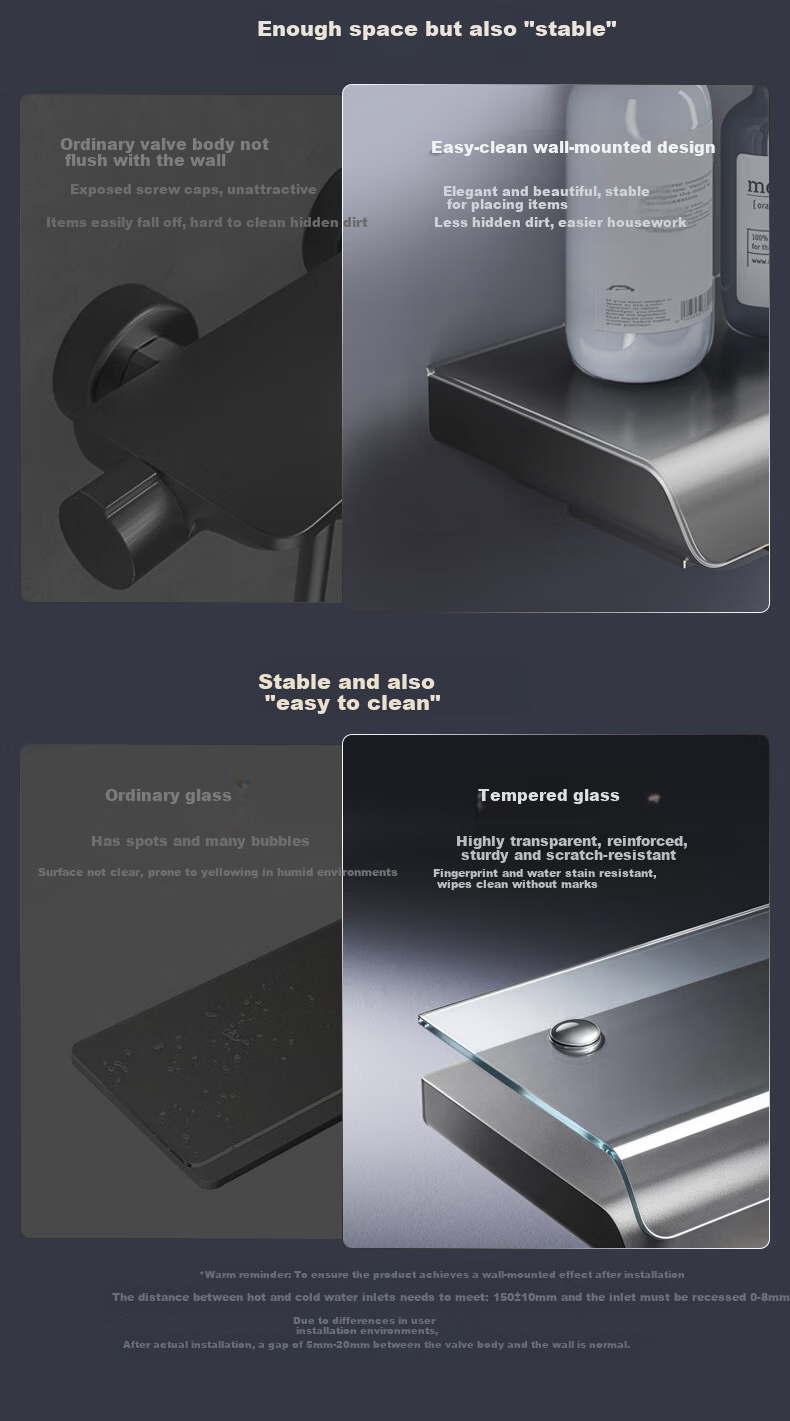

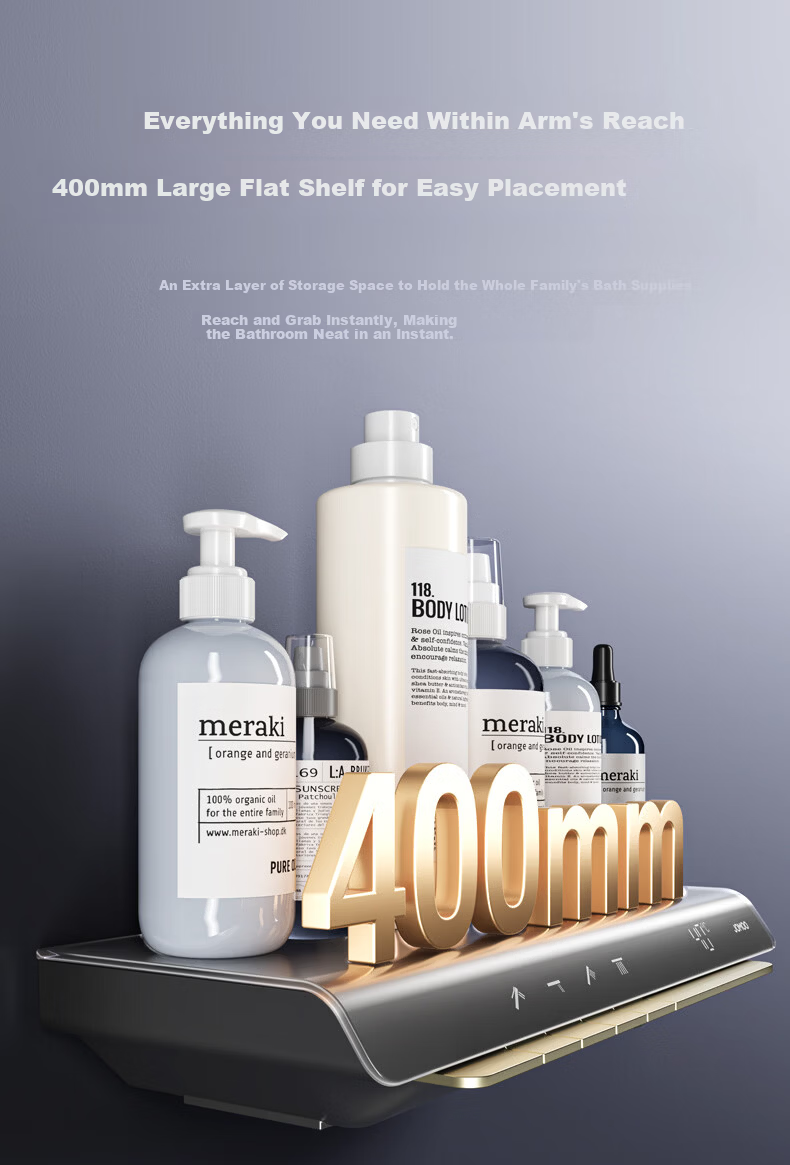

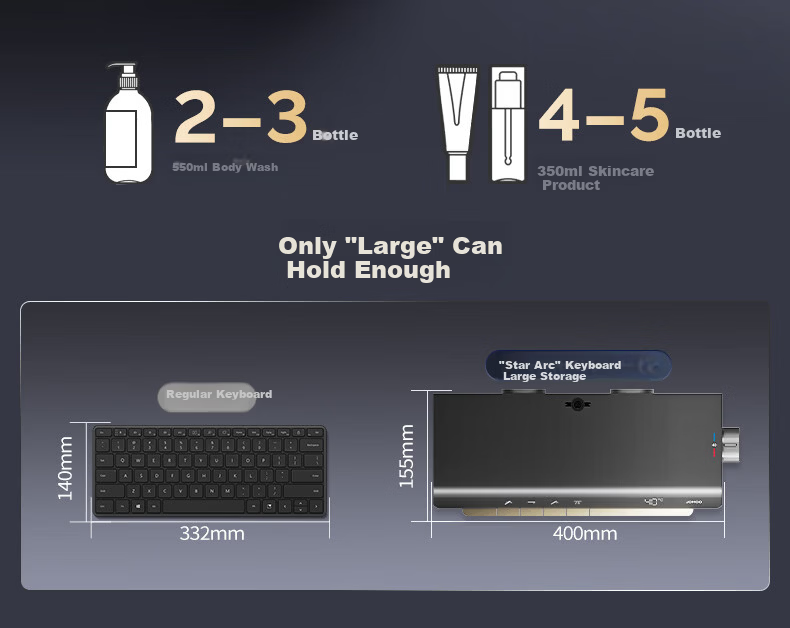

Arc-shaped curved surface design with large 400mm flat shelf for storage

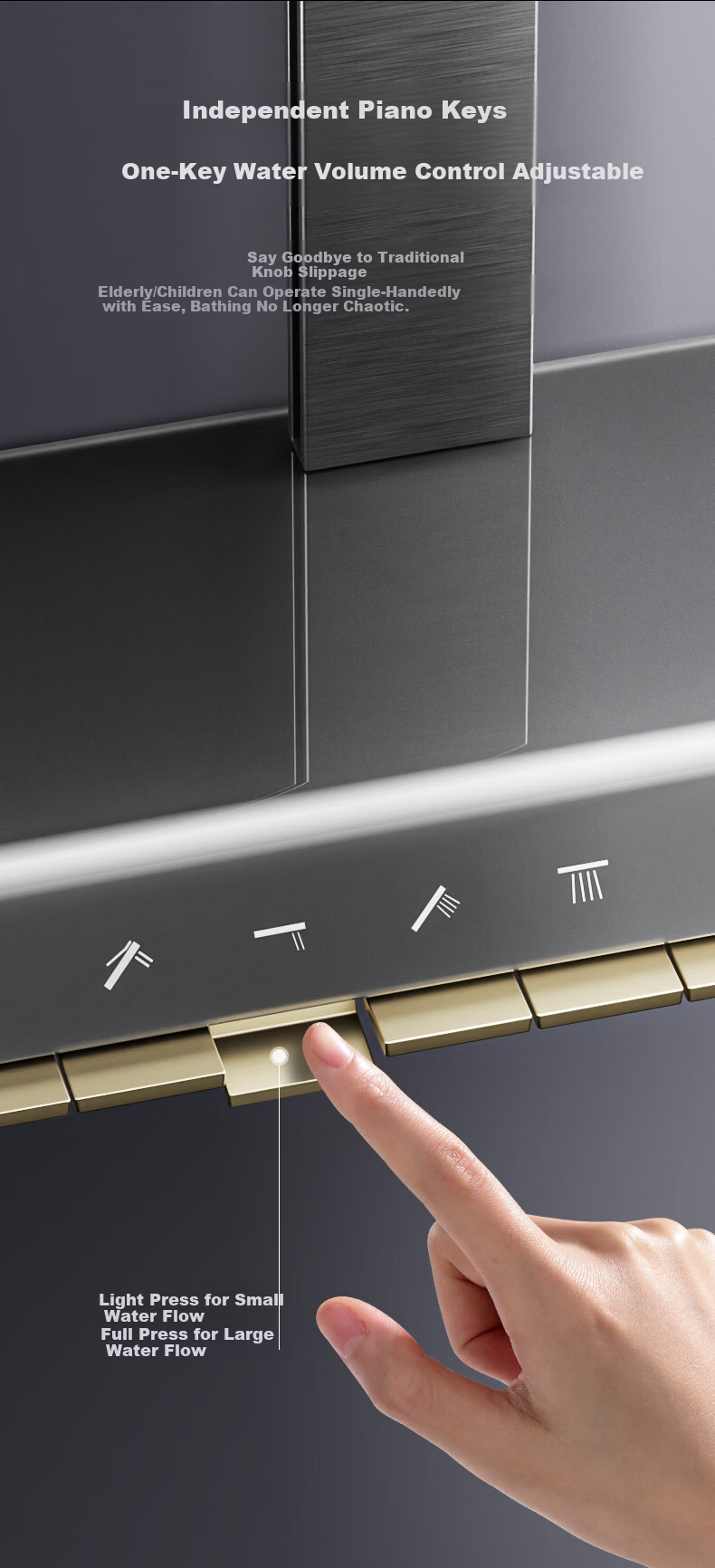

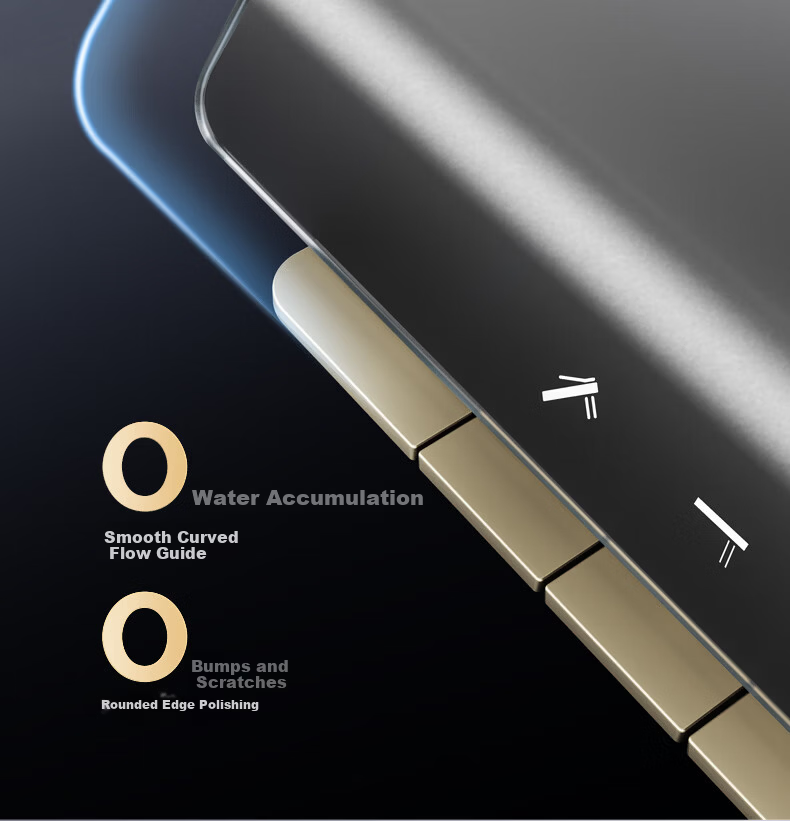

Independent piano key water control for easy one-hand operation
Additional details

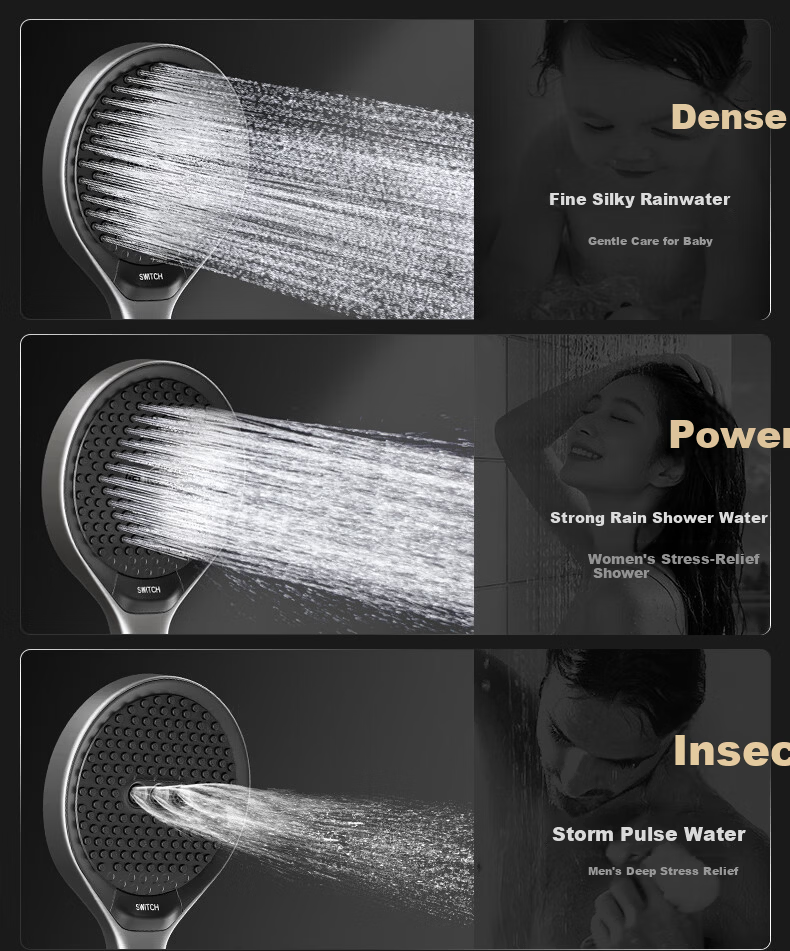

- Multiple water flow modes
- dense rain, strong rain, storm pulse for different user preferences

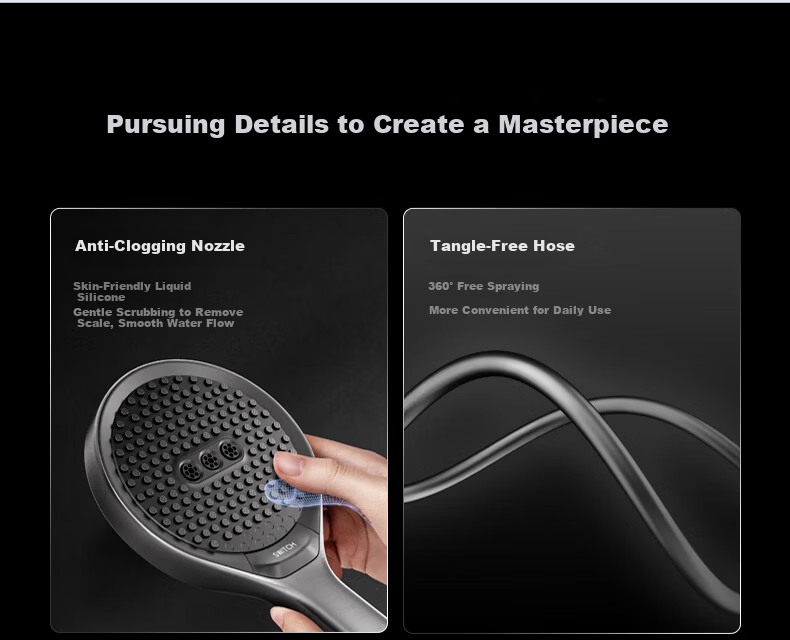

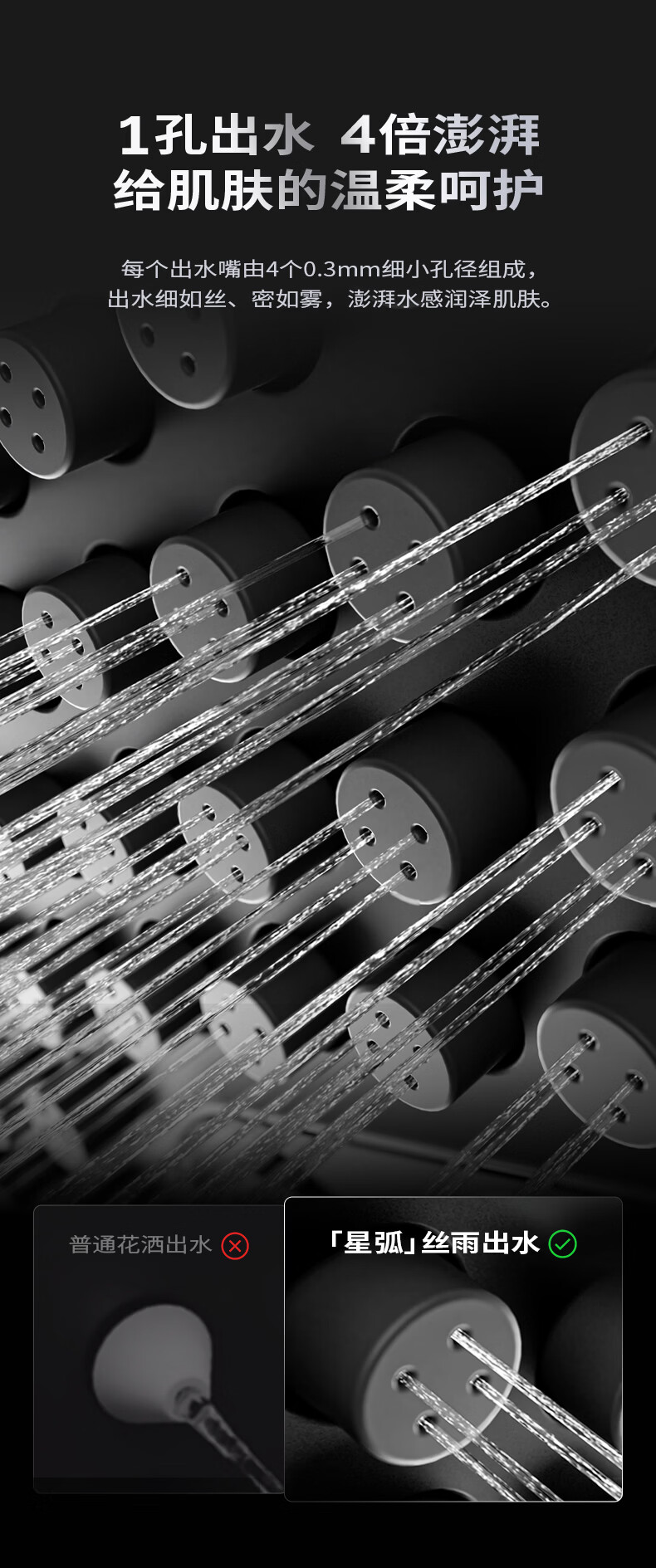

Anti-clogging nozzles and anti-twist soft hose with skin-friendly liquid silicone
Top spray with 300mm diameter for 360° body coverage and wide-angle water flow

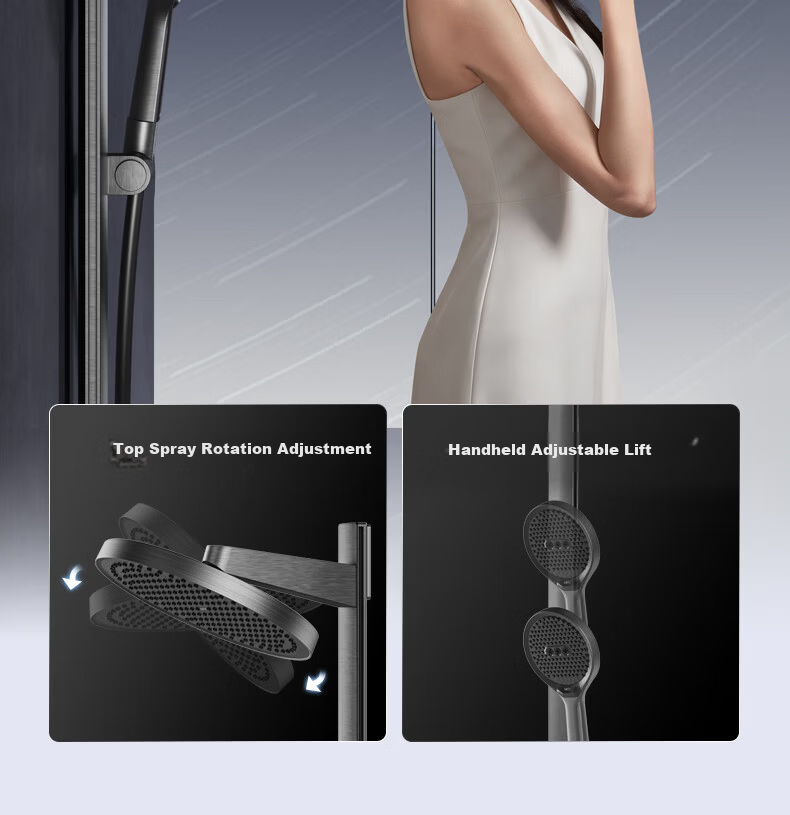

Handheld shower adjustable height and top spray rotatable

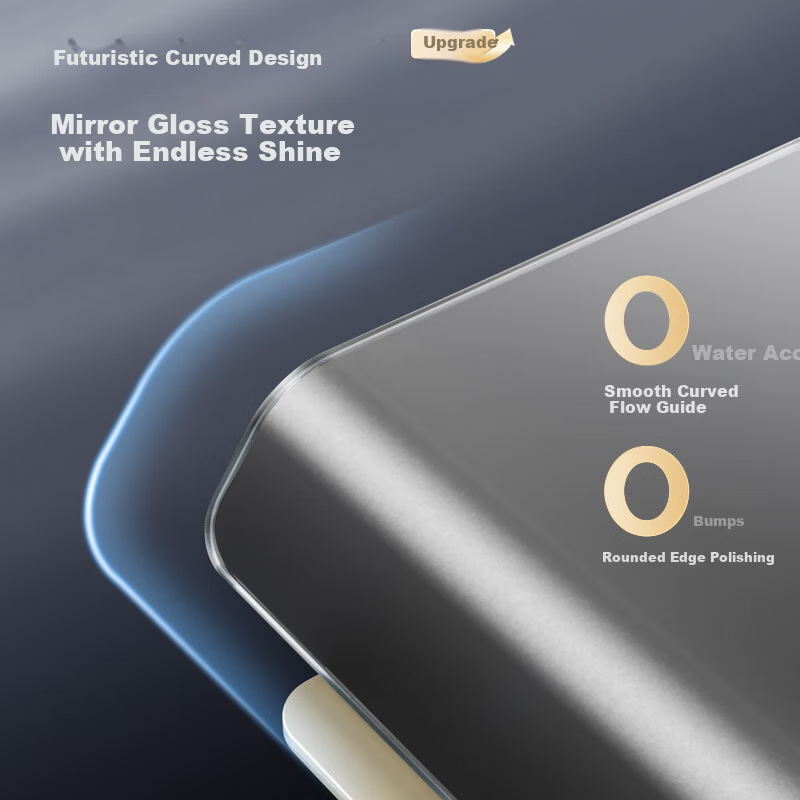

Mirror-like glass surface with anti-fingerprint and anti-yellowing coating
Additional details

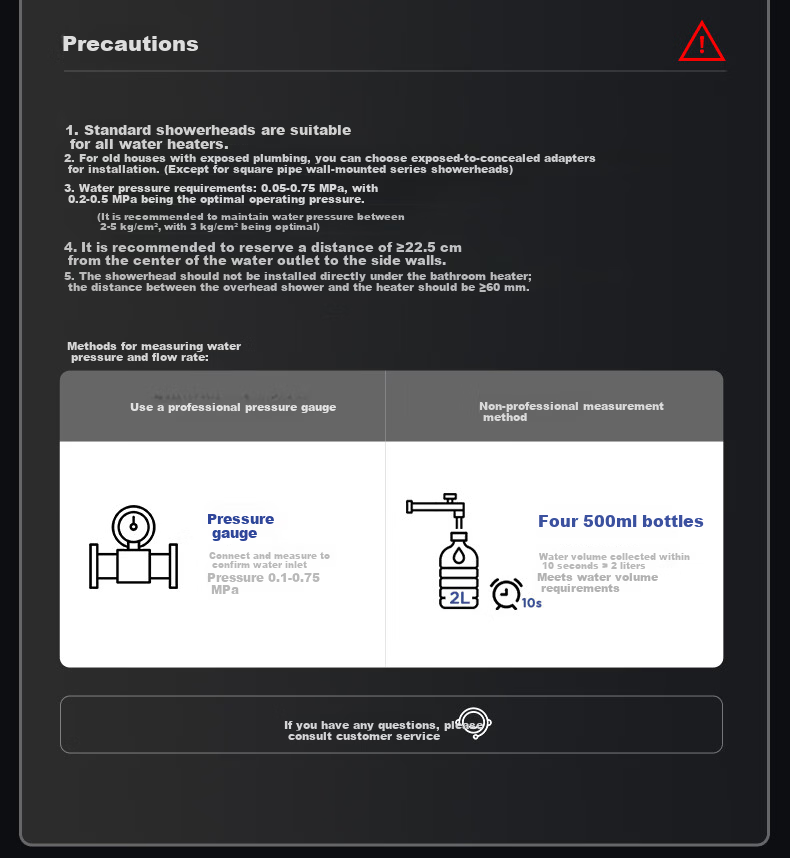

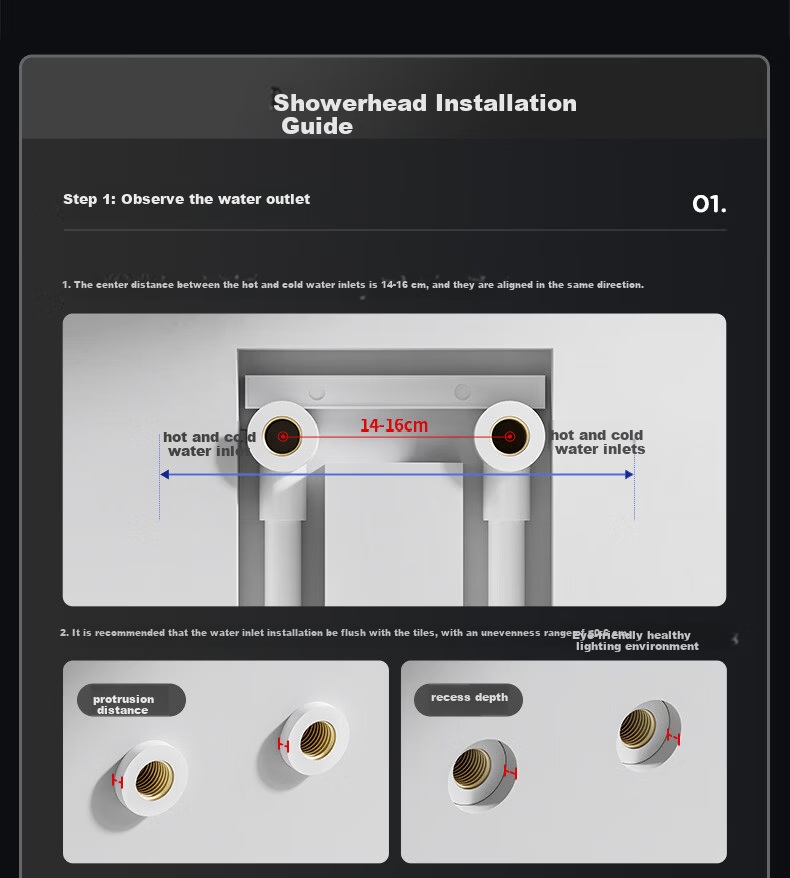

- Installation recommendations

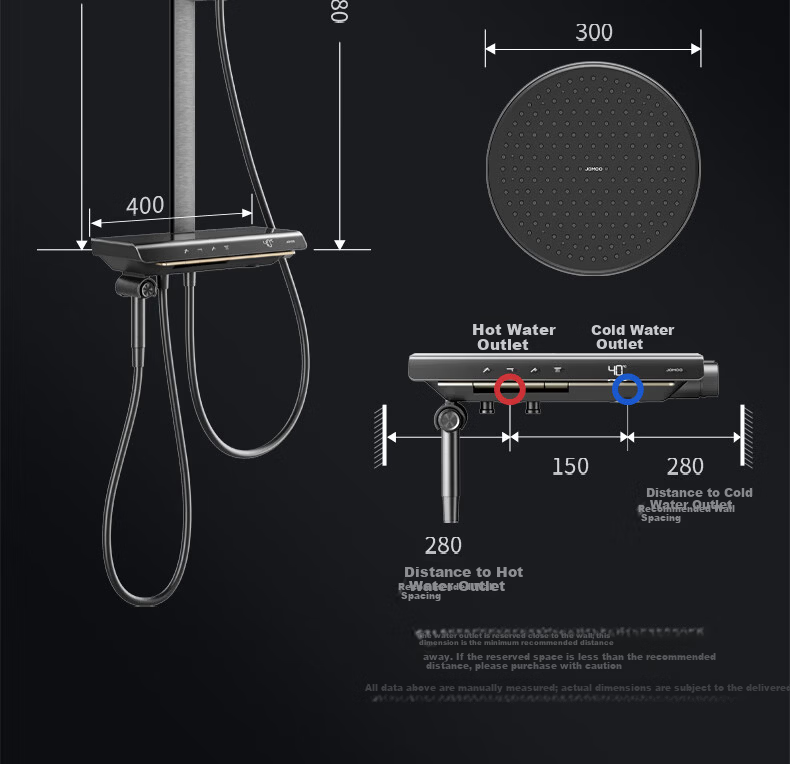

- hot and cold water inlet center distance 150±10 mm, inlet recessed 0–8 mm for flush wall mounting
Suitable for all types of water heaters; for solar water heaters, automatic water supply function required
Additional details

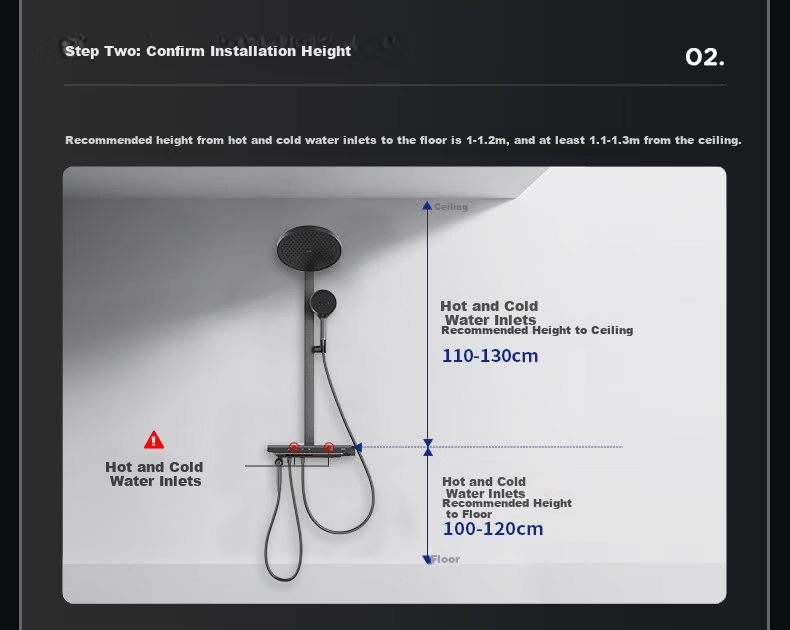

- Installation height
- hot and cold water inlet 1.0–1.2 m from floor; 1.1–1.3 m from ceiling
Not recommended to install shower directly under bathroom heater; minimum 60mm distance between top spray and heater
Supports old house exposed water pipes with optional adapter
Additional details
- Warranty
- 10 years quality guarantee with free repair for quality issues during warranty period
Installation service available including old product removal and new product installation with appointment
International and national standards compliance
German iF Design Award finalist
German Red Dot Design Award
American IDEA Industrial Design Award
Japanese G-Mark Design Award
China Excellent Industrial Design Award
Confirm water heating method before purchase
For solar water heaters, automatic water supply function is necessary
Temperature limit factory default set at 49°C; adjustments above require professional installation
Recommended water pressure and volume must be met for optimal performance
Installation gap between valve body and wall may vary 5–20mm due to environment
Additional details
- Customer service available 09
- 00–22:00 for installation and after-sales support

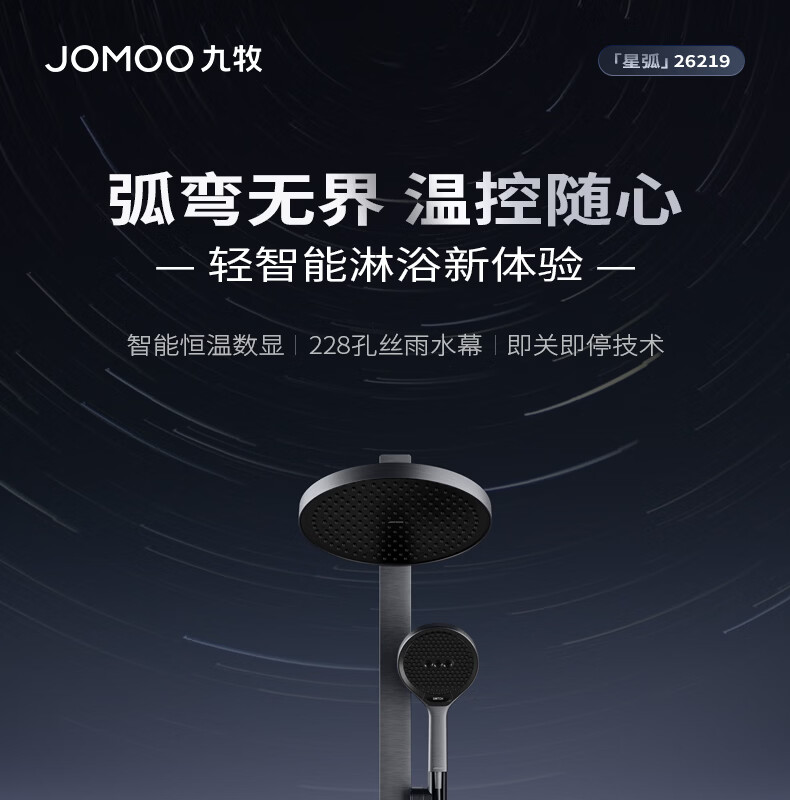

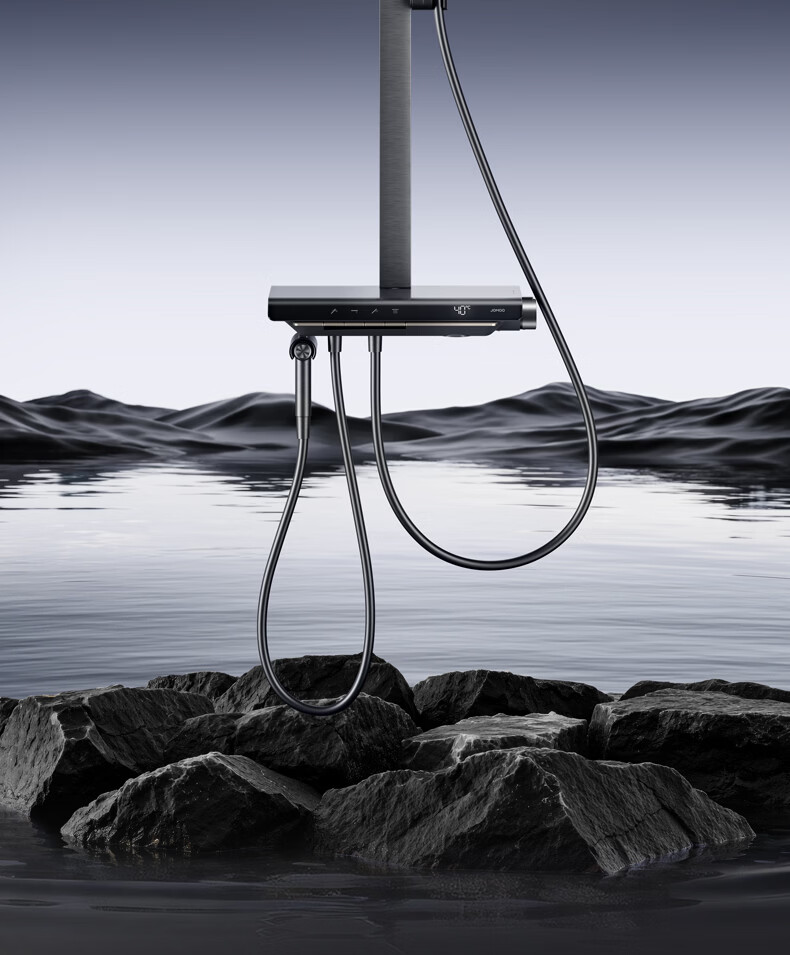

Arc-shaped smart shower system with top spray and handheld shower
Installation accessories and user manual

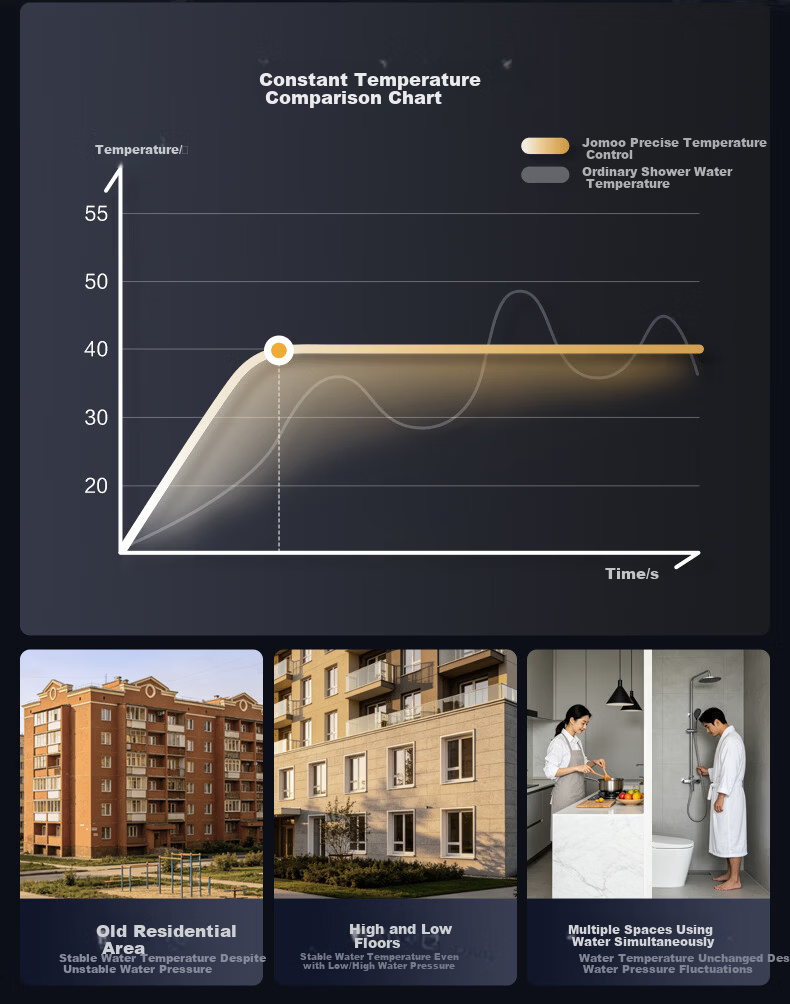

Designed for stable temperature control despite water pressure fluctuations

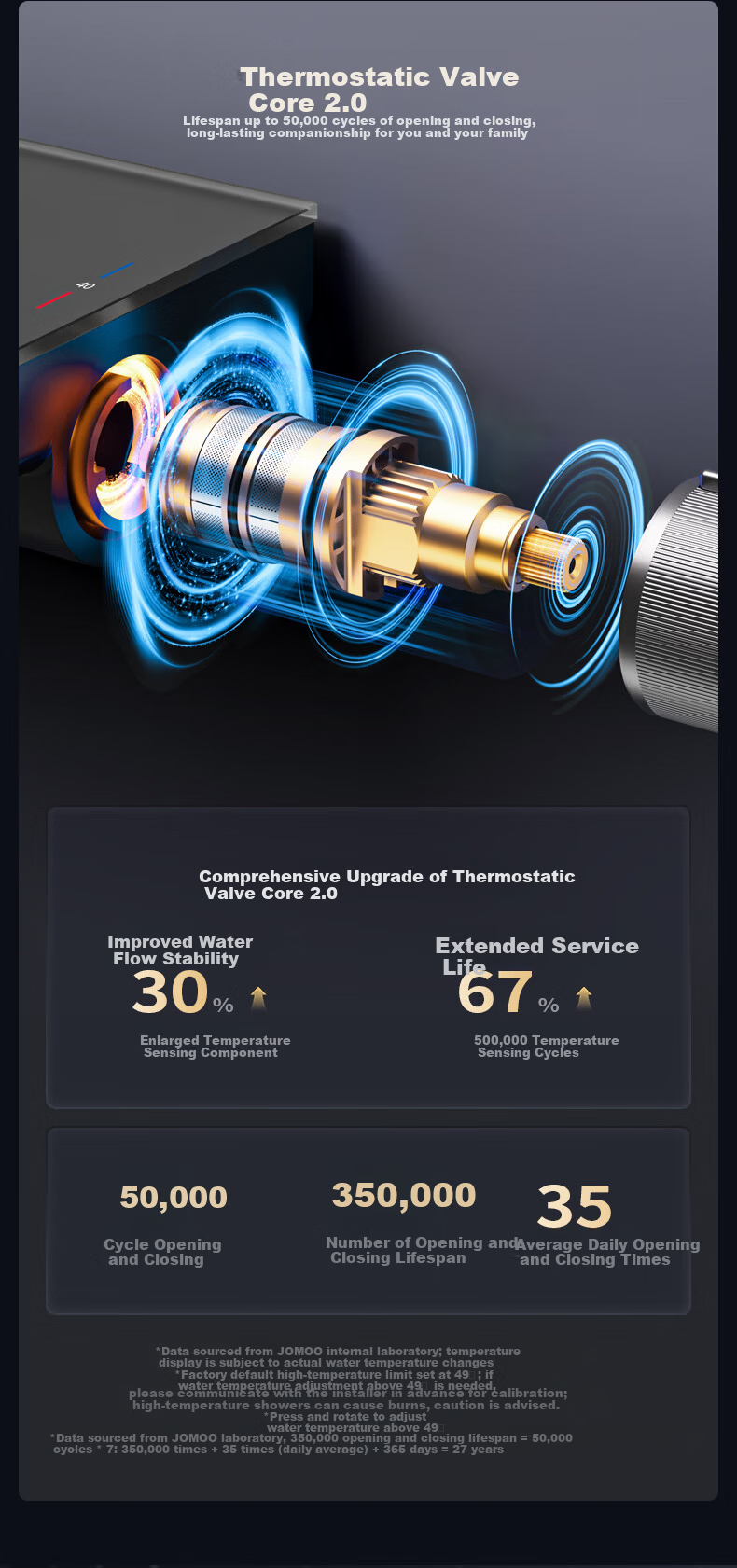

Long service life with valve core rated for 50,000 cycles and temperature sensor for 500,000 cycles

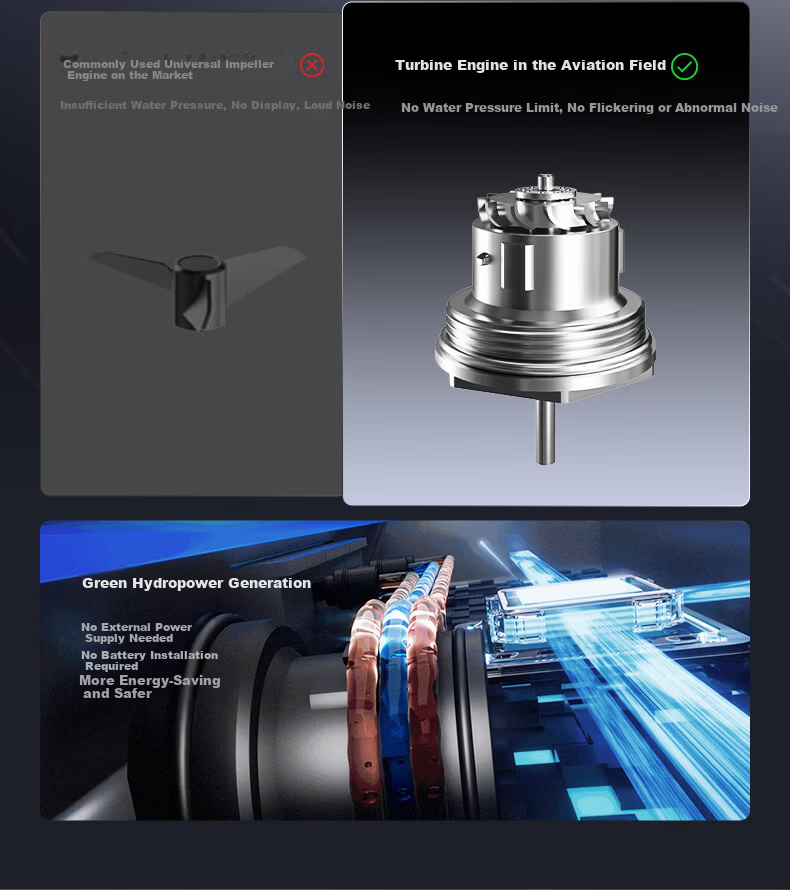

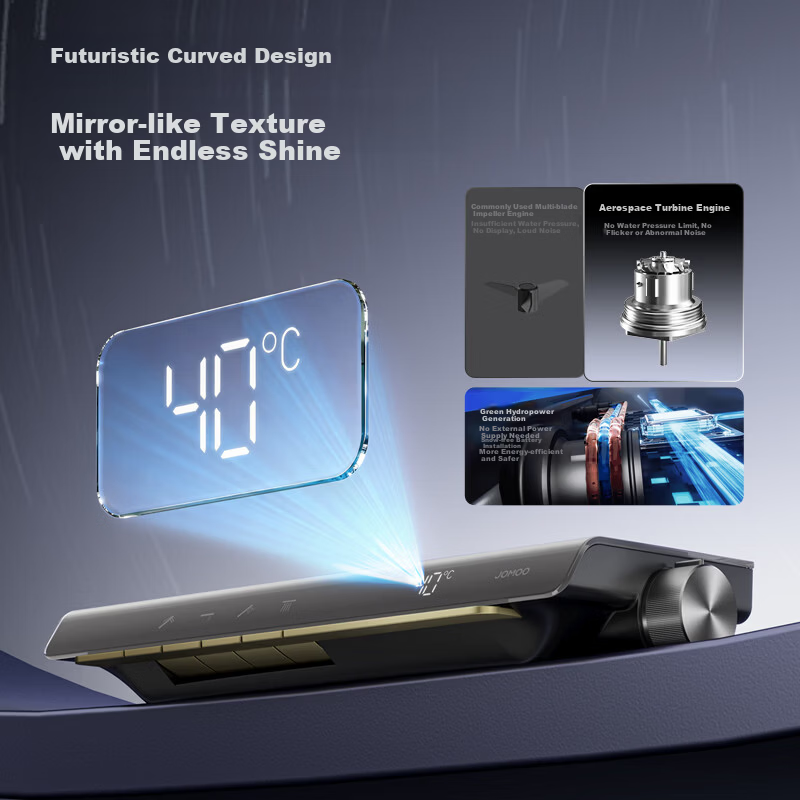

Energy-saving hydraulic turbine motor with no external power or batteries required
Easy cleaning and maintenance with anti-fingerprint and anti-scale coatings
Ergonomic design for comfortable and relaxing shower experience
