Jingyue B760EM SNOW DREAM WIFI-W Snow Dream DDR4 Gaming Motherboard for i5 14600KF/12600KF/14400F Intel B760/LGA 1700

•motherboard

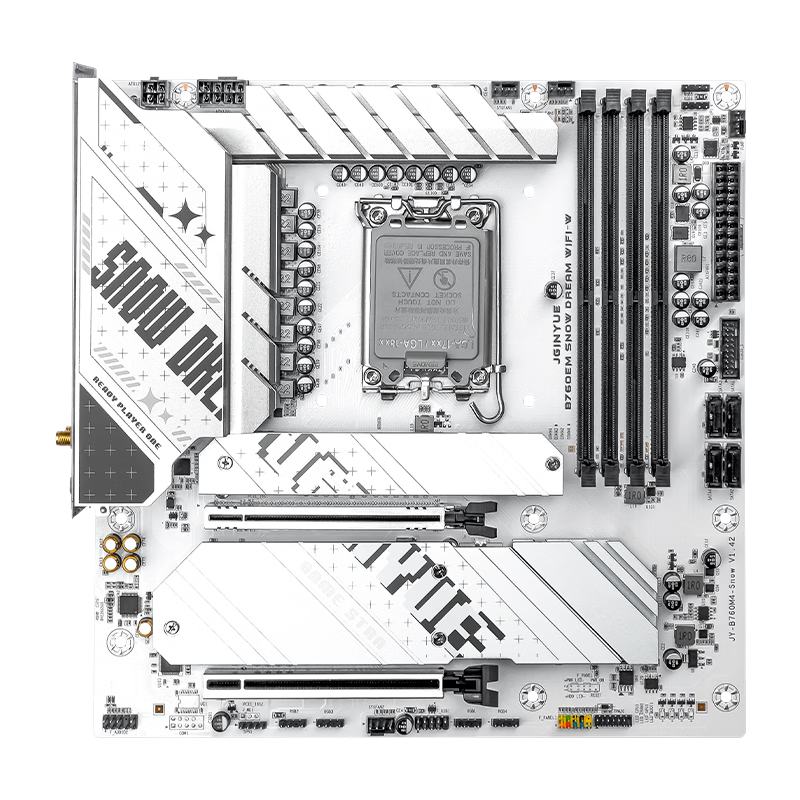

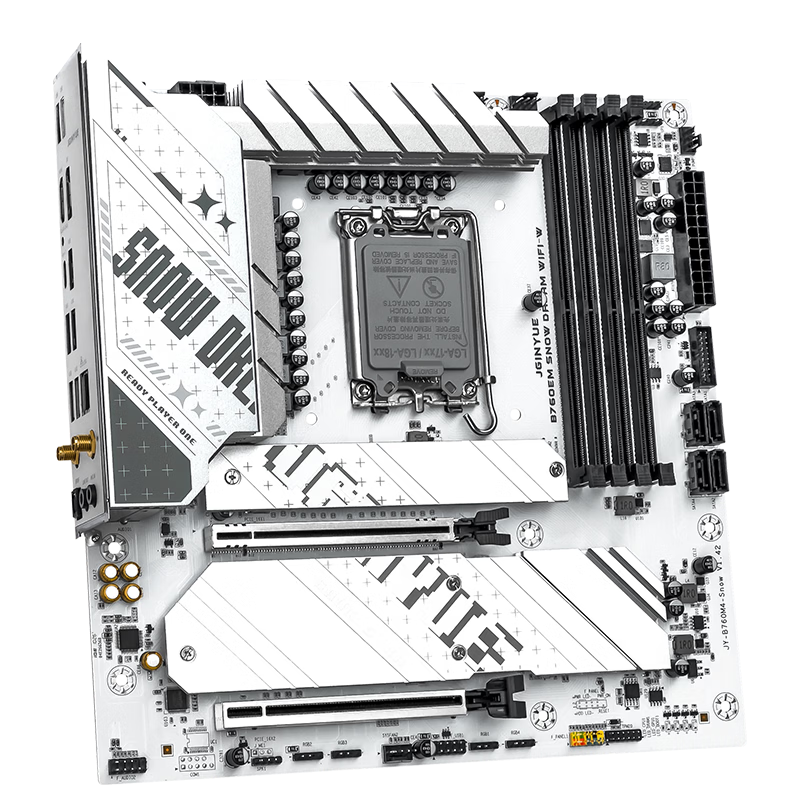

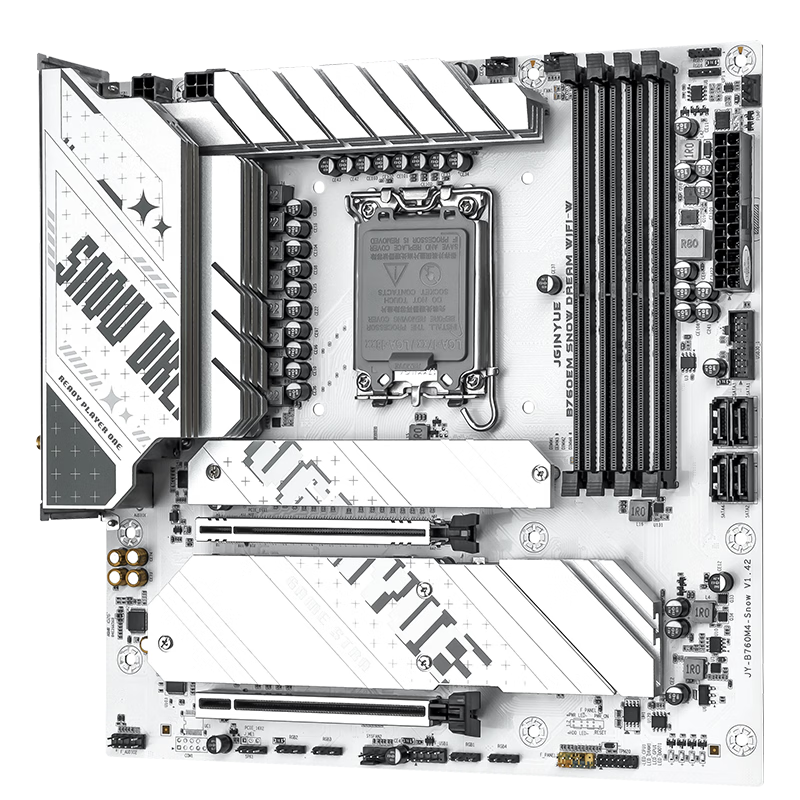

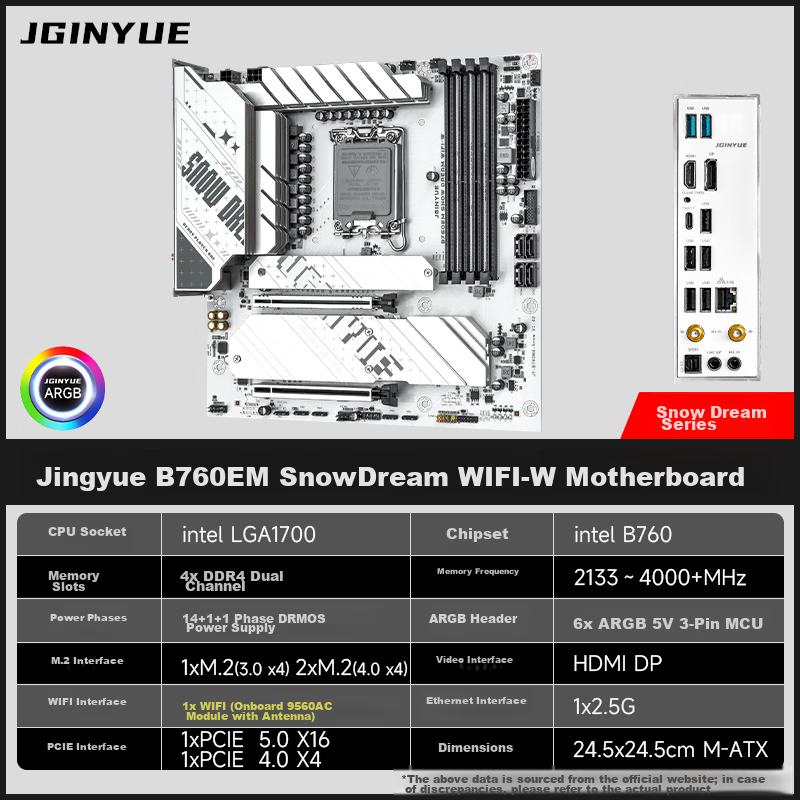

Jingyue B760EM SNOW DREAM WIFI-W Snow Dream DDR4 Gaming Motherboard for i5 14600KF/12600KF/14400F Intel B760/LGA 1700

CN¥628.00

SKU: 100263203987

Status:In Stock (19)

ID: 100263203987

Weight: 1360.00 g

Dims:316x298x82 mm

Specifications

RGB: ARGB
Compatible CPU interface: INTEL LGA1700
SSD solid state drive interface: SATA interface, M.2 interface (NVMe protocol)
Board type: M-ATX (Compact)
AMD chip: Not supported
Wi-Fi Connection: Wi-Fi 5
PCI Express x8: 0 pcs
Support PCIe protocol: Supports PCIE 4.0

Variants / Sale Attributes

model: 【Xuemeng】B760EM Xuemeng WIFI White

Package Contents

SATA data cable *1, warranty manual *1, WiFi antenna pair *1

Product Description

Overview

Brand: JINGYUE (IGINYUE)
Model: B760EM Snow Dream WIFI-W

Supports Intel LGA1700 socket

Compatible with Intel 12th, 13th, and 14th generation Core i3, i5, i7 processors

Micro ATX (M-ATX)

Additional details

Dimensions: 24.5 cm x 24.5 cm

4 x DDR4 DIMM slots

Dual channel support

Supports XMP overclocking profiles

Additional details

Memory frequency range: 2133 MHz to 4000+ MHz

Similar Products

In Stock

GIGABYTEmotherboard

GIGABYTE X870I AORUS PRO ICE WIFI7 Mini Motherboard DDR5 Compatible with AMD CPU AM5 9700X 9800X3D 9900X 9600X

X870

CN¥2,499.00

View

In Stock

GIGABYTEmotherboard

GIGABYTE GIGABYTE Gaming Ice Sculpture X870E AORUS PRO X3D ICE Motherboard DDR5 AMD CPU AM5 9700X 9950X 9900X 9600X Compatible

X870

CN¥3,299.00

View

2 x M.2 PCIe 4.0 x4 NVMe slots
1 x M.2 PCIe 3.0 x4 NVMe slot

1 x PCIe 5.0 x16 slot (full bandwidth)

1 x PCIe 4.0 x4 slot

2 x PCIe x16 alloy armored graphics card slots

1 x Realtek RTL8125BG 2.5 Gbps Ethernet port

WIFI interface (details unspecified)

14+1+1 phase DRMOS power design

Power connectors

1 x 24-pin ATX main power
1 x 8-pin ATX 12V power
1 x 4-pin ATX 12V power

Large area heatsinks for efficient heat dissipation

Onboard 6-channel HD Audio Codec

Front panel audio and microphone interfaces

6 x ARGB 5V 3-pin headers with independent MCU control chip

Desktop software for RGB lighting customization and effects

Rich color control and lighting atmosphere design

1 x CMOS clear button

Expansion headers

1 x USB 2.0 header (expandable to 2 USB 2.0 ports)
1 x USB 3.0 header (expandable to 2 USB 3.2 Gen1 ports)
1 x Front audio header (FAUDIO)
1 x Front panel header (F_PANEL)
1 x Speaker header
1 x TPM header

The JINGYUE B760EM Snow Dream WIFI-W motherboard is a high-performance Micro ATX board designed for Intel 12th, 13th, and 14th generation Core processors. It features full bandwidth PCIe 5.0 x16 slot, multiple M.2 NVMe slots supporting PCIe 4.0 and 3.0, robust 14+1+1 phase power delivery, and advanced cooling solutions. The board supports DDR4 memory up to 4000+ MHz with XMP, offers 2.5G Ethernet, integrated WiFi, and rich ARGB lighting with dedicated control software, making it ideal for gaming, AI rendering, and high-performance computing tasks.
