MOZA R9V3 Servo Direct Drive Base Force Feedback Racing Simulator Constant 9Nm 21-Bit Magnetic Encoder Fourth Generation Computing System
Specifications
Type Steering wheel
Connection method Wired
Place of Origin 广东深圳市
Lighting Effects No light
Compatible platforms PC Variants / Sale Attributes Color: [Entry-Level Premium] R9V3
Version: Sold by JD · Quality Certified
Package Contents R3 dual pedal set *1
Product Description Product Specifications
Overview
Brand MOZA
Model MOZA R9V3 Servo Direct Drive Base
Maximum Torque 9 Nm (Newton meters) Continuous stable output of 9 Nm torque
Golden torque professional true servo
Fine reproduction of steering force from civilian cars to race cars
Suitable for most racing games and training needs

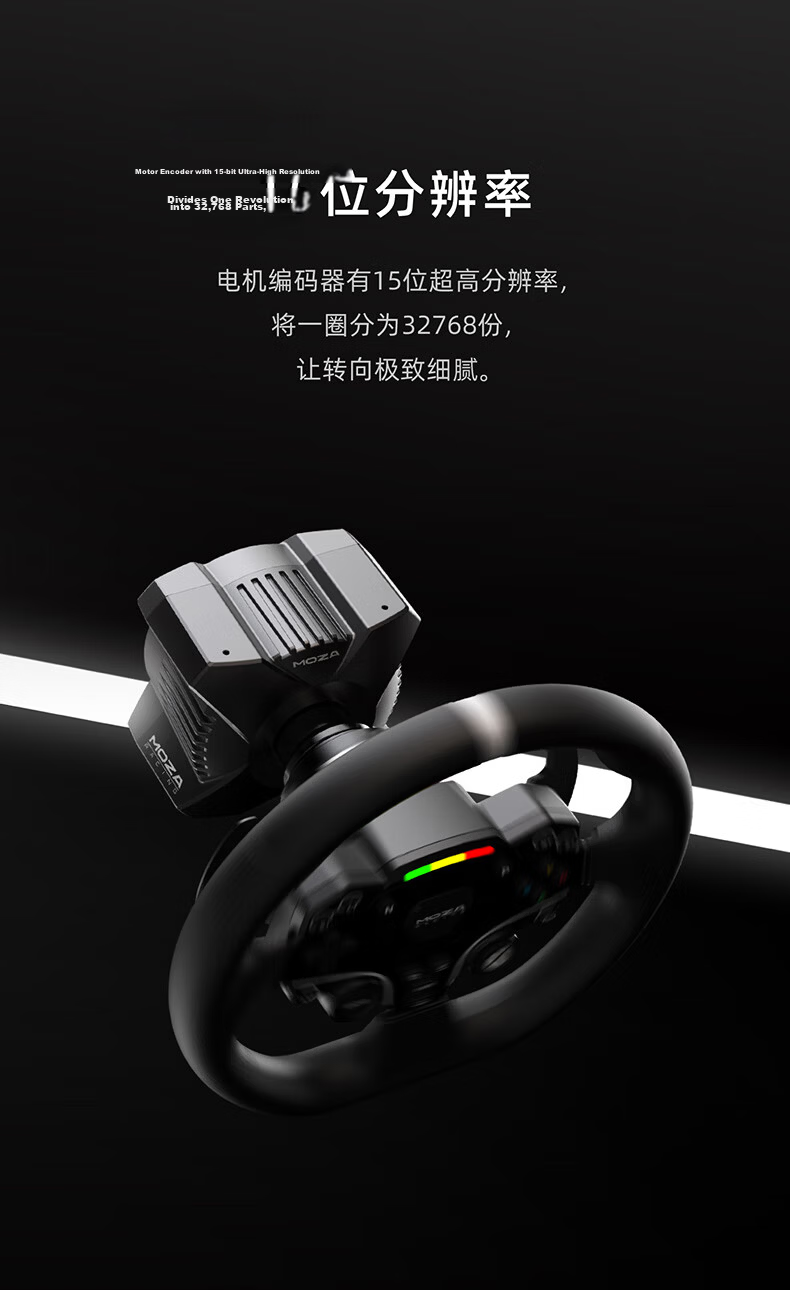

21-bit magnetic encoder
Angle recognition accuracy up to 0.00017°
280 MHz high-performance chip
2.09 million-level detailed force feedback resolution
More precise response and delicate feel

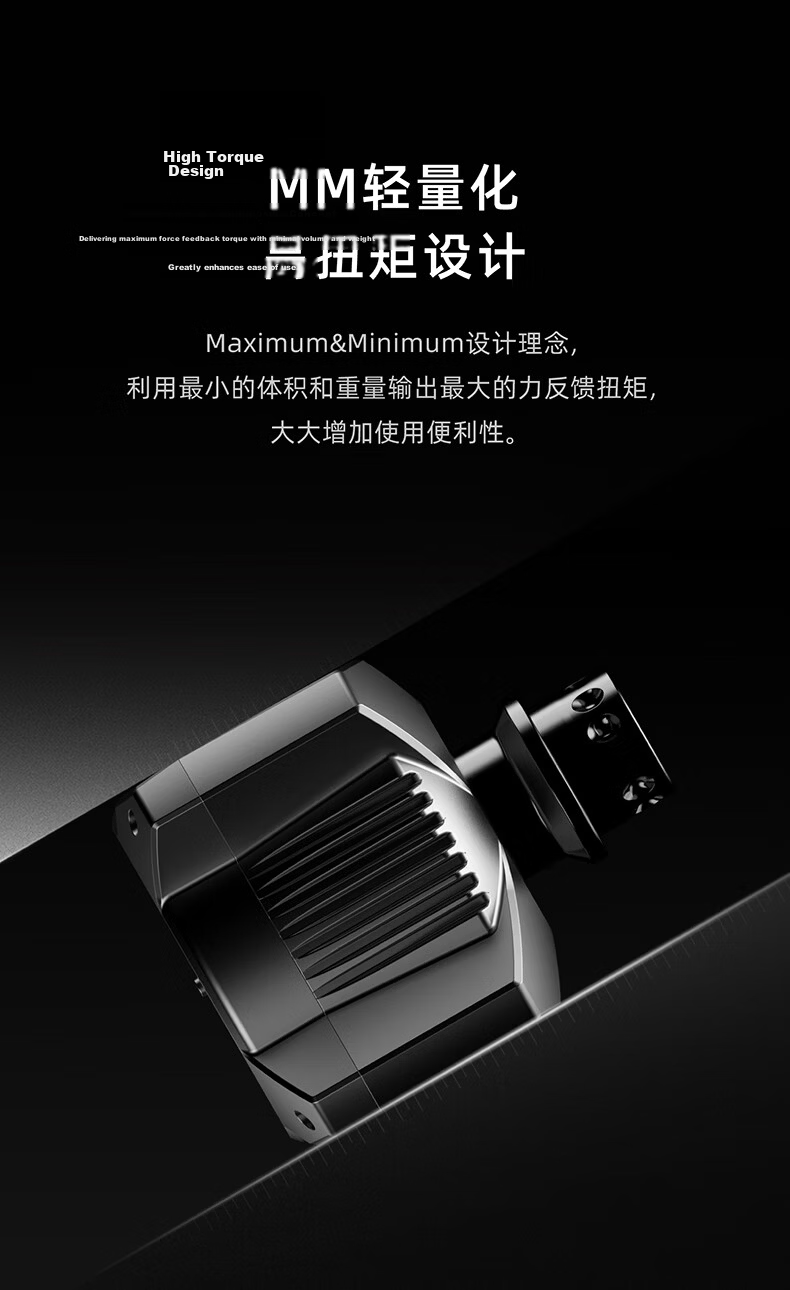

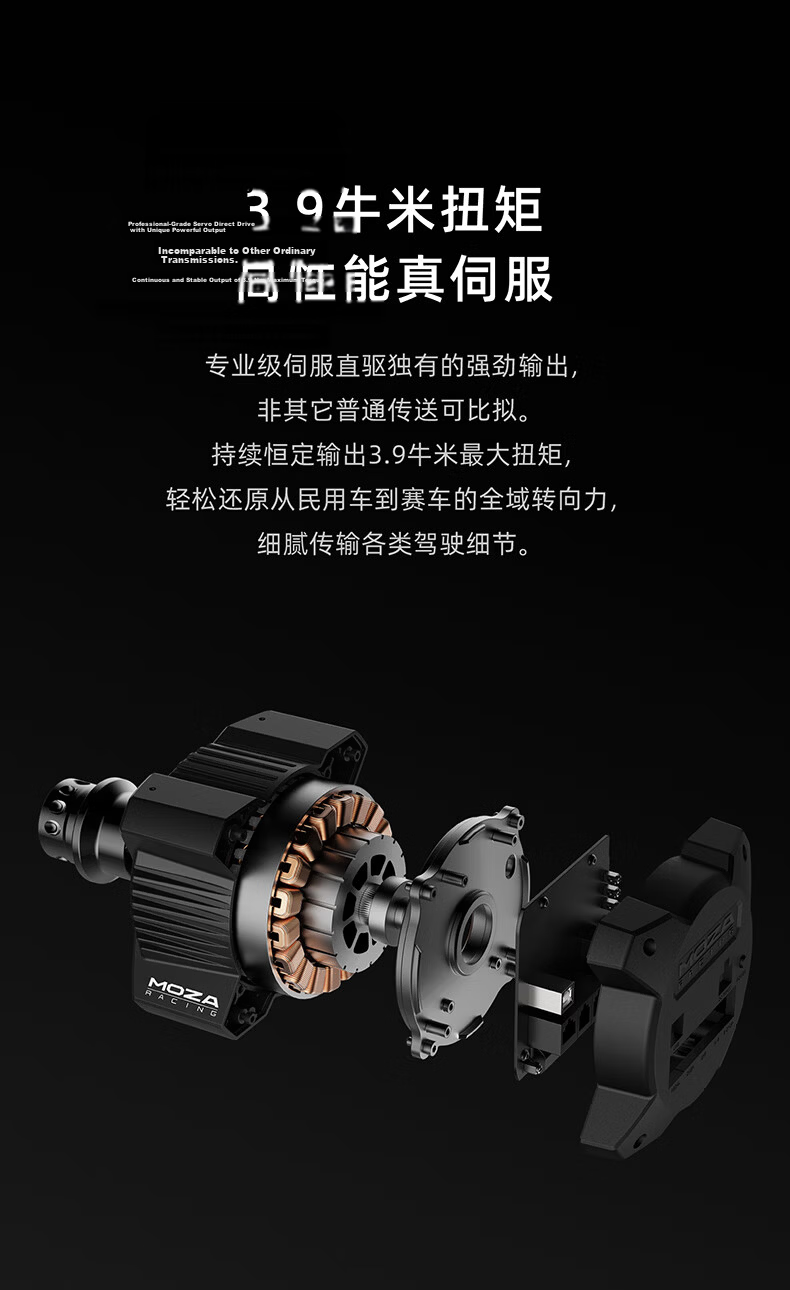

High-performance servo motor with high torque density
Compact and powerful design
High slot fill rate design
High magnetic permeability iron core and strong α-iron-boron magnets
Similar Products
Low power consumption and high output
Additional details
Multi-slot multi-pole design 18 slots, 16 poles Low back electromotive force design
Superior vibration damping
Maintains high torque at high speeds
Smooth and delicate steering feel
Fast direction correction avoiding torque dropout
Additional details
Force Feedback System NexGen Force 4.0 Richer and more delicate force feedback details
Clearer perception of curbs and road bumps
Sensitive and rapid response to vehicle body center of gravity shifts and tire slip
New cogging torque compensation algorithm for smoother steering feel
iRacing 360Hz high-frequency force feedback support (expected May 2025 update)
Force feedback interpolation algorithm to eliminate peaks and valleys during force feedback changes for natural and smooth feedback
Additional details
Game force feedback decoupling decomposes game force feedback into individually adjustable forces for higher personalization Innovative road surface perception equalizer for immersive scene-based driving
Scene-based fine adjustment of road vibration, preserving helpful details and filtering unnecessary vibrations
Customizable force feedback curves to amplify dynamic feedback and weaken interference, improving driver awareness and control tolerance

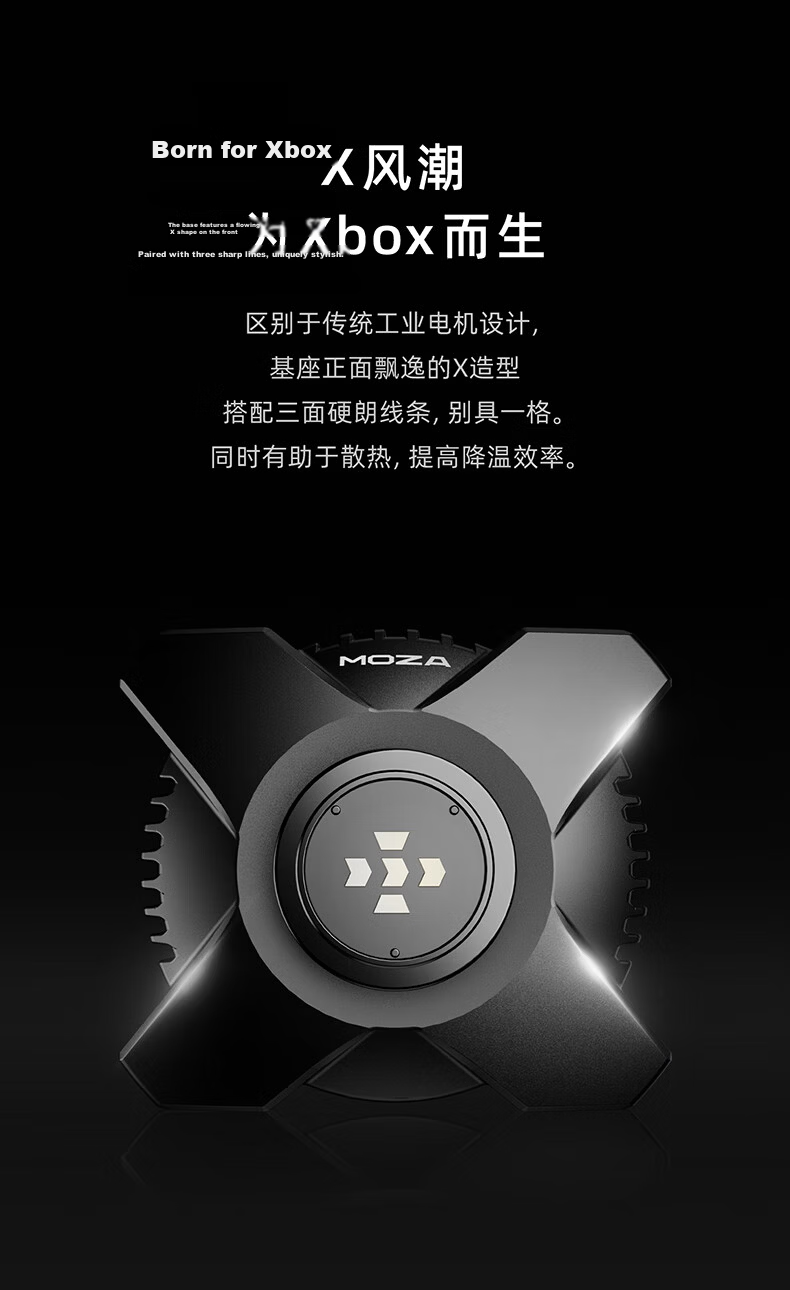

High-strength aluminum alloy body
Automotive-grade coating and laser engraving process
Premium metallic texture and finish

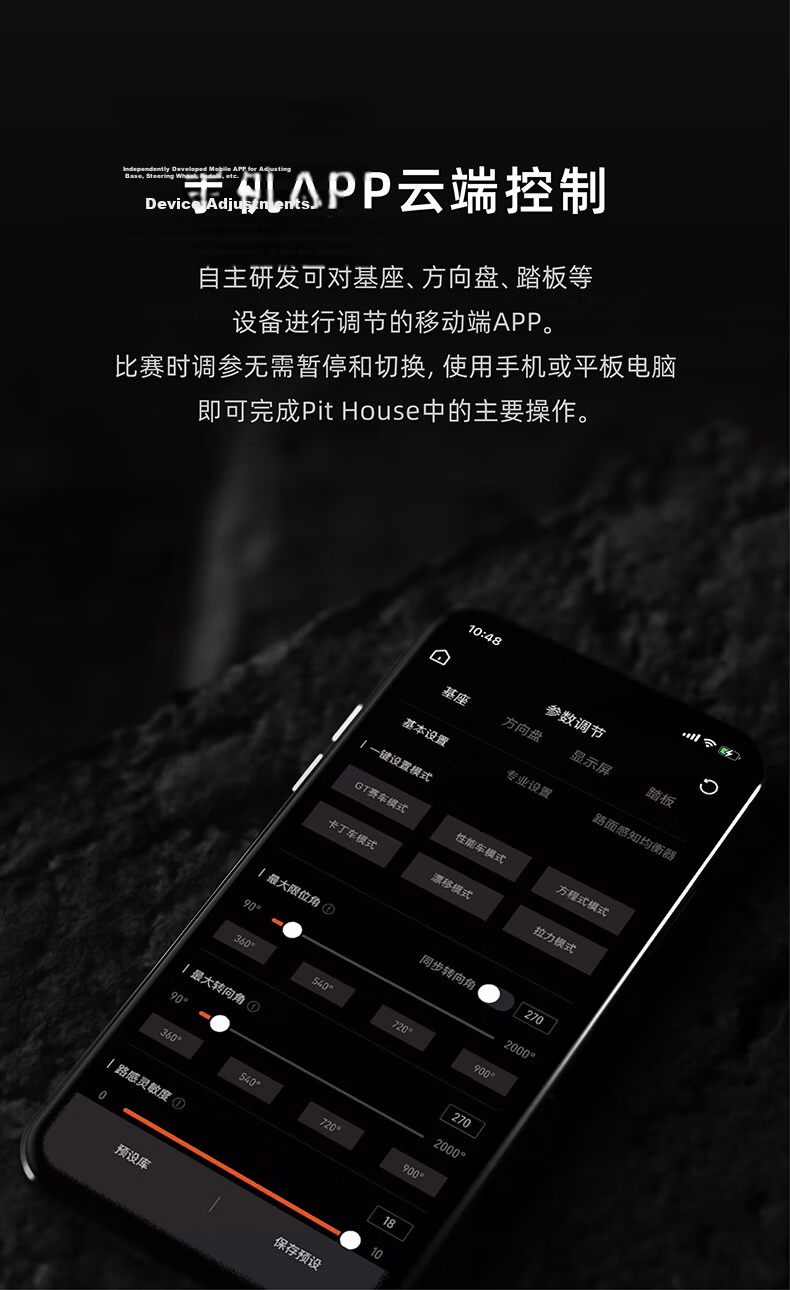

MOZA PitHouse mobile app cloud control for base, steering wheel, pedals, and other devices
Real-time parameter adjustment without pausing or switching windows
Supports smartphones and tablets
Additional details
One-click preset modes Formula, Performance Car, GT Racing, Rally Cross, Drift, Karting Adjustable max rotation angle and road feel sensitivity
Preset library and custom settings

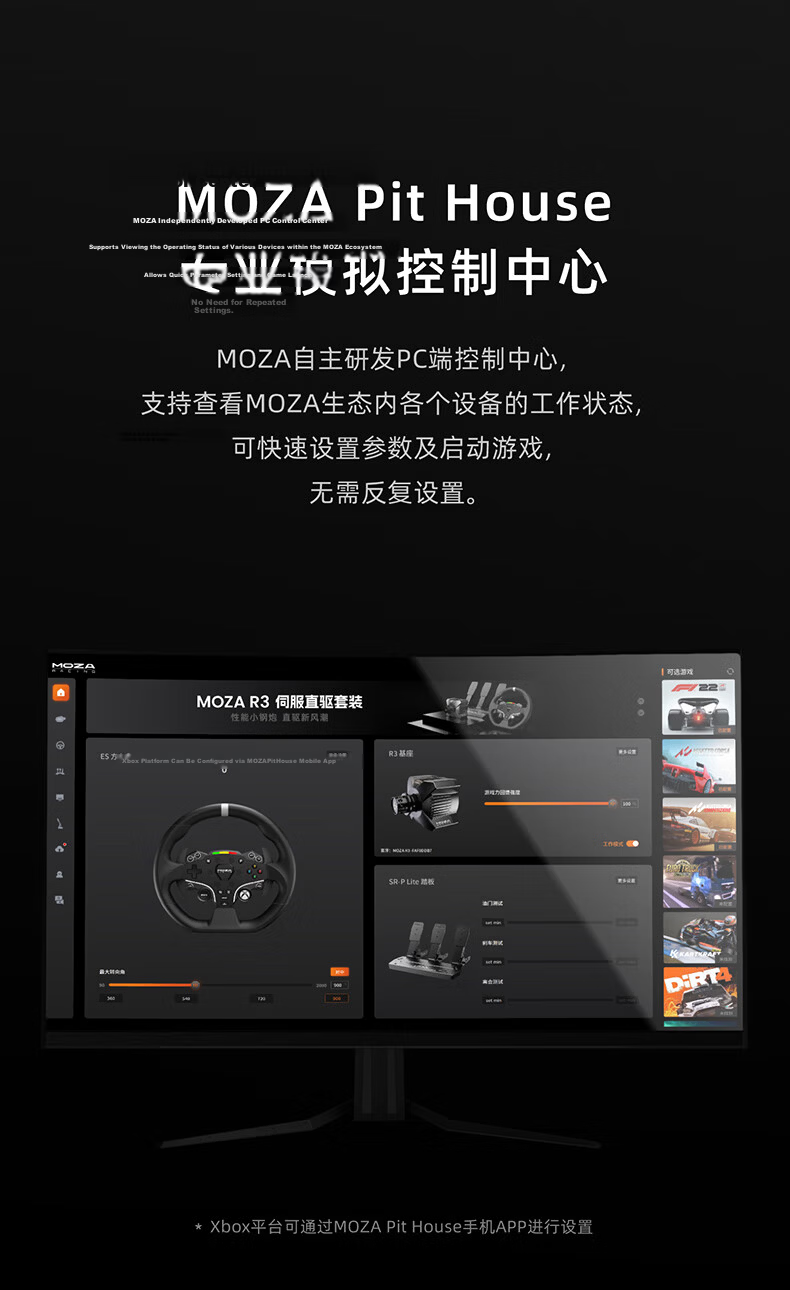

MOZA PitHouse PC control center for device status monitoring, quick parameter setup, and game launch
Firmware one-click upgrade via PitHouse for optimized force feedback, game compatibility, and calibration
Additional details

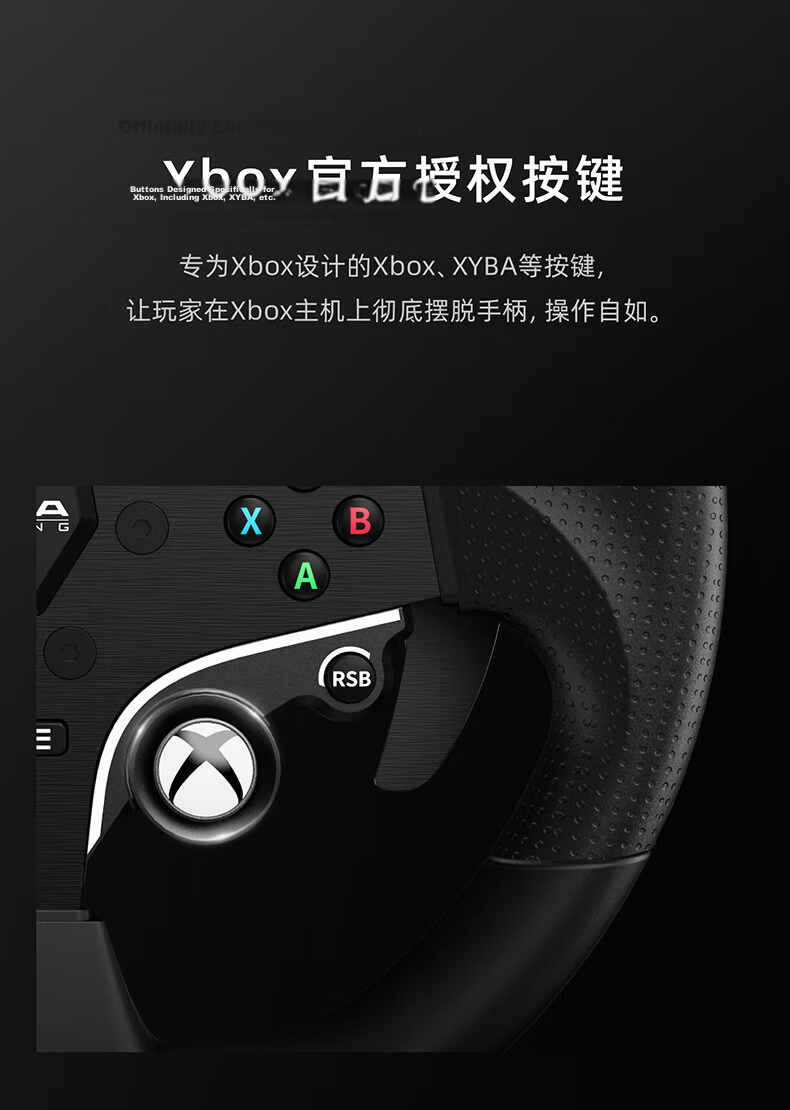

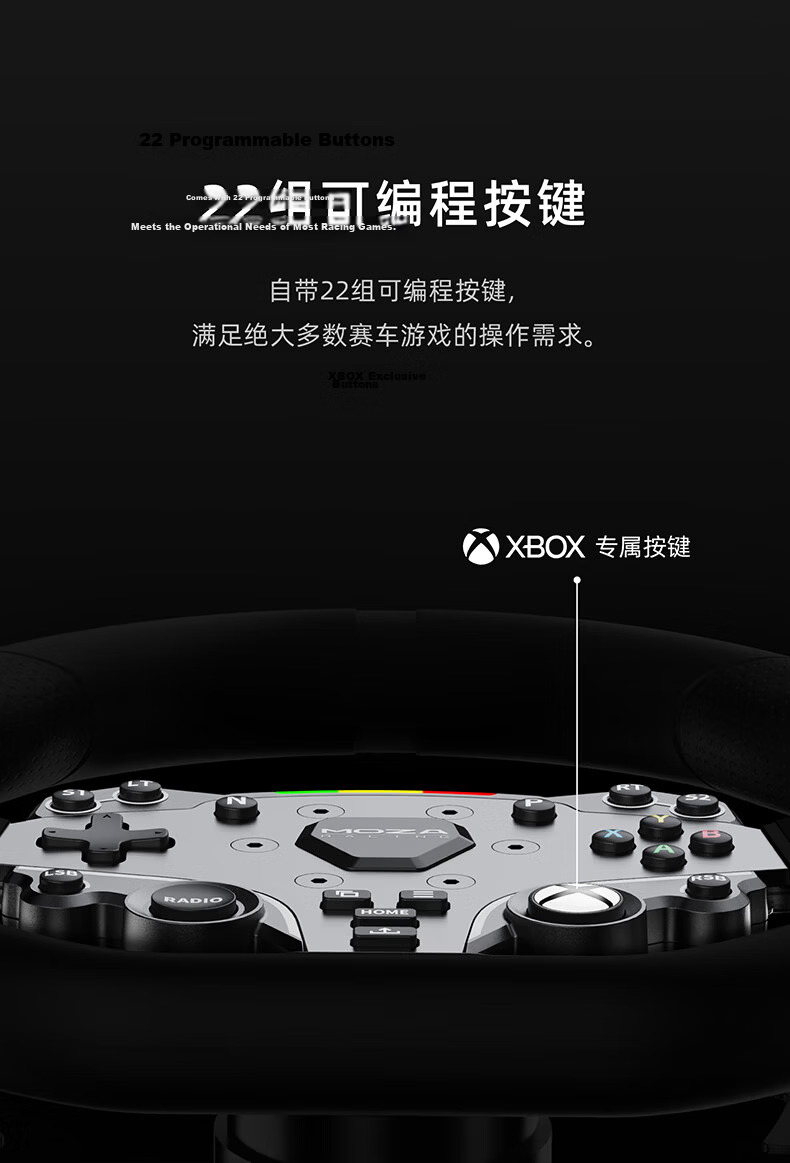

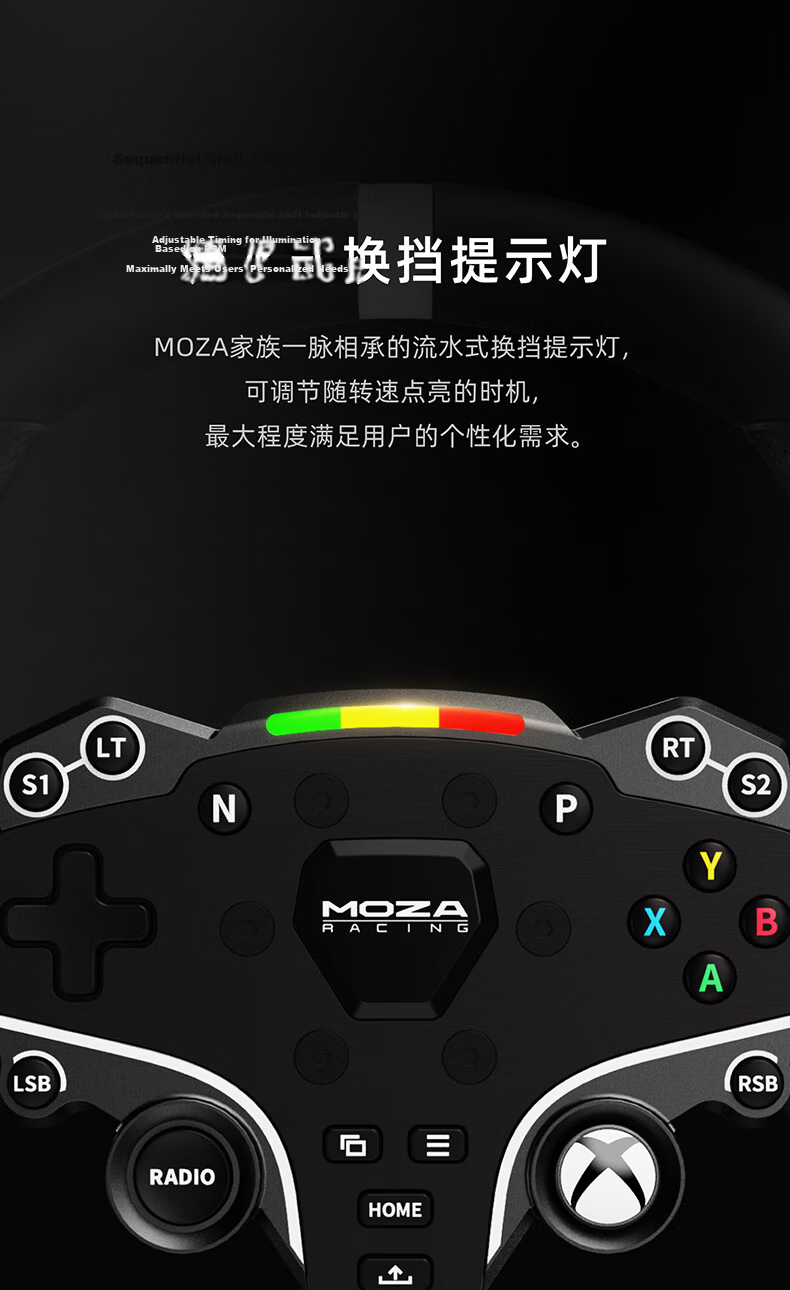

Detailed steering wheel control customization dual-clutch paddles, knobs, joysticks, shift indicator lights

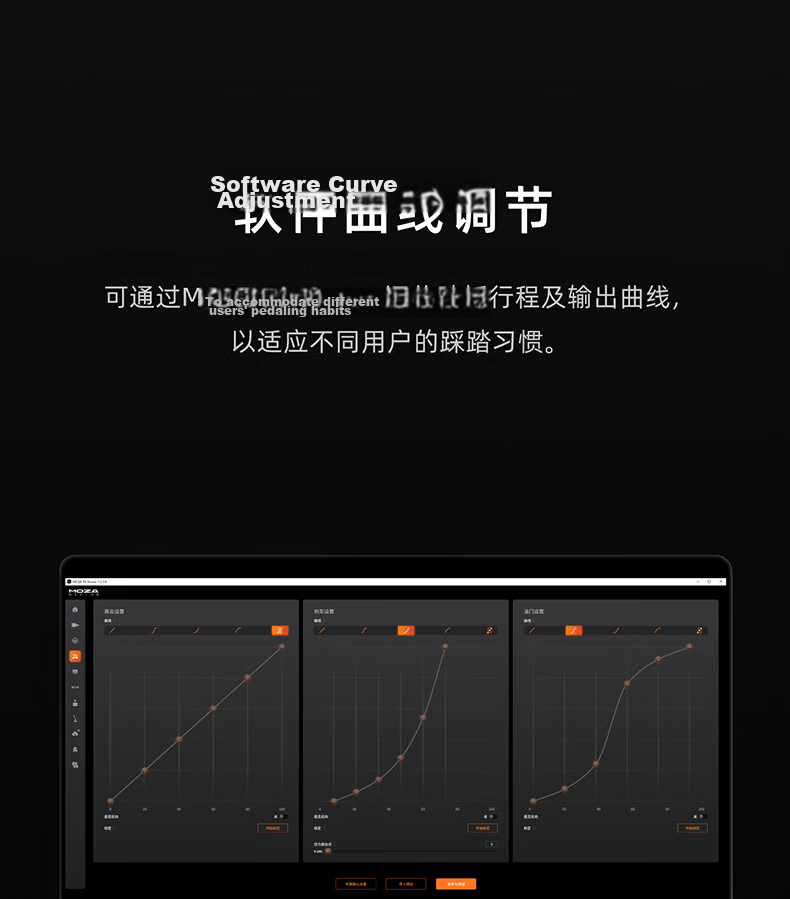

Fine pedal adjustment throttle, brake, clutch travel, output curves, pressure sensitivity, intervention points

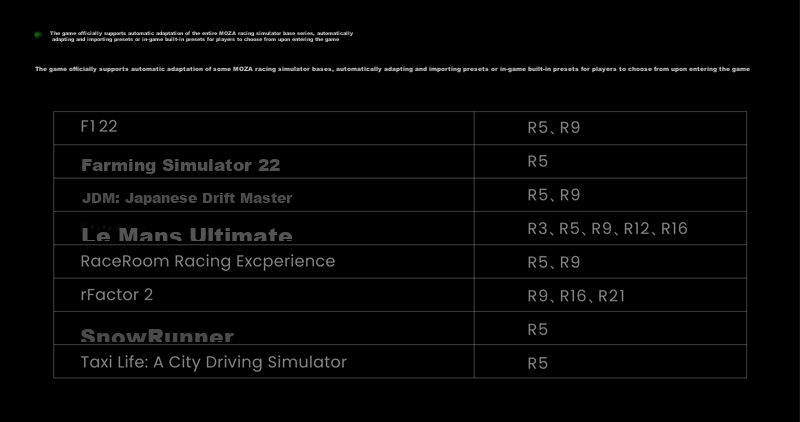

Supported Platforms PC Assetto Corsa, Assetto Corsa Competizione, F1 series (2018-2023), Forza Horizon 4 & 5, Dirt Rally series, Project CARS series, Euro Truck Simulator 2, American Truck Simulator, RaceRoom Racing Experience, rFactor 2, WRC series, CarX Drift Racing Online, Automobilista 2, SnowRunner, Taxi Life, Farming Simulator 22, JDM: Japanese Drift Master, Le Mans Ultimate, and more
Official game presets auto-imported or selectable in supported games
Additional details
Drive Type Direct Drive
Maximum Rotation Angle 90° to 2700° adjustable
Housing Material Aviation-grade aluminum alloy
Housing Color Black
Rated Power (not specified)
Input Voltage 110V~220VAC to 36VDC
USB Maximum Refresh Rate 1000 Hz
Quick Release Supported
Interfaces Power, Data, Pedals, Display, Shifter, Handbrake, Emergency Stop Switch
Accessories Included User manual, power supply, data cable, screw kit

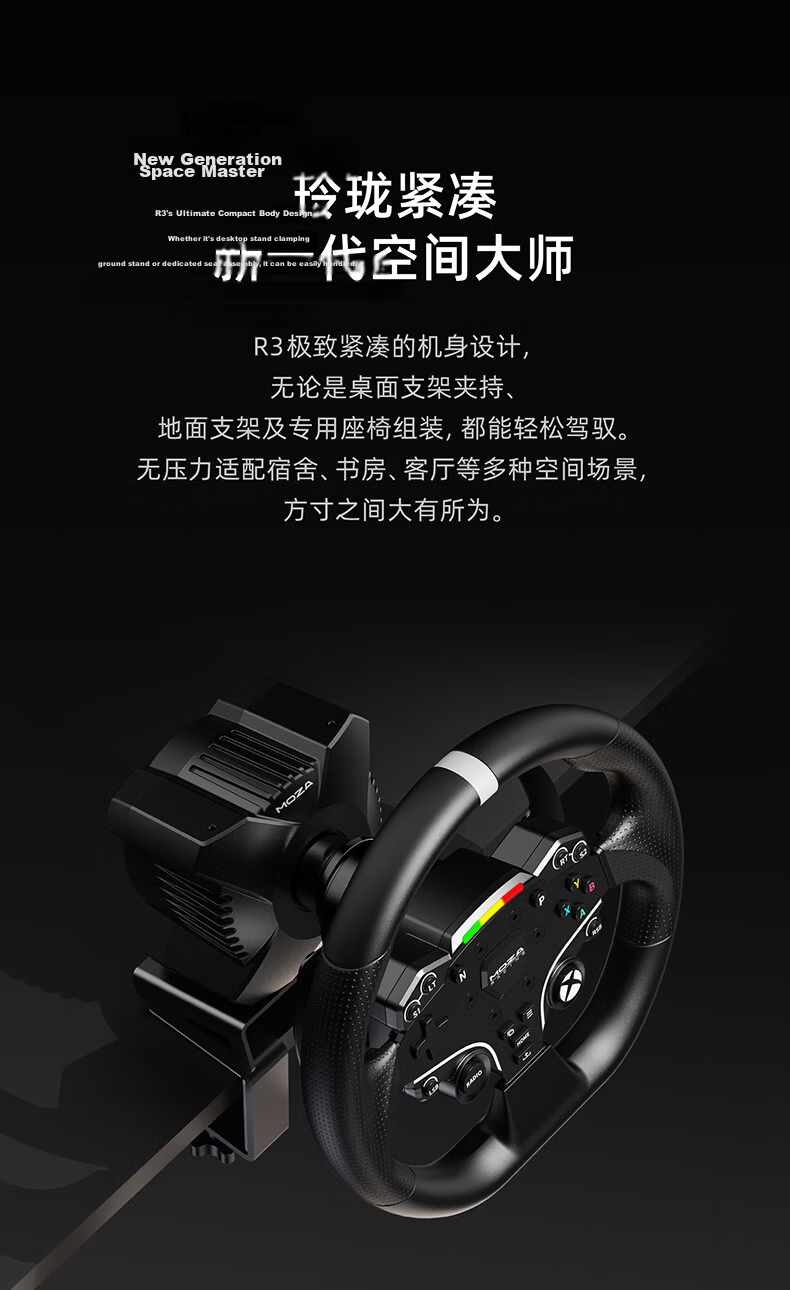

Mounting Four bottom holes, dedicated bracket supporting angle adjustment and side mounting; optional desktop clamp and side mount
Emergency Stop Switch Optional MOZA ecosystem quick calibration and device function confirmation
Supports integration with MOZA Booster active pedals, FSRV2 steering wheel, CRP2 pedals, and other MOZA devices
Interactive and comprehensive software suite considered an industry benchmark
