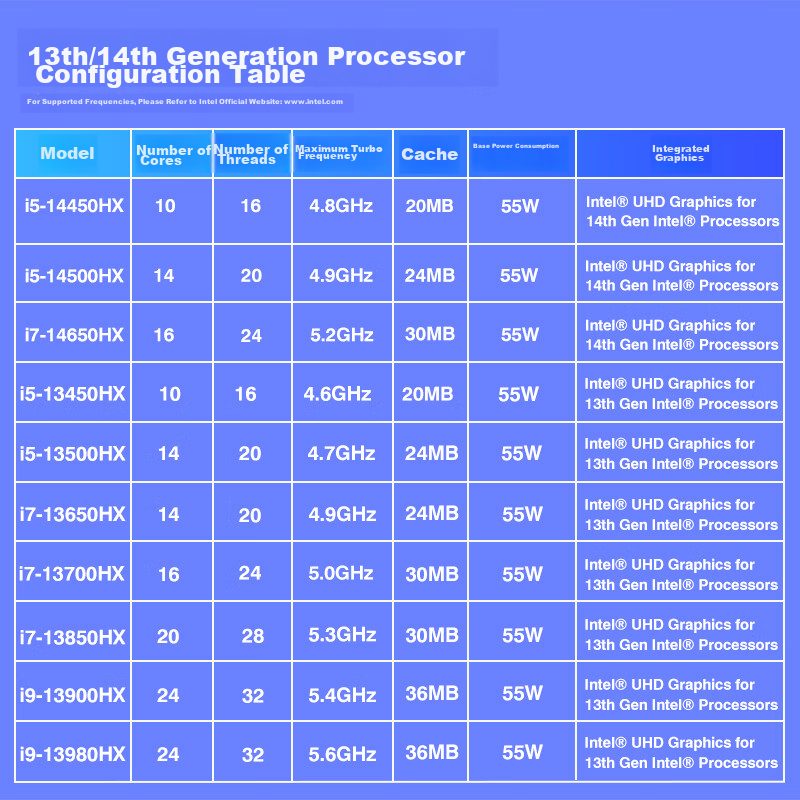

20 cores, 28 threads, up to 5.3 GHz Turbo, 30MB cache, 55W TDP, Intel UHD Graphics
Intel Core i9-13900HX
24 cores, 32 threads, up to 5.4 GHz Turbo, 36MB cache, 55W TDP, Intel UHD Graphics
Intel Core i9-13980HX
24 cores, 32 threads, up to 5.6 GHz Turbo, 36MB cache, 55W TDP, Intel UHD Graphics

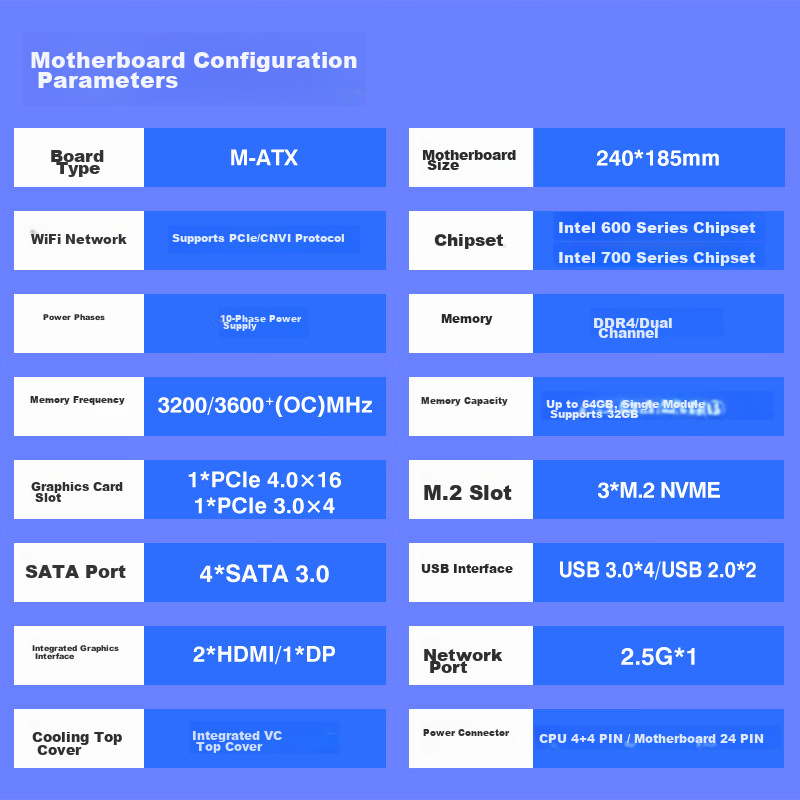

Additional details
Form Factor
Micro-ATX (240 x 185 mm)
Chipset
Intel 700 Series (Intel HM770 PCH)
Power Delivery
10-phase VRM
Memory
Item
Detail
Type
DDR4 Dual Channel
Frequency
Up to 3200 MHz standard, 3600+ MHz (OC)
Capacity
Supports up to 64GB (max 32GB per DIMM)
Slots
2 x UDIMM DDR4 slots
Expansion Slots
1 x PCIe 4.0 x16 (reinforced metal slot)
1 x PCIe 3.0 x4
Storage
3 x M.2 NVMe slots (2 x PCIe 4.0 x4, 1 x PCIe 3.0 x4)
Supports 2242/2260/2280 form factors
4 x SATA 3.0 ports (6Gbps)
Graphics
Integrated Intel UHD Graphics for 12th/13th Gen Intel Processors
Display Outputs: 2 x HDMI, 1 x DisplayPort
Network
1 x Realtek RT8125BG 2.5Gbps Ethernet port
WiFi support with PCIe/CNVi protocol
USB Ports
Item
Detail
Front Panel
1 x Type-C header (up to 10Gbps)
Rear/Other
4 x USB 3.0, 2 x USB 2.0
Power Connectors
Item
Detail
CPU Power
1 x 8-pin (4+4 pin)
Motherboard Power
1 x 24-pin
Cooling
Integrated vapor chamber (VC) heat spreader for efficient thermal dissipation
Fan headers: 1 x CPU fan header, 3 x system fan headers (support smart fan control)
Additional Features
Debug LEDs indicating CPU, Memory, GPU, System status
TPM header for hardware security module
COM header for external device connection
DBUG header for fault detection devices
Supports network boot (PXE), UEFI boot for Windows 10/11 64-bit, Ubuntu 64-bit, and Linux
Voltage, temperature, and fan monitoring supported
MoDT platform with 12th/13th Gen Intel Core HX processors featuring hybrid performance and efficiency cores
High-performance, low-power design optimized for multitasking and demanding workloads
Reinforced PCIe 4.0 x16 slot for graphics cards
Rich I/O interfaces for extensive connectivity and expansion
Integrated Intel UHD Graphics for multi-display support
Custom-developed vapor chamber heat spreader for superior thermal management
Additional details
Series
Polestar ()
Designed for high stability and performance with 10-phase power delivery
Supports DDR4 dual channel memory up to 64GB at 3200/3600+ MHz (OC)
Front Type-C port with up to 10Gbps transfer speed
Multiple M.2 slots and SATA ports for storage expansion
Comprehensive system fan and CPU fan support with smart control
This specification sheet summarizes the key features and technical details of the Eryin 13th Gen Intel HX processor-based Micro-ATX motherboard platform designed for high-performance computing and multitasking efficiency.
