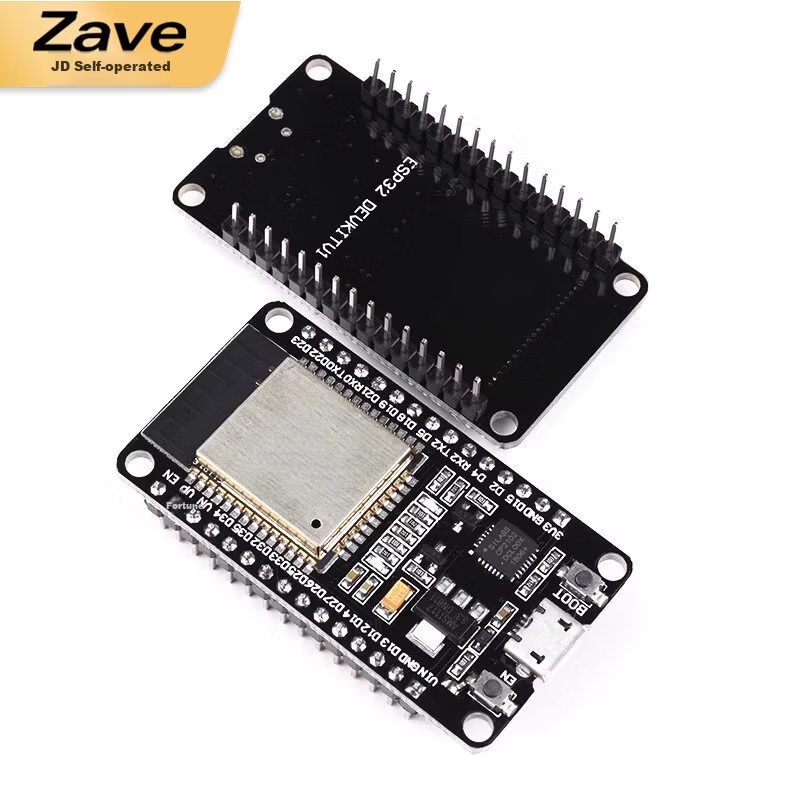

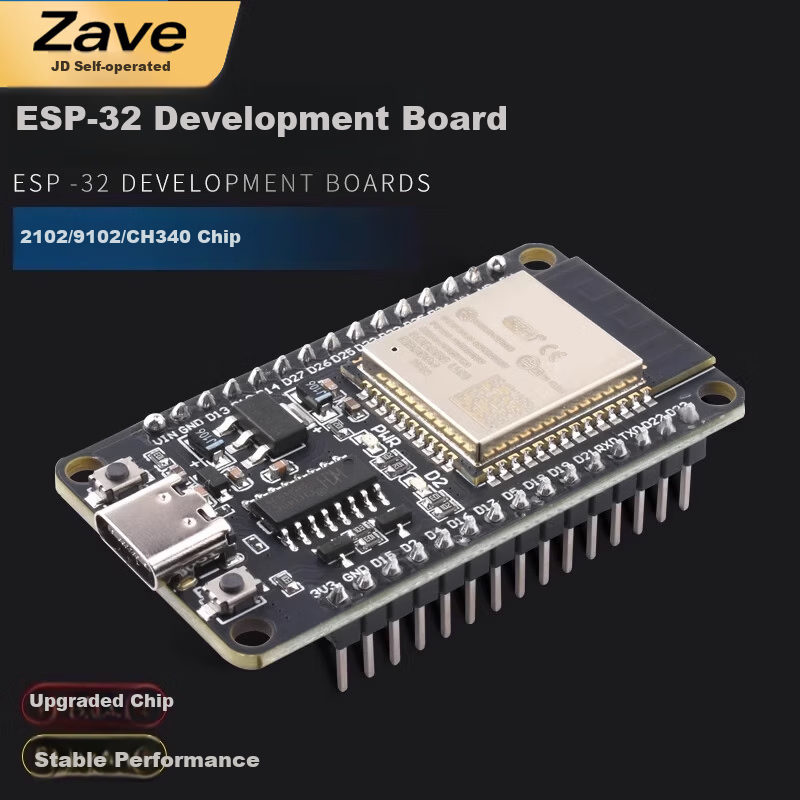

ZAVE ESP32 Development Board Type-C FT232 38Pin WIFI+Bluetooth Dual-Core CPU Module System Board Module

4. Certifications

• RF Certification: FCC, CE-RED, IC, TELEC, KCC, SRRC, NCC
• WiFi Certification: Wi-Fi Alliance
• Bluetooth Certification: BQB
• Environmental Certification: RoHS, REACH
• Reliability Testing: HTOL, HTSL, UHAST, TCT, ESD

5. Wireless Specifications

6. Interfaces and Peripherals

• SD Card, UART, SPI, SDIO, PC interface
• LED PWM, Motor PWM, I2S, IR, Pulse Counter, GPIO, Capacitive Touch Sensors
• Module Interface: Touch sensors, ADC, DAC, Dual-wire Automotive Interface (TWAI, compatible with ISO11898-1)
• On-chip Sensors: Hall sensor
• Integrated 40 MHz crystal oscillator
• Integrated 4MB SPI flash memory

7. Electrical Specifications

8. Environmental Specifications

9. Physical Dimensions

Additional details

13. Power Supply Options

• VIN external voltage input 5V (battery version limited to max 5.5V input)
• USB power supply
• External 3.3V power supply

14. Supported Programming Environments

• Arduino IDE
• Mixly
• Mind+
• Python

15. Additional Features

• Reset button (EN)
• BOOT button for entering firmware download mode (press and hold BOOT while downloading)
• USB port for power supply and communication with PC

16. Expansion Board (ESP3238 Pin Expansion Board)

• Compatible with ESP32 38-pin narrow version development boards (not compatible with other versions)
• 38-pin terminal adapter providing more functions than 30-pin modules
• Narrow width for better PCB compatibility
• Supports Lua programming
• Dual-layer PCB for stable and reliable connections
• Two types of connectors: pin headers and screw terminals
• Fully pre-soldered for easy use

17. Notes

• Follow wiring diagrams carefully to avoid incorrect connections
• Product specifications and parameters are subject to change without prior notice
