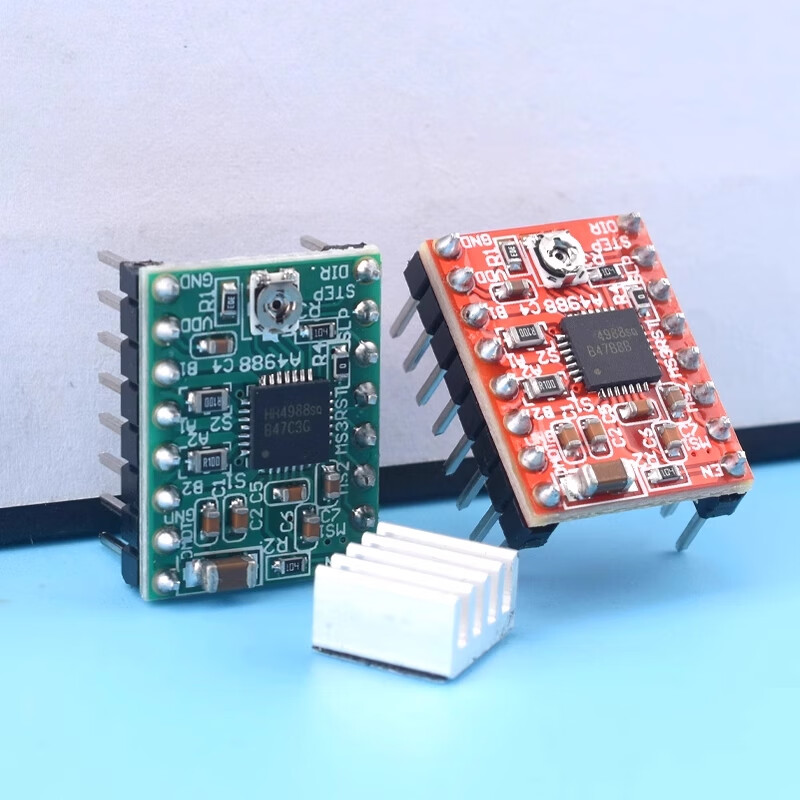

ZAVE 3D Printer Accessories A4988 Stepper Motor Driver Module Expansion Board Red
CN¥8.55
SKU: 100264647816
Status:In Stock (1)
ID: 100264647816
Weight: 4.00 g
Dims:75x60x10 mm
Variants / Sale Attributes
Color: A4988
Package Contents
A4988
Product Description
Overview
- Brand
- ZAVE
Supports A4988 and DRV8825 stepper motor drivers
Compatible with 16 microstepping for A4988 and 32 microstepping for DRV8825 (jumper settings ONDP)
Original chip used for stable and continuous performance
Designed specifically for electronic design competitions
Additional details
- Power supply input
- 12V to 24V wide voltage range with reverse polarity protection
Separate USB and peripheral power supply to ensure computer safety
100uF capacitor included for power stabilization
Supports common anode and common cathode wiring methods for 5V input level drivers
17 open ports with optocoupler isolation for stepper motor driver signals
Supports 5-axis stepper motor control
Input signals optocoupler isolated for emergency stop, tool setting, and limit switches to protect computer safety
One relay output port (P17) for spindle switch control
