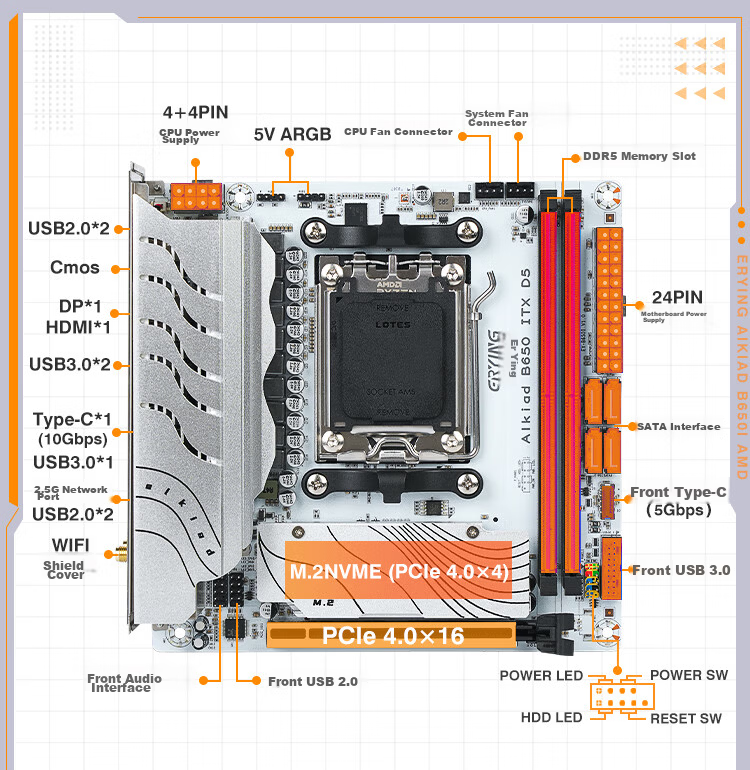

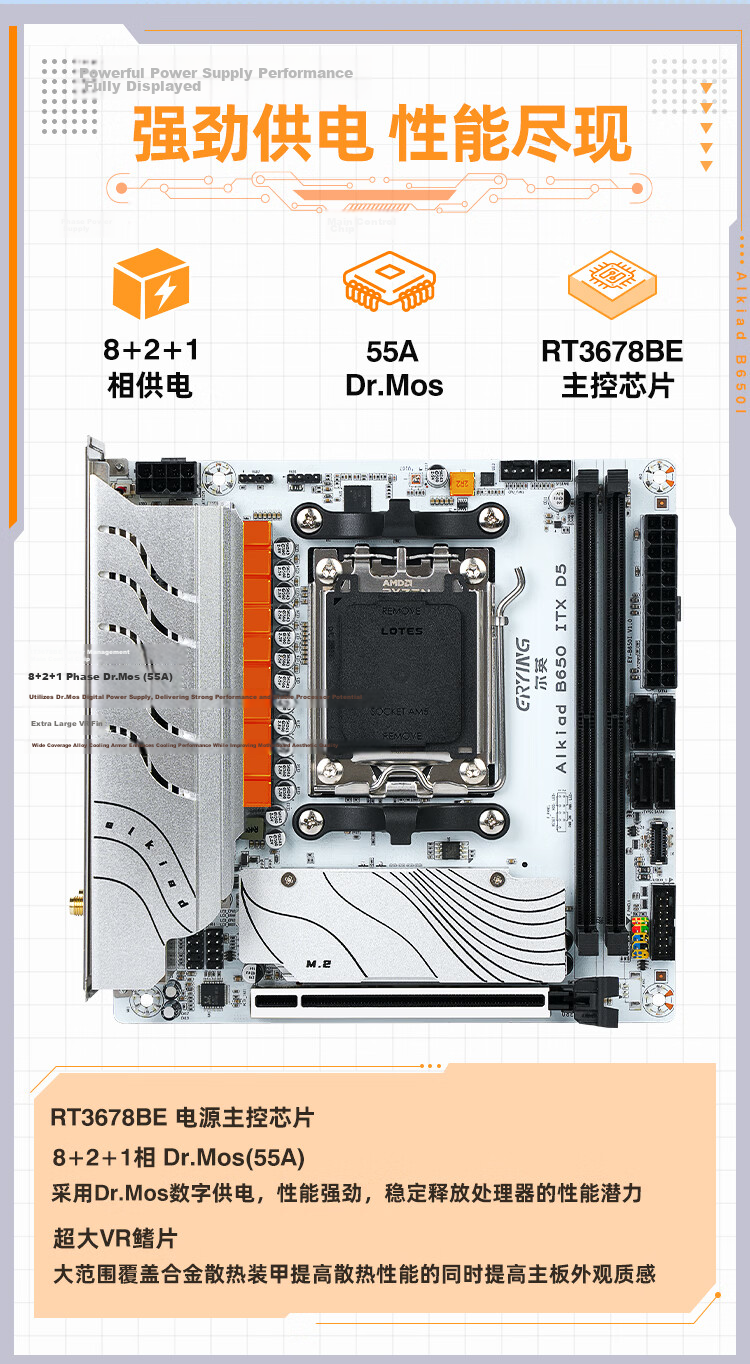

Large VRM heatsink with alloy armor for enhanced cooling and durability

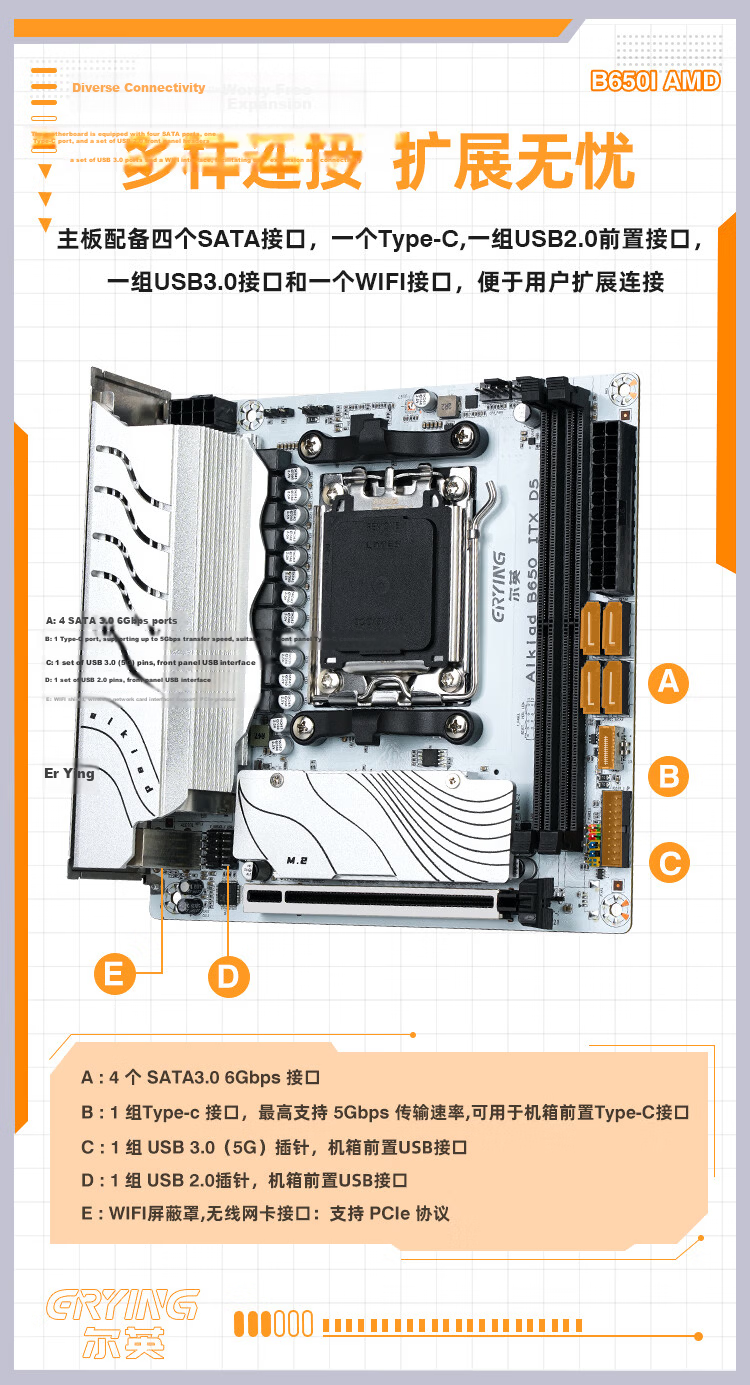

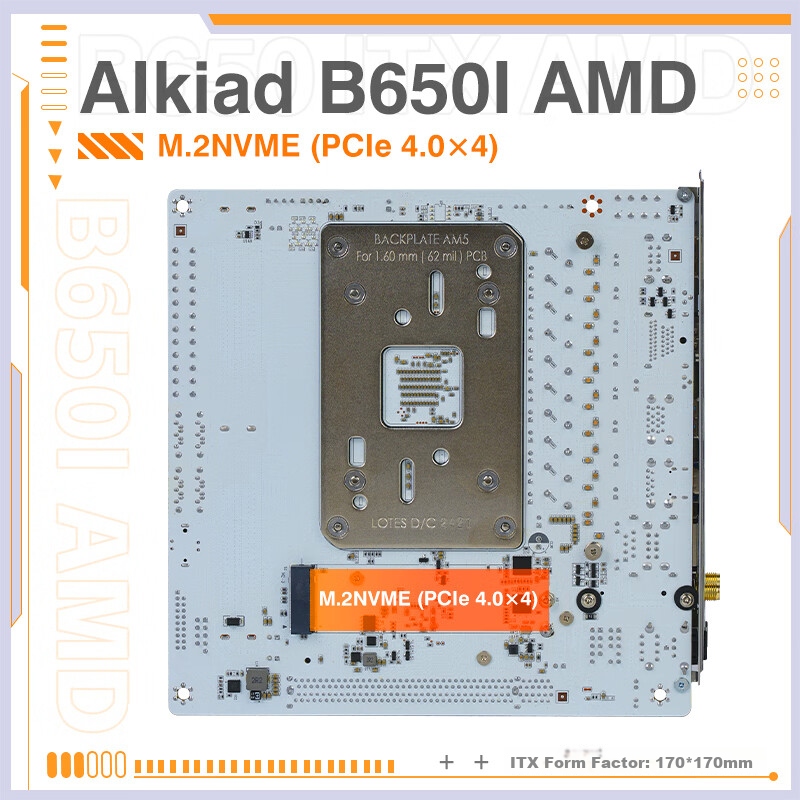

2 x PCIe 4.0 x4 M.2 slots (one front, one rear)
4 x SATA 3.0 6Gbps ports
1 x PCIe 4.0 x16 slot with alloy reinforcement for improved mechanical strength

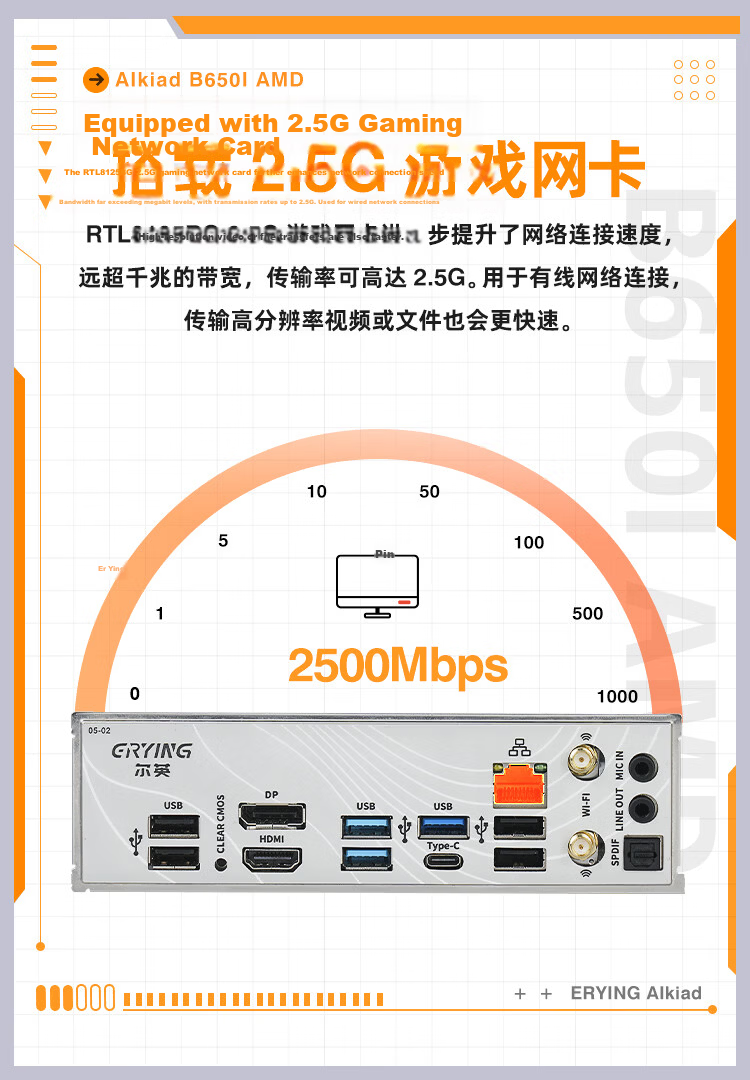

1 x 2.5Gbps Ethernet port (RTL8125BG)
Wi-Fi module interface with shielding, supports PCIe protocol

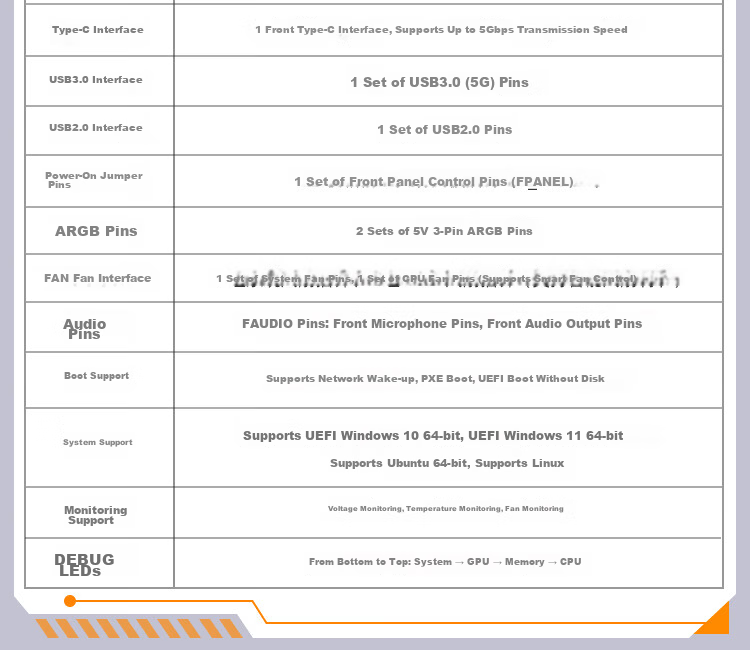

1 x Front Type-C port (up to 5Gbps)
1 x USB 3.0 (5Gbps) header for front panel
1 x USB 2.0 header for front panel
2 x USB 2.0 ports
3 x USB 3.0 ports
Additional details

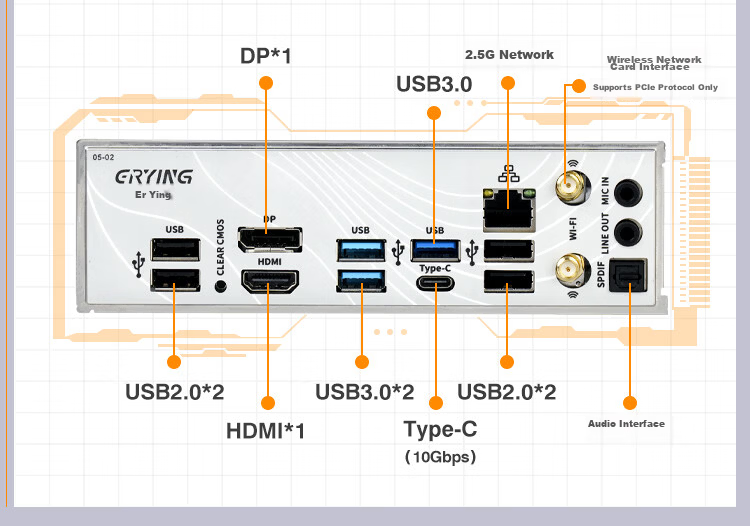

Display outputs

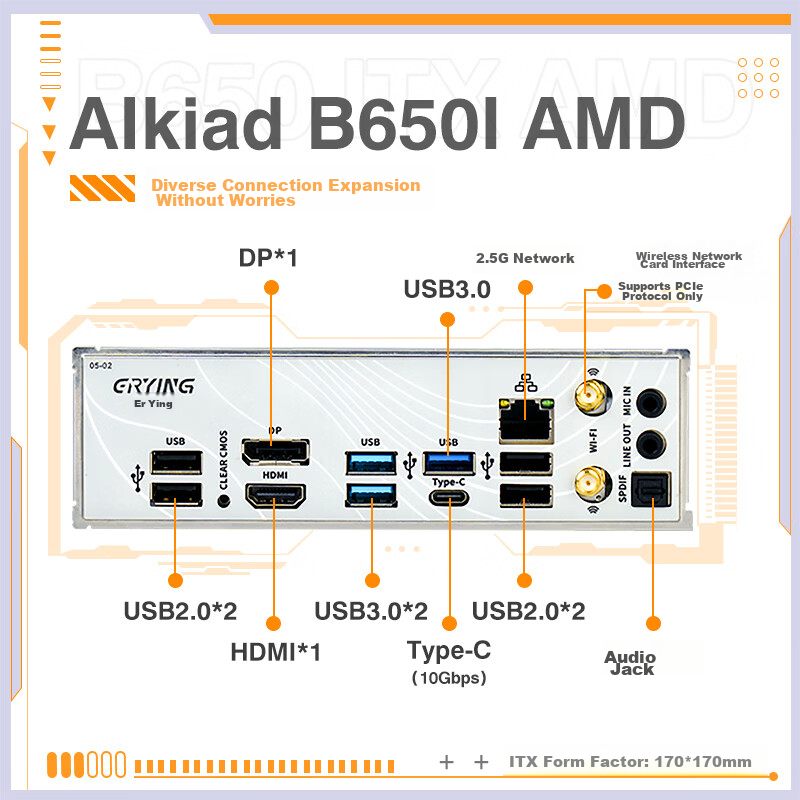

1 x DisplayPort, 1 x HDMI, 1 x Type-C (10Gbps)
Audio
Front panel audio header (FAUDIO), line-out
2 x 5V 3-pin ARGB headers
1 x CPU fan header (supports smart fan control)
1 x System fan header
4+4 pin CPU power connector
5V ARGB support for lighting integration
Supports network wake-up, PXE boot, UEFI boot for Windows 10/11 64-bit, Ubuntu 64-bit, and Linux
Voltage, temperature, and fan speed monitoring
Debug LEDs indicating system, GPU, memory, CPU status
Additional details
Front panel connectors
Power LED, Power Switch, HDD LED, Reset Switch
Reinforced PCIe slot to resist shear stress
Comprehensive interface expansion for DIY customization
Supports high bandwidth and low latency networking
Supports NVMe PCIe 4.0 SSDs for high-speed storage

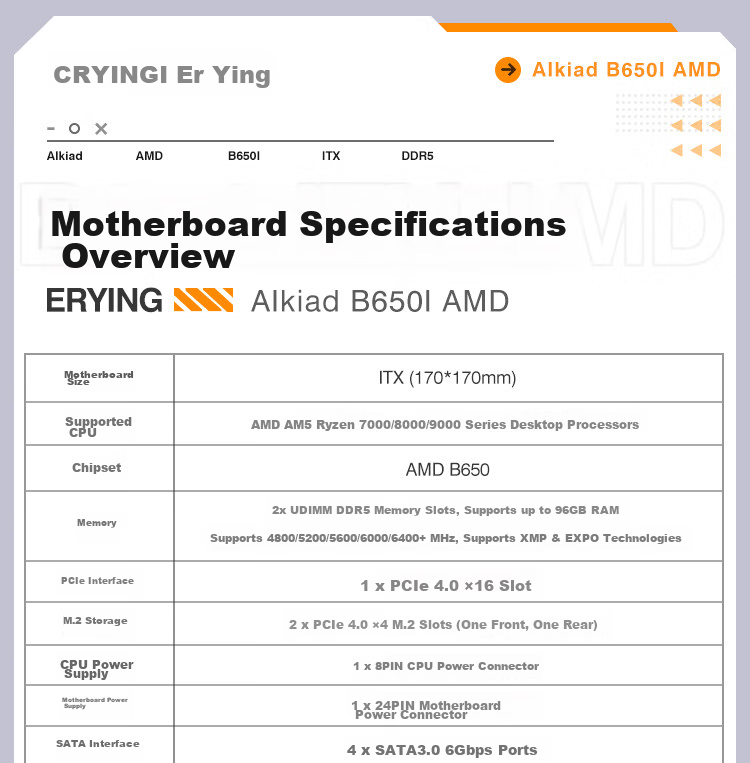

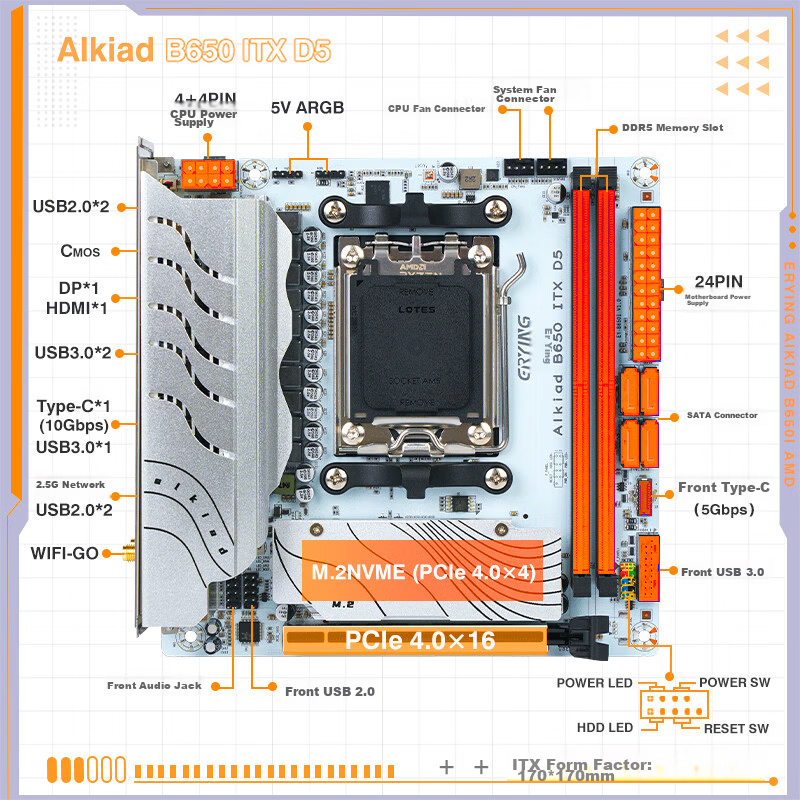

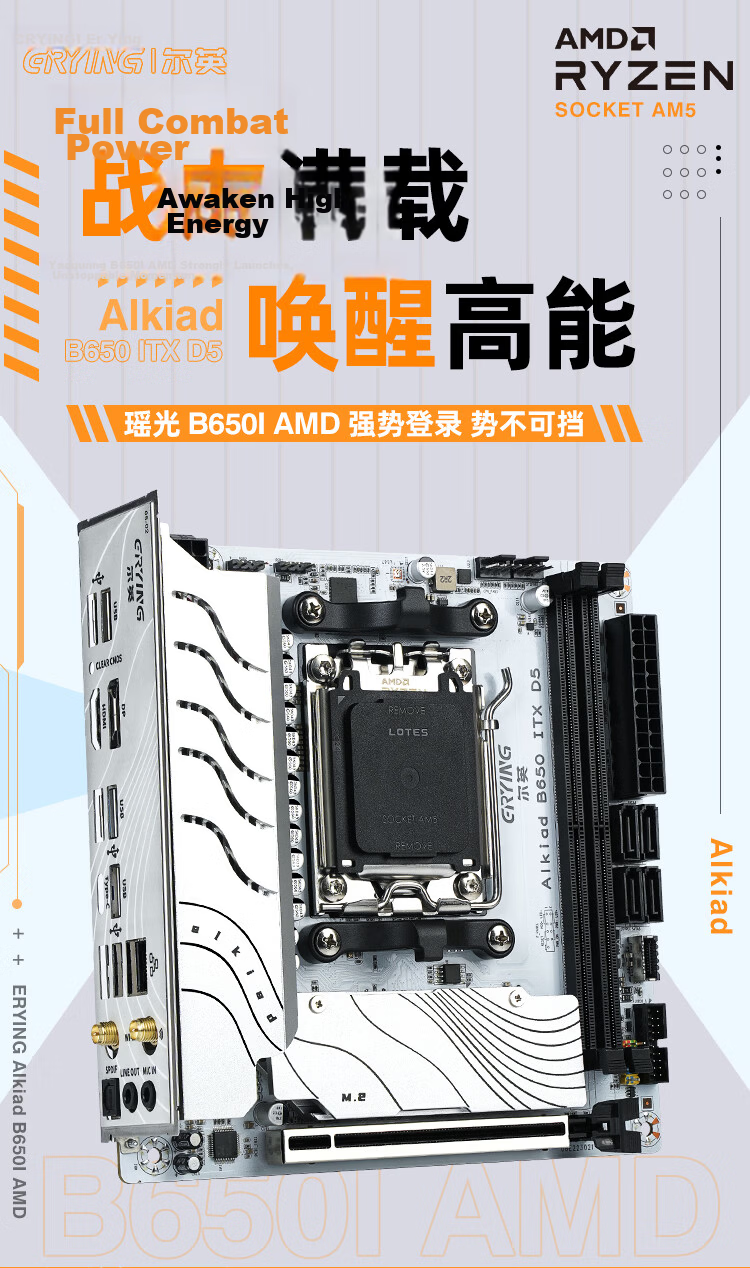

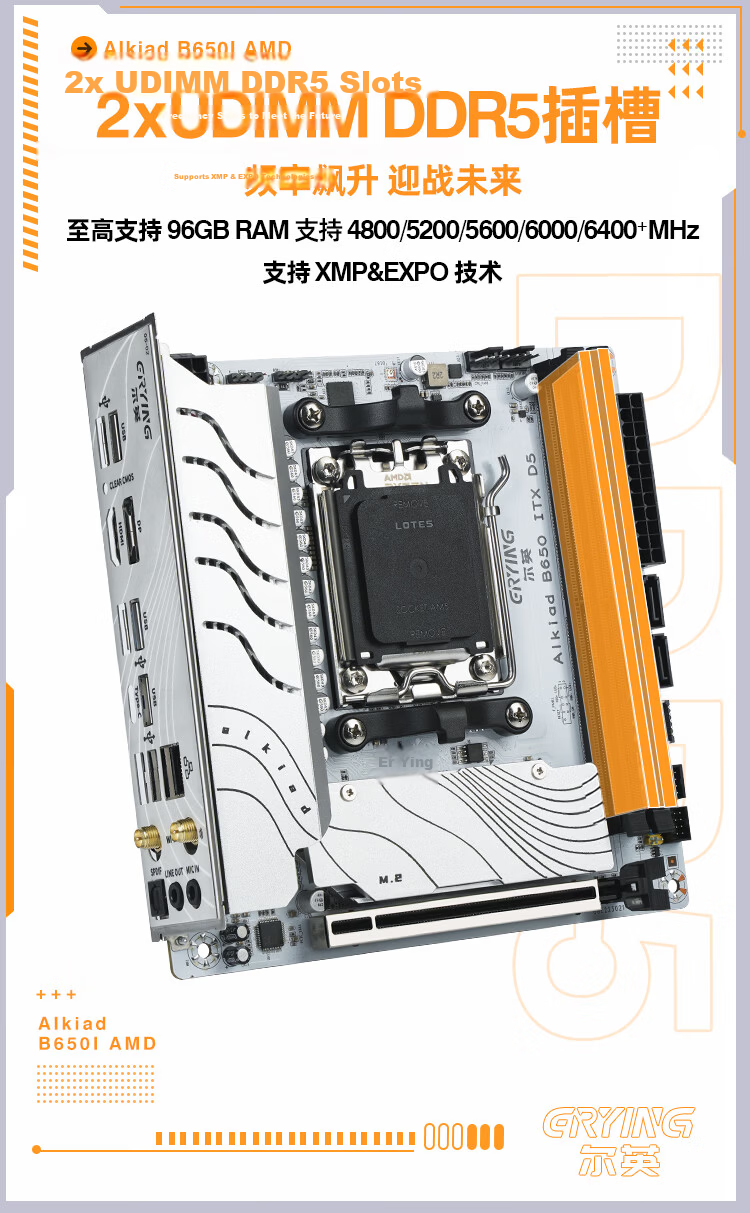

The ERYING Alkiad B650I AMD ITX motherboard is a compact yet powerful solution designed for AMD Ryzen 7000 series processors. It features robust 8+2+1 phase Dr.MOS power delivery, dual DDR5 memory slots supporting up to 96GB at high frequencies, dual PCIe 4.0 M.2 slots, and extensive connectivity options including 2.5Gbps Ethernet and Wi-Fi support. Its reinforced PCIe slot and advanced cooling design ensure stability and durability, making it ideal for high-performance compact builds.
