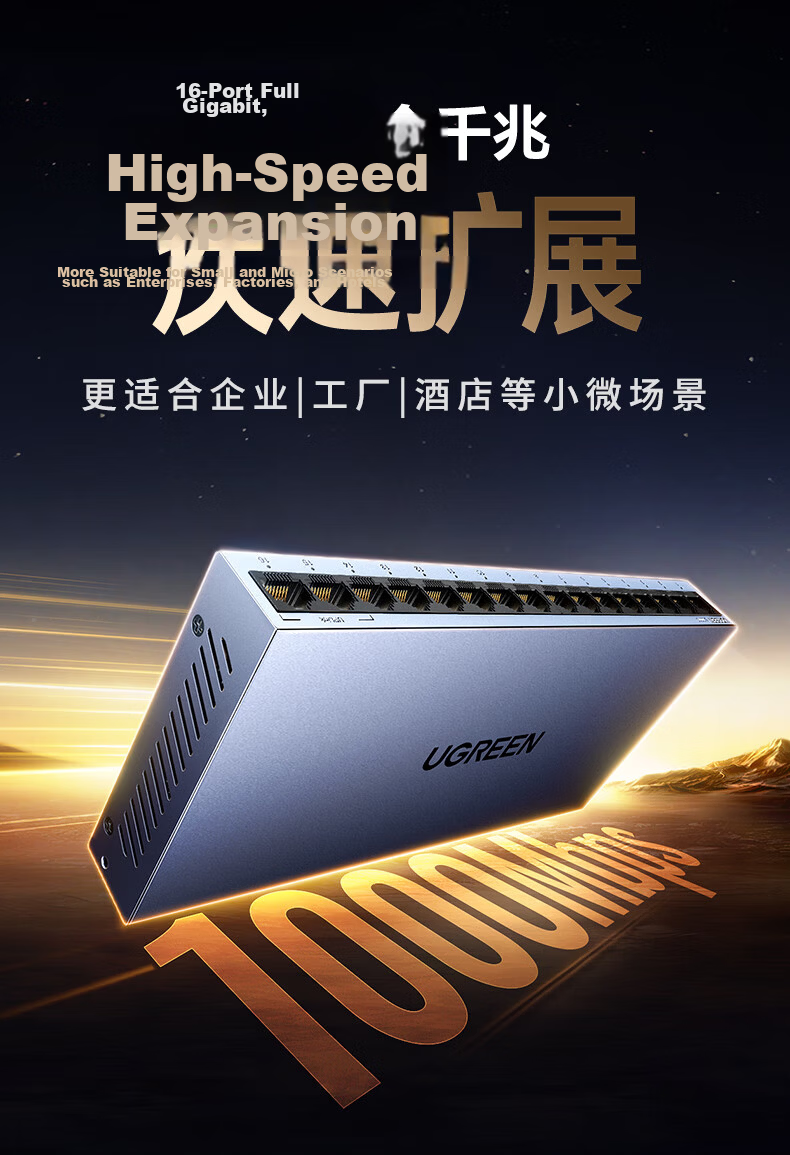

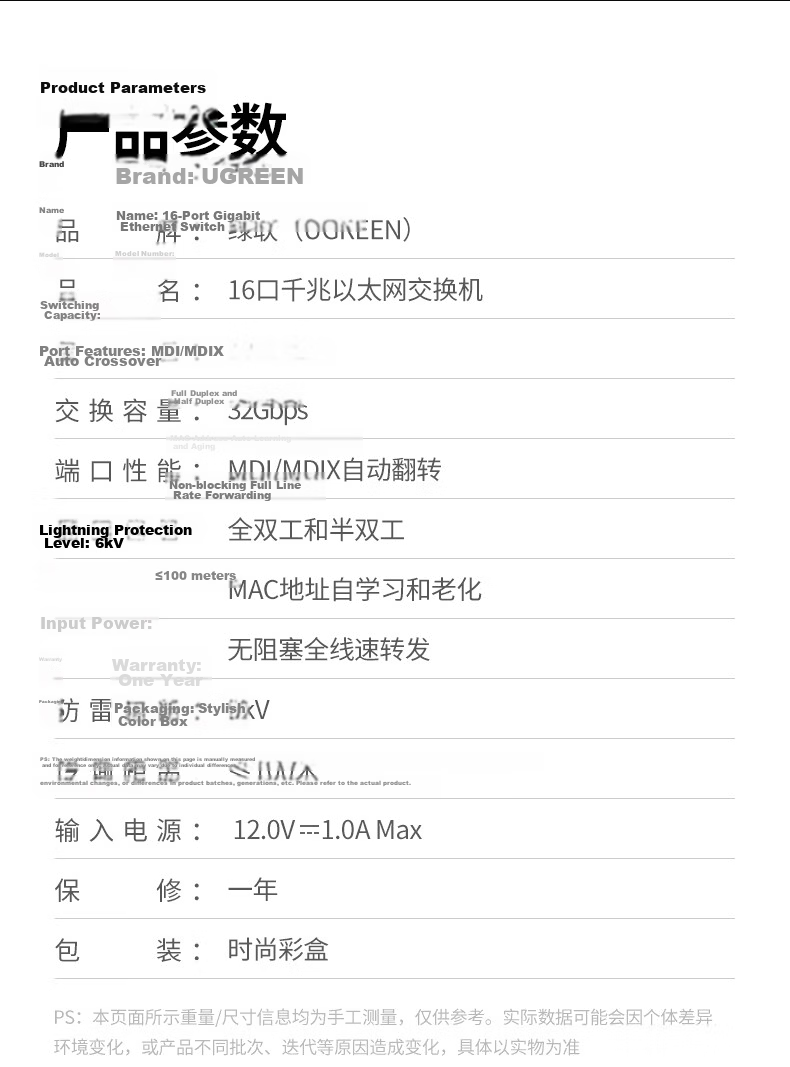

16 full Gigabit Ethernet ports (14 standard + 2 uplink)

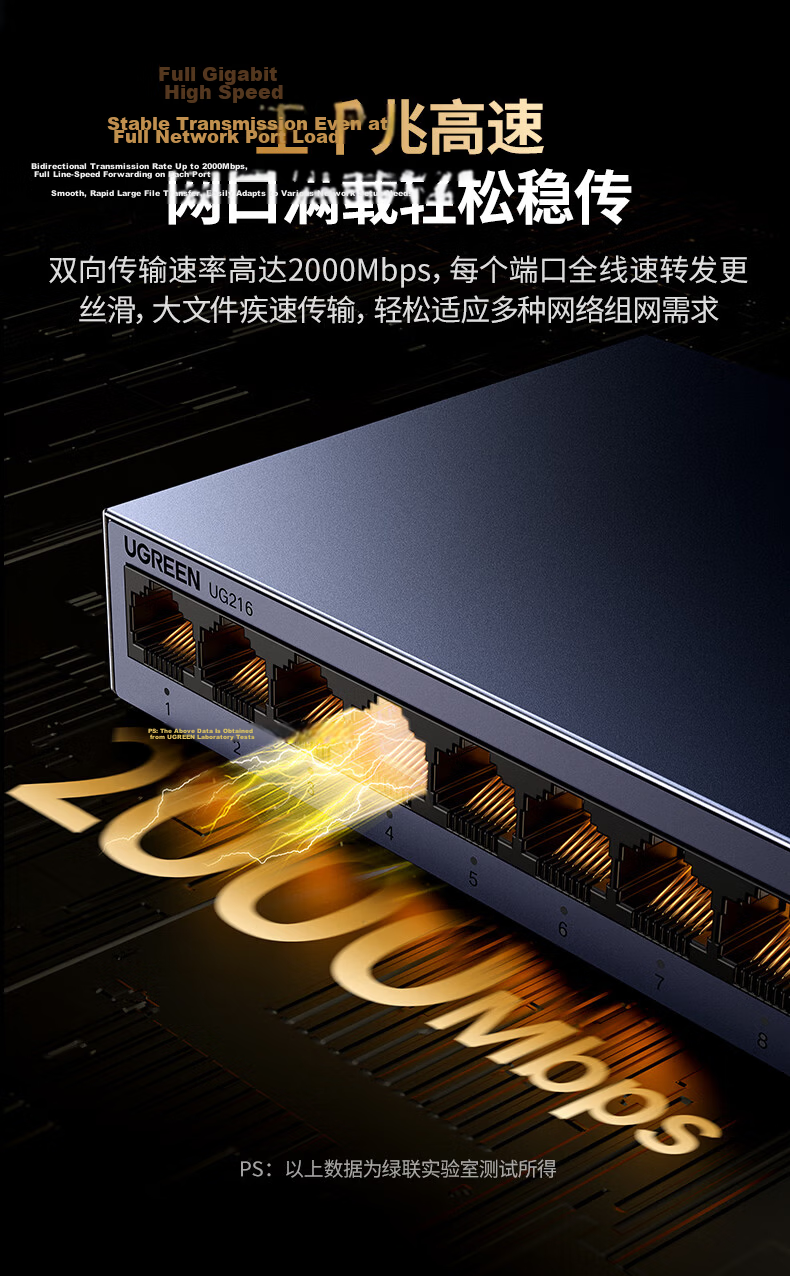

Speed
10/100/1000 Mbps, full duplex, up to 2000 Mbps bidirectional throughput per port
Switching Capacity
32 Gbps
Forwarding Rate
Supports line-rate forwarding on all ports
MAC Address Table
Supports up to 8K dynamic MAC addresses
Switching Mode
Store-and-forward for low latency and stable transmission
Surge Protection
±6 kV
Chipset
Dual high-performance chips for enhanced network load and data processing capacity

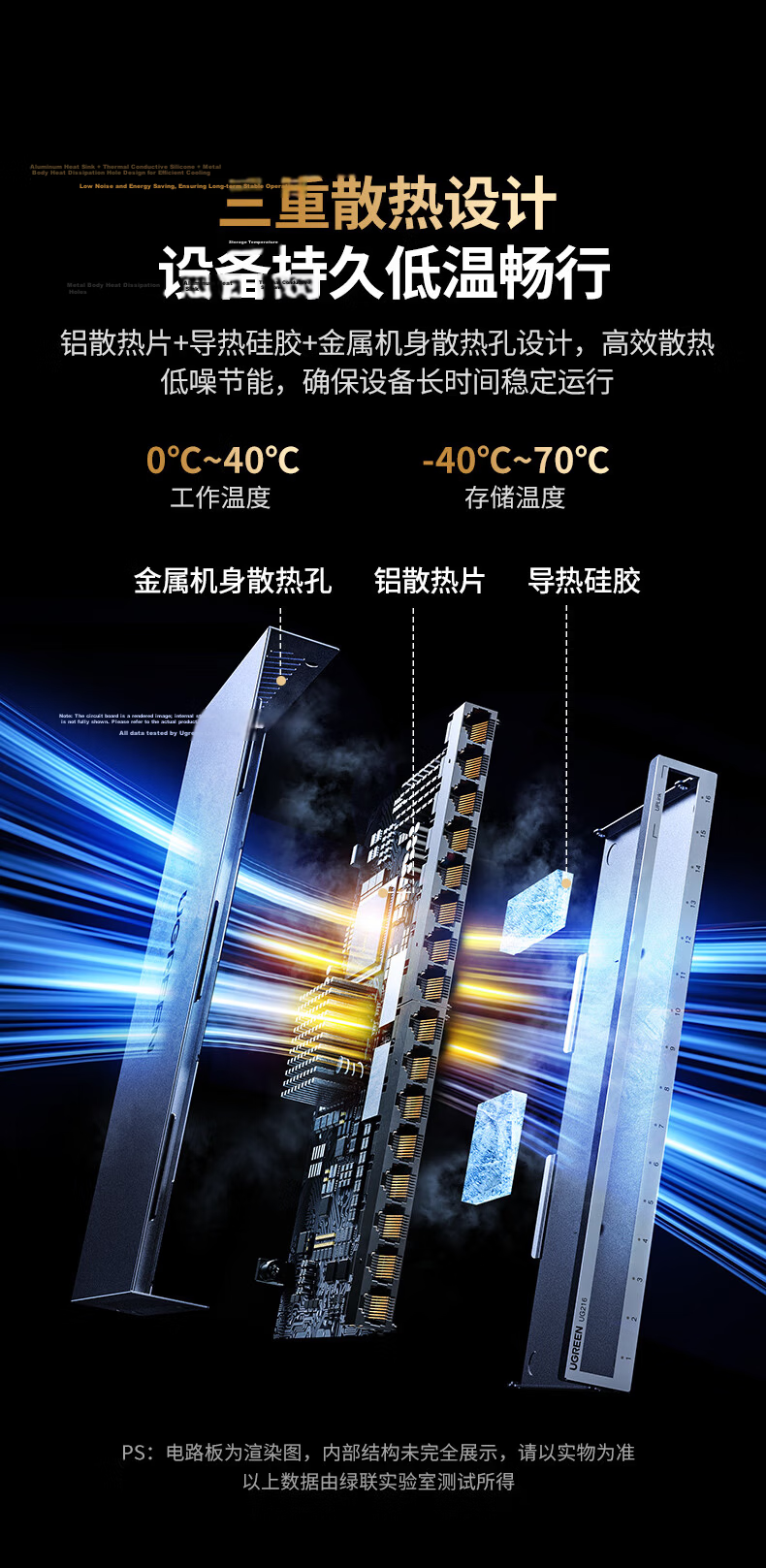

Cooling
Four-layer heat dissipation system including aluminum heat sink, thermal silicone pad, full steel body, and dual side ventilation holes for rapid heat dissipation and low temperature operation
Auto-negotiation of port speed and MDI/MDIX auto-flip
Additional details
Supports 4 working modes
Standard, VLAN, Link Aggregation, Flow Control Off

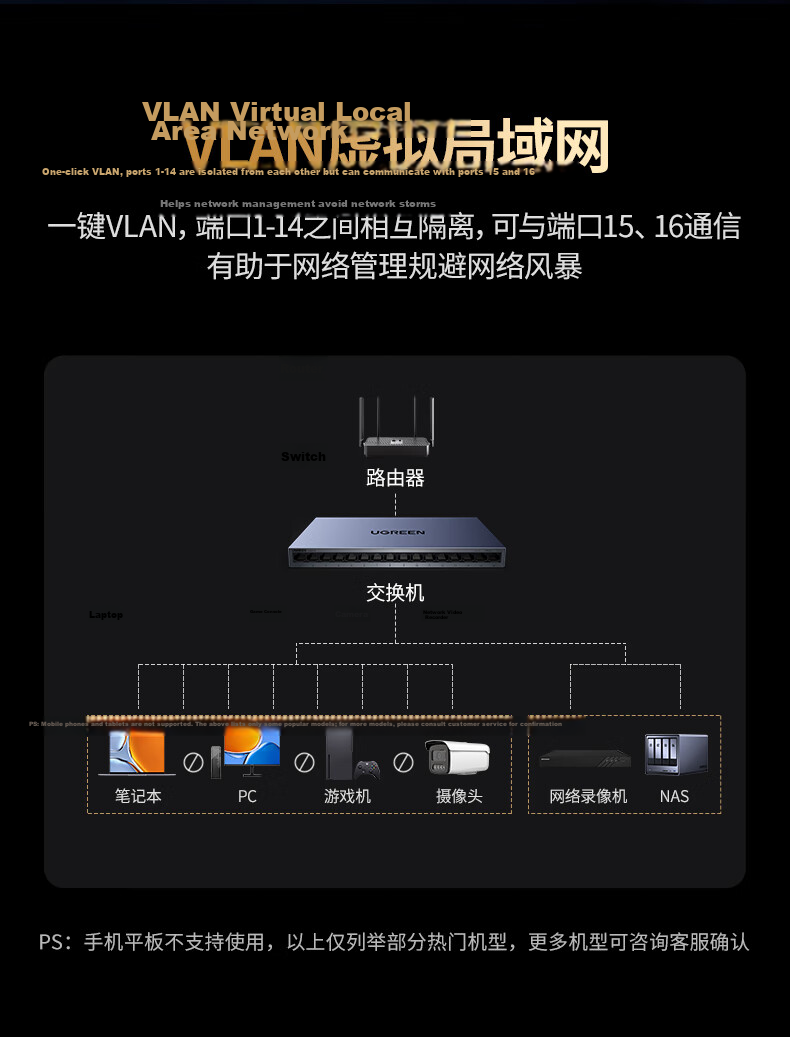

VLAN Isolation
One-key VLAN isolation for ports 1-14, isolated from each other but can communicate with ports 15 and 16, enhancing network security and management
Link Aggregation
Supports link aggregation to increase bandwidth and provide redundancy
Dynamic MAC address learning for smooth connectivity
Low crosstalk design for stable connections
Compatible with laptops, desktops, NAS, IP cameras, routers, wireless APs, set-top boxes, gaming consoles, printers, and other network devices
Additional details
Operating Temperature
0°C to 40°C
Operating Humidity
10% to 90% RH (non-condensing)
Storage Temperature
-40°C to 70°C
Storage Humidity
5% to 90% RH (non-condensing)
Input Voltage
AC 100-240V, 50/60 Hz
Power LED (green steady on
power normal; off: no power or abnormal)
16 Port Link/Activity LEDs (green steady on
device connected; off: no device; blinking: data transmission)
UGREEN 16-Port Gigabit Ethernet Switch
Power Cable
User Manual
Warranty Card (1 year warranty)
8 Screws (3mm diameter x 8mm length)
2 L-shaped Mounting Brackets
4 Foot Pads
Installation precautions include use of anti-static wrist strap or gloves and ensuring the switch is powered off before installation
Wall-mount requires separately purchased expansion screws and anchors
Rack-mount supports standard 19-inch racks with included brackets
Data and performance figures are based on UGREEN laboratory testing; actual performance may vary due to environment and usage conditions
