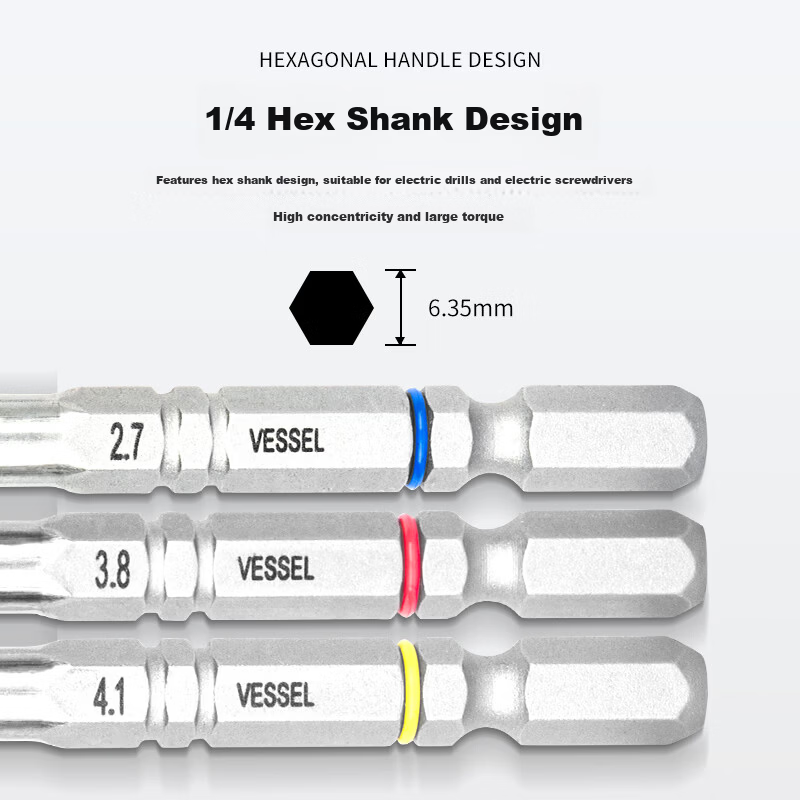

Back to CatalogVESSEL AMD-1.6 Hex Shank Twist Drill Bit High-Speed Steel Metal Drilling Shock Absorption Drill Φ1.6X76mm
Specifications
- Category
- Sesame Twist
- Applicable materials
- plastic casing, High-speed steel
Variants / Sale Attributes
Package Contents
AMD-1.6 High-Speed Steel Step Drill Bit Φ1.6×76mm*1
Product Description
Product Specifications
Overview
- Brand
- VESSEL
- Product Name
- High-Speed Steel Twist Drill

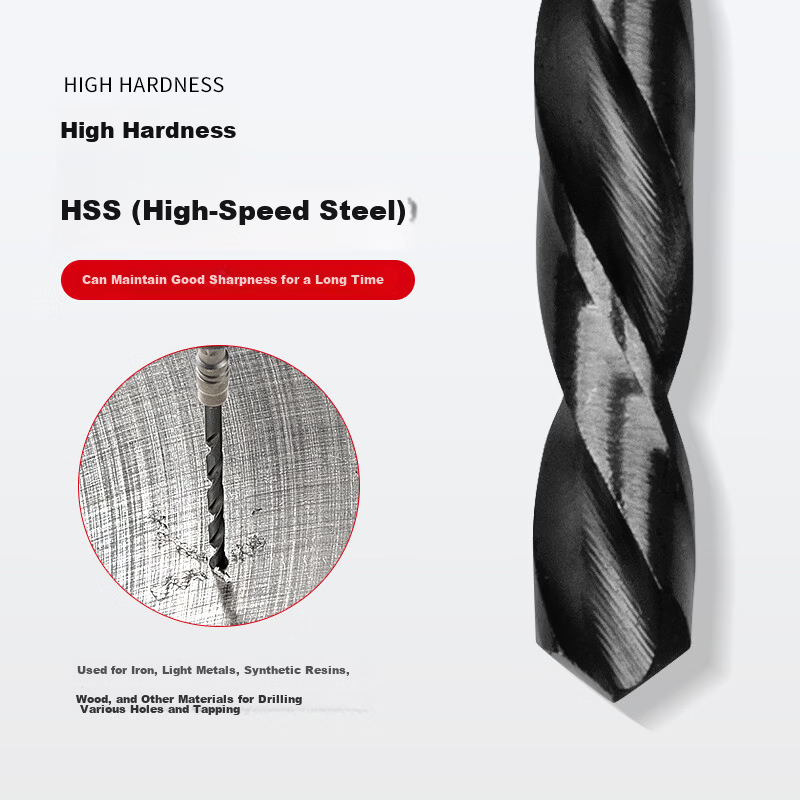

- Material
- High-Speed Steel (HSS)
- High hardness
- Maintains sharpness for long-term use.
- X-type grinding cross-cutting tool
- No need for center punch; enables easy drilling with light force.
- Large spiral U-shaped flute
- Sharp cutting edge for fast chip removal.
Self-buffering design.
Suitable for drilling and tapping holes in cast iron, light metals, synthetic resins, wood, and other materials.
Models AMD 2.9 and below do not have X-type cross-cutting edges.

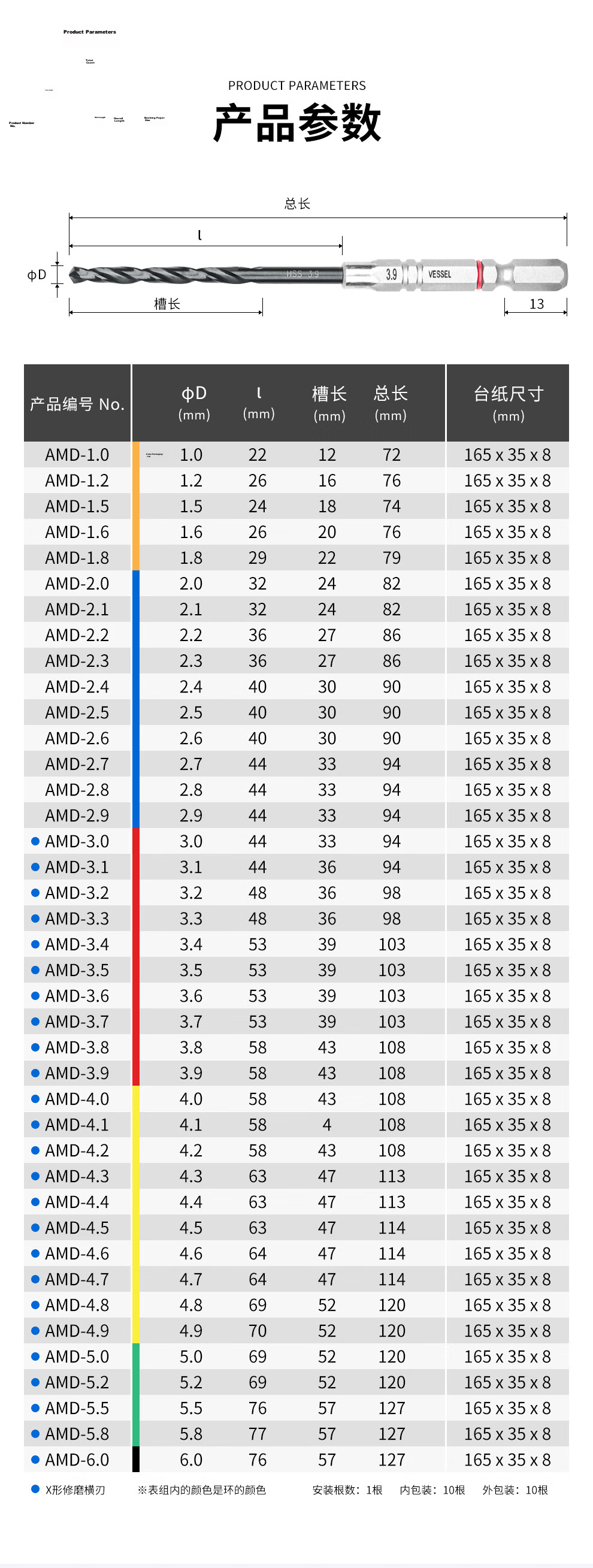

| Model | Diameter (mm) | Flute Length (mm) | Total Length (mm) | Packaging Size (mm) | Product No. |
|---------|----------------|-------------------|-------------------|---------------------|-------------|
| AMD-1.0 | 1.0 | 22 | 12 | 165 x 35 x 8 | AMD-1.0 |
| AMD-1.2 | 1.2 | 26 | 16 | 165 x 35 x 8 | AMD-1.2 |
| AMD-1.5 | 1.5 | 24 | 18 | 165 x 35 x 8 | AMD-1.5 |

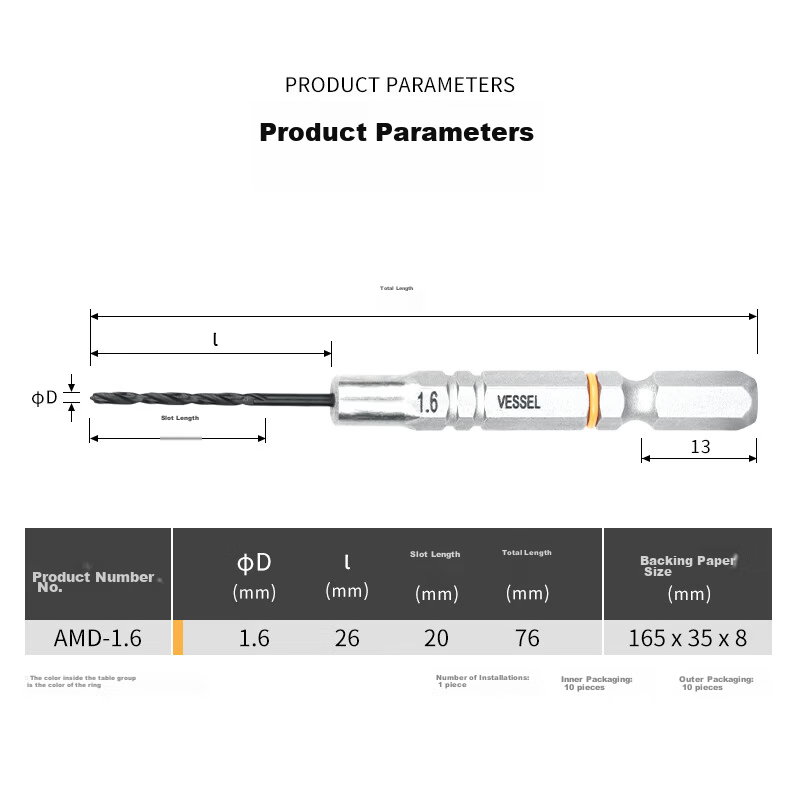

| AMD-1.6 | 1.6 | 26 | 20 | 165 x 35 x 8 | AMD-1.6 |
| AMD-1.8 | 1.8 | 29 | 22 | 165 x 35 x 8 | AMD-1.8 |
| AMD-2.0 | 2.0 | 32 | 24 | 165 x 35 x 8 | AMD-2.0 |
| AMD-2.1 | 2.1 | 32 | 24 | 165 x 35 x 8 | AMD-2.1 |
| AMD-2.2 | 2.2 | 36 | 27 | 165 x 35 x 8 | AMD-2.2 |
| AMD-2.3 | 2.3 | 36 | 27 | 165 x 35 x 8 | AMD-2.3 |
| AMD-2.4 | 2.4 | 40 | 30 | 165 x 35 x 8 | AMD-2.4 |
| AMD-2.5 | 2.5 | 40 | 30 | 165 x 35 x 8 | AMD-2.5 |
| AMD-2.6 | 2.6 | 40 | 30 | 165 x 35 x 8 | AMD-2.6 |
| AMD-2.7 | 2.7 | 44 | 33 | 165 x 35 x 8 | AMD-2.7 |
| AMD-2.8 | 2.8 | 44 | 33 | 165 x 35 x 8 | AMD-2.8 |
| AMD-2.9 | 2.9 | 44 | 33 | 165 x 35 x 8 | AMD-2.9 |
| AMD-3.0 | 3.0 | 44 | 33 | 165 x 35 x 8 | AMD-3.0 |
| AMD-3.1 | 3.1 | 44 | 36 | 165 x 35 x 8 | AMD-3.1 |
| AMD-3.2 | 3.2 | 48 | 36 | 165 x 35 x 8 | AMD-3.2 |
| AMD-3.3 | 3.3 | 48 | 36 | 165 x 35 x 8 | AMD-3.3 |
| AMD-3.4 | 3.4 | 53 | 39 | 165 x 35 x 8 | AMD-3.4 |
| AMD-3.5 | 3.5 | 53 | 39 | 165 x 35 x 8 | AMD-3.5 |
| AMD-3.6 | 3.6 | 53 | 39 | 165 x 35 x 8 | AMD-3.6 |
| AMD-3.7 | 3.7 | 53 | 39 | 165 x 35 x 8 | AMD-3.7 |
| AMD-3.8 | 3.8 | 58 | 43 | 165 x 35 x 8 | AMD-3.8 |
| AMD-3.9 | 3.9 | 58 | 43 | 165 x 35 x 8 | AMD-3.9 |
| AMD-4.0 | 4.0 | 58 | 43 | 165 x 35 x 8 | AMD-4.0 |
| AMD-4.1 | 4.1 | 58 | 43 | 165 x 35 x 8 | AMD-4.1 |
| AMD-4.2 | 4.2 | 58 | 43 | 165 x 35 x 8 | AMD-4.2 |
| AMD-4.3 | 4.3 | 63 | 44 | 165 x 35 x 8 | AMD-4.3 |
| AMD-4.4 | 4.4 | 63 | 47 | 165 x 35 x 8 | AMD-4.4 |
| AMD-4.5 | 4.5 | 63 | 47 | 165 x 35 x 8 | AMD-4.5 |
| AMD-4.6 | 4.6 | 63 | 47 | 165 x 35 x 8 | AMD-4.6 |
| AMD-4.7 | 4.7 | 69 | 47 | 165 x 35 x 8 | AMD-4.7 |
| AMD-4.8 | 4.8 | 69 | 52 | 165 x 35 x 8 | AMD-4.8 |
| AMD-4.9 | 4.9 | 70 | 52 | 165 x 35 x 8 | AMD-4.9 |
| AMD-5.0 | 5.0 | 69 | 52 | 165 x 35 x 8 | AMD-5.0 |
| AMD-5.2 | 5.2 | 69 | 52 | 165 x 35 x 8 | AMD-5.2 |
| AMD-5.5 | 5.5 | 76 | 57 | 165 x 35 x 8 | AMD-5.5 |
| AMD-5.8 | 5.8 | 76 | 57 | 165 x 35 x 8 | AMD-5.8 |
| AMD-6.0 | 6.0 | 76 | 57 | 165 x 35 x 8 | AMD-6.0 |
14-piece twist drill set in a portable dedicated box.
Additional details
- Set includes sizes (mm)
- 1.5, 2.0, 2.5, 2.8, 3.0, 3.2, 3.5, 4.0, 4.5, 5.0, 5.5, 6.5, 7.0
- Model
- AMD14S
- Box dimensions
- 37 mm x 149 mm
Suitable for drilling in cast iron, light metals, synthetic resins, wood, and other materials.
Drill bit should be perpendicular (90°) to stainless steel plate during drilling.
Start drilling slowly to avoid impact; slow down when approaching breakthrough.
Additional details
- Recommended drill speed
- 800-1500 RPM; avoid excessive speed to prevent drill damage and annealing.
Use a center punch to mark drilling position to prevent bit wandering.
Do not use with impact drivers.
Avoid damaging the drill bit or scattering chips.
Always wear safety goggles.
Keep hands and face away from rotating cutting edges and chips.
Additional details
- Product Images
- Available upon request.
