Chassis fans *3 ARGB cable + PWM cable *1 set Fan screws *12

AS120 VISION ARGB Black
CNÂ¥129.90

2.8-Inch Screen, Second-Generation XW360-P Fanless, Black
CNÂ¥529.00

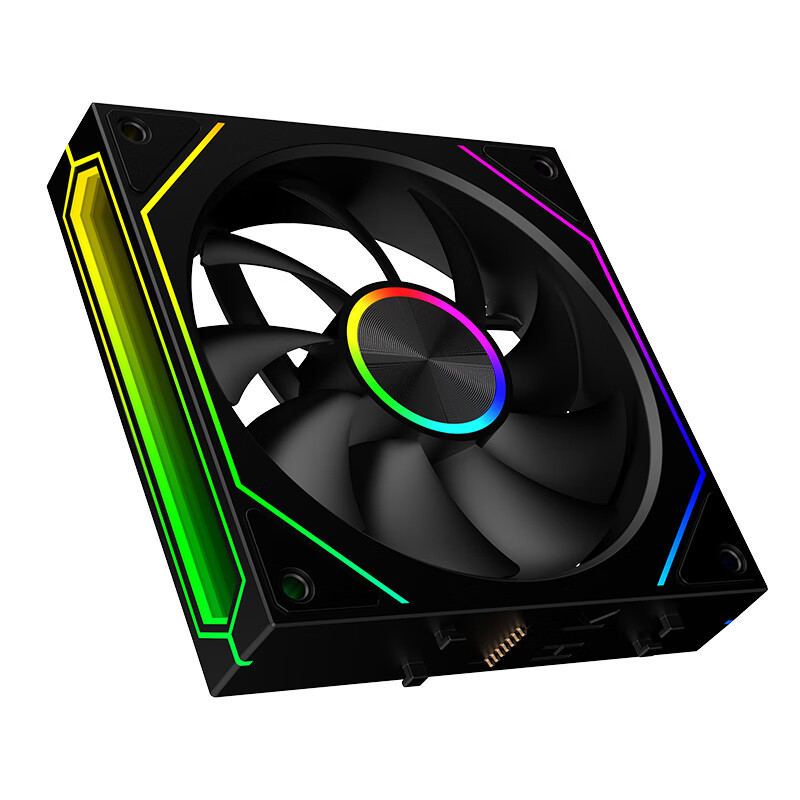

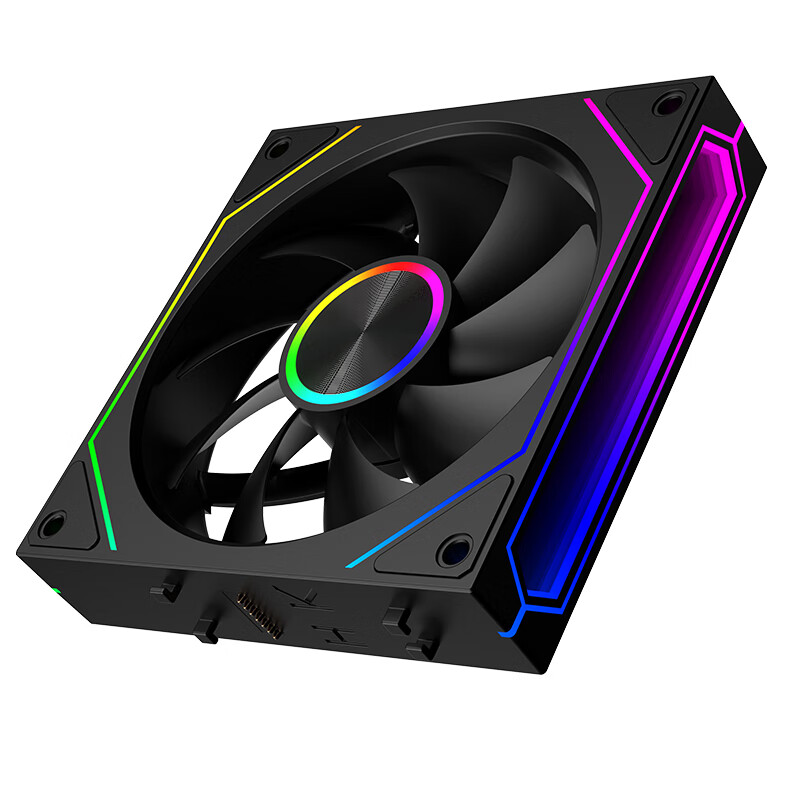

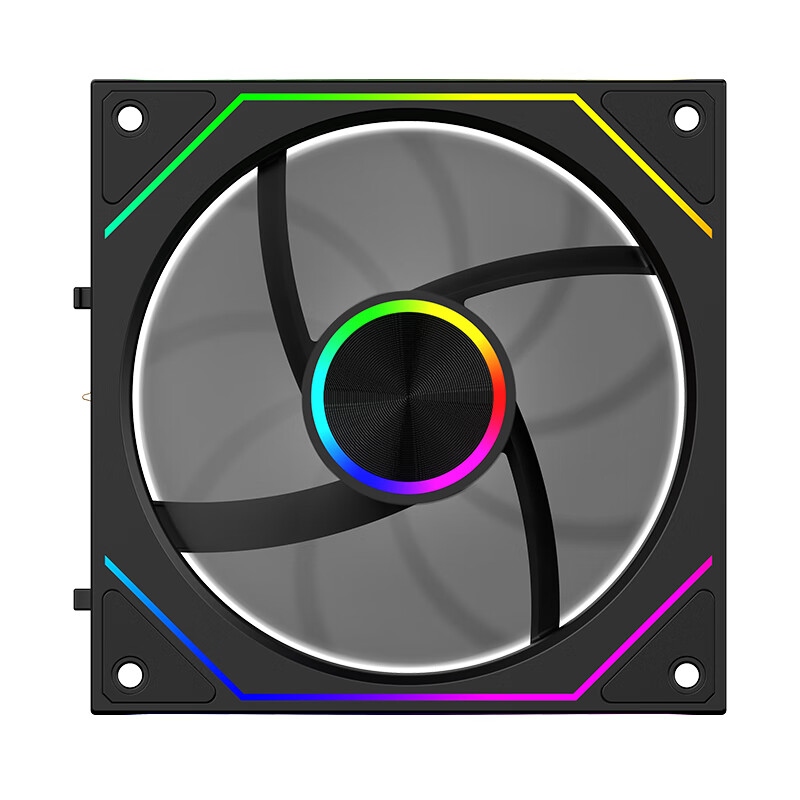

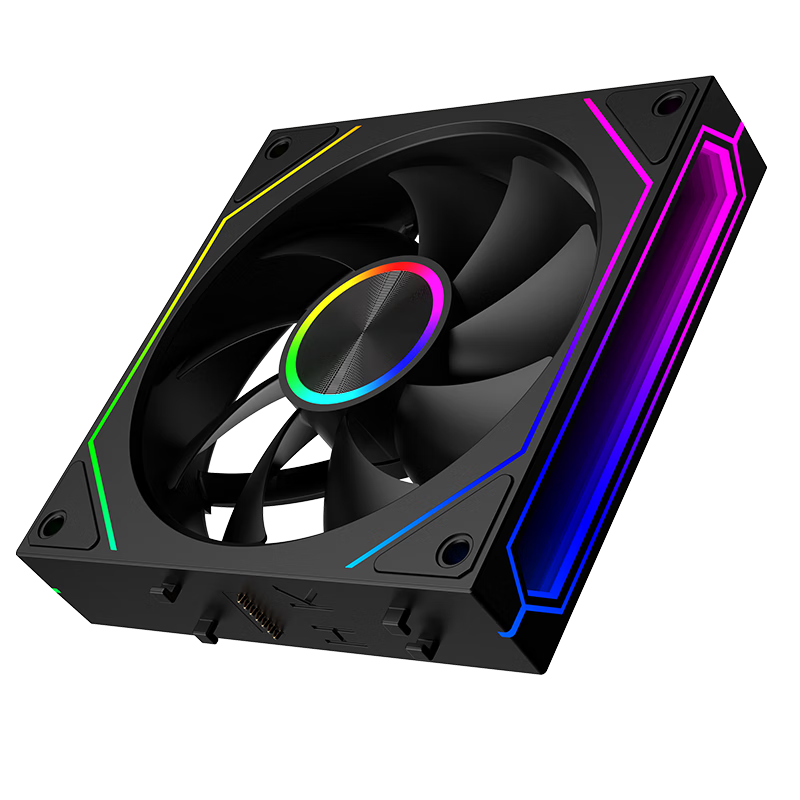

Product Specifications:
Brand: Jingpinlu ()
Model: Xinghuan - Building Block Edition (-)
Design: Black and white dual-color design for personalized PC building
Structure: Building block connection design with easy "click" assembly
Lighting: ARGB infinite prism lighting on both sides with infinite geometric effect and CD texture fan blade center
Visual Effect: High-brightness LED beads on both sides enhance lens imaging for 360° no-dead-angle visual experience
Cooling Control: PWM intelligent temperature control adjusts fan speed automatically based on internal case temperature
Interface: 4PIN intelligent temperature control, ARGB motherboard lighting control
Dimensions: 120mm x 120mm x 25mm
Fan Name: HK-11 Building Block 3rd Generation
Fan Color: Black / White
Rated Voltage: Fan 12V / LED 5V
Fan Connector: 2510-4PIN (Female/Male)
Rated Current: Fan 0.16A / LED 0.6A (±10%)
LED Connector: AURA-3PIN (Female/Male)
Noise Level: 23.2 dB(A)
Airflow: 65.5 CFM
Air Pressure: 2.0 mmH2O

AX120 R DIGITAL BLACK
CNÂ¥104.90
