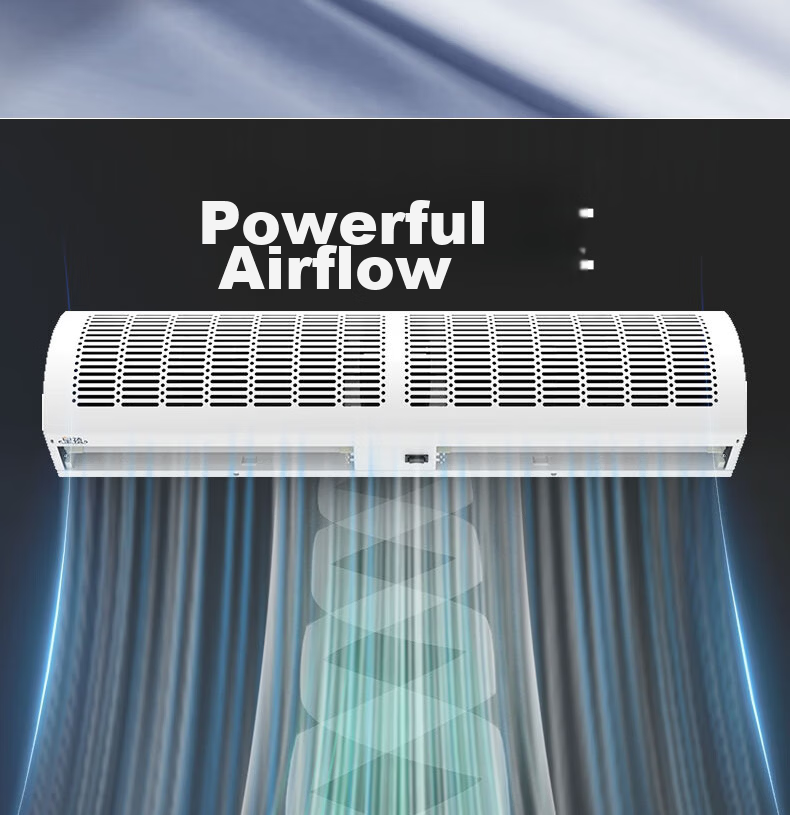

HUANGXI Elevator Air Curtain Commercial Air Door Human Sensor Elevator Fan 0.9m

Linear air path design for smooth airflow and reduced outdoor noise impact.

Two-speed operation modes for flexible airflow control (8 m/s low speed, 11 m/s high speed).

Effectively isolates indoor air from outdoor dust, bacteria, insects, odors, and exhaust gases.

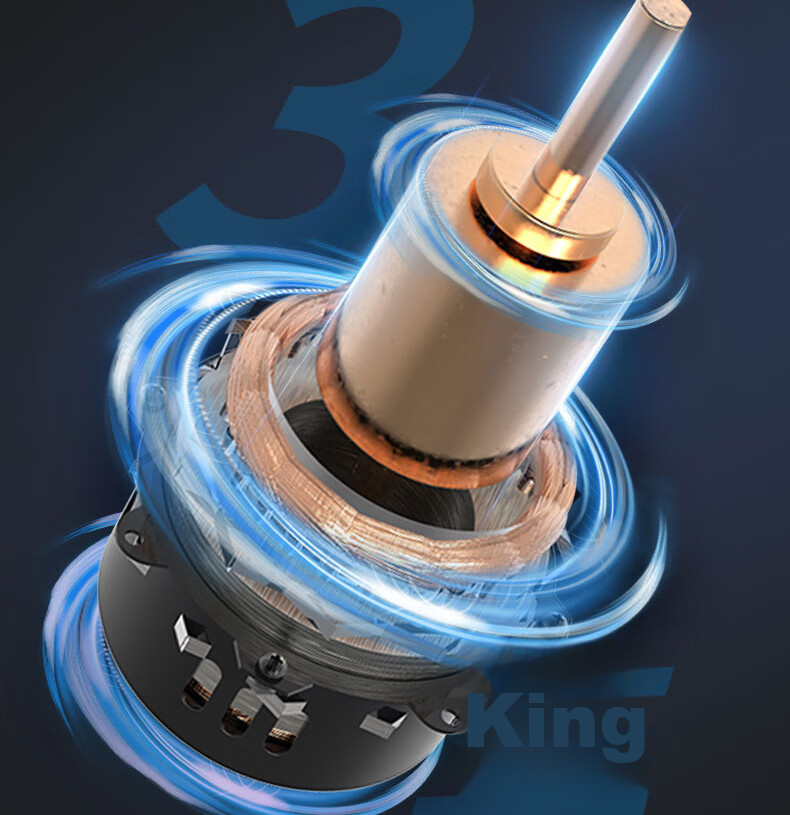

Durable, low power consumption motor with sealed ball bearings and noise reduction structure.

Daily power consumption approximately 1 kWh.

Manual button control and adjustable dual-direction air outlet.

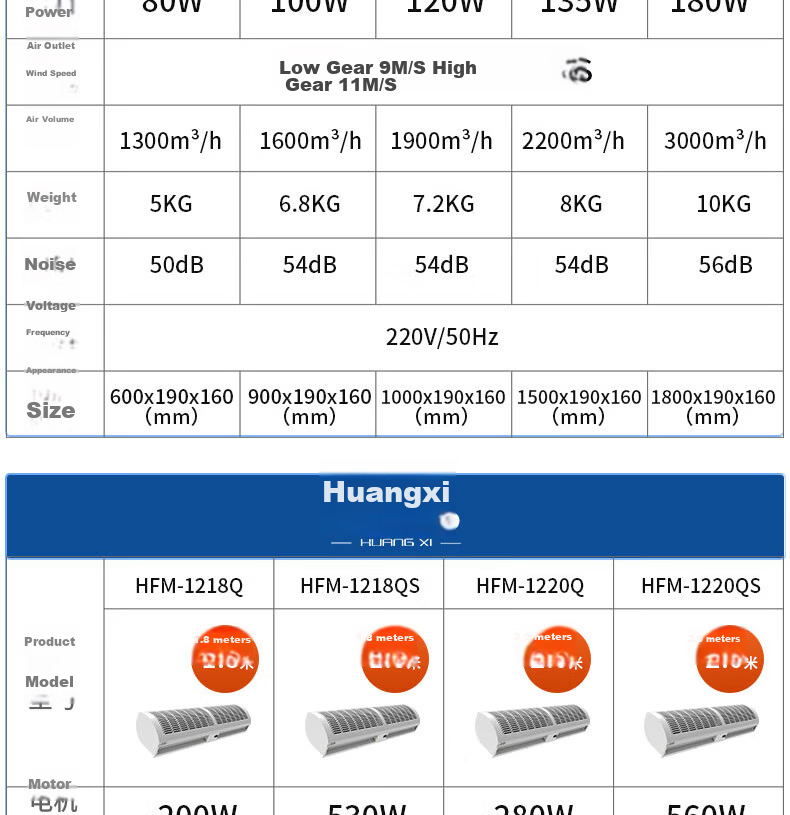

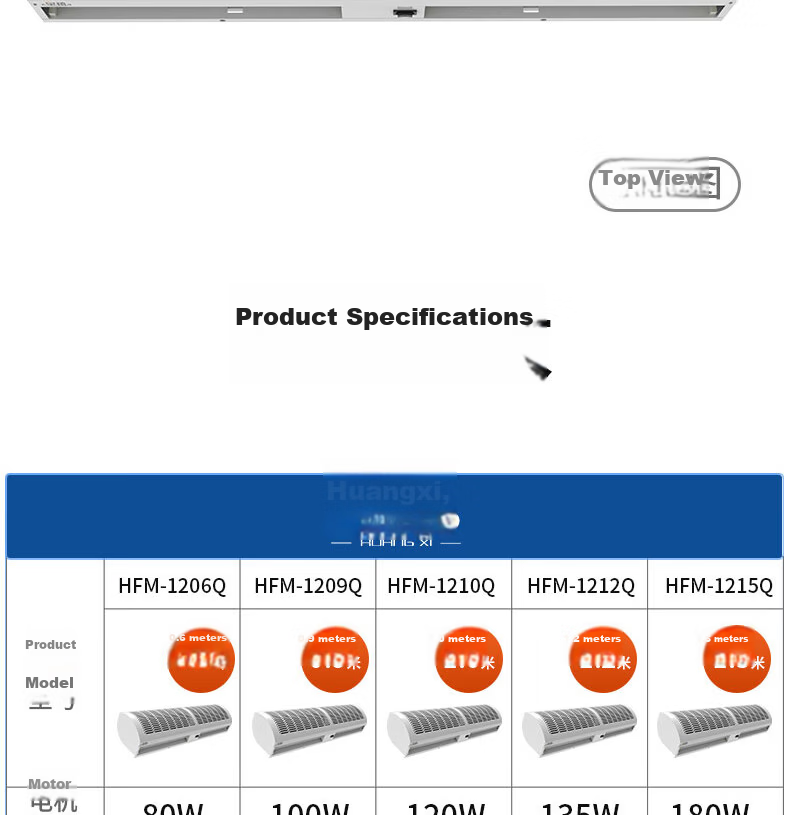

| Model | Rated Voltage | Frequency | Input Power | Air Velocity | Air Volume | Noise Level | Weight |

|-------|---------------|-----------|-------------|--------------|------------|-------------|--------|

| HFM | 220V | 50Hz | 80W | 8-11 m/s | 1600 m³/h | 50 dB | 5 kg |

| HFM | 220V | 50Hz | 100W | 8-11 m/s | 1600 m³/h | 54 dB | 6.8 kg |

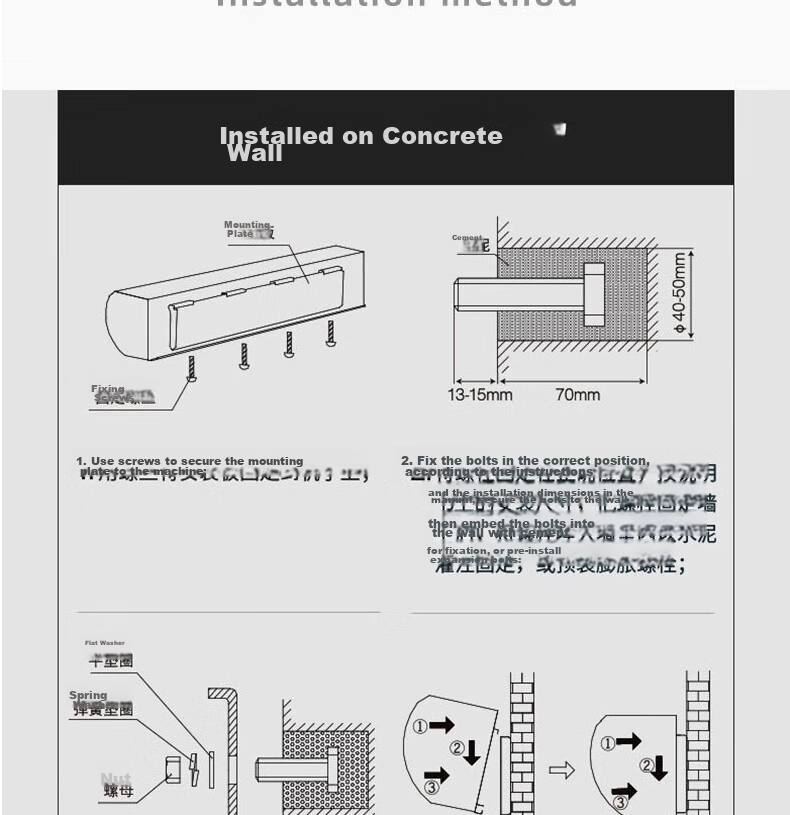

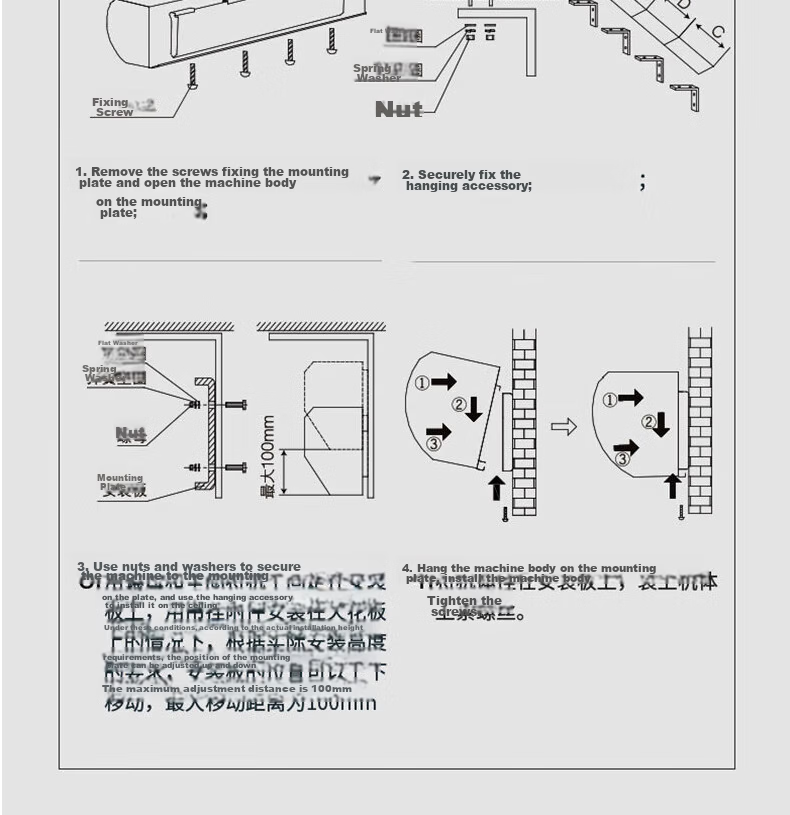

Remove the mounting plate by unscrewing the fixing screws connecting it to the air curtain body.

For installation on concrete or brick walls, fix the mounting plate using M8 expansion screws with 13-15 mm expansion depth.

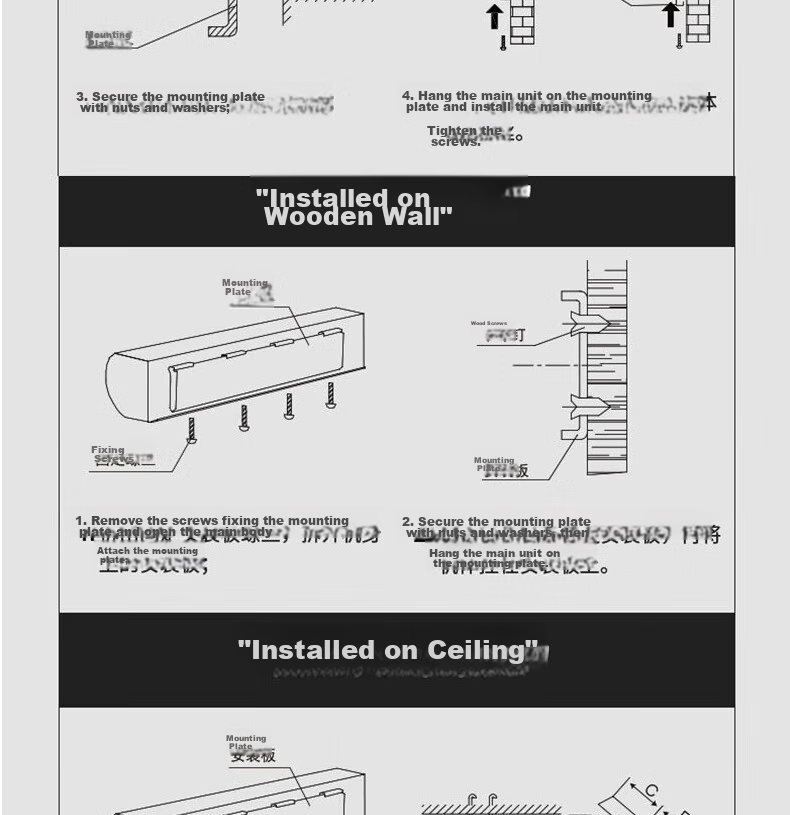

For soft walls such as wood panels, use ST5 self-tapping screws to secure the mounting plate.

After securing the mounting plate, hang the air curtain on it and tighten the fixing screws to ensure firm installation.

For further assistance, contact customer service.

CE, IAF, CNAS

Multiple original patents for design and utility models.

Certified by Weikai Certification Testing Co., Ltd., Guangzhou, China (Certificate No.: 2023180702040891).

HUANGXI emphasizes quality and attention to detail.

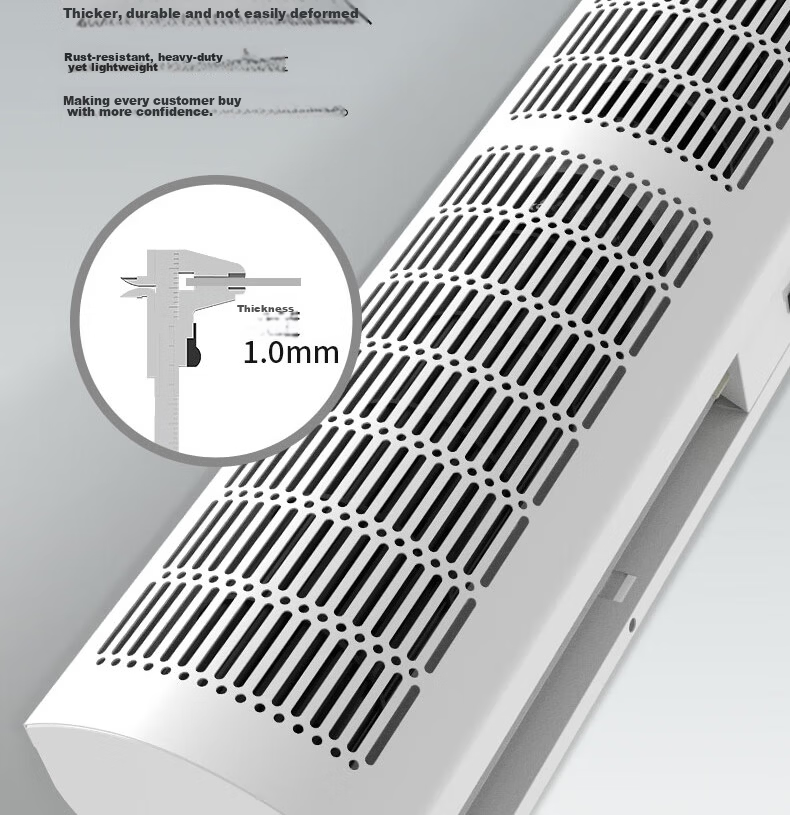

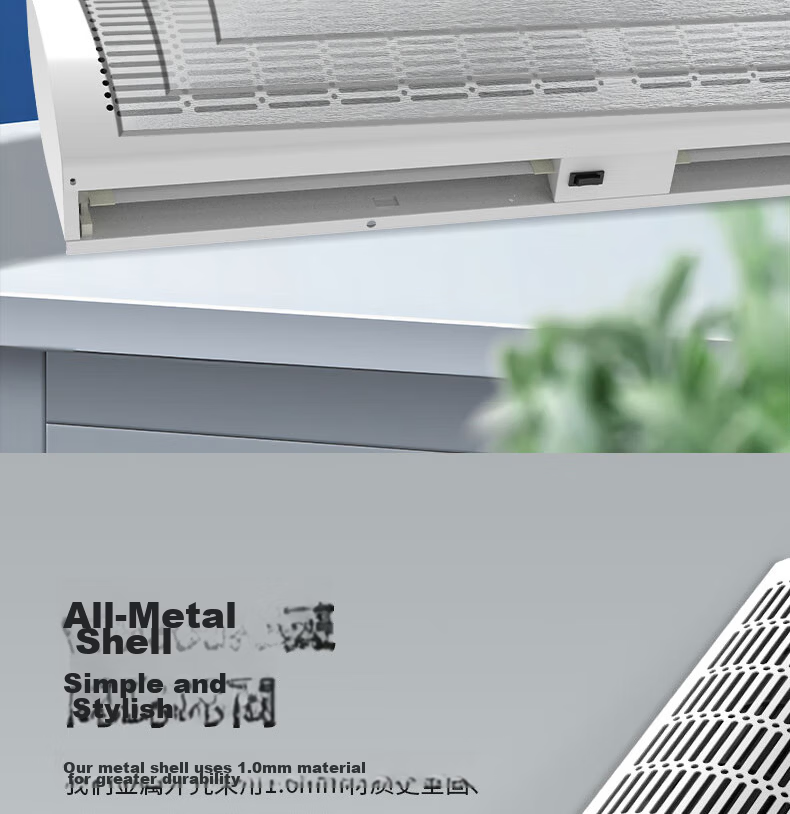

High-end metal body with luxury finish.

"QUALITY IS EVERYTHING" philosophy ensuring durable, efficient, and quiet operation.
