Back to CatalogJD Jingzao Yufengzhe Smart Fan Light 42-inch Invisible Full-Spectrum Eye Protection Bedroom Living Room Dining Ceiling Fan Light Integrated
Specifications
- Functions
- Full spectrum, dimming, insect repellent, with fan, Anti-blue light, eye protection, anti-dizziness
- Energy efficiency rating
- Grade 1 energy efficiency
- Control method
- Smart control, remote control control
- Dimming capability
- Stepless dimming
- Light source type
- LED
- Variable frequency or not
- Variable frequency
- Color rendering index
- Ra96-98 (inclusive)
Variants / Sale Attributes
Shape: [Smart Control 42inch] 60W | Pure Spectrum | Stepless Dimming | 6Speed Wind
Package Contents

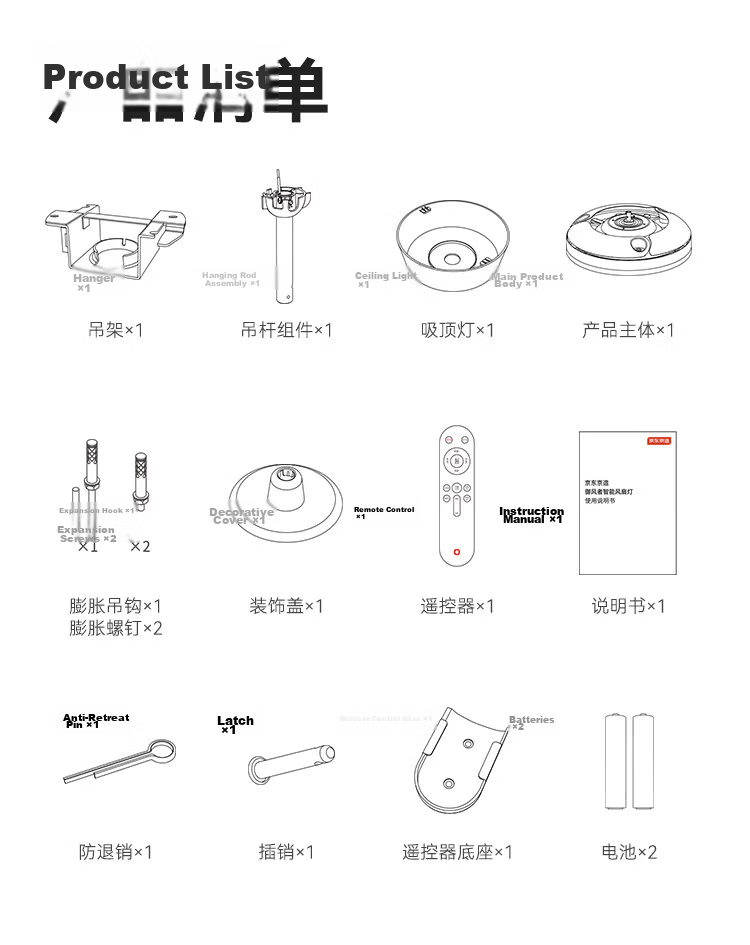

Lamp body *1, remote control *1, accessories *1, instruction manual *1
Product Description

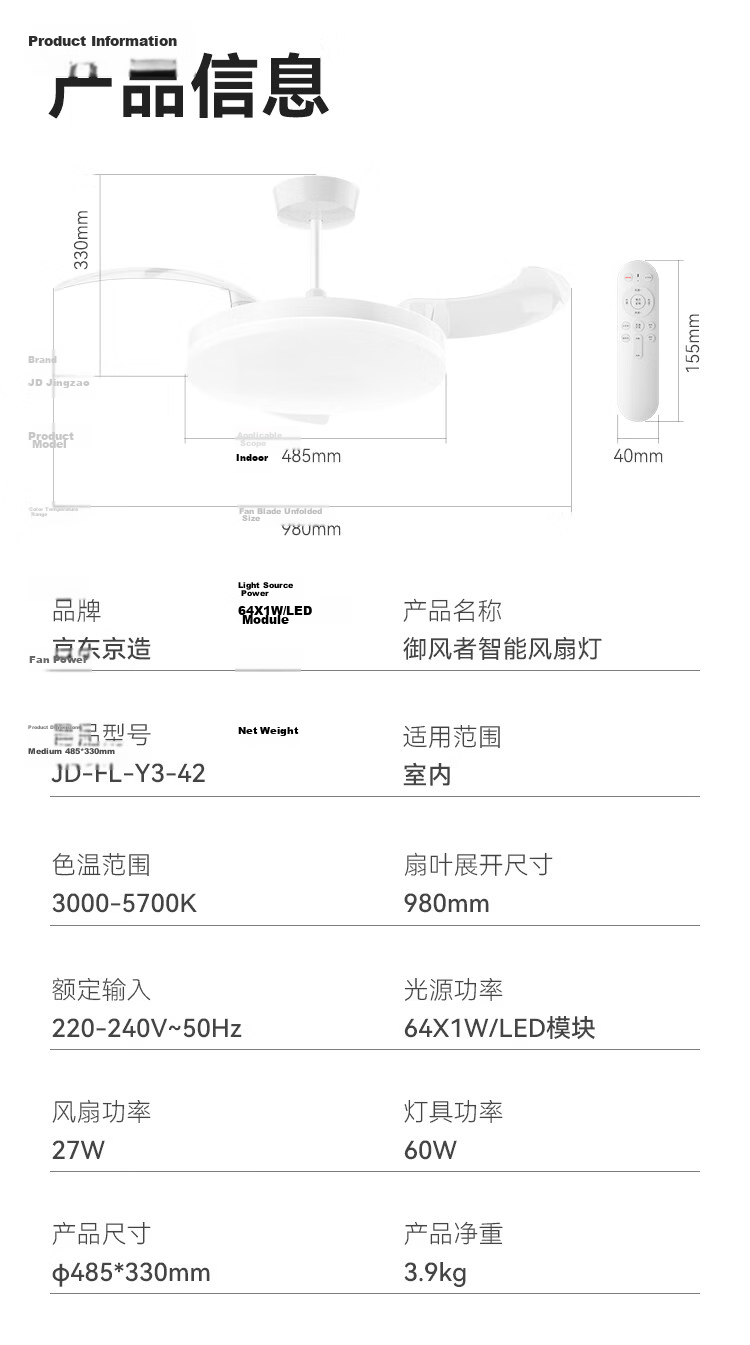

Product Specifications
Overview
- Brand
- JD Jingzao
- Product Name
- Yufengzhe Smart Fan Light
JD-FL-Y3-36 (36-inch)
JD-FL-Y3-42 (42-inch)
Additional details
- Application
- Indoor use, recommended room size
- 36-inch
- ≤20 m²
- 42-inch
- ≤30 m²

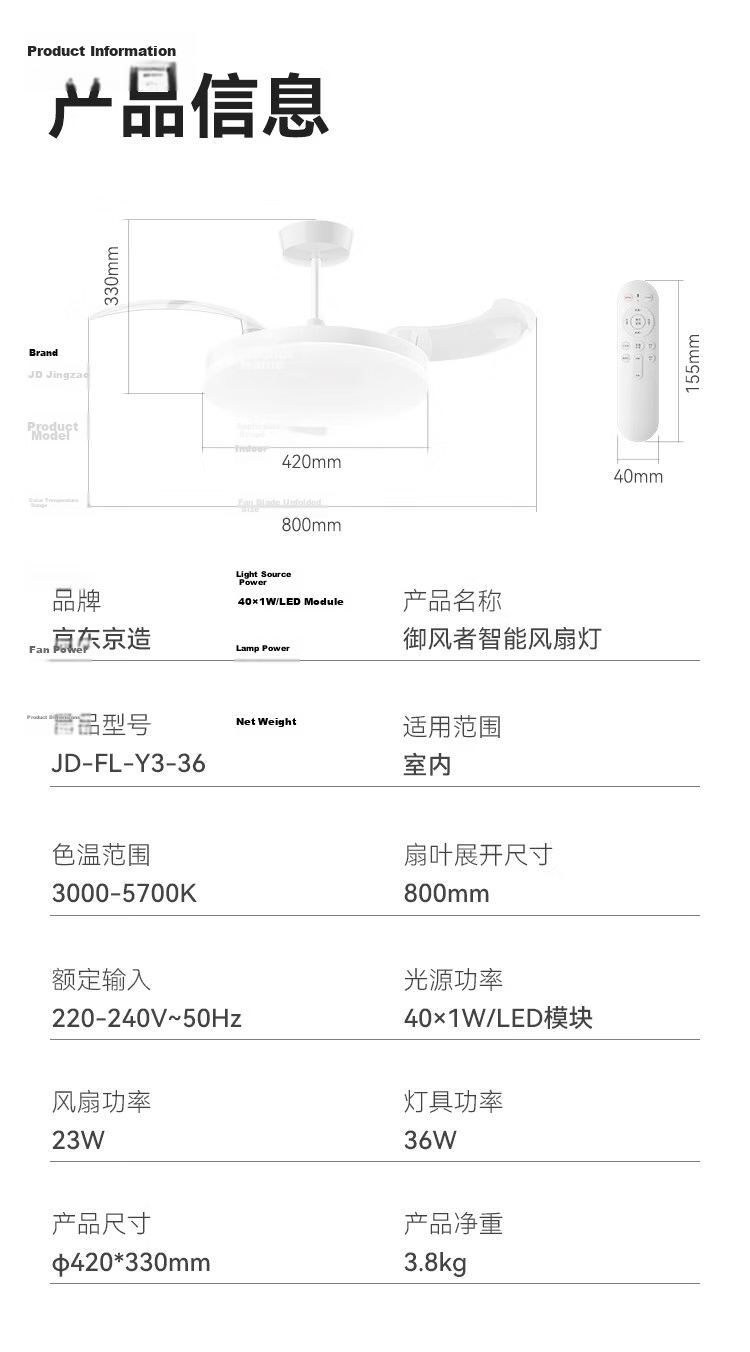

- JD-FL-Y3-36
- 420 mm (width) x 330 mm (depth) x 800 mm (fan blade diameter)
Similar Products
In Stock
In Stock

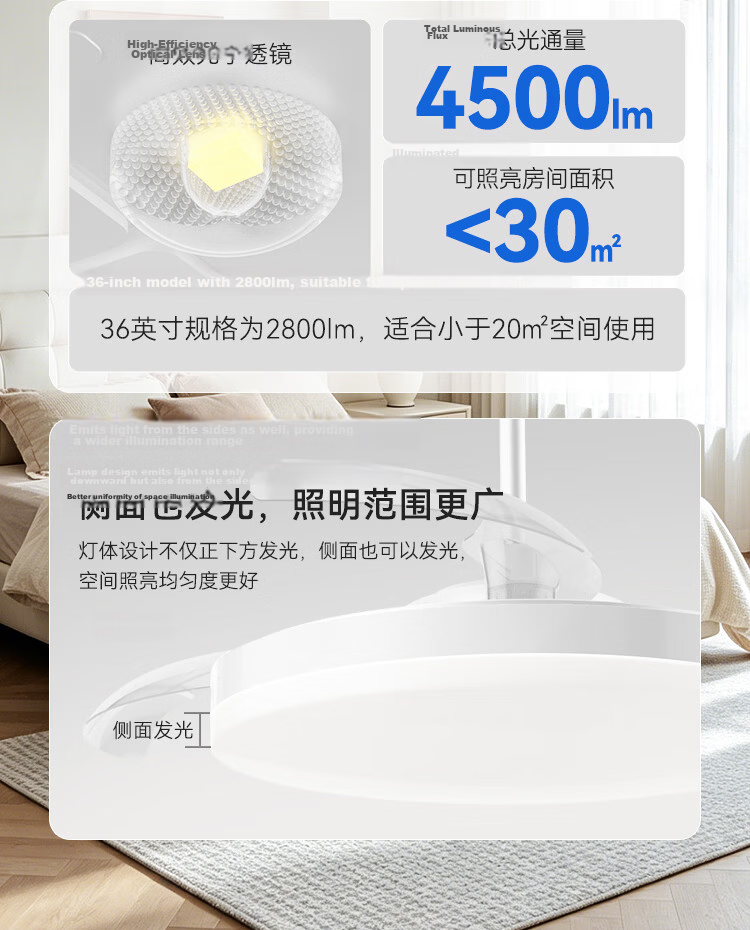

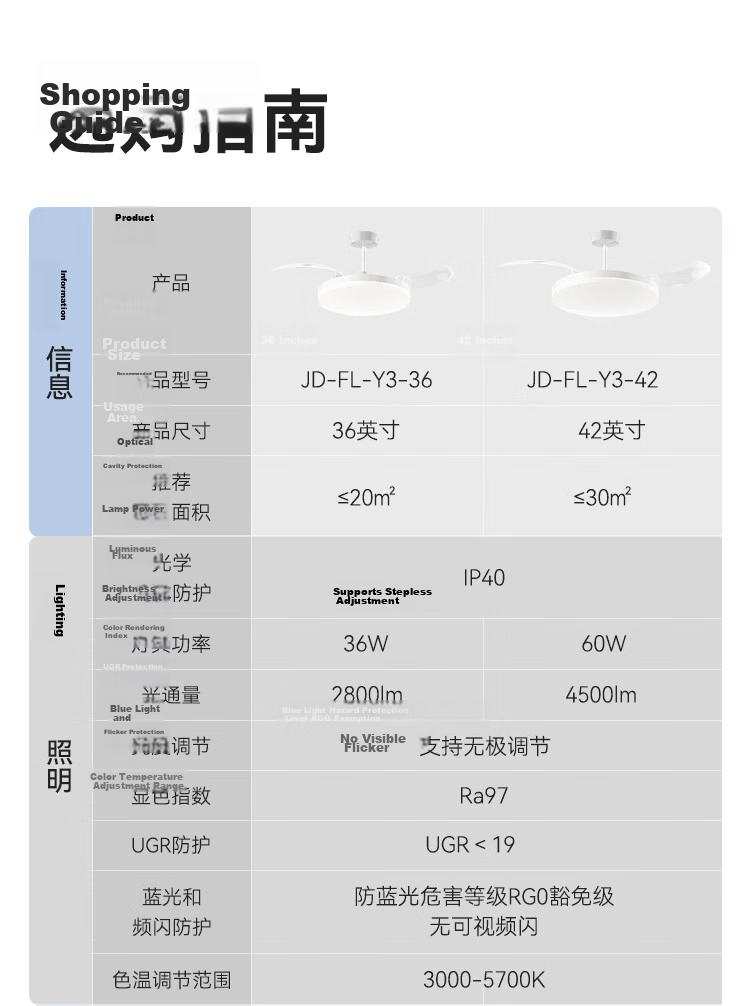

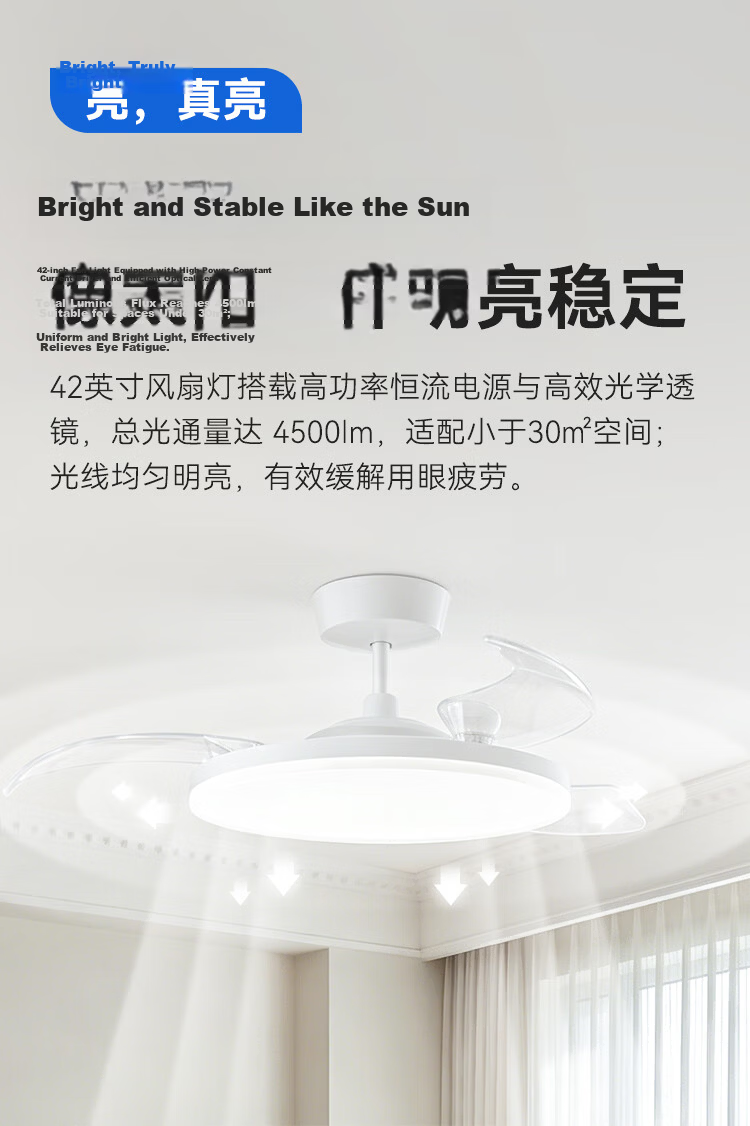

Is the brightness adjustable?Adjustable Maximum irradiation area20-30㎡ (inclusive) JD-FL-Y3-42485 mm (width) x 330 mm (depth) x 980 mm (fan blade diameter) Input Voltage220-240V~50Hz Light Source40x1W LED modules (36-inch), 64x1W LED modules (42-inch) Lamp Power36W (36-inch), 60W (42-inch) Luminous Flux2800 lm (36-inch), 4500 lm (42-inch) Color Temperature Range3000K to 5700K (stepless adjustable) Brightness Adjustment0.01% to 100% stepless dimming Color Rendering Index (CRI)Ra97, CQS 96, GFC 0.99 UGR (Unified Glare Rating)<19 Blue Light Hazard LevelRGO exemption level Flicker ProtectionNo visible flicker for video recording Optical Features

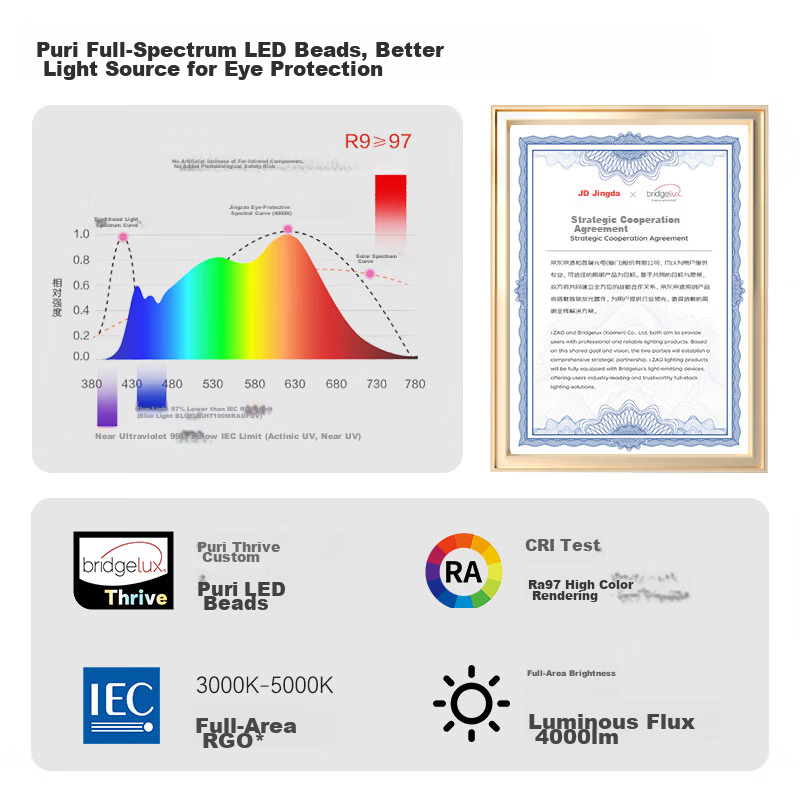

- High-efficiency optical lens, full-spectrum LED chips by Bridgelux Thrive and Osram (Solisduo UL diamond grade)
Additional details
- IP Rating
- IP40 (dust and insect protection)

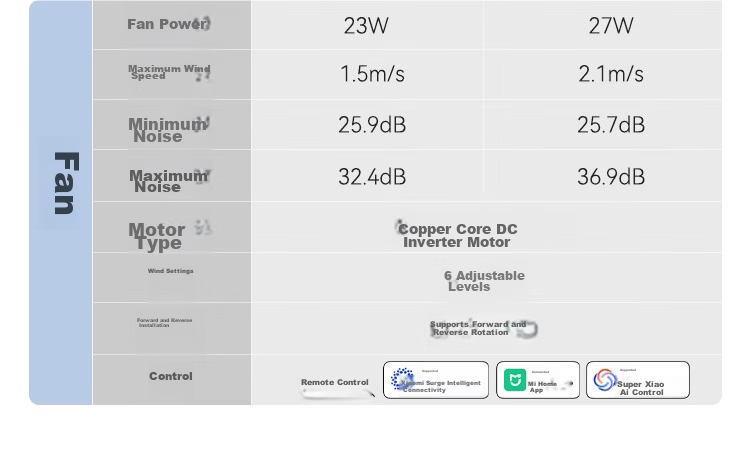

- Fan Power
- 23W (36-inch), 27W (42-inch)
- Maximum Wind Speed
- 1.5 m/s (36-inch), 2.1 m/s (42-inch)
- Noise Level (Minimum)
- 25.9 dB (36-inch), 25.7 dB (42-inch)
- Noise Level (Maximum)
- 32.4 dB (36-inch), 36.9 dB (42-inch)
- Motor Type
- Copper core DC inverter motor with AI chip control
- Fan Blades

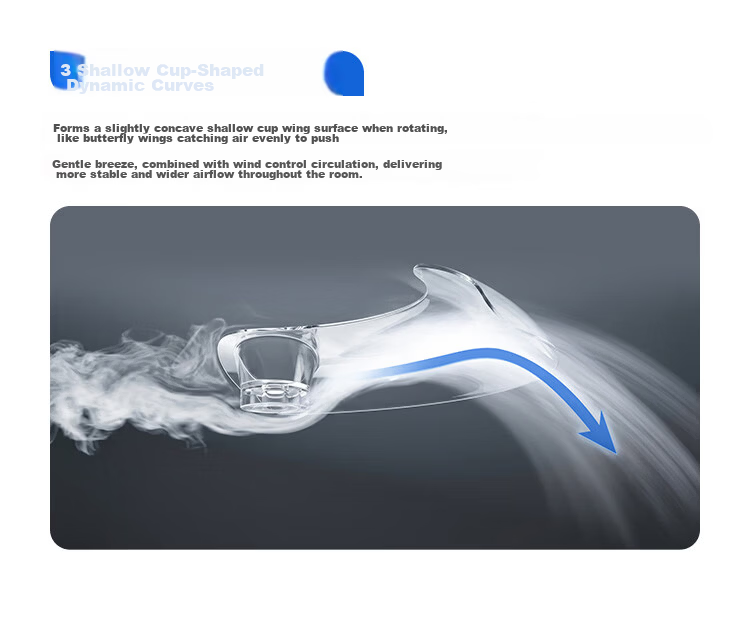

- 3 bionic shallow arc butterfly wing blades with dynamic curvature for smooth airflow and low noise
- Wind Speed Levels
- 6 adjustable gears
- Fan Rotation
- Supports forward and reverse rotation
Airflow Coverage
| Item | Detail |
|---|
| 36-inch | 1.5 m diameter golden airflow zone, effective environment airflow zone diameter 2 m, airflow volume 140 m³/min |
| 42-inch | 1.5 m diameter golden airflow zone, effective environment airflow zone diameter 2.5 m, airflow volume 210 m³/min |

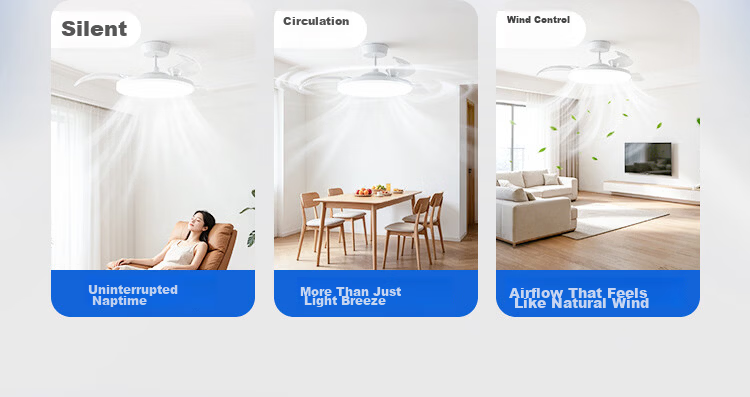

Special Features
- Natural wind mode with AI algorithm simulating natural wind speed curve
- Silent operation
- Circulating airflow for air conditioning and floor heating companion
Additional details

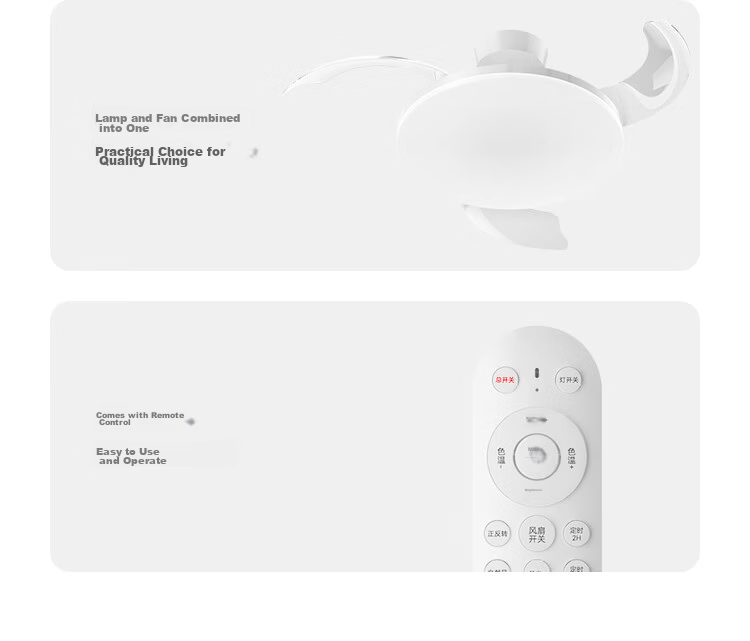

- Remote Control
- Included multifunctional remote
- Smart Home Integration
- Compatible with Xiaomi Surge Link, Mi Home App, and Xiao Ai voice control
Features
- Stepless dimming and color temperature adjustment
- 6-speed fan control
- Timer function
- Full ecosystem connectivity
Additional details
- Style
- Minimalist integrated design, one-button easy folding fan blades

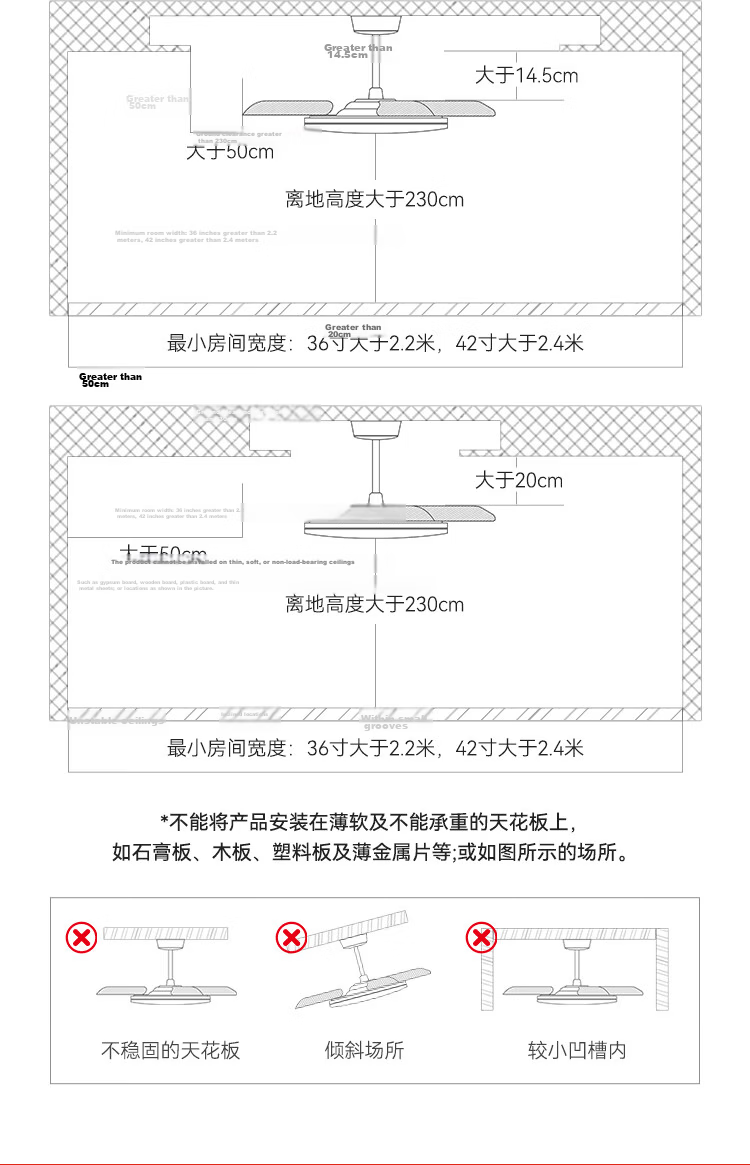

Installation Requirements
- Suitable for concrete ceilings only
- Ceiling must support at least 60 kg
- Minimum distance between fan blades and wall: >50 cm
- Minimum distance between fan blades and ceiling: per installation diagram
- Fan blade height from floor: >230 cm
- Minimum room width: 2.2 m for 36-inch, 2.4 m for 42-inch
- Not suitable for gypsum board, wood, plastic, thin metal, unstable or sloped ceilings
IP40 protection prevents insect and dust intrusion
Additional details
- Easy cleaning
- fan blades can be pulled out simultaneously for cleaning in power-off state
Suspension rod assembly ×1

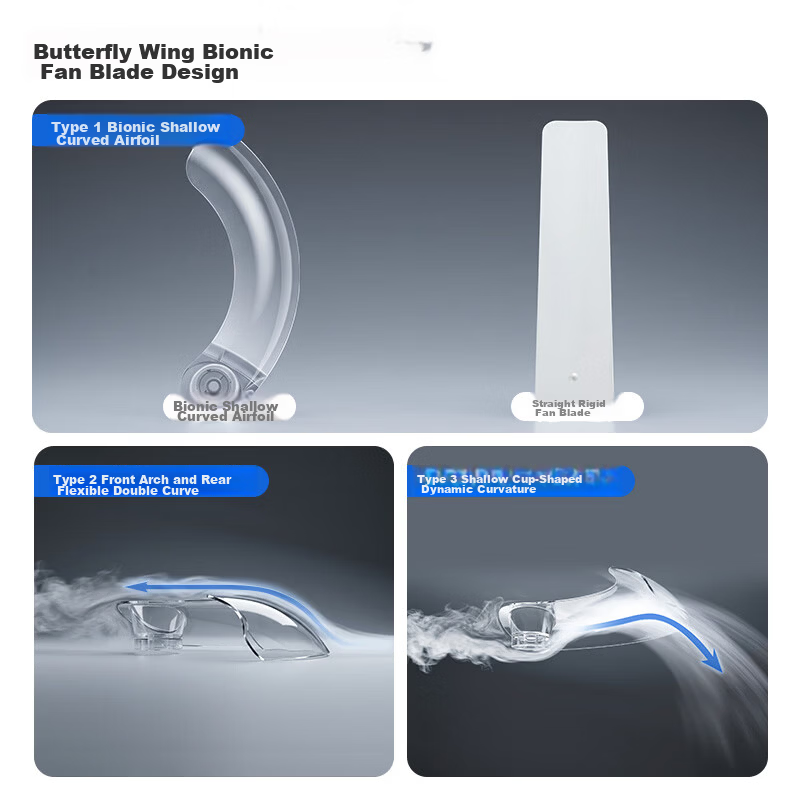

Butterfly wing bionic blade design for smooth, quiet airflow
Full-spectrum LED lighting with high CRI and low blue light hazard

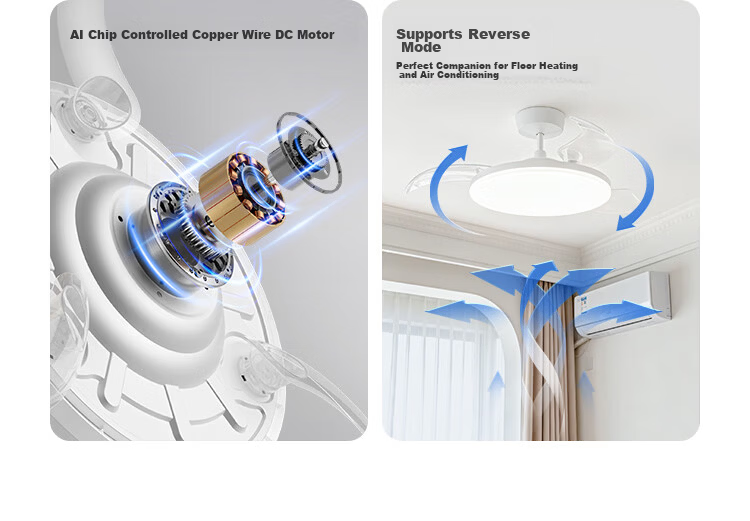

AI chip controlled copper wire DC motor for natural wind simulation and energy efficiency
Stepless dimming and color temperature adjustment (3000K-5700K)
Smart home ecosystem integration with Xiaomi platforms
IP40 protection for dust and insect resistance
Easy cleaning and maintenance

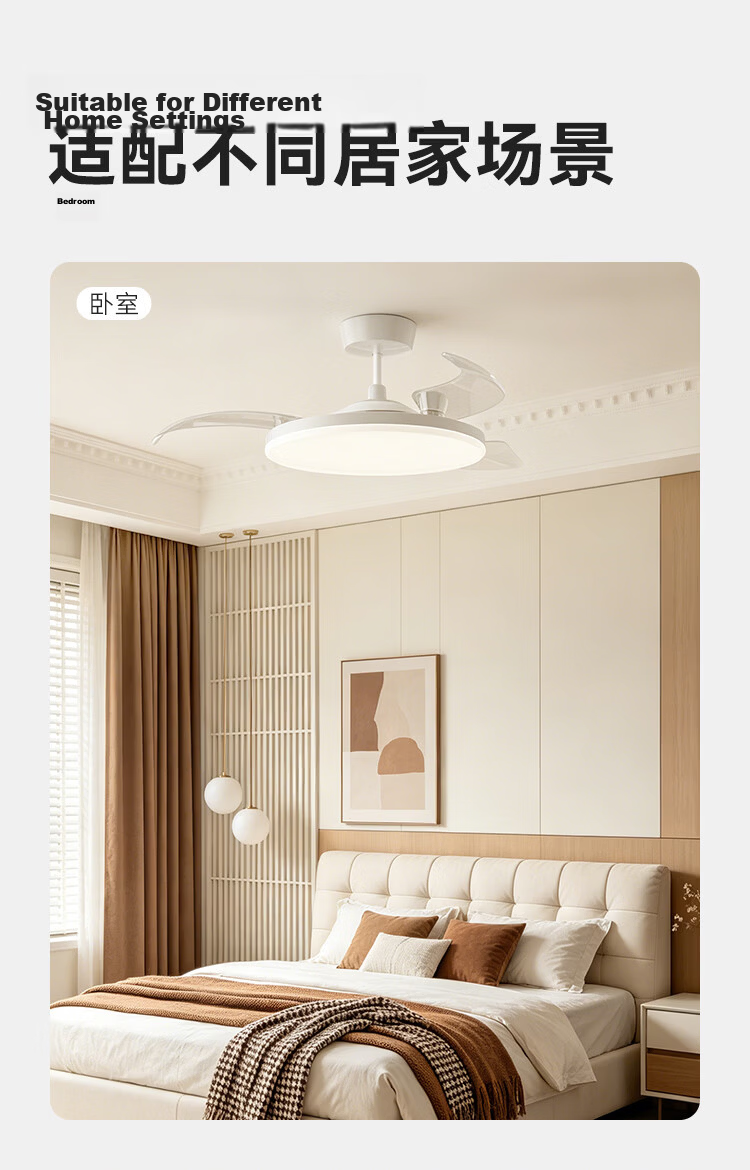

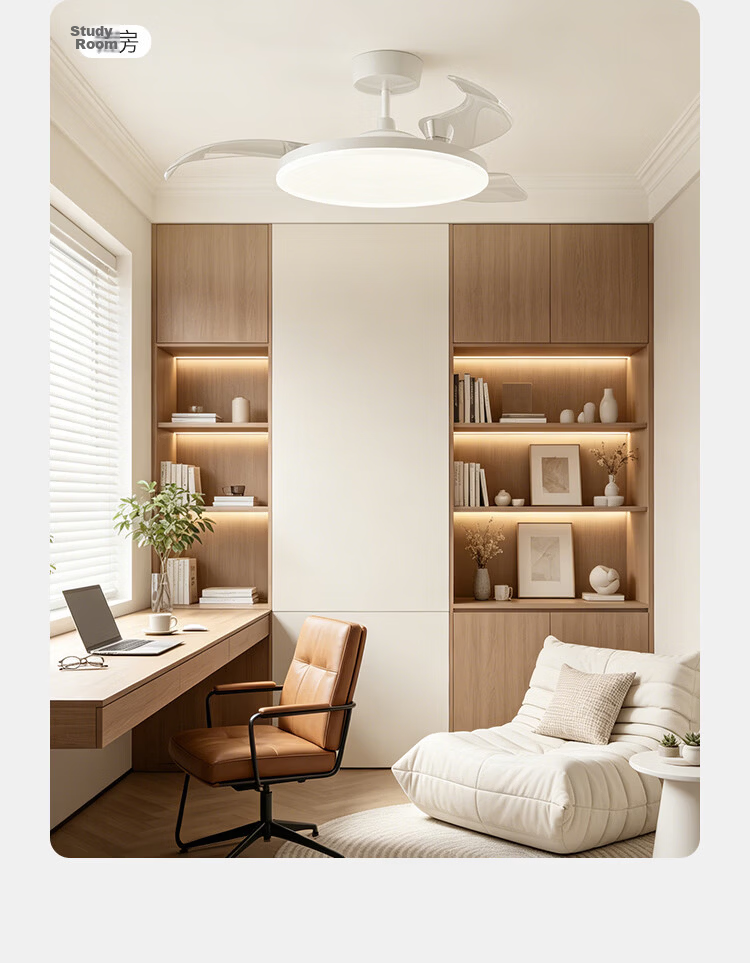

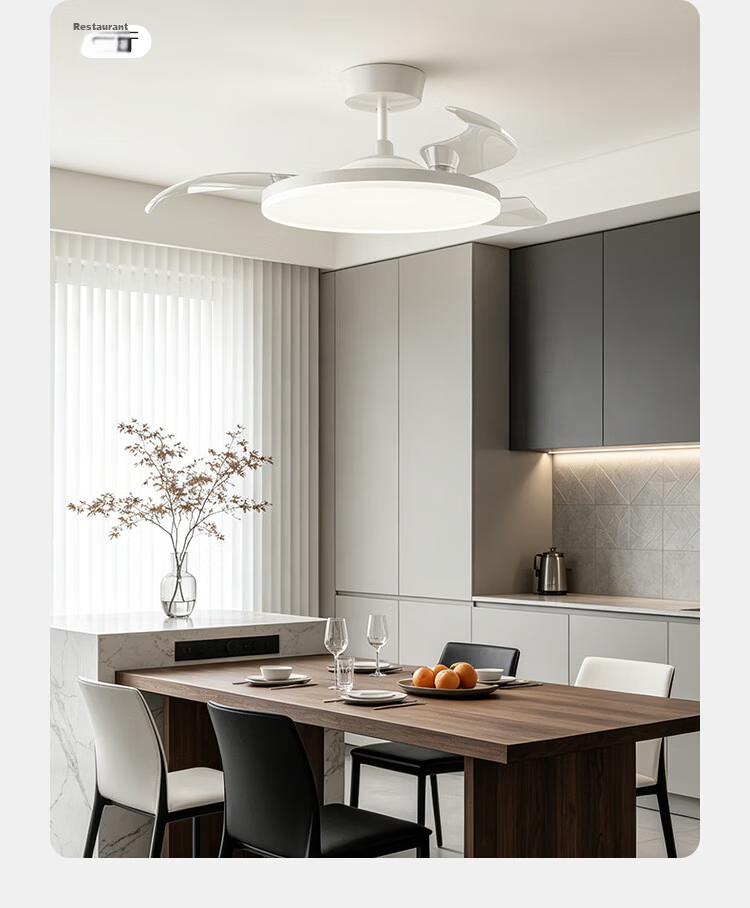

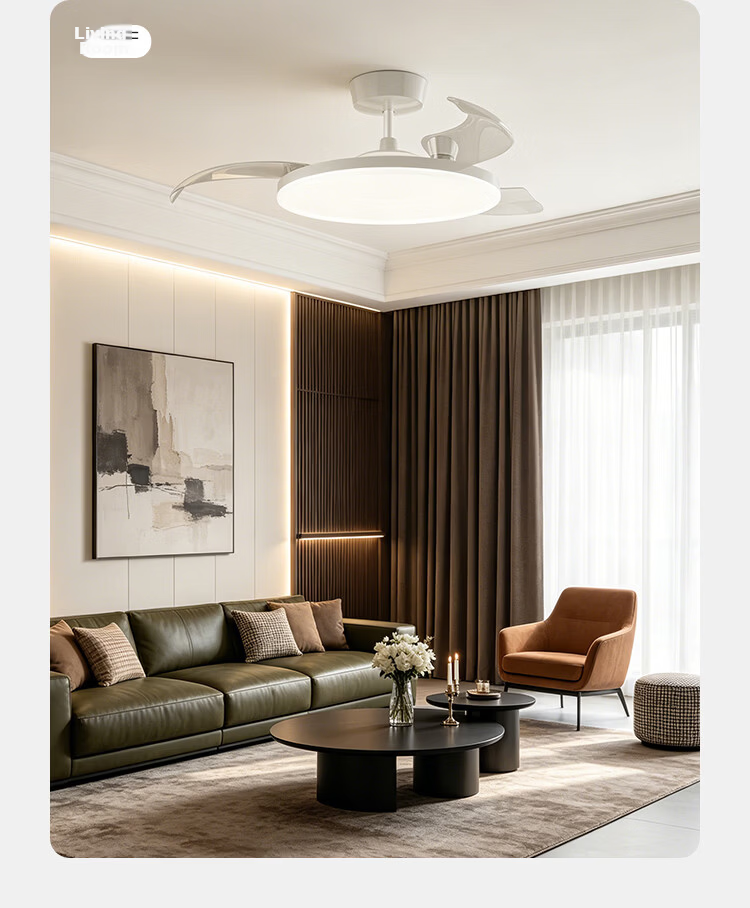

Suitable for various indoor spaces including bedrooms, living rooms, dining rooms, and studies
Combines lighting and fan in one unit for space-saving and aesthetic appeal
CRI Ra97, CQS 96, GFC 0.99
Blue light hazard level RGO exemption
Flicker-free for video recording

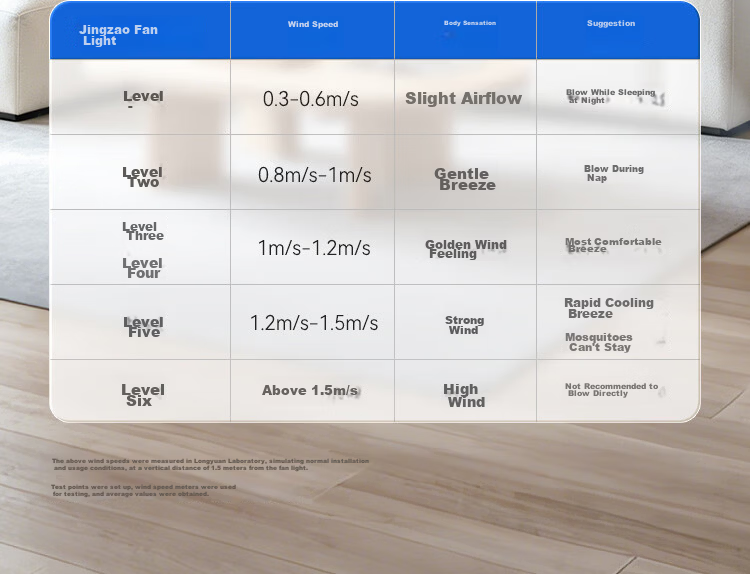

All wind speed and noise data measured under standard installation conditions at 1.5m vertical distance from fan center in laboratory settings.
