Back to CatalogNuoran STM32 Core Board Development Board Microcontroller Experiment Board [Imported Chip] STM32F103C8T6 Development Board with Downward Soldered Pin Headers
Specifications
- Industry application
- consumption, Other
Variants / Sale Attributes
Color: [Imported Chip] Development Board with Downward Soldered Pin Header
Package Contents
STM32F030C8T6 development board without soldered pin headers, 1 piece
Product Description
Product Specifications
Overview
- Brand
- Noran
- Product Series
- STM32 Series Minimum System Board Development Learning Board
- STM32F103C8T6 (Core
- Cortex-M3, 72 MHz, 64KB Flash, 20KB RAM, LQFP48 package)

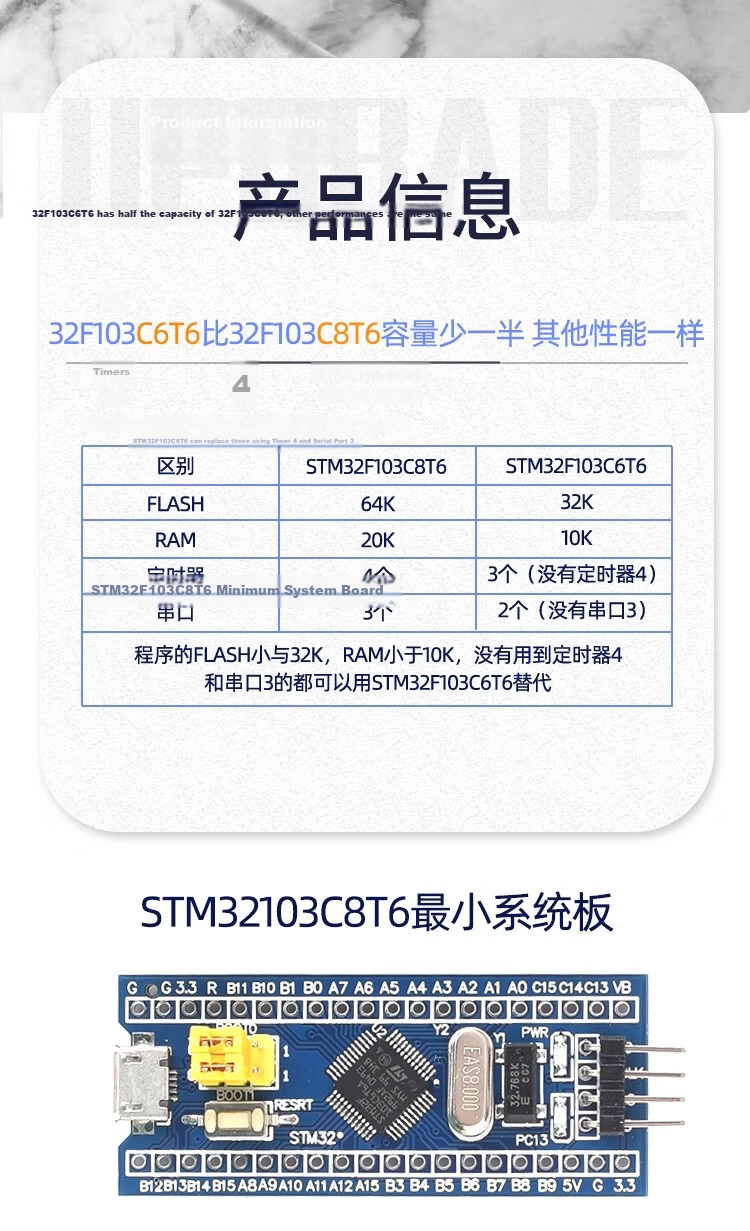

STM32F103C6T6 (Compatible with C8T6 pinout, 32KB Flash, 10KB RAM)
Additional details
- STM32F030F4P6 (Core
- Cortex-M0, 48 mm x 30 mm)
- STM32F401CCU6 (Core
- Cortex-M4, 84 MHz, 512KB Flash, 64KB SRAM)
Similar Products
In Stock
Out of Stock
In Stock
STM32FEBKC6T6 (Compatible with C8T6 pinout, 32KB Flash, 10KB RAM)
Additional details
- Main MCU
- STM32F103 series or STM32F4 series depending on model
- Clock
- 8 MHz crystal oscillator with internal PLL up to 72 MHz; high-precision 32.768 kHz Epson RTC crystal oscillator
- Power Supply
- 3.3V regulated output with up to 800mA current; supports 5V input; LDO regulator onboard
Interfaces
- Mini USB port for power supply and USB communication
- Micro USB interface (on some models) with USB communication and DFU bootloader support
- Standard 2.54mm pitch 1x40 or 2x20 pin headers for I/O expansion
- SWD debug interface compatible with JLink, STLink, ULINK, supporting 2-4 wire SWD mode
- UART serial port for TTL download and communication (USB to TTL cable supported)
- BOOT selection jumper and buttons for boot mode switching and reset
Indicators
- Power LED
- User LED controlled via PC13 pin for testing
Memory
| Item | Detail |
|---|
| Flash | 32KB to 512KB depending on MCU |
| RAM | 10KB to 128KB depending on MCU |
Additional details
- Package
- TQFP48 or LQFP48
- PCB
- Gold immersion process for stable operation
- Dimensions

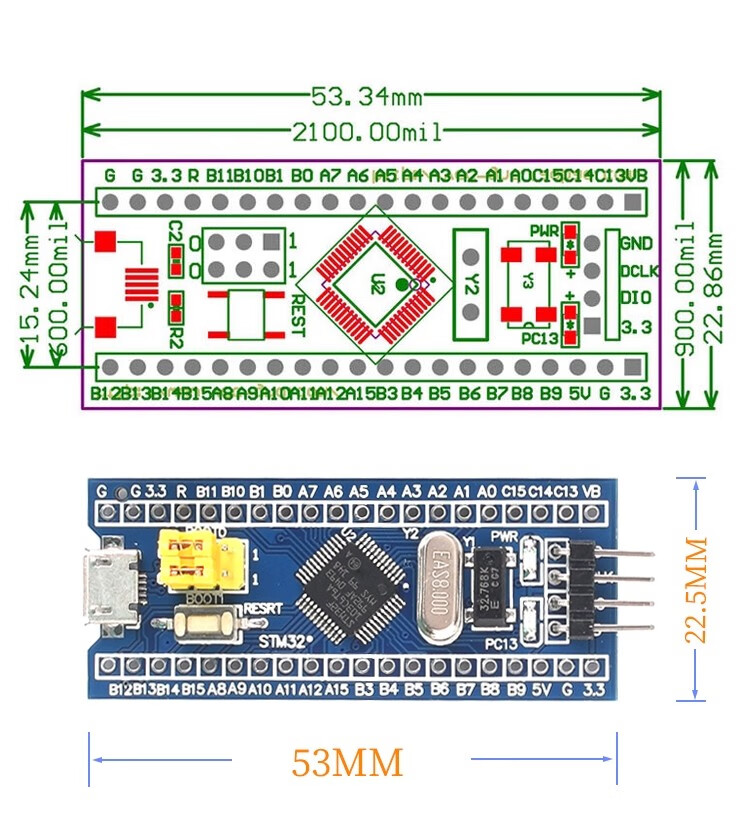

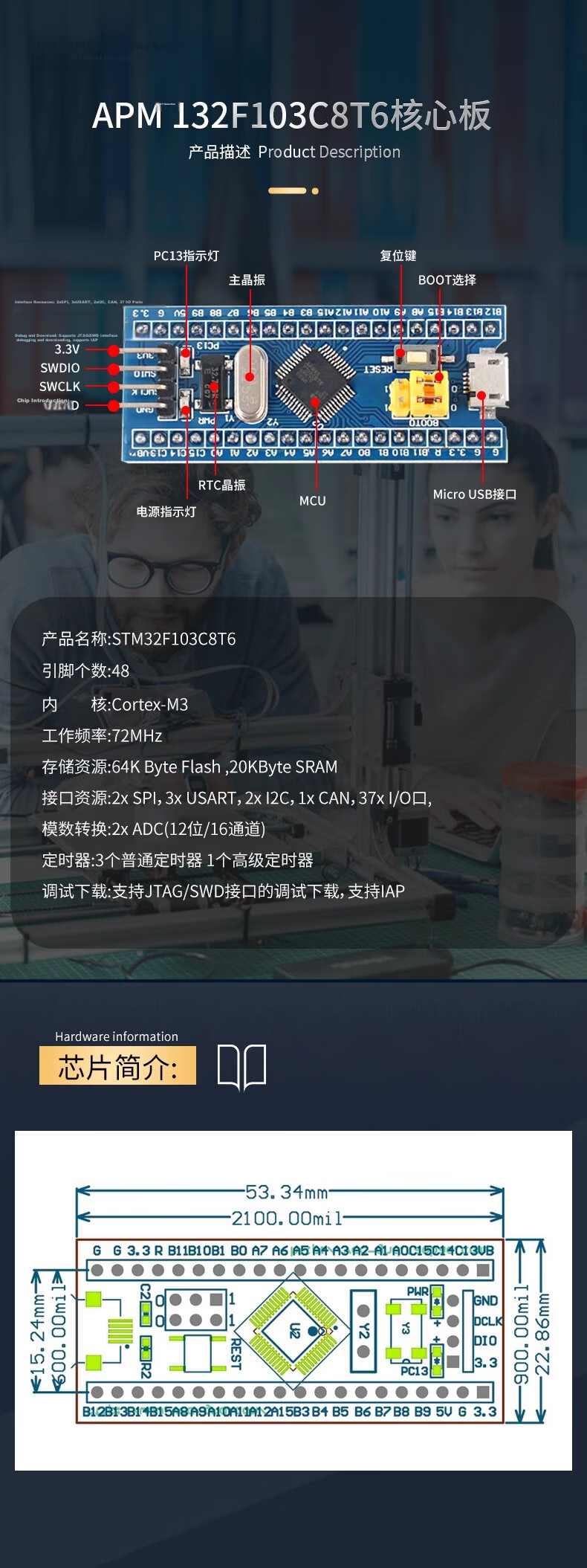

- Typical sizes include 53.34 mm x 24 mm, 66 mm x 26 mm, 48 mm x 30 mm depending on model
Basic MCU circuit with power, clock, reset, and indicator LEDs onboard
Compatible with standard STM32 development tools and debuggers
Supports ISP and DFU firmware download modes
Boot mode can be switched via BOOT and reset buttons without jumper changes

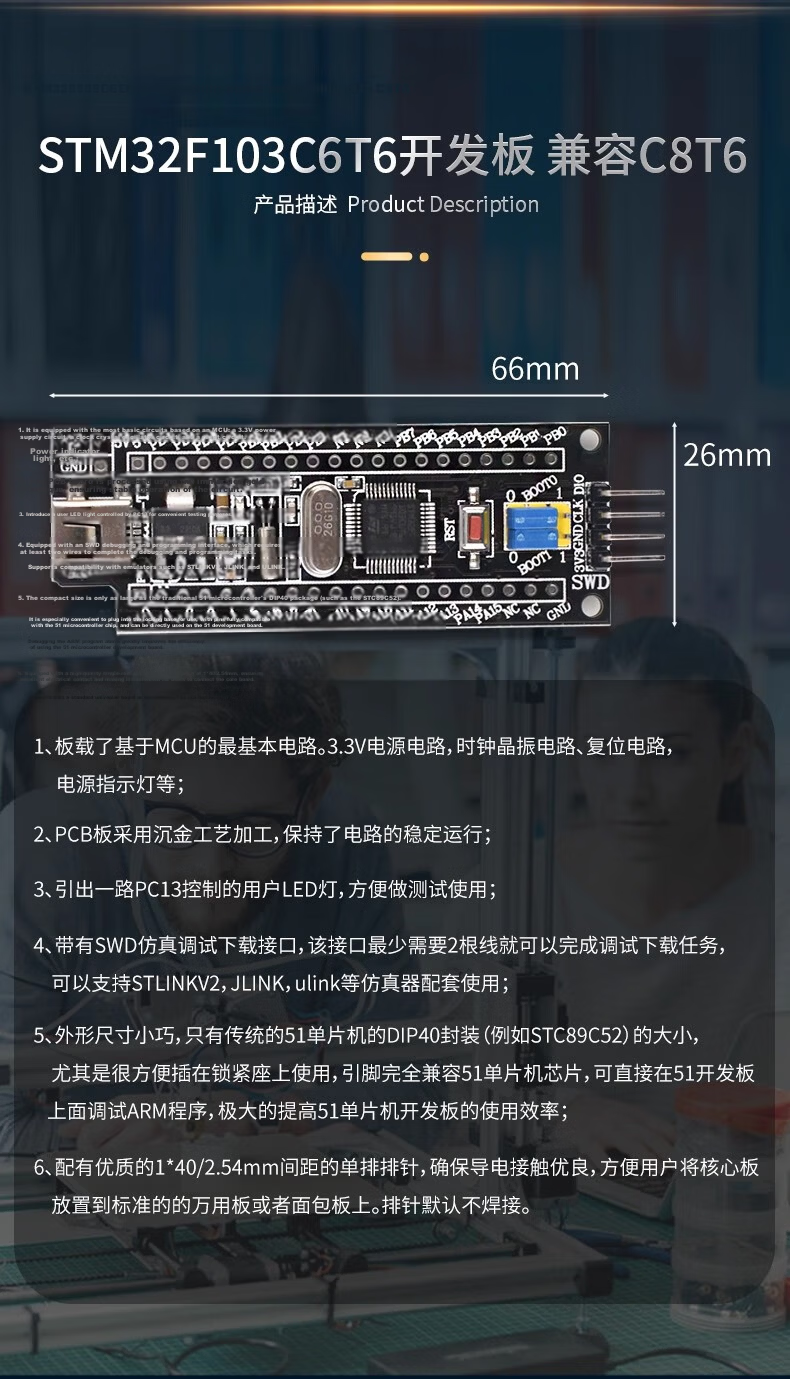

Compatible with 51 MCU DIP40 socket for easy ARM program debugging on existing 51 development boards
High-quality crystal oscillators ensure stable clock operation
Supports USB to TTL serial communication for programming and debugging
Supports MicroPython with external flash recommended for STM32F401 due to memory constraints

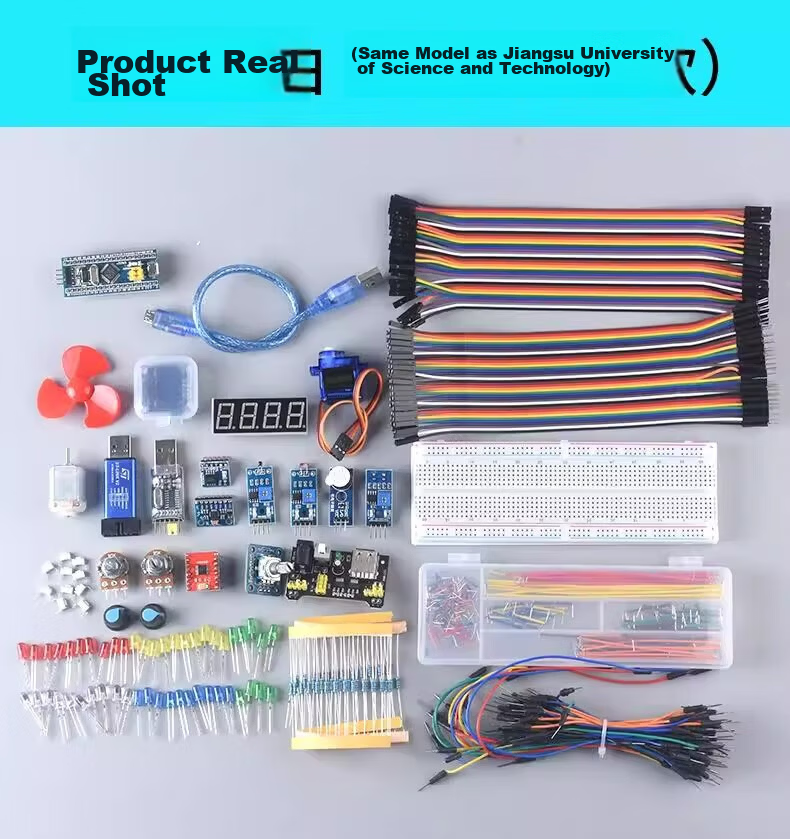

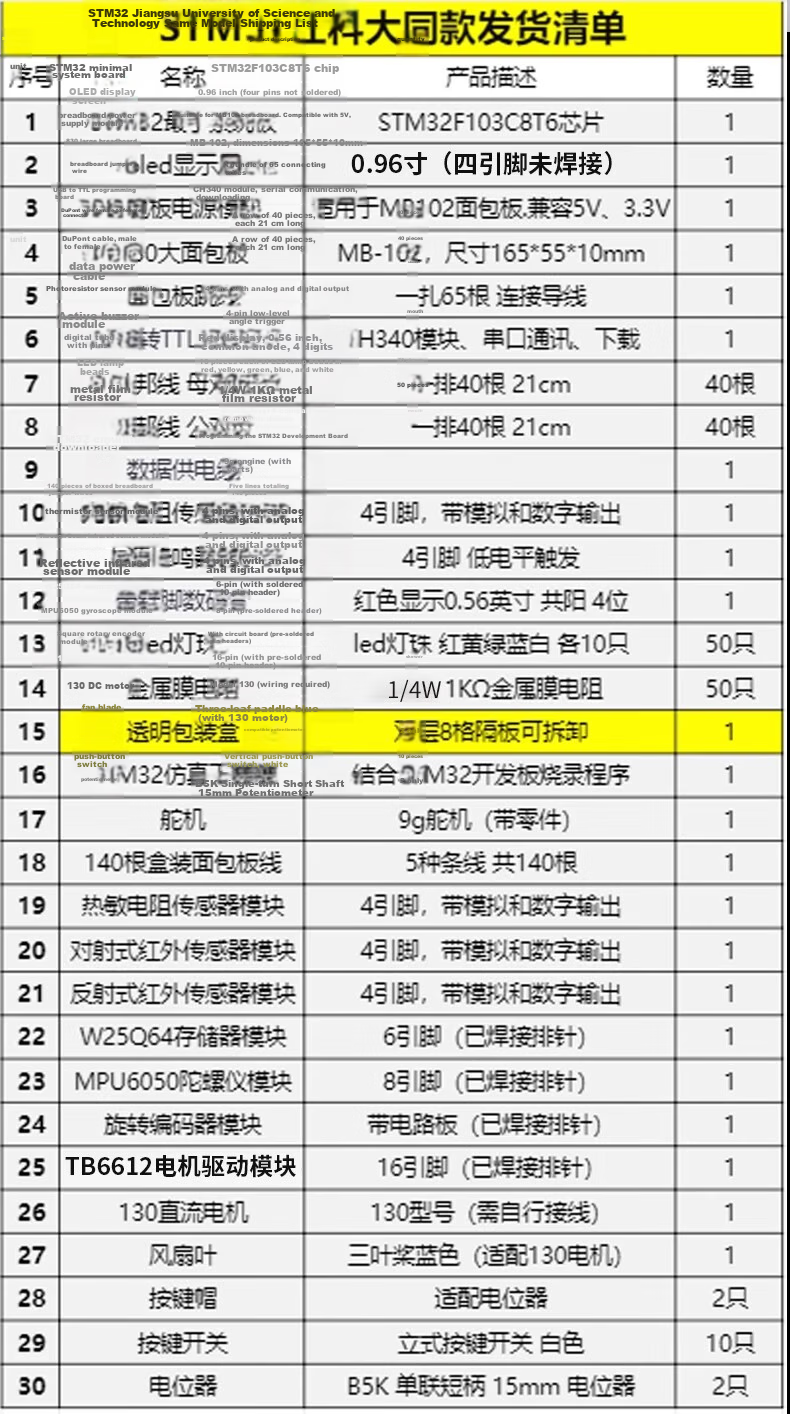

1. STM32 Minimum System Board with STM32F103C8T6 MCU
2. 0.96-inch OLED Display (4-pin pre-soldered)
3. Breadboard Power Module (compatible with MB102, supports 3.3V and 5V)
4. Large Breadboard (165mm x 55mm x 10mm)
5. Breadboard Jumper Wires (65 pieces)
6. USB to TTL Programmer Board (CH340 module)
7. Female-to-Female Dupont Wires (40 pieces, 21cm)
8. Male-to-Female Dupont Wires (40 pieces, 21cm)
9. Data Power Cable (30cm, shielded, blue)
10. Photoresistor Sensor Module (4-pin, analog and digital output)
11. Active Buzzer Module (4-pin, low-level trigger)
12. 4-digit 0.56-inch Red 7-segment Display (common anode)
13. LED Lamp Beads (Red, Yellow, Green, Blue, White; 10 pieces each)
14. Metal Film Resistors (1/4W, 1KΩ, 50 pieces)
15. Transparent Double-layer Storage Box with 8 removable compartments
MCU I/O pins exposed with silk screen for easy connection
Power input/output pins for 3.3V and 5V modules
Additional details
- SWD interface pins

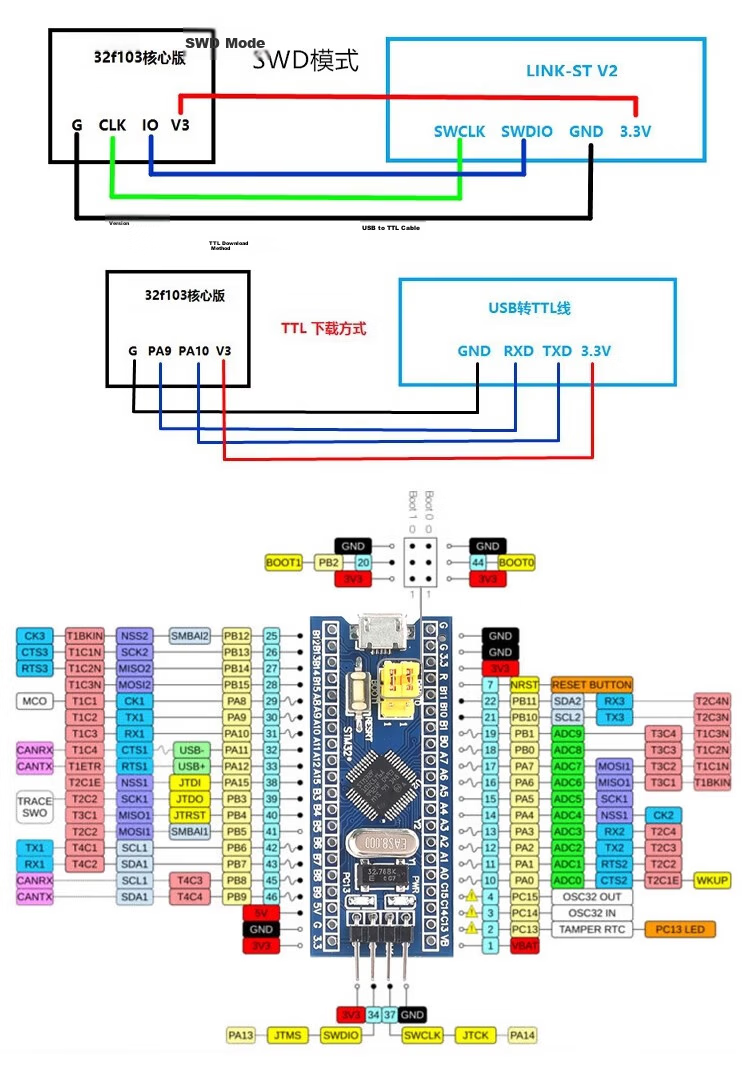

- SWDIO, SWCLK, GND, 3.3V
- UART pins
- RX, TX, GND, 3.3V
BOOT selection pin and reset button
User LED connected to PC13 pin
Micro USB or Mini USB power and communication interface
ISP download interface supported
Default firmware includes breathing LED effect
Firmware download via SWD, UART TTL, or DFU mode

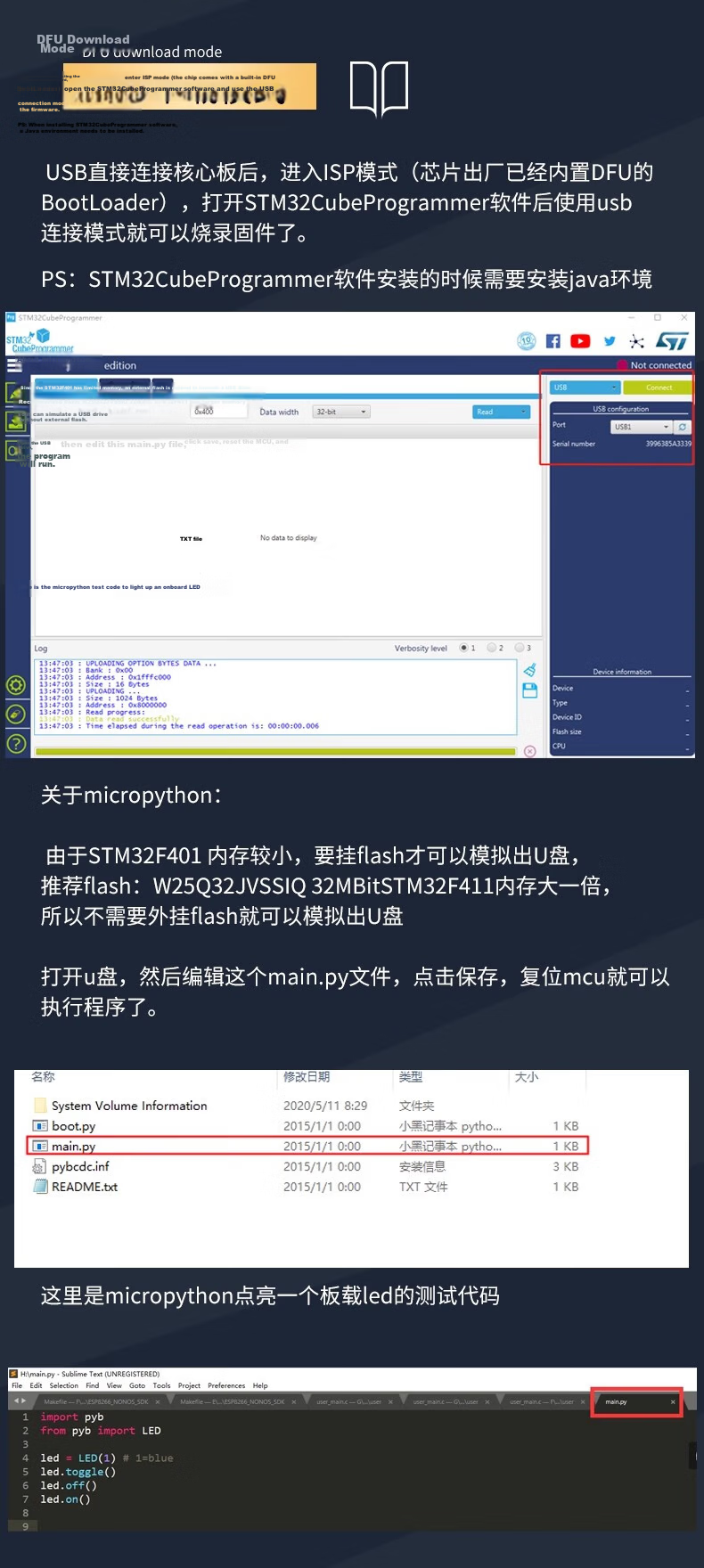

STM32CubeProgrammer recommended for firmware flashing (requires Java environment)
MicroPython supported on STM32F4 series with external flash recommended for USB mass storage simulation
Dimensions are approximate and measured manually; actual product may vary slightly
Pin headers are not soldered by default for user customization
Compatible with standard STM32 development tools and third-party debuggers
This product is ideal for embedded system learning, rapid prototyping, and development with STM32 microcontrollers.
